Product type	Cordless Hedge Trimmer
Brand	Kress
Model	KG285.9
Rated voltage	40 V (2 x 20 V)
No-load speed	3400 rpm
Blade length	61 cm
Cutting length	58 cm
Tooth spacing	33 mm
Max cutting diameter	27 mm
Weight (bare tool)	2.7 kg
Battery type	Lithium-Ion 20 V
Recommended battery capacity	2.0 Ah (model KAB02)
Recommended charger	KAC04 (4.0 A)
Sound pressure level	84.65 dB(A)
Sound power level	95.65 dB(A)
Vibration emission value	2.39 m/s²
Rotating rear handle	Yes (0°, 45°, 90°, 135°, 180°)
Battery charge indicator	Yes (5 green LEDs)
Blade protection	Protective sheath included
Intended use	Domestic garden, hedges and bushes
Operating temperature	0 °C to 45 °C
Charging temperature	0 °C to 40 °C
Safety	Double switch, protective shield

Frequently Asked Questions - KG285.9 KRESS

How to charge the battery of the Kress KG285.9 hedge trimmer?

Use the recommended KAC04 charger. Plug the charger into a mains socket, insert the battery into the charger. The charger LED indicates progress. Always charge both batteries at the same time. Ambient temperature should be between 0 °C and 40 °C.

What type of battery to use with this hedge trimmer?

This hedge trimmer requires two identical 20 V Lithium-Ion batteries, preferably the KAB02 2.0 Ah model. Only use compatible Kress batteries.

How to install the battery on the hedge trimmer?

Insert each battery into its compartment at the rear of the device until it clicks. To remove, press the release buttons and pull. The machine only operates with two batteries installed.

How to start and stop the hedge trimmer?

To start, press the lock button then squeeze the trigger. To stop, release the trigger. Wait for the blade to stop completely before setting down the tool.

How to rotate the rear handle?

First unlock the lock switch, then turn the handle to the desired position (0°, 45°, 90°, 135° or 180°). You will hear a click when it locks. Never rotate the handle during operation.

How to lubricate the cutting blade?

Use a standard lubricating oil like WD-40. Apply a thin layer to the blade teeth, preferably after each use or when cutting becomes difficult. Avoid excess oil.

What to do if the blade jams?

Immediately release the trigger and lock button. Remove the batteries before removing debris stuck in the blade. Wear protective gloves. Check that the blade is not damaged before restarting.

What is the maximum branch diameter that can be cut?

The maximum cutting diameter is 27 mm. For thicker branches, use pruning shears. The tooth spacing is 33 mm.

What safety equipment is recommended?

Always wear safety glasses, a dust mask, gardening gloves, and hearing protection. Use non-slip shoes. Avoid loose clothing.

How to maintain the Kress KG285.9 hedge trimmer?

Clean the tool with a dry cloth after each use. Lubricate the blade regularly. Check the fixing screws. Store the device in a dry place, with the protective sheath on the blade. Remove the batteries for storage.

USER MANUAL KG285.9 KRESS

Side view of a black-handled hair clip with blade and handle (no text or symbols visible)

40V Cordless Hedge Trimmer	EN	P02
Akku-Heckenschere 40 V	D	P13
Taille-haie sans fil 40 V	F	P25
Tagliasiepi a batteria 40V	I	P37
Recortadora de setos sin cable 40V	ES	P49
40 V snoerloze heggenschaar	NL	P61
Batteridrevet 40 V hækklipper	DK	P73
Аккумуляторная машинка для подстригания живой изгороди на 40 В	RU	P84
40 V sladdlös häcktrimmer	SV	P97
KG285 KG285.X

TABLE OF CONTENTS

INTRODUCTION....2

COMPONENT LIST....3

SAFETY INSTRUCTIONS......4

OPERATINGINSTRUCTIONS....7

MAINTENANCE....10

TECHNICAL DATA....10

ENVIRONMENTAL PROTECTION....11

DECLARATION OF CONFORMITY....11

INTRODUCTION

EN

Dear Customer,

Thank you for buying this Kress product. We are dedicated to developing high quality products to meet your landscaping requirements.

The Kress brand is synonymous with premium quality service. Over the years of your products life, if you have any questions or concerns about your product, please contact your location of purchase or our Customer Service Team for assistance.

We are confident you will enjoy working with your Kress product for years to come.

INTENDED USE

The machine is intended for cutting and trimming hedges and bushes in residential use.

Technical diagram of a hair clip with numbered parts for identification

EN

COMPONENT LIST

1. ROTATING REAR HANDLE
2. POWER INDICATOR LIGHT
3. BATTERY PACK*
4. FRONT HANDLE
5. OPERATOR PRESENCE SWITCH (ALL AROUND SWITCH FUNCTION)
6. SAFETY GUARD
7. BLADE
8. BLADE SHEATH
9. LOCKING SWITCH FOR ROTATING
10. THROTTLE TRIGGER
11. BATTERY PACK RELEASE BUTTON* (SEE FIG. E)

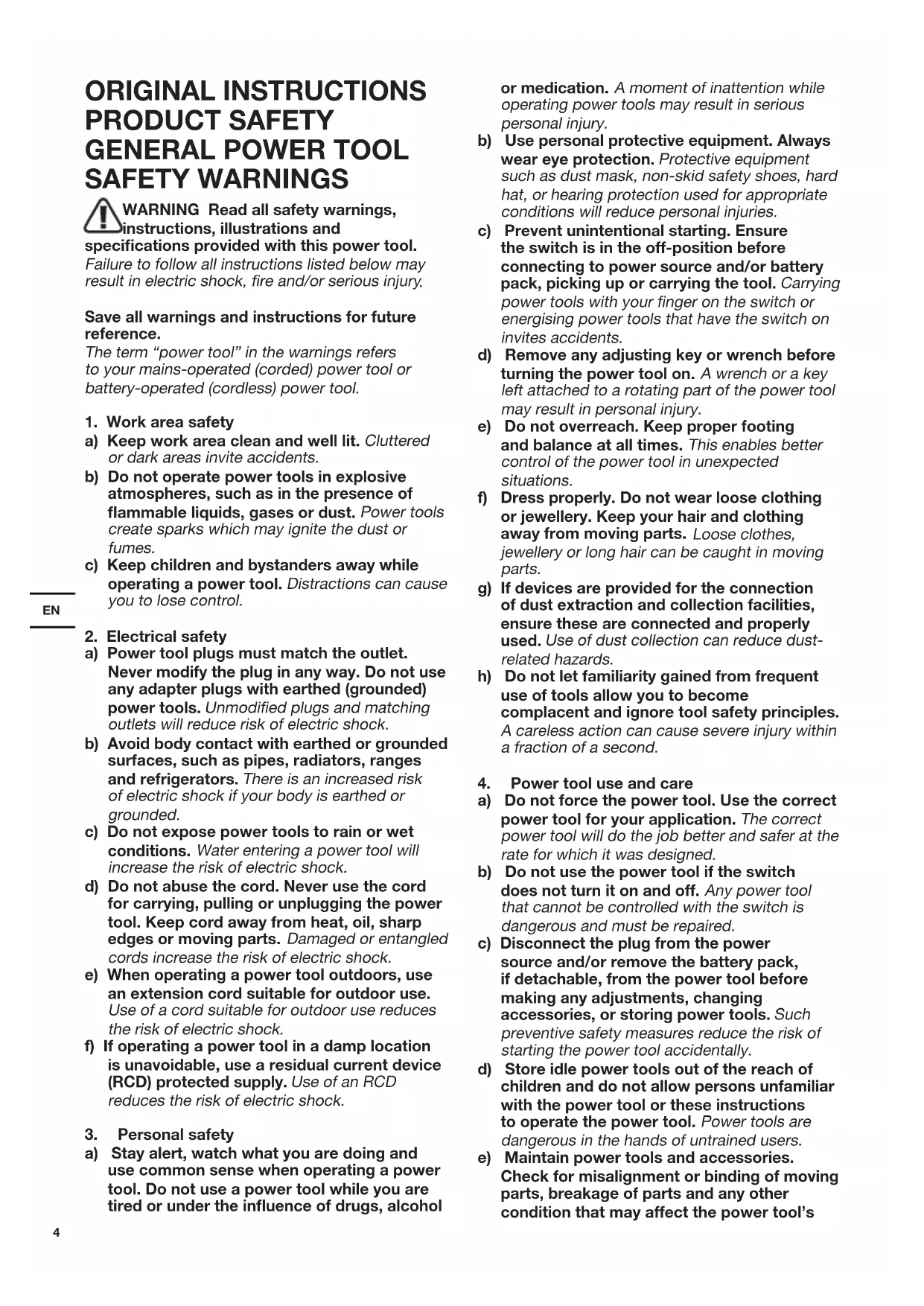

ORIGINAL INSTRUCTIONS PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety
   a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

1. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol

or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

1. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's

operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

1. Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

1. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized

service providers.

HEDGE TRIMMER SAFETY WARNINGS

a) Keep all parts of the body away from the blade. Do not remove cut material or hold material to be cut when blades are moving.
Blades continue to move after the switch is turned off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
b) Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
c) When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.
d) When clearing jammed material or servicing the unit, make sure all power switches are off and the battery back is removed or disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.
e) Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.
f) Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.
g) Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
h) Check the hedges and bushes for foreign objects, e.g. wire fences and hidden wiring.
i) Hold the hedge trimmer properly, e.g. with both hands if two handles are provided.
j) The hedge trimmer is intended to be used by the operator at ground level and not on ladders or any other unstable support.
k) Before operating the hedge trimmer, the user should make sure the locking device(s) of any moving elements (e.g. the extended shaft and pivoting element), if any, are in the locked position.
I) Have any adjustable stopping mechanism maintained at regular intervals.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or

battery pack.

b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Keep battery pack clean and dry.
g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
i) Do not maintain battery pack on charge when not in use.
j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.
I) Do not use any battery pack which is not designed for use with the equipment.
m) Keep battery pack out of the reach of children.
n) Retain the original product literature for future reference.
o) Remove the battery from the equipment when not in use.
p) Dispose of properly.
q) Do not mix cells of different manufacture, capacity, size or type within a device.
r) Keep the battery away from microwaves and high pressure.

SYMBOLS

	To reduce the risk of injury, user must read instruction manual
	Warning

	Wear ear protection
	Wear eye protection
	Wear dust mask
	Do not expose to rain
	Do not burn
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Li-lon battery This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.
Li-lon
	Keep hands away from blade
	Remove battery from the socket before carrying out any adjustment, servicing or maintenance.
	Wear protective gloves.
	Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

Warning! Do not use the product without attaching the guard and front handle.

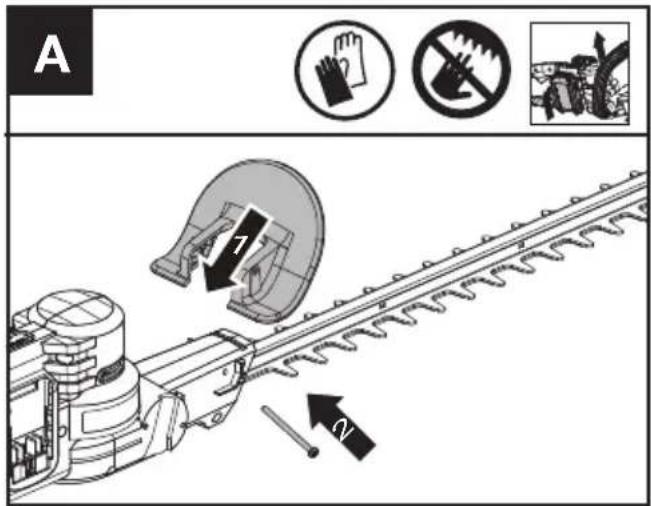

Assembling the safety guard (See Fig. A)

A 7 v

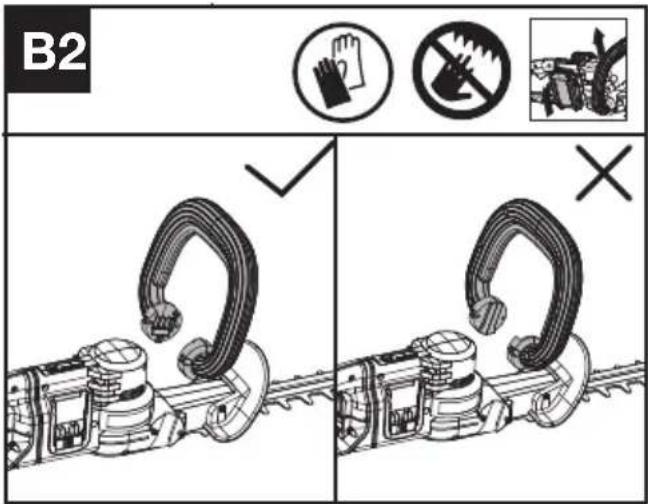

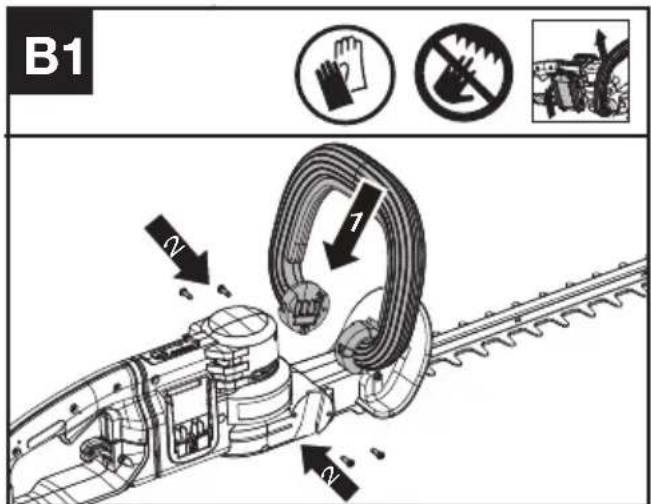

Assembling the front handle (See Fig. B1, B2)

NOTE : The handle is designed to prevent being assembled in wrong direction. If you find it cannot be installed, please turn it around.

B1 7

B2 ✓ ×

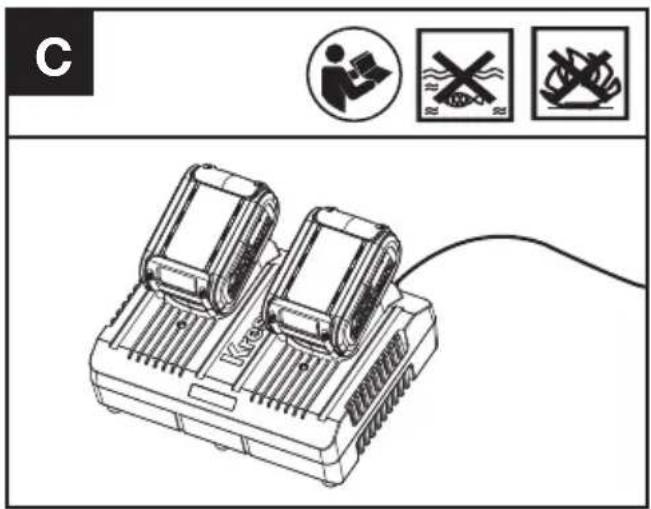

Charging the battery pack (See Fig. C)

NOTE:

• The batteries are shipped uncharged. Each battery must be fully charged before the first use.
• Always fully charge the two batteries at same time. More details can be found in charger's manual.

C

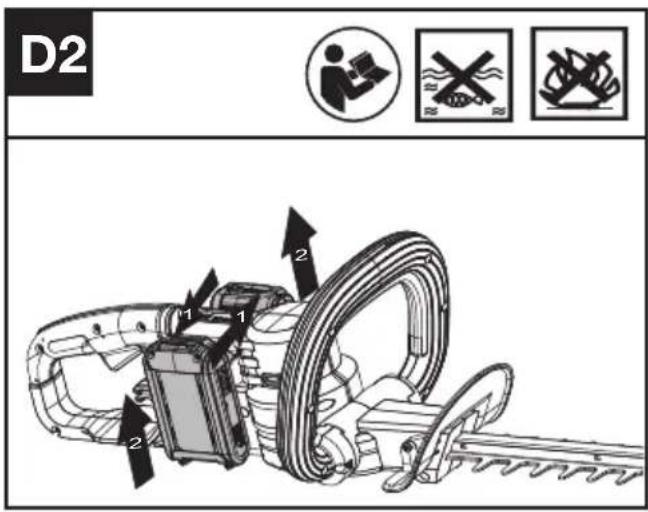

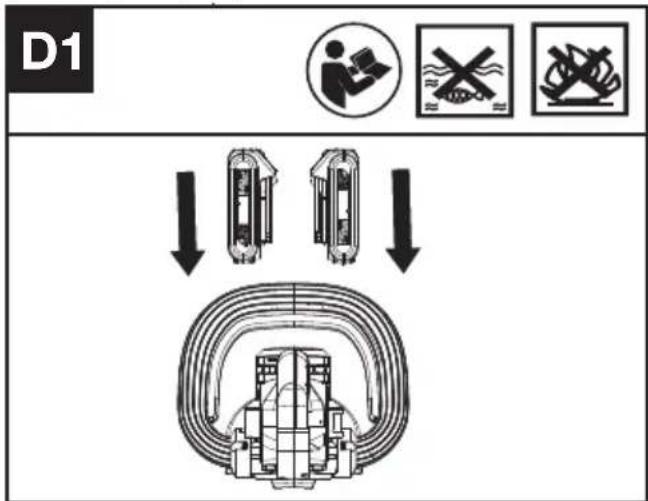

Installing and Removing the battery pack (See Fig. D1, D2)

D1 ↓ ↓ ↓

D2 1 2 1 2

NOTE :

• This machine will only run when 2 batteries are installed. It is recommended to use the same two batteries and charge the two batteries at the same time.
• When you use two batteries with different power, the machine will only run to the lower common denominator.

OPERATION

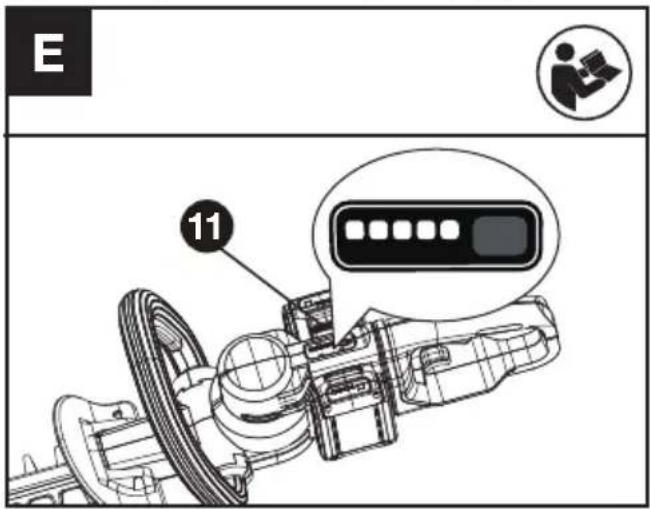

Power indicator light (See Fig. E)

See details in BATTERY STATUS part

E 11

IMPORTANT:

When only one light is illuminated, your battery is overly discharged, even though the trimmer may still be capable of hedge trimming. Continuing to operate your trimmer with the battery in this discharged condition may reduce the life and performance of your battery.

When no light is illuminated, at least one battery is not fully installed or battery may be defective, please double check the batteries are fully seated into position.

• Before starting or after use, press the button beside the power indicator light on the machine to check the battery capacity.
• During operation, the battery capacity will be indicated automatically by the battery power indicator. The indicator constantly senses and

displays the battery condition as follows.

- For the machine with 2 battery packs with different power, the power indicator light displays the battery condition with the lower one of the two batteries.

Battery indicator light status	Battery condition
Five green lights(are)illuminated.	The two batteries are in a highly charged condition.
Two, three or four green lights are illuminated.	The two batteries have a remaining charge. The more lights are illuminated, the more battery capacity.
Only one green light(15)illuminated.	At least one battery is almost depleted and needs to be charged.
No light is illuminated.	At least one battery is not fully installed or battery may be defective.
Only one light is flashing twice per cycle.	At least one battery is over discharged (please refer to the battery charge condition), please recharge the two batteries at once before use again or storage.
Only one light is flashing three times per cycle.	At least one battery is hot, wait for them cool down before start again.
Only one light is flashing four times per cycle.	The machine is over load. Remove tool from cutting area and try again.

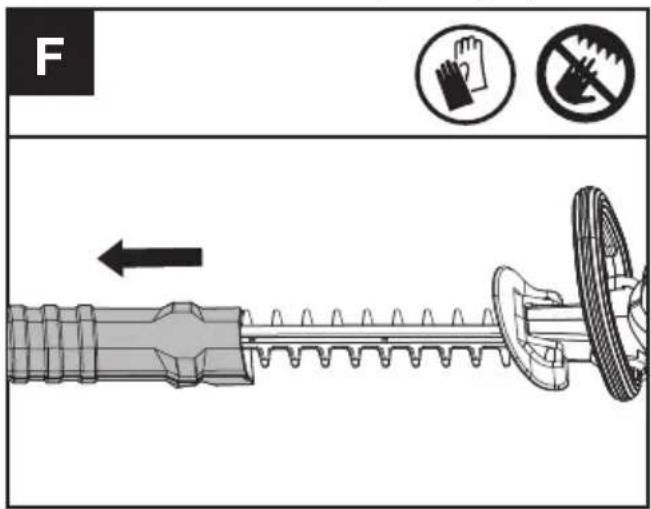

Remove the blade sheath (See Fig. F)

F ←

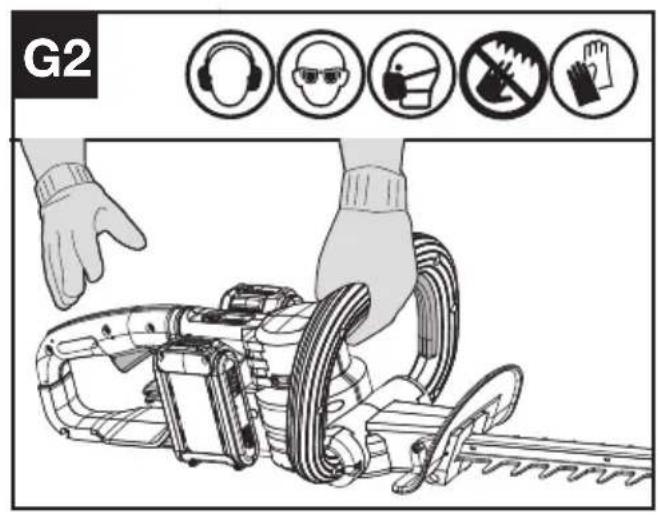

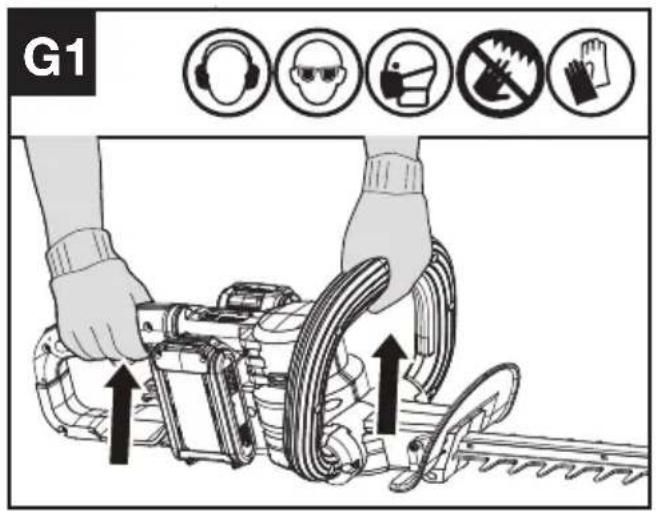

Starting and stopping (See Fig. G1, G2)

G1

G2

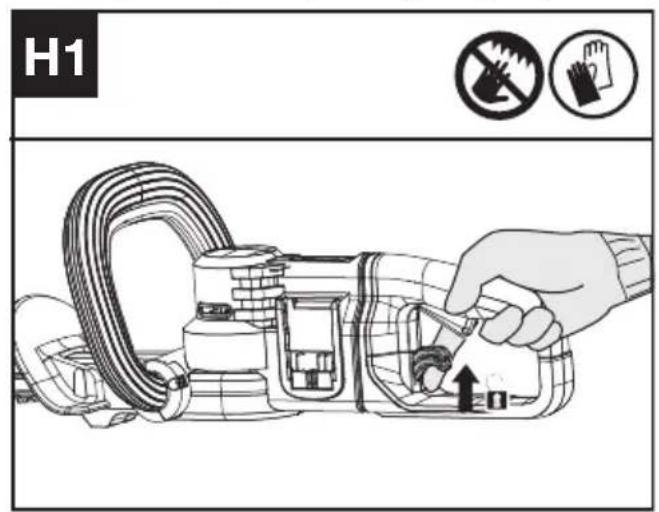

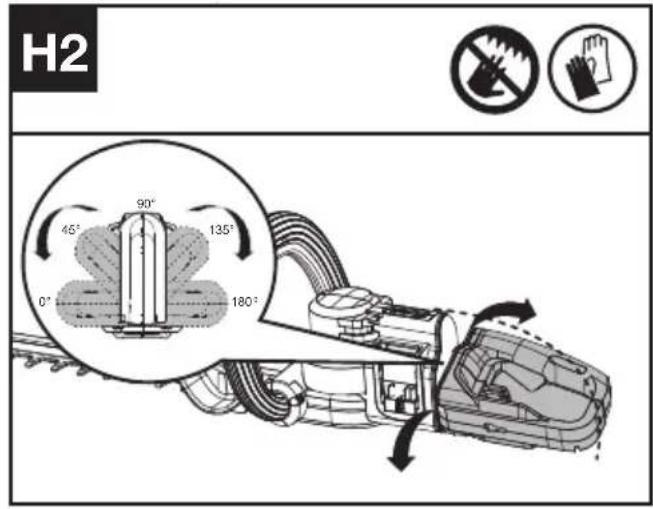

Rotating rear handle (See Fig. H1, H2)

H1 No liability Hand

NOTE :

• Unlock the locking switch before rotating.
• After rotating the handle to the desired position, adjust it a little until a click can be heard.

WARNING:

• Always make sure that the handle is locked in the desired position before operation.
• Always make sure the locking switch is locked before starting the hedge trimmer.
- Do not rotate the handle when the trimmer is

being operated.

H2 45° 90° 135° 0° 180°

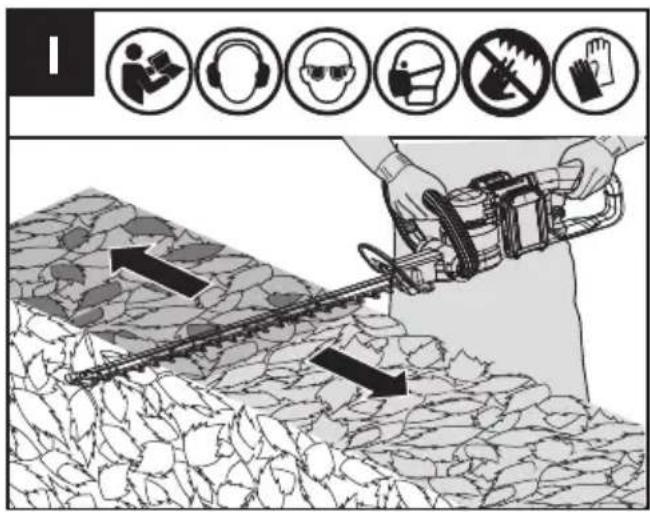

Top cutting (See Fig. I)

WARNING: If any parts are missing, damaged or broken, do not operate your hedge trimmer until all damaged parts have been replaced or repaired. Failure to do so could result in serious personal injury. DO NOT USE WITHOUT FRONT HANDLE AND SAFETY GUARD.

Safety warning illustration showing a hand using a chainsaw to remove debris, with icons indicating different hazard symbols.

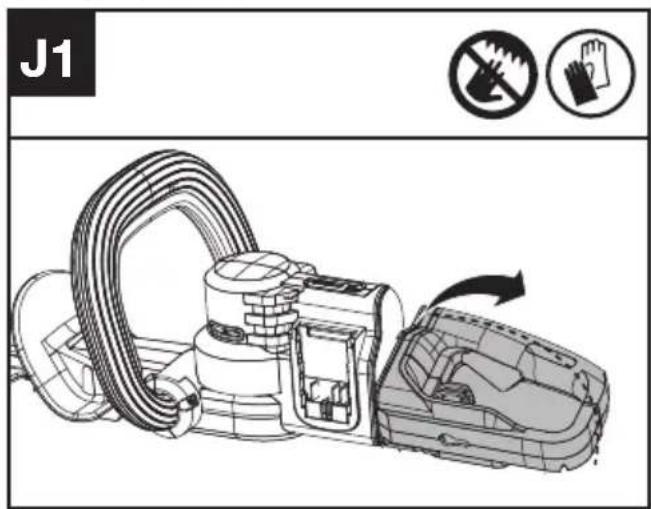

Side cutting (See Fig. J1, J2)

WARNING: Stop operating the trimmer before rotating the handle.

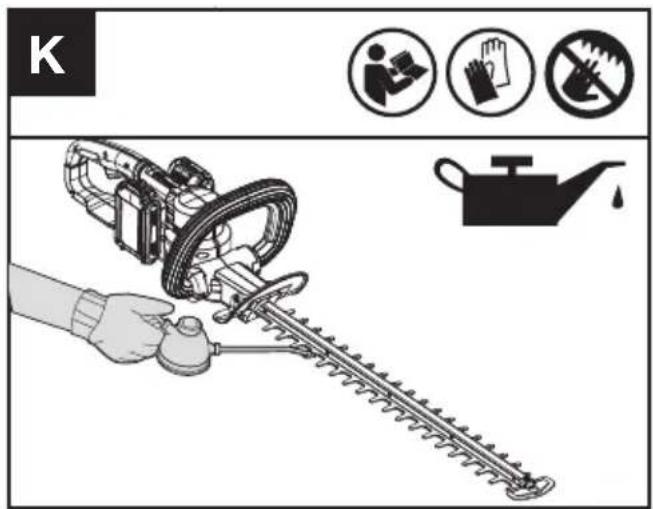

NOTE : It is important to use only the recommended standard lubricating oil (WD-40) to avoid damage to the blade.

K i.e. i.e. hand no h

HOW TO USE YOUR HEDGE TRIMMER

Before cutting an area, inspect it first and remove any foreign objects that could become thrown or entangled in the blades. Always hold the trimmer with both hands and with the blade away from you before turning it on.

When trimming new growth, use a wide sweeping action so that the stems are fed directly into the blade.

Allow the cutting blades to reach full speed before cutting. When operating, keep the cutting blades away from people and objects such as walls, large stones, trees, vehicles, etc.

If the blade stalls, immediately stop the trimmer.

Release the Operator Presence Switch and Throttle Trigger before attempting to clear jammed debris from the cutting blades.

Wear gloves when trimming thorny or prickly growth.

Do not attempt to cut stems that are too thick for the cutting blade.

Top cutting

Use a wide sweeping motion A slight downward tilt of the cutting blades in the direction of motion gives the best cutting results.

Side cutting

When trimming the sides of the hedge, begin at the bottom and cut upwards, tapering the hedge inward at the top. This shape will expose more of the hedge, resulting in a more uniformed growth.

MAINTENANCE

Remove the battery from Hedge trimmer before carrying out any adjustment, servicing or maintenance.

There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.

FOR BATTERY TOOLS

The ambient temperature range for the use and storage of tool and battery is 0^ C- 45^ C.

The recommended ambient temperature range for the charging system during charging is 0^ C- 40^ C.

TECHNICAL DATA

Type KG285 KG285.X (250-299- designation of machinery, representative of cordless hedge trimmer)

	KG285 KG285.X **
Voltage	40V MAX(2x20V MAX.) ***
No-load speed	3400 /min
Blade length	61 cm
Cutting length	58 cm
Tooth spacing	33 mm
Max cutting diameter	27 mm
Machine Weight (Bare Tool)	2.7 kg

** X=1-999,A-Z,M1-M9 there are only used for different customers, there are no safe relevant changes between these models.

*** Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

SUGGESTED BATTERIES AND CHARGERS

Category	Type Capacity
20V Battery KAB02 2.0 Ah
20V Charger	KAC04 4.0 A

We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

NOISE INFORMATION

A weighted sound pressure	L_pA = 84.65 dB(A) K_pA = 3 dB(A)
A weighted sound power	L_wA = 95.65 dB(A) K_wA = 3 dB(A)
Wear ear protection

VIBRATION INFORMATION

Vibration total values (triax vector sum) determined according to EN 62841:

Vibration emission value: a_n = 2.39 m/s^2

Uncertainty K = 1.5 m/s ^4

The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.

WARNING: The vibration and noise emissions during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant on the following examples and other variations on how the tool is used:

How the tool is used and the materials being cut or drilled.

The tool being in good condition and well maintained.

The use of the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration and noise accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration

syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration and noise exposure risk.

Always use sharp chisels, drills and blades.

Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).

If the tool is to be used regularly then invest in anti vibration and noise accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities

or retailer for recycling advice.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product

Description Kress Cordless Hedge Trimmer

Type KG285 KG285.X (250-299- designation of machinery, representative of cordless hedge trimmer)

Function Trimming hedges and brushes

Complies with the following directives,

2006/42/EC

2014/30/EU

2011/65/EU&(EU)2015/863

2000/14/EC amended by 2005/88/EC

2000/14/EC amended by 2005/88/EC:

- Conformity assessment procedure as per Annex V

- Measured sound power level 95.65 dB (A)

- Declared guaranteed sound power level 96 dB(A)

Standards conform to,

EN 62841-1

EN 62841-4-2

EN ISO 3744

EN 55014-1

EN 55014-2

The person authorized to compile the technical file,

A#

2022/12/2

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,

Positec (UK & Ireland) Ltd

PO BOX 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product

Description Kress Cordless Hedge Trimmer

Type KG285 KG285.X (250-299- designation of machinery, representative of cordless hedge trimmer)

Function Trimming hedges and brushes

Complies with the following regulations:

Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment Regulations

Noise Emission in the Environment by

Equipment for Use Outdoors Regulations

- Conformity assessment procedure as per

SCHEDULE 8

- Measured sound power level 95.65 dB (A)

- Declared guaranteed sound power level 96 dB(A)

Standards conform to,

BS EN 62841-1, BS EN 62841-4-2, BS EN ISO

3744, BS EN 55014-1, BS EN 55014-2

The person authorized to compile the technical file,

Name: Jim Kirkwood

Address: Positec (UK & Ireland) Ltd

PO BOX 6242, Newbury, RG14 9LT, UK

UK CA

2022/12/02

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHALTSVERZEICHNIS

INTRODUCTION....13

KOMPONENTEN 14

Technical diagram of a hair clip with numbered parts for identification

KOMPONENTEN

C NOVATION NOVATION NOVATION

Safety warning illustration showing a hand using a chainsaw to remove debris, with icons indicating different hazard symbols.

Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

UMWELTSCHUTZ

DECLARATION DE CONFORMITE....36

INTRODUCTION

Cher Client,

Technical diagram of a hair clip with numbered parts for identification

LISTE DES COMPOSANTS

1.	POIGNÉE ARRIÈRE ROTATIVE
2.	VOYANT D'ALIMENTATION
3.	PACK BATTERIE*
4.	POIGNÉE AVANT
5.	COMMUTATEUR DE PRÉSENCE D'OPÉRATEUR(CIRCULAIRE)
6.	BOUCLIER DE SÉCURITÉ (PROTECTEUR)
7.	LAME
8.	ETUI PROTECTEUR DE LAME
9.	INTERRUPTEUR DE VERROUILLAGE DE ROTATION
10.	GÂCHETTE D'ACCÉLÉRATION
11.	VERROU DE PACK BATTERIE* (Voir Fig. E)

Safety warning illustration showing a hand using a chainsaw to remove debris, with icons indicating different hazard symbols.

INFORMATIONS RELA- TIVES AU BRUIT

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDICE

INTRODUZIONE....37

ELEMENTI DELL'APPARECCHIO ....38

SICUREZZA DEL PRODOTTO....39

ISTRUZIONI OPERATIVE......42

MANUTENZIONE 46

SPECIFICHE TECNICHE....46

TUTELA AMBIENTALE....47

Technical diagram of a hair clip with numbered parts for identification

ELEMENTI DELL'APPARECCHIO

Safety warning illustration showing a hand using a tool to remove debris from a pile, with icons indicating different hazard symbols.

Taglio frontale e laterale (Vedi Fig. J1, J2)

K i.e. i.e. i.e. i.e. i.e. i.e. No K

COME UTILIZZARE IL TAGLIASIEPI

2022/12/02 Allen Ding Vice capo ingegnere, testing e certificazione Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

ÍNDICE

Technical diagram of a hair clip with numbered parts for identification

Safety warning illustration showing a hand using a chain-linker to remove debris, with icons indicating different hazard symbols.

Cortes verticales (Ver Fig. J1, J2)

K i.e. i.e. i.e. i.e. i.e. i.e. No. 100%

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHOUDSOPGAVE

INLEIDING....61

ONDERDELENLIJST 62

PRODUCTVEILIGHEIDALGEMENE 63

BEDIENINGSINSTRUCTIES 66

ONDERHOUD....70

Technical diagram of a hair clip with numbered parts for identification

ONDERDELENLIJST

1. DRAAIBARE ACHTERSTE HENDEL

2. ACCUWAARSCHUWINGSLAMPJE

3. ACCUPACK*

4. HANDVAT VOOR

5. AANWEZIGHEIDSSCHAKELAAR (Volledige schakelaarfunctie)

6. BESCHERMKAP

7. SNIJBLAD

8. BESCHERMKOKER

9. DRAAIVERGRENDELINGSKNOP

10. GASHENDEL

11. VERLENGKNOP* (Zie fig. E)

PRODUCTVEILIGHEID ALGEMENE VEILIGHEIDSWAARSCHUWINGEN VOOR VERMOGENSMACHINE

Safety warning illustration showing a hand using a chain-linking device to remove debris, with icons indicating different hazard symbols.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDHOLDSFORTEGNELSE

INTRODUKTION....73

KOMPONENTLISTE 74

PRODUKTSIKKERHED 75

BETJENINGSVEJLEDNING 78

VEDLIGEHOLDELSE 80

TEKNISK DATA 80

MILJ∅BESKYTTELSE 81

KONFORMITETSERKLÆRING 81

INTRODUKTION

Kære kunde,

Technical diagram of a hair clip with numbered parts for identification

KOMPONENTLISTE

1. ROTERENDE BAGGREB
2. LYS TIL STR∅MINDIKATOR
3. BATTERIENHED*
4. FORHÅNDTAG
5.	KONTAKT TIL REGISTRERING AF OPERAT∅RTILSTEDEVÆRELSE (KAN SKIFTE HELE VEJEN RUNDT)
6. SIKKERHEDSSKÆRM
7. BLAD
8. BLADHYLSTER
9. LÅSEKNAP TIL ROTATION
10. HASTIGHEDSREGULERING
11. UDL∅SERKNAPPER TIL BATTERIENHEDEN * (SE FIG. E)

Safety warning illustration showing a hand using a chainsaw to remove debris, with icons indicating different hazard symbols.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

СОДЕРЖАНИЕ

ВВЕДЕНИЕ....84

Technical diagram of a hair clip with numbered parts for identification

RU

Safety warning illustration showing a hand using a tool to remove debris from a pile, with icons indicating different hazard symbols.

K i.e. i.e. hand no litter

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNEHÅLLSFÖRTECKNING

INTRODUKTION....97

LADDARENS KOMPONENTER....98

PRODUKTSÄKERHET 99

ANVÄNDARHANDLEDNING 102

UNDERHÅLL....105

TEKNISKA DATA....106

MILJÖSKYDD....106

DEKLARATION OM ÖVERENSSTÄMMELSE....107

INTRODUKTION

Bästa kund,

Technical diagram of a hair clip with numbered parts for identification

LADDARENS KOMPONENTER

1. ROTERANDE BAKRE HANDTAG

2. STRÖMINDIKATOR

3. BATTERIPAKET*

4. FRÄMRE HANDTAG

5. SÄKERHETSKONTAKT (OPS) (Totalbrytarfunktion)

6. SÄKERHETSSKYDD

7. BLAD

8. BLADFODRAL

9. SPÄRR FÖR ROTATION

10. GASREGLAGE

11. BATTERIPAKETETS LÅSNING* (Se Fig. E)

Safety instruction diagram showing a hand using a chainsaw to remove debris, with icons for different equipment and hazard symbols.

K i.e. i.e. hand no h

HUR HÄCKTRIMMERN ANVÄNDS

Type KG285 KG285.X (250-

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China
