Green Power Evolution 4185 - Heat gun HOZELOCK - Free user manual and instructions

Product Type	Electric Heat Gun
Brand	Hozelock
Model	Green Power Evolution 4185
Power	1600 W
Voltage	220-240 V / 50 Hz
Output Temperature	Approximately 600 °C
Cable Length	1.5 m (type H05 RNF)
Protection Class	IPX0
Double Insulation	Yes
Main Functions	Thermal weeding, barbecue lighter
Use	Private and domestic
Start-up	3-position switch: Off, Ventilation, Heat
Heating time before use	45 seconds
Weeding application temperature	3 seconds on the weed
Cooling before shutdown	30 seconds in ventilation position
Safety equipment	Heat shield, footrest support, wall hanging point
Maintenance	Clean exterior with a damp cloth; do not immerse
Warranty	1 year against material or manufacturing defects
Included accessories	Nozzle, support

Frequently Asked Questions - Green Power Evolution 4185 HOZELOCK

How to use the Hozelock Green Power Evolution 4185 for weeding?

Connect the device, set the switch to 'Heat' position, wait 45 seconds, then apply the nozzle to the weed for 3 seconds while resting it on the ground. The heat bursts the plant cells.

Can I use it as a barbecue lighter?

Yes, place the nozzle a few centimeters from the charcoal, in 'Heat' position, in the center of the barbecue. The charcoal turns red in 30 seconds to 2 minutes. Turn off and let cool before storing.

How to turn off the device correctly?

First set the switch to 'Ventilation' position for at least 30 seconds to cool down, then to 'OFF'. Never unplug it without this cooling step.

What to do if the device does not heat up?

Check that the plug is properly inserted and the switch is on 'Heat'. If the problem persists, contact Hozelock after-sales service.

How to clean and maintain the heat gun?

Unplug the device and let it cool completely. Clean the exterior with a damp cloth. Do not use abrasive products and never immerse the device in water.

What are the important safety instructions?

Never direct the hot air flow towards people or animals. Do not use near flammable materials. Let the device cool before storing. Keep children and pets away.

Can I use an extension cord?

Yes, but it must be of the same type as the power cord (H05 RNF) with a waterproof plug and suitable for the power (1600 W). Follow local electrical standards.

What is the maximum temperature reached?

The temperature at the nozzle outlet is approximately 600 °C. Be careful and never touch the hot nozzle.

How to store the device after use?

Make sure it is completely cool. You can place it on its stand or hang it on the wall using the hanging point. Store it in a dry, sheltered place.

What does the warranty cover?

The warranty is one year against material or manufacturing defects, upon presentation of the invoice. It excludes wear parts, misuse, unauthorized modifications, and damage from impacts.

USER MANUAL Green Power Evolution 4185 HOZELOCK

VOLUTION: f: 4185

ENGLISH

Instructions

FRANÇAIS

Technical diagram of a medical or laboratory device with numbered parts, including a magnified inset showing internal structure and component details.

2 OFF A ↓ ↓ ↑

Close-up of a hand gripping a black tool with directional arrows indicating movement (no text or symbols)

HOZELOCK

ENGLISH

GREEN POWER EVOLUTION:

Caution! For safety purposes, do not use the GREEN POWER device without having thoroughly read and understood these instructions.

Children and teenagers below the age of 16 should not use the GREEN POWER and must stand away when it runs. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This device should not be used by persons (including children) with impaired physical, sensory or mental abilities, or lacking knowledge and experience, without supervision by a person in charge of their safety, instructing them on how to use the device.

Ensure that the product is properly positioned.

Unplug the product before removal from fire.

Allow the product to cool before storage.

Do not allow the hot part of the product to touch the cord or other flammable materials.

2 - SAFETY MEASURES – READ CAREFULLY BEFORE USE

The user is liable towards any third party for any event linked with the use of the GREEN POWER (electrical installation, etc.). In France, comply with the NF C15-100 standard of 07/00 governing low voltage electrical installations. In other countries, comply with local regulations. Before using the GREEN POWER, we advise you to ask a skilled electrician to check that the safety measures required on the electrical network are fitted.

The specifications indicated on the plate of the GREEN POWER must match the specifications of the electrical network. For safety purposes, the electrical network supplying the GREEN POWER must be fitted with a differential circuit breaker (30 mA) with

grounding pin.

Check the condition of the power supply cables before starting up.

Do not use the cable to other ends than those planned, do not use the cable to carry the GREEN POWER, hang it nor disconnect it from the power outlet

If you add an extension cord, it must be identical to the power supply cable of the GREEN POWER (see paragraph 4), with sealed connecting plug.

Do not modify the GREEN POWER. Never intervene on the electrical part. Only Hozelock after-sales service is authorized to intervene on the electrical part of the GREEN POWER. If the power cable is damaged, it must be replaced by the Hozelock after-sales service. We waive any liability in case of accident caused by a use of the GREEN POWER not complying with safety instructions or beyond its scope of application, or due to a modification of the GREEN POWER or an intervention on the electrical part.

Do not use the GREEN POWER in an environment featuring risks of explosion or near flammable materials.

Do not use in an arid zone to prevent risks of fire.

Do not direct the hot air towards persons or animals.

Do not direct the hot air flow to the same point for a rather long period.

Ensure the heat cannot propagate to hidden flammable materials, and ignite them.

After its use, lay the GREEN POWER on its carrier (Fig1 item 7) safely and leave it to cool down completely before storing it.

Do not leave the GREEN POWER running unattended.

Do not expose the GREEN POWER to rain or humidity.

Do not immerse the GREEN POWER in water.

Disconnect the device before changing any accessories or storing it.

Do not touch the hot nozzle (Fig1 item 8).

Never obstruct the vents (Fig1 item 5)

3 - SCOPE OF APPLICATION

The GREEN POWER is designed for a private domestic use.

It eliminates weed by means of thermal shock. The fast temperature build-up bursts the cells of the plant and destroys the weed.

ENGLISH

4 - TECHNICAL SPECIFICATIONS

Power 1600 watt
Voltage 220-240 V / 50Hz
Temperature at nozzle outlet, approx. 600°C
Supply cord 1.5 m – H05 RNF
Protection rating IPX0
Protection rating (double insulation)

5 - DESCRIPTION (fig. 1)

1 – Ergonomic handle.

2 - Hanging point.

3 - Supply cord.

4 - On/Ventilation/Off switch.

5 - Air inlet vent

6 - Main power module

7 - Device carrier

8 - Nozzle

9 - Heat shield

6 - START-UP - FIRST USE (Fig1)

Starting up

Ensure the nozzle (8) is properly fitted and the switch (4) is set to 'OFF' (Fig2A). Connect the GREEN POWER with the supply cable (3) onto the power supply network after checking the safety measures are observed.

Check that nothing is placed in front of the nozzle when switching on the GREEN POWER.

Start the GREEN POWER by setting the switch to the 'heating' position (Fig2B).

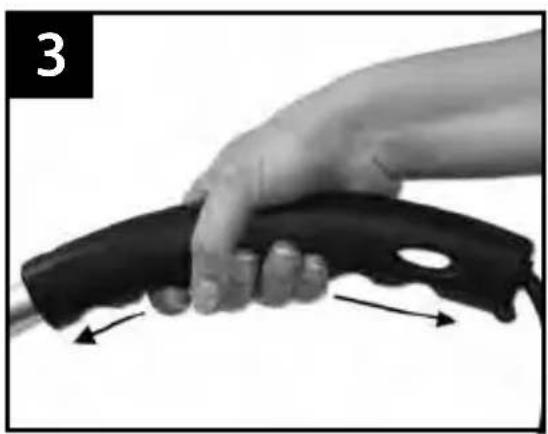

Hold the GREEN POWER with its ergonomic handle (1). For more comfort, you can adapt your grip on the device by holding the ergonomic handle higher or lower (Fig3).

Warm up the device for 45 seconds to reach the operating temperature.

To eliminate weed, apply the nozzle (8) onto it while letting it rest on the ground for 3 seconds.

7 - BARBECUE LIGHTING FUNCTION

The GREEN POWER can be used to light charcoal barbecues.

Always follow the barbecue manufacturer's instructions.

To light the charcoal, place it in the barbecue as usual and position the nozzle within a few centimetres from the charcoal. Make sure the device is suitably positioned and stable and directed at the centre of the barbecue. Switch the device on to the 'heating' position (Fig. 2B). Leave it in the same position until the charcoal starts to glow. This may take between 30 seconds to 2 minutes depending on the charcoal. When the charcoal is sufficiently hot, it will turn red and flames may appear near the nozzle. This indicates that the charcoal is lit. Unplug the device before removing it from the barbecue. Allow the device to cool down before putting it away (see next paragraph). Do not let the hot parts of the device touch the power cable or other flammable materials.

Stopping the device

Before stopping the device completely, a cooling phase is required.

Set the switch (4) to the "Ventilation" position (Fig2C). Ventilation must last 30 seconds minimum.

Once this operation is complete, you can set the switch to OFF (Fig2A) to switch off the GREEN POWER.

8 - STORAGE

Check the device is completely cold before storing it.

The device can be laid on the ground on its carrier (7) or hung to the wall by its anchoring point (2).

ENGLISH

9 - TROUBLESHOOTING / SOLUTIONS

Incidents Causes Solutions
a- The device does not heat. 1- No power supply. 1- Check that the plug is properly inserted into the socket.
			2- The switch (4) is not in the heating position.
b- The plant does not fade. 1- The device is not set properly on the ground.		1- Apply the nozzle properly to the weed while letting rest on the ground.
		2- The application time is not long enough.

For any other anomaly, please call our after-sales service. For safety purposes, only Hozelock's after-sales service is authorized to disassemble the electrical weeder.

10 - WARRANTY

This product has a 1-year warranty against any material or manufacturing defect, from the date of purchase of the device by the user, upon presentation of the purchase invoice or cashier receipt only. This warranty consists in repairing the faulty device.

Our warranty excludes:

- unauthorized disassembly of the device,

- wear parts,

- modified equipment,

- equipment used against the recommendations described in these instructions,

- equipment abused,

- degradations due to careless use: shock, drop...

Our warranty does not cover accidents resulting from the damage or faulty and abnormal use of the equipment.

The legal warranty for conformity defects and redhibitory vice applies according to the conditions of articles 1641 to 1649 of the French Civil Code.

HOZELOCK
