USER MANUAL BELLE RPC 30/50 ALTRAD

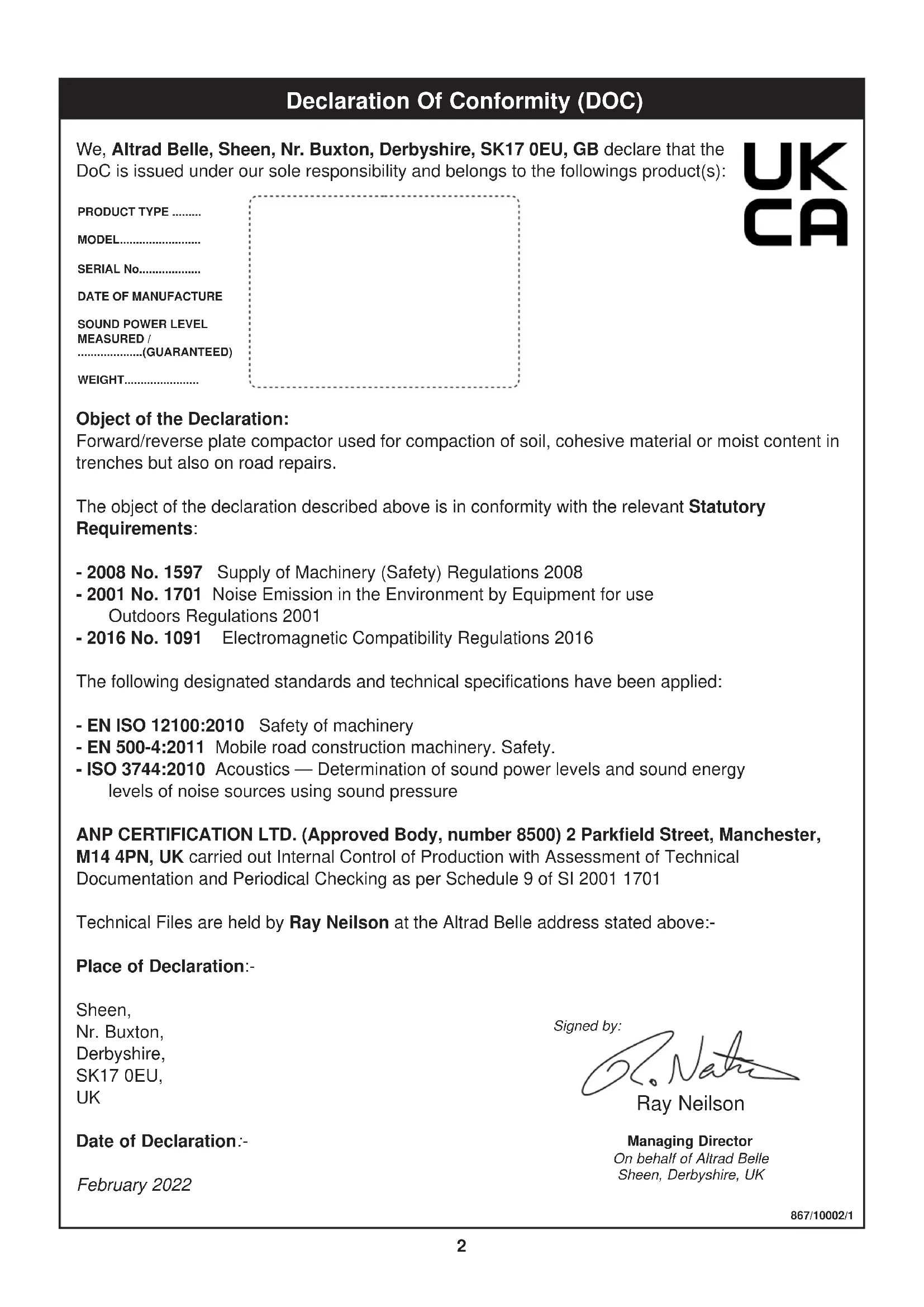

RPC 30/40 & 30/50 UKCA Declaration of Conformity

EC/EU Declaration of Conformity

Declaration Of Conformity (DOC) Managing Director On behalf of Altrad Belle Sheen, Derbyshire, UK Ray Neilson Signed by: 867/10002/1 We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s): PRODUCT TYPE ......... MODEL......................... SERIAL No...................

MEASURED / ....................(GUARANTEED) WEIGHT....................... Object of the Declaration: Forward/reverse plate compactor used for compaction of soil, cohesive material or moist content in trenches but also on road repairs. The object of the declaration described above is in conformity with the relevant Statutory Requirements: - 2008 No. 1597 Supply of Machinery (Safety) Regulations 2008 - 2001 No. 1701 Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001 - 2016 No. 1091 Electromagnetic Compatibility Regulations 2016 The following designated standards and technical specifications have been applied: - EN ISO 12100:2010 Safety of machinery - EN 500-4:2011 Mobile road construction machinery. Safety. - ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure ANP CERTIFICATION LTD. (Approved Body, number 8500) 2 Parkfield Street, Manchester, M14 4PN, UK carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Schedule 9 of SI 2001 1701 Technical Files are held by Ray Neilson at the Altrad Belle address stated above:- Place of Declaration:- Sheen, Nr. Buxton, Derbyshire, SK17 0EU,

Date of Declaration:- February 2022

EC Declaration Of Conformity (DOC) We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):866/10002/0_GB GB GB PRODUCT TYPE .....................MODEL.....................................SERIAL No...............................DATE OF MANUFACTURE .....SOUND POWER LEVELMEASURED /....................(GUARANTEED)WEIGHT...................................Object of the Declaration: Forward/reverse plate compactor used for compaction of soil, cohesive material or moist content in trenches but also on road repairs. The object of the declaration described above is in conformity with the relevant Union Harmonisation Legislation: - 2006/42/EC - New machinery directive - 2000/14/EC - Noise - equipment for use outdoors The following harmonised standards and technical specifications have been applied:- EN ISO 12100:2010 Safety of machinery- EN 500-4:2011 Mobile road construction machinery. Safety.- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure VINÇOTTE nv/sa (NB0026) carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Annex VI of 2000/14/ECTechnical Files are held by Hugues Menager at the following address:-Altrad (Group Holding), 125 Rue du Mas Carbonnier, 34000, Montpellier, France.Managing DirectorOn behalf of Altrad Belle, Sheen, Derbyshire, UK Ray Neilson Signed by:Place of Declaration:-Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UKDate of Declaration:-April 2021 EU Declaration Of Conformity (DOC) We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s): GB GB PRODUCT TYPE .....................MODEL.....................................SERIAL No...............................DATE OF MANUFACTURE .....SOUND POWER LEVELMEASURED /....................(GUARANTEED)WEIGHT...................................Object of the Declaration: Forward/reverse plate compactor used for compaction of soil, cohesive material or moist content in trenches but also on road repairs. The object of the declaration described above is in conformity with the relevant Union Harmonisation Legislation: - 2014/30/EU - EMC Directive The following harmonised standards and technical specifications have been applied:- EN ISO 12100:2010 Safety of machinery- EN 500-4:2011 Mobile road construction machinery. Safety.- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure VINÇOTTE nv/sa (NB0026) carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Annex VI of 2000/14/ECTechnical Files are held by Hugues Menager at the following address:-Altrad (Group Holding), 125 Rue du Mas Carbonnier, 34000, Montpellier, France.Managing DirectorOn behalf of Altrad Belle, Sheen, Derbyshire, UK Ray Neilson Signed by:Place of Declaration:-Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UKDate of Declaration:-April 2021 See information on sticker above

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual. WARNING The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way. CAUTION The life of the operator can be at risk. WARNING WARNING

Contents KNOW how to safely use the unit’s controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the

PDFKLQHRႇEHIRUH\RXVZLWFKRQLQFDVH\RXJHWLQWRGLႈFXOW\

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use RUPDLQWHQDQFHRIWKLVXQLW$6.<285683(59,62525&217$&7Altrad Belle (UK):

This manual has been written to help you operate and service the ‘RPC’ safely. This manual is intended for dealers and operators of the ‘RPC’. Foreword The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls. The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way. The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public. The ‘Start and Stop Procedure’ helps you with starting and stopping the machine. The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine. The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine. The ‘Warranty’ Section details the nature of the warranty cover and the claims procedure. Directives with regard to the notations. 7H[WLQWKLVPDQXDOWRZKLFKVSHFLDODWWHQWLRQPXVWEHSDLGDUHVKRZQLQWKHIROORZLQJZD\17 Safe Disposal.Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities. Machine Description

safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. ,I\RXDUHXQVXUHDERXWWKHVDIHDQGFRUUHFWXVHRIWKHµ53&¶FRQVXOW\RXUVXSHUYLVRURU$OWUDG%HOOH

• Make sure you know how to safely switch this machine OFF before you switch it ONLQFDVH\RXJHWLQWRGLႈFXOW\

CAUTION The exhaust fumes produced by this equipment are highly toxic and can kill! WARNING Improper maintenance can be hazardous. Read and Understand this section before you perform any PDLQWHQDQFHVHUYLFHRUUHSDLUV CAUTION Pre start-up inspection

WKHIDXOWLVUHFWL¿HG 1. Thoroughly inspect the compactor for signs of damage. Check components are present and secure. Pay special attention to the belt guard.

2. Check the engine oil and hydraulic oil level and top up as necessary.

3. Check the engine fuel level and top up as necessary.

&KHFNIRUIXHORLODQGK\GUDXOLFOHDNV Vibration Some vibration from the compaction operation is transmitted through the handle to the operator’s hands. The Altrad Belle RPC range

Health & Safety Pre-Start Checks

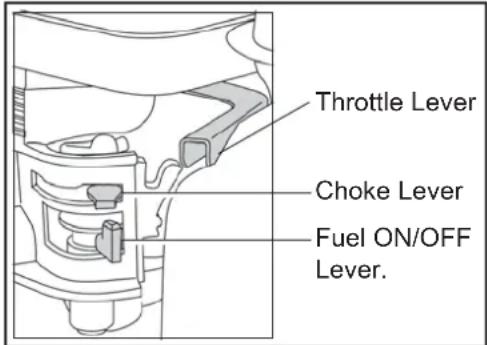

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.

,IVWDUWLQJWKHHQJLQHIURPFROGVHWWKHFKRNHON by moving the choke lever fully

3. Turn the engine ON / OFF switch clockwise to the ‘I’ position.

4. Set the throttle to the idle position by moving the throttle lever fully to the right. Do

1. Turn ON the fuel by moving the fuel ON/OFF lever fully to the right.

2. Set the engine speed control to start.

Reasons For Compaction

6RLOZKLFKKDVEHHQGLVWXUEHGRUQHZLQ¿OOVXEEDVHDQGEODFNWRSZLOOKDYHVPDOOYRLGVRUDLUSRFNHWVZKLFKLIQRWFRPSDFWHGZLOO lead to one or more problems occurring.

building foundations and normally leads to the structure requiring underpinning. Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore UHGXFHVWKHULVNRIVXEVLGHQFHH[SDQVLRQDQGFRQWUDFWLRQGXHWRLQJUHVVRIZDWHU Throttle Lever Choke Lever Fuel ON/OFF Lever.20 Operating Instructions

• Take the compactor to where it is required.

RUVOLQJV21/<WRWKHOLIWLQJSRLQWRQWKHWRSRIWKHFRPSDFWRU

During normal operation you should not have to push the compactor but allow it to travel at its own pace. The speed of travel will be determined by the condition of the surface being compacted. Caution must be used when operating the compactor in reverse. Ensure that there are no obstructions or trip hazards when operating in reverse.

• Work the compactor over the surface in an organised pattern until the required compaction has been achieved.

Service & Maintenance 7KH$OWUDG%HOOHµ53&¶UDQJHRI5HYHUVLEOH3ODWH&RPSDFWRUVDUHGHVLJQHGWRJLYHPDQ\\HDUVRIWURXEOHIUHHRSHUDWLRQ,WLVKRZHYHU important that the simple regular maintenance listed in this section is carried out. It is recommended that an approved Altrad Belle

switch is in the stop position.

5HPRYHWKHEHOWJXDUGWKHQFKHFNWKHEHOWWHQVLRQE\SODFLQJOLJKW¿QJHUSUHVVXUHRQWKHWRSRIWKHEHOWDVQHDUFHQWUDOEHWZHHQWKH

Problem Cause Remedy Engine will not start. No fuel. Open fuel tap. Fill fuel tank. (QJLQHVZLWFKHGRႇ Switch engine on. Spark plug fouled. Clean and reset plug gap. Engine cold. Close choke. (QJLQHÀRRGHG +RQGDRSHQFKRNHIXOO\RSHQWKURWWOHSXOOUHFRLOVWDUWHU XQWLOHQJLQH¿UHV +DW]PRYHVSHHGFRQWUROWRVWRSSXOOUHFRLOVWDUWHUWLPHV then repeat start procedure. Engine still will not start. 0DMRU)DXOW Contact Agent or Altrad Belle. Unit will not move. Engine speed too slow. Set engine speed control to fast. Drive belt tension loose. $GMXVWEHOWWHQVLRQ

$LU¿OWHUEORFNHG &OHDQRUUHQHZDLU¿OWHU

Worn or Damaged Clutch. Repair or Replace as necessary. Drive failure. Contact Agent or Altrad Belle. Gearbox failure. Contact Agent or Altrad Belle. Forward speed too slow. Too much oil in hydraulic head. Reduce oil level. :URQJDGMXVWPHQWRIFRQWUROV\VWHP Contact Agent or Altrad Belle. Reverse speed too slow. Not enough oil in hydraulic head. Fill and bleed system. Air in control system. Bleed control system. :URQJDGMXVWPHQWRIFRQWUROV\VWHP Contact Agent or Altrad Belle. Loss of Hydraulic Oil. Connectors leaking. Reseal connectors. Defective hydraulic hose. Replace hose. Piston seal in gearbox defective. Contact Agent or Altrad Belle. Machine operates erratically. Shock mounts damaged. Replace all four mounts.22 Service & Maintenance

in the ‘Reverse Motion’ position.

Assembly of the Control Pump 1. Carefully clean the housing with compressed air on the inside. Check for scratches on sliding bores for O Rings and there are no sharp edges.

2. Press the Bushing in to Housing.

7. Lubricate the Pinion and O Rings with hydraulic oil and carefully insert in to the Housing. Make sure the Rack is in the right position and this is easiest when in reverse motion.

8. Fit the Shim and Retaining Ring. It may be necessary to push the Pinion from the opposite side to get them assembled.

3ODFHWKH+RXVLQJRQWKH¿OOHUVLGHDQG¿WWKH25LQJVWRWKHERWWRPIDFHLOCTITE seal 518 is recommended.

operation or user maintenance instructions.

0DWHULDOVDQGRUODERXUFRVWVWRUHQHZUHSDLURUUHSODFHFRPSRQHQWVGXHWRIDLUZHDUDQGWHDU The following components are not covered by warranty.

'HUE\VKLUH SK17 0EU England. Warranty Registration:

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use RUPDLQWHQDQFHRIWKLVXQLW$6.<285683(59,62525&217$&7Altrad Belle (UK):

$OWUDG%HOOHUHVHUYHVWKHULJKWWRFKDQJHPDFKLQHVSHFL¿FDWLRQZLWKRXWSULRUQRWLFHRUREOLJDWLRQ

This manual has been written to help you operate and service the ‘RPC’ safely. This manual is intended for dealers and operators of the ‘RPC’. Foreword The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls. The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way. The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public. The ‘Start and Stop Procedure’ helps you with starting and stopping the machine. The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine. The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine. The ‘Warranty’ Section details the nature of the warranty cover and the claims procedure. Directives with regard to the notations. 7H[WLQWKLVPDQXDOWRZKLFKVSHFLDODWWHQWLRQPXVWEHSDLGDUHVKRZQLQWKHIROORZLQJZD\25 Machine Description Technical Data Environment

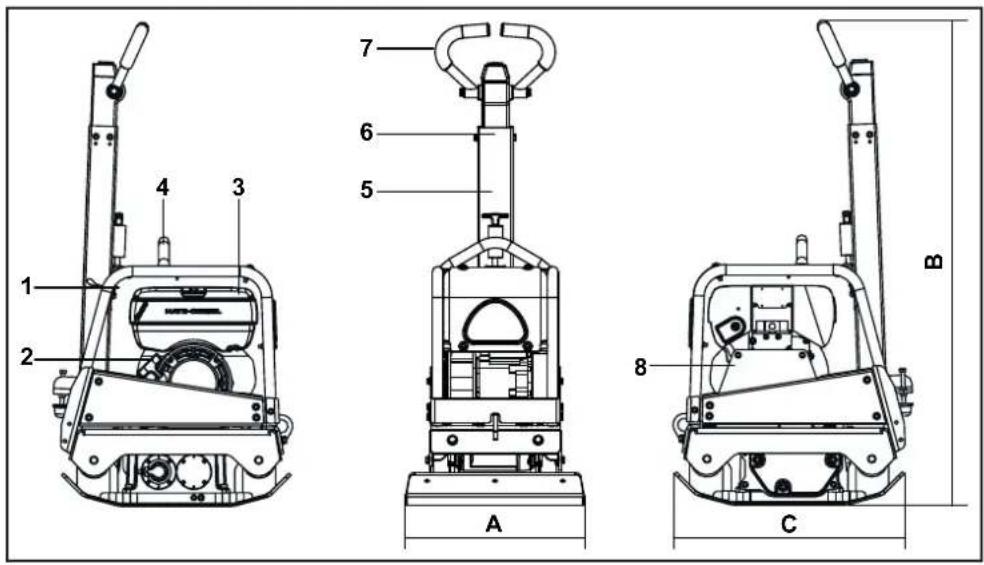

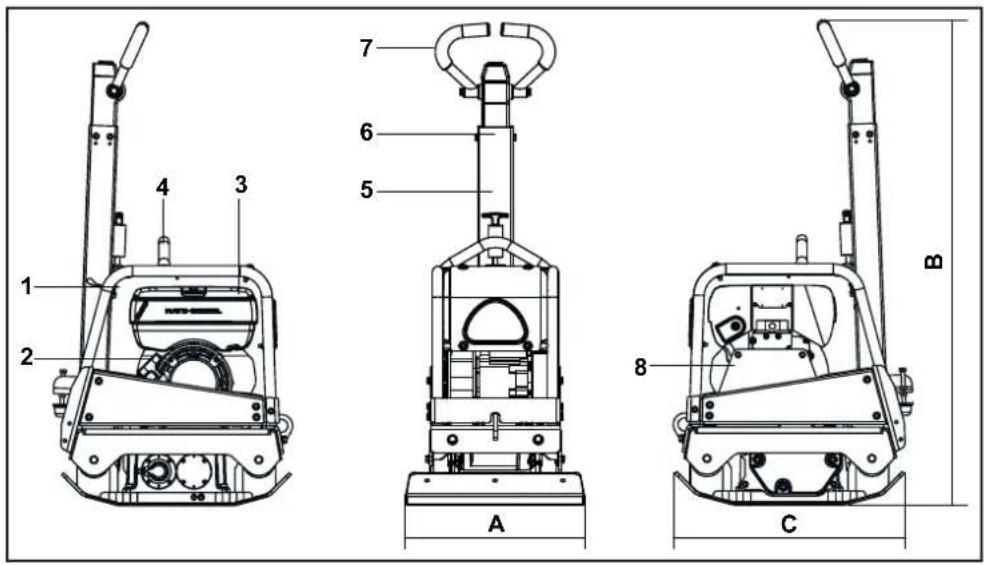

5. Handle Release Catch.

• Minimum level to EN500 Part 4

Safe Disposal. Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities. Component Material Handle Steel Front cover HDPE Main frame Steel Baseplate Steel Hand Grips Polyurethane Foam Engine Aluminium Flexible Mounts Steel and Rubber Various Parts Steel and Aluminium Model RPC 30/40 Honda GX160 RPC 30/40 Hatz 1B20 RPC 30/50 Honda GX160 RPC 30/50 Hatz 1B20 A - Plate Width (in) 15.7 15.7 19.6 19.6 B - Height (in) 49.8 49.8 49.8 49.8 C - Length (in) 25.9 25.9 25.9 25.9 Engine Power (Hp / kW) 5.5 / 4.0 4.2 / 3.1 5.5 / 4.0 4.2 / 3.1 Weight (lbs) 348 375 355 384 Centrifugal Force (kN) 30 30 30 30 Frequency (Hz) 95 95 95 95 Engine RPM 3400 3000 3400 3000 Maximum Travel Speed (ft/min) >75.5 >75.5 >75.5 >75.5 *3 Axis Vibration (m/sec

safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. ,I\RXDUHXQVXUHDERXWWKHVDIHDQGFRUUHFWXVHRIWKHµ53&¶FRQVXOW\RXUVXSHUYLVRURU$OWUDG%HOOH

• Make sure you know how to safely switch this machine OFF before you switch it ONLQFDVH\RXJHWLQWRGLႈFXOW\

CAUTION The exhaust fumes produced by this equipment are highly toxic and can kill! WARNING Improper maintenance can be hazardous. Read and Understand this section before you perform any PDLQWHQDQFHVHUYLFHRUUHSDLUV CAUTION Pre start-up inspection

WKHIDXOWLVUHFWL¿HG 1. Thoroughly inspect the compactor for signs of damage. Check components are present and secure. Pay special attention to the belt guard.

2. Check the engine oil and hydraulic oil level and top up as necessary.

3. Check the engine fuel level and top up as necessary.

&KHFNIRUIXHORLODQGK\GUDXOLFOHDNV Vibration Some vibration from the compaction operation is transmitted through the handle to the operator’s hands. The Altrad Belle RPC range

Health & Safety Health & Safety27 Start And Stop Procedure Reasons For Compaction 6RLOZKLFKKDVEHHQGLVWXUEHGRUQHZLQ¿OOVXEEDVHDQGEODFNWRSZLOOKDYHVPDOOYRLGVRUDLUSRFNHWVZKLFKLIQRWFRPSDFWHGZLOO lead to one or more problems occurring.

building foundations and normally leads to the structure requiring underpinning. Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore UHGXFHVWKHULVNRIVXEVLGHQFHH[SDQVLRQDQGFRQWUDFWLRQGXHWRLQJUHVVRIZDWHU Honda Petrol Engine

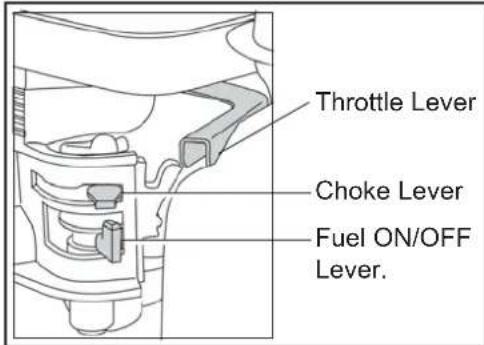

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.

,IVWDUWLQJWKHHQJLQHIURPFROGVHWWKHFKRNHON by moving the choke lever fully

3. Turn the engine ON / OFF switch clockwise to the ‘I’ position.

4. Set the throttle to the idle position by moving the throttle lever fully to the right. Do

1. Turn ON the fuel by moving the fuel ON/OFF lever fully to the right.

2. Set the engine speed control to start.

• Take the compactor to where it is required.

RUVOLQJV21/<WRWKHOLIWLQJSRLQWRQWKHWRSRIWKHFRPSDFWRU

During normal operation you should not have to push the compactor but allow it to travel at its own pace. The speed of travel will be determined by the condition of the surface being compacted. Caution must be used when operating the compactor in reverse. Ensure that there are no obstructions or trip hazards when operating in reverse.

• Work the compactor over the surface in an organised pattern until the required compaction has been achieved.

:KHUHWKHUHDUHDQXPEHURIGLႇHUHQWOD\HUVWREHFRPSDFWHGRQWRSRIHDFKRWKHUFRPSDFWHDFKOD\HULQGLYLGXDOO\

• 7RVWRSWKHFRPSDFWRUYLEUDWLQJVHWWKHWKURWWOHWRLGOH7RVWRSWKHHQJLQHUHIHUWRWKHUHOHYDQWVWDUWVWRSSURFHGXUH29 Service & Maintenance 7KH$OWUDG%HOOHµ53&¶UDQJHRI5HYHUVLEOH3ODWH&RPSDFWRUVDUHGHVLJQHGWRJLYHPDQ\\HDUVRIWURXEOHIUHHRSHUDWLRQ,WLVKRZHYHU important that the simple regular maintenance listed in this section is carried out. It is recommended that an approved Altrad Belle

switch is in the stop position.

5HPRYHWKHEHOWJXDUGWKHQFKHFNWKHEHOWWHQVLRQE\SODFLQJOLJKW¿QJHUSUHVVXUHRQWKHWRSRIWKHEHOWDVQHDUFHQWUDOEHWZHHQWKH

Problem Cause Remedy Engine will not start. No fuel. Open fuel tap. Fill fuel tank. (QJLQHVZLWFKHGRႇ Switch engine on. Spark plug fouled. Clean and reset plug gap. Engine cold. Close choke. (QJLQHÀRRGHG +RQGDRSHQFKRNHIXOO\RSHQWKURWWOHSXOOUHFRLOVWDUWHU XQWLOHQJLQH¿UHV +DW]PRYHVSHHGFRQWUROWRVWRSSXOOUHFRLOVWDUWHUWLPHV then repeat start procedure. Engine still will not start. 0DMRU)DXOW Contact Agent or Altrad Belle. Unit will not move. Engine speed too slow. Set engine speed control to fast. Drive belt tension loose. $GMXVWEHOWWHQVLRQ

$LU¿OWHUEORFNHG &OHDQRUUHQHZDLU¿OWHU

Worn or Damaged Clutch. Repair or Replace as necessary. Drive failure. Contact Agent or Altrad Belle. Gearbox failure. Contact Agent or Altrad Belle. Forward speed too slow. Too much oil in hydraulic head. Reduce oil level. :URQJDGMXVWPHQWRIFRQWUROV\VWHP Contact Agent or Altrad Belle. Reverse speed too slow. Not enough oil in hydraulic head. Fill and bleed system. Air in control system. Bleed control system. :URQJDGMXVWPHQWRIFRQWUROV\VWHP Contact Agent or Altrad Belle. Loss of Hydraulic Oil. Connectors leaking. Reseal connectors. Defective hydraulic hose. Replace hose. Piston seal in gearbox defective. Contact Agent or Altrad Belle. Machine operates erratically. Shock mounts damaged. Replace all four mounts. Trouble Shooting Guide30 Service & Maintenance Bleeding the Hydraulic System (QVXUHWKHPDFKLQHLVLQDVWDWLRQDU\SRVLWLRQDQGVLWXDWHGRQOHYHOJURXQG

in the ‘Reverse Motion’ position.

Refer to Manual N/A N/A Oil Type & Quantity Component Oil Type Honda GX160 (Gals) Hatz 1B20 (Gals) Gearbox S.A.E. 75W 90 0.15 0.15 Hydraulic Control Shell Tellus 32 0.05 0.05 Fuchs Renolin MR520 0.05 0.0531 Service & Maintenance Assembly of the Control Pump 1. Carefully clean the housing with compressed air on the inside. Check for scratches on sliding bores for O Rings and there are no sharp edges.

2. Press the Bushing in to Housing.

7. Lubricate the Pinion and O Rings with hydraulic oil and carefully insert in to the Housing. Make sure the Rack is in the right position and this is easiest when in reverse motion.

8. Fit the Shim and Retaining Ring. It may be necessary to push the Pinion from the opposite side to get them assembled.

3ODFHWKH+RXVLQJRQWKH¿OOHUVLGHDQG¿WWKH25LQJVWRWKHERWWRPIDFHLOCTITE seal 518 is recommended.

operation or user maintenance instructions.

0DWHULDOVDQGRUODERXUFRVWVWRUHQHZUHSDLURUUHSODFHFRPSRQHQWVGXHWRIDLUZHDUDQGWHDU The following components are not covered by warranty.

'HUE\VKLUH SK17 0EU England. Warranty Registration:
