| Product Type | Vibratory Plate |
| Brand | Altrad |
| Model | BELLE PCX 17/50A |
| Available Engine | Honda GX120 or GX160 |
| Engine Power (GX120) | 4.0 hp / 3.0 kW at 3800 rpm |
| Engine Power (GX160) | 5.5 hp / 4.4 kW at 3800 rpm |
| Weight (with watering kit and wheels) | 89 kg (GX120) / 90 kg (GX160) |
| Vibration Force | 15 kN |
| Vibration Frequency | 85 Hz |
| Max Travel Speed | 24 m/min |
| Compaction Force | 485 kg/m² |
| Sound Power Level | 105 dB(A) |
| Fuel | Unleaded gasoline |
| Fuel Tank Capacity (GX120) | 2.5 L |
| Fuel Tank Capacity (GX160) | 3.6 L |
| Engine Oil Type | SAE 10W30 |
| Vibrator Oil Type | SAE 10W40 |
| Spark Plug | BM6ES or BPR6ES |
| Spark Plug Gap | 0.7 - 0.8 mm (GX120) / 0.6 - 0.7 mm (GX160) |
| Main Functions | Compaction of soil, asphalt, backfills |
| Safety | Mandatory PPE, engine shutdown before maintenance, protective covers |
| Routine Maintenance | Check oil, air filter, belt |
| Spare Parts | Use exclusively original Altrad Belle parts |
| Warranty | 12 months for the original purchaser |
| Certification | CE, directive 2000/14/EC |
Frequently Asked Questions - BELLE PCX 17/50A ALTRAD
User questions about BELLE PCX 17/50A ALTRAD
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vibratory plate in PDF format for free! Find your manual BELLE PCX 17/50A - ALTRAD and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BELLE PCX 17/50A by ALTRAD.
USER MANUAL BELLE PCX 17/50A ALTRAD
F Manuel De L'Opérateur
E Manual del Operador
NL Handleiding
D Bedienungshandbuch
① Manuale Dell'Operatore
10
18
26
34
42
50
2
UKCA Declaration of Conformity
3 - 8
EC/EU Declaration of Conformity

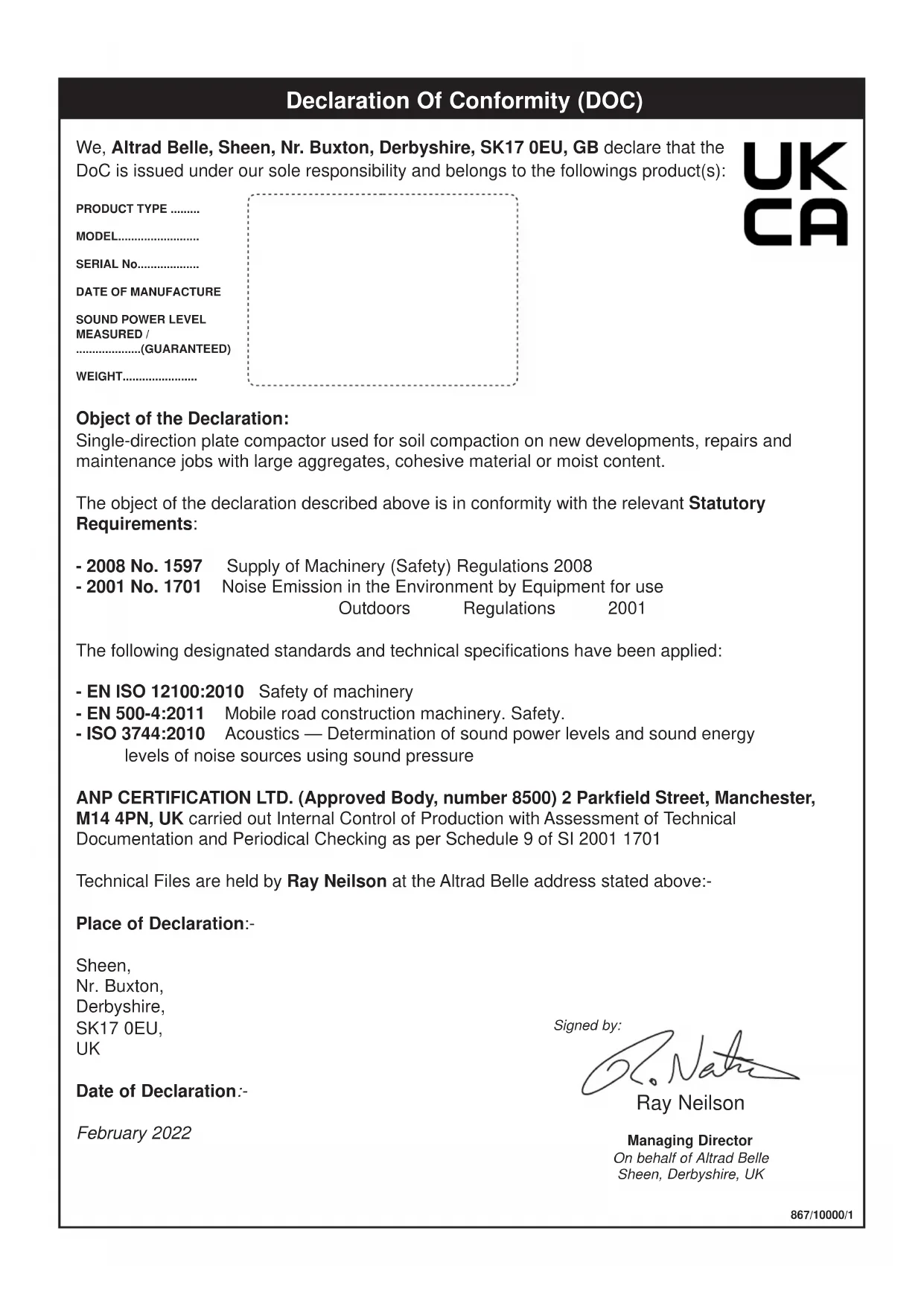

Declaration Of Conformity (DOC)
We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):
UK CA
PRODUCT TYPE ......
MODEL......
SERIAL No......
DATE OF MANUFACTURE
SOUND POWER LEVEL MEASURED / ........(GUARANTEED)
WEIGHT......
Object of the Declaration:
Single-direction plate compactor used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.
The object of the declaration described above is in conformity with the relevant Statutory Requirements:
- 2008 No. 1597 Supply of Machinery (Safety) Regulations 2008
- 2001 No. 1701 Noise Emission in the Environment by Equipment for use
Outdoors
Regulations
2001
The following designated standards and technical specifications have been applied:
- EN ISO 12100:2010 Safety of machinery
- EN 500-4:2011 Mobile road construction machinery. Safety.
- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure
ANP CERTIFICATION LTD. (Approved Body, number 8500) 2 Parkfield Street, Manchester, M14 4PN, UK carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Schedule 9 of SI 2001 1701
Technical Files are held by Ray Neilson at the Altrad Belle address stated above:-
Place of Declaration:-
Sheen,
Nr. Buxton,
Derbyshire,
SK17 0EU,
UK
Date of Declaration:-
February 2022
Signed by:
On behalf of Altrad Belle
Sheen, Derbyshire, UK
We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):
CE
PRODUCT TYPE ......
MODEL......
SERIAL No......
DATE OF MANUFACTURE.....
SOUND POWER LEVEL MEASURED / ......(GUARANTEED)
WEIGHT......
Object of the Declaration:
Single-direction plate compactor used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.
The object of the declaration described above is in conformity with the relevant Union Harmonisation Legislation:
- 2006/42/EC New machinery directive
- 2000/14/EC Noise - equipment for use outdoors
The following harmonised standards and technical specifications have been applied:
- EN ISO 12100:2010 Safety of machinery
- EN 500-4:2011 Mobile road construction machinery. Safety.
- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure
VINÇOTTE nv/sa (NB0026) carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Annex VI of 2000/14/EC
Technical Files are held by Hugues Menager at the following address:-
Altrad (Group Holding), 125 Rue du Mas Carbonnier, 34000, Montpellier, France.
Place of Declaration:-
Sheen,
Nr. Buxton,
Derbyshire,
SK17 0EU,
UK
Date of Declaration:-
April 2021
Signed by:
On behalf of Altrad Belle
Sheen, Derbyshire, UK
Single-direction plate compactor used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.
- 2006/42/EC Directive relative aux machines
Por Altrad Belle
Sheen, Derbyshire, Reino Unido
Namens Altrad Belle
Sheen, Derbyshire, VK
O. Nath Ray NeilsonThis manual has been written to help you operate and service the 'PCX 17/50A' Plate compactor safely. This manual is intended for dealers and operators of the 'PCX 17/50A' Plate compactor.
Foreword
The ‘Machine Description’ section helps you to familiarise yourself with the machine's layout and controls.
The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.
The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.
The ‘Operating Instructions’ section helps you with the setting up and use of the machine.
The 'Trouble Shooting Guide' helps you if you have a problem with your machine.
The 'Service & Maintenance' section is to help you with the general maintenance and servicing of your machine.
The 'Warranty' Section details the nature of the warranty cover and the claims procedure.
Directives with regard to the notations.
Text in this manual to which special attention must be paid are shown in the following way:
CAUTION
The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.
WARNING
The life of the operator can be at risk.
WARNING
WARNING
Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.
KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)
ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): +44 (0) 1298 84606
Contents
How to use this manual....10
Warning....10
Machine Description....11
Technical Data....11
Decals....12
Environment 13
Reasons For compaction....13
Safety Instructions....13
Health and Safety....14
Pre-Start Checks....14
Operating Instructions 14 - 15
Trouble Shooting Guide ....15
Service & Maintenance 16
Replacement Parts....16
Fitting Instructions 17
Warranty 17
UKCA Declaration of Conformity....2
EC/EU Declaration of Conformity....3

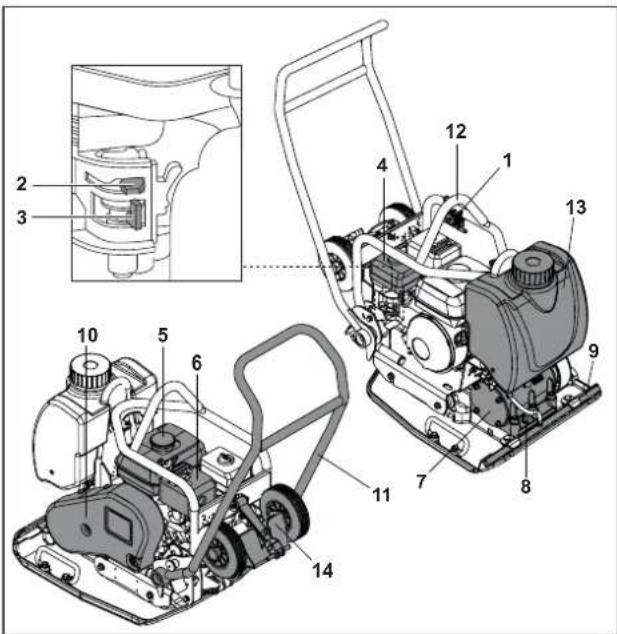

Machine Description
- Choke Lever,
- Fuel ON/OFF Lever,
- Air Filter Housing,
- Fuel Tank,
- Exhaust,
- Vibrator Unit,
- Vibrator Oil Check Plug,
- Attach Point For Water Spray Bar,
- Belt Guard,
- Control Handle,
- Lifting Frame,
- Water Tank,
- Transporter Attachment
Technical Data
| Model Honda GX120 Honda GX160 | ||
| Engine Model Honda GX120 Honda GX160 | ||
| Engine Power (Hp/kW) 4.0/3.0 @ 3800rpm 5.5/4.4 @ 3800rpm | ||
| * Weight (kg) 89 90 | ||
| Vibrator Force (kN) | 15 15 | |
| Frequency (Hz) | 85 85 | |
| Maximum Travel Speed (m/min) | 24 24 | |
| Compaction Force (kg/m2) | 485 | 485 |
| ** 3 Axis Vibration (m/sec2) | 2.7 | 2.7 |
| Sound Power Level (dB(A)) | 105 | 105 |
* Weight includes Water Kit and Transporter Attachment. (Items 13 and 14 of Machine Description)
** Minimum level to EN500 Part 4.


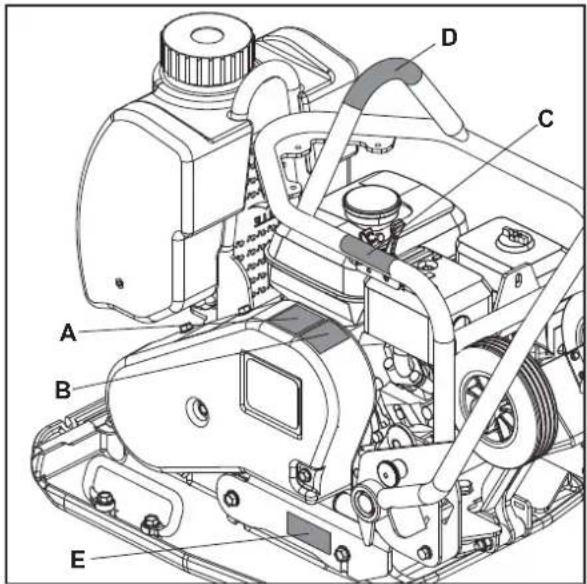

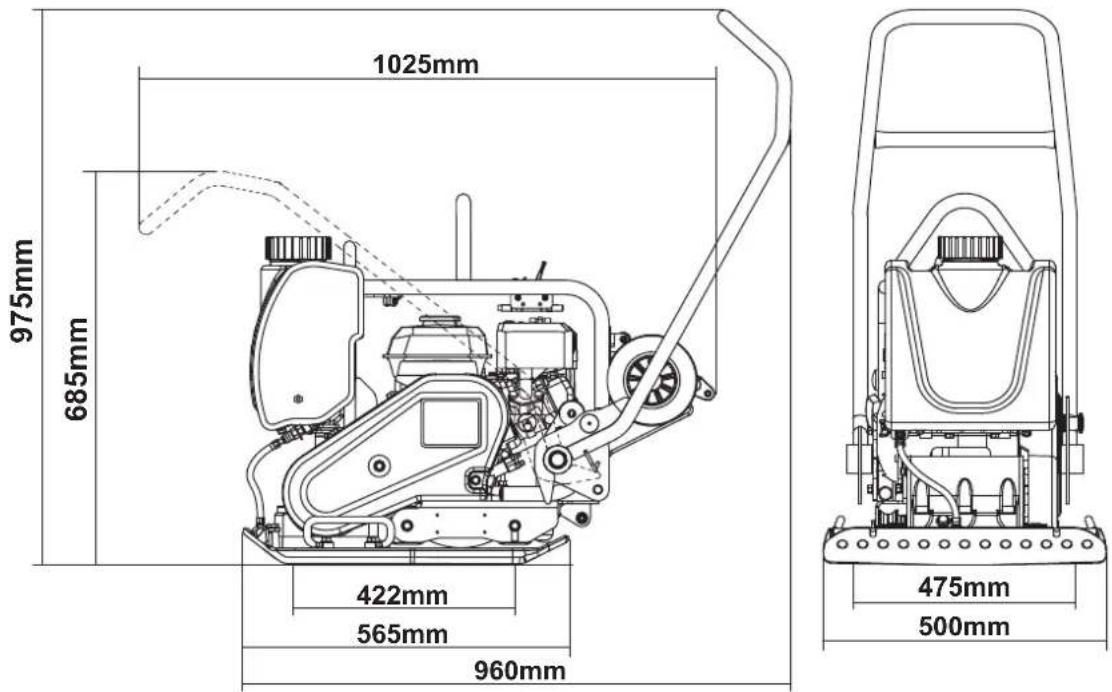

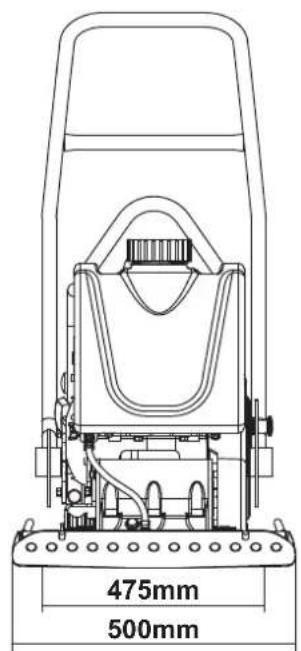

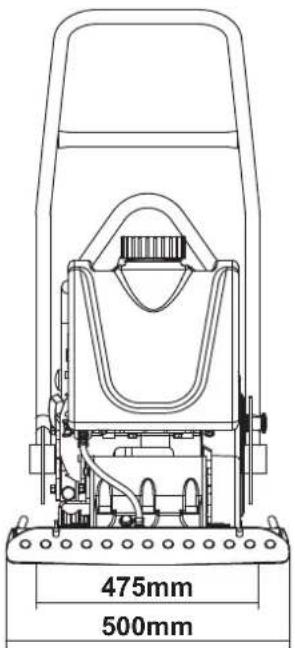

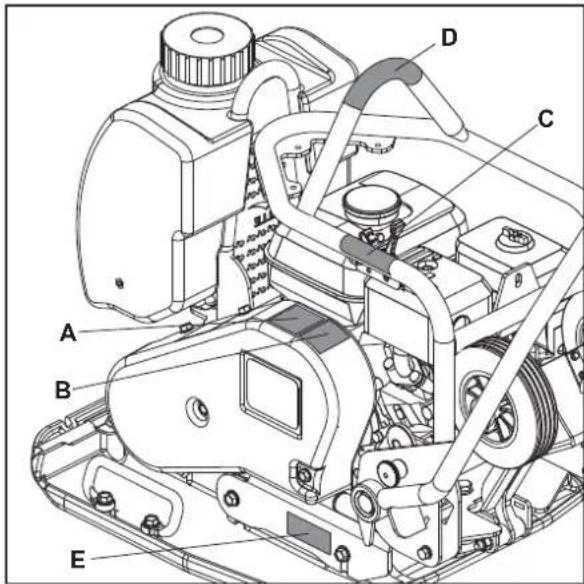

1025mm 975mm 685mm 422mm 565mm 960mm 475mm 500mmA. Safety Decal
B. Noise Decal
C. Engine RPM Decal
D. Lifting Point Decal
E. Wheel Kit Fitment Decal
Please Read
Operators Manual
Wear Protective Footwear
Wear Ear Protection
Wear Eye Protection
B - Noise Decal (800/99951)
The Noise Level of the machine during operation is 105 dB(A)
C - Engine RPM Decal
Fast Engine Speed Position
Slow Engine Speed Position
D - Lifting Point Decal (800/99986)
Lifting Point

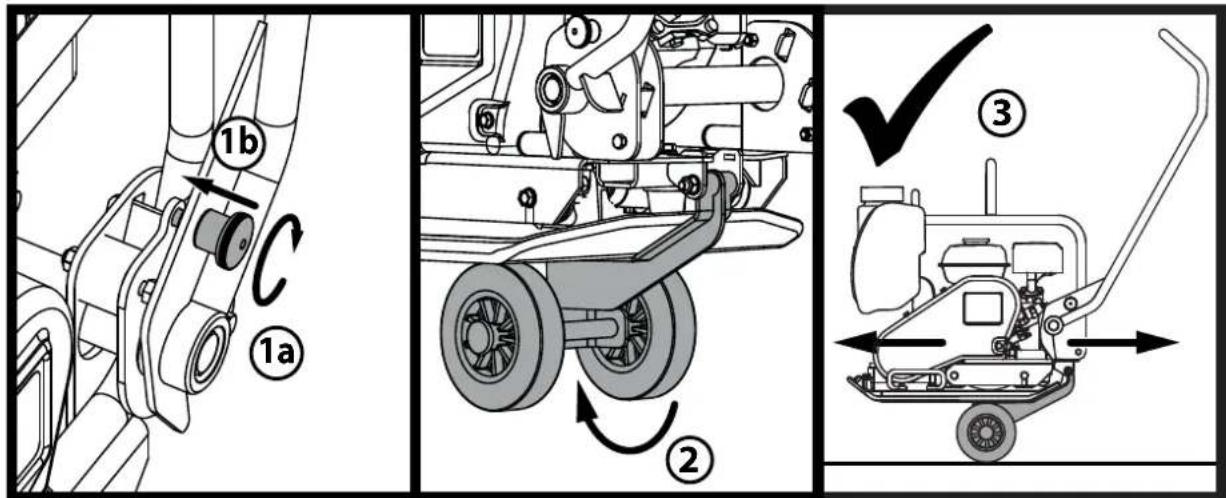

E - Wheel Kit Fitment Decal (800/99420)
Please see the Fitting Instructions section of this website for explanation.
Environment
Safe Disposal.
Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.
| Component Material | |
| Operator Handle Steel | |
| Baseplate Steel | |
| Eccentric Weights Steel | |
| Vibrator Housing Aluminium | |
| Petrol Engine Housing Aluminium | |
| Petrol Engine Covers Synthetic Material | |
| Various Parts | Steel & Aluminium |
Reasons For Compaction
Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.
- As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
- A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
- Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.
Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.
Safety Instructions
For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'PCX 17/50A' Plate compactor, consult your supervisor or Altrad Belle.
CAUTION
Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.
• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorized personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
- During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattended.
- Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security, if any are damaged or missing, DO NOT USE THE MACHINE until the guard has been replaced or repaired.
• DO NOT USE THE MACHINE when you are ill, feeling tired, or when under the influence of alcohol or drugs.
CAUTION
Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.
Fuel Safety.
• Before refuelling, switch off the engine and allow it to cool.
- When refuelling, DO NOT smoke or allow naked flames in the area.
- Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
• Store fuel in an approved, purpose made container away from heat and ignition sources.
Vibration
Some vibration from the trowelling operation is transmitted through the handle to the operator's hands. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.
PPE (Personal Protective Equipment).
Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear (with anti-slip soles for added protection). Wear clothing suitable for the work you are doing. Always protect skin from contact with concrete.
Dust.
The compaction process can produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.
Fuel.
Do not ingest fuel or inhale fuel vapors and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.
Exhaust Fumes.
Do not operate your 'PCX 17/50A' indoors or in a confined space, make sure the work area is adequately ventilated.
WARNING
The exhaust fumes produced by this equipment are highly toxic and can kill!
Pre-start Checks
Pre start-up inspection.
The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the 'PCX 17/50A' must not be used until the fault is rectified.
- Thoroughly inspect the 'PCX 17/50A' for signs of damage. Make sure that the belt guard is secure before using the machine.
- Check hoses, filler openings, drain plugs and any other areas for signs of leakage. Fix any leaks before operating.
- Check the engine oil level and top up as necessary.
- Check the engine fuel level and top up as necessary.
- Check for fuel and oil leaks.
Operating Instructions
• Take the compactor to where it is required.
Where it is necessary to use lifting equipment to position the 'PCX 17/50A', make sure the lifting equipment has a WLL (Working Load Limit) suitable for the 'PCX 17/50A's weight (see Technical Data section or machine serial plate). Attach suitable chains or slings ONLY to the lifting point on the top of the 'PCX 17/50A'.
- NEVER leave the engine running whilst transporting or moving the 'PCX 17/50A', even if it is only a short distance.
• Having carried out the checks listed in the 'pre start' section, you may start the engine.
The Altrad Belle 'PCX 17/50A' range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving the vibrator. As the engine speed is increased the clutch will engage and will drive the vibrator. For correct operation, the engine speed should be set to maximum.
- Set the throttle to maximum and use the control handle to steer or turn the 'PCX 17/50A'.
The vibrator will not only cause the baseplate to vibrate but will also cause it to travel forward. During normal operation you should not have to push the 'PCX 17/50A' but allow it to travel at its own pace. The speed of travel will be determined by the condition of the surface being compacted. If the surface to be compacted is on a slope, great care must be taken when controlling the 'PCX 17/50A's direction of travel. If necessary, use a suitable rope attached to the 'PCX 17/50A' at a low point on the chassis, to allow a helper to take part of the 'PCX 17/50A's weight. Work up and down a slope not across.
• Work the 'PCX 17/50A' over the surface in an organized pattern until the required compaction has been achieved.
Where there are a number of different layers to be compacted on top of each other, compact each layer individually.
WARNING
Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

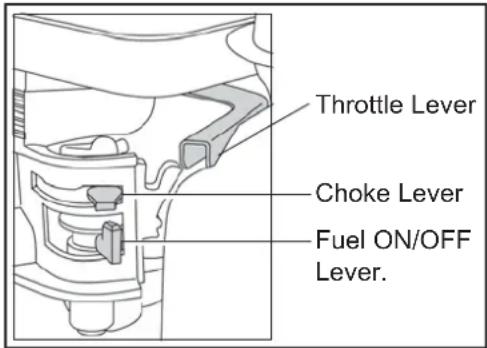

Honda GX120 & GX160
- Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
- If starting the engine from cold, set the choke ON by moving the choke lever fully to the left. If restarting a warm engine, the choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.
- Turn the engine ON / OFF switch clockwise to the 'I' position.
- Set the throttle to the idle position by moving the throttle lever fully to the right. Do not start the engine on full throttle, as the compactor will vibrate as soon as the engine starts.
-
Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return.
-
Taking care not to pull the starter's rope fully out, pull the starter handle briskly.
-
Repeat until the engine fires.
-
Once the engine fires gradually set the choke lever to the OFF position by moving it to the right.
-
If the engine fails to fire after several attempts, follow the Troubleshooting Guide.
-
To stop the engine, set the throttle to idle and turn the engine ON / OFF switch anticlockwise to the '0' position.
-
Turn the fuel off.
| Problem Cause Remedy | ||
| Engine will not start. | No fuel. | Open fuel tap. |
| Fill fuel tank. | ||
| Engine switched off. Switch engine on. | ||
| Spark plug fouled. Clean and reset plug gap. | ||
| Engine cold. Close choke. | ||
| Engine flooded. | Honda, open choke, fully open throttle, pull recoil starter until engine fires. | |
| Engine still will not start. Major Fault Contact Agent or Altrad Belle. | ||
| Unit will not vibrate. | Engine speed too slow. Set engine speed control to fast. | |
| Drive belt tension loose. | Adjust belt tension. | |
| Air filter blocked | Clean or renew air filter. | |
| Drive failure. | Contact Agent or Altrad Belle. | |
| Vibrator failure. | Contact Agent or Altrad Belle. | |
| Asphalt adhering to plate. | Lack of lubrication. | Use a water spray system. |
| Bituminous surface flaking (laminating). | Over compaction. | Remove and relay. |
| Low travel speed (plate sinking). | Layer thickness too deep. | Remove some of the material. |
| Moisture content too high or too low. | Remove material and adjust. | |
Maintenance
The Altrad Belle 'PCX 17/50A' range is designed to give many years of trouble free operation. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty.
Before any maintenance is carried out on the machine, switch off the engine and disconnect the HT lead from the sparkplug.
Always set the 'PCX 17/50A' on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart below).
Running In Period
When the 'PCX 17/50A' is first used from new, the engine oil must be changed after the initial running in period (see engine manual for full detail). The vibrator shaft case oil must be replaced after the first 100 hours use, then after every 500 working hours. For detail on vibrator shaft case oil replacement, see 'Vibrator unit'.
The belt tension should be checked after 4 hours use.
| Routine Maintenance | First 4 Hours | First Month / 20 Hours | 3 Months / 50 Hours | 6 Months / 100 Hours | |
| Engine Oil | Check Level | √ | |||
| Change | √ | √ | |||
| Air Filter | Check Condition / Clean | √ | √ | ||
| Replace when necessary / Every 12 months | |||||
| Spark Plug Change | √ | ||||
| Drive Belt Tension | √ √ | √ | |||
Oil / Fuel Type & Quantity - Spark Plug Type
| Oil Type | Quantity (Litre) | Fuel Type | Capacity (Litre) | Spark Plug Type | Electrode Gap (mm) | |
| Petrol Honda GX120 S.A.E. 10 | W 30 0.6 Unleaded 2.5 | BM6ES or BPR6ES | 0.7 - 0.8 | |||
| Petrol Honda GX160 S.A.E. 10 | W 30 0.6 Unleaded 3.6 | BM6ES or BPR6ES | 0.6 - 0.7 | |||
| Vibrator | S.A.E. 10W 40 | 0.3 | N/A | N/A | N/A | N/A |
Replacement Parts
When maintaining this product only the manufacturers original, genuine replacement parts may be used.
The user will lose any possible claims if replacement parts used are other than the makers original replacement parts.
Replacement parts for this product can be ordered online 24 hours a day, 7 days a week at www.Altrad-Belle247.com
For more information regarding the availability of replacement parts for this product, please contact Altrad Belle using contact details:-
Tel:- +44 (0)1298 84606
Fax:- +44 (0)1298 84073
Email:- sales@altrad-belle.com
Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the Altral-Portal.
- Once the Handle is locked into place, release the Wheel Kit and slide underneath the Baseplate.
- With the Handle still locked into place, the machine is now ready to be transported using the Wheel kit.
Warranty
Your new Altrad Belle 'PCX 17/50A' Single Direction Plate Compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The Altrad Belle warranty is against defects in design, materials and workmanship.
The following are not covered under the Altrad Belle warranty:
- Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
- Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
- Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
- Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.
The following components are not covered by warranty.
- Drivebelt/s
- Engine air filter
• Engine spark plug
Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.
Warranty Claims
All warranty claims should firstly be directed to Altrad Belle, either by telephone, by Fax, by Email, or in writing.
For warranty claims:
Tel: +44 (0)1298 84606
Fax: +44 (0)1298 84073
Email : Warranty.dept@altrad-belle.com
Write to:
Altrad Belle Warranty Department,
Sheen, Nr. Buxton,
Derbyshire,
SK17 0EU
England.
Warranty Registration:
In the bid for ALTRAD Belle to become greener and more eco friendly, we have now introduced online Warranty registration. To access the registration page of our website, please use the following address:-
http://www.bellegroup.com/index.php?p=warranty\_registration
Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the registration page.
Technical diagram of a lawn mower with numbered components and an inset view of the device's internal structure.text_image
1025mm 975mm 685mm 422mm 565mm 960mm
Technical diagram of a mechanical device with labeled parts A, B, C, D, and Enatural_image
Silhouette of a rabbit in motion, no text or symbols presenttext_image
Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.Altrad Belle Warranty Department,
Sheen, Nr. Buxton
Derbyshire
SK17 0EU
England.
Angleterre
Uso De Este Manual
1025mm 975mm 685mm 422mm 565mm 960mm 475mm 500mmtext_image
Technical diagram of a mechanical device with labeled parts A, B, C, D, and Enatural_image
Silhouette of a rabbit in motion, no text or symbols presentnatural_image
Silhouette of a turtle on a plain background (no text or symbols)text_image
Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.Altrad Belle Warranty Department,
Sheen, Nr. Buxton
Derbyshire
SK17 0EU
Inglaterra
Registro de Garantia :
Technical diagram of a lawn mower with numbered components and an inset view of the device's internal structure.- Gashendel,
- Choke,
- Brandstof ON/OFF hendel,
- Luchtfilter Woning,
- Brandstoftank,
- Uitlaat,
- Trilelement,
- Vibreren Petroleum Sortie Tampon,
- Verknochtheid Top Voor Water Vaporisator Zandbank
- Beschermingsmechanisme,
- Zeggenschap Steel,
- Opheffing Raamwindow,
- Waterreservoir,
- Oplegger Verknochtheid
Technische gegevens
| Model Honda GX120 Honda GX160 | ||
| Motor Honda GX120 Honda GX160 | ||
| Motorvermogen (Hp/kW) 4.0/3.0 @ 3800rpm 5.5/4.4 @ 3800rpm | ||
| * Gewicht (kg) 89 90 | ||
| Trilvermogen (kN) | 15 15 | |
| Frequentie (Hz) | 85 85 | |
| Maximale verplaatsingssnelheid (m/min) | 24 24 | |
| Verdichtingsvermogen (kg/m2) | 485 | 485 |
| ** 3-Assige Trilling (m/sec2) | 2.7 | 2.7 |
| Geluidsvermogensniveau (dB(A)) | 105 | 105 |
B. Geluidssticker.
C. Motortoerental sticker.
D. Hefpunt sticker.
E. Wielkit Montage Sticker
Silhouette of a rabbit in motion, no text or symbols presentnatural_image
Silhouette of a turtle (no text or symbols)text_image
Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.Altrad Belle Warranty Department,
Sheen, Nr. Buxton
Derbyshire
SK17 0EU
England
Technical diagram of a lawn mower with numbered parts and an inset view of the device's internal structure.text_image
1025mm 975mm 685mm 422mm 565mm 960mm 475mm 500mmtext_image
Technical diagram of a mechanical device with labeled parts A, B, C, D, and Enatural_image
Silhouette of a rabbit in motion, no text or symbols presenttext_image
Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.Gewährleistung
Altrad Belle Warranty Department,
Sheen, Nr. Buxton
Derbyshire
SK17 0EU
England
http://www.bellegroup.com/index.php?p=warranty\_registration
1025mm 975mm 685mm 422mm 565mm 960mm 475mm 500mmtext_image
Technical diagram of a mechanical device with labeled parts A, B, C, D, and Enatural_image
Silhouette of a rabbit in motion, no text or symbols presenttext_image
Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating motion or movement.Altrad Belle Warranty Department,
Sheen, Nr. Buxton
Derbyshire
SK17 0EU
Inghilterra
BELLE
LIGHT
CONSTRUCTION
EQUIPMENT
ALTRAD BELLE
Sheen, Nr. Buxton, Derbyshire, SK17 DEU, GB
Tel. +44 (0)1298 84606 - Fax +44 (0)1298 84722 - Email: sales@altrad-belle.com
www.Altrad-Belle.com
