USER MANUAL BELLE RPX 59/75D ALTRAD

Technical line drawing of a mechanical device with mounting brackets and a lever mechanism (no text or symbols)

UKCA Declaration of Conformity

3 - 5

EC/EU Declaration of Conformity

Declaration Of Conformity (DOC)

We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):

UK CA

PRODUCT TYPE ......

MODEL......

SERIAL No......

DATE OF MANUFACTURE

SOUND POWER LEVEL MEASURED / ........(GUARANTEED)

WEIGHT......

Object of the Declaration:

Forward/reverse plate compactor used for compaction of soil, cohesive material or moist content in trenches but also on road repairs.

The object of the declaration described above is in conformity with the relevant Statutory Requirements:

- 2008 No. 1597 Supply of Machinery (Safety) Regulations 2008

- 2001 No. 1701 Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001

- 2016 No. 1091 Electromagnetic Compatibility Regulations 2016

The following designated standards and technical specifications have been applied:

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

VINÇOTTE nv/sa (NB0026) carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Annex VI of 2000/14/EC

Technical Files are held by Ray Neilson at the Altrad Belle address stated above:-

Place of Declaration:-

Sheen,

Nr. Buxton,

Derbyshire,

SK17 0EU,

UK

Date of Declaration:-

May 2021

Signed by:

Dr. Nath Ray Neilson

Managing Director

On behalf of Altrad Belle

Sheen, Derbyshire, UK

We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):

CE

PRODUCT TYPE ....

MODEL......

SERIAL No......

DATE OF MANUFACTURE .....

SOUND POWER LEVEL MEASURED / ........(GUARANTEED)

WEIGHT....

Signed by:

Ray Neilson

Managing Director

On behalf of Altrad Belle, Sheen, Derbyshire, UK

Place of Declaration:-

Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK

Date of Declaration:-

April 2021

Object of the Declaration:

Forward/reverse plate compactor used for compaction of soil, cohesive material or moist content in trenches but also on road repairs.

The object of the declaration described above is in conformity with the relevant Union Harmonisation Legislation:

- 2006/42/EC - New machinery directive

- 2000/14/EC - Noise - equipment for use outdoors

The following harmonised standards and technical specifications have been applied:

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

VINÇOTTE nv/sa (NB0026) carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Annex VI of 2000/14/EC

Technical Files are held by Hugues Menager at the following address:-

Altrad (Group Holding), 125 Rue du Mas Carbonnier, 34000, Montpellier, France.

GBGB

EU Declaration Of Conformity (DOC)

We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):

PRODUCT TYPE ....

MODEL......

SERIAL No......

DATE OF MANUFACTURE .....

SOUND POWER LEVEL MEASURED / ........(GUARANTEED)

WEIGHT......

See information on sticker above

Signed by:

Ray Neilson

Managing Director

On behalf of Altrad Belle, Sheen, Derbyshire, UK

Place of Declaration:-

Sheen, Nr. Buxton, Derbyshire, SK17 0EU, UK

Date of Declaration:

April 2021

Object of the Declaration:

Forward/reverse plate compactor used for compaction of soil, cohesive material or moist content in trenches but also on road repairs.

The object of the declaration described above is in conformity with the relevant Union Harmonisation Legislation:

- 2014/30/EU - EMC Directive

The following harmonised standards and technical specifications have been applied:

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

VINÇOTTE nv/sa (NB0026) carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Annex VI of 2000/14/EC

Technical Files are held by Hugues Menager at the following address:-

Altrad (Group Holding), 125 Rue du Mas Carbonnier, 34000, Montpellier, France.

- 2006/42/EC - Directive relative aux machines

This manual has been written to help you operate and service the 'RPX' safely. This manual is intended for dealers and operators of the 'RPX'.

Foreword

The 'Machine Description' section helps you to familiarise yourself with the machine's layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.

The 'Start and Stop Procedure' helps you with starting and stopping the machine.

The 'Trouble Shooting Guide' helps you if you have a problem with your machine.

The 'Service & Maintenance' section is to help you with the general maintenance and servicing of your machine.

The 'Warranty' Section details the nature of the warranty cover and the claims procedure.

The ‘Declaration of conformity’ section shows the standards that the machine has been built to.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

CAUTION

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.

WARNING

The life of the operator can be at risk.

WARNING

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]

Contents

How To Use This Manual....6

Warning 6

Machine Description....7

Environment 7

Decals 8 - 9

Technical Data....9

General Safety 10

Health and Safety....10

Reasons For Compaction....11

Pre-Start Checks....11

Start and Stop Procedure....11 - 12

Operating Instructions....13

Service & Maintenance 14 - 15

Trouble Shooting Guide 16

Warranty 17

Replacement Parts....17

UKCA Declaration of Conformity....2

EC/EU Declaration of Conformity....3

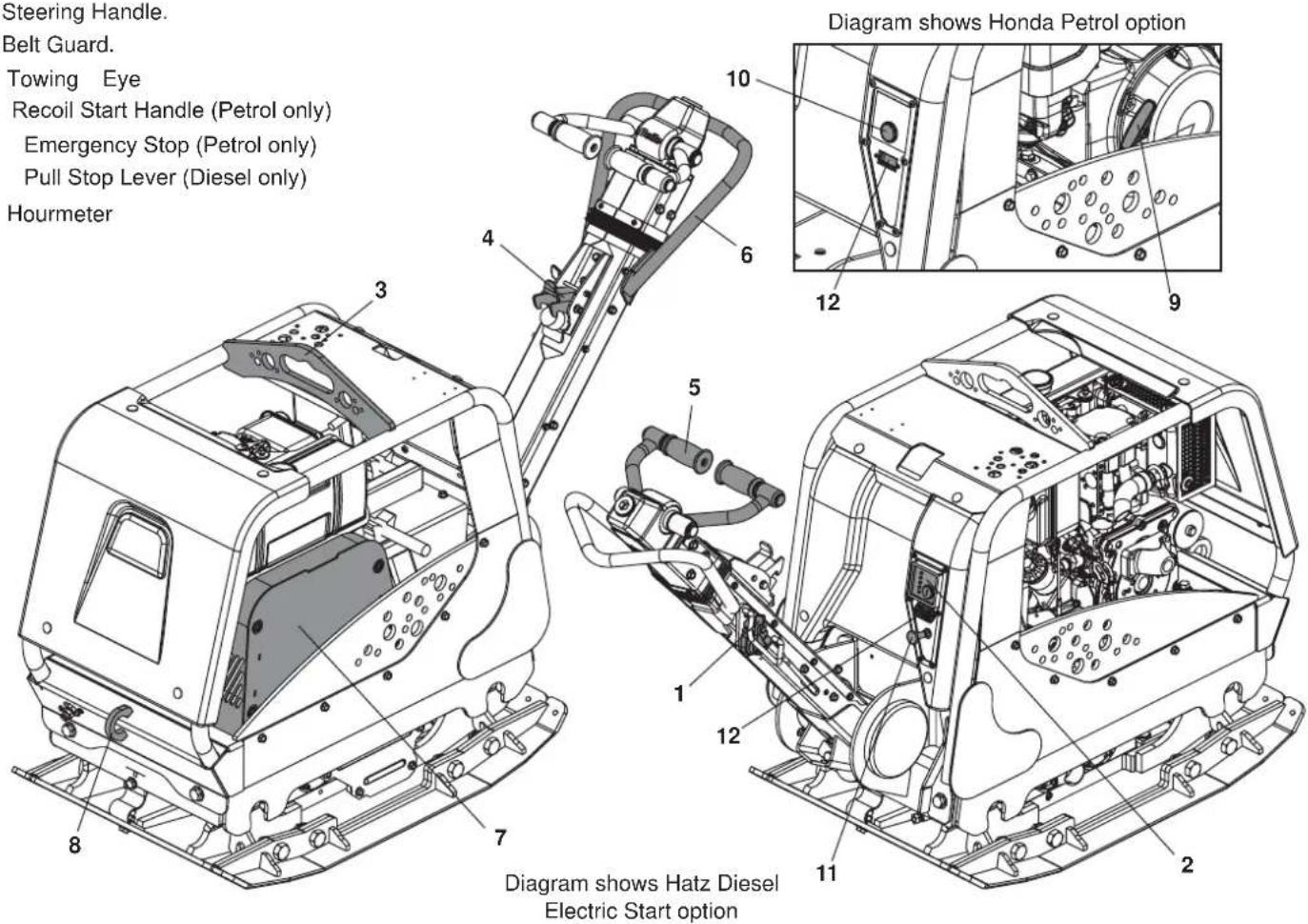

Machine Description

1. Throttle lever.
2. Electric Start (Diesel Electric Start only).
3. Lifting Point.
4. Handle Release Catch.
5. Forward / Reverse Control Handle.
6. Steering Handle.
7. Belt Guard.
8. Towing Eye
9. Recoil Start Handle (Petrol only)
10. Emergency Stop (Petrol only)
11. Pull Stop Lever (Diesel only)
12. Hourmeter

Steering Handle. Belt Guard. Towing Eye Recoil Start Handle (Petrol only) Emergency Stop (Petrol only) Pull Stop Lever (Diesel only) Hourmeter Diagram shows Honda Petrol option 10 6 12 9 5 1 12 8 7 11 2 Diagram shows Hatz Diesel Electric Start option

Environment

Safe Disposal.

Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.

Component Material
Handle Steel
Rear & Front Cover HDPE
Main Frame Steel
Baseplate Steel
Hand Grips Polyurethane Foam
Engine Steel / Aluminium
Flexible Mounts Steel And Rubber
Various Parts	Steel And Aluminium

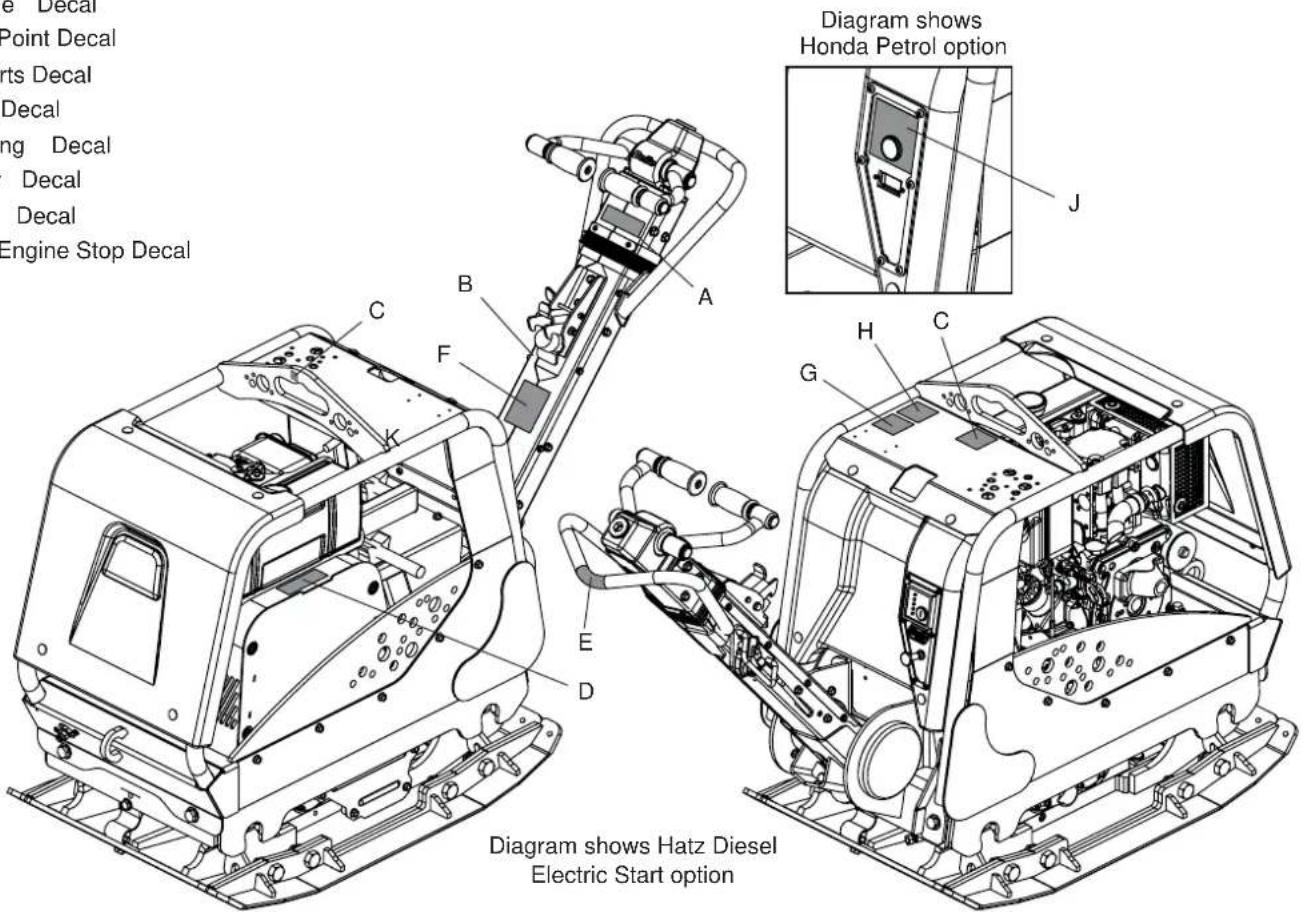

A. Forward / Reverse & No Lift Decal
B. Throttle Decal
C. Lifting Point Decal
D. Hot Parts Decal
E. No Lift Decal
F. Warning Decal
G. Safety Decal
H. Noise Decal
J. Petrol Engine Stop Decal

e Decal Point Decal arts Decal Decal ing Decal Decal Decal Engine Stop Decal Diagram shows Honda Petrol option A B C F K A J H C G E D Diagram shows Hatz Diesel Electric Start option

A. Forward / Reverse & No Lift Decal

Indicates how to move the compactor forwards and backwards and highlights that the Forward / Reverse Control Handle and Steering Handle should not be used as Lifting Points.

B. Throttle Decal

Fast Engine Speed Position

Slow Engine Speed Position

C. Lifting Point Decal

Identifies the correct lifting point on the compactor.

D. Hot Parts Decal

This area may get hot - DO NOT touch.

E. No Lift Decal

This area should not be used as a Lifting Point.

F. Warning Decal

A. DO NOT operate the machine in reverse on an incline.

B. DO NOT operate in reverse up to an enclosed or restrictive space.

G. Safety Decal

Please Read Operators Manual

Wear Protective Footwear

Wear Ear Protection

Wear Eye Protection

H. Noise Decal

Identifies the Noise Level of the machine

J. Petrol Engine Stop Decal

Press and hold the Stop Button for 5 seconds to stop the engine.

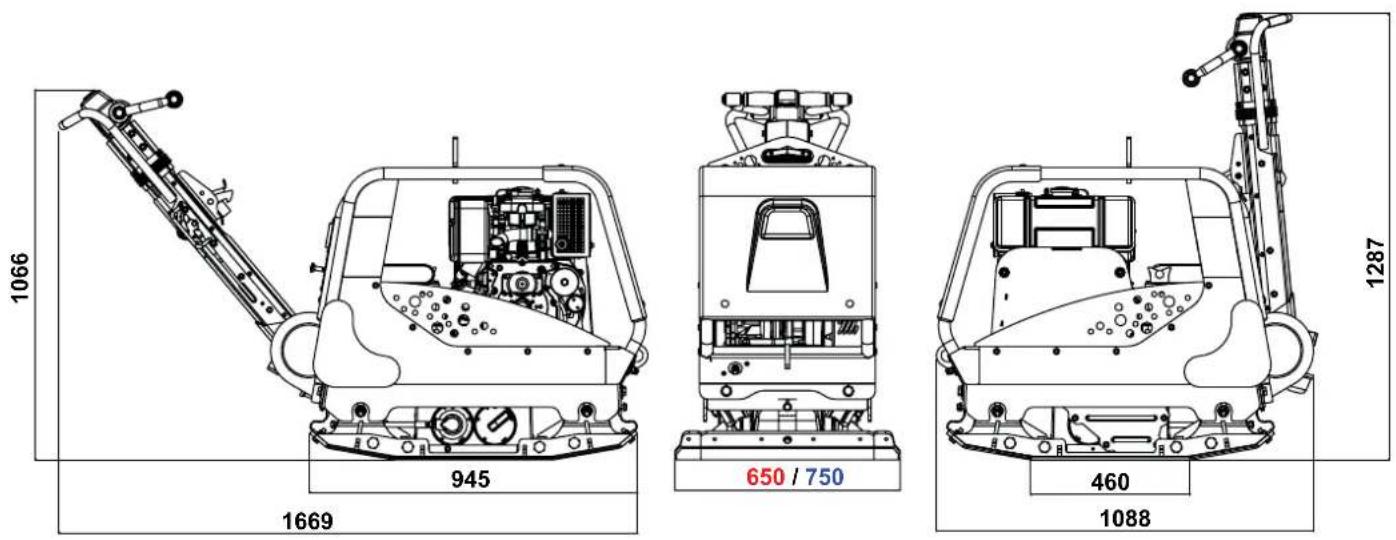

Technical Data

1066 945 1669 650 / 750 460 1088 1287

Model RPX 59/65 RPX 59/75
Engine	Honda GX390	Hatz 1D50	Hatz 1D50 Electric Start	Honda GX390	Hatz 1D50	Hatz 1D50 Electric Start
Engine Power (Hp / kW)	9.4 / 7.0	10.7 / 7.9	10.7 / 7.9	9.4 / 7.0	10.7 / 7.9	10.7 / 7.9
Engine RPM 3000 3000 3000 3000 3000 3000
Weight (Kg)	360	412	442	375	427	457
Plate Width (mm)	650	650	650	750	750	750
Static Pressure (kg/m2)	1241	1420	1524	1102	1256	1344
Centrifugal Force (kN)	59	59	59	59	59	59
Frequency (Hz)	70	70	70	70	70	70
Max Gradient (%)	20	20	20	20	20	20
Maximum Travel Speed (m/min)	28	28	28	28	28	28
*3-Axis Vibration (m/sec2)	3.1	2.4	2.4	3.1	2.4	2.4
Noise Level (dB(A))	109	109	109	109	109	109

* Minimum level to EN500 Part 4

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'RPX', consult your supervisor or Altrad Belle.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorised personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
- During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattended.
- NEVER remove or tamper with any guards fitted, they are there for your protection. ALWAYS check guards for condition and security, if any are damaged or missing, DO NOT USE THE COMPACTOR until the guard has been replaced or repaired.
• DO NOT operate the Compactor when you are ill, feeling tired, or when under the influence of alcohol or drugs.
• DO NOT start the machine with the exhaust facing another object. ALWAYS leave at least 1m around the machine when starting.

CAUTION

Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.

Fuel Safety.

• Before refuelling, switch off the engine and allow it to cool.
- When refuelling, DO NOT smoke or allow naked flames in the area.
- Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
- Store fuel in an approved, purpose made container away from heat and ignition sources.

Health & Safety

Vibration

Some vibration from the compaction operation is transmitted through the handle to the operator's hands. The Altrad Belle RPX range has been specifically designed to reduce hand/arm vibration levels. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.

PPE (Personal Protective Equipment)

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear. Wear clothing suitable for the work you are doing. Tie back long hair and remove any jewellery which may catch in the equipment's moving parts. Always protect skin from contact with concrete.

Dust

The compacting process will occasionally produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.

Fuel

DO NOT ingest fuel or inhale fuel vapours and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.

Exhaust Fumes

DO NOT operate the compactor indoors or in a confined space, make sure the work area is adequately ventilated.

WARNING

The exhaust fumes produced by this equipment are highly toxic and can kill!

Reasons For Compaction

Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.

1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.

Pre start-up inspection

The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the compactor must not be used until the fault is rectified.

1. Thoroughly inspect the compactor for signs of damage. Check components are present and secure. Pay special attention to the belt guard.
2. Check the engine oil and hydraulic oil level and top up as necessary.
3. Check the engine fuel level and top up as necessary.
4. Check for fuel, oil and hydraulic leaks.

Start And Stop Procedure

Honda GX390 Petrol Engine

Stopping the Engine

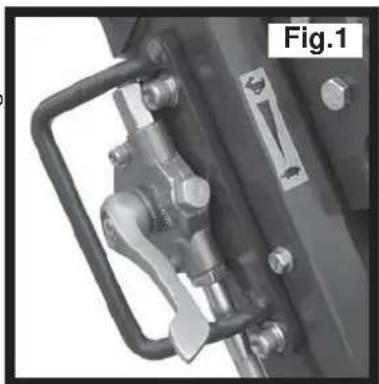

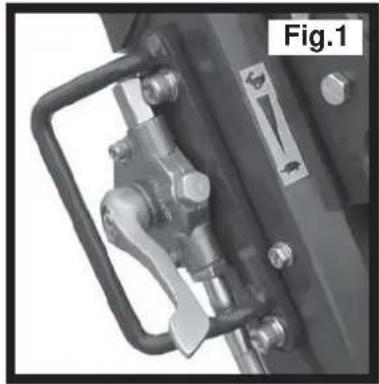

1. To stop the engine, set the throttle control to idle (See Fig. 1), then press and hold the red stop button for 5 seconds until the engine stops (See Fig. 2).

- Turn the fuel OFF

Starting the Engine

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the left. If restarting a warm engine, the choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.
3. Set the throttle to the idle position by moving the throttle lever fully to the right.
4. Taking a firm hold of the frame with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return.
5. Taking care not to pull the starter's rope fully out, pull the starter handle briskly.
6. Repeat until the engine fires.
7. Once the engine fires gradually set the choke lever to the OFF position by moving it to the right.
8. If the engine fails to fire after several attempts, follow the Troubleshooting Guide.

Close-up of a mechanical valve assembly with a handle and bolted joint (no visible text or symbols)

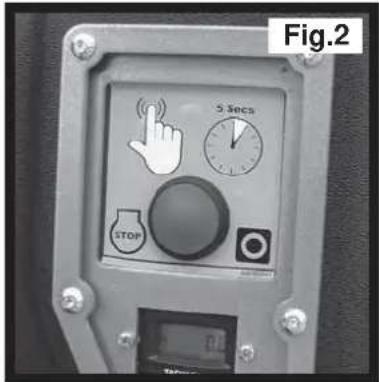

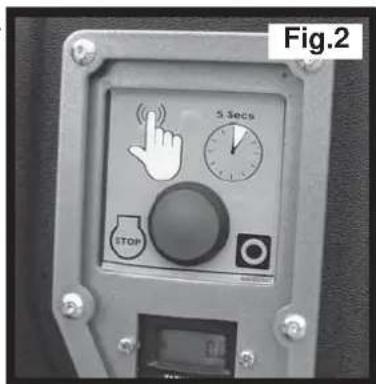

Fig.2 5 Secs STOP

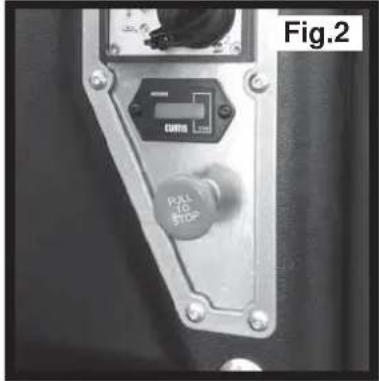

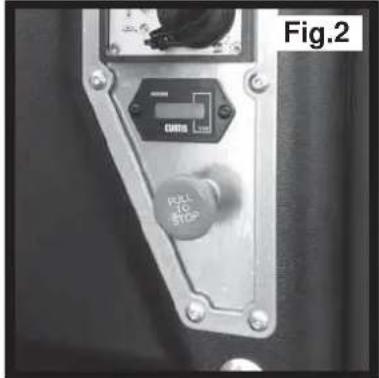

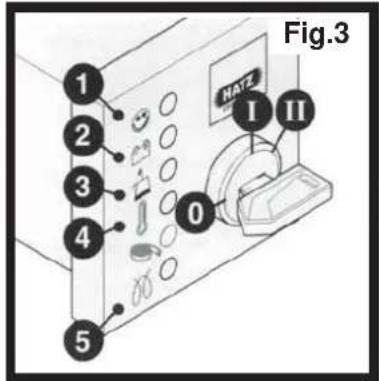

Hatz 1D50 Diesel Engine

Stopping the Engine

1. To stop the engine, set the throttle control to idle (See Fig. 1), then pull red stop handle until the engine stops (See Fig. 2).

Starting the Engine

1. Turn ON the fuel by moving the fuel ON/OFF lever fully to the right.
2. Set the engine speed control to start.
3. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the handle until engine resistance is felt, then let the starter return.
4. Taking care not to pull the starter's rope fully out, pull the starter handle briskly with both hands.
5. Repeat this procedure until the engine fires.
6. If the engine fails to start after several attempts, Follow the troubleshooting guide.

Hatz 1D50 Diesel Engine (Electric Start)

Stopping the Engine

1. To stop the engine, set the throttle control to idle (See Fig. 1), then pull red stop handle until the engine stops (See Fig. 2).
2. Turn the key to position '0' and remove it. All the indicator lights must go out. NOTE:- Failure to return the starter key to position '0' may result in the battery being totally discharged.

Starting the Engine

1. Insert the key and turn it to position 'I' (The battery charge light and oil pressure warning light will light up)
2. Turn start key to position 'll'
3. Release the key as soon as the engine runs. The starting key must spring back to position '1' and remain there during engine operation. The battery charge light and oil pressure warning light must go out immediately after starting. Indicator light '1' lights up to show that the engine is running.
4. If anything seems to be incorrect, stop the engine immediately and rectify the fault. (See the Troubleshooting Guide)

Close-up of a mechanical valve assembly with a handle and bolted joint (no visible text or symbols)

Fig.2 FULL TO STOP

Fig.3 1 2 3 4 5 0 I II

CAUTION

Never operate the electric starter when the engine is running or coasting to a standstill. There is a risk of broken starter pinion or ring gear teeth. Never stop the engine by moving the decopression lever. During breaks in work or at the end of the working period, keep the starting handle and starting key in a safe place, out of reach of unauthorised persons.

1. Always turn the start key back to position '0' before re-starting the engine. The repeat lock prevents the starter motor from engaging and possibly being damaged whilst the engine is still running.

• Take the compactor to where it is required.

Where it is necessary to use lifting equipment to position the compactor, make sure the lifting equipment has a WLL (Working Load Limit) suitable for the compactors weight (see Technical Data section or the machine serial plate). Attach suitable chains or slings ONLY to the lifting point (Item 3 of the Machine Description) on the top of the compactor.

- Having carried out the checks listed in the 'Pre Start' section, you may start the engine.

The Altrad Belle 'RPX' range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving the gearbox.

As the engine speed is increased the clutch will engage and will drive the gearbox. For correct operation, the engine speed should be set to maximum.

- Set the throttle to maximum and use the control handle for direction and to steer or turn the compactor.

The control handle has been designed so that when it is being used in reverse and the operator lets go for any reason, the handle automatically moves into forward mode. This is a significant safety feature of the machine.

During normal operation you should not have to push the compactor but allow it to travel at its own pace.

The speed of travel will be determined by the condition of the surface being compacted.

Caution must be used when operating the compactor in reverse. Ensure that there are no obstructions or trip hazards when operating in reverse.

If the surface to be compacted is on a slope, great care must be taken when controlling the compactor's direction of travel. If necessary, use a suitable rope attached to the compactor at a low point on the chassis, to allow a helper to take part of the compactor's weight. Work up and down a slope not across.

• Work the compactor over the surface in an organised pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

• To stop the compactor vibrating, set the throttle to idle. To stop the engine refer to the relevant Start / Stop procedure.

CAUTION

DO NOT operate the machine in reverse on an incline.

DO NOT operate in reverse up to an enclosed or restrictive space.

CAUTION

DO NOT use on boggy, waterlogged ground as the compactor will sink and cause excessive loading to the engine and drive system.

The Altrad Belle 'RPX' range of Reversible Plate Compactors are designed to give many years of trouble free operation. It is, however, important that the simple regular maintenance listed in this section is carried out. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty.

Before any maintenance is carried out on the machine, switch off the engine. If working on a diesel engine, make sure that the stop switch is in the stop position.

Always set the compactor on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart on following page).

Running In Period

When the compactor is first used from new, the engine oil must be changed after the initial running in period (see engine manufacturer's manual for full detail). The belt tension should be checked after 4 hours use.

Drive Belt

Remove the belt guard then check the belt tension by placing light finger pressure on the top of the belt, as near central between the engine drive and gearbox pulley. The belt should deflect by approx. 10 to 15mm. If the belt tension requires adjustment, loosen the setscrew on the Belt Tensioning device and slide to the right. Once set, retighten the setscrew and check belt tension a second time. Finally, replace the belt guard ensuring it is correctly and securely fitted.

Routine Maintenance		Every 8 Hours	First Month / 50 Hours	150 Hours	250 Hours	500 Hours
Engine Oil	Check Level	√
	Change		√		√
Air Filter	Check Condition / Clean		√
	Replace when necessary / Every 12 months
Spark Plug Change						√
Drive Belt Tension			√		√

Oil / Fuel Type & Quantity - Spark Plug Type

	Oil Type	Quantity (Litre)	Fuel Type	Capacity (Litre)	Spark Plug Type	Electrode Gap (mm)
Honda GX390 Petrol S.A.E. 10W 30 1.1			Unleaded Petrol	6.4	BPR6ES (NGK)	0.6 - 0.7mm
Hatz 1D50 Diesel	S.A.E. 10W 30	1.5	Diesel (BS2869)	7.0 N/A N/A

Oil Type & Quantity

Component Oil Type		Honda GX390 (Litres)	Hatz 1D50 (Litres)
Gearbox Silk Gear 220 1.00 1.00
Hydraulic Control	Shell Tellus 32	0.2	0.2
	Fuchs Renolin MR520	0.2	0.2

CAUTION

WHILST RUNNING THIS MACHINE DURING THIS PROCEDURE, IT IS ADVISABLE TO PUT THE MACHINE ONTO A RUBBER MAT OR EQUIVALENT TO ABSORB SOME OF THE VIBRATION.

Bleeding the Hydraulic System

1. Ensure the machine is in a stationary position, and situated on level ground.
2. Remove the filler cap, and fill the control pump head with oil. Stop once you have reached the maximum level indicator, which is within the head.
3. Slowly pump the control handle from the 'Forward Motion' position, to the 'Reverse Motion' position, until the oil level drops.
4. Re-fill the control pump head up to the maximum level. Continue to pump the handle until resistance is felt, and the handle locks in the 'Reverse Motion' position.
5. Again, re-fill the control pump head up to the maximum level.
6. Re-fit the Filler Bung, and test the machine.

Assembly of the Control Pump

1. Carefully clean the housing with compressed air on the inside. Check for scratches on sliding bores for O Rings and there are no sharp edges.
2. Press the Bushing in to Housing.
3. Lubricate the Lip Seal with Hydraulic Oil and slip it on the Rack (open side away from the rack).
4. Lubricate the Rack with Hydraulic Oil and slide it into the Housing until the Lip Seal is in the groove, making sure the teeth are in the right position. When the Lip Seal is in the Groove this represents forward motion.

CAUTION

In reverse motion the Control Handles run parallel with the Housing in the direction of the operator.

1. After lubricating the Pinion (without O Rings), insert it into the Housing and Rack. Check the movement of the Rack from Forward to Reverse. (See CAUTION).
   6 Take the Pinion out and fit the two O Rings, making sure they are not damaged.
2. Lubricate the Pinion and O Rings with hydraulic oil and carefully insert in to the Housing. Make sure the Rack is in the right position and this is easiest when in reverse motion.
3. Fit the Shim and Retaining Ring. It may be necessary to push the Pinion from the opposite side to get them assembled.
4. Place the Housing on the filler side and fit the O Rings to the bottom face. LOCTITE seal 518 is recommended.
5. Assemble the Hydraulic Connector and Dowty Washer using LOCTITE 243.
6. Assemble the Bracket and fix with 4 screws and washers using LOCTITE 243.
7. Loosely fit the Plug Screw and Washer DO NOT TIGHTEN.

Problem Cause Remedy
Engine will not start.	No fuel.	Open fuel tap.
		Fill fuel tank.
	Engine switched off. Switch engine on.
	Spark plug fouled. Clean and reset plug gap.
	Engine cold. Close choke.
	Engine Flooded.	Honda, open choke, fully open throttle, pull recoil starter until engine fires.
		Hatz, move speed control to stop, pull recoil starter 5 times then repeat start procedure.
Engine still will not start.	Major Fault. Contact Agent or Altrad Belle.
Unit will not move.	Engine speed too slow. Set engine speed control to fast.
	Drive belt tension loose. Adjust belt tension
	Air filter blocked. Clean or renew air filter.
	Worn or Damaged Clutch. Repair or Replace as necessary.
	Drive failure. Contact Agent or Altrad Belle.
	Gearbox failure.	Contact Agent or Altrad Belle.
Forward speed too slow.	Too much oil in hydraulic head.	Reduce oil level.
	Wrong adjustment of control system	Contact Agent or Altrad Belle.
Reverse speed too slow.	Not enough oil in hydraulic head.	Fill and bleed system.
	Air in control system.	Bleed control system.
	Wrong adjustment of control system	Contact Agent or Altrad Belle.
Loss of Hydraulic Oil.	Connectors leaking.	Reseal connectors.
	Defective hydraulic hose.	Replace hose.
	Piston seal in gearbox defective.	Contact Agent or Altrad Belle.
Machine operates erratically.	Shock mounts damaged.	Replace all four mounts.

Your new Altrad Belle 'RPX' reversible plate compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase.

The Altrad Belle warranty is against defects in design, materials an workmanship.

The following are not covered under the Altrad Belle warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

• Drivebelt/s
• Engine Air Filter
• Engine Spark Plug

Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should firstly be directed to Altrad Belle, either by telephone, by Fax, by Email, or in writing.

For warranty claims:

Tel : [phone], Fax : [phone], Email : [e-mail]

or Write to:

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

Warranty Registration:

In the bid for ALTRAD Belle to become greener and more eco friendly, we have now introduced online Warranty registration. To access the registration page of our website, please use the following address:-

http://www.bellegroup.com/index.php?p=warranty_registration

Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the registration page.

Replacement Parts

When maintaining this product only the manufacturers original, genuine replacement parts may be used.

The user will lose any possible claims if replacement parts used are other than the makers original replacement parts.

Replacement parts for this product can be ordered online 24 hours a day, 7 days a week at www.Altrad-Belle247.com

For more information regarding the availability of replacement parts for this product, please contact Altrad Belle using the following contact details:-

Tel:- [phone] Fax:- [phone] Email:- [e-mail]

Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the Altrad Belle online parts portal.

Close-up of a mechanical valve assembly with a handle and bolted joint (no visible text or symbols)

Fig.2 5 Secs STOP

Close-up of a mechanical valve assembly with no visible text or symbols

Fig.2 PALL 10 STOP

Fig.3 1 2 3 4 5 0 I II

ATTENTION

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England.

Angleterre

QR code image containing encoded data, no visible human-readable text

Pièces de Rechange

Procedura Start i Stop

Close-up of a mechanical component with a curved handle and bolts, labeled Fig.1 (no text or symbols on the main subject)

Fig.2 5 Secs STOP

Hatz Silnik Diesla 1D50

Wyłączanie silnika

Close-up of a mechanical valve mechanism with no visible text or symbols

Fig.2 P-ALL TO STOP

Fig.3 1 2 3 4 5 0 I II

UWAGA

Altrad Belle Warranty Department

Sheen, Nr. Buxton,

Derbyshire,

SK17 0EU

England.
