DAB341 - Blender MOULINEX - Free user manual and instructions

Product type	Blender
Brand	Moulinex
Model	DAB341
Bowl capacity	1.5 L
Supply voltage	220-240 V
Frequency	50/60 Hz
Main functions	Mix, Pulse, AutoClean
Included accessories (depending on model)	Herb grinder (H), Grater (I), Coffee grinder (J), Filter (K)
Maximum capacity of accessories	80 g
Dishwasher-safe blender bowl	Yes
Care and cleaning	AutoClean, dishwasher-safe for bowl and accessories; wipe motor unit with a damp cloth
Safety	Safety lid, sharp blades, never immerse motor unit
Spare parts available	Herb grinder (5927600), Grater (5927601), Coffee grinder (5927602), Filter (5927603)
Model reference	DAB341
Use	Culinary, indoor

Frequently Asked Questions - DAB341 MOULINEX

What to do if the blender does not work?

Check that the plug is plugged in and that the bowl or accessory is correctly positioned on the motor unit. Make sure the lid is properly locked by turning it clockwise.

Why does my blender vibrate excessively?

Place the product on a flat surface and check that the bowl or accessory is correctly positioned on the motor unit.

How to clean the blender?

Use the AutoClean function: pour warm soapy water into the bowl, give a few pulses, then rinse. The bowl and accessories are dishwasher safe. Clean the motor unit with a damp cloth.

Can I blend boiling liquids?

No, never pour boiling liquids into the blender bowl. Wait for them to cool before blending.

What is the maximum capacity of the accessories (grinder, grater)?

The maximum capacity of the grinding accessories (herb grinder, grater, coffee grinder) is 80 g.

How to use the filter?

Place the filter in the blender bowl, aligning the slots with the internal ribs. Secure it with the pouring lid. Insert food through the opening of the measuring cap.

The pouring lid leaks, what to do?

Check that the volume of ingredients does not exceed the maximum level (1.5 L) and that the pouring lid is in the closed position.

How to chop herbs or coffee?

Use the herb grinder (H) or coffee grinder (J). Add the ingredients, lock the safety lid, then place the assembly on the motor unit and press the Pulse button or position 1.

Where to find spare parts?

You can obtain accessories from your usual retailer or an authorized Moulinex service center. References: herb grinder (5927600), grater (5927601), coffee grinder (5927602), filter (5927603).

The blade does not turn easily, what to do?

Reduce the size or quantity of food, add liquid to facilitate mixing.

USER MANUAL DAB341 MOULINEX

G E F D A B C

K

1 L 2 3 I

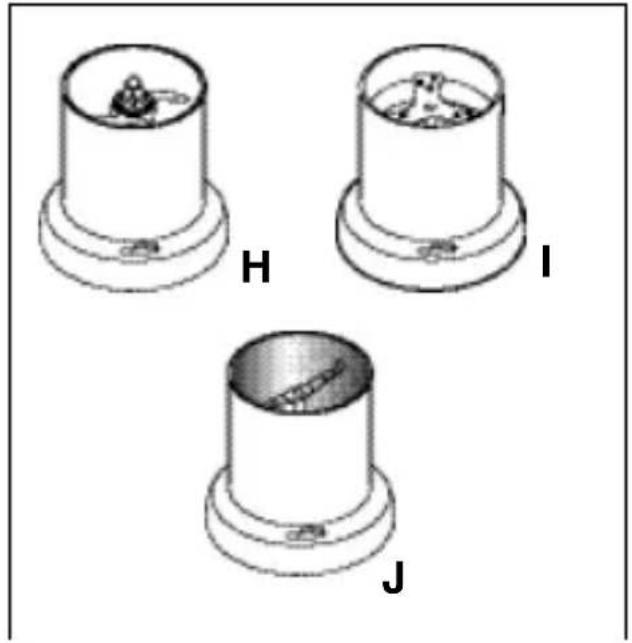

Three identical mechanical component diagrams labeled H, I, and J, showing different housing or mounting features (no text or symbols on the components themselves)

1 2 3 II

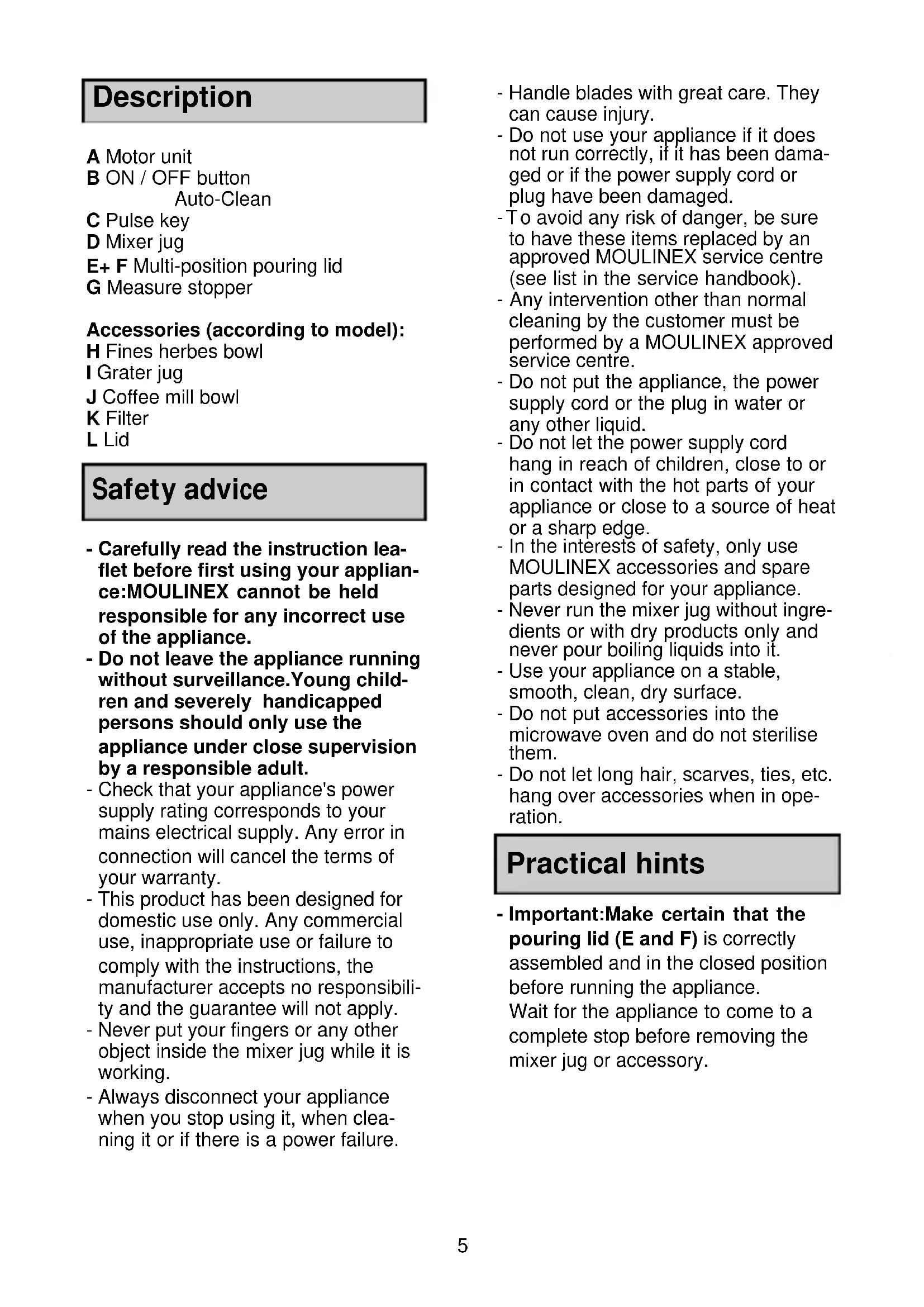

Description

A Bloc moteur

Accessories (according to model):

H Fines herbes bowl

I Grater jug
J Coffee mill bowl
K Filter
L Lid

Safety advice

• Carefully read the instruction leaflet before first using your appliance:MOULINEX cannot be held responsible for any incorrect use of the appliance.
• Do not leave the appliance running without surveillance. Young children and severely handicapped persons should only use the appliance under close supervision by a responsible adult.
• Check that your appliance's power supply rating corresponds to your mains electrical supply. Any error in connection will cancel the terms of your warranty.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Never put your fingers or any other object inside the mixer jug while it is working.

• Always disconnect your appliance when you stop using it, when cleaning it or if there is a power failure.

• Handle blades with great care. They can cause injury.

• Do not use your appliance if it does not run correctly, if it has been damaged or if the power supply cord or plug have been damaged.
• To avoid any risk of danger, be sure to have these items replaced by an approved MOULINEX service centre (see list in the service handbook).
• Any intervention other than normal cleaning by the customer must be performed by a MOULINEX approved service centre.
• Do not put the appliance, the power supply cord or the plug in water or any other liquid.
• Do not let the power supply cord hang in reach of children, close to or in contact with the hot parts of your appliance or close to a source of heat or a sharp edge.
• In the interests of safety, only use MOULINEX accessories and spare parts designed for your appliance.
• Never run the mixer jug without ingredients or with dry products only and never pour boiling liquids into it.
• Use your appliance on a stable, smooth, clean, dry surface.
• Do not put accessories into the microwave oven and do not sterilise them.
• Do not let long hair, scarves, ties, etc. hang over accessories when in operation.

Practical hints

- Important: Make certain that the pouring lid (E and F) is correctly assembled and in the closed position before running the appliance.

Wait for the appliance to come to a complete stop before removing the mixer jug or accessory.

Bringing into service

- Before first use, clean the mixer jug and accessories in hot, soapy water.

Important:

- Set selector switch (B) to position "0" before placing the mixer jug or accessories on the motor unit (A).

1. MIXER JUG

• Place the mixer jug (D) on the motor unit (A); there are 4 possible positions.
• Introduce the food to be mixed into the jug (D) without going over the maximum level (1.5 L).
• Place the pouring lid (E+F) on the mixer jug (D) and lock in position.
• Connect the appliance and start up by turning button (B) to position "1" or giving a few bursts by pressing the "pulse" key (C).
• To stop the appliance, bring the selector (B) back to position "0".
• Select the appropriate filtering position to pour your preparation without removing the lid:
  * wide open for thick preparations,
  * filter position for frothy preparations, with pulp.

2. ACCESSORIES (according to model)

Grinding accessories (H,I or J):

• Use the fines herbes mill (H) to chop the following in a few seconds: garlic cloves, fines herbes, parsley, dried fruit, rusks for breadcrumbs, etc. and prepare purées for baby.
• The grater (I) grates hard cheeses (e.g., parmesan, etc.), nutmeg and coco-nut (first cut into cubes).
• The coffee mill (J) can mill coffee, spices (e.g., coriander, etc.).
• The maximum capacity of these accessories is 80 gr.

• These accessories are equipped with a safety lid (L) that prevents access to the moving blades.

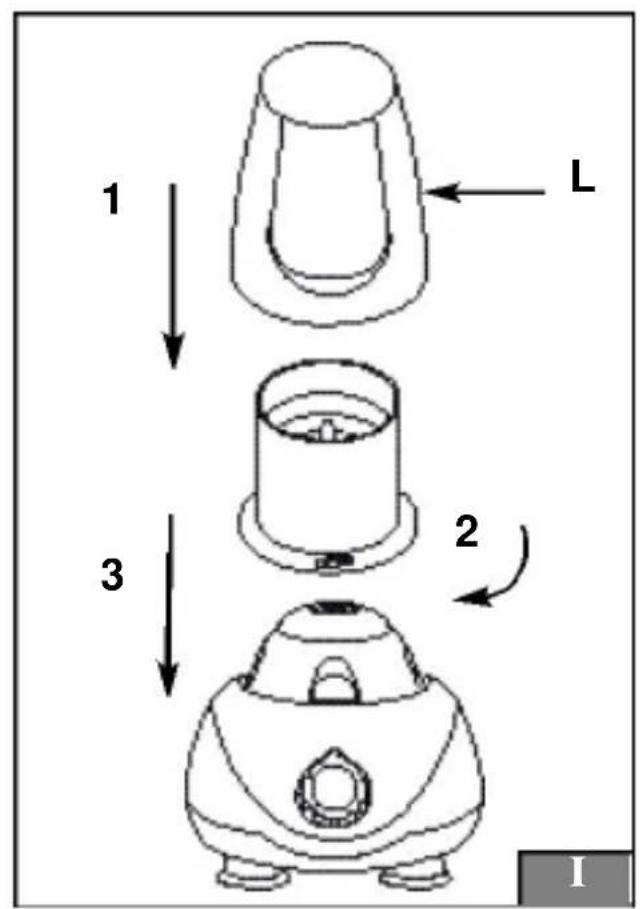

• Put the ingredients into the jug (H, I or J). Lock the lid (L) to the accessory jug, then place the assembly on the body of the appliance (A) (see diagram I).

• Connect the appliance and turn the speed selector (B) to position "1" or give a few bursts by pressing the "pulse" key (C).
• To stop the appliance, bring the selector (B) back to position "0".
• Return the complete accessory to the work surface before unlocking the lid (L).
• You can then recover the preparation directly in the lid, using it as a recipient.

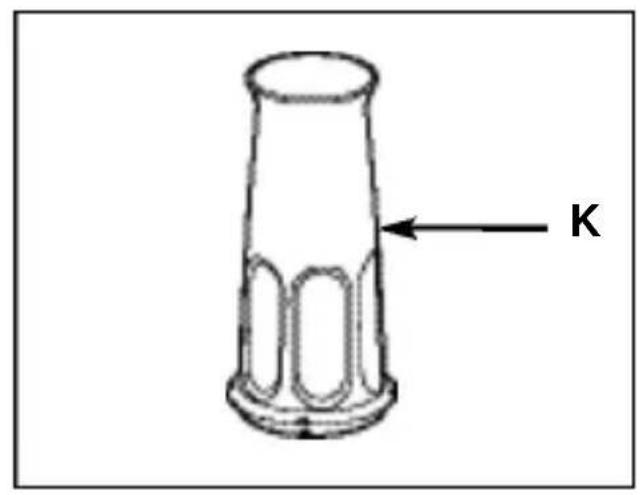

• Use the filter (K) to remove the pips and skin and obtain smoother sauces, soya milk, fruit juices or cocktails.
• Position the filter in the mixer jug (D), making certain that you place the filter slots on the inner ridges of the jug.
• Place the pouring lid (E+F) on the mixer jug to secure the filter.
• Put the food or liquids into the filter through the opening of the measure-stopper.
• Replace the measure-stopper and turn the selector (B) to position "1" or give a few bursts by pressing the "pulse" key (C).

Recipes	Quantities	Running time
Apricots	80 g	6 s
Breadcrumbs	2 rusks	30 s
Onions	80 g	by pulses
Skinned hazelnuts	80 g	by pulses
Parsley	10g	by pulses
Coffee beans	60g	20 s

Cleaning

Use the Auto Clean position to clean the jug and blades easily and safely.

• Pour hot water with a few drops of washing up liquid into the mixer jug (D). Close the lid.
• Give a few pulses by turning the selector (B) to the "Auto Clean" position.
• Disconnect the appliance.

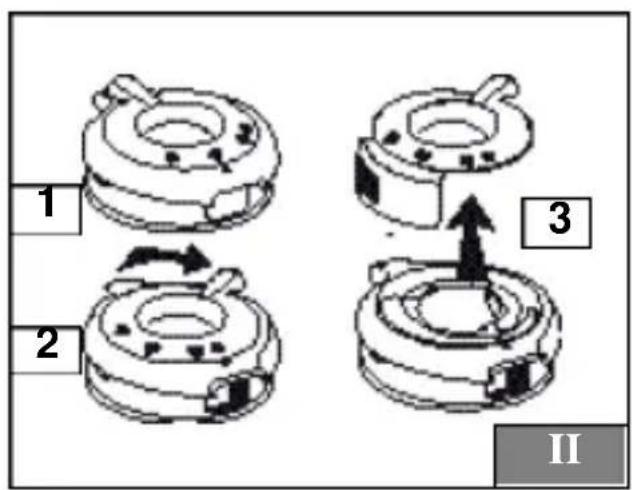

• Remove the jug and rinse it and its lid under running water. For more effective cleaning, you can separate the two elements of the pouring lid (E and F) by turning the lid to position (see diagram II).

• You can put the mixer jug and accessories in the dishwasher

• Clean the motor unit (A) with a damp cloth. Dry carefully.
• Never immerse the motor unit (A) in water or under running water.

What to do if your appliance does not work?

Get in touch with a MOULINEX approved service centre (see list in service handbook).

You can customise your appliance and get the following accessories from your usual retailer of a MOULINEX approved centre:

Fines herbes accessories, grater accessory, coffee mill accessories, filter.

PROBLEMS	POSSIBLE CAUSES	SOLUTIONS
Product does not operate.	Plug is not connected	Connect the appliance to a socket with the same voltage.
	Accesory jug is not correctly fitted to motor unit.	Check for correct positioning of the jug or accessory.
	The lid of the jug or the accessory is not correctly locked.	First position the lid on the jug or the accessory and then turn it clockwise.
Excessive vibration.	The product is not set on a level surface.	Place the product on a level surface.
	The mixer jug or accessory is incorrectly positioned on the motor unit.	Check for correct positioning of the jug or accessory.
Leaks from lid.	Too great a volume of ingredients.	Do not exceed maximum level of jug (1.5l)
	Pouring lid in open position	Place pouring lid in closed position.
Blade does not turn easily.	Pieces of food too big or too hard.	Reduce size or quantity of food.Add liquid.

Recipes

Fruit cocktail

4 oranges, 2 mangoes, 1 kiwi fruit, 1/2 lemon, 8 ice cubes

Peel the mangoes and the kiwi fruit.

Remove the stones from the mangoes.

Put them into the mixer jug with the orange and lemon juice.

Run for 10 seconds.

Add the ice cubes and run the appliance for 30 seconds

Serve chilled.

Griddle cake batter

3 eggs, 1/2 l milk, 250 g flour, 150 g sugar, 1 packet of baker's yeast, 125 g butter.

Put all the ingredients except the flour into the blender. Add the flour through the hole of the measure-stopper during operation.

Mix for 2 min.

Pancake batter

3 eggs, 1/2 l milk, 300 g flour, 75 g butter

Put all the ingredients except the flour into the blender. Add the flour through the hole of the measure-stopper during operation.

Mix for 2 min.

Humus

400 g cooked chick peas, 1/2 glass lemon juice, 4 garlic cloves A few strands of parsley, 4 tblsp oil, 50ml water. A few pinches of chilli powder.

Salt, pepper

Put half the chick peas and all the other ingredients (except the parsley) into the blender and mix for 10 seconds, then add the rest of the chick peas through the hole of the measure-stopper on the lid and mix for a further 30 seconds. Garnish with parsley.

Guacamole

2 ripe avocado pears, 1 peeled and pipped tomato, 1 small onion, 3 tblsps fresh coriander, 2 small chilli peppers, 50ml water and 3 tblsp lemon juice. Salt, pepper.

Remove the stones from the avocado pears and peel them. Put half the avocado pears with all the other ingredients into the blender and mix for 20 seconds, then add the rest of the avocado pears through the hole of the measure-stopper and mix for a further 30 seconds.
