USER MANUAL Blend Up LM190A MOULINEX

8 0Z 1 cup 16 0Z 2 cups 3 cups 24 oz Plant Mix Start Stop Snack Irronette Ice Crush Ice Cream Pulse Eggg Water

Illustration of a hand holding a small object over a circular frame, with no visible text or symbols.

Clic 2

MAX 3

Illustration of hands pouring liquid from a bottle into a glass (no text or symbols)

Diagram showing a hand holding a bottle with two labeled steps (1 and 2) and an inset image of a device with a checkmark.

Simple line drawing of a robot figure with a square head and upward arrow, no text or symbols present.

Illustration of a hand pressing a button on a bottle with Chinese text labels and an arrow indicating the action.

Illustration of a hand pressing a button on a bottle with numbered labels and an arrow pointing to it.

DESCRIPTION

A Bloc moteur

	×	×	√
	√	√	√
	√	√	√
	√	×	√
	√	×	√
	√	×	√

Illustration of a faucet with a checkmark symbol above it, next to a glass bottle (no text or symbols present)

Circular diagram showing a faucet with a cross symbol above it, no text or labels present.

8

The safety instructions are part of the appliance. Read these instructions carefully before using your new appliance for the first time. Keep them in an accessible place so that you can refer to them later. The appliance can only operate if the bottle is correctly positioned on the motor unit (A).

BEFORE USING YOUR APPLIANCE FOR THE FIRST TIME

Before using your appliance for the first time, wash parts that come into contact with food (bottle, etc.) with hot soapy water, then rinse.

WARNING: Do not immerse the appliance in water (neither the motor unit nor the blades unit (A and B2)). Never put the motor unit (A) under running water. Clean the appliance with a damp cloth and dry it carefully. The blades are extremely sharp.

Check that all parts of the packaging and labels have been removed before using the appliance.

ASSEMBLING AND FITTING THE ON-THE-GO BOTTLE

Moisten the seal (B3) (even if it is already mounted on the blade unit (B2)) by quickly passing it under water. Be careful to correctly fit the seal (B3) back onto the blades unit (B2). (Fig. 1).

Add the ingredients into the bottle without exceeding the maximum level indicated:

* 700 ml for the 700 ml bottle

* 400 ml for the 400 ml bottle

Warning: Do not pour boiling liquids (over 70°C/158°F) into the bottle.

Place the blade holder with its seal (B3+B2) on the locking ring (B1) (Fig. 2). Hold the bottle and screw the locking ring onto it. (Fig. 4). Turn the bottle (C) upside down and screw the locking ring with blades onto the base of the motor unit (Fig. 5).

USING YOUR APPLIANCE

Put the appliance on a flat, stable, heat-resistant surface away from heat sources or water.

Add your ingredients to the bottle, screw in the blades and place the bottle correctly on the motor unit. Plug in your appliance Select your program (E) (Fig. 7) and press the Start/Stop button (E3) (Fig. 8). You can refer to the program table below to help you choose the right program for your recipe.

The appliance starts. The duration of the program until the end of its execution is displayed on the screen (E11). At the end of each automatic program, the appliance stops automatically and beeps 4 times. To stop your appliance before the automatic program ends, press the Start/Stop button (E3).

Please note: Your appliance has a Pulse function (F6). It can be used manually when no program is running. Press and hold the button to mix. Do not exceed 3 minutes of consecutive use.

WARNING: In case of overheating, your product is equipped with a thermal fuse that will automatically stop the appliance.

After 3 minutes without use, your appliance will beep twice and start a standby mode. To switch on your appliance again, press the Start/Stop button (G).

Please note: Some coloured foods can stain the inside of the bottle (e.g. carrots). To remove stains, you can use a cloth and a little vegetable oil.

AUTOMATIC PROGRAMS AVAILABLE

	Automatic programs	Time	Sample recipe for the 700 ml bottle	Sample recipe for the 400 ml bottle*
Sauce		1 min	Pesto verde
				30 g basil10 g garlic20 g parmesan120 ml olive oil
Smoothie	1 min		Vitality blend
			400 ml water150 g carrots75 g banana75 g caleriac	220 ml water90 g carrots45 g banana45 g caleriac
Ice crush		30 secs	Ice
			5 ice cubes 2x2x2 cm(100g)	5 ice cubes 2x2x2 cm(100g)
Cold soup		1 min	Gazpacho
			250 g tomatoes80 g red pepper125 g cucumber40 g onion90 ml water10 ml vinegar10 g concentrated tomato paste
Plant-based milk		2 mins	Almond milk
			60 g almonds640 ml water
Dips		1 min	Hummus
				265 g chickpeas15 g lahini10 g garlic (2 cloves)40 g lemon juice40 g olive oil65 ml water

OTHER PROGRAMS

	Automatic programs	Time	Sample recipe for the 700 ml bottle	Sample recipe for the 400 ml bottle*
Silence		60 secs	Banana milkshake
			250 g banana + 450 ml milk -
Auto Clean	[6SKC]	30 secs	700 ml bottle 400ml bottle
			500 ml water + 1 drop of washing-up liquid	200 ml water + 1 drop of washing-up liquid
Pulse	[RX3W]	3 mins max.	Program allowing manual pulse mixing

WARNING: Hard foods may leave marks inside the bowl, but this does not affect the efficiency of the appliance.

ACCESSORY

	Time
(G*)	3 secs 150 g candied apricot Pulse manual program

AFTER USING YOUR APPLIANCE

Unplug the appliance.

Pour the mixture out of the bottle (as it is not designed to store food in the fridge or freezer), or screw the cap onto the bottle to take your mixture with you.

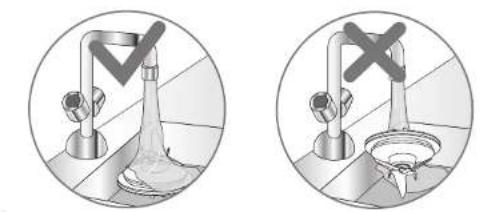

Use a damp cloth to clean the motor unit. Dry it carefully.

Never immerse the motor unit in water.

Wash removable parts with water and a few drops of washing-up liquid. For easier cleaning, you can use the "Auto Clean program" (E7). Pour the amount of water indicated in the program table above. You can add a drop of washing-up liquid into the bottle but nothing else.

The On-the-Go bottle (C) and its lid (D) can be cleaned in the dishwasher, but the blades, seal and ring are not dishwasher safe. The motor unit must not be cleaned in the dishwasher or submerged in water.

	×	×	√
	√	√	√
	√	√	√
	√	×	√
	√	×	√
	√	×	√

Illustration of a kitchen sink with a glass bottle and a checkmark overlay (no text or symbols)

Illustration of a faucet with a cross symbol above it, showing water level and surface (no text or symbols)

TROUBLESHOOTING TABLE

Problem Cause Solutions
The appliance does not work The appliance is not properly plugged in. The bottle is not correctly locked onto the base.		Check that the appliance is plugged in correctly. Lock the bottle properly onto the appliance base.
Difficulty locking the bottle onto the blade holder	There is some food in the seal Clean the seal
The appliance stops when in use Motor overheating Unplug the appliance.		Cooling timeis variable and can takeup to 30 minutes
Excessive vibrations The appliance is not placed on a flat surfaceThe volume of ingredients is too large		Place the appliance on a flat surfaceReduce the amount of ingredients in the appliance to the MAX level
Mixture leaking at the base of the bottle	The seal or blades are not correctly positioned.	Refer to the “Assembling and fitting the On-the-Go bottle” section
The bottle surfaces that come into contact with food are stained.	Certain foods (carrots...) may stain parts it comes into contact with.	This is normal. All parts can be used safely and do not alter cooked foods. Using oil to clean the appli-ance will reduce staining.

PRODUKTBESCHREIBUNG

A Motoreinheit

B 1 Sicherungsring

2 Powelix-Klingen

3 Dichtung

	×	×	√
	√	√	√
	√	√	√
	√	×	√
	√	×	√
	√	×	√

Illustration of a kitchen sink with a showerhead and a checkmark overlay (no text or symbols)

Illustration of a faucet with a cross symbol above it, no text or symbols present

	×	×	√
	√	√	√
	√	√	√
	√	×	√
	√	×	√
	√	×	√

Illustration of a kitchen sink with a glass funnel and checkmark symbol (no text or labels)

Illustration of a faucet with a cross symbol above it, showing water level and surface (no text or symbols)

	×	×	√
	√	√	√
	√	√	√
	√	×	√
	√	×	√
	√	×	√

Illustration of a bathroom sink with a glass tube and a checkmark overlay (no text or symbols)

Illustration of a kitchen sink with a showerhead and funnel (no text or symbols)

	×	×	√
	√	√	√
	√	√	√
	√	×	√
	√	×	√
	√	×	√

Illustration of a faucet with a checkmark symbol above it, showing liquid flowing from a bottle (no text or symbols present)

Illustration of a kitchen sink with a faucet and showerhead, no text or symbols present
