USER MANUAL Super Blender LM2020 MOULINEX

Simple line drawing of a container with a lid and spout, no text or symbols present

Line drawing of a mechanical component with a cylindrical top and flanged base (no text or symbols)

Simple line drawing of a cell with nucleus and cytoplasm, no text or symbols present

* depending on model
selon modèle
بر حسب مدل
حسب الموديل
consoante o modelo
dependendo do modelo

1 1 2

2 2 G 1 3 Moulinac

3 1 2

DESCRIPTION

c1 Locking nut
c2 Blade holder
c3 Seal
c4 Graduated blender jug
c5 Lid
c6 Measuring cap

Accessories according to models :

D Pusher
E Grater
F Spice mill
G Accessories lid

EN

SAFETY INSTRUCTIONS

• Before using your appliance for the first time, carefully read these instructions for use and retain them for future reference: the manufacturer shall not accept liability in the event of any use that does not comply with the instructions.
• Make sure that the voltage that your appliance uses matches that of your electrical supply system. Any error in connection will negate the guarantee.
• This product has been designed for indoor and domestic use only, and at an altitude below 2000m. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Always disconnect the appliance from the mains power supply when it is unattended and before assembling, dismantling or cleaning it.
• Remember: you may injure yourself if you use the appliance incorrectly.

- Do not use the appliance if it is not working properly or if it has been damaged. In this case, contact an authorised service centre (see the list in the service booklet).

- All maintenance other than cleaning and everyday upkeep by the customer must be performed by an authorised service centre.

- Do not use this appliance to blend or mix non-food items.

- Never use the blender jug without ingredients or with solid ingredients only.

- Always pour the liquid ingredients into the blender jug first, before adding the solid ingredients

- Do not use the jug or bowls (according to model) as containers for freezing, cooking or sterilization.

- In order to prevent overflow, do not fill the bowl or jug over the maximum level (if indicated).

- Do not touch any moving parts (blades, etc.).

- Blades are very sharp: to prevent injuries, handle them with care when emptying the blender jug, the bowls (according to model), cleaning, assembling and dismantling the blender jug (according to model) and the accessories (according to model).

- Never place your fingers or any other object not intended for this function in the blender jug when the appliance is running.

- Never remove the lid or the blender jug before the appliance has come to a complete stop.

• Always use the blender jug with the lid.

- Place the appliance on a stable, heat-resistant, clean and dry worktop.

- Do not immerse the appliance, power cord or plug in any liquid.

- Do not leave the power cord hanging within reach of children.

- Do not leave the power cord close to or in contact with the hot parts of the appliance, near a source of heat or a sharp angle or inside the blender jug in contact with the blades.

- Never use the pusher (D) without the lid, otherwise it will touch the blades.

- Keep moving parts (blades) away from the cord during use.

- Never pull the power cord to disconnect the appliance.

- Do not allow long hair, scarves, ties etc. to hang over the appliance or attachment when either is in use.

- Do not use the appliance if the power cord or plug have been damaged. To avoid all danger, have them replaced by an authorised service centre (see the list in the service booklet).

- For your safety, only use spare parts and accessories that are approved for your appliance.

- Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance as it produces a lot steam.

- Do not pour boiling liquids (over 80°C/176°F) in the bowl or jug (according to model).

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

• Do not allow children to use the appliance without supervision.
• It is not intended to be used in the following applications, and the guarantee will not apply for:
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• Switch off the appliance and unplug it from the electrical power supply before changing accessories or approaching parts that move in use.
• Refer to the instructions to obtain the appropriate operating time and speed settings for each accessory.
• Refer to the instructions for correct fitting and assembly of your accessories.
• Refer to the instructions for initial and regular cleaning of surfaces in contact with foodstuff, and for cleaning and maintenance of your appliance.

EUROPEAN MARKETS ONLY

- With all accessories except grater: this appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- Children shall not play with the appliance.

- This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.

• The grater (according to model) can be used by

children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

PRACTICAL ADVICE

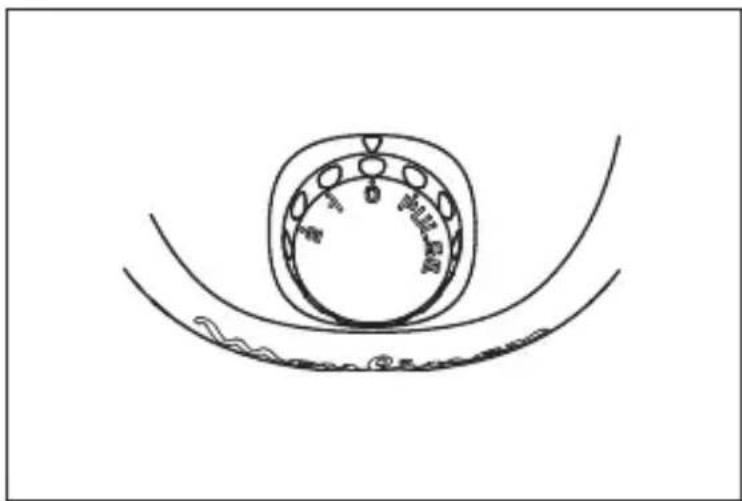

• Pulse: this instantaneous speed means you can refine the degree of mixing and evenness of blending of your recipes.
• This instantaneous speed is obtained by successive movements of the selector (B) to the "Pulse" position (LM 202, LM 207, LM 208).
• For models LM 209 and LM 259, press the button located in the centre of the selector (B).
• For a more even mix, first introduce the liquid ingredients and run the blender for a moment before introducing the solid ingredients.

USING YOUR APPLIANCE

• Before first use, clean the blender jug and accessories with hot soapy water.
• Important note: Set the speed selector (B) to "0" before attaching the blender jug or accessories on the body of the blender.
• The blender will only start up if the accessory is correctly positioned on its body.
• Do not run the blender if the lid is not fitted.

1. BLENDER JUG (C)

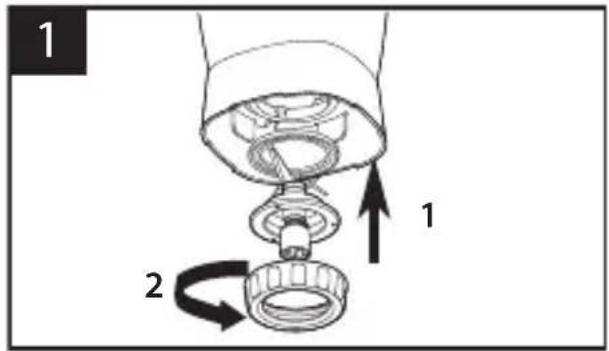

- Position the seal (c3) on the knife holder (c2) and screw the assembly into the bottom of the jug using the nut (c1) (Fig. 1).

- Introduce the food to be mixed into the jug without exceeding the maximum level indicated:

- 1.5 litres for thick mixes, (600 g carrots + 900 ml water)

- 1.25 litres for liquid preparations.

• Place the lid (c5 + c6) on the blender jug and lock it.
• Place the blender jug (C) on the body of the blender (A); there are 4 possible positions.
• Plug in the appliance and start by setting the speed selector (B) to the desired position.
• Connect the appliance and start by setting the speed selector (B) to the desired position.
• Low speed: to start liquid preparations
  • High speed: to homogenise preparations.
• To stop the blender, return the speed selector (B) to position "0".
• Do not use the blender with its blender jug more than 3 minutes in maxi speed.
• You can pour your liquid preparations without removing the lid thanks to the lid filtering position (Fig. 4).

2. ACCESSORIES (according to model)

• You can use the pusher (D) to even and tamp down your preparations (especially the thickest) in the blender jug.
• To do so, introduce the pusher through the opening of the measuring cap (c6).
• Never use the pusher (D) without the lid, otherwise it will touch the blades.
• Turn the speed selector (B) to the desired position and use the pusher to push the food onto the blades.
• Use the mill (E) to chop garlic, fines herbes, parsley, rusks for breadcrumbs and prepare mixes for baby, meat (eg 100 g of brisket in 4 seconds).

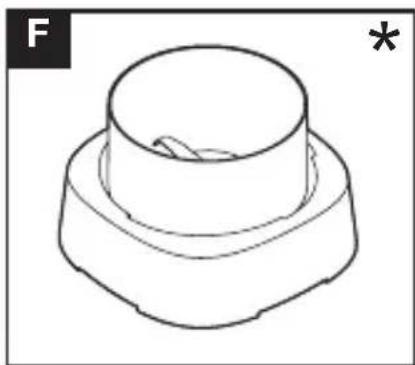

• Use the grater (F) to powder coconut (first cut into cubes) in 30 seconds maximum, and also hard cheese (e.g. 60 g of Parmesan).
  • Use the spice mill (G) to mill spices (e.g. coriander).
  • These accessories are equipped with a safety lid (H) preventing access to moving blades.

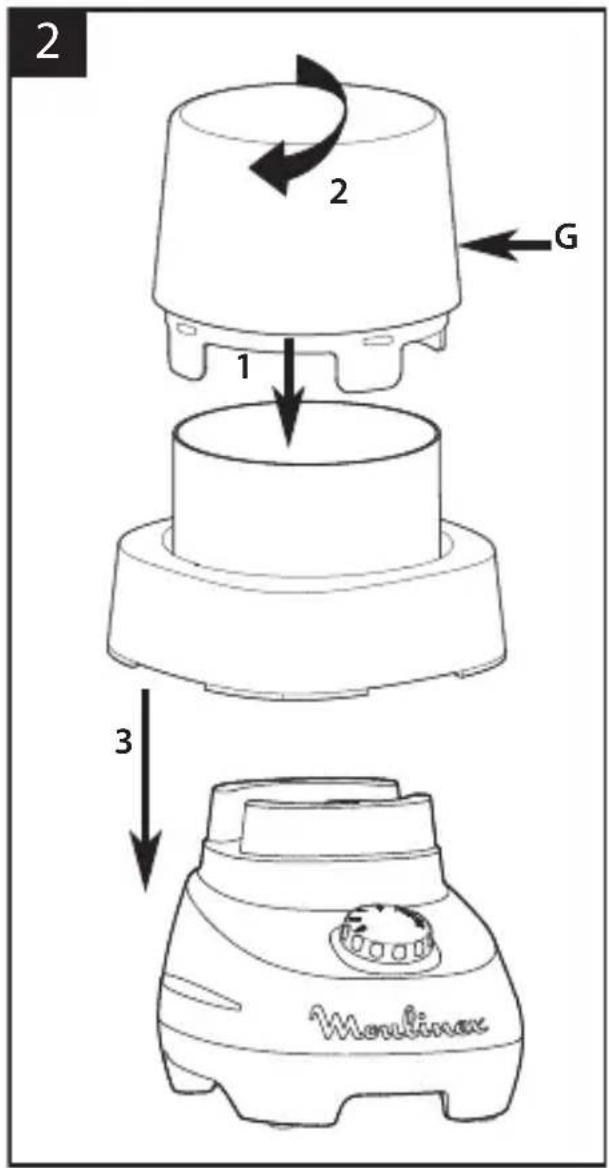

• Introduce the ingredients into the jug (E or F). Lock the lid (G) onto the jug of the accessory then place the assembly on the body of the blender (A) (Fig. 2).
• Plug in the blender and turn the speed selector (B) to the desired position or give a few pulses using the "pulse" function. Hold the lid (G) while in operation.
• To stop the blender, bring the speed selector (B) back to position "0".

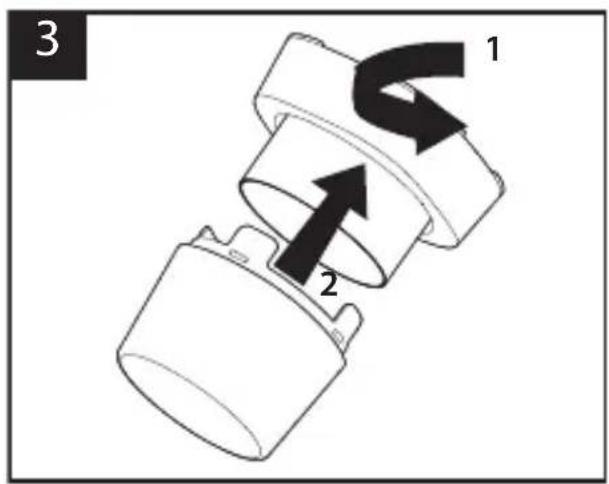

• Turn the accessory assembly over on the working surface before unlocking the accessory lid (E-F) (Fig. 3).
• You can then hold the preparation in the lid which serves as a container.

Recipes Quantities Operating times Accessory
Apricots, dried fruits	60 g	6 s max speed	F
Skinned hazelnuts	40 g	By pulses	F
Parmesan	60 g	30 s max speed	E
Nutmeg	2 or 3	30 s max speed	E
Coconut	60 g	30 s max speed	E
Coriander	60 g	60 s max speed	F

CLEANING

• Handle blades with great care as they are extremely sharp and can cause injury.
• Unplug the blender.
• Remove the jug and rinse it with its lid under running water.
• Wash the accessories in hot water with a few drops of washing up liquid added or in the dishwasher.
• Clean the body of the blender (A) with a moist cloth. Dry carefully.

• Never put it in water or under running water.

• To facilitate maintenance of the jug (c4), unlock the blade holder (c2) and remove its seal (c3) before cleaning the assembly.

• You can wash the blender jug and accessories in the dishwasher.

- If your appliance does not work, check that it is correctly connected to the mains supply and that the power cable is in good condition.

- Is your appliance still not working?

Contact an authorized service center (see the list in the service booklet).

ELECTRICAL OR ELECTRONIC PRODUCT AT END OF SERVICE LIFE

Environmental protection first!

① Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.
