USER MANUAL Floor One S7 Pro TINECO

Smart Cordless Floor Washer

Bedienungsanleitung

Instruction Manual

Manual De Uso

Mode D'emploi

Two black and silver vacuum cleaner units, one with a white handle and the other with a black handle (no visible text or symbols)

*Actual product may differ from illustration.

TINECO IS HERE TO HELP.

We'll get back to you within 24 hours.

www.tineco.com

INHALT

AUTO MAX 100 tineco CUSTOM ECO SUCTION A B C D E F G H I J K L M N O P Q

Diagram of a portable device with a curved arrow indicating rotation (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including a zoomed-in detail view.

Technical line drawing of a vertical mechanical device with an inset close-up showing internal components (no text or symbols)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with two views: one showing a shaft and valve, the other showing a motor or actuator (no text or symbols present)

Line drawing of a hand holding a device with a circular icon and pointer, no text or symbols present

Technical line drawing of a vacuum cleaner with an angle annotation (148°), showing front and side views without any text or symbols.

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached stand (no text or symbols)

Line drawing of a vacuum cleaner with a power outlet indicator (no text or symbols)

Diagram showing a hand holding a device with a control panel and an arrow pointing to it, indicating a process or operation.

Illustration of a hand using a handheld device to clean or store items, with an inset showing a brush inside a container (no text or symbols visible)

Illustration of various household appliances and tools including a refrigerator, lamp, and washing machine (no text or symbols)

Line drawing of a vacuum cleaner with a power outlet, showing no text or symbols on the device itself.

Diagram showing a hand pressing a component with directional arrows and a numbered label (②) indicating motion or assembly.

Illustration of a robotic device with wheels and a hand adjusting its part (no text or symbols)

Illustration of three hands performing a manual task: holding a cylindrical object, using a tool, and pouring water into a test tube with a sun icon (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a handheld device to interact with a rolled paper or scroll (no text or symbols visible)

Two identical line drawings of a cylindrical object with a handle, showing different angles and positions (no text or symbols)

Deinstallieren Installieren

Illustration of a water tap spraying water into a container with sun symbol (no text or labels)

Line drawing of a hand operating a sewing machine with a tool inserted (no text or symbols)

Line drawing of a hand using a power tool to lift a motor (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a hairdryer device with no visible text or symbols

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or movement.

Illustration of a faucet spraying water next to a sun symbol (no text or labels)

Line drawing of a vintage-style electric shaver with no text or symbols

Simple line drawings of a faucet, sun, water pump, and speedometer (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of a component (no text or symbols present)

Line drawing of a hand holding a device with a knob and angle annotation (no text or symbols present)

Technical line drawing of a mechanical device with a cylindrical component and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with scissors and a cylindrical component (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Illustration of a hand pressing down on a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Important Safety Instructions....34

Specifications 38

Overview....39

Accessories 42

Assembly 43

Operation 45

Maintenance 53

Troubleshooting....60

Warranty 61

MORE LANGUAGES

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only.

For indoor use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended accessories.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without filter.

14. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

15. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. Charging only with the charging dock specified by Tineco. A charging dock that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266^ F ( 130^ C) may cause an explosion.
21. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
22. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
23. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
24. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
25. Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.
26. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.
27. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.
28. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.
29. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaks electricity.
30. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
31. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.
32. Store appropriately indoors in a dry place after use.
33. Do not place or submerge appliance in standing water or try to clean flooded areas.

34. All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.

35. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

36. A hazard may occur if the appliance runs over the supply cord.
37. Do not use the appliance when the water depth is more than 5mm above the surface.
38. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
39. When battery pack is not in use, keep it away from metal objects such as paper clips, coins, keys, nails, screws or other small metal objects that could create a connection between the battery terminals. Short-circuiting the battery terminals may result in burns or a fire.
40. To reduce the risk of fire and electric shock – Use only Tineco cleaning products intended for use with this machine.

Range of Usage

1. The cordless hard floor cleaner is to be used on indoor hard floors, such as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
2. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
3. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Solution

1. WARNING – To Reduce the Risk of Fire and Electric Shock – Use only Tineco cleaning solution designed for use with this machine.
2. A large amount of cleaning solution entering into the motor may cause damage to the appliance.
3. Add solution as instructed in the Operation section. We recommend using the provided cleaning solution. Do not use the product with acidic, alkaline solution, or any substances harmful to the environment.
4. Keep out of the reach of children. Avoid contact with eyes and skin, otherwise, rinse thoroughly with water. If irritation persist, seek medical advice. If product is swallowed seek medical advice.
5. Dirty water and solution disposal should comply with local environmental regulations.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. The appliance is only to be used with the power supply provided. The plug must be removed from the socket-outlet before cleaning or appliance maintenance.
3. Use extra care when cleaning on stairs.

4. Ensure that the Power Switch is in the OFF-position before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.

5. To avoid being tripped accidentally, please put away the appliance on the charging dock.

6. Always install the Dirty Water Tank and Clean Water Tank properly before use.
7. Do not allow the appliance or charging dock to get wet to avoid risk of fire or injury caused by a short circuit.
8. WARNING: For the purposes of charging the battery, only use the detachable power supply provided with this appliance.

About the Drying & Charging Dock

WARNING – Do not immerse in water.

CAUTION – Hot surface. When using avoid contact.

Z

Recycling Instructions according to Battery Law

The rechargeable battery contains materials that are harmful to the environment and must therefore be removed from the device before disposal. The device must be switched off to remove the rechargeable battery. Batteries and rechargeable batteries must not be disposed of in household waste! Every consumer is obliged to hand in all batteries and rechargeable batteries, regardless of whether they contain harmful substances or not, at a collection point in his or her municipality/district or at a retailer, so that they can be disposed of in an environmentally friendly manner. Batteries and rechargeable batteries should only be returned when discharged. Batteries and rechargeable batteries are therefore marked with the symbol left.

Recycling Instructions according to WEEE

Waste electrical and electronic equipment must not be disposed of with household waste! Every consumer is obliged to hand in all appliances at the end of their service life at a collection point in his or her municipality/district or at a retailer so that they can be disposed of properly and in an environmentally friendly manner.

The illustration left shows the wheelie bin symbol indicating separate collection of waste electrical and electronic equipment (WEEE).

For EU Countries:

For EU Declaration of Conformity information, please visit www.tineco.com.

Symbols:

	Read the instruction manual
	For indoor use only
---	Direct current
~	Alternating current

Specifications

Product (Appliance) FLOOR ONE SWITCH S7 SERIES
Voltage 25.2V	=3900mAh Li-Ion
Rated Power 250W
Running Time Floor Washer: 28~40 mins/Vacuum Cleaner: 25~65 mins
Charging Time 4~5 hrs
Water Flow Rate 20~100ml/min
CWT Capacity ~0.85L
DWT Capacity ~0.72L
Waterproof IPX4

Drying & Charging Dock

Input 220-240V~50Hz
Rated Power (charging) 30W
Rated Power (drying) 455W
Output 30V	=1A

*Estimated runtime data was obtained by Tineco Laboratory.

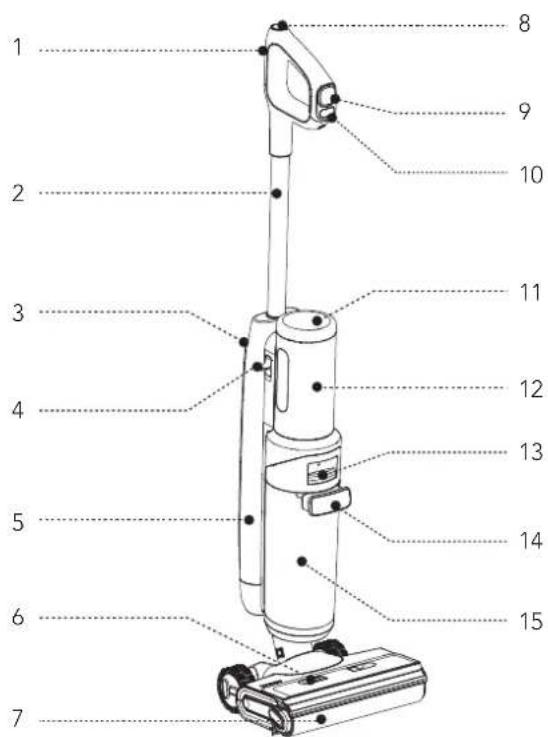

Overview

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19 20

1. WiFi/Mute/Language Switch Button
2. Tube
3. Tube Release
4. SwitchPro Motor Release
5. Clean Water Tank (CWT)
6. Brush Roller Cover
7. Brush Roller
8. Self-cleaning Button
9. Mode Switch

10. Power On/Off

11. Digital Display

12. SwitchPro Motor
13. Dirty Water Tank Release
14. Dirty Water Tank Handle
15. Dirty Water Tank (DWT)

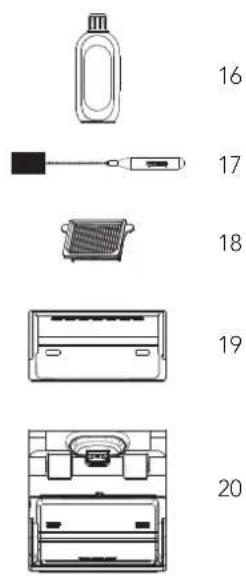

16. Deodorizing & Cleaning Solution
17. Cleaning Tool
18. Dry Filter
19. Transparent Tray
20. Drying & Charging Dock

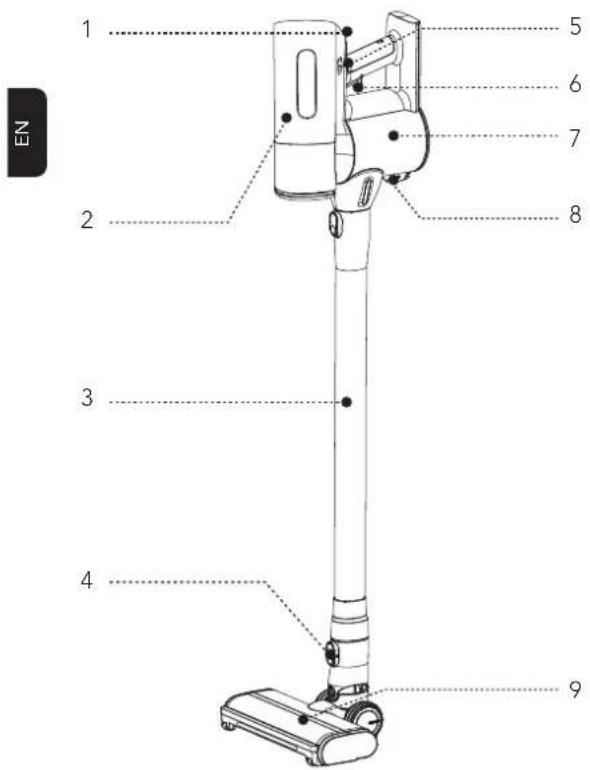

1 2 3 4 5 6 7 8 9

Three technical line drawings of mechanical components, labeled 10, 11, and 12, showing different assembly or assembly states (no text or symbols on the diagrams themselves)

1. ECO/MAX Mode
2. Multi-cone Assembly Removal Tool
3. Tube
4. Release Button
5. Multi-cone Assembly Release

6. Power On/Off

7. Dustbin

8. Dustbin Empty Release
9. Anti-tangle Power Brush
10. Mini Power Brush
11. 2-in-1 Dusting Brush Crevice Tool
12. Vacuum Dock

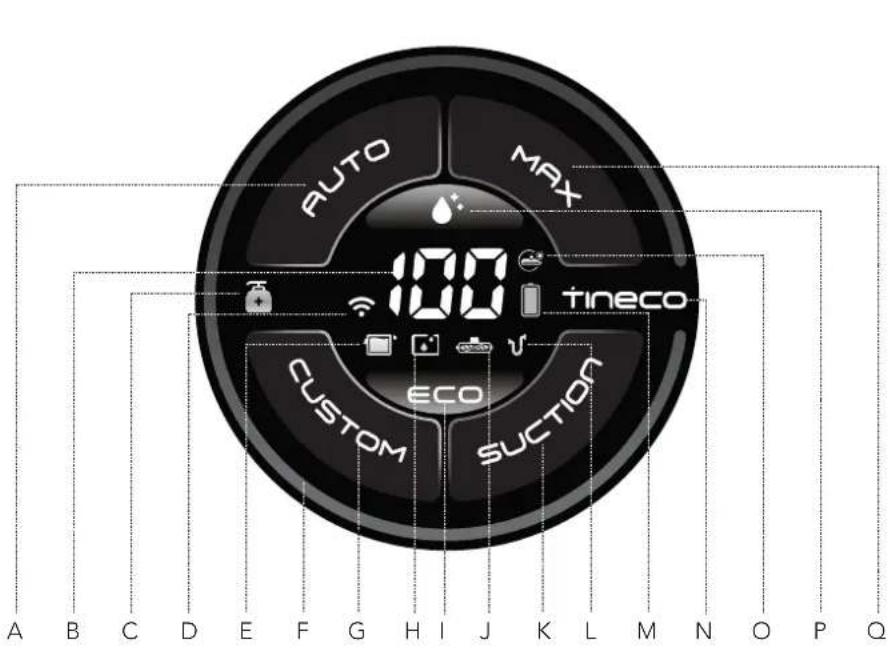

Digital Display

AUTO MAX 100 tineco CUSTOM ECO SUCTION A B C D E F G H I J K L M N O P Q

Z

A. AUTO Mode
B. Battery Level Indicator
C. Solution Mode Indicator
D. WiFi Indicator
E. DWT Full or Blocked
F. Dirt Monitoring Loop (Blue to red according to the dirt amount)
G. CUSTOM Mode
H. CWT Empty

I. ECO Mode
J. Brush Roller Tangled Indicator
K. SUCTION Mode
L. Air Channel Blocked
M. Battery Icon
N. Tineco Logo
O. Drying Brush Roller Indicator
P. Self-cleaning Icon
Q. MAX Mode

Accessories

Note:

Accessories may vary among markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Deodorizing & Cleaning Solution

Removes dirt, grime, grease and tough stains from most types of hard surfaces, like tile, marble, sealed hardwood floors, and more. Always use Tineco solution in your appliance. Add one bottle cap of solution to each full tank of clean water.

Brush Roller

Soft roller head with bristles can be used to vacuum and wash at the same time. It can be easily cleaned with the self-cleaning function.

Dry Filter

Dry filter and filter net can block large particles and debris, ensuring the appliance's durability. * Please install the dry filter before use, or it may lead to weak suction.

Cleaning Tool

A full brush to clean the DWT, brush chamber and opening. The tool also has a bristled end to remove dirt and mud on the roller and DWT.

Anti-tangle Power Brush

Ideal for both hard floors and carpets. Picks up ground-in dirt with no hair wrap.

2-in-1 Dusting Brush Crevice Tool

The slimline crevice tool is ideal for tight spots, corners and crevices, while the brush is ideal for cleaning above the floor surfaces.

Mini Power Brush

For vacuuming upholstered furniture, mattresses etc. Vacuums pet hair and removes ingrained dirt.

Assembly

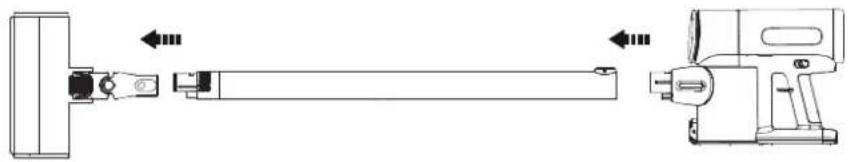

How to Assemble/Disassemble

Floor Washer

Note: For water tank and brush assembly, please refer to "Operation" and "Maintenance".

Diagram of a portable device with a curved arrow indicating rotation (no text or symbols)

To install, insert the SwitchPro Motor into the floor washer, push it in, installation is complete when you hear a click.

Diagram showing a device with labeled parts and directional arrows, including a zoomed-in detail view.

To remove the SwitchPro Motor, hold the appliance with one hand and press the release slider with the other hand.

click

To assemble the handle, insert it into the appliance until you hear a click.

Technical line drawing of a vertical cylindrical device with an inset close-up showing internal components (no text or symbols)

To remove the handle, press the release button on the back of the appliance, then pull the handle upwards.

Vacuum Cleaner

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

To install, insert the SwitchPro Motor into the vacuum cleaner, push it in, installation is complete when you hear a click.

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

To remove the SwitchPro Motor, hold the appliance with one hand and press the release slider with the other hand.

Technical line drawing of a mechanical assembly with two components, one extending horizontally and the other showing a cylindrical component (no text or symbols present)

Connect the brush, tube and main body as shown above.

Diagram of a hairdryer with a brush and base, showing mechanical components and a separate view (no text or symbols)

Diagram showing a device with a click button and an arrow indicating action, accompanied by a magnified view of the device's internal structure.

Connect the accessory tool to the main body. Insert the drying & charging dock into

the vacuum dock as shown. Installation is complete when you hear a "click."

Operation

Preparing for Use

Floor Washer

• Before first use, please charge the appliance for 4-5 hours (refer to "Charging Instructions" for details).
  * Based on results from Tineco lab tests. Lab temperature 39.2°F (4°C) \~ 104°F (40°C).

Line drawing of a hand holding a device with a circular icon and pointer, no text or symbols present

Press the Ⓐ button and the appliance will start in AUTO mode by default. Press it again to turn off the appliance. Switch between AUTO, MAX and SUCTION modes by pressing the 🌐 button.

Tips:

• Solution mode/ Water Only mode: Appliance starts with Solution mode by default. Power on while the appliance is upright, hold 🌐 for 3s to switch between the two modes.
• Switch to Water Only mode: LED Loop: Red → Blue (use water only)
• Switch to Solution mode: LED Loop: Blue → Red (use cleaning solution)

(3s) EN

WiFi/Mute/Language Switch Button

• Short press to adjust the volume.
• Press twice to switch languages. (More voice languages will be added, please refer to the actual product for now.)
• Hold for 3 seconds to connect to network.

Technical line drawing of a vacuum cleaner with a 148° angle annotation (no text or symbols on the device itself)

Stop Working Start Again

The appliance will stop working when put upright and start running again when reclined.

* Do not recline more than 148° to avoid water leakage.

Line drawing of a vacuum cleaner with a cylindrical tip and base (no text or symbols)

Place the appliance on the charging dock vertically after use for charge and storage.

Note:

• Selecting the appropriate mode depending on the CWT contents is vital for maximum dirt detection effectiveness.
• Do not vacuum foamed liquid.
  • To vacuum water left on the surface, the appliance will keep running for 3 seconds after power off.

Vacuum Cleaner

Technical diagram of a sewing machine with labeled components and connection points

Press the button and the appliance will start in ECO mode by default. Press it again to turn off the appliance. Switch between ECO and MAX mode by pressing the ECOMAX button.

Line drawing of a vacuum cleaner with attached stand (no text or symbols)

Place the appliance and accessories on the vacuum dock for convenient storage after use.

Filling Clean Water Tank

Press the Clean Water Tank release button to remove CWT from the appliance.

① ② click

Place the tank back into the appliance. You should hear a "click" if done correctly.

MAX

Open the tank cap, and fill the tank with tap water to the Max line. When deep cleaning is necessary, add one bottle cap of solution to the CWT and tightly close the cap.

Note:

Only use water under 140°F/60°C. DO NOT USE HOT WATER.

Charging Instructions

Line drawing of a vacuum cleaner with a power outlet indicator (no text or symbols)

• To charge the appliance, plug in the drying & charging dock and place the appliance on it.
• To avoid tripping hazards, please place the appliance on the charging dock near a wall during charging.

Warning:

• Only charge the appliance with the charger supplied by Tineco.
• During long periods of not being used, the appliance must be charged once every 3 months for optimal performance. It may take 4-5 hours for a full charge.
• Store indoors in a dry place. Do not expose the appliance to sunlight or freezing temperatures. Recommended temperature range: 39.2°F (4°C) \~ 104°F (40°C).

Cleaning Mode Selection

Floor Washer

AUTO Mode

AUTO 100 tneco

• In AUTO mode, the iLoop sensor automatically detects how dirty the floor is and applies the appropriate amount of detergent and suction power.
• A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected. This mode automatically provides the best cleaning solution.

MAX Mode

MAX 100 Tneco

• In AUTO mode, press the button once to enter MAX mode.
• In MAX mode, the appliance will apply max suction power and will spray water/solution for embedded stains.

SUCTION Mode

100 treco SLCTOA

• In AUTO mode, press the button twice to enter SUCTION mode.
• In SUCTION mode, the appliance will absorb water. We recommend using this mode on wet surfaces.

CUSTOM Mode

100 treco CUSTOM

- This mode allows users to freely set the appliance parameters on the app to enjoy a fully customized furniture cleaning experience.

Vacuum Cleaner

ECO Mode

100 tneco eco

• When the main body is used as a vacuum cleaner, the appliance will start in ECO mode by default.
• In ECO mode, the appliance will apply proper suction power to ensure long battery life.

MAX Mode

MAX 100 tneco

• In ECO mode, press the button to enter MAX mode.
• In MAX mode, the appliance will apply max suction power to remove stubborn stains.

Note:

Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

Indicator

When in Use

Off: motor malfunction, battery malfunction, charging abnormality.

Solid blue light: dirt sensor malfunction or blocked.

Indicator blinking: DWT is full or channel has a blockage.

Indicator blinking: CWT is empty.

Indicator blinking: brush roller has a blockage.

Indicator blinking: appliance has a blockage.

Illuminated: WiFi has successfully connected.

Blinking: WiFi is connecting.

Off: WiFi is not connected, please connect to the network.

Indicator blinking: appliance is in need of self-cleaning.

Battery level > 20%: solid green battery icon.

Battery level 10%\~20%: solid red battery icon.

Battery level < 10%: battery icon blinking red.

During Charging

Tineco indicator: breathing.

Fully Charged

In 5 minutes: Tineco indicator illuminated.

After 5 minutes: all indicator lights turn off.

App

All the functions can be performed using the Tineco app. Download the Tineco app from App Store, Google Play and Tineco Official Site.

Download on the App Store GET IT ON Google Play TinecoTineco

Note:

The default language for voice prompt is English, you can set other languages via App.

Voice Prompt (Contents may vary, please in kind prevail.)

Status Reminder
Voice prompts on Voice prompts on.
Voice prompts off Voice prompts off.
Auto mode by default Auto mode.
Switch to Suction mode Suction mode.
Switch to Max mode Max mode.
Battery level: 10~20% Battery low.
Battery level: 0~10% Battery low. Please charge the appliance.
Clean Water Tank is empty	Insufficient water in the Clean Water Tank.Please fill up water.
Need self cleaning	To optimize cleaning performance, please perform self-clean cycle.
Can not perform self-cleaning	Please place appliance on the charging dock to begin self-cleaning.
Dirty Water Tank is full Dirty Water Tank full. Please empty.
Prepare the solution in Ultra mode Solution is ready. Please start cleaning.
Brush roller is tangled Please clean the brush roller.
Power off Powering off.
Battery insufficient for self-cleaning	Battery low. Please charge before initiating self-cleaning.
Cleaning the brush roller Cleaning the brush roller.
Cleaning the pipe	Cleaning the pipe.
Drying the Brush Roller	Drying the Brush Roller.
Self-cleaning complete	Self-cleaning complete. Please empty and clean the Dirty Water Tank to prevent odors.
Start charging	Charging.
Insufficient water for self-cleaning	Please fill water and start self-cleaning.

Maintenance

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
• Do not soak the appliance or wash it under water.
• Some water may remain in the appliance due to factory inspection.
• After maintenance, place the appliance on the charging dock vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

Line drawing of a hand holding a smartwatch with a speech bubble highlighting the screen (no text or symbols present)

To reduce the risk of injury, switch off before performing maintenance.

Technical illustration of a handheld device with a magnified inset showing internal components (no text or symbols)

Clean the dirt sensor with a damp cloth or the cleaning tool.

Dirty Water Tank

①

②

③

④

⑤

• When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt.
• Pull up the tank lid to empty the DWT. Throw the debris on the waste separator into the trash. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance, separate hair and debris from dirty water.

Dry Filter & Waste Separator

Illustration of four different household appliances: a hand holding a phone, a hand holding a lamp, a small container with a light bulb, and a portable device with a keypad (no text or symbols present)

Grasp recessed area on each side of the dry filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.

* A spare dry filter is provided with your appliance for convenient replacement.

The waste separator can be removed and rinsed under the running water.

* The function of the waste separator is to separate solid waste.
* The appliance can function normally without the waste separator, so users can decide whether to keep it or not.

Brush Roller Self-cleaning

Line drawing of a vacuum cleaner with a power outlet, showing internal components and a magnified view (no text or symbols)

1. Place the appliance on the charging dock after use, the sensor will auto-detect the level of dirt.
2. When you hear the voice prompt "please start self cleaning", press the self-cleaning button and begin the process.
3. Once complete, you will hear the voice prompt "self cleaning completed, please clean the Dirty Water Tank." At this point, the appliance will begin charging.

Note:

• Ensure the charging dock is plugged in and the battery level >30% .
• Before self-cleaning cycle, please clean the DWT and ensure the water level in the CWT>30%.
• During the drying process, if you press the self-cleaning button, the drying process will be interrupted. You can press it again to restart self cleaning.

Brush Roller Cover

Squeeze latches on the cover and pull upward to remove.

Wipe with a wet cloth.

Illustration of a hand holding a handheld device with a click arrow and magnified glass (no text or symbols)

While replacing, always latch the brush cover into place to avoid leakage.

Brush Roller

Illustration of a robotic device with wheels and a hand adjusting its body (no text or symbols)

Remove the brush roller by grabbing the brush roller tab and pulling out.

Illustration of two hands using a tool to interact with a water tap and a sun symbol (no text or labels)

Use the cleaning tool to remove the hair and debris wrapped around the roller and rinse the roller with water, and allow it to dry completely before reinstalling.

Z

Technical line drawing of a mechanical assembly with no visible text or symbols

Remove hair and debris from the brush roller chamber and the opening with the cleaning tool.

Illustration of a hand holding a portable device with wheels and a scroll, showing motion arrows (no text or symbols)

Replace the brush roller by inserting its end into the left side of the holder, then attach the roller tab to the magnetic buckle on the right side to lock into place.

Brush Roller Replacement

Two identical line drawings of a cylindrical object with a hand holding a small object, no text or symbols present.

Uninstall Install

Pull up the roller handle to remove it. Once removed, install the handle into the new brush roller.

When uninstalling, do not directly pull on the pull ring of the brush roller.

Note:

• A spare brush roller is provided with your appliance for convenient replacement.
• To maintain optimal performance, replace the brush roller every 8 months.

Ttransparent Tray

Unlock Lift

Move the lock latch to the right, then lift the transparent tray upwards to remove it.

Illustration of a sun-drap water tap spraying water into a container with raindrops (no text or symbols)

Clean with water or a towel, and thoroughly dry before reinstalling.

Note:

- Do not directly rinse the drying & charging dock with water. Remove the transparent tray separately for cleaning.

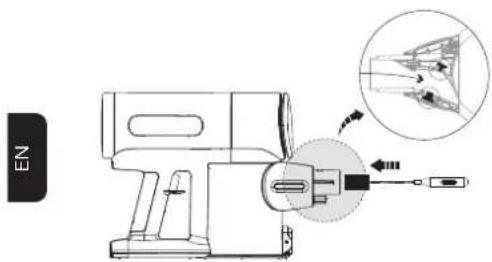

Dustbin

Line drawing of a hand operating a sewing machine with a screwdriver inserted (no text or symbols)

Press the release button on the side of the dustbin to empty the contents.

Line drawing of a hand operating a portable electric shaver with a finger pointing to the button (no text or symbols)

Close and click the dustbin flap back into place.

Mesh Filter

Line drawing of a spray gun mechanism with no text or symbols

Take out the multi-cone assembly removal tool.

Diagram of a hairdryer machine with directional arrows indicating motion (no text or labels)

Insert the multi-cone assembly removal tool upwards into the dustbin.

Technical diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement.

Illustration of a faucet spraying water next to a sun (no text or symbols)

Rotate to remove the mesh filter. Clean the filter and dry it completely before reinstalling.

HEPA Filter

Line drawing of a vintage camera with lens and control panel (no text or symbols)

Pull out the HEPA filter (in magnetic design) for cleaning. Do not use the appliance without first installing the HEPA filter.

Diagram showing water sources, a faucet, sun, and a spool with a 24-hour timer icon

The HEPA filter can be washed under running water and must be completely dry before reinstalling.

Dust Sensor

Technical line drawing of a handheld device with an inset showing internal components (no text or symbols)

To avoid dust accumulation which can affect cleaning performance, wipe the suction mouth with the cleaning tool.

Mini Power Brush

Diagram showing a hand pressing a button on a device with labeled angles θ and S

Mechanical component diagram showing a cylindrical assembly with a flanged end and directional arrows indicating motion (no text or symbols)

Press against the roller end cover downward. Pull out the brush roller.

Technical line drawing of a mechanical device with scissors and a cylindrical component (no text or symbols)

A B S click

Remove the debris wrapped around the roller with a cleaning tool.
Fully reinsert the brush roller at an angle and push upward until it clicks securely back into place.

Brush Roller (Vacuum Cleaner)

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Slide the switch to open the brush roller end cover, and rotate it clockwise before pulling out the brush roller.

Illustration of a hand pressing down on a mechanical device with no visible text or symbols

After removing the brush roller, gently clean the brush window, suction mouth and the row of plastic teeth.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Fully reinsert the brush roller into the brush window and the end cover can be rotated counter-clockwise until it clicks securely back into place.

Warning:

• The power brush contains electrical components which must not be soaked or washed with water.
  • To reduce the injury, do not touch the brush roller while the appliance is in working condition.

SCAN THE QR CODE BELOW TO GET PRODUCT CARE VIDEOS.

Troubleshooting

Problem Possible	cause Solution
The appliance does not turn on	1. No power2. Auto protection for overheating	1. Charge the appliance2. Restart after cooling down
Weak suction	The dry filter is not installed, or the dry filter is dirty	Install the dry filter or clean and allow it to dry completely
Brush roller tangled in animation◀◀ Voice prompt: Please clean the brush roller	The brush roller is blocked	Remove blockages
WiFi indicator off	WiFi is not connected	Follow the in-app guide to connect to WiFi
CWT empty in animation◀◀ Voice prompt: Insufficient water in the Clean Water Tank. Please fill up water	CWT is empty Refill CWT
DWT full in animation◀◀ Voice prompt: Dirty Water Tank is full. Please empty it	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
Battery level<10%◀◀ Voice prompt: Battery low Please charge the appliance	Battery low Charge the appliance, or restart
All lights off in operation	Motor malfunction, battery malfunction, charging abnormality	1. Cool the appliance down and restart2. Use the original adaptor
Solid blue light on	Dirt sensor malfunction or blocked	Remove blockages, clean the debris channel, or restart
Self-cleaning icon blinking	Brush roller is dirty Start self-cleaning
Drying malfunction	Plug not inserted properly	Check if the plug is properly inserted or if the socket has power
	The brush roller is covered with hard-to-clean debris	Clean the brush roller
	The transparent tray is placed in a low-lying water-filled area, blocking the air inlet	Check if there are any objects or water at the bottom of the tray that block the air inlet
The transparent tray falls off	The transparent tray is not installed properly	To install the transparent tray, press the front end of the transparent tray into place, then press the rear end downwards

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website

www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.
• Use of parts not in accordance with the Tineco Instruction Manual.
• Use of parts and accessories other than those produced or recommended by Tineco.
• External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.
  • Repairs or alterations carried out by unauthorized parties or agents.
• Failing to clear blockage and other hazardous material from the appliance.
• Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.
• Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from. Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

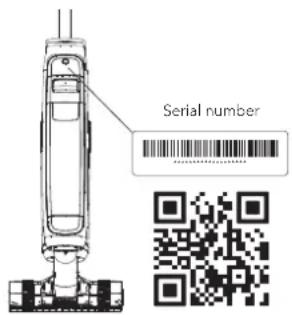

Register: We highly recommend that upon purchase, you register your appliance by logging into our official website (www.tineco.com) or scanning the QR code (see right) to enjoy more exclusive benefits. To register, please enter the whole serial number (found on the back of the appliance). Failure to register your product won't diminish your warranty rights.

Serial number

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or its authorized agency.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Visit Tineco website www.tineco.com for expert customer service.

CONTENIDO

Three technical line drawings of mechanical components, labeled 10, 11, and 12, showing different views (no text or symbols beyond labels)

AUTO MAX 100 tineco CUSTOM ECO SUCTION A B C D E F G H I J K L M N O P Q

Diagram of a portable device with a curved arrow indicating rotation (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including a zoomed-in detail view.

Technical line drawing of a vertical mechanical device with an inset close-up showing a component detail (no text or symbols)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with two views (no text or symbols)

Line drawing of a vacuum cleaner with a base, showing mechanical components and a close-up view (no text or symbols)

Diagram showing a device with an explosion effect labeled 'clic' and a magnified inset view of its internal structure.

Line drawing of a hand holding a device with a circular icon highlighting a grid-like symbol (no text or labels)

Technical line drawing of a vacuum cleaner with an angle annotation showing <148° (no text or symbols on the device itself)

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached stand (no text or symbols)

Diagram illustrating a manual tool with labeled parts and directional arrows, including 'clic' annotation

Line drawing of a vacuum cleaner with a power outlet (no text or symbols)

Diagram showing a hand holding a blood glucose meter with a speech bubble highlighting the device's internal structure.

Illustration of a handheld device with a hand operating it, showing internal components and a magnified view of the tool (no text or symbols present)

Illustration showing various cleaning and packaging steps with labeled icons and arrows indicating process flow.

Diagram of a vacuum cleaner with a labeled sensor and power outlet (no text or symbols present)

Diagram showing a hand pressing a component with directional arrows and numbered label (②)

Illustration of a robotic device with wheels and a hand adjusting its body (no text or symbols)

ES

Illustration of hands using a tool to interact with a water tap and a sun symbol (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand holding a mechanical device with a scroll and circular components (no text or symbols)

Two identical line drawings of a cylindrical object with a handle, showing internal components and motion (no text or symbols)

Desbloquear Elevar

Illustration of a sun-drap faucet pouring water into a container with raindrops (no text or symbols)

Line drawing of a hand operating a sewing machine with a tool, no text or symbols present

Line drawing of a hand using a handheld electric shaver with a finger pointing to the handle (no text or symbols)

Line drawing of a mechanical device with a lever and adjustment arrow (no text or symbols)

Technical line drawing of a hairdryer device with no visible text or symbols

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or movement.

Illustration of a faucet spraying water next to a sun symbol (no text or labels)

Line drawing of a vintage-style electric shaver with no text or symbols

Simple line drawings of a faucet, sun, and two spinning reels with no text or symbols

Technical line drawing of a mechanical device with an inset showing a close-up view of a component (no text or symbols present)

Diagram showing a hand pressing a button on a device with angle θ and angle α labeled

Technical line drawing of a mechanical device with a cylindrical component and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical device with scissors and a cylindrical component (no text or symbols)

Technical diagram of a vehicle battery pack with labeled components and directional arrows indicating parts of the battery.

Line drawing of a hand pressing down on a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Three technical line drawings of mechanical components, labeled 10, 11, and 12, showing different views (no text or symbols beyond labels)

AUTO MAX 100 tineco CUSTOM ECO SUCTION A B C D E F G H I J K L M N O P Q

Diagram of a portable device with a curved arrow indicating rotation (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including a zoomed-in detail view.

Technical line drawing of a vertical cylindrical device with an inset close-up showing internal components (no text or symbols)

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with two views (no text or symbols)

Diagram of a vacuum cleaner with a brush and base, showing mechanical components and a directional arrow (no text or symbols)

Diagram showing a device with an explosion effect labeled 'cllc' and a magnified inset of its internal structure.

Line drawing of a hand holding a digital blood glucose meter with a magnified inset showing the device (no text or symbols present)

Technical line drawing of a vacuum cleaner with a 148° angle annotation (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with a vertical tube and base (no text or symbols)

Technical diagram of a sewing machine with labeled components and dashed-line annotations

Line drawing of a vacuum cleaner with attached stand (no text or symbols)

Diagram showing a mechanical device with labeled parts and directional arrows, including a 'clic' label and numbered annotations.

Line drawing of a vacuum cleaner with a power outlet indicator (no text or symbols)

Diagram showing a hand holding a smartwatch with a screen icon and a speech bubble pointing to it, likely indicating a diagnostic or testing procedure.

Technical line drawing of a handheld device with a magnified inset showing internal components (no text or symbols)

Illustration showing various methods of lighting and device installation, including flash, spray, and lighting tools.

Diagram of a vacuum cleaner with a power outlet, showing internal components and wiring (no text or labels)

Diagram showing a hand pressing a component with directional arrows and numbered labels (①, ②)

Illustration of a robotic device with wheels and a hand adjusting its body (no text or symbols)

Illustration of hands using a tool to interact with a sun, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand holding a mechanical device with a scroll and wheels, showing motion direction (no text or symbols)

Two diagrams showing a hand holding a cylindrical object with a handle, no text or symbols present

Désinstaller Installer

Illustration of a sun-drap faucet pouring water into a container with raindrops (no text or symbols)

Line drawing of a hand operating a sewing machine with a tool, no text or symbols present

Line drawing of a hand using a handheld electric shaver with a finger pointing to the button (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

FR

Diagram of a hairdryer machine with directional arrows indicating motion (no text or labels)

Technical diagram of a hairdryer with labeled parts and directional arrows indicating motion or assembly.

Illustration of a faucet spraying water with a sun symbol nearby (no text or labels)

Line drawing of a vintage-style handheld device with no visible text or symbols

Simple line drawings of a faucet, sun, and two spools with a timer (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of a component (no text or symbols present)

Diagram showing a hand pressing a button on a device with labeled angles θ and S

Mechanical component diagram showing a roller or bushing mechanism with directional arrows (no text or symbols)

Retirez le rouleau brosse.

Technical line drawing of a mechanical device with scissors and a cylindrical component (no text or symbols)

Technical diagram of a vehicle chassis with labeled parts and directional arrows indicating motion or assembly.

FR

Line drawing of a hand pressing down on a device panel with a microphone (no text or symbols)

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.
