USER MANUAL Floor One S6 Stretch Extreme TINECO

Smart Cordless Floor Washer

Bedienungsanleitung

Instruction Manual

Manual De Uso

Mode D'emploi

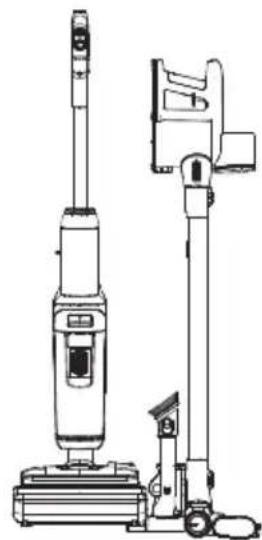

Technical line drawing of a vacuum cleaner with two different designs (no text or symbols)

*Actual product may differ from illustration.

INHALT

Technical line drawings of three mechanical components labeled 10, 11, and 12 (no text or symbols on the diagrams themselves)

AUTO MAX 188 SUCTION eco CUS TOM A B C D E F G H I J K L M N O

Technical line drawing of a vacuum cleaner with a curved arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including section ① and section ②.

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

Line drawing of a handheld device with an arrow indicating rotation (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly showing a shaft, housing, and motor components (no text or symbols)

Diagram showing a hand using a blood glucose meter to interact with a device, with an icon highlighting the function.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Technical line drawing of a mechanical device with handle and lever (no text or symbols)

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached lever mechanism (no text or symbols)

Diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

Diagram of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Diagram illustrating a water filtration or disinfection process with labeled components and directional arrows

Line drawing of a vacuum cleaner with a power outlet, no text or symbols present

Diagram showing a hand using a blood glucose meter to interact with a device, with an icon highlighting the function.

Technical illustration of a vacuum cleaner with a magnified inset showing internal components (no text or symbols)

Illustration of four different tasks: battery charging, water spray, sun heating, and mechanical assembly (no text or symbols)

Line drawing of a vacuum cleaner with a circular dial indicator and power outlet (no text or symbols)

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

Illustration showing hands using a tool to lift a water tap into a pipe, with sun symbol indicating sunlight (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a hand holding a device with a scroll and directional arrow (no text or symbols)

Two diagrams showing a hand holding a tool above a cylindrical object, with no text or symbols present.

Deinstallieren Installieren

Diagram showing a hand holding a tape measure above a cylindrical object with an 'X' symbol, indicating no text or symbols present.

Line drawing of a hand operating a portable radio device with a scroll wheel (no text or symbols)

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating movement or assembly.

Illustration of a faucet spraying water onto a water dispenser with sun symbol (no text or labels)

Line drawing of a handheld device with no visible text or symbols

Simple line drawings of water sources and equipment symbols (no text or labels)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

Line drawing of a hand using a device to press or rotate a circular object, with no text or symbols present.

Technical line drawing of a mechanical device with a directional arrow indicating motion (no text or symbols)

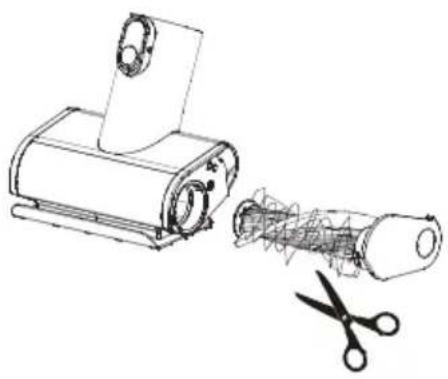

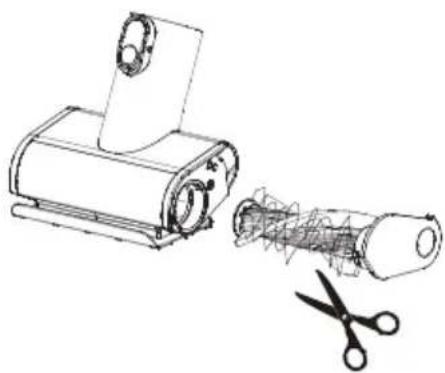

Technical line drawing of a mechanical assembly with scissors cutting through a cylindrical component (no text or symbols)

Technical diagram of a mechanical device with numbered parts and labeled components

Line drawing of a hand pressing down on a mechanical device with a circular component above (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Important Safety Instructions....32

Specifications 36

Overview....37

Accessories....40

Assembly 41

Operation 43

Maintenance 51

Troubleshooting....57

Warranty 58

MORE LANGUAGES

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only.

For indoor use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended accessories.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without filter.

14. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

15. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. Charging only with the charging dock specified by Tineco. A charging dock that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.
18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.
19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266^ F ( 130^ C) may cause an explosion.
21. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
22. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
23. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
24. Always turn off this appliance before connecting or disconnecting the motorized nozzle.
25. Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.
26. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.
27. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.
28. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.
29. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaks electricity.
30. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
31. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.
32. Store appropriately indoors in a dry place after use.
33. Do not place or submerge appliance in standing water or try to clean flooded areas.

34. All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.

35. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

36. A hazard may occur if the appliance runs over the supply cord.
37. Do not use the appliance when the water depth is more than 5mm above the surface.
38. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
39. When battery pack is not in use, keep it away from metal objects such as paper clips, coins, keys, nails, screws or other small metal objects that could create a connection between the battery terminals. Short-circuiting the battery terminals may result in burns or a fire.
40. To reduce the risk of fire and electric shock – Use only Tineco cleaning products intended for use with this machine.

Range of Usage

1. The cordless hard floor cleaner is to be used on indoor hard floors, such as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
2. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
3. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Solution

1. WARNING – To Reduce the Risk of Fire and Electric Shock – Use only Tineco cleaning solution designed for use with this machine.
2. A large amount of cleaning solution entering into the motor may cause damage to the appliance.
3. Add solution as instructed in the Operation section. We recommend using the provided cleaning solution. Do not use the product with acidic, alkaline solution, or any substances harmful to the environment.
4. Keep out of the reach of children. Avoid contact with eyes and skin, otherwise, rinse thoroughly with water. If irritation persist, seek medical advice. If product is swallowed seek medical advice.
5. Dirty water and solution disposal should comply with local environmental regulations.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. The appliance is only to be used with the power supply provided. The plug must be removed from the socket-outlet before cleaning or appliance maintenance.
3. Use extra care when cleaning on stairs.

4. Ensure that the Power Switch is in the OFF-position before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.

5. To avoid being tripped accidentally, please put away the appliance on the charging dock.

6. Always install the Dirty Water Tank and Clean Water Tank properly before use.
7. Do not allow the appliance or charging dock to get wet to avoid risk of fire or injury caused by a short circuit.
8. WARNING: For the purposes of charging the battery, only use the detachable power supply provided with this appliance.

About the Drying & Charging Dock

WARNING – Do not immerse in water.

CAUTION – Hot surface. When using avoid contact.

Recycling Instructions according to Battery Law

The rechargeable battery contains materials that are harmful to the environment and must therefore be removed from the device before disposal. The device must be switched off to remove the rechargeable battery.

Batteries and rechargeable batteries must not be disposed of in household waste! Every consumer is obliged to hand in all batteries and rechargeable batteries, regardless of whether they contain harmful substances or not, at a collection point in his or her municipality/district or at a retailer, so that they can be disposed of in an environmentally friendly manner. Batteries and rechargeable batteries should only be returned when discharged.

Batteries and rechargeable batteries are therefore marked with the symbol left.

Recycling Instructions according to WEEE

Waste electrical and electronic equipment must not be disposed of with household waste! Every consumer is obliged to hand in all appliances at the end of their service life at a collection point in his or her municipality/district or at a retailer so that they can be disposed of properly and in an environmentally friendly manner.

The illustration left shows the wheelie bin symbol indicating separate collection of waste electrical and electronic equipment (WEEE).

For EU Countries:

For EU Declaration of Conformity information, please visit www.tineco.com.

Symbols:

	Read the instruction manual
	For indoor use only
	Direct current
	Alternating current

Specifications

Product (Appliance) FLOOR ONE SWITCH S6 STRETCH
Voltage 21.6V 4000mAh Li-Ion =
Rated Power 180W
Running Time Floor Washer: 25~40 mins/Vacuum Cleaner: 25~65 mins
Charging Time 4.5±0.5h
Water Flow Rate 20~100ml/min
CWT Capacity ~0.8L
DWT Capacity ~0.72L
Waterproof IPX4

Drying & Charging Dock

Input 220 - 240 V~ 50/60 Hz
Rated Power (charging) 32W
Rated Power (drying) 620W
Output 26V 1A	=

*Estimated runtime data was obtained by Tineco Laboratory.

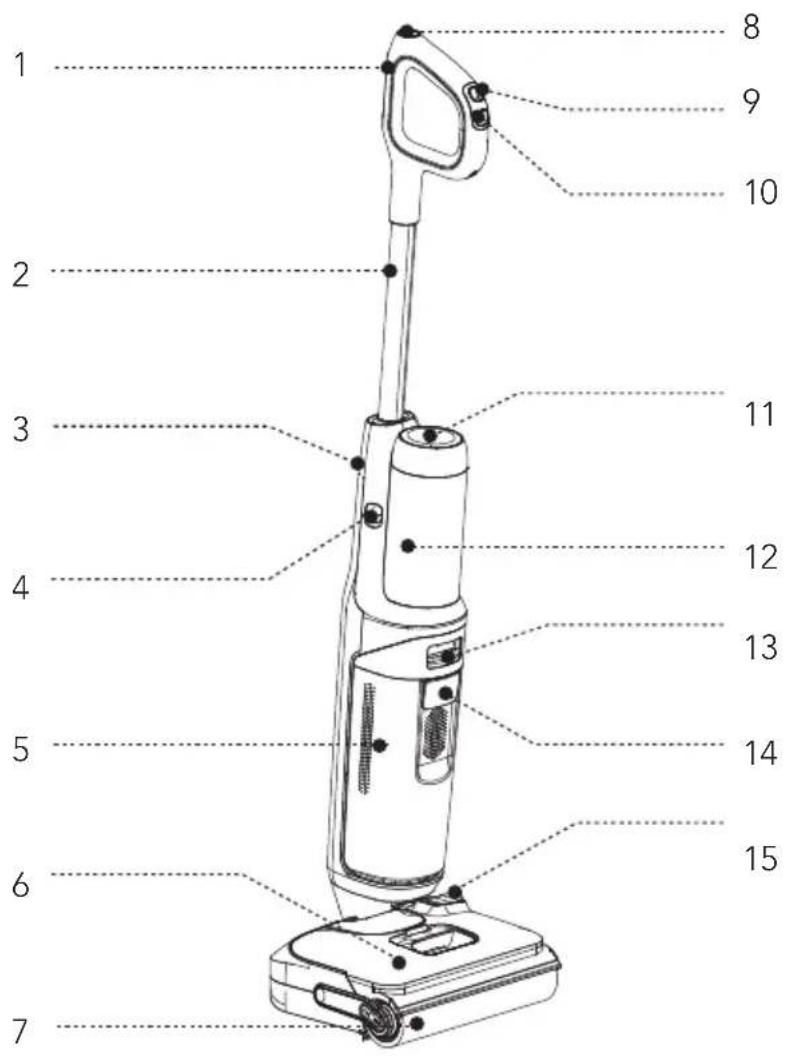

Overview

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19

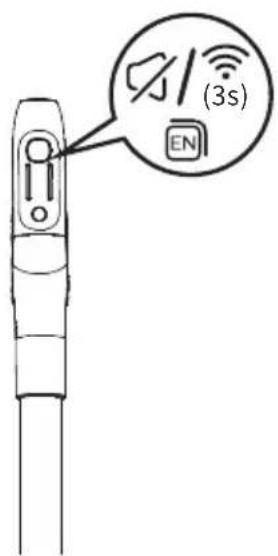

1. WiFi/Mute/Language Switch Button
2. Tube
3. Tube Release
4. SwitchPro Motor Release
5. Dirty Water Tank (DWT)
6. Clean Water Tank (CWT)
7. Brush Roller
8. Self-cleaning Button
9. Mode Switch

10. Power On/Off

11. Digital Display

12. SwitchPro Motor
13. Dirty Water Tank Release
14. Dirty Water Tank Handle
15. Clean Water Inlet

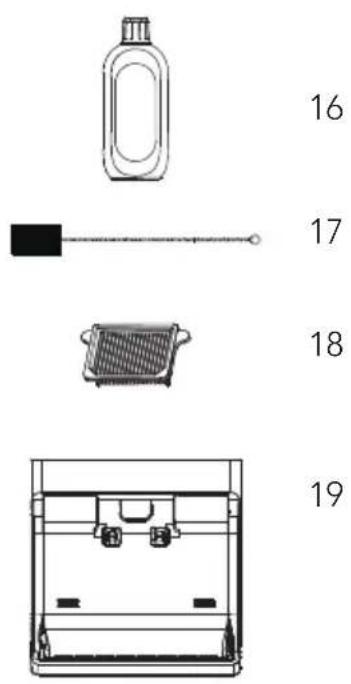

16. Deodorizing & Cleaning Solution
17. Cleaning Tool
18. Dry Filter
19. Drying & Charging Dock

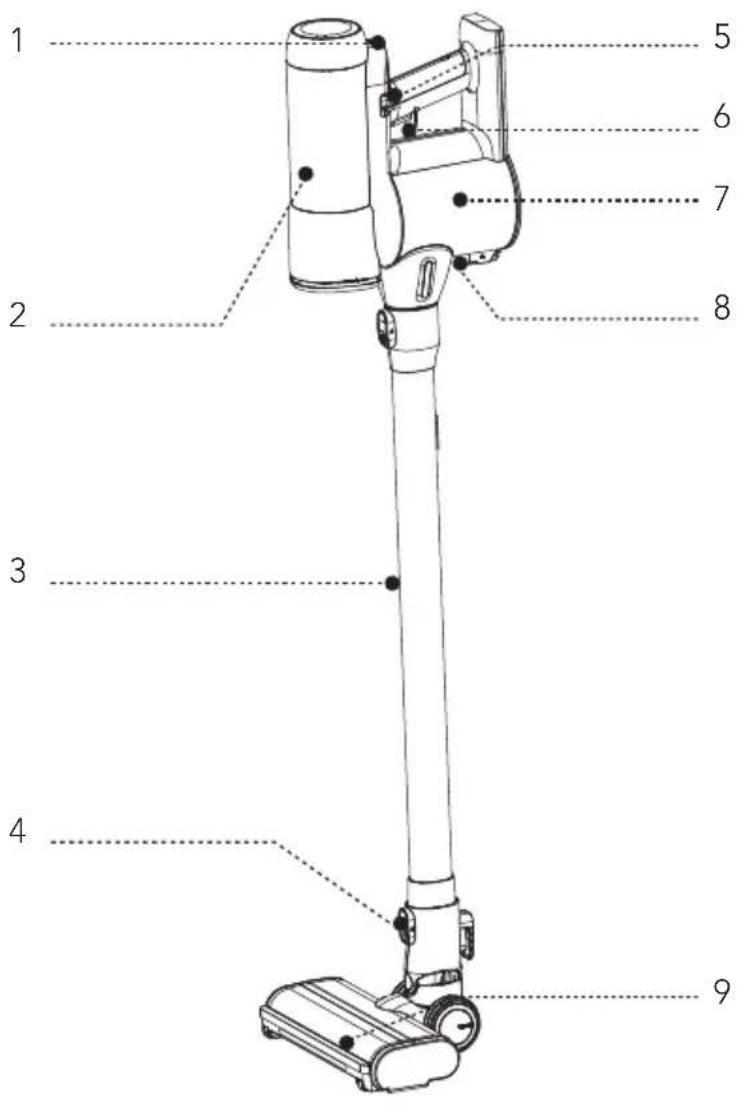

1 2 3 4 5 6 7 8 9

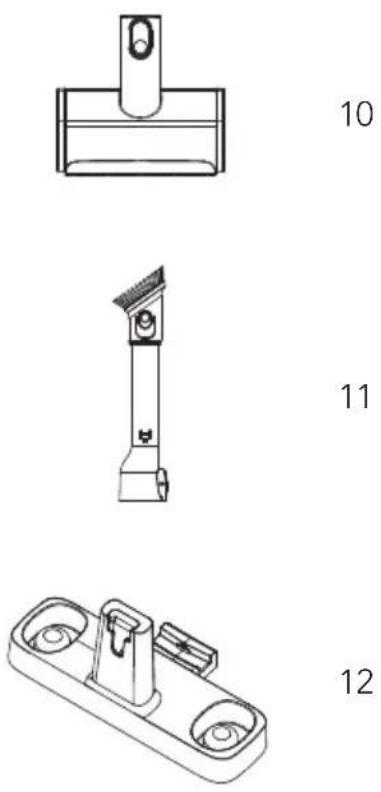

Technical line drawings of three mechanical components labeled 10, 11, and 12 (no text or symbols on the diagrams themselves)

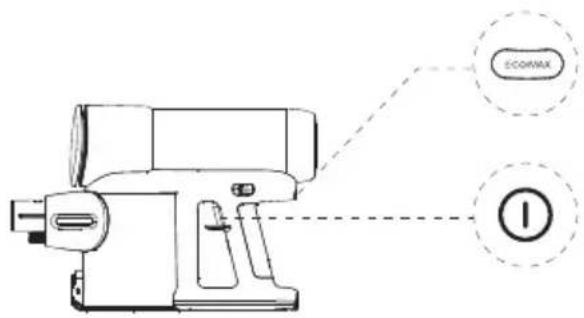

1. ECO/MAX Mode
2. Multi-cone Assembly Removal Tool
3. Tube
4. Release Button
5. Multi-cone Assembly Release

6. Power On/Off

7. Dustbin

8. Dustbin Empty Release
9. Anti-tangle Power Brush
10. Mini Power Brush
11. 2-in-1 Dusting Brush Crevice Tool
12. Vacuum Dock

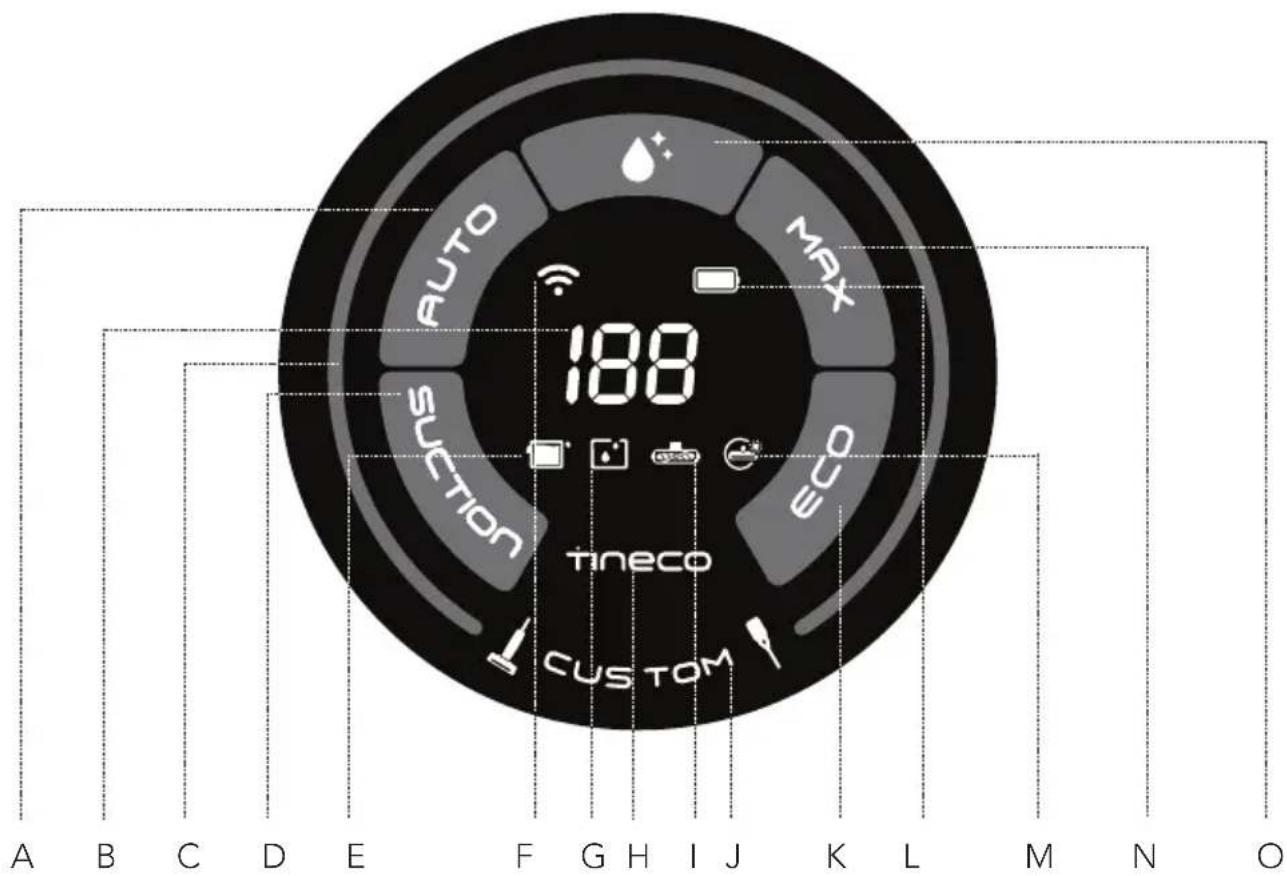

Digital Display

AUTO MAX 188 Suction ECO CUSTOM A B C D E F G H I J K L M N O Tineco

A. AUTO Mode
B. Battery Level Indicator
C. Dirt Monitoring Loop (Blue to red according to the dirt amount)
D. SUCTION Mode
E. DWT Full or Blocked
F. WiFi Indicator
G. CWT Empty

H. Tineco Logo
I. Brush Roller Tangled Indicator
J. CUSTOM Mode
K. ECO Mode
L. Battery Icon
M. Drying Brush Roller Indicator
N. MAX Mode
O. Self-cleaning Icon

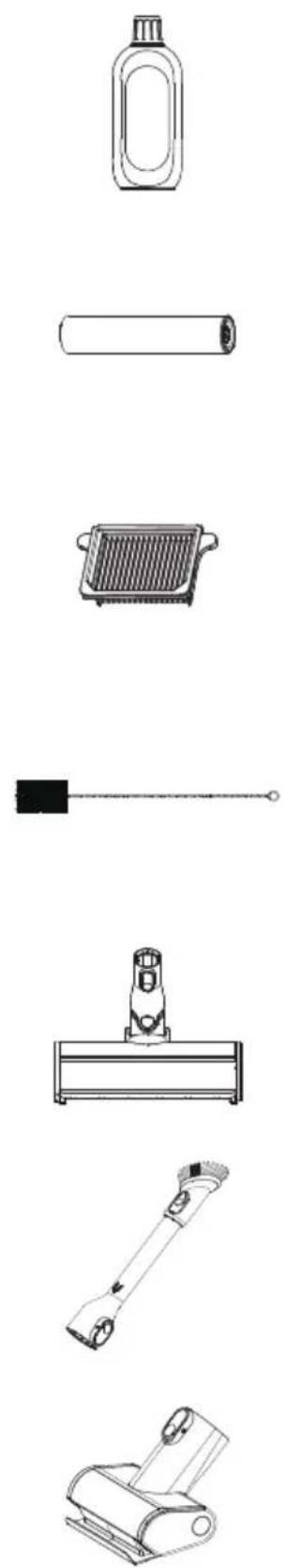

Accessories

Note:

Accessories may vary among markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Deodorizing & Cleaning Solution

Removes dirt, grime, grease and tough stains from most types of hard surfaces, like tile, marble, sealed hardwood floors, and more. Always use Tineco solution in your appliance. Add one bottle cap of solution to each full tank of clean water.

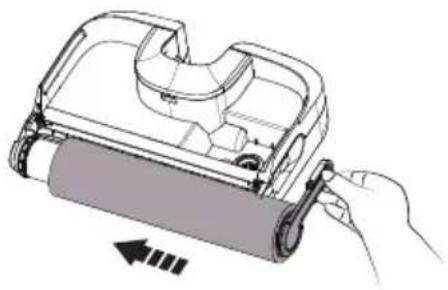

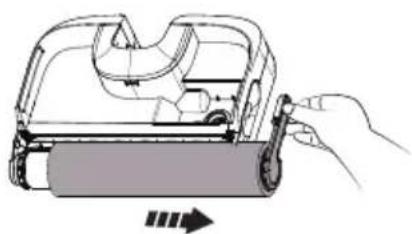

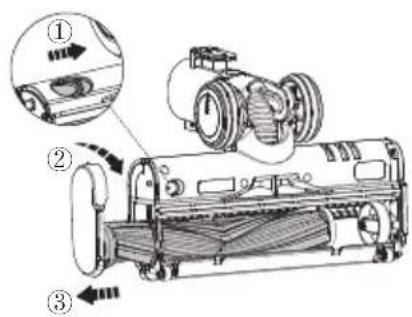

Brush Roller

Soft roller head with bristles can be used to vacuum and wash at the same time. It can be easily cleaned with the self-cleaning function.

Dry Filter

Dry filter and filter net can block large particles and debris, ensuring the appliance's durability.

* Please install the dry filter before use, or it may lead to weak suction.

Cleaning Tool

A full brush to clean the DWT, brush chamber and opening. The tool also has a bristled end to remove dirt and mud on the roller and DWT.

Anti-tangle Power Brush

Ideal for both hard floors and carpets. Picks up ground-in dirt with no hair wrap.

2-in-1 Dusting Brush Crevice Tool

The slimline crevice tool is ideal for tight spots, corners and crevices, while the brush is ideal for cleaning above the floor surfaces.

Mini Power Brush

For vacuuming upholstered furniture, mattresses etc. Vacuums pet hair and removes ingrained dirt.

Assembly

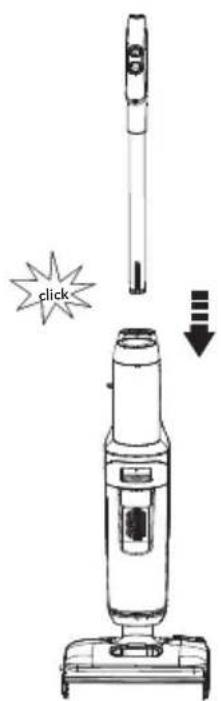

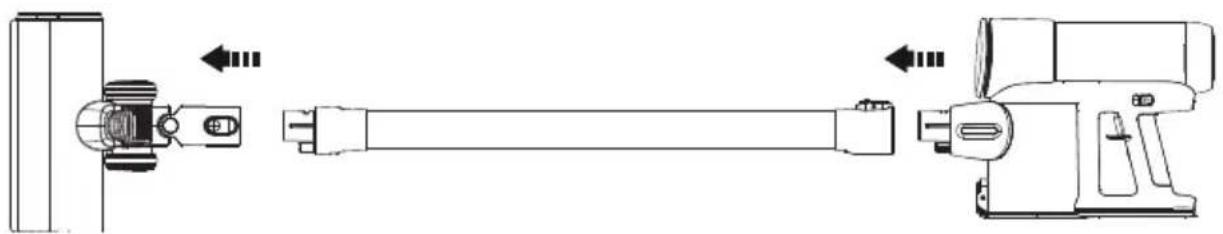

How to Assemble/Disassemble

Floor Washer

Note: For water tank and brush assembly, please refer to "Operation" and "Maintenance".

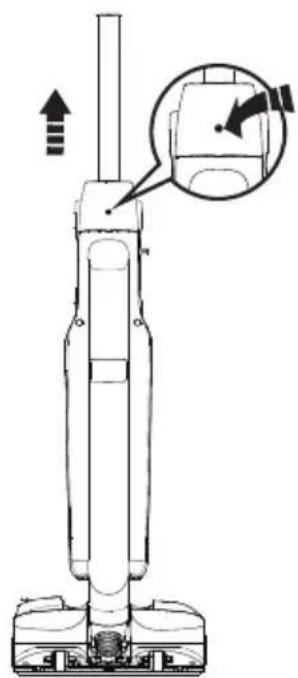

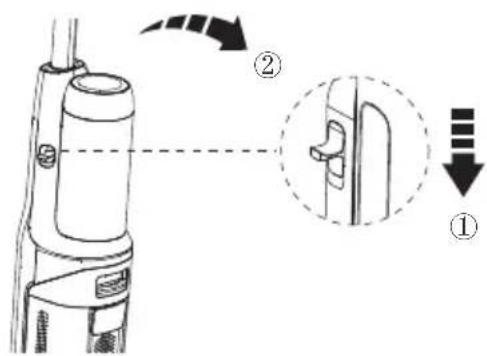

Line drawing of a vacuum cleaner with a curved arrow indicating motion (no text or symbols)

To install, insert the SwitchPro Motor into the floor washer, push it in, installation is complete when you hear a click.

Diagram showing a device with labeled parts and directional arrows, including section ① and ②.

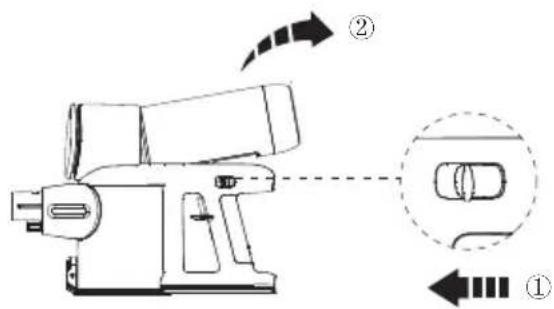

To remove the SwitchPro Motor, hold the appliance with one hand and press the release slider with the other hand.

click

To assemble the handle, insert it into the appliance until you hear a click.

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

To remove the handle, press the release button on the back of the appliance, then pull the handle upwards.

Vacuum Cleaner

Line drawing of a handheld device with an arrow indicating rotation (no text or symbols)

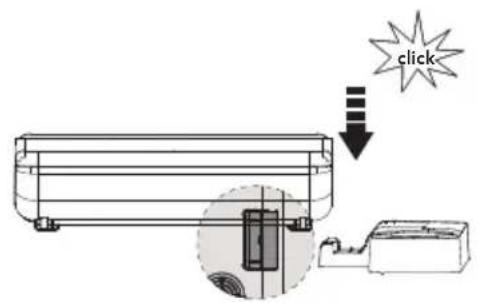

To install, insert the SwitchPro Motor into the vacuum cleaner, push it in, installation is complete when you hear a click.

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or assembly.

To remove the SwitchPro Motor, hold the appliance with one hand and press the release slider with the other hand.

Technical line drawing of a mechanical assembly showing a shaft, housing, and motor components (no text or symbols)

Connect the brush, tube and main body as shown above.

Line drawing of a vacuum cleaner with a base, showing mechanical components and a brush (no text or symbols)

click

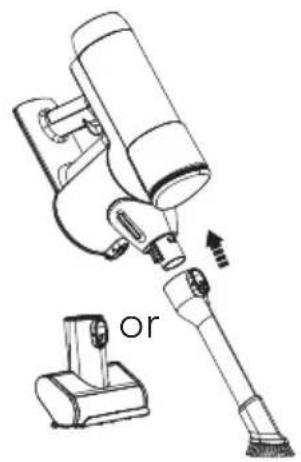

Connect the accessory tool to the main body. Insert the drying & charging dock into the vacuum dock as shown. Installation is complete when you hear a click.

Operation

Preparing for Use

Floor Washer

- Before first use, please charge the appliance for 4-5 hours (refer to "Charging Instructions" for details).

* Based on results from Tineco lab tests. Lab temperature 39.2°F (4°C) \~ 104°F (40°C).

Diagram showing a hand using a digital device to interact with a screen, with an icon of a speech bubble containing a grid and control buttons.

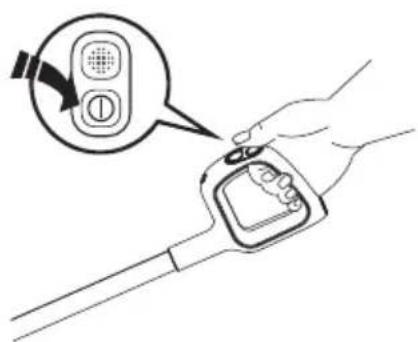

Press the button and the appliance will start in AUTO mode by default. Press it again to turn off the appliance. Switch between AUTO, MAX and SUCTION modes by pressing the button.

(3s) EN

Tips:

• Solution mode/ Water Only mode: Appliance starts with Solution mode by default. Power on while the appliance is upright, hold for 3s to switch between the two modes.
• Switch to Water Only mode: LED Loop: Red → Blue (use water only)
• Switch to Solution mode: LED Loop: Blue → Red (use cleaning solution)

WiFi/Mute/Language Switch Button

• Short press to adjust the volume.
• Press twice to switch languages. (More voice languages will be added, please refer to the actual product for now.)
• Hold for 3 seconds to connect to network.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Technical line drawing of a mechanical tool or device with no visible text or symbols

The appliance will stop working when put upright and start running again when reclined.

To clean under the bed and furniture, first lay the appliance flat.

Line drawing of a vacuum cleaner (no text or symbols)

Place the appliance on the charging dock vertically after use for charge and storage.

Note:

• Selecting the appropriate mode depending on the CWT contents is vital for maximum dirt detection effectiveness.
• Do not vacuum foamed liquid.
  • To vacuum water left on the surface, the appliance will keep running for 3 seconds after power off.

Vacuum Cleaner

ECONAX ①

Press the button and the appliance will start in ECO mode by default. Press it again to turn off the appliance. Switch between ECO and MAX mode by pressing the button.

Line drawing of a vacuum cleaner with attached clapperboard (no text or symbols)

Place the appliance and accessories on the vacuum dock for convenient storage after use.

Filling Clean Water Tank

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

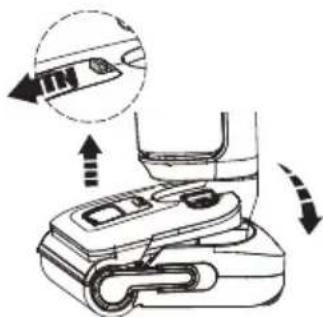

Press the Clean Water Tank release button to remove CWT from the appliance.

Diagram of a car door handle mechanism with directional arrows indicating movement (no text or symbols)

Place the tank back into the appliance. You should hear a click if done correctly.

Diagram illustrating a water filter system with labeled components and flow direction

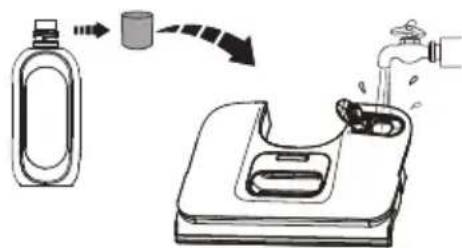

Open the tank cap, and fill the tank with tap water to the Max line. When deep cleaning is necessary, add one bottle cap of solution to the CWT and tightly close the cap.

Note:

Only use water under 140°F/60°C. DO NOT USE HOT WATER.

Charging Instructions

Line drawing of a vacuum cleaner with attached electrical outlet (no text or symbols)

- To charge the appliance, plug in the drying & charging dock and place the appliance on it.

- To avoid tripping hazards, please place the appliance on the charging dock near a wall during charging.

Warning:

• Only charge the appliance with the charger supplied by Tineco.
• During long periods of not being used, the appliance must be charged once every 3 months for optimal performance. It may take 4-5 hours for a full charge.
• Store indoors in a dry place. Do not expose the appliance to sunlight or freezing temperatures. Recommended temperature range: 39.2°F (4°C) \~ 104°F (40°C).

Cleaning Mode Selection

Floor Washer

AUTO Mode

Z

AUTO 188 Tineco

- In AUTO mode, the iLoop sensor automatically detects how dirty the floor is and applies the appropriate amount of detergent and suction power.

- A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected. This mode automatically provides the best cleaning solution.

MAX Mode

188 Tineco

- In AUTO mode, press the button once to enter MAX mode.

- In MAX mode, the appliance will apply max suction power and will spray water/solution for embedded stains.

SUCTION Mode

188 button tineco

- In AUTO mode, press the button twice to enter SUCTION mode.

- In SUCTION mode, the appliance will absorb water. We recommend using this mode on wet surfaces.

CUSTOM Mode

188 Tineco CUSTOM

- This mode allows users to freely set the appliance parameters on the app to enjoy a fully customized furniture cleaning experience.

Vacuum Cleaner

ECO Mode

188 Tineco eco

• When the main body is used as a vacuum cleaner, the appliance will start in ECO mode by default.
• In ECO mode, the appliance will apply proper suction power to ensure long battery life.

MAX Mode

188 MAX Tineco

• In ECO mode, press the button to enter MAX mode.
• In MAX mode, the appliance will apply max suction power to remove stubborn stains.

Note:

Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

Indicator

When in Use

Off: motor malfunction, battery malfunction, charging abnormality.

Solid blue light: dirt sensor malfunction or blocked.

Indicator blinking: DWT is full or channel has a blockage.

Indicator blinking: CWT is empty.

Indicator blinking: brush roller has a blockage.

Illuminated: WiFi has successfully connected.

Blinking: WiFi is connecting.

Off: WiFi is not connected, please connect to the network.

Indicator blinking: appliance is in need of self-cleaning.

Battery level > 20%: solid green battery icon.

Battery level 10%\~20%: solid red battery icon.

Battery level < 10%: battery icon blinking red.

During Charging

Tineco indicator: breathing.

Fully Charged

In 5 minutes: Tineco indicator illuminated.

After 5 minutes: all indicator lights turn off.

App

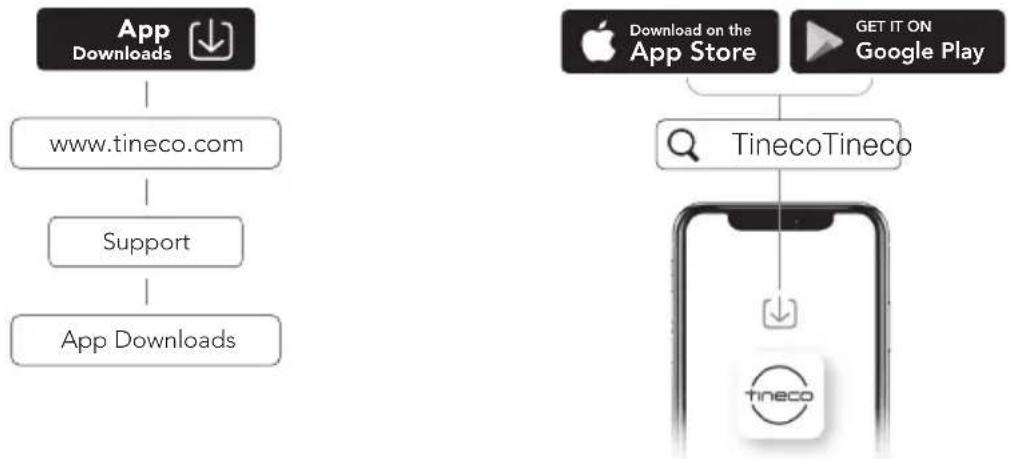

All the functions can be performed using the Tineco app. Download the Tineco app from App Store, Google Play and Tineco Official Site.

Note:

The default language for voice prompt is English, you can set other languages via App.

Voice Prompt (Contents may vary, please in kind prevail.)

Status Reminder
Voice prompts on Voice prompts on.
Voice prompts off Voice prompts off.
Auto mode by default Auto mode.
Switch to Suction mode Suction mode.
Switch to Max mode Max mode.
Battery level: 10~20% Battery low.
Battery level: 0~10% Battery low. Please charge the appliance.
Clean Water Tank is empty	Insufficient water in the Clean Water Tank.Please fill up water.
Need self-cleaning	To optimize cleaning performance, please perform self-clean cycle.
Can not perform self-cleaning	Please place appliance on the charging dock to begin self-cleaning.
Dirty Water Tank is full Dirty Water Tank full. Please empty.
Prepare the solution in Ultra mode Solution is ready. Please start cleaning.
Brush roller is tangled Please clean the brush roller.
Power off Powering off.
Battery insufficient for self-cleaning	Battery low. Please charge before initiating self-cleaning.
Cleaning the brush roller Cleaning the brush roller.
Cleaning the pipe	Cleaning the pipe.
Drying the Brush Roller	Drying the Brush Roller.
Self-cleaning complete	Self-cleaning complete. Please empty and clean the Dirty Water Tank to prevent odors.
Start charging	Charging.
Insufficient water for self-cleaning	Please fill water and start self-cleaning.

Maintenance

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
• Do not soak the appliance or wash it under water.
• Some water may remain in the appliance due to factory inspection.
  • After maintenance, place the appliance on the charging dock vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

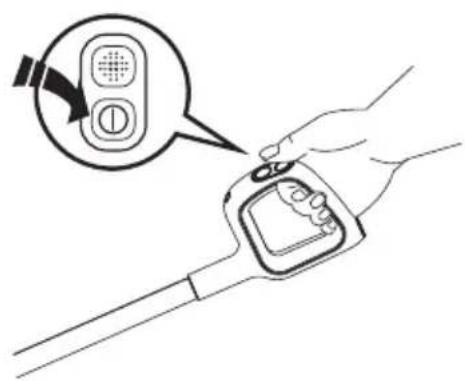

Diagram showing a hand using a device to interact with a screen, with an icon of a control panel and a speech bubble indicating interaction.

To reduce the risk of injury, switch off before performing maintenance.

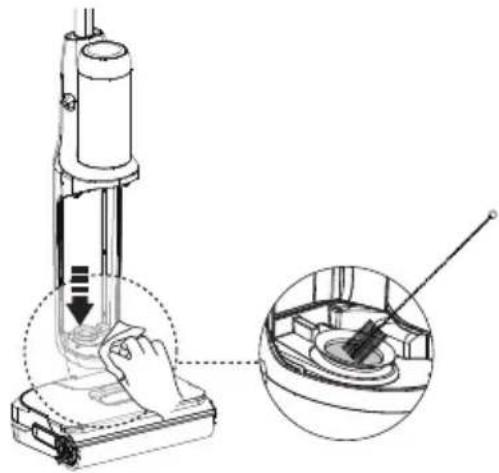

Technical illustration of a vacuum cleaner with an inset close-up showing the component (no text or symbols present)

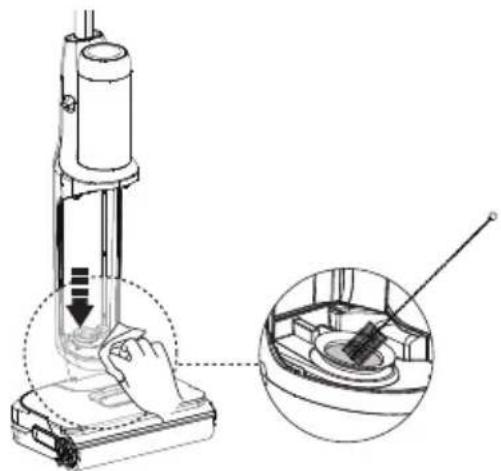

Clean the dirt sensor with a damp cloth or the cleaning tool.

Dirty Water Tank

Diagram of a device with directional arrows indicating movement or force (no text or symbols)

①

Simple line drawing of a container with liquid and an upward arrow, no text or symbols present

③

Technical line drawing of two mechanical components with no visible text or symbols

④

Line drawing of a hand pouring water from a faucet into a cylindrical container (no text or symbols)

click

• When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt.
• Pull up the tank lid to empty the DWT. Throw the debris on the waste separator into the trash. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance, separate hair and debris from dirty water.

Dry Filter & Waste Separator

Illustration of four different tasks: battery charging, water spray, sun heating, and mechanical assembly (no text or symbols)

Grasp recessed area on each side of the dry filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.

* A spare dry filter is provided with your appliance for convenient replacement.

* The function of the waste separator is to separate solid waste.

Brush Roller Self-cleaning

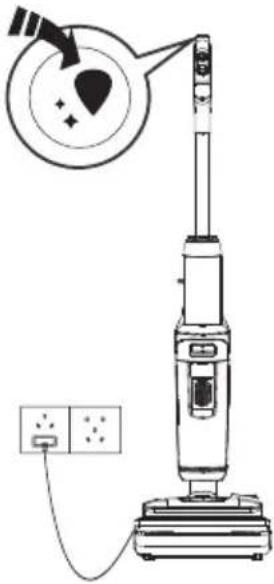

Line drawing of a vacuum cleaner with a circular dial indicator and power outlet (no text or symbols)

1. Place the appliance on the charging dock after use, the sensor will auto-detect the level of dirt.
2. When you hear the voice prompt "please start self cleaning", press the self-cleaning button and begin the process.
3. Once complete, you will hear the voice prompt "self cleaning completed, please clean the Dirty Water Tank." At this point, the appliance will begin charging.

Note:

• Ensure the charging dock is plugged in and the battery level>30%.
• Before self-cleaning cycle, please clean the DWT and ensure the water level in the CWT>40%.
• During the drying process, if you press the self-cleaning button, the drying process will be interrupted. You can press it again to restart self cleaning.

Brush Roller

Illustration of a hand using a tool to press down a mechanical component, showing motion arrows (no text or symbols)

Remove the brush roller by grabbing the brush roller tab and pulling out.

Illustration showing three steps of a water tap: adding a pipe, opening a water tap, and using a sun (no text or symbols)

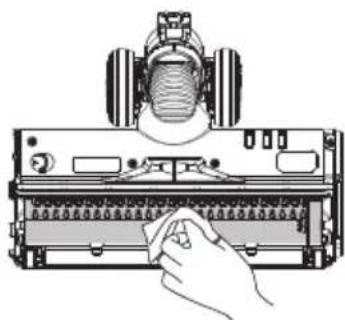

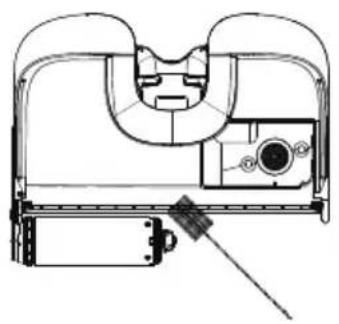

Use the cleaning tool to remove the hair and debris wrapped around the roller and rinse the roller with water, and allow it to dry completely before reinstalling.

Technical line drawing of a mechanical device with no visible text or symbols

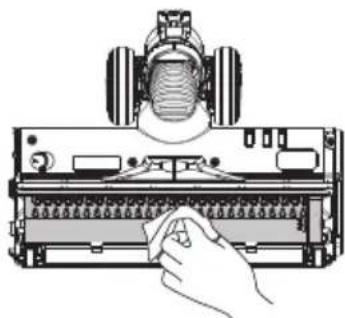

Remove hair and debris from the brush roller chamber and the opening with the cleaning tool.

Diagram of a hand holding a device with a scroll and directional arrow (no text or symbols)

Replace the brush roller by inserting its end into the left side of the holder, then attach the roller tab to the magnetic buckle on the right side to lock into place.

Brush Roller Replacement

Uninstall Install

Pull up the roller handle to remove it. Once removed, install the handle into the new brush roller.

Simple line drawing of a hand holding a cylindrical object with a 'X' symbol below (no text or symbols on the object itself)

When uninstalling, do not directly pull on the pull ring of the brush roller.

Note:

• A spare brush roller is provided with your appliance for convenient replacement.
• To maintain optimal performance, replace the brush roller every 8 months.

Dustbin

Line drawing of a hand operating a handheld device with a handle and lever (no text or symbols)

Press the release button on the side of the dustbin to empty the contents.

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

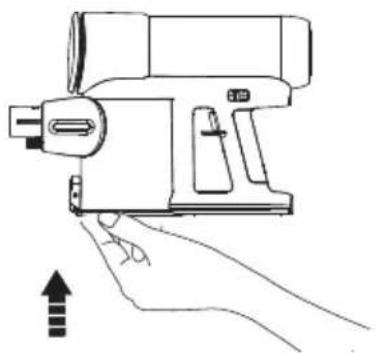

Close and click the dustbin flap back into place.

Mesh Filter

Technical diagram of a device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a faucet spraying water onto a water dispenser with sun symbol (no text or labels)

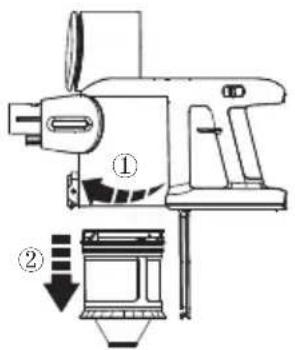

Rotate to remove the mesh filter. Clean the filter and dry it completely before reinstalling.

HEPA Filter

Line drawing of a portable megaphone with control panel and indicator lights (no text or symbols)

Pull out the HEPA filter (in magnetic design) for cleaning. Do not use the appliance without first installing the HEPA filter.

Simple line drawings of water sources, sun, and a brush (no text or symbols)

The HEPA filter can be washed under running water and must be completely dry before reinstalling.

Dust Sensor

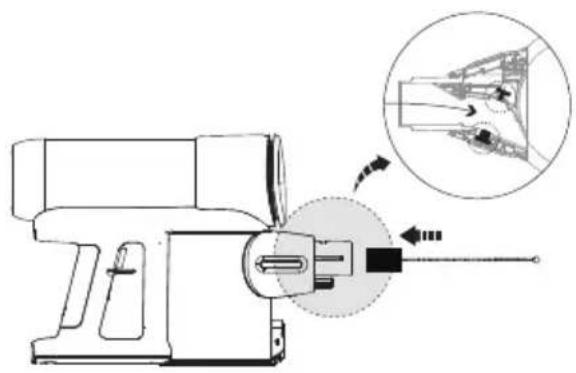

Technical line drawing of a handheld device with an inset showing internal components (no text or symbols)

To avoid dust accumulation which can affect cleaning performance, wipe the suction mouth with the cleaning tool

Mini Power Brush

Line drawing of a hand operating a mechanical device with a knob and arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with a rotating shaft and housing, showing a directional arrow (no text or symbols)

Press against the roller end cover downward. Pull out the brush roller.

Technical line drawing of a mechanical device with scissors and internal components (no text or symbols)

click

Remove the debris wrapped around the roller with a cleaning tool.

Fully reinsert the brush roller at an angle and push upward until it clicks securely back into place.

Brush Roller (Vacuum Cleaner)

Technical diagram of a mechanical device with numbered parts and labeled components

Line drawing of a hand pressing down on a mechanical device with a coiled spring (no text or symbols)

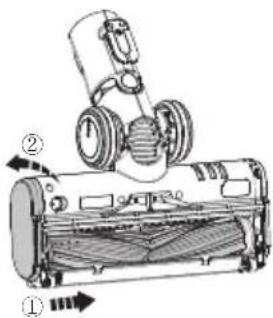

Slide the switch to open the brush roller end cover, and rotate it clockwise before pulling out the brush roller.

After removing the brush roller, gently clean the brush window, suction mouth and the row of plastic teeth.

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Fully reinsert the brush roller into the brush window and the end cover can be rotated counter-clockwise until it clicks securely back into place.

Warning:

• The power brush contains electrical components which must not be soaked or washed with water.
• To reduce injury, do not touch the brush roller while the appliance is in working condition.

Troubleshooting

Problem Possible	cause Solution
The appliance does not turn on	1. No power2. Auto protection for overheating	1. Charge the appliance2. Restart after cooling down
Weak suction	The dry filter is not installed, or the dry filter is dirty	Install the dry filter or clean and allow it to dry completely
Brush roller tangled in animationVoice prompt: Please clean the brush roller	The brush roller is blocked	Remove blockages
WiFi indicator off WiFi is not connected		Follow the in-app guide to connect to WiFi
CWT empty in animationVoice prompt: Insufficient water in the Clean Water Tank. Please fill up water	CWT is empty Refill CWT
DWT full in animationVoice prompt: Dirty Water Tank is full. Please empty it	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
Battery level<10%Voice prompt: Battery low Please charge the appliance	Battery low Charge the appliance, or restart
All lights off in operation	Motor malfunction, battery malfunction, charging abnormality	1. Cool the appliance down and restart2. Use the original adaptor
Solid blue light on	Dirt sensor malfunction or blocked	Remove blockages, clean the debris channel, or restart
Self-cleaning icon blinking	Brush roller is dirty Start self-cleaning
Drying malfunction	Plug not inserted properly	Check if the plug is properly inserted or if the socket has power
	The brush roller is covered with hard-to-clean debris	Clean the brush roller

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website

www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.
• Use of parts not in accordance with the Tineco Instruction Manual.
• Use of parts and accessories other than those produced or recommended by Tineco.
• External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.
• Repairs or alterations carried out by unauthorized parties or agents.
• Failing to clear blockage and other hazardous material from the appliance.
• Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.
• Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.

Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

Register: We highly recommend that upon purchase, you register your appliance by logging into our official website (www.tineco.com) or scanning the QR code (see right) to enjoy more exclusive benefits. To register, please enter the whole serial number (found on the back of the appliance).

Failure to register your product won't diminish your warranty rights.

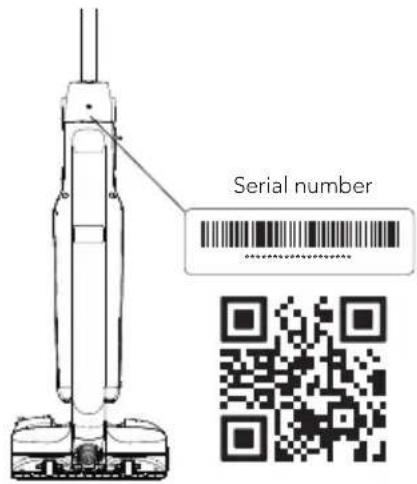

Serial number

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or its authorized agency.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Visit Tineco website www.tineco.com for expert customer service.

CONTENIDO

Three technical line drawings of mechanical components, labeled 10, 11, and 12, showing different assembly or assembly states (no text or symbols on the diagrams themselves)

AUTO MAX 188 SUCTION ECO Tineco CUSTOM A B C D E F G H I J K L M N O

Line drawing of a vacuum cleaner with a curved arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including section ① and section ②.

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

Line drawing of a handheld device with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a mechanical assembly showing a shaft, housing, and motor components (no text or symbols)

Technical line drawing of a vacuum cleaner with attached power supply (no text or symbols)

click

Diagram showing a hand using a digital glucose meter to interact with a device, with an icon highlighting the function.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached clamping device (no text or symbols)

Diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

Diagram illustrating a water filtration or disinfection process with labeled components and directional arrows

Diagram of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Nota:

Line drawing of a vacuum cleaner with attached electrical outlet (no text or symbols)

Diagram showing a hand holding a blood glucose meter with a speech bubble highlighting a control panel and function icon.

Technical illustration of a vacuum cleaner with a magnified inset showing internal components (no text or symbols)

Illustration of four different tasks: battery charging, water spraying, sun heating, and mechanical assembly (no text or symbols)

Line drawing of a vacuum cleaner with a circular dial and heart-shaped indicator (no text or symbols)

Illustration of a hand holding a roller being opened into a device (no text or symbols visible)

Illustration showing three steps of a water tap: adding a pipe, opening a valve, and holding a water tap with sun symbol (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a hand holding a device with a scroll and directional arrow (no text or symbols)

Simple line drawing of a hand holding a cylindrical object with a 'X' symbol below (no text or symbols on the object itself)

Line drawing of a hand operating a sewing machine with a handle and base (no text or symbols)

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

Illustration of a faucet spraying water onto a water dispenser with sun symbol (no text or labels)

Line drawing of a portable megaphone with control panel and indicator lights (no text or symbols)

Simple line drawings of water sources and equipment symbols (no text or labels)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

Illustration of a hand using a handheld device to press or rotate a circular object, with no visible text or symbols.

Technical line drawing of a mechanical device with a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with scissors and a coiled spring (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Illustration of a hand inserting a component into a device with a coiled spring (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

S

Three technical line drawings of mechanical components, labeled 10, 11, and 12, showing different assembly or assembly states (no text or symbols on the diagrams themselves)

AUTO MAX 188 SUCTION ECO TINECO CUSTOM A B C D E F G H I J K L M N O

Line drawing of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Diagram illustrating a device's internal structure with labeled parts and directional arrows indicating movement or assembly.

Technical diagram of a vacuum cleaner with directional arrows and a magnified inset showing the component's rotation.

Line drawing of a handheld device with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a mechanical assembly showing a shaft, housing, and motor components (no text or symbols)

Line drawing of a vacuum cleaner with a base, showing mechanical components and a labeled part 'ou' (no text or symbols on the device itself)

click

Diagram showing a hand using a digital glucose meter to interact with a device, with an inset highlighting the function via a dial indicator.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached lever mechanism (no text or symbols)

Diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

Diagram illustrating a chemical process involving a bottle, a container, a water dispenser, and a hand pouring liquid into a tap.

Diagram of a mechanical device with arrows indicating movement or force, no text or symbols present

Remarque :

Line drawing of a vacuum cleaner with attached power outlet (no text or symbols)

Diagram showing a hand using a smartwatch to interact with a device, with an icon of a control panel and a speech bubble indicating rotation.

Technical line drawing of a vacuum cleaner with an inset close-up showing the base and handle (no text or symbols)

Illustration of three-step battery shipment process: moving, pouring liquid, and mounting (no text or symbols)

Line drawing of a vacuum cleaner with a circular dial indicator and power outlet (no text or symbols)

Illustration of a hand using a rollerblading device to press or install a component (no text or symbols visible)

Illustration showing hands holding a cylindrical object and a water tap with a sun symbol (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a hand holding a device with a scroll and directional arrow (no text or symbols)

Simple line drawing of a hand holding a cylindrical object over a cross-shaped background (no text or symbols)

Line drawing of a hand operating a sewing machine with a handle and base (no text or symbols)

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

Illustration of a faucet spraying water onto a pump with sun symbol (no text or labels)

Technical line drawing of a handheld device with no visible text or symbols

Simple line drawings of a faucet, sun, and two spools with a timer (no text or symbols)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

Line drawing of a hand using a handheld device to press or rotate a circular object, with no text or symbols present.

Technical line drawing of a mechanical device with a directional arrow indicating motion (no text or symbols)

Retirez le rouleau brosse.

Technical line drawing of a mechanical device with scissors and a coiled spring (no text or symbols)

Technical diagram of a mechanical device with numbered parts and labeled components

Illustration of a hand inserting a spring into a device panel (no text or symbols visible)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Three technical line drawings of mechanical components, labeled 10, 11, and 12, showing different assembly or assembly states (no text or symbols on the diagrams themselves)

AUTO MAX 188 SUCTION ECO TINECO CUSTOM A B C D E F G H I J K L M N O

Line drawing of a vacuum cleaner with a curved arrow indicating motion (no text or symbols)

Technical diagram showing a device with labeled parts and directional arrows indicating motion or assembly steps.

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

Line drawing of a handheld device with an arrow indicating rotation (no text or symbols)

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly showing a shaft, housing, and motor components (no text or symbols)

Technical line drawing of a vacuum cleaner with a base, showing mechanical components and motion direction (no text or symbols)

Diagram showing a hand using a digital device to interact with a speech bubble containing a control panel, with an arrow pointing to the screen.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached lever mechanism (no text or symbols)

Diagram of a handheld device with a magnified inset showing internal components (no text or symbols)

Diagram illustrating a water filtration or disinfection process with labeled components and directional arrows

Diagram of a car seatbelt mechanism with arrows indicating movement, no text or symbols present

Nota:

Line drawing of a vacuum cleaner with attached electrical outlet (no text or symbols)

Diagram showing a hand using a blood glucose meter to interact with a device, with an icon of a glucose meter and a speech bubble indicating rotation.

Technical illustration of a vacuum cleaner with a magnified inset showing internal components (no text or symbols)

Diagram of a hand holding a device with an arrow indicating rotation (no text or symbols present)

①

Simple line drawing of a container with liquid and an upward arrow, no text or symbols present

③

Technical line drawing of two mechanical components with no visible text or symbols

④

Line drawing of a hand pouring liquid into a bottle (no text or symbols)

click

Illustration of four different tasks: battery charging, water spray, sun heating, and mechanical assembly (no text or symbols)

Diagram of a vacuum cleaner with labeled components and a magnified view showing a heart-shaped feature.

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

Illustration showing hands using a tool to lift a water tap into a cylinder, with sun symbol nearby (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a hand holding a device with a scroll and directional arrow (no text or symbols)

Two diagrams showing a hand pressing down on a cylindrical object, with no text or symbols present.

Disinstallare Installare

Simple line drawing of a hand holding a cylindrical object with a cross mark below (no text or symbols)

Line drawing of a hand operating a sewing machine with a clasp, no text or symbols present

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

Illustration of a faucet spraying water onto a water dispenser with sun symbol (no text or labels)

Technical line drawing of a handheld device with ports and a left-pointing arrow indicator (no text or symbols)

Simple line drawings of water sources and equipment symbols (no text or labels)

Technical line drawing of a mechanical device with an inset showing a close-up view of a component (no text or symbols present)

Line drawing of a hand using a handheld device to press or rotate a circular object, with no text or symbols present.

Technical line drawing of a mechanical device with a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with scissors and a coiled spring (no text or symbols)

Technical diagram of a mechanical device with numbered parts and labeled components

Illustration of a hand inserting a spring into a device panel (no text or symbols visible)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

WAARSCHUWING – Niet onderdompelen in water.

Three technical line drawings of mechanical components, labeled 10, 11, and 12, showing different assembly or assembly states (no text or symbols on the diagrams themselves)

AUTO MAX 188 Suction ECO tineco CUSTOM A B C D E F G H I J K L M N O NL

Line drawing of a vacuum cleaner with a curved arrow indicating motion (no text or symbols)

Diagram showing a device with labeled parts and directional arrows, including section ① and ②.

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

Line drawing of a handheld device with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a spray gun with labeled parts and directional arrows indicating motion or movement.

Technical line drawing of a mechanical assembly showing a shaft, housing, and motor components (no text or symbols)

Diagram showing a hand holding a smartwatch with a speech bubble containing a control panel and a play button, illustrating a diagnostic or testing procedure.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached lever mechanism (no text or symbols)

Diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

Diagram illustrating a water filtration or disinfection process with labeled components and directional arrows

Diagram of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Opmerking:

Line drawing of a vacuum cleaner with attached electrical outlet (no text or symbols)

Tineco-indicator: ademhaling.

Volledig opgeladen

In 5 minuten: Tineco-indicator verlicht.

Illustration of a hand holding a medical or diagnostic device with a speech bubble showing a control panel (no text or symbols present)

Technical line drawing of a vacuum cleaner with an inset close-up showing the base component (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion (no text or symbols)

①

Simple line drawing of a device with an upward arrow and a container (no text or symbols)

③

Technical line drawing of a mechanical component with two views (top and side), no visible text or symbols

④

Simple line drawing of a water dispenser with a faucet, showing spray and liquid (no text or symbols)

klik

Illustration of four different tasks: battery charging, water spray, sun heating, and mechanical assembly (no text or symbols)

Line drawing of a vacuum cleaner with a circular dial indicator and power outlet (no text or symbols)

Diagram of a hand holding a device with a scroll, showing internal components and motion arrows (no text or symbols)

Illustration showing three steps of a water tap: adding a pipe, opening a valve, and holding a test tube with a sun symbol (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand holding a device with a scroll and directional arrow (no text or symbols)

Two diagrams showing a hand pressing down on a cylindrical object, with no text or symbols present.

Simple line drawing of a hand holding a cylindrical object with a cross mark below (no text or symbols)

Line drawing of a hand operating a handheld device with a handle and lever (no text or symbols)

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or process flow.

Illustration of a faucet spraying water onto a water dispenser with sun symbol (no text or labels)

Line drawing of a portable electronic device with ports and control panel (no text or symbols)

Simple line drawings of water sources and equipment symbols (no text or labels)

Technical line drawing of a handheld device with an inset showing internal components (no text or symbols)

Line drawing of a hand using a handheld device to press or install a paper (no text or symbols present)

Technical line drawing of a mechanical device with a directional arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with scissors and a coiled spring (no text or symbols)

Illustration of a printer emitting a fan with a starburst effect (no text or symbols)

Technical diagram of a mechanical device with numbered parts and an inset showing a component with labeled parts ①, ②, and ③.

Illustration of a hand inserting a component into a device with a coiled spring (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Three technical line drawings of mechanical components, labeled 10, 11, and 12, showing different assembly or assembly states (no text or symbols on the diagrams themselves)

Line drawing of a vacuum cleaner with a curved arrow indicating motion (no text or symbols)

Diagram illustrating a device's internal structure with labeled parts and directional arrows indicating motion or assembly.

Technical diagram of a vacuum cleaner with labeled parts and directional arrows indicating motion or assembly.

Line drawing of a portable air purifier with a curved arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical device with three stages: left, side, and right (no text or symbols)

Diagram showing a hand holding a smartwatch with a close-up of the screen and a magnified inset highlighting the screen's control panel.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached stand and base mount (no text or symbols)

Diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

Diagram of a hand-operated device with a magnified inset showing the handle and adjustment arrows (no text or symbols)

Diagram illustrating a chemical process involving a bottle, a container, and a water tap with liquid discharge.

NIE UŻYWAĆ GORĄCEJ WODY.

Line drawing of a vacuum cleaner with attached electrical outlet (no text or symbols)

Diagram showing a hand using a digital device to interact with a screen, with an icon of a control panel and a speech bubble indicating rotation.

Technical illustration of a vacuum cleaner with an inset close-up showing the base and arm mechanism (no text or symbols)

Diagram of a hand holding a device with directional arrows indicating motion (no text or symbols)

①

Simple line drawing of a container with liquid and a mechanical device above it, no text or symbols present.

③

Technical line drawing of two mechanical components with no visible text or symbols

④

Line drawing of a hand pouring liquid into a container with a faucet (no text or symbols)

klik

Illustration of four different tasks: battery charging, water spray, sun heating, and mechanical clamp (no text or symbols)

Line drawing of a vacuum cleaner with a circular dial and a close-up of its eye (no text or symbols)

Diagram of a hand holding a device with a scroll, showing internal components and motion arrows (no text or symbols)

Illustration showing hands using a water tap to lift a sun (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a hand holding a device with a scroll and directional arrow (no text or symbols)

Simple line drawing of a hand holding a cylindrical object above a cross symbol (no text or labels)

Line drawing of a hand operating a handheld device with a lever and handle (no text or symbols)

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

Illustration of a water tap spraying water with a sun symbol nearby (no text or labels)

Line drawing of a handheld device with no visible text or symbols

Simple line drawings of a faucet, sun, and two spools with icons, no text or symbols present.

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

Line drawing of a hand using a handheld device to press or rotate a circular object, with no text or symbols present.

Mechanical component diagram showing a roller or conveyor system with directional arrows (no text or symbols)

Technical line drawing of a mechanical device with scissors and a cylindrical component (no text or symbols)

klik

Technical diagram of a mechanical device with numbered parts and labeled components

Illustration of a hand inserting a component into a device with a coiled spring (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

CO OBEJMUJE GWARANCJA?

Three technical line drawings of mechanical components, labeled 10, 11, and 12, showing different assembly or assembly states (no text or symbols on the diagrams themselves)

AUTO MAX 188 SUCTION eco CUSTOM A B C D E F G H I J K L M N O

Line drawing of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols)

Diagram illustrating a device's internal structure with labeled parts and directional arrows indicating movement or assembly.

Technical line drawing of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Line drawing of a portable air purifier with a curved arrow indicating motion (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly showing a shaft, housing, and motor components (no text or symbols)

Diagram showing a hand holding a smartwatch with a speech bubble highlighting a control panel, likely illustrating a diagnostic or testing procedure.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Line drawing of a vacuum cleaner (no text or symbols)

Line drawing of a vacuum cleaner with attached lever mechanism (no text or symbols)

Diagram of a medical device with an arrow pointing to a component, no text or symbols present

Diagram illustrating a water filtration or disinfection process with labeled components and directional arrows

Diagram of a car gear shift mechanism showing tool insertion and movement (no text or symbols)

Line drawing of a vacuum cleaner with attached electrical outlet (no text or symbols)

Diagram showing a hand using a device to interact with a screen, with an icon of a control panel and directional arrow indicating interaction.

Technical line drawing of a vacuum cleaner with an inset close-up showing the internal components (no text or symbols)

Illustration of four different tasks: battery charging, water spray, sun heating, and mechanical assembly (no text or symbols)

Line drawing of a vacuum cleaner with a circular dial indicator and connected power outlet (no text or symbols)

Illustration of a hand holding a device with a scroll and directional arrow (no text or symbols)

Illustration showing hands using a tool to lift a pipe onto a water tap, with sun symbol indicating sunlight (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a hand holding a device with a scroll and directional arrow (no text or symbols)

Simple line drawing of a hand holding a cylindrical object with a 'X' symbol below (no text or symbols on the object itself)

Line drawing of a hand operating a handheld device with a lever and handle (no text or symbols)

Line drawing of a hand holding a handheld device with an upward arrow indicating motion (no text or symbols)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating motion or assembly.

Illustration of a water tap spraying water with sun symbol (no text or labels)

Line drawing of a handheld device with no visible text or symbols

Simple line drawings of a faucet, sun, and two spools with icons, no text or symbols present.

Technical line drawing of a mechanical device with an inset showing a close-up view of a mechanical component (no text or symbols present)

Line drawing of a hand using a handheld device to press or rotate a circular object, with no text or symbols present.

Mechanical component diagram showing a roller or conveyor system with directional arrows (no text or symbols)

Technical line drawing of a mechanical device with scissors and internal components (no text or symbols)

B s tik

Technical diagram of a mechanical device with numbered parts and an inset showing a close-up view of internal components.

Diagram of a hand inserting a component into a device panel with a coiled spring (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

tinecoglobal

www.tineco.com

Contact us - We'll get back to you within 24 hours.
