USER MANUAL GO H2O SERIES TINECO

Cordless Floor Washer

Instruction Manual

Manual De Uso

Mode D'emploi

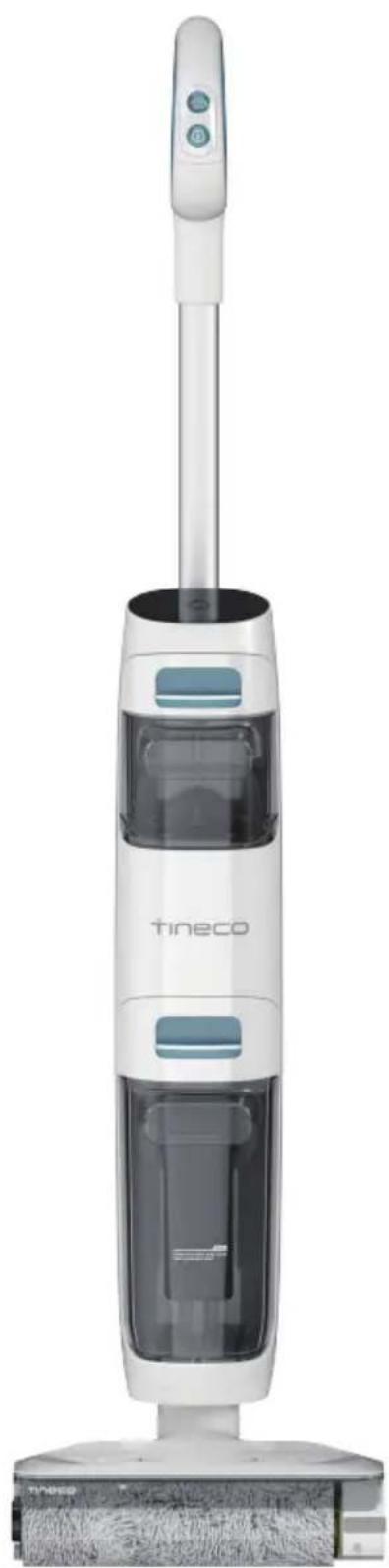

White Tineco vacuum cleaner with blue control panel and cleaning brush (no visible text or symbols)

*Actual product may differ from illustration.

CONTENTS

Important Safety Instructions....2

Specifications....6

Overview....7

Accessories....9

Assembly 10

Operation....11

Maintenance 15

Troubleshooting....19

Warranty 20

Important Safety Instructions

SAVE THESE INSTRUCTIONS Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.
2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
3. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.
7. Do not handle charger, including charger plug, and charger terminals with wet hands.
8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.
10. Use extra care when cleaning on stairs.
11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without filter.
14. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

15. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

16. Recharge only with the charger specified by Tineco. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire.

18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns.

19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266^ F ( 130^ C) may cause an explosion.

21. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

22. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

23. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

24. Always turn off this appliance before connecting or disconnecting the motorized nozzle.

25. Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2^ F ( 4^ C) but lower than 104^ F ( 40^ C). The charger is for indoor use only.

26. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.

27. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.

28. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.

29. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaks electricity.

30. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.

31. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.

32. Store appropriately indoors in a dry place after use.

33. Do not place or submerge appliance in standing water or try to clean flooded areas.

34. All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.

35. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

36. A hazard may occur if the appliance runs over the supply cord.

37. Do not use the appliance when the water depth is more than 5mm above the surface.

38. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

39. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

Range of Usage

1. The cordless hard floor cleaner is to be used on indoor hard floors, such as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
2. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
3. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the appliance.
2. Add solution as instructed in the Operation section. We recommend using the provided cleaning solution. Do not use the product with acidic, alkaline solution, or any substances harmful to the environment.
3. Keep out of reach of children. If any solution gets into the eyes, immediately flush them with clean water. If any solution is swallowed by accident, seek medical care immediately.
4. Dirty water and solution disposal should comply with local environmental regulations.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. Charge the appliance with the Tineco adaptor. Input Voltage: AC 100-240V. Both high and low voltages can damage the adaptor, appliance, or even cause danger to the user.
3. Use extra care when cleaning on stairs.
4. Ensure that the Power Switch is in the OFF-position before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
5. To avoid being tripped accidentally, please put away the appliance on the charging dock.
6. Always install the Dirty Water Tank and Clean Water Tank properly before use.
7. Do not allow the appliance or charger to get wet to avoid risk of fire or injury caused by a short circuit.

FCC Supplier's Declaration of Conformity

TINECO GO H2O SERIES

This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation.

TINECO INTELLIGENT, INC.

1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

WWW.TINECO.COM

1-855-292-8864

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and find it to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Note

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, such modifications could void the user's authority to operate this equipment.

IC Note

This appliance contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) this appliance may not cause interference.
(2) this appliance must accept any interference, including interference that may cause undesired operation of the appliance.

- This Class B digital apparatus complies with Canadian ICES-003.

- This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Specifications

Product Tineco GO H2O Series
AC Input 100~240V
Voltage	21.6V=2000mAh / 2500mAh Li-ion
Rated Power 170W
Running Time ~10-20 mins
Charging Time 5 hrs
Water Flow Rate 15-100 ml/min
CWT Capacity 0.6L
DWT Capacity 0.5L
Waterproof IPX4

• For use only with charger KL-WA260060-J.

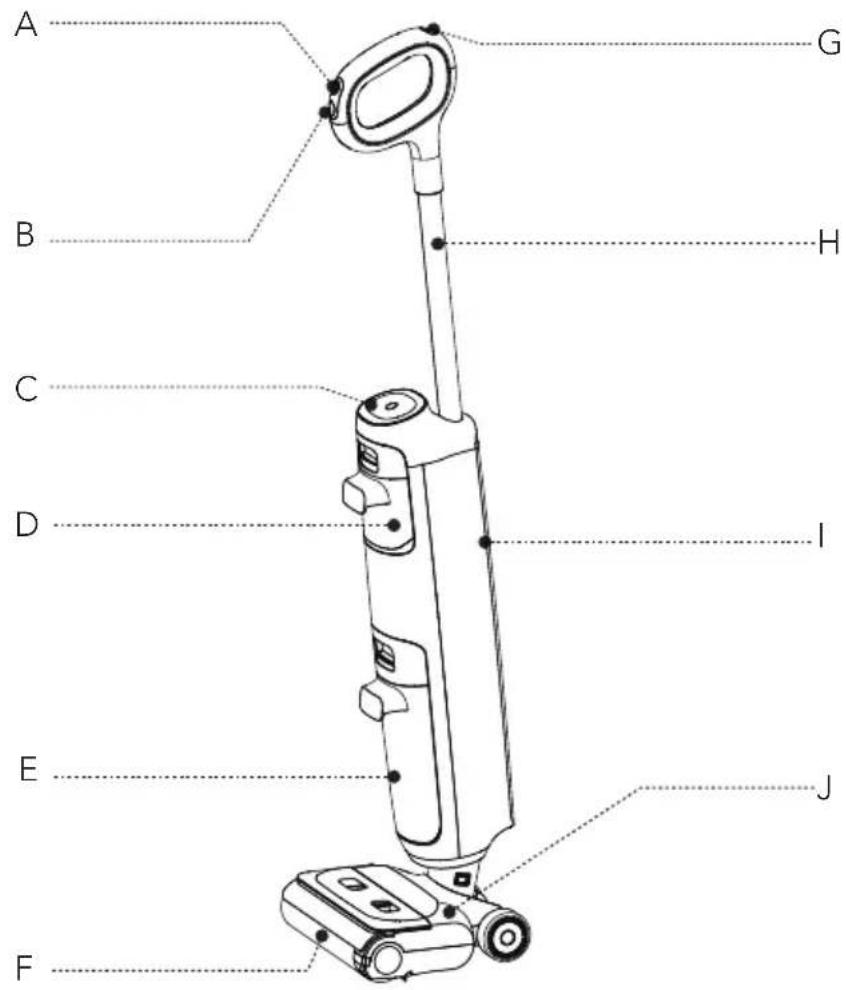

Overview

A B C D E F G H I J

Illustration of various household appliances and fixtures including a spray bottle, power cord, electrical plug, and storage unit (no text or labels)

K

L

M

N

O

A. Mode Switch Button
B. Power On/Off Button
C. Indicator
D. Clean Water Tank (CWT)
E. Dirty Water Tank (DWT)
F. Brush Roller
G. Self-cleaning Button
H. Tube

I. Mute Button
J. Brush Roller Cover

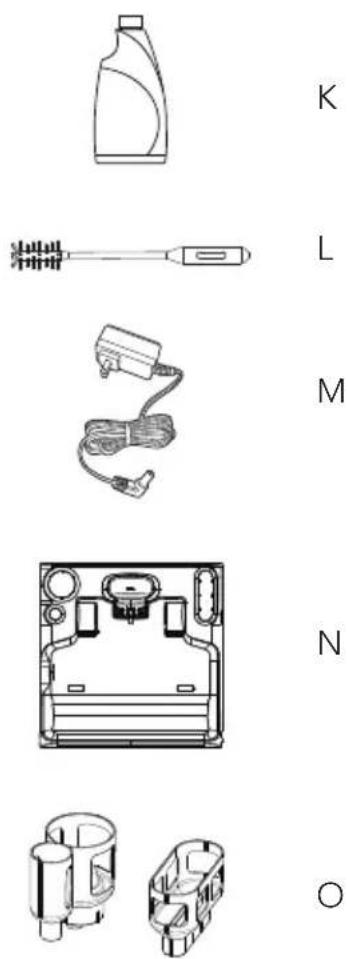

K. Cleaning Solution
L. Cleaning Tool
M. Adaptor
N. Charging Dock
O. Accessory Holders

Note:

Please refer to the purchase link for the actual accessories and product features.

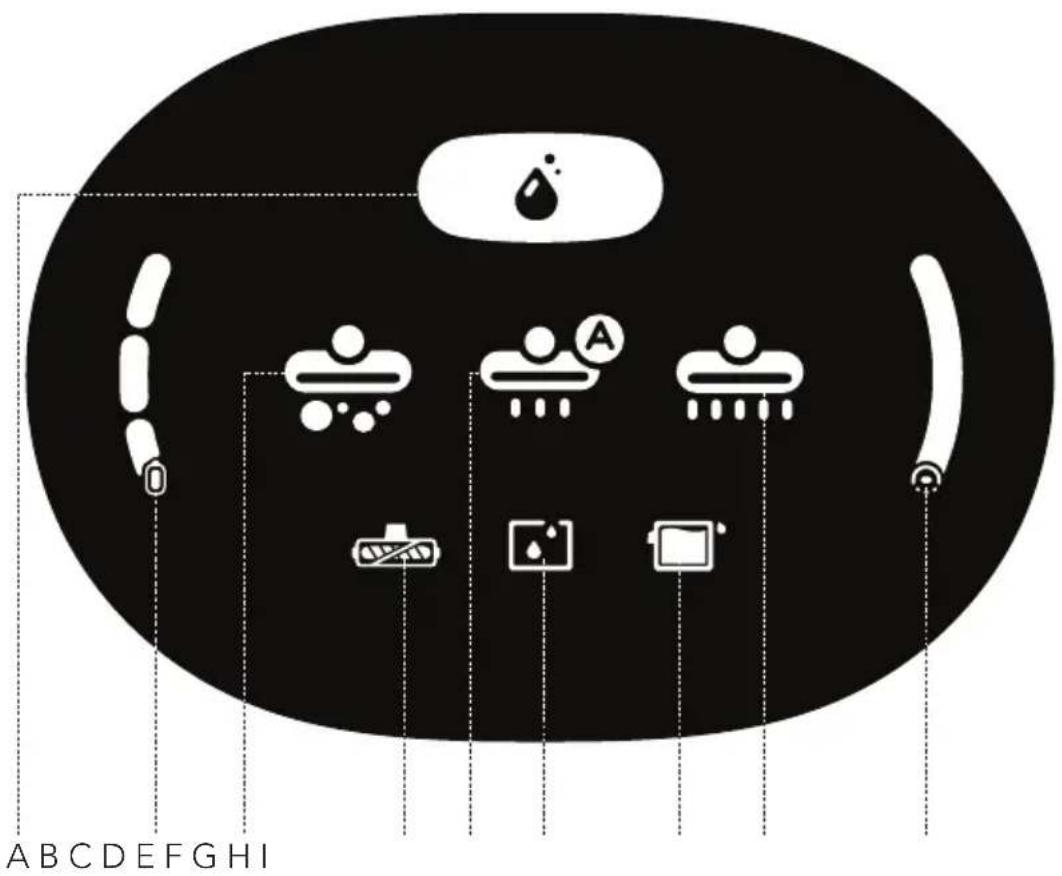

Digital Display

ABCDEFGHIJKLMNOPQRSTUVWXYZ

A. Self-cleaning Icon
B. Battery Level Indicator
C. Suction Mode
D. Brush Roller Tangled Indicator
E. AUTO Mode
F. CWT Empty

G. DWT Full

H. Max Mode

I. Dirt Monitoring Bar (Blue to red according to the dirt amount)

Accessories

Cleaning Solution

Removes dirt, grime, grease and tough stains from most types of hard surfaces, like tile, marble, sealed hardwood floors, and more.

Always use Tineco solution in your appliance.

Add 2 bottle caps of solution to each full tank of clean water.

Cleaning Tool

A full brush to clean the DWT, brush chamber and opening.

The tool also has a bristled end to remove dirt and mud on the roller and DWT.

Technical line drawing of a mechanical component with cylindrical and rectangular parts (no text or symbols)

Simple line drawing of a rectangular object with vertical lines inside, no text or symbols present.

Accessory Holders

Perfect storage for the brush roller, cleaning tool and sponge filter after use and rinsing.

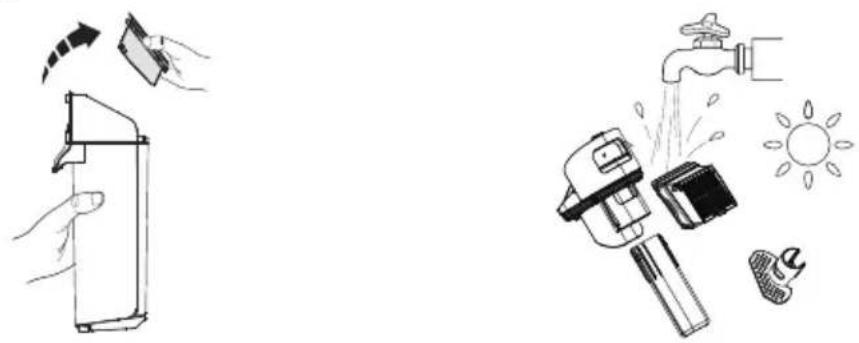

Dry Flter

Dry filter and filter net can block large particles and debris, ensuring the appliance's durability.

* Please install the dry filter before use, or it may lead to weak suction.

* Replace every 6 months.

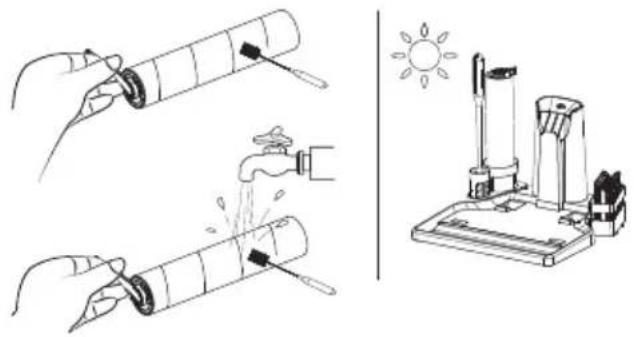

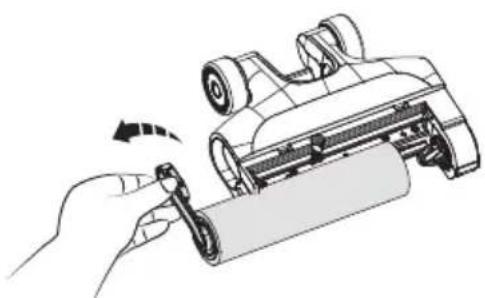

Brush Roller

Soft roller head with bristles can be used to vacuum and wash at the same time. It can be easily cleaned with the self-cleaning function.

*Replace every 6\~8 months.

Note:

Accessories may vary among markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Assembly

How to Assemble/Disassemble

Note:

For water tank and brush assembly, please refer to "Operation" and "Maintenance".

click

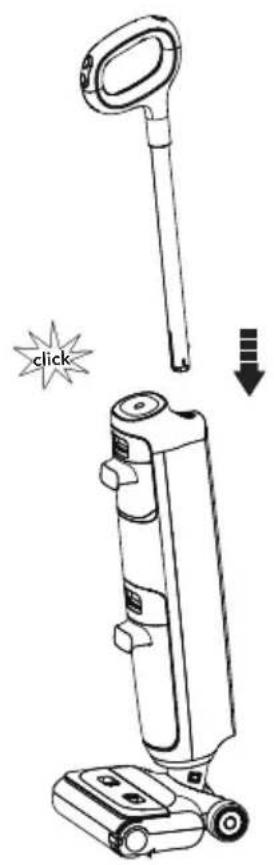

To assemble the handle, insert it into the appliance until you hear a "click".

Technical line drawing of a vacuum cleaner with a screwdriver and lever mechanism (no text or symbols)

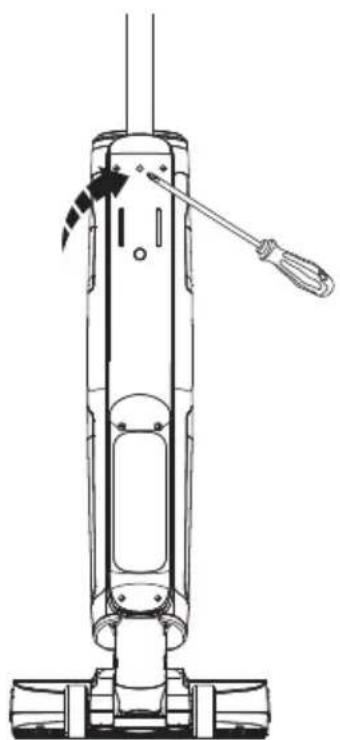

In the event that the handle needs to be disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance.

Operation

Preparing for Use

Before first use, please charge the appliance for approximately 5 hours (refer to "Charging Instructions" for details).

* Based on results from Tineco Laboratory tests. Lab temperature 39.2°F (4°C) \~ 104°F (40°C).

Diagram showing a hand holding a smartwatch with a device, accompanied by an icon of a device with a grid and control knob.

Technical line drawing of a mechanical device with two views: one upright and one tilted, showing angular displacement (no text or symbols)

Stop Working Resume Working

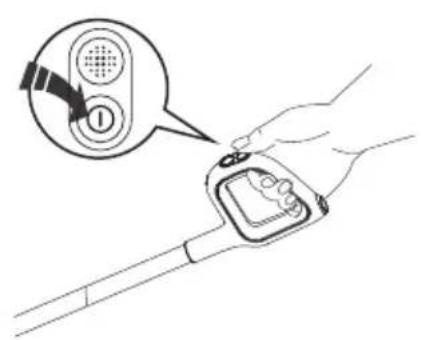

Press the button and the appliance will start in default mode. Press it again to turn off the appliance. Press this button switch to other modes.

Line drawing of a vacuum cleaner with handle and base mount (no text or symbols)

Place the appliance on the charging dock vertically after use for charge and storage.

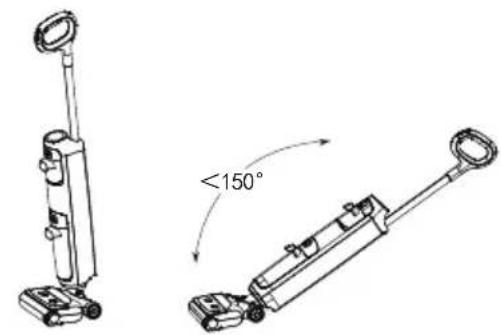

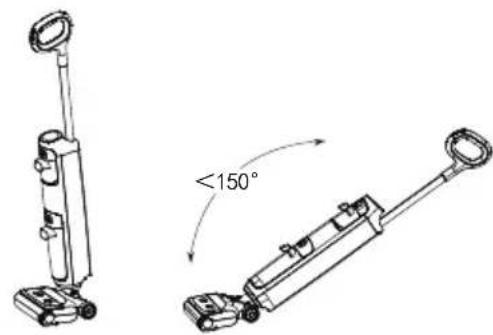

The appliance will stop working when put uprightly and start running again when reclined.

* Do not recline more than 150° to avoid water leakage.

Diagram showing a device with a circular button labeled 'EN' and an arrow pointing to it, likely indicating a control or operation.

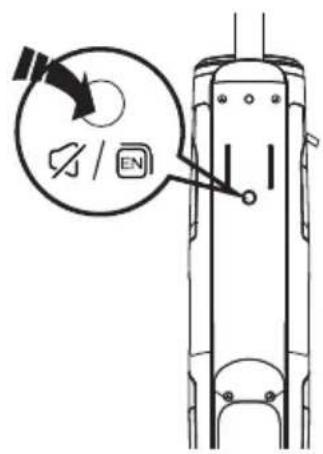

- Press the mute button briefly to toggle between standard volume, low volume, and mute settings.

- Shortly press the mute button TWICE to switch languages.

Note:

- Do not vacuum foamed liquid.

• To vacuum water left on the surface, the appliance will switch off in 3 seconds after powering off.

Filling Clean Water Tank

Pure mechanical component diagram without any text, numbers, or symbols

Press the Clean Water Tank release to remove it from the appliance.

① ② click

Place the tank back into the appliance. You should hear a "click" if done correctly.

MAX

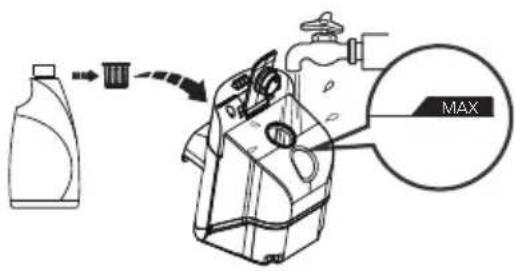

Open the tank cap, and fill with tap water to the Max line. When deep cleaning is necessary, add 2 bottle caps of solution to the CWT and tightly close the cap.

Note:

Only use water under 140°F/60°C. DO NOT USE HOT WATER.

Charging Instructions

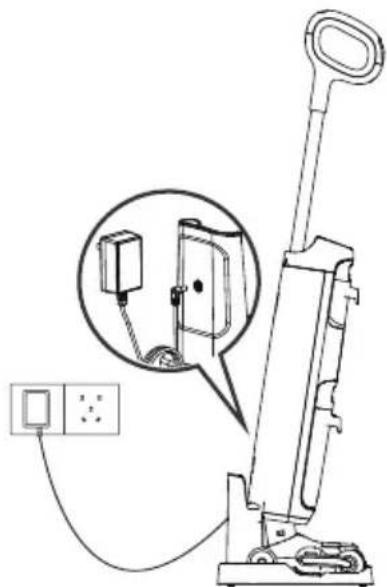

Line drawing of a vacuum cleaner with attached electrical outlet and wiring, showing internal components (no text or symbols)

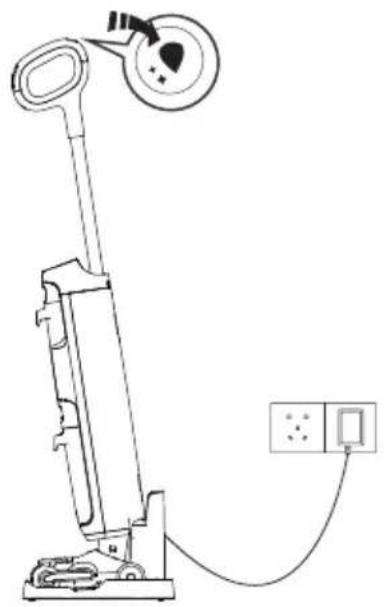

To charge the appliance, place the appliance on the charging dock and plug the adaptor into a power outlet.

1. To charge the appliance, connect the external charging cord to the charging dock and plug it into the wall outlet.
2. To avoid tripping hazards, please place the appliance on the charging dock near a wall during charging.

Warning:

• Only charge the appliance with the adaptor supplied by Tineco.
• During long periods of non-use, the appliance must be charged once every 3 months for optimal performance. It may take approximately 5 hours for a full charge.
• Store indoors in a dry place. Do not expose the appliance to sunlight or freezing temperatures. Recommended temperature range: 39.2°F (4°C) \~ 104°F (40°C).

Runtime

• When in Standard or AUTO mode, the runtime is approximately 20 minutes. When Max mode is used, the runtime is approximately 10 minutes.
  • Estimated runtime data was obtained by Tineco Laboratory.

Charging Time

• A full charge takes approximately approximately 5 hours.
• Estimated data was obtained by Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C).

Indicator(Applicable for specific model)

When in Use

Slow blinking red : low power.

Solid blue : regular mode.

Blinking blue : switching to Max water flow.

Off: no power or battery malfunction.

Solid red : brush roller has a blockage or DWT is full.

During Charging

Breathing blue : charging.

Fully Charged

Within 5 minutes of full charge: solid blue.

After 5 minutes: light off.

Indicator (Applicable for specific model)

When in Use

Battery level > 10%: battery indicator will be illuminated.

Battery level ≤ 10%: battery indicator will be blinking.

Off: no power detected or possible battery malfunction.

Solid blue light: dirt sensor malfunction or blocked.

Indicator blinking: CWT is empty.

Indicator blinking: DWT is full or channel has a blockage.

Indicator blinking: brush roller has a blockage.

Indicator blinking: appliance is in need of self-cleaning.

During Charging

Battery indicator: blinking.

Fully Charged

In 5 minutes: battery indicator illuminated.

After 5 minutes: all indicator lights turn off.

Maintenance

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, floater, filters, brush roller, brush roller cover completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
  • After maintenance, place the appliance on the charging dock vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

Diagram showing a hand holding a digital device with an icon and speech bubble containing a labeled component.

To reduce the risk of injury, switch off before performing maintenance.

Line drawing of a hand cleaning a cylindrical device with a cloth (no text or symbols)

Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

Dirty Water Tank

Illustration of a hand holding a container with arrows indicating motion (no text or symbols)

Illustration of a hand using a dropper to interact with a container (no text or symbols visible)

Simple line drawing of a faucet spraying water into a container (no text or symbols)

click

• When dirty water reaches the Max line, the appliance will stop working and the indicator will turn red.
• Pull up the tank lid to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance.

Filter & Floater

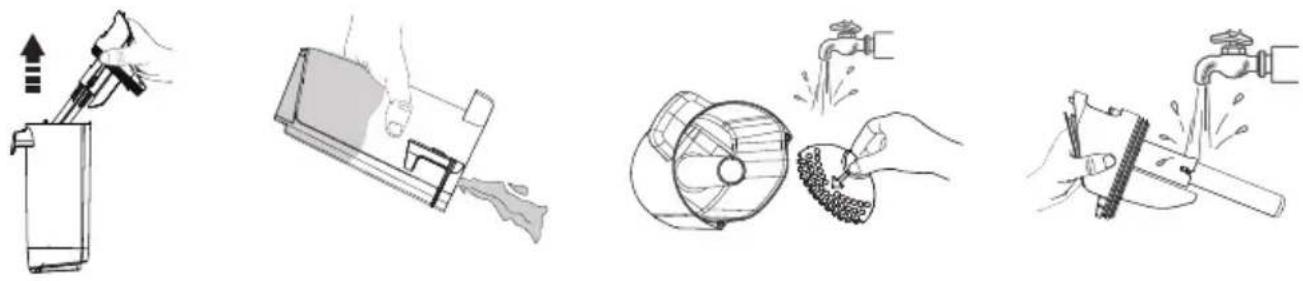

Illustration of four different cleaning and cleaning techniques: a tool, a device with a brush, a fan-shaped container, and a tool with a bucket (no text or symbols present)

If the filter and the floater have been blocked, rinse with water.

Remove the filter from the tank lid, remove the floater, and rinse both parts with water.

Dry Filter

Illustration showing a hand spraying a spray bottle and a water dispenser with sun (no text or symbols)

Grasp recessed area on each side of the dry filter and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.

Brush Roller Self-cleaning

Line drawing of a vacuum cleaner with attached electrical outlet (no text or symbols)

1. Place the appliance on the charging dock after use, and then press the self-cleaning button to begin the progress.
2. Once complete, the appliance will begin charging.

Note:

• Ensure the charging dock is plugged in and the battery level >10% .
• Before self-cleaning cycle, please clean the DWT and ensure the water level in the CWT > 40%.

Brush Roller Cover

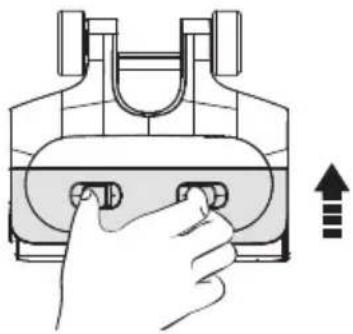

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Grab the front handle while pressing the button and pull upward to remove.

Illustration of a hand using a faucet to lift water from a mechanical component (no text or symbols)

Rinse with water.

click

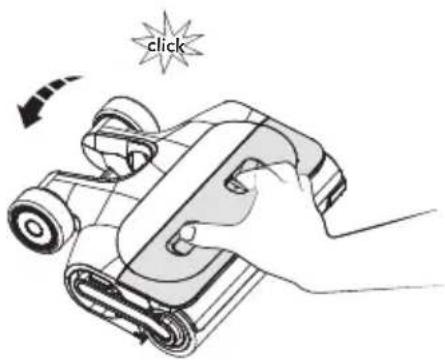

When replacing, always latch the brush cover into place to avoid leakage.

Brush Roller

Illustration of a hand using a handheld device to press or install a cylindrical component (no text or symbols visible)

Remove the brush roller by grabbing the brush roller tab and pulling upward.

Illustration showing three-step cleaning and testing procedure: pen tip, water tap, and microscope setup (no text or symbols)

Remove the brush roller tab. Use the cleaning tool to remove the hair and debris wrapped around the roller and rinse with water. Replace the brush roller back into the accessory holder, and allow it to dry completely before reinstalling.

Line drawing of a hand cleaning a mechanical component (no text or symbols)

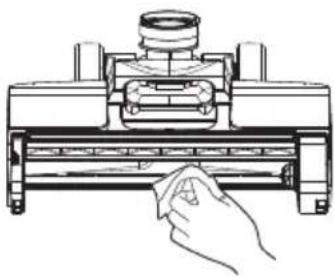

Remove hair and debris from the brush roller chamber and the opening with a tissue or a damp cloth.

Illustration of a hand using a tool to lift a cylindrical device (no text or symbols visible)

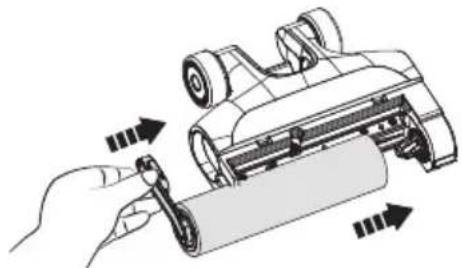

Replace the brush roller by inserting the brush roller end into the right side of the holder, then lock the pull tab into place by pressing downward.

Troubleshooting

Problem Possible cause Solution
The appliance does not turn on	Auto protection for overheating Restart after cooling down
	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
Weak suction	The dry filter is not installed, or the dry filter is dirty	Install the dry filter or clean and allow it to dry completely
Appliance won't charge	The adaptor is not designed for this appliance	Use the original adaptor
	The adaptor is not correctly inserted	Reinsert the adaptor correctly
The indicator turns red	The brush roller is blocked Remove blockages
	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
The indicator blinks red	Battery low Charge the appliance, or restart
Light off in operation Battery overheat or malfunction		Cool the appliance down and restart
Brush roller tangled indicator blinking	The brush roller is blocked Remove blockages
CWT empty indicator blinking	CWT is empty Refill CWT
DWT full indicator blinking	The dirty water in DWT has reached the MAX line	Empty the dirty water and then reinstall the DWT
All lights off in operation	Battery overheat or malfunction	Cool the appliance down and restart
Battery level indicator illuminating red	Battery low Charge the appliance, or restart
Solid blue loop light on	Dirt sensor is blocked	Remove blockages, clean the debris channel
Self-cleaning icon blinking	Brush roller is dirty Start self-cleaning

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.
• Use of parts not in accordance with the Tineco Instruction Manual.
• Use of parts and accessories other than those produced or recommended by Tineco.
• External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.
• Repairs or alterations carried out by unauthorized parties or agents.
• Failing to clear blockage and other hazardous material from the appliance.
• Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.
• Reduction in battery discharge time due to battery age or use.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.

Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

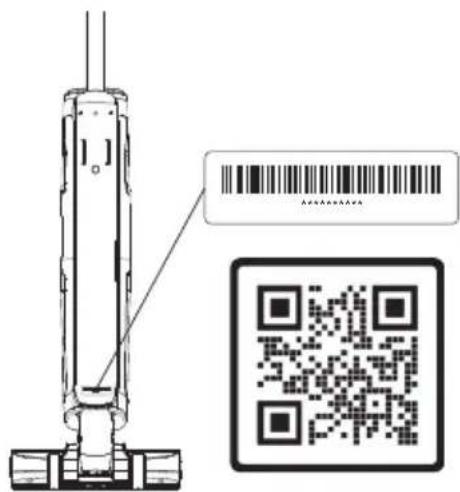

Register: We highly recommend that upon purchase, you register your appliance by logging into our official website (https://www.Tineco.com) or scanning the QR code (see right) to enjoy more exclusive benefits. To register, please enter the whole serial number (on the back of the appliance).

Failure to register your product won't diminish your warranty rights.

Diagram showing a vacuum cleaner next to a barcode and a QR code, likely for scanning or data entry.

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or its authorized agency.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service

Hotline: [phone]

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

A B C D E F G H I J

K L M N O

A B C D E F G H I

Technical line drawing of a mechanical component with cylindrical and curved features (no text or symbols)

Simple line drawing of a rectangular heat exchanger or radiator with vertical slats (no text or symbols)

Technical line drawing of a vacuum cleaner with a screwdriver and handle (no text or symbols)

Diagram showing a hand holding a device with a labeled control panel and a speech bubble containing a button labeled 'I'.

Technical line drawing of a two-body device with a 150-degree angle annotation (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with handle and base mount (no text or symbols)

Diagram showing a device with a circular button labeled 'EN' and an arrow pointing to it, likely indicating a control or operation.

Pure mechanical component diagram without any text, numbers, or symbols

Line drawing of a vacuum cleaner with attached electrical outlet and wiring, showing internal components (no text or symbols)

Simple line drawings of four different sun and circle symbols (no text or labels)

Diagram showing a hand holding a blood glucose meter with a magnified view of the device's internal components and directional arrow.

Line drawing of a hand cleaning a cylindrical device with a paper clip (no text or symbols)

Illustration of a hand holding a container with arrows indicating motion (no text or symbols)

Illustration of a hand using a dropper to interact with a container (no text or symbols present)

Simple line drawing of a faucet spraying water into a container (no text or symbols)

clic

Illustration of four different cleaning or cleaning techniques: a tool, a device with a brush, a fan-shaped filter, and a tap wrench (no text or symbols present)

Illustration showing two different behaviors: a hand holding a spray can and a hand spraying water with a faucet, and a hand holding a spray gun with a sun and a shoe (no text or symbols)

Line drawing of a vacuum cleaner with attached electrical outlet (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Illustration of hands using a faucet to lift a water tank into a rack (no text or symbols)

Illustration of a hand using a handheld device to press or install a cylindrical component (no text or symbols visible)

Illustration showing three-step cleaning and usage of a sunlight device (no text or symbols present)

Line drawing of a hand pressing down on a mechanical device (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with arrows indicating motion direction (no text or symbols present)

Diagram showing a vacuum cleaner with barcode and QR code, likely for scanning or data entry.

A B C D E F G H I J

Illustration of various household appliances and fixtures including a spray bottle, power cord, electrical plug, and storage unit (no text or labels)

K

L

M

N

O

A B C D E F G H I

Technical line drawing of a mechanical component with cylindrical and curved features (no text or symbols)

Porte-accessoires

Simple line drawing of a rectangular object with vertical lines inside, no text or symbols present.

Filtre sec

Line drawing of a vacuum cleaner with a screwdriver and handle (no text or symbols)

Diagram showing a hand holding a device with a labeled button and a magnified inset highlighting the function.

Technical line drawing of a mechanical device with a 150-degree angle annotation (no text or symbols on the device itself)

Line drawing of a vacuum cleaner with handle and base mount (no text or symbols)

Diagram showing a device with a circular button labeled 'EN' and a cursor pointing to it, likely indicating a control or operation.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a vacuum cleaner with attached electrical outlet and wiring, showing internal components (no text or symbols)

Simple line drawings of four different sun and circle symbols (no text or labels)

Diagram showing a hand holding a blood glucose meter with a device and a radio button labeled '①' pointing to it.

Line drawing of a hand cleaning a cylindrical device with a cloth (no text or symbols)

Illustration of a hand holding a container with arrows indicating motion (no text or symbols)

Illustration of a hand using a dropper to interact with a glass container (no text or symbols present)

Simple line drawing of a faucet spraying water into a container (no text or symbols)

click

Illustration of four different cleaning or cleaning techniques: a tool, a device with a brush, a funnel with liquid, and a tool on a surface (no text or symbols present)

Illustration showing a hand holding a spray can and a water dispenser with a faucet, accompanied by a sun and shoe (no text or symbols)

Line drawing of a vacuum cleaner with attached electrical outlet (no text or symbols)

Illustration of a hand pressing a button on a vehicle head (no text or symbols)

Illustration of a hand using a faucet to lift a water-filled container (no text or symbols)

Rincez à l'eau.

click

Illustration of a hand using a tool to press or install a cylindrical device (no text or symbols visible)

Illustration showing three-step welding process: tool, water tap, and sun impact (no text or symbols)

Line drawing of a hand pressing down on a mechanical device (no text or symbols)

Illustration of a hand using a tool to lift a cylindrical device (no text or symbols visible)

Diagram showing a device with a barcode and a QR code, likely for scanning or linking to digital content.
