USER MANUAL SHBS 3.7 D5 SILVERCREST

Operating instructions

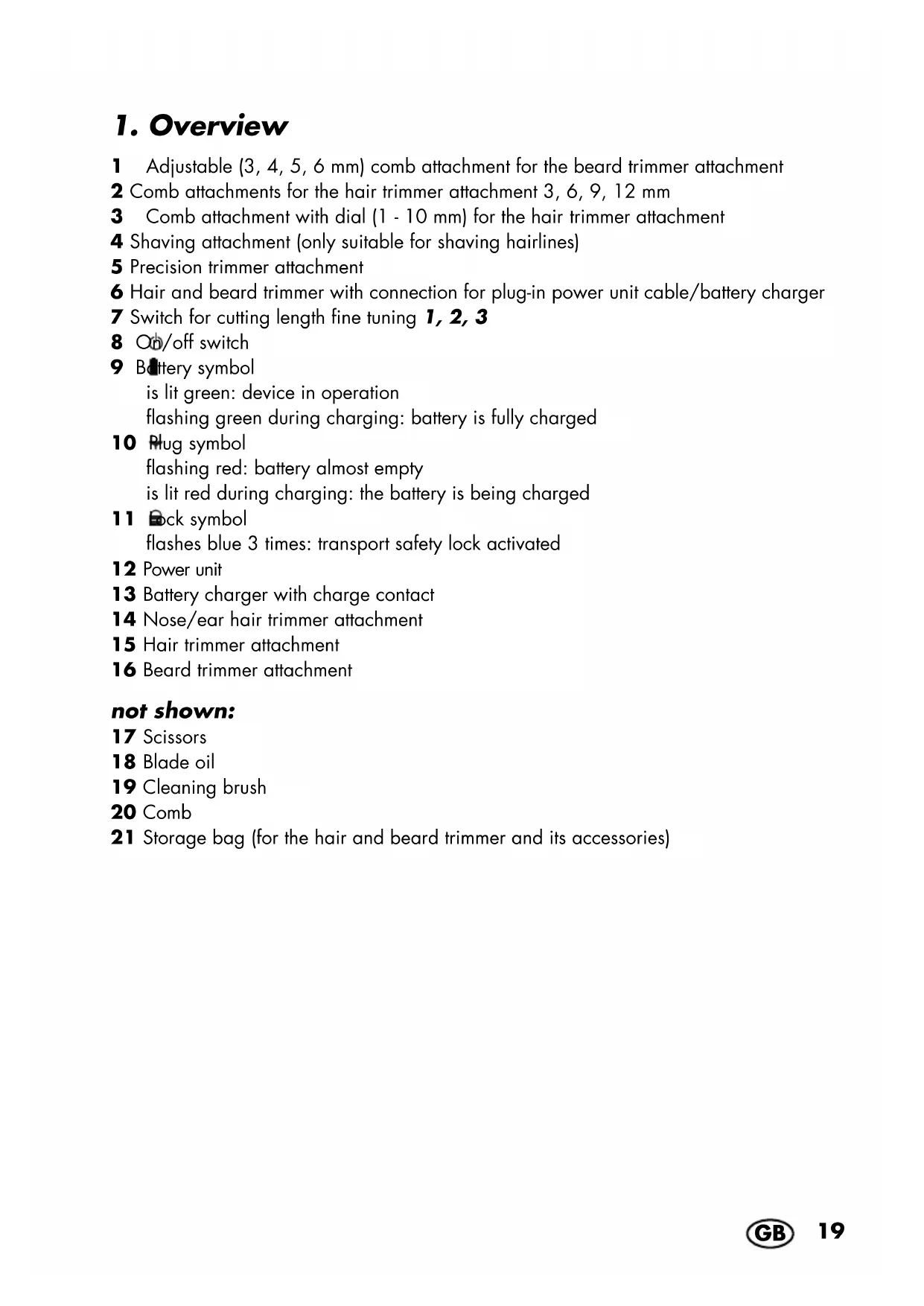

1 Adjustable (3, 4, 5, 6 mm) comb attachment for the beard trimmer attachment 2 Comb attachments for the hair trimmer attachment 3, 6, 9, 12 mm 3 Comb attachment with dial (1 - 10 mm) for the hair trimmer attachment 4 Shaving attachment (only suitable for shaving hairlines) 5 Precision trimmer attachment 6 Hair and beard trimmer with connection for plug-in power unit cable/battery charger 7 Switch for cutting length fine tuning 1, 2, 3 8 On/off switch 9 Battery symbol is lit green: device in operation flashing green during charging: battery is fully charged 10 Plug symbol flashing red: battery almost empty is lit red during charging: the battery is being charged 11 Lock symbol flashes blue 3 times: transport safety lock activated 12 Power unit 13 Battery charger with charge contact 14 Nose/ear hair trimmer attachment 15 Hair trimmer attachment 16 Beard trimmer attachment not shown: 17 Scissors 18 Blade oil 19 Cleaning brush 20 Comb 21 Storage bag (for the hair and beard trimmer and its accessories) __384419_2107_B8.book Seite 19 Mittwoch, 17. November 2021 11:35 1120

Thank you for your trust! Congratulations on your new 5-in-1 hair and beard trimmer. For a safe handling of the device and in or- der to get to know the entire scope of fea- tures:

• Thoroughly read these operat- ing instructions prior to initial commissioning.

• Above all, observe the safety in- structions!

• The device should only be used as described in these operating instructions.

• Keep these operating instruc- tions for reference.

• If you pass the device on to someone else, please include these operating instructions. The user instructions are a part of the product. We hope you enjoy your new 5-in-1 hair and beard trimmer!

The 5-in-1 hair and beard trimmer is intend- ed exclusively for trimming human hair. Only use the device for dry hair. The device is designed for private home use and must not be used for commercial pur- poses. The device must only be used in- doors. Foreseeable misuse WARNING! Risk of material damage! ~ Do not use the device to cut artificial hair or animal hair.

3. Safety information

Warnings If necessary, the following warnings will be used in these operating instructions: DANGER! High risk: failure to ob- serve this warning may result in in- jury to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the de- vice. __384419_2107_B8.book Seite 20 Mittwoch, 17. November 2021 11:35 1121

Instructions for safe operation

This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are su- pervised or instructed on how to use this device safely and if they are aware of the resulting danger. Children must not play with the device. Cleaning and maintenance by the user must not be per- formed by children without supervision.

This device may be used by children aged 3 years or above with adult supervision.

Only use the included original plug-in power unit. ~ WARNING! Keep the device dry.

This device contains a battery that cannot be replaced. DANGER for children! ~ Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: There is a risk of suffocation! ~ Keep the device out of the reach of chil- dren. DANGER to and from pets and livestock! ~ Electrical devices can represent a haz- ard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times. DANGER! Risk of electric shock due to moisture! ~ Protect the device from moisture, water drops and water splashes. ~ Never touch the device with wet hands. ~ The device, the battery charger and the power unit must not fall into water or other liquids and must not be rinsed un- der running water. ~ If the device has fallen into water, pull out the power unit immediately, and only then remove the device from the water. Do not use the device again, but have this checked by a specialist. ~ Should liquid enter the device, have it checked before starting the device up again. ~ If the device is used in a bathroom, the power unit must be pulled out after use, as the proximity of water represents a hazard, even when the device is switched off. ~ Installation of a residual current device (FI/RCD) with a rated residual operat- ing current of no more than 30 mA is recommended to provide additional protection. Ask your electrician for ad- vice. The installation should only be car- ried out by a qualified electrician. DANGER! Risk of electric shock! ~ Never put the device into operation if there are visible damages to the device, the battery charger or the cable or if the device has been dropped before. ~ Connect the cable to the device/battery charger before plugging the power unit into a wall socket. __384419_2107_B8.book Seite 21 Mittwoch, 17. November 2021 11:35 1122

~ Only connect the power unit to a prop- erly installed, easily accessible wall socket, the voltage of which corre- sponds to the specifications on the rat- ing plate. The wall socket must continue to be easily accessible after the device is plugged in. ~ Ensure that the cable cannot be dam- aged by sharp edges or hot surfaces. ~ Ensure that the cable is not trapped or crushed. ~ When removing the power unit from the wall socket, always pull the power unit and never the cable. ~ Pull the power unit out of the wall sock- et, … … after every use, … after each charging process, … if there is a fault, … before connecting the device to the cable, … before you clean the device and … during thunderstorms. ~ To avoid any risk, do not make modifi- cations to the device. Repairs must be carried out by a specialist workshop or the Service Centre. DANGER from batteries!

Protect the battery against mechanical damages. Fire hazard! ~ Do not expose the device to direct sun- shine or heat. The ambient temperature should not be lower than -10 °C and higher than +40 °C. ~ The charge contacts on the device must not be connected by metallic objects. ~ The battery may only be charged with the original accessory (power unit). ~ Should the electrolyte solution leak out of the battery, avoid contact with eyes, mucous membranes and skin. Rinse im- mediately with plenty of clean water and consult a doctor. The electrolyte solution can cause irritation. ~ The device is provided with a lithium-ion battery. - The battery cannot be removed! - This device must not be opened! - The device with the installed battery must be disposed of properly. WARNING! Risk of injury from cutting! ~ The points of the comb attachments, the hair trimmer attachment, the beard trim- mer attachment and the precision trim- mer attachment are sharp. Handle with care. ~ Do not use the device if the attachment shows damages. ~ Switch off the device before pinning up or changing the attachments and each time before cleaning. WARNING! Risk of injury! ~ Place the cable in such a way that no one trips over it or steps on it. ~ Do not push the nose/ear hair trimmer attachment too deep into the nostril or the ear canal. ~ Do not use the device on open wounds, cuts, sunburn or blisters. WARNING! Risk of material damage!

The battery charger is fitted with non-slip silicon feet. As furniture is coated with a variety of different varnishes and acrylics and treated with different cleaning agents, we cannot rule out that some of these substances could damage and sof- ten the rubber feet. If necessary, place a non-slip mat under the battery charger. ~ Use the original accessories only. ~ Never place the device on hot surfaces (e.g. hob plates) or near heat sources or open fire. ~ Do not cover the power unit to prevent overheating. ~ Do not exert too much pressure on the shaving foil of the shaving attachment, to avoid damaging the shaving foil. __384419_2107_B8.book Seite 22 Mittwoch, 17. November 2021 11:35 1123

~ Do not detach the shaving foil from the shaving foil frame, and do not clean it using the brush. ~ Do not use any astringent or abrasive cleaning agents.

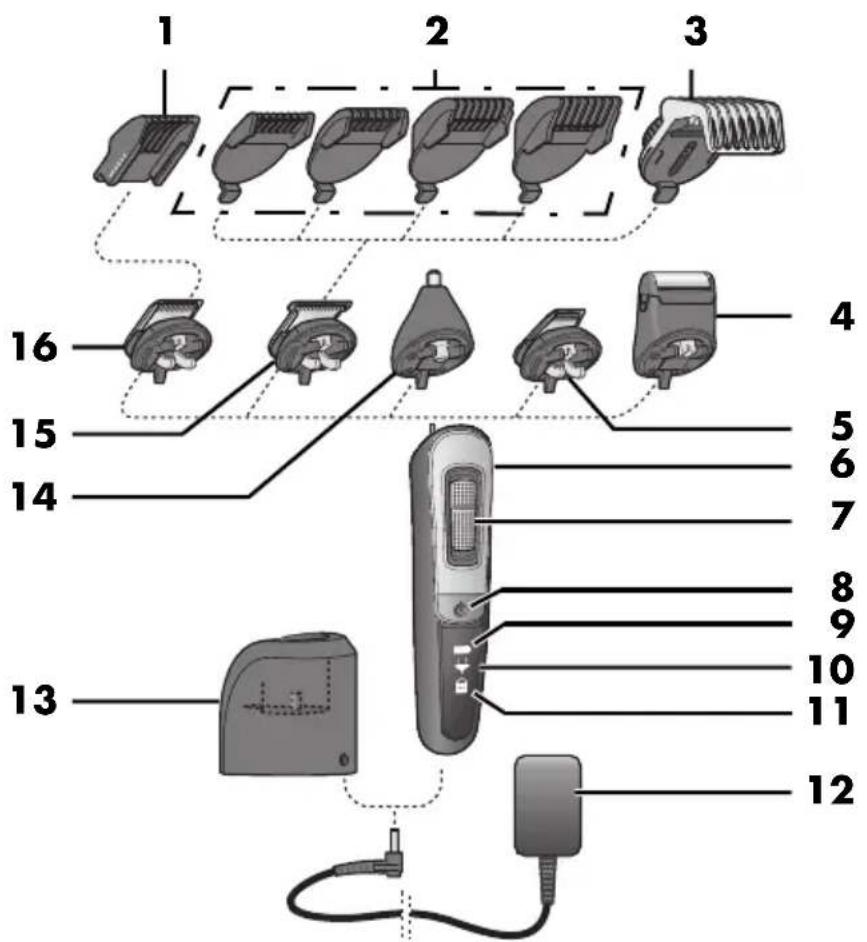

1 5-in-1 hair and beard trimmer6 1 Power unit12 1 Battery charger13 5 Interchangeable cutting attachments: hair trimmer attachment15 beard trimmer attachment16 precision trimmer attachment5 nose/ear hair trimmer attachment14 shaving attachment4 4 Comb attachments2 for the hair trimmer attachment15: 3, 6, 9, 12 mm

Comb attachment with dial (1 - 10 mm)

for the hair trimmer attachment

1 Adjustable (3, 4, 5, 6 mm) comb attach- ment1 for the beard trimmer attach- ment16 1Comb20 1Scissors17 1 Cleaning brush19 1Blade oil18 1 Storage bag (for the hair and beard trim- mer and its accessories)21 1 Operating Instructions

• Before first use (without cable), and for every charging procedure afterwards, charge the hair and beard trimmer6 for approx. 90 minutes.

• The hair and beard trimmer also charg- es, when it is switched off and connect- ed directly via the power unit12 to a wall socket.

• When the batteries are almost empty, the plug symbol10 flashes in red. The device can then only be used for a short time without being connected to the electricity supply.

1. Place the battery charger13 on a level

2. Connect the power unit12 to the bat-

3. Switch off the device with the on/off

switch8 if necessary.

4. Insert the power unit12 into a readily

accessible wall socket whose voltage matches the voltage stated on the rat- ing plate.

5. Put the hair and beard trimmer6

into the battery charger

and press it down until the plug symbol

is lit red and the battery is charged.

6. When the battery is fully charged, the

battery symbol9 flashes in green. When the battery is fully charged, the device can be used for approximately 60 minutes without being connected to the power supply. __384419_2107_B8.book Seite 23 Mittwoch, 17. November 2021 11:35 1124

NOTE: figure F: for all applications hold the shaver with an angle of 45° to your skin. Regardless of the charging state of the bat- tery, the hair and beard trimmer can always be mains-operated.

1. For mains operation, ensure that the

hair and beard trimmer6 is switched off.

2. Connect the power unit12 to the con-

nector of the hair and beard trimmer6.

into a readily accessible wall socket whose voltage matches the voltage stated on the rating plate.

4. Switch on the device with the on/off

switch8. NOTE: when the hair and beard trimmer re- mains connected to the wall socket after be- ing switched off, it will be charged automatically.

6.1 Transport safety lock

When the transport safety lock is activated, the lock symbol11 flashes blue 3 times.

• Press and hold the on/off switch8 for approx. 4 seconds to activate/deacti- vate the transport safety lock.

• By connecting the power unit12, the transport safety lock is deactivated, and also cannot be activated while plugged in to the power supply.

6.2 Changing the cutting

attachments WARNING! Risk of injury! ~ Switch off the hair and beard trim- mer6, before you attach or remove the attachments.

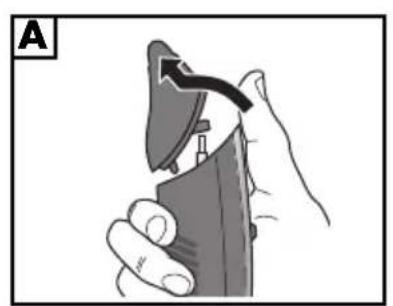

• Figure A: to remove the attach- ments4,5,14,15, 16 use your thumbs to press the attachment towards the rear of the hair and beard trim- mer6.

• Figure B: to attach the attachments, put the lower flap of the attach- ment4,5,14,15,16 into the slot in the hair and beard trimmer6 and press the upper part of the attachment against the hair and beard trimmer until it audi- bly locks into place and sits firmly in po- sition.

6.3 Changing the comb

attachments Pushing on

• To attach the comb attachments1, 2,3 carefully slide the appropriate comb at- tachment over the hair or beard trimmer attachment15/16. Press the lower part of the comb attachments2 +3 firmly until they lock into place. Removing

• To remove the comb attachments2 +3 loosen the comb attachment at its lower end and pull it off the hair and beard trimmer6.

• The hair to be dressed must be dry.

• The cutting length may deviate depending on the cutting angle.

• Place a sheet or cape around throat and neck to prevent cut-off hair from drop- ping into the collar.

• First, start with a comb attachment2 with a longer cutting length and then, in the course of the cutting process, use shorter cutting lengths step by step. Figure C: with the comb attachment with dial3 you also start with a longer cutting length. Turn the dial... ... anticlockwise to shorten the cutting length and ... clockwise to lengthen it.

• Start by cutting the hair in the neck or on the sides and cut towards the centre of the head. Then, cut the front section of the hair towards the centre of the head.

• Hold the hair and beard trimmer6 in such a way that the comb attachment2 lies as flat as possible on the head. Move the device evenly through the hair. Figure D: hold the hair and beard trim- mer

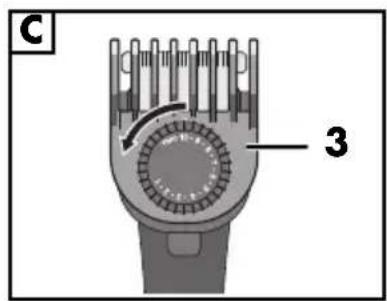

with comb attachment 3 in such a way that the flat area above the dial lies on the head.

• If possible, cut against direction of hair growth.

• In order to catch all the hair, move the hair and beard trimmer6 several times through each section of the hair.

• Comb the hair repeatedly and well.

• Using the switch for cutting length fine tuning7 the cutting length can be slight- ly varied with three levels

• In order to achieve a straight cutting line for cutting lengths over 12 mm, the hair and beard trimmer6 should be passed through the hair several times from dif- ferent directions.

6.5 Trimming a beard

Beard trimmer attachment16 NOTE: please note that the cutting lengths will only be achieved if the switch for cutting length fine tuning7 is at position 1 and the hair and beard trimmer6 is held at a right angle to the skin surface.

• Comb the beard in the direction that it grows.

• Trim the beard downwards from ear to chin. First trim one side, then the other.

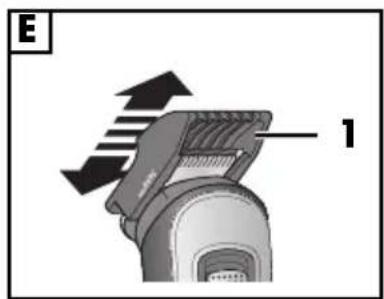

• Comb attachment1 Figure E: adjust the cutting length with the slider according to the desired hair length and read off the cutting length us- ing the marking on the side of the comb attachment1 (3, 4, 5, 6 mm). Now, shorten your beard step-by-step.

• Use the beard trimmer attachment16 without a comb attachment1, to cut the beard very short or to cut a moustache and hairline.

• Using the switch for cutting length fine tuning7 the cutting length can be slight- ly varied with three levels

• To trim your moustache, first comb it straight downwards. Then use either the beard trimmer attachment16 or the precision trimmer attachment5. Start at the centre above the mouth and trim first one side, then the other. __384419_2107_B8.book Seite 25 Mittwoch, 17. November 2021 11:35 1126

6.6 Trimming the hairline

Precision trimmer attachment5

• Use the precision trimmer attachment5 to shorten and shape moustaches, whiskers, sideburns or eyebrows.

• Put the edge of the attachment at the de- sired hairline height and move the hair and beard trimmer6 downwards.

6.7 Shaving (contours)

Shaving attachment4 NOTES:

• Your skin must be clean and dry.

• The shaving attachment4 is only suita- ble for shaving hairlines.

• Hold the hair and beard trimmer6 at a right angle to the skin surface and gen- tly guide it over your face.

• Shave against the direction of your beard growth.

• Stretch your skin in complicated areas, such as the chin, to achieve better re- sults.

6.8 Trimming nose and ear

hair Nose/ear hair trimmer attach- ment

• Insert only the metal tip slowly into a nostril or an ear.

• Slowly move the hair and beard trim- mer6 with a circular motion to trim the hair.

7. Cleaning and care

DANGER! Risk of electric shock! ~ Unplug the power unit12 from the wall socket before cleaning the hair and beard trimmer6 and the battery charg- er13. WARNING! Risk of injury! ~ Always switch the hair and beard trim- mer6 off before cleaning. WARNING! Risk of material damage! ~ Do not use any astringent or abrasive cleaning agents. NOTE: clean and oil the device after every use. Hair and beard trimmer

and bat- tery charger

• Wipe the casing of the hair and beard trimmer and the battery charger with a damp cloth. Comb attachments1,2,3

• Remove the comb attachment. Rinse the comb attachment with water and let it dry before using it again. Hair trimmer, beard trimmer and precision trimmer attach- ments 15, 16,5

1. Figure A: remove the attachment from

the hair and beard trimmer6 by press- ing it with the thumb towards the rear.

2. Remove the hair remnants from the at-

tachment using the cleaning brush19 included in the delivery.

3. Apply a few drops of blade oil

to the cutting edge of the attachment. Using a soft cloth, wipe off the surplus oil, if nec- essary. Only use acid-free oil, such as e.g. sewing machine oil. __384419_2107_B8.book Seite 26 Mittwoch, 17. November 2021 11:35 1127

• Remove the nose/ear hair trimmer at- tachment14. Rinse it with water and let it dry completely before using it again. Shaving attachment4 WARNING! ~ Do not detach the shaving foil from the shaving foil frame, and do not clean it using the cleaning brush19. NOTE: from time to time, oil the cutting blade with a few drops of acid-free oil (e.g. sewing machine oil). Attach the shaving at- tachment to the hair and beard trimmer6 and let it run for a few seconds without using it. Using a soft cloth, wipe off the surplus oil, if necessary.

1. Remove the shaving attachment4.

2. Press the button on the side of the shav-

ing attachment and remove the shaving foil frame. While removing the shaving foil frame, only hold it at the side and do not press against the shaving foil.

3. Clean the cutting blade using the in-

cluded cleaning brush19.

4. Clean the shaving foil in the shaving

foil frame under running water and al- low it to dry completely before putting it back on the shaving attachment4.

5. Put the shaving foil frame back onto the

. While attaching the frame, make sure that the fastening tabs on the shaving foil frame fit into the appropriate recesses on the shaving at- tachment, and press the shaving foil frame gently downwards until it audibly locks into place.

• For storage … … put the hair and beard trimmer6 in the battery charger13 or … use the included storage bag21.

Accessories for the hair and beard trimmer 5-in-1 SHBS3.7D5 can be reordered. Online ordering shop.hoyerhandel.com

1. Scan the QR code with your smart-

2. The QR code will take you to a website

The battery integrated into this device must not be dis- posed of in household waste. The device must be disposed of properly with the battery installed. When disposing of this device, the waste disposal facility responsible must be informed that the device contains an inte- grated battery. This product is subject to the provisions of European Direc- tive 2012/19/EC. The sym- bol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the Euro- pean Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for re- cycling electric and electronic appliances. This recycling symbol marks e.g. an object or parts of the material as valuable for recy- cling. Recycling helps to re- duce the consumption of raw materials and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! ~ Do not attempt to repair the device your- self under any circumstances. Li-ions Fault Possible causes / Action No function

• Has the device been connected to the power supply?

• Is the battery emp- ty? The cutting attach- ments 4, 5, 14,15, 16 are not running smoothly

• Have the attach- ments been cleaned, and oiled if necessary? __384419_2107_B8.book Seite 28 Mittwoch, 17. November 2021 11:35 1129

specifications NOTE: no action by the user is required to switch the product between 50 and 60 Hz. The product adjusts itself for both 50 and 60 Hz. Power adapter Model: SHBS3.7D5 Hair and beard trimmer / battery charger: Input: 5 V , , 1.0 A Power unit: New Wise International Holdings Limited Model SW-050100EU/ Model SW-050100BS Input: 100–240 V ~ 50/60 Hz,

Protection class of the power unit: II Protection type of the power unit: IP20 (protection against penetration by solid foreign ob- jects with a diameter > 12.5 mm) Ambient conditions: only approved for indoor use Battery: 1x 3.7 V Li-ion, 500 mAh, 1.85 Wh Operating temperature: -10 °C to +40 °C Published data Value and accuracy Unit New Wise lnternational Holdings Limited / 33556105-000-11-19-8 / RM 1005,10/F, Ho King Commercial Center, 2-16 Fa Yuen Street, Mongkok, Kowloon, Hong Kong

Input voltage 100-240 V Input AC frequency 50/60 Hz Output voltage 5.0 V Output current 1.0 A Output power 5.0 W Average efficiency in oper- ation

Efficiency at low load (10%) Not ap- plicable

Power consumption at no load

Symbols used Subject to technical modifications. Double insulation Geprüfte Sicherheit (certified safety): devices must comply with the generally acknowledged rules of technology and the Ger- man Product Safety Act (Produkt- sicherheitsgesetz - ProdSG). (Not for UK) With the CE marking, HOYERHandel GmbH declares the conformity with EU guide- lines. Devices with this symbol may only be operated indoors (dry en- vironment). This symbol reminds you to dis- pose of the packaging in an envi- ronmentally friendly manner. Recyclable materials are marked with the recycling symbol (3ar- rows). The material can be speci- fied by the recycling number in the centre (here:21) and/or an abbreviation (here: PAP). Direct current AC voltage Symbol for polarity The power unit has the energy efficiency class 6. It is a recyclable product which is subject to an extended producer responsibility and for which the rules of waste separation apply. With the UKCA marking, HOYERHandel GmbH declares that the product is in conformity with the UKCA requirements. The symbol identifies the product manufacturer. __384419_2107_8.boo Seite 30 itto, 17. November 2021 11:3 1131

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective de- vice and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. The warranty applies to material or factory defects. Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, lamps or other parts man- ufactured from glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 384419_2107 and the purchase receipt as a purchase verification for all in- quiries.

• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or under- side of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. __384419_2107_B8.book Seite 31 Mittwoch, 17. November 2021 11:35 1132
