Brand	Alpine
Model	HDA-V90
Product type	Hi-Fi system (multi-channel amplifier)
Output power (4 Ω, 14.4 V)	75 W RMS x 4 (SPEAKER channels) + 300 W RMS x 1 (subwoofer)
Output power (2 Ω, 14.4 V)	100 W RMS x 4 + 500 W RMS x 1
Bridged power (4 Ω, 14.4 V)	200 W RMS x 2 (SPEAKER channels)
Frequency response	10 Hz - 60 kHz (+0/-3 dB, 1 W under 4 Ω) for SPEAKER channels; 8 Hz - 400 Hz for subwoofer
Signal-to-noise ratio	> 87 dB (SPEAKER channels) / > 80 dB (subwoofer) (IHF A-wtd, ref. 1 W under 4 Ω)
Damping factor	> 500 (SPEAKER channels) / > 1,000 (subwoofer) at 100 Hz under 4 Ω
Input impedance	> 10 kΩ
Input sensitivity (RCA)	HIGH: 0.5 - 10 V / LOW: 0.2 - 4.0 V (SPEAKER channels); HIGH: 0.4 - 10 V / LOW: 0.1 - 4.0 V (subwoofer)
Filters	Variable HPF (50 - 400 Hz, -12 dB/oct.); Variable LPF (50 - 400 Hz, -24 dB/oct.); Variable subsonic (8 - 40 Hz, -24 dB/oct.)
Bass equalizer	Bass EQ (fc=50 Hz): 0 to +12 dB variable
Remote control	Jack for bass control unit (RUX-KNOB or RUX-KNOB.2 optional)
Power supply	12 V DC (negative ground)
Fuses	30 A x 3 (built-in); recommended external fuse: 90 A
Dimensions (W x H x D)	291 x 53.5 x 189.5 mm
Weight	3.9 kg
Supplied accessories	Self-tapping screws (4), mounting feet (2), screws (8), battery connector (1), speaker connectors (3), hex wrench (1 set)
Safety	Use only on 12 V negative ground vehicle; do not block air vents; use appropriate fuses; installation by a professional
Maintenance and cleaning	Ensure adequate ventilation; avoid humidity and dust; clean with a dry cloth
Repairability	Entrust any repair to an authorized Alpine distributor or service center

Frequently Asked Questions - HDA-V90 ALPINE

What type of vehicle is compatible with the Alpine HDA-V90?

The unit is designed for use on 12 volt negative ground cars. Check with your dealer if you are not certain.

How do I connect the power supply of the HDA-V90?

Connect the battery wire (sold separately) to the positive (+) terminal of the battery via an external 90 A fuse. Ground the ground wire to a clean metal point on the chassis. Connect the remote turn-on lead (REM) to the corresponding output of the head unit or a switched power source (ACC) with a 3 A fuse.

What is the maximum power per channel?

Under 4 Ω at 14.4 V: 75 W RMS x 4 for speaker channels and 300 W RMS x 1 for subwoofer. Under 2 Ω: 100 W RMS x 4 and 500 W RMS x 1. Bridged (4 Ω): 200 W RMS x 2.

How do I adjust the input level (Gain)?

Set the gain to minimum. Increase the head unit volume until sound distorts, then reduce by one step. Increase the amplifier gain until distortion, then reduce slightly for optimal setting.

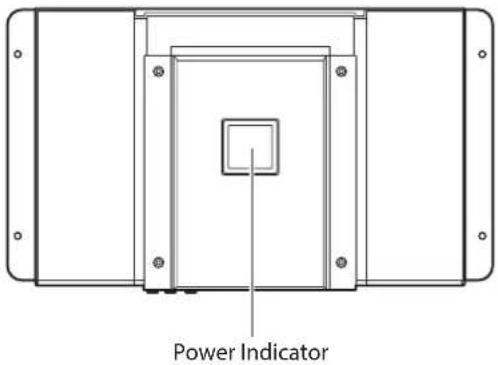

What does the indicator light mean?

Blue: normal operation. Flashing red: high temperature (lower volume). Steady red: fault (short circuit, overheating or overvoltage). Turn off the unit, correct the problem, then turn on again.

How do I configure the input channels for a 2 or 4 channel system?

Use the INPUT CHANNEL switch (CH-3/4): in position 1/2, the signal is copied from CH-1/2 to CH-3/4 (2 channel mode). In position 3/4, the inputs are independent (4 channel mode). For subwoofer, set the SUBWOOFER switch to 1+2+3+4 (mix) or SUB (dedicated input).

Can I use a speaker-level to RCA converter?

Yes, if your head unit does not have RCA outputs. Then set the INPUT LEVEL switch to HI and connect the speaker wires to the RCA inputs via the adapter cable. The AUTO WAKE function will turn on the amplifier automatically.

How do I perform a bridged (parallel) connection?

For bridging on one channel, connect the positive (+) terminal of the speaker to the positive output of the left channel (e.g., CH-1) and the negative (-) terminal to the negative output of the right channel (CH-2). Do not use the negative terminals of both channels simultaneously. Ensure the total impedance is at least 4 Ω.

Where should I install the amplifier in the vehicle?

Choose a well-ventilated location, such as the trunk, to dissipate heat. Attach the supplied mounting feet, then screw the amplifier. Avoid humid or dusty areas and ensure you do not drill into pipes or cables.

What accessories are needed for remote bass control?

You can connect an optional bass control unit, model RUX-KNOB or RUX-KNOB.2 (sold separately). Plug it into the REMOTE BASS CONTROL jack on the amplifier.

USER MANUAL HDA-V90 ALPINE

REMOVING THE TOP COVER ....3

CONNECTIONS 4

CONNECTION CHECK LIST 7

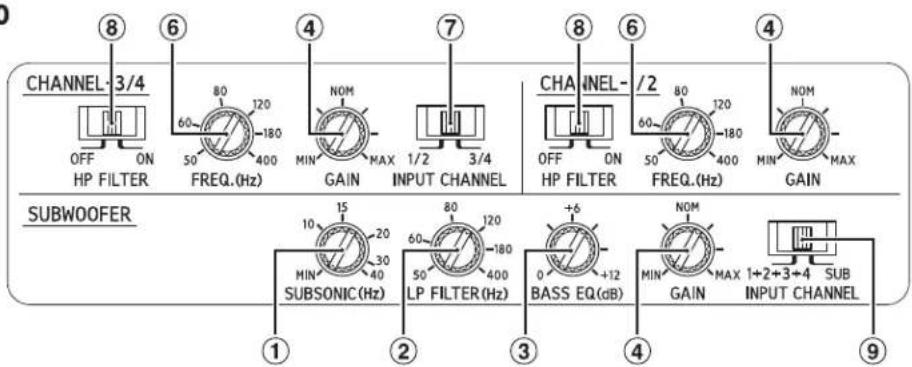

SWITCH SETTINGS 8

SYSTEM DIAGRAMS 11

SPECIFICATIONS....19

WARNING

Points to Observe for Safe Usage

Read this manual carefully before using the system components. They contain instructions on how to use this product in a safe and effective manner. Alpine cannot be responsible for problems resulting from failure to observe the instructions in this manual.

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISES WHILE DRIVING.

Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning signals (train crossings, etc.) can be dangerous and may result in an accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product damage.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS.

Arrange wiring and cables in compliance with the manual to prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as the steering wheel, gear lever, brake pedals, etc. can be extremely hazardous.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.

When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other safety-related system), or tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and cause fire etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or property damages.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY.

Be sure to use only the specified accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wire's insulation from being cut by the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST.

Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

SERVICE CARE

IMPORTANT NOTICE

This Amplifier has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Subpart J of Part 15 of FCC Rules. This equipment generates and uses radio frequency energy, and it must be installed and used properly in accordance with the manufacturer's instructions.

SERIAL NUMBER:

INSTALLATION DATE:

INSTALLATION TECHNICIAN:

PLACE OF PURCHASE:

IMPORTANT

Please record the serial number of your unit in the space provided here and keep it as a permanent record. The serial number plate is located on the rear of the unit.

◆ For European Customers

Should you have any questions about warranty, please consult your store of purchase.

◆ For Customers in other Countries

IMPORTANT NOTICE

Customers who purchase the product with which this notice is packaged, and who make this purchase in countries other than the United States of America and Canada, please contact your dealer for information regarding warranty coverage.

ACCESSORIES

• Self-Tapping Screw ....4
- Mounting leg ....2
- Screw....8
- Battery Connector ....1
- Speaker Connector HDA-M80....1

HDA-F60....2

HDA-V90 3

• Hexagon Wrench ....1 SET

INSTALLATION

Due to the high power output of the HDA-M80/HDA-F60/HDA-V90 considerable heat is produced when the amplifier is in operation. For this reason, the amplifier should be mounted in a location which will allow for free circulation of air, such as inside the trunk. For alternate installation locations, please contact your authorized Alpine dealer.

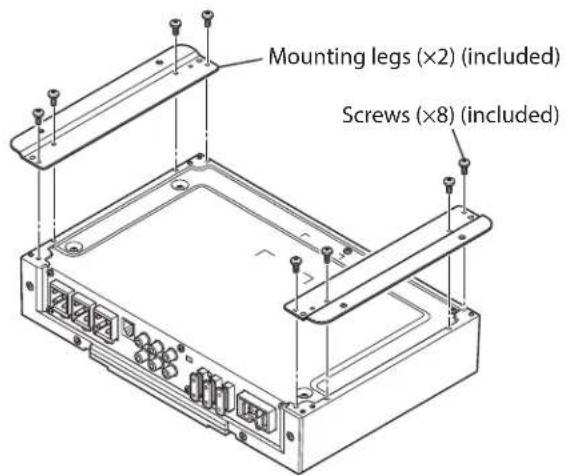

1. Attach the mounting legs to the bottom of the amplifier with 8 screws.

Mounting legs (×2) (included) Screws (×8) (included)

(e.g. HDA-V90)

1. Make sure there are no objects behind the surface that may become damaged during drilling.
2. Drill the screw holes.

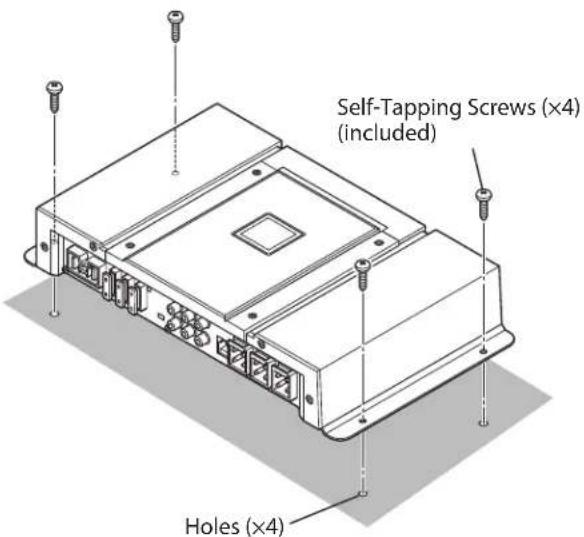

3. Position the HDA-M80/HDA-F60/HDA-V90 over the screw holes, and secure with 4 self-tapping screws.

Self-Tapping Screws (×4) (included) Holes (×4)

(e.g. HDA-V90)

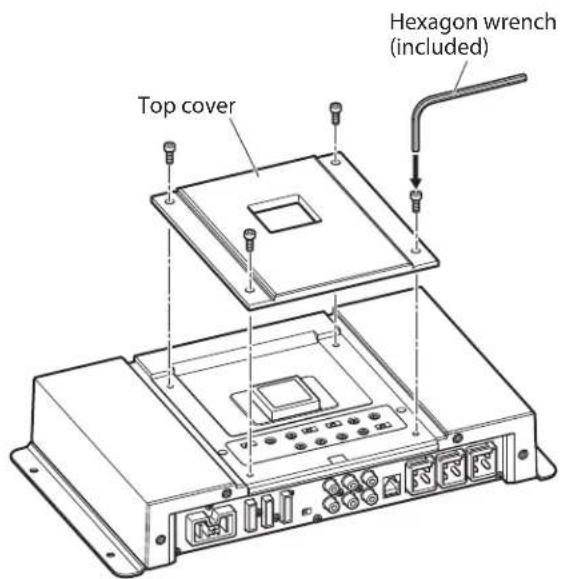

REMOVING THE TOP COVER

To use the top inner panel, remove the top cover.

Top cover Hexagon wrench (included)

(e.g. HDA-V90)

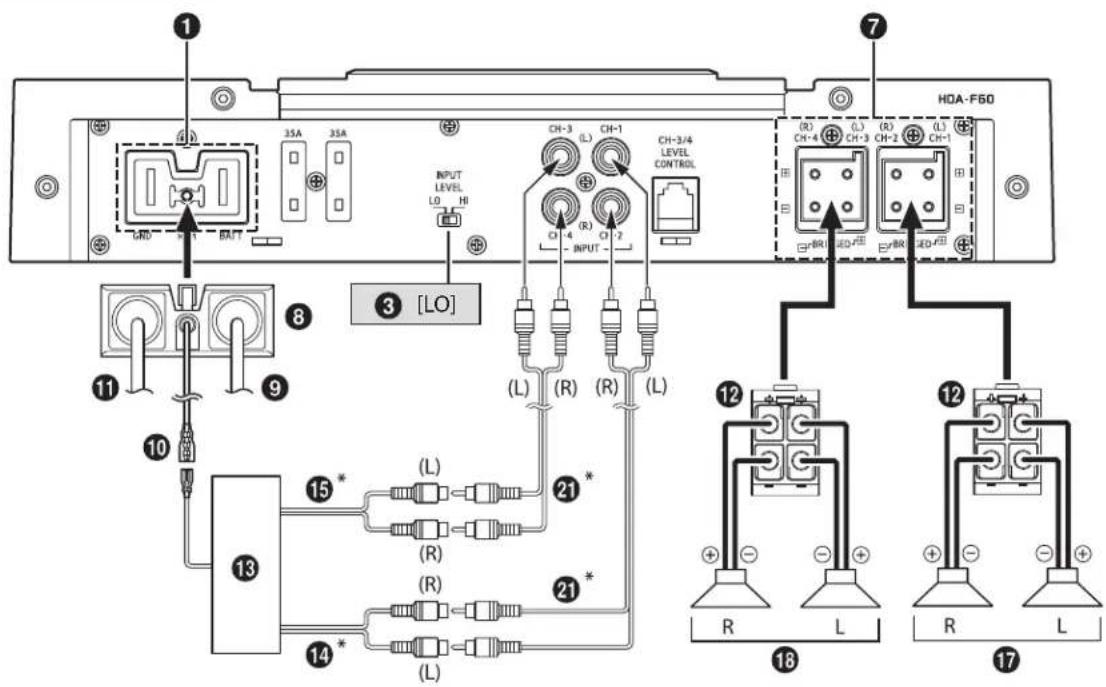

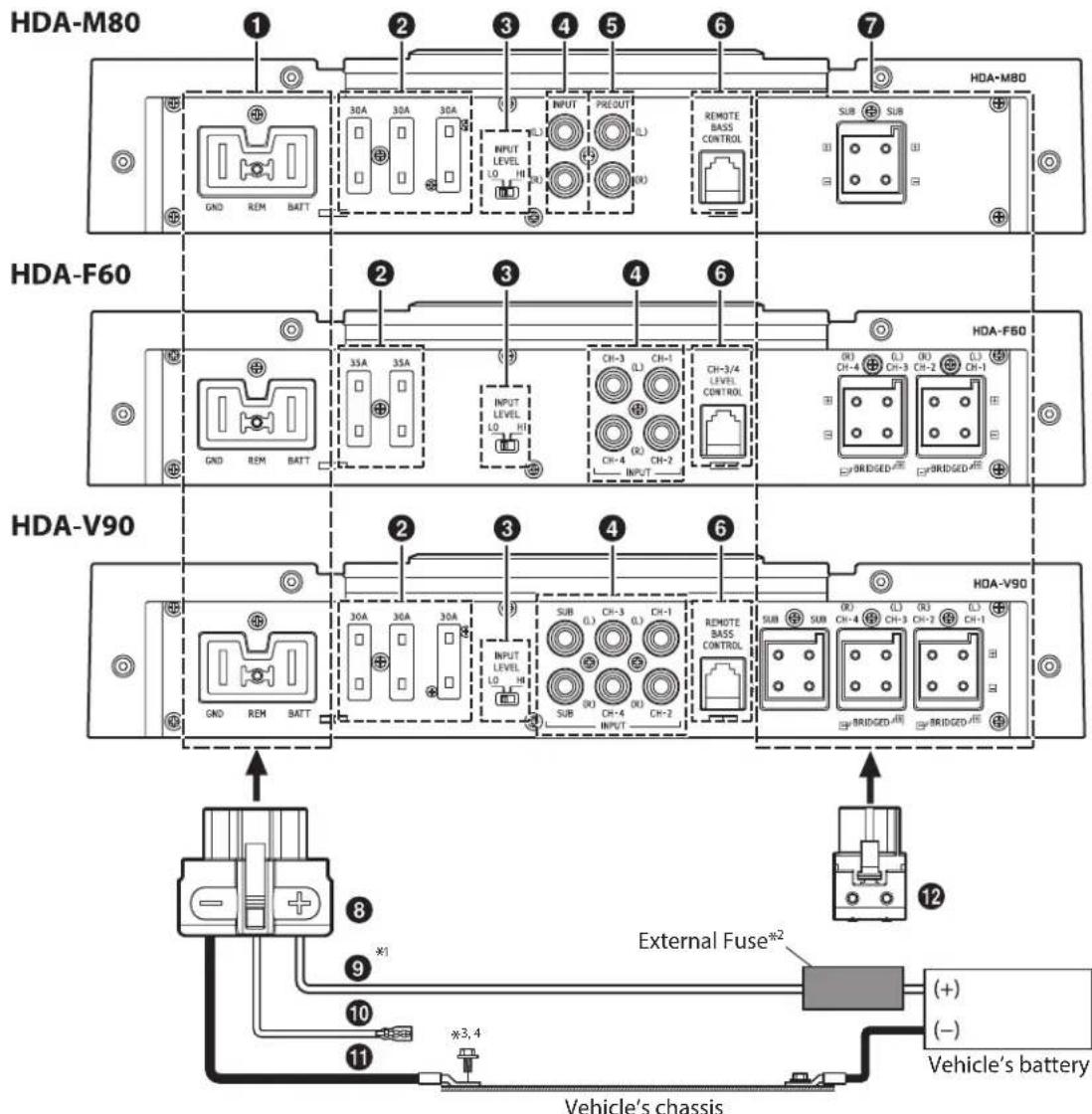

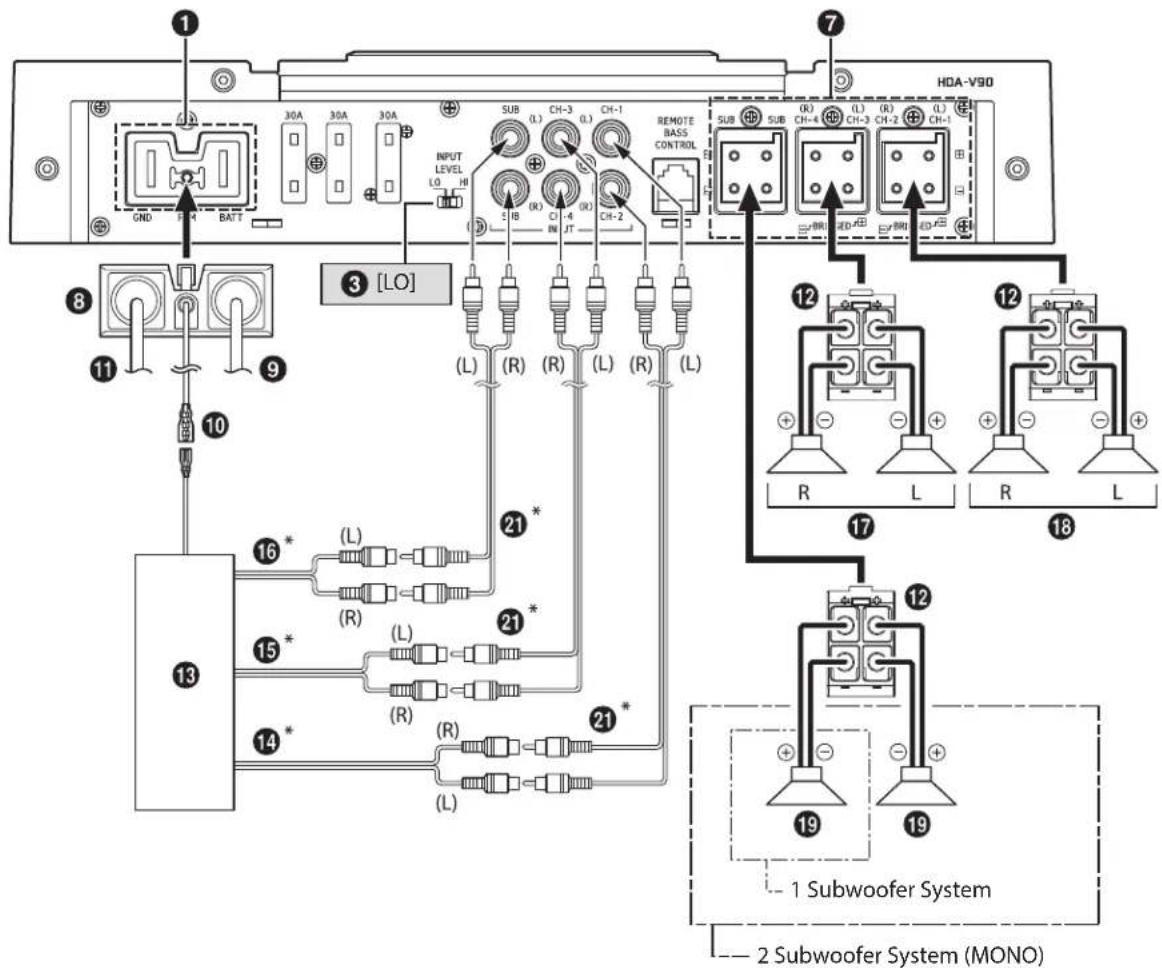

CONNECTIONS

Before making connections, be sure to turn the power off to all audio components.

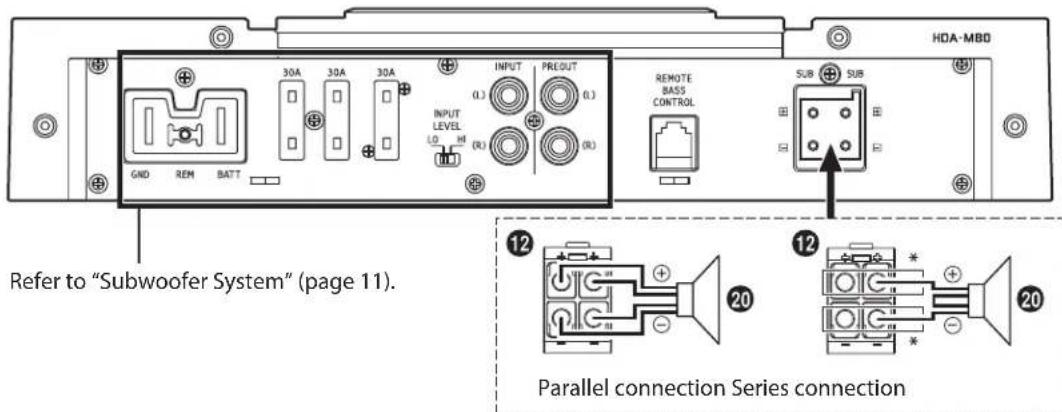

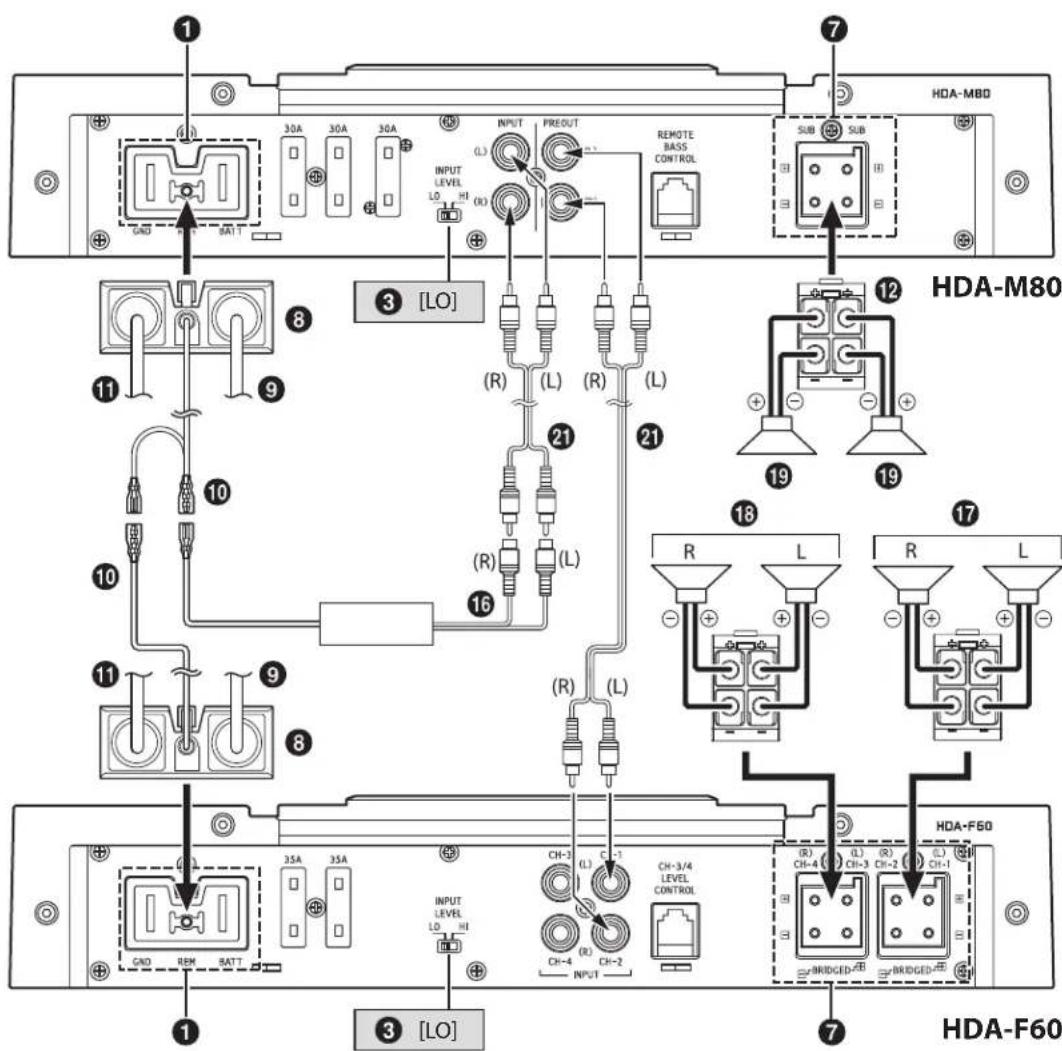

HDA-M80 1 2 3 4 5 6 7 HDA-M80 GND REM BATT 30A 30A 30A INPUT PREOUT REMOTE BASS CONTROL SUB SUB (II) (III) + HDA-F60 2 3 4 6 HDA-F60 GND REM BATT 3SA 3SA INPUT LEVEL LO HH CH-3 CH-1 CH-4 CH-2 CH-3/4 LEVEL CONTROL (R) CH-4 CH-3 CH-2 CH-1 BRIDGED BRIDGED HDA-V90 2 3 4 6 HDA-V90 GND REM BATT 30A 30A 30A INPUT LEVEL LO HH SUB CH-3 CH-1 SUB CH-4 CH-2 REMOTE BASS CONTROL SUB SUB (R) CH-4 CH-3 CH-2 CH-1 BRIDGED BRIDGED 8 9 *1 10 11 *3,4 External Fuse* (+) (-) Vehicle's battery Vehicle's chassis

*1 For details on the wires size to be used, refer to the supplied "Cautions on Power Supply Wires Connection" and "Cautions on Power Supply Wires" (page 18), and then use the wire of the specified size.

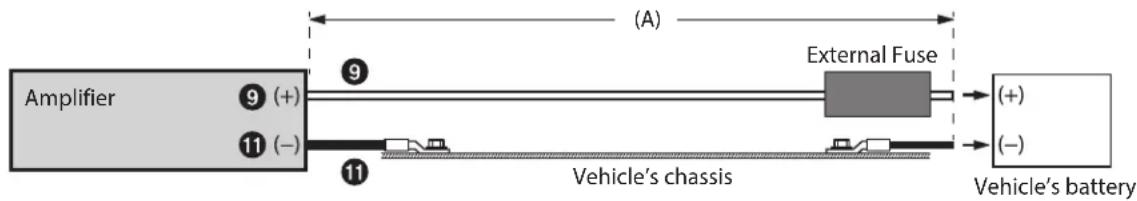

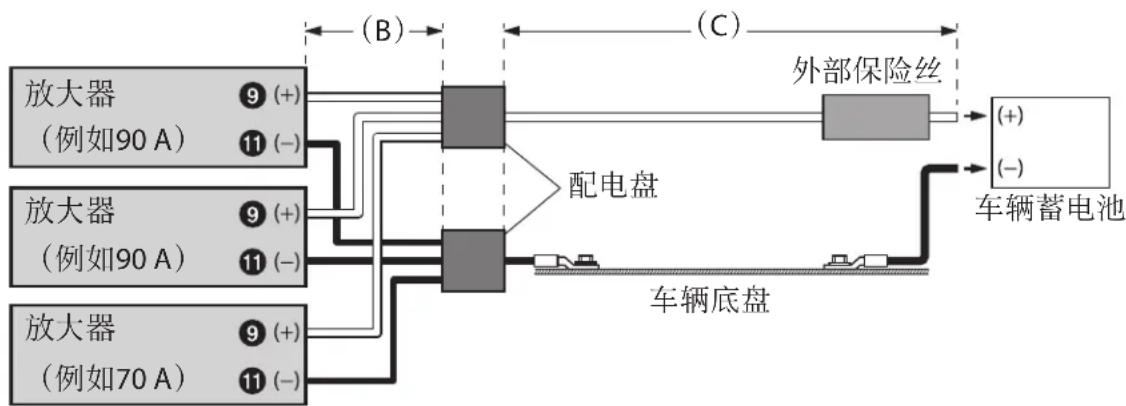

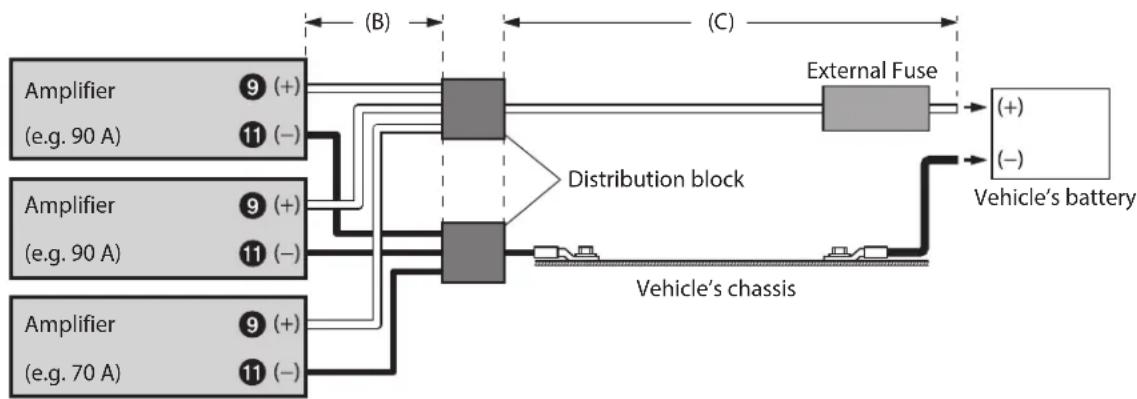

*2 Be sure to add an External Fuse (e.g. Fuse Block, Circuit Breaker) with the battery lead as close as possible to the battery's positive (+) terminal. Add an external fuse with the same capacity, or a slightly larger capacity, as the sum total of the fuse capacities of the amplifier. For details on the fuse capacity of this machine, see "Battery Lead ⑨" (page 5).

*3 Connect all equipment to the same ground point while keeping wire length as short as possible.

*4 To securely connect the ground lead, use an already installed screw.

To prevent external noise from entering the audio system

• Locate the unit and route the leads at least 10 cm (4") away from the vehicle's harness.
• Keep the battery power leads as far away from other leads as possible.
• Connect the ground lead securely to a bare metal spot (remove any paint or grease if necessary) of the vehicle's chassis.
• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise suppressors, contact them for further information.
• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.

① Power Supply Terminal

② Fuse

HDA-M80/HDA-V90 30 A x 3

HDA-F60....35 A x 2

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

③ Speaker Input Level Switch

Switch according to the Speaker input mode.

a) When making a speaker input connection with RCA Extension Cables (sold separately), set to "LO".

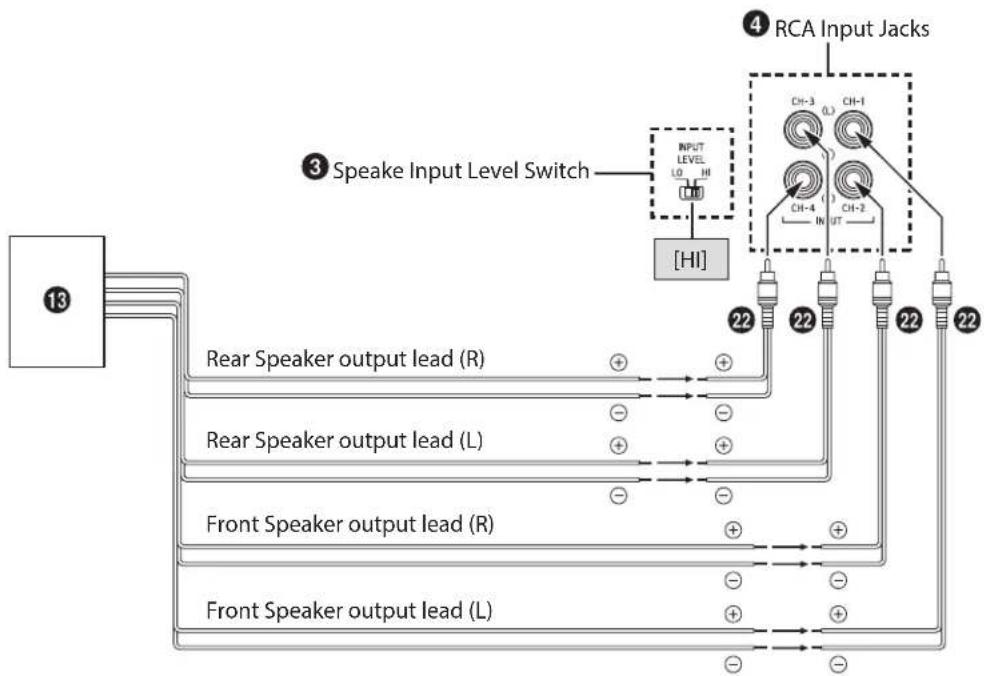

b) When making a speaker input connection with Speaker-RCA Conversion Cables (sold separately), set to "HI".

4 RCA Input Jacks

Connect these jacks to the line out leads on your head unit using RCA extension cables or Speaker-RCA Conversion cable (sold separately). Be sure to observe correct channel connections; Left to Left and Right to Right.

⑤ Pre-Out Jacks (HDA-M80 only)

These jacks provide a line level output. This is an ideal output for driving a second subwoofer amp. This output is full-range, and is not affected by the crossover.

6 Remote Bass Control (Optional)

Connect the Remote Bass Control Unit RUX-KNOB or RUX-KNOB.2 (sold separately) to adjust the output level remotely. This is not to replace appropriate gain level setting between the amplifier and head unit.

• HDA-F60 supports RUX-KNOB.2 only.

⑦ Speaker Output Terminals

8 Battery Connector

Make the Battery, Remote Turn-on and Ground lead connections (as shown) to the Battery Connector.

Insert Plug to Terminal 1.

- For details on how to connect, see "Cautions on wire lead connections" (page 6).

⑨ Battery Lead (Sold Separately)

Be sure to add an External Fuse (e.g. Fuse Block, Circuit Breaker) with the battery lead as close as possible to the battery's positive (+) terminal. This fuse will protect your vehicle's electrical system in case of a short circuit. See below for appropriate fuse value requirement: HDA-M80/HDA-V90....90 amp fuse HDA-F60....70 amp fuse

- For details on the wires size to be used, refer to the supplied "Cautions on Power Supply Wires Connection" and "Cautions on Power Supply Wires" (page 18), and then use the wire of the specified size.

10 Remote Turn-On Lead (Sold Separately)

Connect this lead to the remote turn-on (positive trigger, (+) 12 V only) lead of your head unit. If a remote turn-on lead is not available, see "CONNECTION CHECK LIST" section on page 7 for alternative method.

- When connecting the speaker output leads of the head unit to this unit with a Speaker-RCA Conversion cable (sold separately), you do not need to connect the remote turn-on lead, owing to the "REMOTE SENSING" function of this unit. However, the "REMOTE SENSING" function may not work depending on the signal source connected. In such a case, connect the remote turn-on lead to an incoming power supply cord (accessory power) in the ACC position.

⑪ Ground Lead (Sold Separately)

Connect this lead securely to a clean, bare metal spot on the vehicle's chassis. Verify this point to be a true ground by checking for continuity between that point and the negative (−) terminal of the vehicle's battery. Ground all your audio components to the same point on the chassis to prevent ground loops while keeping wire length as short as possible.

- For details on the wires size to be used, refer to the supplied "Cautions on Power Supply Wires Connection" and "Cautions on Power Supply Wires" (page 18), and then use the wire of the specified size.

12 Speaker Connector

Make the Speaker Output Lead (+)/(-) connections to the Speaker Connector. Insert Plug to Terminal ⑦.

- For details on how to connect, see "Cautions on wire lead connections" (page 6). Be sure to observe correct speaker output connections and polarity in relation to the other speakers in the system. Connect the positive output to the positive speaker terminal and the negative to negative.

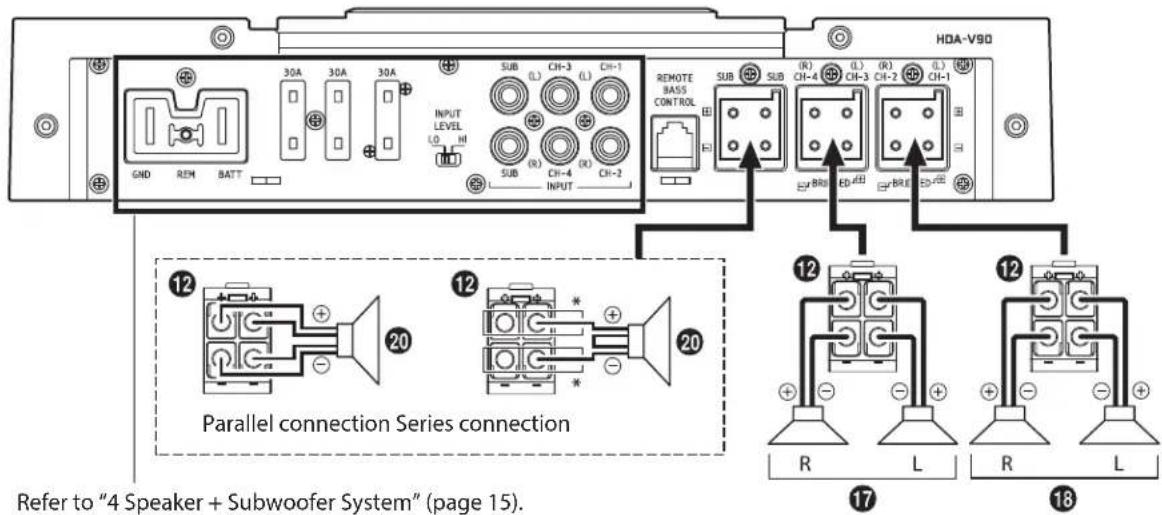

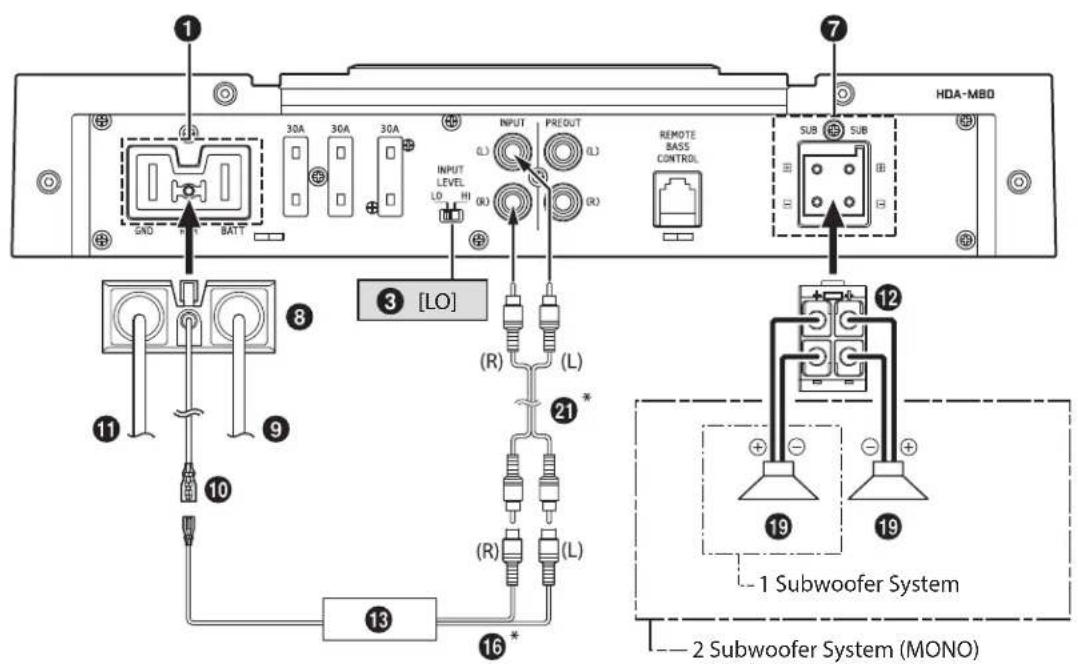

About Subwoofer Input/Output Terminals (HDA-M80/HDA-V90 only)

• The input is stereo but the output is monaural.

- Reversing subwoofer polarity (swapping positive and negative connections to the subwoofer) may be desirable in some installations for optimum bass performance.

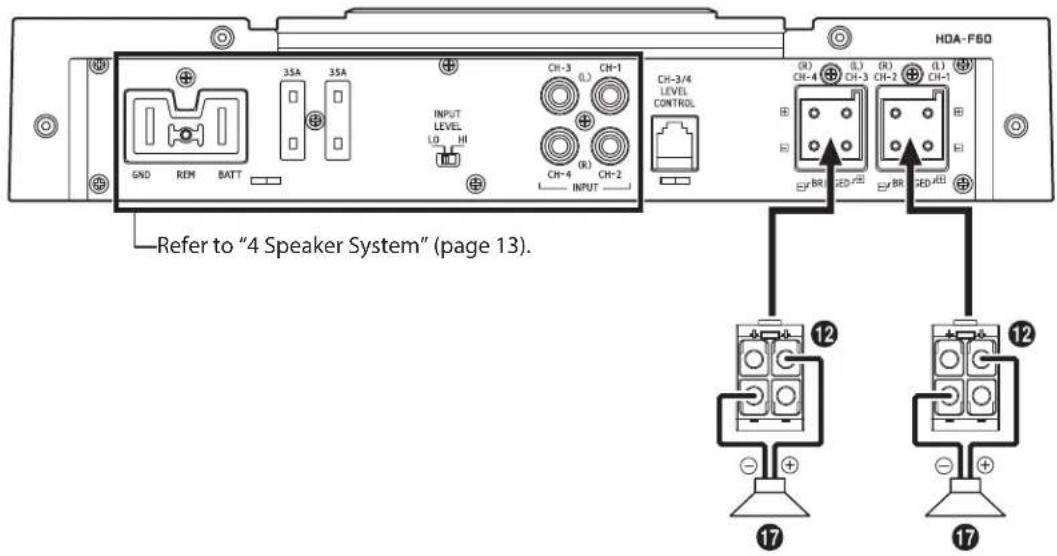

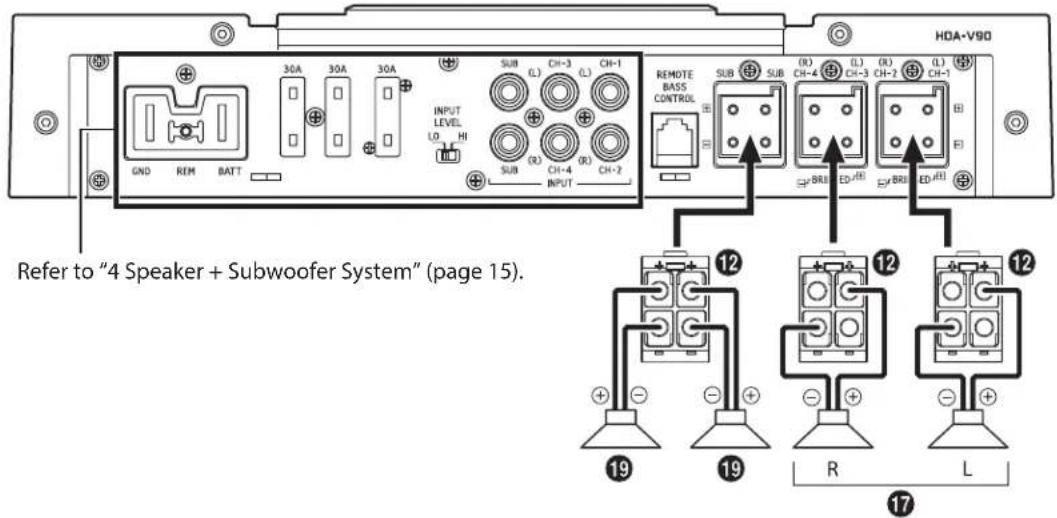

About Bridged Connections

In the bridged mode, connect the left positive to the positive terminal of the speaker and the right negative to the negative terminal of the speaker. Do not use the speaker (−) terminals as a common lead between the left and right channels.

NOTE:

- Do not connect the speaker (−) terminal to the vehicle's chassis.

Cautions on wire lead connections

When using third-party wire cables (power supply wire), use the supplied screws to simplify the connection. Refer to the description below for the proper procedure. If you are in doubt about how to make this connection, consult your dealer.

1. Check the wire size.

- For details on the wires size to be used, refer to the supplied "Cautions on Power Supply Wires Connection" and "Cautions on Power Supply Wires" (page 18), and then use the wire of the specified size.

- If the wire gauge used is unknown, ask your dealer.

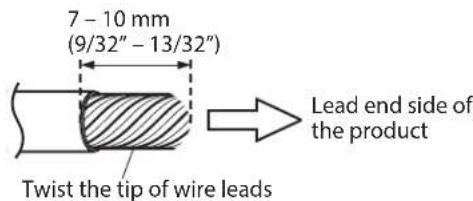

1. Remove the insulation from the ends of the wire leads by about 7 - 10 mm (9/32" - 13/32").

7 - 10 mm (9/32" - 13/32") Twist the tip of wire leads Lead end side of the product

NOTES:

• If length of the exposed wire is too short, a poor connection may occur causing operation failure or sound interruption.

• On the other hand, if the length is too long, an electrical short-circuit may occur.

• Tighten the hexagon hole screw with the hexagon wrench (Large or Small) (included) to secure the lead.

Before making this connection, use insulated shrink tubing to cover any exposed wire extending beyond the terminal.

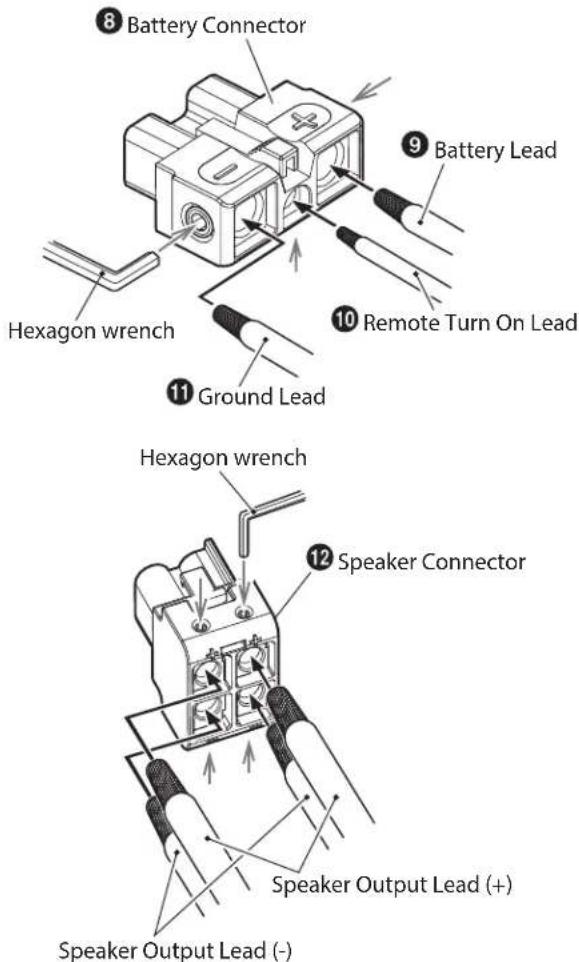

Battery Connector Battery Lead Hexagon wrench Remote Turn On Lead Ground Lead Hexagon wrench Speaker Connector Speaker Output Lead (+) Speaker Output Lead (-)

NOTES:

• Be sure to use the Hexagon hole screw attached to the Battery Connector or Speaker Connector.
• For safety reasons, connect the battery leads last.
  • To prevent disconnection of the leads or dropping of the unit, do not use the cabling to carry the unit.

CONNECTION CHECK LIST

Please check your head unit for the conditions listed below:

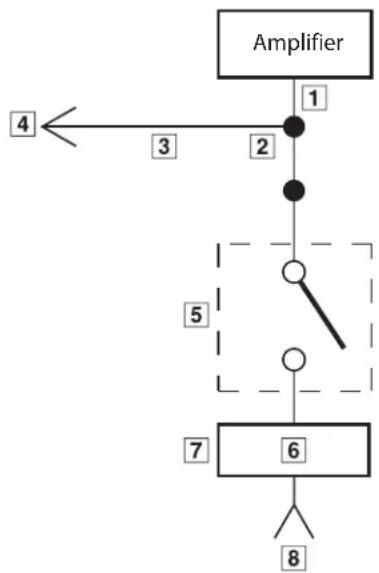

Remote Turn-On Lead

a. The head unit does not have a remote turn-on or power antenna lead.
b. The head unit's power antenna lead is activated only when the radio is on (turns off in the tape or CD Mode).
c. The head unit's power antenna lead is logic level output (+) 5V, negative trigger (grounding type), or cannot sustain (+) 12V when connected to other equipment in addition to the vehicle's power antenna.

If any of the above conditions exist, the remote turn-on lead of your HDA-M80/HDA-F60/HDA-V90 must be connected to a switched power source (ignition) in the vehicle. Be sure to use a 3A fuse as close as possible to this ignition tap. Using this connection method, the HDA-M80/HDA-F60/HDA-V90 will turn on and stay on as long as the ignition switch is on.

If this is objectionable, a SPST (Single Pole, Single Throw) switch, in addition to the 3A fuse mentioned above, may be installed in-line on the HDA-M80/HDA-F60/HDA-V90 turn-on lead. This switch will then be used to turn on (and off) the HDA-M80/HDA-F60/HDA-V90. Therefore, the switch should be mounted so that is accessible by the driver. Make sure the switch is turned off when the vehicle is not running. Otherwise, the amplifier will remain on and drain the battery.

1 Blue/White
2 Power Antenna
3 Remote Turn-On Lead
4 To other Alpine component's Remote Turn-On Leads
5 SPST Switch (optional)
6 Fuse (3A)
7 As close as possible to the vehicle's ignition tap
8 Ignition Source

SWITCH SETTINGS

• Before switching each Selector Switch, turn off the power and insert a small screwdriver, etc., perpendicularly to the Switch.
• To use the top inner panel, remove the top cover. See "REMOVING THE TOP COVER" (page 3).

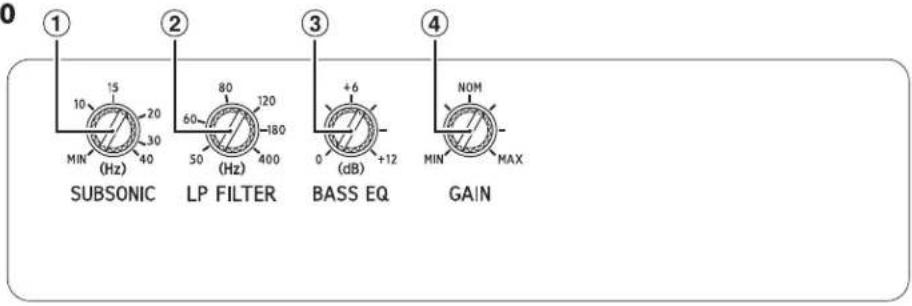

HDA-M80

0 ① 15 20 MIN (Hz) 20 30 40 SUBSONIC ② 80 60 50 120 (Hz) -180 400 BASS EQ +6 0 (dB) +12 ③ ④ NOM MIN MAX GAIN

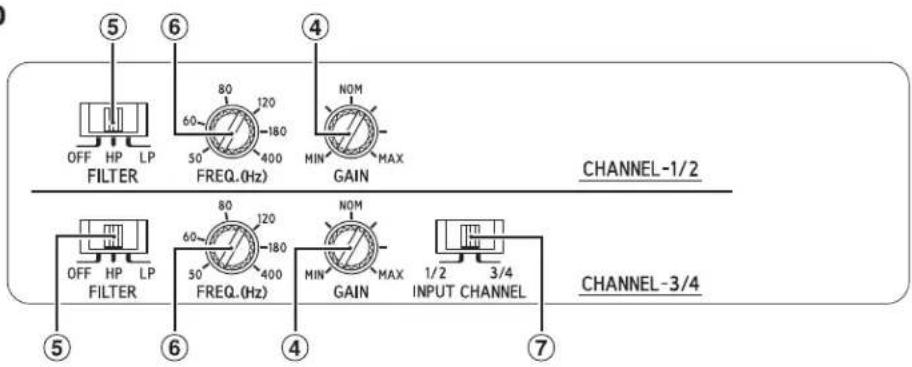

HDA-F60

HDA-V90

CHANNEL-3/4 OFF ON HP FILTER FREQ.(Hz) 80 120 60 50 400 4 NOM MIN MAX 7 1/2 INPUT CHANNEL CHANNEL-/2 OFF ON HP FILTER FREQ.(Hz) 80 120 60 50 400 4 NOM MIN MAX GAIN SUBWOOFER 15 20 30 40 10 20 50 60 80 120 180 400 +6 0 +12 BASS EQ(dB) MIN MAX NOM 1+2+3+4 SUB INPUT CHANNEL 1 2 3 4 9

① Subsonic Filter (HDA-M80/HDA-V90 only)

The subsonic filter for cutting ultra low frequencies from the input signal before being amplified.

This is desirable for several reasons:

• To protect speakers too small or not capable of reproducing ultra low frequencies.
• To minimize power wasted from reproducing inaudible sound.
• To protect subwoofers in vented enclosures from over excursion below the tuning frequency.

② Crossover Frequency Adjustment Knob (LP FILTER) (HDA-M80/HDA-V90 only)

Use this control to adjust the crossover frequency between 50 to 400 Hz.

③ Bass EQ Adjustment Knob (HDA-M80/HDA-V90 only)

Add a 50 Hz bass boost up to +12 dB to tune your bass response.

④ Input Gain Adjustment Control

Set the HDA-M80/HDA-F60/HDA-V90 input gain to the minimum position. Using a dynamic CD as a source, increase the head unit volume until the output distorts. Then, reduce the volume 1 step (or until the output is no longer distorted). Now, increase the amplifier gain until the sound from the speakers becomes distorted. Reduce the gain slightly so the sound is no longer distorted to achieve the optimum gain setting.

⑤ Crossover Mode Selector Switch (HDA-F60 only)

a) Set to the "OFF" position when the amplifier will be used for driving full range speakers or when using an external electronic crossover. The full frequency bandwidth will be output to the speakers with no high or low frequency attenuation.

b) Set to the "HP" position when the amplifier is used to drive a tweeter/midrange system. The frequencies below the crossover point will be attenuated at 12 dB/octave.

NOTE:

- In this case the maximum Bass EQ boost level is reduced.

c) Set to the "LP" position when the amplifier is used to drive a subwoofer. The frequencies above the crossover point will be attenuated at 12 dB/octave.

⑥ Crossover Frequency Adjustment Knob (HDA-F60/HDA-V90 only)

Use this control to adjust the crossover frequency between 50 and 400 Hz.

⑦ Input Channel Selector Switch (CHANNEL-3/4) (HDA-F60/HDA-V90 only)

a) This switch setting is for selecting either 2-channel or 4-channel input mode. When set to "1/2", signal will be copied from CH-1/2 and sent to CH-3/4, eliminating the need for Y-adapters.

b) Setting this switch to "3/4" will keep both inputs, CH-1/2 and CH-3/4 independent. A 4-channel source is required for this mode.

⑧ Crossover Mode Selector Switch (HDA-V90 only)

a) Set to the "OFF" position when the amplifier will be used for driving full range speakers or when using an external electronic crossover. The full frequency bandwidth will be output to the speakers with no high or low frequency attenuation.

b) Set to the "ON" position when the amplifier is used to drive a tweeter/midrange system. The frequencies below the crossover point will be attenuated at 12 dB/octave.

NOTE:

- In this case the maximum Bass EQ boost level is reduced.

⑨ Input Channel Selector Switch (SUBWOOFER) (HDA-V90 only)

a) When this switch is placed in the "1+2+3+4" position, all the signals are mixed and come out from the subwoofer. This setting provides signal to the subwoofer channel when only 4 channel input is available.

b) Setting this switch to "SUB" will send the signal at the inputs of SUB to subwoofer of the HDA-V90.

About Power Indicator

Power Indicator

Lights up when power is on.

Is off when power is off.

Indication color Status Solution
Blue Amplifier circuit is normal.
Red (blinking)	Operating temperature is high.	Turn down the volume of the head unit (input signal).Decrease the vehicle's interior temperature to a normal level.The indicator color changes to blue.
Red Amplifier circuit is abnormal.An electrical short has occurred, or supply current is too high.		Turn off the power supply and eliminate the cause.Then turn on the unit and verify that the indicator color has changed to blue.If it remains red, turn off the unit and consult your dealer.

SYSTEM DIAGRAMS

Before making a connection, check the total number of impedance of the speaker connected to the unit. If you have any questions, contact the nearest Alpine dealer.

Basic Connection Diagram for HDA-M80

13 Head Unit, etc.
14 Front Output
15 Rear Output
16 Subwoofer Output
17 Front Speakers
18 Rear Speaker

19 Subwoofer
20 Dual Voice Coil Subwoofer
21 RCA Extension Cable (Sold Separately)
22 Speaker-RCA Conversion Cable (Sold Separately)
23 Y-Adapter (Sold Separately)

Subwoofer System

HDA-MBO ① ⑦ 30A 30A 30A GND BATT INPUT PREOUT ( L ) REMOTE BASS CONTROL SUB SUB ③ [LO] (R) (L) (R) ②1* (R) (L) ⑪ ⑪ ⑨ ⑩ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬ ⑬

* If the connected head unit does not have a Speaker Output and RCA Extension Cables (21) cannot be used, you can use the Speaker-RCA Conversion Cable (22) (sold separately). For details on how to make a connection, see "About Connection to the Speaker Input Level System" (page 17).

Dual Voice Coil Subwoofer System

Refer to "Subwoofer System" (page 11). HDA-M80 12 12 Parallel connection Series connection

* In the case of using a series connection, the lead wire of the Dual Voice Coil Subwoofer (20) can be connected to either the (+)/(-) terminal of the Speaker Connector (12).

Multiple Mono Amplifier System (Connection example with HDA-F60)

HDA-M80 HDA-F60 1 2 3 [LO] 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30A 30A 30A INPUT LEVEL LO INPUT PREAD OUT REMOTE BASS CONTROL SUB SUB R L R L CH-3 (L) CH-1 CH-3/4 LEVEL CONTROL CH-4 (R) CH-2 INPUT CH-4 REM SATT CH-4 (R) CH-2 INPUT CH-4 REM SATT CH-4 REM SATT CH-4 REM SATT

- For details on the Input Channel Selector Switch (⑦) of HDA-F60, see "Basic Connection Diagram for HDA-F60" (page 13).

Basic Connection Diagram for HDA-F60

13 Head Unit, etc.
14 Front Output
15 Rear Output
16 Subwoofer Output
17 Front Speakers
18 Rear Speaker

19 Subwoofer
20 Dual Voice Coil Subwoofer
21 RCA Extension Cable (Sold Separately)
22 Speaker-RCA Conversion Cable (Sold Separately)
23 Y-Adapter (Sold Separately)

For HDA-F60, change the Input Channel Selector Switch (⑦) setting according to the number of channels of the speaker input.

	4-Channel Input: 14-15 channel Input: 14
7	[3/4]1/2 3/4INPUT CHANNEL	[1/2]1/2 3/4INPUT CHANNEL

4 Speaker System

1 2 3 [LO] 4 5 6 7 8 9 10 11 12 13 14 15* 16 17 HDA-F50 CH-3 L) CH-1 R) CH-3/4 LEVEL CONTROL CH-4 L) CH-2 L) CH-1 R) LED-LED LED-LED R L R L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L

* If the connected head unit does not have a Speaker Output and RCA Extension Cables (21) cannot be used, you can use the Speaker-RCA Conversion Cable (22) (sold separately). For details on how to make a connection, see "About Connection to the Speaker Input Level System" (page 17).

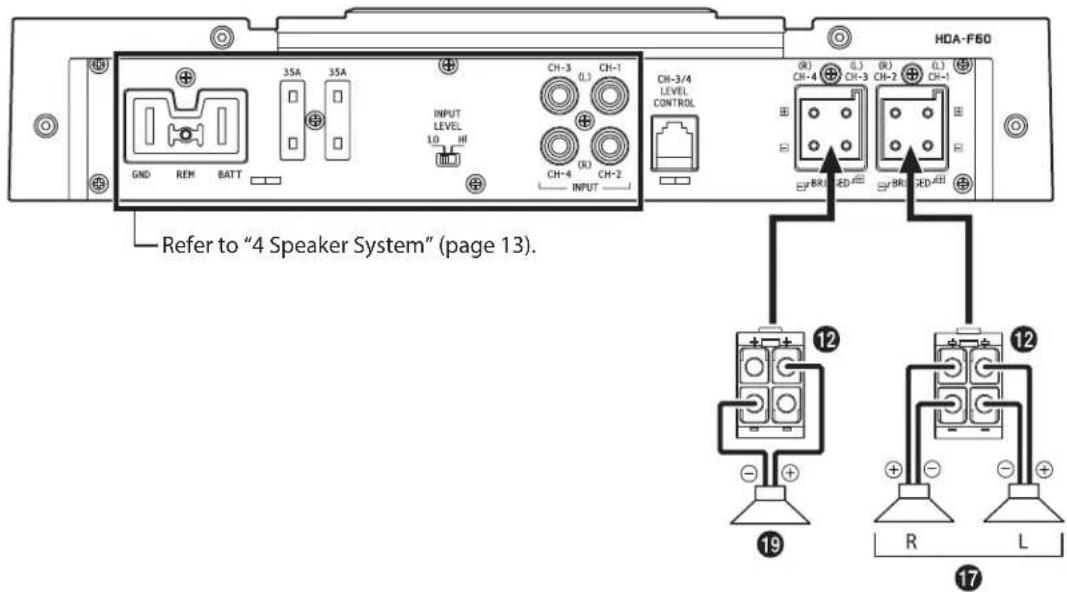

2 Speaker + 1 Subwoofer System (Bridged Connections)

Refer to "4 Speaker System" (page 13).

2 Speaker System (Bridged Connections)

Refer to "4 Speaker System" (page 13).

Basic Connection Diagram for HDA-V90

13 Head Unit, etc.
14 Front Output
15 Rear Output
16 Subwoofer Output
17 Front Speakers
18 Rear Speaker

19 Subwoofer
20 Dual Voice Coil Subwoofer
21 RCA Extension Cable (Sold Separately)
22 Speaker-RCA Conversion Cable (Sold Separately)
23 Y-Adapter (Sold Separately)

For HDA-V90, change the Input Channel Selector Switch (⑦)/(⑨) setting according to the number of channels of the speaker input.

	5-Channel Input:14151617	Input: 2-Channel Input:1415	14
7	[3/4] [1/2]1/2 3/4INPUT CHANNEL		1/2 3/4INPUT CHANNEL
9	[SUB]1+2+3+4 SUBINPUT CHANNEL	[1+2+3+4]1+2+3+4 SUBINPUT CHANNEL

4 Speaker + Subwoofer System

GND BATT 30A 30A 30A INPUT LEVEL LO HI SUB (CH-3) (CH-1) CH-2 REMOTE BASS CONTROL HDA-V90 (R) (CH-4) (CH-3) (CH-2) (CH-1) (R) (CH-4) (CH-3) (CH-2) (CH-1) (R) (CH-4) (CH-3) (CH-2) (CH-1) (R) (CH-4) (CH-3) (CH-2) (CH-1) (R) (CH-4) (CH-3) (CH-2) (CH-1) (R) (CH-4) (CH-3) (CH-2) (CH-1) (R) (CH-4) (CH-3) (LO) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) R L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L R 1 Subwoofer System 2 Subwoofer System (MONO)

* If the connected head unit does not have a Speaker Output and RCA Extension Cables (21) cannot be used, you can use the Speaker-RCA Conversion Cable (22) (sold separately). For details on how to make a connection, see "About Connection to the Speaker Input Level System" (page 17).

4 Speaker + Dual Voice Coil Subwoofer System

HDA-V90 GND REM BATT 30A 30A 30A INPUT LEVEL (L) M SUB (L) CH-3 (L) CH-1 SUB (R) CH-4 (R) CH-2 INPUT REMOTE BASS CONTROL SUB SUB (R) CH-4 (L) CH-3 (R) CH-2 (L) CH-1 BRB ED BRB ED Parallel connection Series connection Refer to "4 Speaker + Subwoofer System" (page 15). 12 12 12 12 R L R L 20 20

* In the case of using a series connection, the lead wire of the Dual Voice Coil Subwoofer (20) can be connected to either the (+)/(-) terminal of the Speaker Connector (12).

2 Speaker + 2 Subwoofer (MONO) System (Bridged Connections)

Refer to "4 Speaker + Subwoofer System" (page 15).

■ About Connecting to the Speaker Input Level System

When connecting by using the Speaker-RCA Conversion Cable (22) (sold separately), switch the Speaker Input Level Switch (3) to "HI".

e.g HDA-F60

- Do not mistake the Speaker Output Lead on the head unit side connected to this unit. Front Speaker output (L)/(R) to CH1/CH2, Rear Speaker output (L)/(R) to CH3/CH4

- For the "Speaker Input Level System" setting, connecting the Remote Turn-On Lead is not required due to the "REMOTE SENSING" function of this product. However, the "REMOTE SENSING" function may not work depending on the signal source connected. In such a case, connect the Remote Turn-On Lead to an incoming power supply cord (accessory power) in the ACC position.

■ Important Tips on Bridging an Amplifier

Low output will result if only one channel input is used. The Y-adapter is not required if a stereo/mono pair line output is used to drive both inputs of the bridged amp.
■ Cautions on Power Supply Wires

Use the specified wire size according to the total fuse capacity of the amplifier to be installed and the wire length.

For details on the wire size to be used, refer to the supplied "Cautions on Power Supply Wires Connection" and the following connection example.

Connection example when installing an amplifier alone

- When the wire length from the amplifier to the vehicle's battery is 5 m Wire size used for (A): 4 AWG/21 mm ^2

- External Fuse capacity: Make it equal to or larger than the fuse capacity of the amplifier HDA-M80/HDA-V90: equal to or larger than 90 A HDA-F60: equal to or larger than 70 A

Connection example when installing two amplifiers with a fuse capacity of 90 A and one amplifier with 70 A

- When the wire length from each amplifier to the distribution block is 1 m Wire size used for (B): 4 AWG/21 mm ^2 (or 8 AWG/8 mm ^2 )

- When the wire length from the distribution block to the vehicle's battery is 4 m Wire size used for (C): 1/0 AWG/53 mm ^2

- External Fuse capacity: Make it equal to or larger than total fuse capacity of the number of amplifiers installed

90 A + 90 A + 70 A = equal to or larger than 250 A

NOTE:

- If the length of the power and ground cables exceed 1 m, or if you connect more than one amplifier, a distribution block should be used.

SPECIFICATIONS

HDA-M80

Performance
Power Output	Per Channel, Ref.: 4 Ω, 14.4 V 500 W RMS x 1
	Per Channel, Ref.: 2 Ω, 14.4 V	800 W RMS x 1
THD+N	Ref.: 10 W into 4 Ω ≤0.02%
	Ref.: Rated Power into 4 Ω ≤0.07%
S/N Ratio	IHF A-wtd + AES-17Ref.: 1W into 4 Ω	>83 dB
	IHF A-wtd + AES-17Ref.: Rated Power into 4 Ω	>107 dB
Frequency Response	+0/-3 dB, Ref.: 1 W into 4 Ω 8 Hz - 400 Hz
	+0/-1 dB, Ref.: 1 W into 4 Ω 10 Hz - 300 Hz
Damping Factor Ref.: 10 W	into 4 Ω at 100 Hz >1,500
Control
Input Sensitivity	RCA InputRef.: Rated Power into 4 Ω	Hi: 0.4 - 10 VL0: 0.1 - 4.0 V
Crossover	Variable HPF/LPF	LPF: 50 Hz - 400 Hz(-24 dB/oct.)
	Variable Subsonic	8 Hz - 40 Hz(-24 dB/oct.)
Equalizer Bass EQ (fc=50 Hz)		0 to +12 dB(Variable)
Remote Level* Linear Attenuation 0 to -20 dB
General
Input Impedance >10 kΩ
Preamp Output CH-1/2 Input Pass-through, Buffered 4 V max
Dimensions	Width	291 mm (11-1/2")
	Height	53.5 mm (2-1/8")
	Depth	189.5 mm (7-1/2")
Weight		3.7 kg (8 lb 3 oz)

* Requires optional RUX-KNOB or RUX-KNOB.2.

NOTE:

- Specifications and design are subject to change without notice.

Performance
Power Output	Per Channel, Ref.: 4 Ω, 14.4 V 100 W RMS x 4
	Per Channel, Ref.: 2 Ω, 14.4 V 150 W RMS x 4
	Bridged, Ref.: 4 Ω, 14.4 V 300 W RMS x 2
THD+N	Ref.: 10 W into 4 Ω ≤0.02%
	Ref.: Rated Power into 4 Ω ≤0.07%
S/N Ratio	IHF A-wtd + AES-17Ref.: 1W into 4 Ω	>87 dB
	IHF A-wtd + AES-17Ref.: Rated Power into 4 Ω	>106 dB
Frequency Response	+0/-3 dB, Ref.: 1 W into 4 Ω 10 Hz - 60 kHz
	+0/-1 dB, Ref.: 1 W into 4 Ω 15 Hz - 30 kHz
Damping Factor Ref.: 10 W	into 4 Ω at 100 Hz >500
Control
Input Select	Selectable Input SignalConfiguration (2ch/4ch Input)	CH-3/4:CH-1/2 or CH-3/4
Input Sensitivity	RCA InputRef.: Rated Power into 4 Ω	Hi: 0.5 - 10 VLo: 0.2 - 4.0 V
Crossover	Variable HPF/LPF	50 Hz - 400 Hz(-12 dB/oct.)
Remote Level* Linear Attenuation 0 to -20 dB
General
Input Impedance >10 kΩ
Dimensions	Width 291 mm (11-1/2")
	Height 53.5 mm (2-1/8")
	Depth 189.5 mm (7-1/2")
Weight		3.8 kg (8 lb 6 oz)

* Requires optional RUX-KNOB.2.

NOTES:

• Specifications and design are subject to change without notice.
• To play back high res sound sources, it is necessary to make all the audio systems High-resolution audio compatible devices.

		CH-1/2/3/4 SUBWOOFER
Performance
Power Output	Per Channel, Ref.: 4 Ω, 14.4 V 75 W RMS x 4 300 W RMS x 1
	Per Channel, Ref.: 2 Ω, 14.4 V 100 W RMS x 4 500 W RMS x 1
	Bridged, Ref.: 4 Ω, 14.4 V 200 W RMS x 2 -
THD+N	Ref.: 10 W into 4 Ω ≤0.02% ≤0.02%
	Ref.: Rated Power into 4 Ω ≤0.07% ≤0.07%
S/N Ratio	IHF A-wtd + AES-17Ref.: 1W into 4 Ω	>87 dB >80 dB
	IHF A-wtd + AES-17Ref.: Rated Power into 4 Ω	>105 dB >104 dB
Frequency Response	+0/-3 dB, Ref.: 1 W into 4 Ω 10 Hz - 60 kHz 8 Hz - 400 Hz
	+0/-1 dB, Ref.: 1 W into 4 Ω 15 Hz - 30 kHz 10 Hz - 300 Hz
Damping Factor Ref.: 10 W	into 4 Ω at 100 Hz	>500	>1,000
Control
Input Select	Selectable Input SignalConfiguration (2ch/4ch/6ch Input)	CH-3/4:CH-1/2 or CH-3/4	CH-1+2+3+4or SUBWOOFER
Input Sensitivity	RCA InputRef.: Rated Power into 4 Ω	Hi: 0.5 - 10 VLo: 0.2 - 4.0 V	Hi: 0.4 - 10 VLo: 0.1 - 4.0 V
Crossover	Variable HPF/LPF	HPF: 50 Hz - 400 Hz(-12 dB/oct.)	LPF: 50 Hz - 400 Hz(-24 dB/oct.)
	Variable Subsonic	-	8 Hz - 40 Hz(-24 dB/oct.)
Equalizer	Bass EQ (fc=50 Hz)	-	0 to +12 dB(Variable)
Remote Level*	Linear Attenuation	-	0 to -20 dB
General
Input Impedance		>10 kΩ
Dimensions	Width	291 mm (11-1/2")
	Height	53.5 mm (2-1/8")
	Depth	189.5 mm (7-1/2")
Weight		3.9 kg (8 lb 10 oz)

* Requires optional RUX-KNOB or RUX-KNOB.2.

NOTES:

• Specifications and design are subject to change without notice.
• To play back high res sound sources, it is necessary to make all the audio systems High-resolution audio compatible devices.

INHALT

WARNUNG....1

Pieds de montage (×2) (fournies) Vis (×8) (fournies)

(P. ex., HDA-V90)

Vis auto-taraudées (× 4) (fournies) Trous (× 4)

(P. ex., HDA-V90)

RETRAIT DU COUVERCLE SUPÉRIEUR

HDA-M80 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 [LO] INPUT L HI R) PREDUT (L) R) REMOTE BASS CONTROL SUB SUB (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15* 16 17 HDA-F50 CH-3 (L) CH-1 (R) CH-2 (R) CH-3/4 LEVEL CONTROL CH-4 (L) CH-2 (R) CH-1 (H) L R L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L R R R R

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15* 16 17 HDA-F50 35A 35A INPUT LEVEL LO HI CH-3 (L) CH-1 CH-4 (R) CH-2 CH-3/4 LEVEL CONTROL (L) (R) (R) (L) 21* 21* (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R)

1 GND 7 4 BATT 30A 30A 30A INPUT LEVEL LO HI SUB (L) CH-3 (L) CH-1 R (R) IN JT CH-2 REMOTE BASS CONTROL HDA-V90 8 11 10 9 3 [LO] (L) (R) (R) (L) (R) (L) 21* 21* 21* 16* 15* 14* 13 (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R)

HDA-M80 1 2 3 [LO] 4 5 6 7 8 9 10 11 12 13 16* 17 18 19 20 21* 22 23 24 25 26 27 28 29 30A 30A 30A INPUT PREDUT REMOTE BASS CONTROL LO HI (R) (R) (L) (L) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) (R) RND BATT SUB SUB

HDA-V90 1 30A 30A 30A INPUT LEVEL LO HI SUB (L) CH-3 (L) CH-1 R (R) IN (R) CH-2 REMOTE BASS CONTROL L (L) (R) (R) (L) (R) (L) 21* 21* 21* 16* (L) (R) 15* (L) (R) 14* (L) (16)* (L) (15)* (L) (14)* (L) (13) 8 11 9 10 13 7 SUB (R) CH-4 (L) CH-3 (R) CH-2 (L) CH-1 SUB (R) CH-4 (L) CH-3 (R) CH-2 (L) CH-1 SUB (R) CH-4 (L) CH-3 (R) CH-2 (L) CH-1 SUB (R) CH-4 (L) CH-3 (R) CH-2 (L) CH-1 SUB (R) CH-4 (L) CH-3 (R) CH-2 (E) SUB (R) CH-4 (L) CH-3 (R) CH-2 (L) SUB (R) CH-4 (L) CH-3 (R) CH-2 (E) SUB (R) CH-4 (L) CH-3 (R) CH-2 (E) SUB (R) CH-4 (L) CH-3 (R) CH-2 (E) SUB (R) CH-4 (L) CH-3 (R) CH-2 (E) SUB (R) CH-4 (L) CH-3 (R) CH-2 (E) SUB (R) CH-4 (L) C 21* 21* 21* 21* 21* Sistema con 1 subwoofer Sistema con 2 subwoofer (MONO)

Driftlampa

1 35A 35A INPUT LEVEL LO HI CH-3 CH-1 CH-4 CH-2 CH-3/4 LEVEL CONTROL (HDA-F50) (7) (8) [LO] (9) (10) (11) (12) R L (13) (L) (R) (R) (L) (14) (L) (R) (R) (L) (15) (L) (R) (R) (L) (16) (L) (R) (R) (L) (17) (L) (R) (R) (L)

1 GND BATT 30A 30A 30A INPUT LEVEL LO HI SUB (L) CH-3 (L) CH-1 R(R) IN (R) JT (R) CH-2 REMOTE BASS CONTROL HDA-V90 8 11 9 10 13 16* (L) (R) (R) (R) (R) (R) (L) 21* 21* 21* 15* (L) (R) (R) (R) (R) (R) 21* 14* (L) (R) (R) (R) (R) (R) 21* 12 R L 17 12 R L 18 12 19 12 19 1 subwoofer system 2 subwoofer system (MONO)

90 A + 90 A + 70 A = 等于或大于 250 A

注：

Information on Disposal of Old Electrical and Electronic Equipment and Battery (applicable for countries that have adopted spearate waste collection systems)

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

DEUTSCH

Auburn Hills, Michigan 48326, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPS ALPINE EUROPE GmbH

Ohmstrasse 4. 85716 Unterschleissheim, Germany

Phone: [phone]

For contact information on your respective country,

please visit www.alpine-europe.com.

ALPS ALPINE EUROPE GmbH

Aurora House, Deltic Avenue, Rooksley, Milton Keynes,

MK13 8LW, United Kingdom

Phone: [phone]

ALPINE ELECTRONICS OF AUSTRALIA PTY., LTD.

161-165 Princes Highway,

Hallam Victoria 3803, Australia

Phone [phone]

阿尔卑斯（中国）有限公司

The 9th Towers, Tower B. 24th Floor, Unit TNB01-03,

33/4 Rama 9 road, Huay Kwang, Bangkok, 10310, Thailand

Phone [phone]
