USER MANUAL Redmi Smart Band 2 Xiaomi

xiaomi Smart Band 8 Active User Manual

Line drawing of a Xiaomi phone connected to a power outlet (no text or symbols on device)

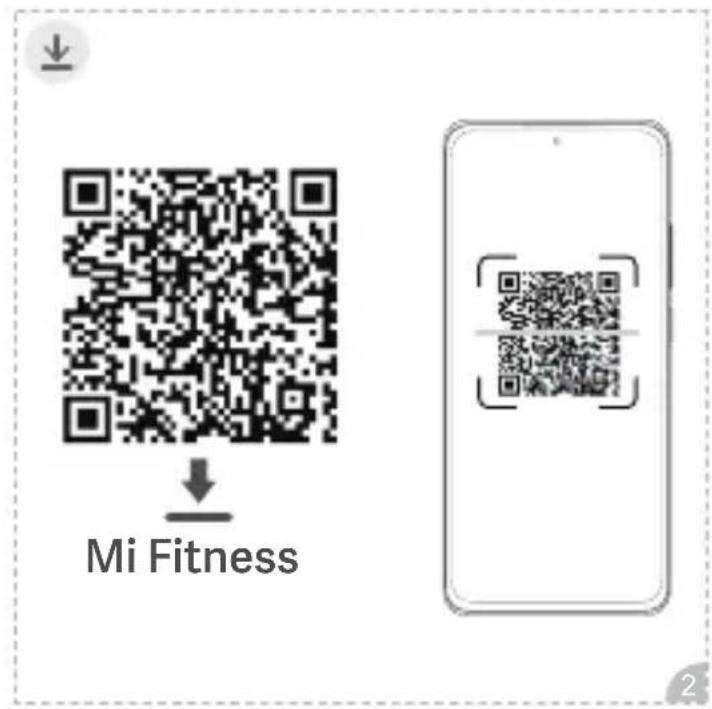

Mi Fitness

Mi Fitness

8 ( ) ( )

Specifications

Product: Smart Band

Model: M2302B1

Net Weight: 26.4 g (Including strap)

Item Dimensions: 42.81 × 25.42 × 9.99 mm

Wristband Material: TPU

Adjustable Length: 135–215 mm

Battery Type: Lithium-ion polymer battery

Battery Capacity: 210 mAh

Input: 5 V = 1 A

Water Resistance: 5ATM

Operating Temperature: 0°C to 45°C

Bluetooth Frequency: 2402–2480 MHz

Maximum Output: ≤ 13 dBm

Wireless Connectivity: Bluetooth® Low Energy 5.1

2023.9 on the product indicates that this product will be launched after 2023.9.

Compatible with: This product only supports certain Android or iOS systems. For detailed information, please check the product page on www.mi.com.

For product certifications related to this band, please go to Settings > About band > Regulatory

Bluetooth®

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Xiaomi Inc. is under license. Other trademarks and trade names are those of their respective owners.

WEEE Disposal and Recycling Information

All products bearing this symbol are waste electrical and electronic equipment which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

EU Declaration of Conformity

Hereby, Xiaomi Communications Co., Ltd. declares that the radio equipment type M2302B1 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.mi.com/global/service/support/declaration.html

Hereby, Xiaomi Communications Co., Ltd. declares that the radio equipment type M2302B1 is in compliance with Radio Equipment Regulations 2017. The full text of the UKCA declaration of conformity is available at the following internet address: https://www.mi.com/uk/service/support/declaration.html

Precautions

- Comfortably tighten the band around your wrist about one-finger width away from your wrist bone.

• When using the band to measure your heart rate, please keep your wrist still.
• The band has a water resistance rating of 5ATM (50 meters in depth). It can be worn in the swimming pool, while swimming near the shore, or during other shallow-water activities. However, it cannot be used in hot showers, sauna, or diving. Furthermore, remember to avoid the band being directly impacted by swift currents during water sports. The water-resistant function is not permanent and may decline over time.
• The touchscreen of the band does not support underwater operations. When the band comes into contact with water, use a soft cloth to wipe away excess water from its surface before use.
• During daily use, avoid wearing the band too tightly and try to keep its contact area dry. Please clean the wristband regularly with water.
• Please stop using the product immediately and seek medical assistance if the contact area on your skin shows signs of redness or swelling.
• This band is not a medical device, any data or information provided by the band should not be used as a basis for diagnosis, treatment, and prevention of diseases.
• The lithium polymer battery in this band cannot be removed. To avoid damage to the battery or the band, do not replace the battery by yourself. There is a risk of explosion if the wrong type of battery is used. Do not dispose of used batteries with household waste. Dispose of this band and used batteries as per local laws and regulations.
• Do not disassemble, strike, crush or throw the battery into fire. Stop using the battery immediately if there is any swelling or fluid leakage. Do not expose it to sunlight, fire, or environments where the ambient temperature is extreme heat.
• When planning not to use the band for a long time, turn it off and then put it away. To avoid damage caused by the over-discharge of the battery, fully charge the band every 6 months.

Battery Safety

• This device is equipped with a built-in battery that cannot be removed or replaced. Do not disassemble or modify the battery by yourself.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

Warranty Notice

As a Xiaomi consumer, you benefit under certain conditions from additional warranties. Xiaomi offers specific consumer warranty benefits which are in addition to, and not instead of, any legal warranties provided by your national consumer law. The duration and conditions related to the legal warranties are provided by respective local laws. For more information about the consumer warranty benefits,

please refer to Xiaomi's official website https://www.mi.com/en/service/warranty/. Except as prohibited by laws or otherwise promised by Xiaomi, the after-sales services shall be limited to the country or region of the original purchase. Under the consumer warranty, to the fullest extent permitted by law, Xiaomi will, at its discretion, repair, replace or refund your product. Normal wear and tear, force majeure, abuse or damage caused by the user's negligence or fault are not warranted. The contact person for the after-sale service may be any person in Xiaomi's authorized service network, Xiaomi's authorized distributors or the final vendor who sold the products to you. If in doubt please contact the relevant person as Xiaomi may identify. The present warranties do not apply in Hong Kong and Taiwan. Products which were not duly imported and/or were not duly manufactured by Xiaomi and/or were not duly acquired from Xiaomi or a Xiaomi's official seller are not covered by the present warranties. As per applicable law you may benefit from warranties from the non-official retailer who sold the product. Therefore, Xiaomi invites you to contact the retailer from whom you purchased the product.

Disclaimer: The illustrations of the product, accessories, user interfaces, and other elements in this User Manual are schematic diagrams for reference only, and they may be slightly different from the actual product. This manual is published by Xiaomi or an enterprise in Xiaomi's ecosystem. Typographical errors and inaccurate information in this manual or the related programs and/or equipment may change without prior notice. Such changes will be indicated in the latest version of the manual.

Manufactured by: Xiaomi Communications Co., Ltd.

Address: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 For further information, please go to www.mi.com

Especificaciones

Dirección: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Indirizzo: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Adresse: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Adresse : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Adres: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Адреса: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Adres: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Morada: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Adres: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Producent: Xiaomi Communications Co., Ltd.

Adres: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 Więcej informacji: www.mi.com

Specificații

Produs: Smart Band

Model: M2302B1

Conectivitate wireless: Bluetooth® Low Energy 5.1

Adresă: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Adresa: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Adresse: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Adress: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Adresse: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Endereço: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

主體尺寸:42.81×25.42×9.99mm

腕帶材質:TPU

可調長度:135-215mm

電池類別:鋰離子聚合物電池

電池容量:210mAh

額定輸入:5V=1A(最大)

防水等級:5ATM

製品寸法：42.81×25.42×9.99mm

ストラップ材質：熱可塑性ポリウレタン

調整可能な長さ：135～215 mm

https://www.mi.com/jp

製造元：Xiaomi Communications Co., Ltd.

所在地：#019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

주소 : #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

ที่อยู่: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Alamat: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

Địa chỉ: #019, 9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085

http://www.mi.com/global/service/support/declaration.html

التدابير liquids

9th Floor, Building 6, 33 Xi'erqi Middle Road, Haidian District, Beijing, China, 100085 ,#019 : العنوان
