SC-128P - Fridge Merax - Free user manual and instructions

Brand	Merax
Model	SC-128P
Product type	Domestic refrigerator
Refrigerant	R600a (flammable gas)
Power supply	220-240 V~ / 50 Hz, 230 V~ / 60 Hz
Number of compartments	2 (refrigerator and freezer)
Interior lighting	10 W bulb or LED depending on model
Temperature control	Rotary knob
Defrosting	Manual
Recommended clearance	At least 100 mm around, 200 mm from top
Door opening angle	Up to 160 degrees
Safety: flammable refrigerant	Use of R600a, do not damage the circuit
Safety: harmful gases	In case of leak, ventilate and avoid flames
Moisture protection	Avoid direct water, do not spray
Heat protection	Keep away from heat sources and sunlight
Monthly maintenance	Clean with damp cloth and mild detergent
Cleaning of gaskets	Door gaskets must be cleaned regularly
Spare parts: power cord	Special cord to be replaced by a qualified agent
Spare parts: bulb	Bulb of same size, shape and power (10 W)
Precautions for children	Do not play with the appliance, supervision required

Frequently Asked Questions - SC-128P Merax

What to do if the refrigerator does not work?

First check that there is no power outage. Make sure the power plug is properly inserted and that the fuse has not blown.

Why does the refrigerator cool excessively?

The temperature control dial may be set too high. If moist foods are placed directly under the cool air outlets, they may freeze. This does not indicate a malfunction.

Why does the refrigerator not cool sufficiently?

Check that the door is properly closed, the gaskets are not damaged, and the temperature dial is correctly set. Also ensure there is enough space around the appliance for ventilation.

How to defrost the freezer?

Remove the food and set the temperature knob to '0' (compressor stop). Leave the door open until the ice melts. To speed up, place a container of warm water (about 50 °C) inside the compartment. Turn the knob back to its original position after defrosting.

How to clean the refrigerator?

Unplug the appliance. Clean the interior and exterior surfaces with a damp cloth and a mild detergent. Rinse and dry. Do not use hot water, solvents or abrasive products. Clean the drip tray regularly.

What to do in case of refrigerant leak?

Evacuate all persons immediately, ventilate the room and contact the fire department. Do not use any open flames and do not let anyone enter until a qualified technician arrives.

Can I use electrical appliances inside the refrigerator?

No, unless they are appliances recommended by the manufacturer. Do not use mechanical devices to accelerate defrosting.

How to change the bulb?

Unplug the refrigerator. Remove the light cover, unscrew the bulb and replace it with a bulb of the same size, shape and power (10 W or LED depending on model). Replace the light cover and plug back in.

What to do if the power cord is damaged?

The cord must be replaced only by a repair agent authorized by the manufacturer, as special tools are required.

Why is there condensation on the outside of the refrigerator?

This happens in humid weather, like condensation on a glass of cold water. It is not a defect. Simply wipe with a dry cloth.

USER MANUAL SC-128P Merax

Line drawing of a refrigerator with doors open, showing front shelves and top panel (no text or symbols)

Black triangular warning symbol with exclamation mark (no text or numbers)

C€

EC REP

Cartoon illustration of a book character with arms and legs, waving one hand (no text or symbols)

Stromversorgung

Cartoon illustration of a book character with arms and legs, accompanied by a thought bubble showing a magnetic field (no text or symbols)

Cartoon illustration of a document character with arms and legs, holding an umbrella and splashing water (no text or symbols)

Schutz vor Hitze

Cartoon illustration of a smiling pot with steam rising from its side (no text or symbols)

Stabile Befestigung

Cartoon illustration of a computer monitor with a sad face and limbs (no text or symbols)

Cartoon illustration of a smiling document character with arms and legs, accompanied by a small object (no text or symbols)

Umzug

Cartoon illustration of a person holding a large rectangular object with a 45° angle标注 (no text or symbols on the object itself)

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or explosion risk.

7. Auftaue n

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

COMPACT FRIDGE

User's Manual

ES301428SAA

Mierax®

Congratulations for choosing this product.

Before using this product for the first time, please read the manual carefully and use the equipment only as described in the manual to avoid hazards and personal injury. Please retain this manual for future reference.

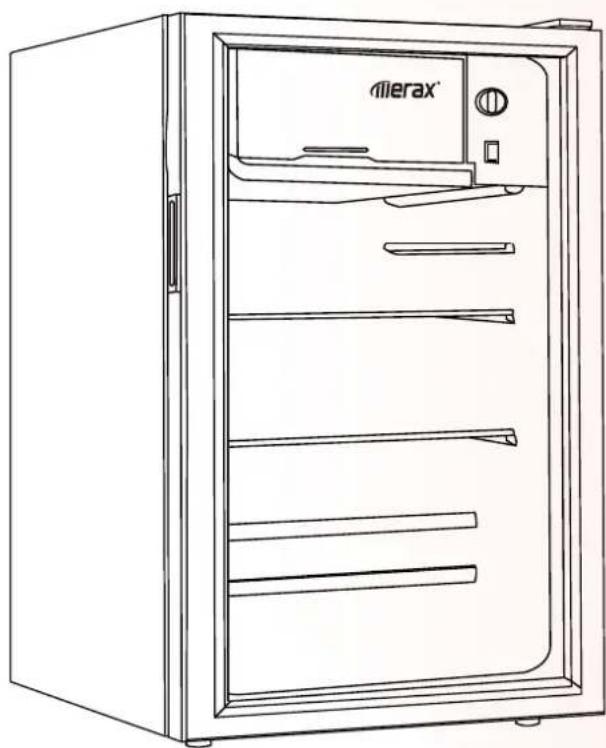

Line drawing of a modern refrigerator with doors open, showing front shelves and control panel (no text or symbols)

Applicable model: SC-128P

CAUTION

Read all precautions and instructions in this manual before using this equipment. If you have any questions about this product, please consult your supplier in time.

Contents

PRECAUTIONS....18

HOW TO INSTALL THE LIGHT 20

INSTRUCTION OF APPROPRIATE USAGE 21

NAME OF PARTS....22

CORRECT POSITIONING 23

PRECAUTIONS 25

DEFROSTING 27

MAINTENANCE....28

TROUBLESHOOTING 29

DISPOSAL 30

Please stand for 24 hours after receiving the product to prevent coolant leakage.

Black triangular warning symbol with exclamation mark (no text or numbers)

C€

EC REP

The environmentally friendly R600a is used as the refrigerant. R600a has no damaging influence on the ozone layer (ODP), a negligible greenhouse effect (GWP) and is available worldwide. Because of its efficient energy properties, R600a is highly suitable as a coolant for this application. Special precautions taken into consideration due to the coolant's high flammability.

This unit uses a flammable refrigerant. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
◆ This appliance is intended to be used in household and similar applications such as
◆ – Staff kitchen areas in shops, offices and other working environments;
- Farm houses and by clients in hotels, motels and other residential type environments;
◆ – Bed and breakfast type environments;
◆ – Catering and similar non-retail applications.

If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• the appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
• children being supervised not to play with the appliance
• children shall not play with the appliance
  -cleaning and user maintenance shall not be made by children without supervision

Children aged from 3 to 8 years allowed to load and unload refrigerating appliances.

THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY

The unit is designed only for use with R600a gas as the designated refrigerant.
◆ The refrigerant loop is sealed. Only a qualified technician should attempt to service!
◆ Do not discharge the refrigerant into the atmosphere.
If R600a is present or even suspected, do not allow untrained personnel to attempt to find the cause.
◆ The lack of smell does not indicate a lack of escaped gas.
If a leak is detected, immediately evacuate all persons from the store, ventilate the room and contact the local fire department to advise them that a leak has occurred.
Do not let any persons back into the room until the qualified service technician has arrived and that technician advises that it is safe to return to the room.
No open flames, cigarettes or other possible sources of ignition should be used inside or in the vicinity of the units.

WARNING :

• WARNING – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction
• WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer
• WARNING – Do not damage the refrigerant circuit

-WARNING – Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power

supplies at the rear of the appliance

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its services agent.

FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.

Symbol ISO 7010 W021

Warning; Risk of fire / flammable materials

2. How to install the light

Please note that in some models the interior lights are LEDs that cannot be changed. Other models require a 10-watt bulb. Not all bulbs will fit your refrigerator - be sure to replace the bulb with one of the same size, shape and wattage.

To Change the Light Bulb:

I. Unplug refrigerator or disconnect power.

II. Remove light shield when applicable.

III. Remove light bulb and replace with one of the same size, shape and wattage.

IV. Replace light shield when applicable.

V. Plug in refrigerator or reconnect power.

Light installation

Switch hole Bolt hole

3. Instruction of appropriate usage

To avoid confound please respect the following

instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes
• One-, two- and three-star compartments are not suitable for the freezing of fresh food
• If the refrigerating empty for long periods, switch off, defrost,

clean, dry, and leave the door open to prevent mould developing within the appliance

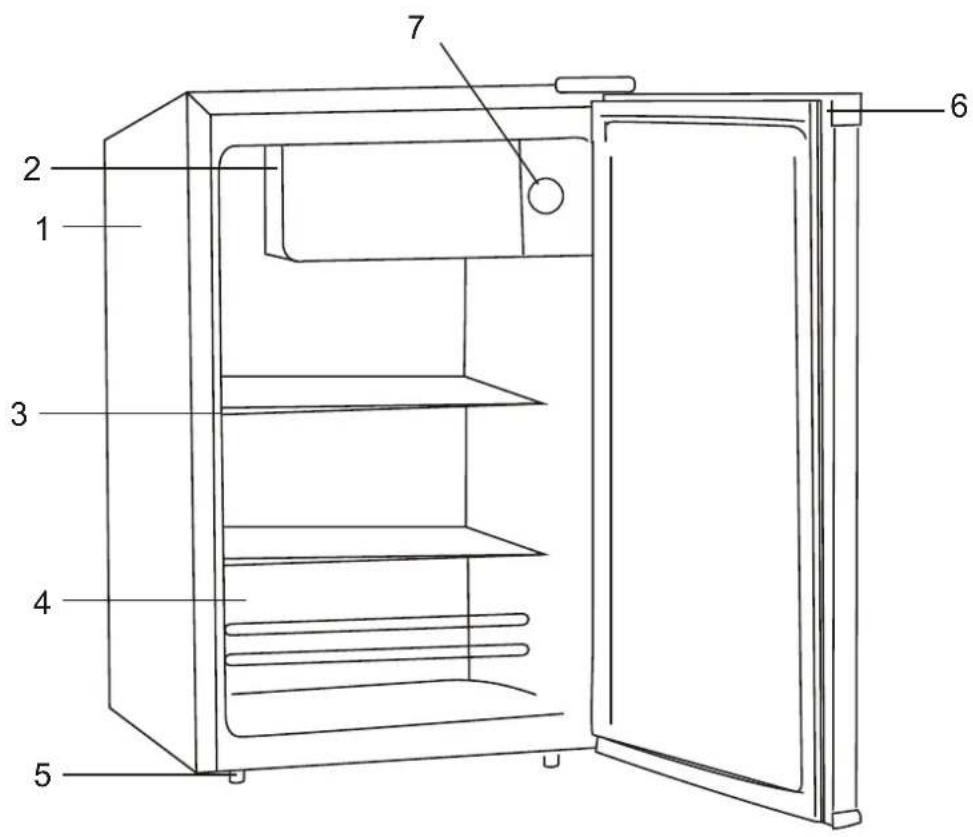

4. Name of parts

2 1 3 4 5 7 6

1. Cabinet
2. Freezer Compartment door (Ice cream)
3. Drip Tray
4. Door Stop

5. Leveling legs

6. Recessed Handle

7. Temperature Control Knob

5. Correctly Positioning

Ventilation

For easy heat dissipation, low power consumption and maximum efficiency, the refrigerator should be kept in a well-ventilated area. There should be space of at least 100mm around the refrigerator and at least 200mm clear of the roof. There should be enough space to allow the door to open 160 degree.

Cartoon illustration of a book character with arms and legs, waving one hand (no text or symbols)

Power Supply

The refrigerator is only applied with power supply of single-phase alternating current of (220-240) V\~/50Hz; 230V\~/60Hz). If fluctuation of voltage in the district user is of so large that the voltage exceeds the above scope, for safety's sake, be sure to apply A.C. automatic voltage regulator to the refrigerator. The refrigerator must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

10%10%+ _50Hz60Hz (+220-240)V~ 230V~

Power Cord

The cord should never be lengthened or folded or allowed to coil during operation. The cord should never be kept close to the compressor or at the back of the refrigerator as the surface temperature is always high when operating. Any contact of the cord with the compressor could damage the insulation or cause leakage.

Cartoon illustration of a book character with a thought bubble showing a magnetic field (no text or symbols)

Protection from Moisture

Avoid placing the unit in a wet or damp area as moisture would cause rust on metal parts. Never spray the unit directly with water as this would result in poor insulation and may cause current leakage.

Cartoon illustration of a document character with arms and legs, holding an umbrella and droplets (no text or symbols)

Protection from Heat

The refrigerator should be far away from any heat source or direct sunshine.

Cartoon illustration of a smiling pot with steam rising from its side (no text or symbols)

Fixing Stable

Floor on which refrigerator will be placed must be flat and solid. It should not be laid on any soft material such as foam plastic. etc. If the refrigerator is not on the same level, adjust the screws accordingly. The refrigerator should not be placed near anything which may echo.

Cartoon illustration of a computer monitor with a sad face and limbs (no text or symbols)

Keep Away from Danger

Do not place the refrigerator near any volatile or combustible elements like gas, petrol, alcohol, lacquer and banana oil. These should not be stored in the refrigerator at all.

Cartoon illustration of a smiling document character with arms and legs, accompanied by a small book and pen (no text or symbols)

Moving

When fixed or moved, the refrigerator cannot be set horizontally or declined to more than 46^ or upside-down.

Cartoon illustration of a person holding a rectangular object with a 45-degree angle标注 (no text or symbols on the object itself)

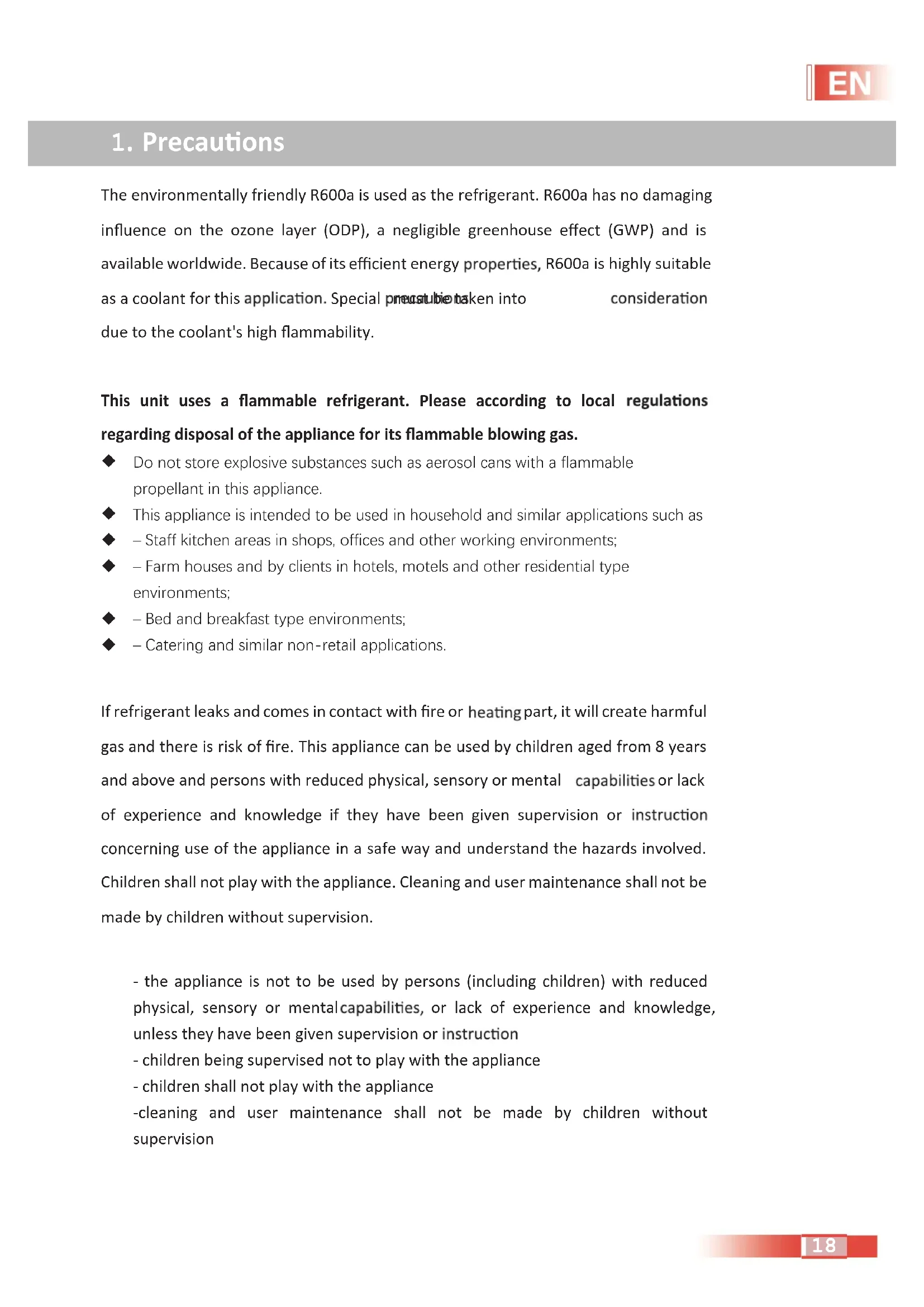

6 Precautio ns

The environmentally friendly R600a is used as the refrigerant. R600a has no damaging influence on the ozone layer (ODP), a negligible greenhouse effect (GWP) and is available worldwide. Because of its efficient energy properties, R600a is highly suitable as a coolant for this application. Special precautions must be taken into consideration due to the coolant's high flammability.

Warning -This unit uses a flammable refrigerant.

If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire.

◆ Read the USER MANUAL carefully before operation.
◆ Further information is available in the USER MANUAL, SERVICE MANUAL, and the like.
◆ Service personnel are required to carefully read the USER MANUAL and SERVICE MANUAL before operation.

THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

◆ The unit is designed only for use with R600a gas as the designated refrigerant.
◆ The refrigerant loop is sealed. Only a qualified technician should attempt to service!
◆ Do not discharge the refrigerant into the atmosphere.
If R600a is present or even suspected, do not allow untrained personnel to attempt to find the cause.
◆ The lack of smell does not indicate a lack of escaped gas.
If a leak is detected, immediately evacuate all persons from the store, ventilate the room and contact the local fire department to advise them that a leak has occurred.
Do not let any persons back into the room until the qualified service technician has arrived and that technician advises that it is safe to return to the room.

◆ No open flames, cigarettes or other possible sources of ignition should be used inside or in the vicinity of the units.

FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.

Warning

This unit uses a flammable refrigerant.

If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire.

Read the USER MANUAL carefully before operation.

Further information is available in the USER MANUAL, SERVICE MANUAL, and the like.

Service personnel are required to carefully read the USER MANUAL and SERVICE MANUAL before operation.

Warning symbol of a flame inside a triangle (no text or numbers)

7. Defrosting

◆ Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside, it will weaken the refrigerator when the frost is thick, while it is more than 2mm thick, you should defrost.
◆ Defrosting in freezer chamber is operated manually. Before defrosting, take the food, the ice tray and the shelf out into the cold storing chamber temporarily then set the knob of the temperature regulator to position"0"(where the compressor will stop working) and leave the door open until ice and frost dissolve thoroughly deposited at the bottom drip tray of the freezer chamber. Take out the drip tray and discard the water carefully. In the case of speeding up the defrosting, you may put a bow of warm water (about 50°C) into the freezer chamber, and be sure to set the knob of the temperature regulator to original position after defrosting.
It is not advisable to heat the freezer chamber directly with hot water or hair dryer while defrosting to prevent deformation of the inner case.
◆ Avoid using sharp object to scrape the ice and frost as these may damage the inner casing on the surface of the evaporator.

8. Maintenance

◆ The refrigerator should be cleaned and maintained once a month.
When performing maintenance, make sure that the power plug is disconnected from the power outlet in first.
◆ Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If they are too dirty, scrub them with neutral detergent, and then clean them with water and dry them with clean cloth. After this, a small quantity of glass wax is recommended to polish the refrigerator surface with a flannelette.
For cleaning, don't use hot water, diluent, petrol, alcohol, kerosene, washing powder, cleanser, laundry detergent, acid, chemical cloth, etc. So as not to damage the lacquer coat and plastics. It is forbidden to spay water to the refrigerator directly. Otherwise, it would cause rusty or weaken the insulation.
◆ Be careful to upkeep the sealing rubber bars of the doors. They should always be cleaned.
If the plastic parts in refrigerator remain contaminated for a long time by oil (animal or vegetable), they will be easily aged and possibly cracked. The drain pan gets dirty very easily if it is not cleaned regularly, bad odors will be produced, get into the habit of cleaning this pan regularly.
If the supply cord of this appliance is damage. It must only be replaced by a repair agent recommended by manufacture or store as special tools are required.

9. Troubleshooting

1. When the refrigerator does not work

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

2. When the refrigerator is cooling excessively

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily - This does not indicate a malfunction.

3. When the refrigerator is not cooling sufficiently

The door may not have been closed properly.

The door gaskets may be damaged.

The temperature control dial may not be set properly.

To allow proper ventilation make sure there is enough space between the refrigerator and the surface around the refrigerator as well as between the top of the refrigerator and the roof.

4. When the defrosting water overflows inside the refrigerator and onto the floor

Check that the drain pipe and the drain hose are not dogged.

Check that the drain pan is housed properly.

5. When condensation form on the outside of the refrigerator

Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe it dry with a dry cloth.

6. When you hear a sound like water flowing

A sound like water flowing is the refrigerant flowing- It does not Indicate a malfunction.

7. When the cabinet's side panel heats up

The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature, In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

10. DISPOSAL

WARNING!!!

Releasing refrigerant into atmosphere is strictly forbidden!

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

FRIGO COMPACT

Line drawing of a refrigerator with doors open, showing front shelves and control panel (no text or symbols)

Black triangular warning symbol with exclamation mark (no text or numbers)

C€

EC REP

Cartoon illustration of a book character with arms and legs, waving one hand (no text or symbols)

Source de courant

Cartoon illustration of a book character with arms and legs, accompanied by a thought bubble showing a magnetic field (no text or symbols)

Cartoon illustration of a document character with arms and legs, holding an umbrella (no text or symbols)

Cartoon illustration of a smiling pot with steam rising from its side (no text or symbols)

Fixation Écurie

Cartoon illustration of a computer monitor with arms and legs, featuring a smiling face (no text or symbols)

Cartoon illustration of a smiling document character with arms and legs, holding a book (no text or symbols)

En mouvement

Cartoon illustration of a character holding a rectangular object with a 45° angle标注 (no text or symbols on the figure itself)

6. Précautio ns

FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.

Attention

Warning sign depicting a flame symbol in a triangular frame, indicating hazard or hazardous status.

7. Décongélati on

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)
