TX288704 - Remote control toy Merax - Free user manual and instructions

Product Type	Remote Control Toy
Brand	Merax
Model	TX288704
Power Supply	12V 4.5Ah Battery
Charger	Input 120-240VAC, output 12VDC 0.5A
Gross Weight	20 kg
Net Weight	16 kg
Recommended Age	37 to 95 months (approximately 3 to 8 years)
Maximum Load	30 kg
Charging Time	8 to 12 hours (10 hours for the first charge)
Speed	3 to 5 km/h
Main Functions	Forward/Reverse, left/right, music, siren, high and low speeds, power display, microphone interface
Remote Control	Works with 2 AAA 1.5V batteries, standard range, frequency adjustment by long press
Assembly	Requires adult assembly (wheels, windshield, rear wing, seat, side mirrors)
Safety	Do not use on roads, adult supervision required, seat belt, do not charge more than 18 hours, avoid water and fire
Maintenance and Cleaning	Clean with a dry cloth, do not use solvents, turn off after use, charge at least once a month when not in use
Spare Parts and Repairability	Use only parts provided by the manufacturer; do not modify the structure or electrical lines
General Information	User manual available in PDF; complies with toy safety standards

Frequently Asked Questions - TX288704 Merax

How to assemble the front and rear wheels?

To assemble each wheel, insert a washer onto the axle, then the wheel, another washer, and secure with a cotter pin. Finally, insert the hubcap. Repeat for all four wheels.

What is the charging procedure for first use?

For the first charge, plug the charger into the charging hole (under the steering wheel) then into a wall outlet. Charge for 10 hours without interruption. Do not exceed 18 hours of continuous charging.

What to do if the remote control stops responding?

First check the remote control batteries (2 AAA 1.5V batteries). If the indicator does not light up, replace them. Then perform a frequency adjustment: press and hold the forward and backward buttons on the remote for 3 seconds until the indicator flashes, then turn on the car.

Can I use the car in rain or on water?

No, the car must not be used in rain or snow. Water can damage the motor, electrical system or battery. Clean only with a dry cloth.

How to adjust the frequency between the remote control and the car?

Press and hold the forward and backward buttons on the remote for 3 seconds until the speed indicator flashes. Then turn on the car: if the indicator stays on, the connection is successful. Otherwise, repeat the operation or change the batteries.

What is the maximum load capacity of the car?

The maximum load capacity is 30 kg. Do not exceed this limit to avoid damaging the car or causing accidents.

How to clean the car?

Use a dry soft cloth to clean the body. Never use chemical solvents and do not wash with water. Store indoors, away from sunlight and moisture.

What to do if the battery overheats abnormally during charging?

It is normal for the battery and charger to heat up to 60°C. If the temperature exceeds this value or an odor occurs, unplug immediately and stop charging. Check the charger and battery, and contact the manufacturer if necessary.

From what age can my child use this toy?

The recommended age is 37 to 95 months (approximately 3 to 8 years). Children under 36 months should not play with this toy due to small parts and sharp edges during assembly.

Should I use rechargeable batteries for the remote control?

The remote control works with non-rechargeable AAA 1.5V batteries. Do not use rechargeable batteries or mix new and used batteries. Used batteries must be removed and replaced by an adult.

USER MANUAL TX288704 Merax

Line drawing of a convertible car with visible grille, front wheel, and side seats (no text or symbols)

Interior view of a vehicle chassis with black plastic components and wiring, no visible text or symbols

Model of a white police car with blue and yellow stripes, partially attached to a series of black-and-white toy wheels (no text or symbols visible)

3. Lenkradeinbau

Close-up of a white police car interior showing steering wheel, dashboard, and steering wheel (no visible text or symbols)

Close-up of a police car's front bumper with visible 'POLICE' branding and internal wiring, shown in an inset (no text or symbols on the vehicle itself)

Close-up of a white automotive body panel with black plastic cover and cable inserted, showing internal components (no text or symbols visible)

WARNING Accidenta to graphical, storage vocabulary links and bootretable body power tms docking

7.Sitzmontage

Close-up of a white and blue electric car with black seats and red/green traffic lights (no visible text or symbols)

Front view of a white and blue police car with 'POLICE' branding, showing steering wheel, dashboard, and front wheel (no readable text beyond vehicle markings)

Warnungen

REFRESH SOCKET

Simple line drawing of a device with a cable and a rectangular plate, no text or symbols present.

• R/C controls forward/backward and left/right
- Music
• Volume adjustment
- Power display
- Forward and backward
● High and low speed

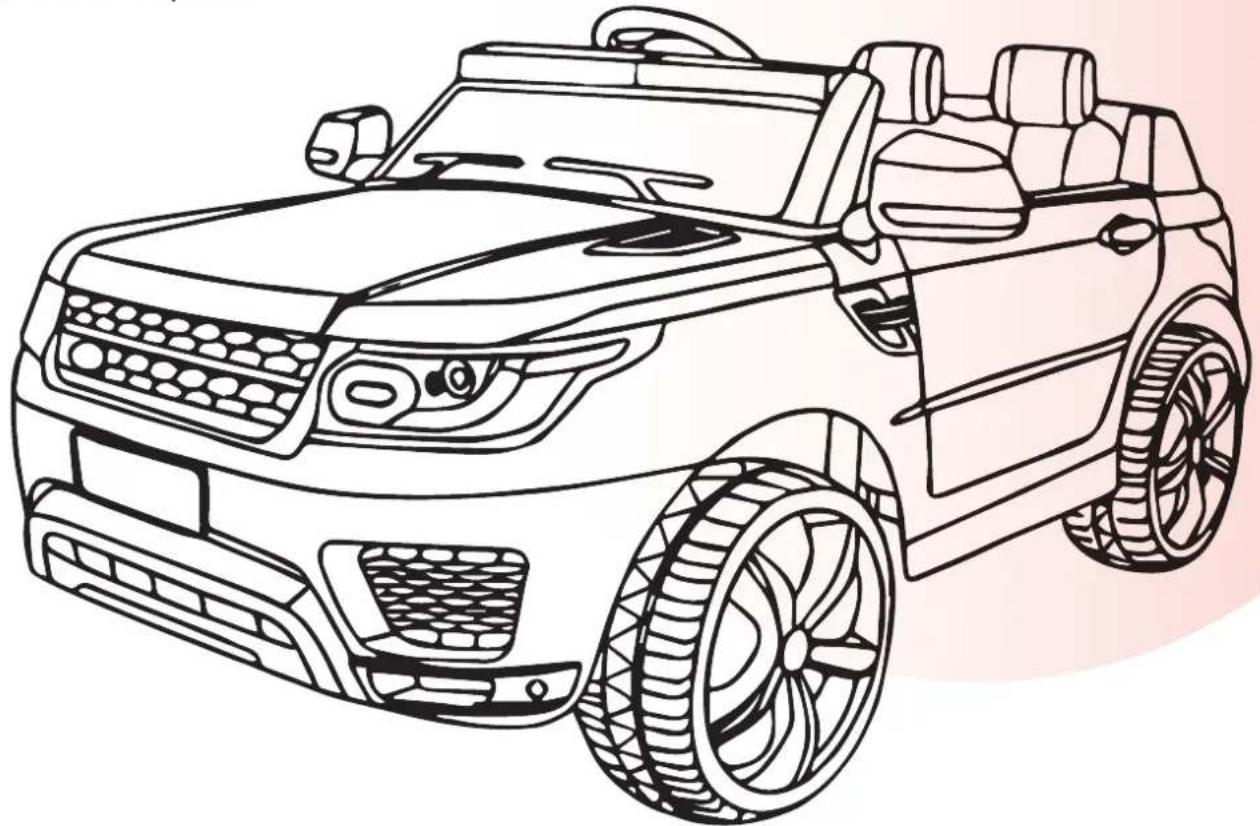

Line drawing of a convertible car with visible grille, front wheel, and side seats (no text or symbols)

WARNING: The toy is to be assembled by an adult.

In unassembled state contain potentially hazardous sharp points, sharp edges and small part, so please keep out of baby's reach

Warning: Not to be used in traffic.

Contents

PARTS LIST 14

PRODUCT SPECIFICATIONS 14

CONTROL SYSTEM.... 15

INSTALLATION ORDER DIAGRAM.... 16

PRECAUTIONS.... 20

CHARGING INSTRUCTION.... 21

MAINTENANCE AND SERVICE 22

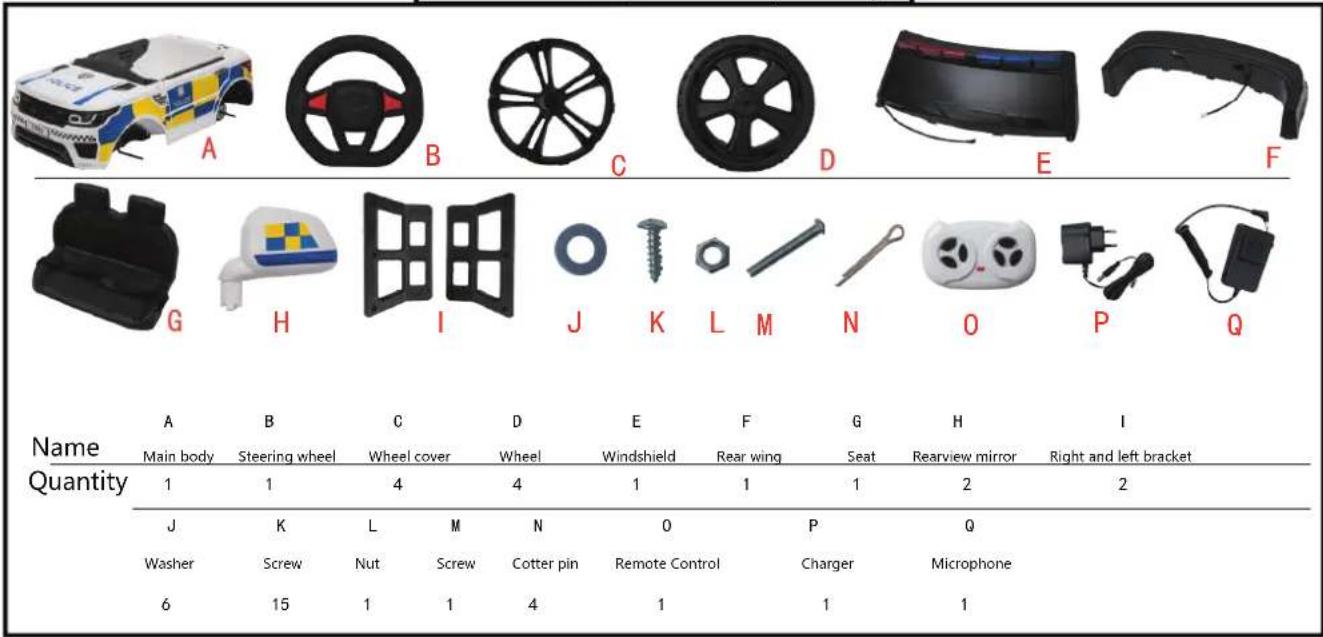

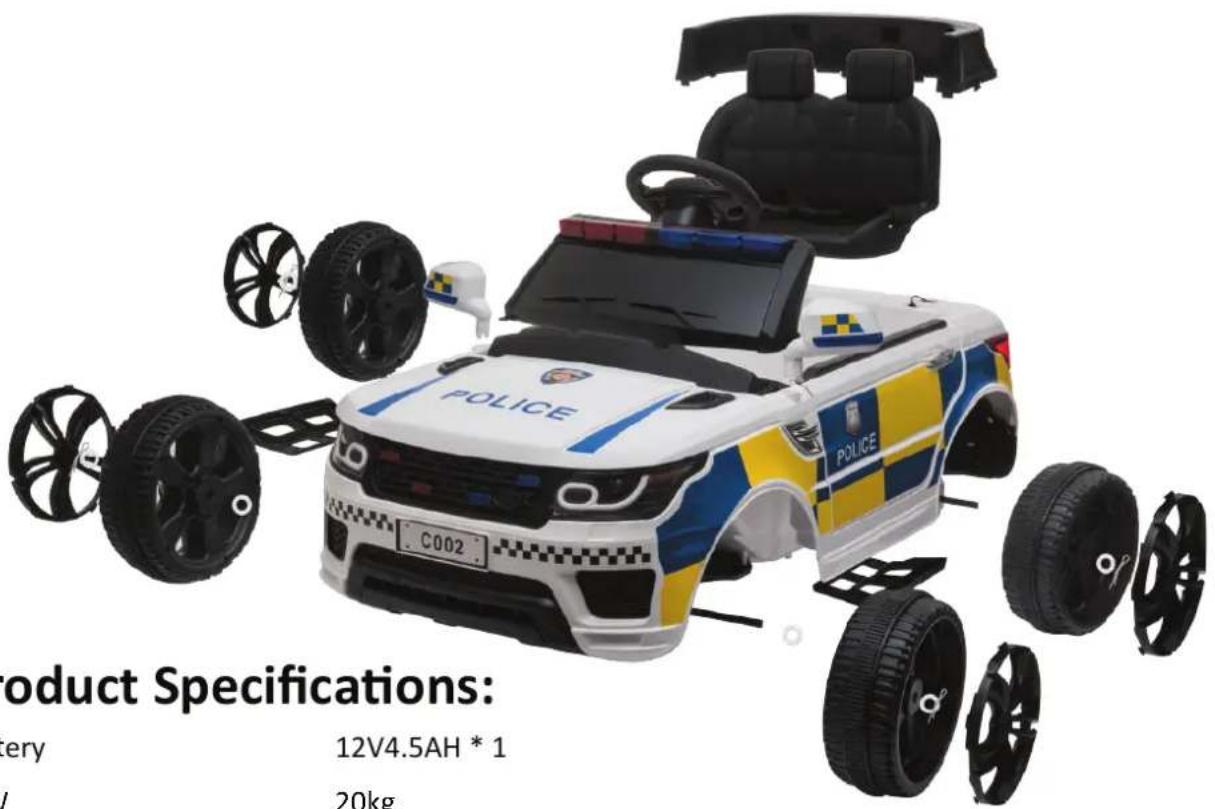

Parts List:(Name and Quantity)

POLICE C002 POLICE 12V4.5AH * 1 20kg

Product Specifications:

Battery 12V4.5AH * 1

G.W 20kg

N.W 16kg

Suitable age 37-95months

Maximum load 30kg

Charging time 8-12 hours

Charger Charge for 8-10h, Use for 1-2h

Input: 120-240VAC Output: 12.0VDC 0.5A

Speed 3-5 km/h

The above product specifications may have some slight errors,

the specific specifications are subject to the actual product.

Function

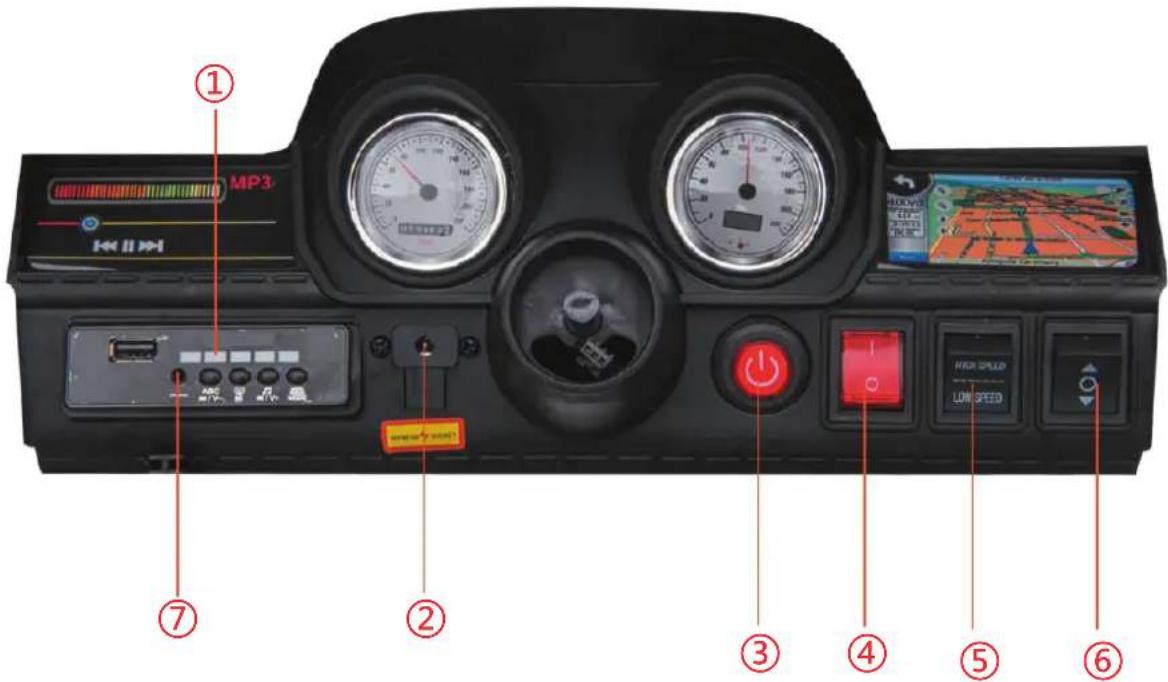

① MP3 ⑦ ② ③ ④ ⑤ ⑥ HIGH SPEED LOW SPEED

Button function

① Power display
② Charging hole
③ Power button
④ Siren button
⑤ High and low speed

⑥ Forward and backward
⑦ Microphone interface

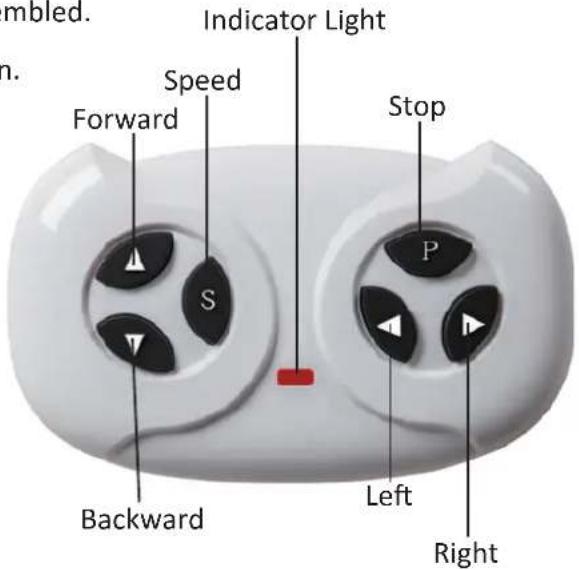

Remote control function and explanation

• Do not swiftly switch forward/backward button when car is driving, or will damage the motor.
• Remote control can be used normally when battery assembled.
• Remote control should be used under adults' supervision.
• Remote control is prior to manual control.

Imbled. Indicator Light Speed Forward Stop P S Backward Left Right

How to adjust R/C frequency:

Long press forward and backward button for 3 seconds, and the speed indicator flashes. Then turn on the power, the speed indicator goes to long bright, means the connection successfully. If the speed indicator no response, means the connection failed. Replace the batteries and retry.

Remote control battery operation

• Take off the battery cover. Put two AAA1.5V remote control battery in with right polarity.
• New and used batteries can not be used mixed.
• Do not insert batteries into wrong polarity, or will be short-circuited.
• Non-rechargeable batteries can not be recharged. Exhausted batteries should be replaced by adults.
• The exhausted battery must be handled and operated properly by adults only. Do not be played by children.

Installation Order Diagram

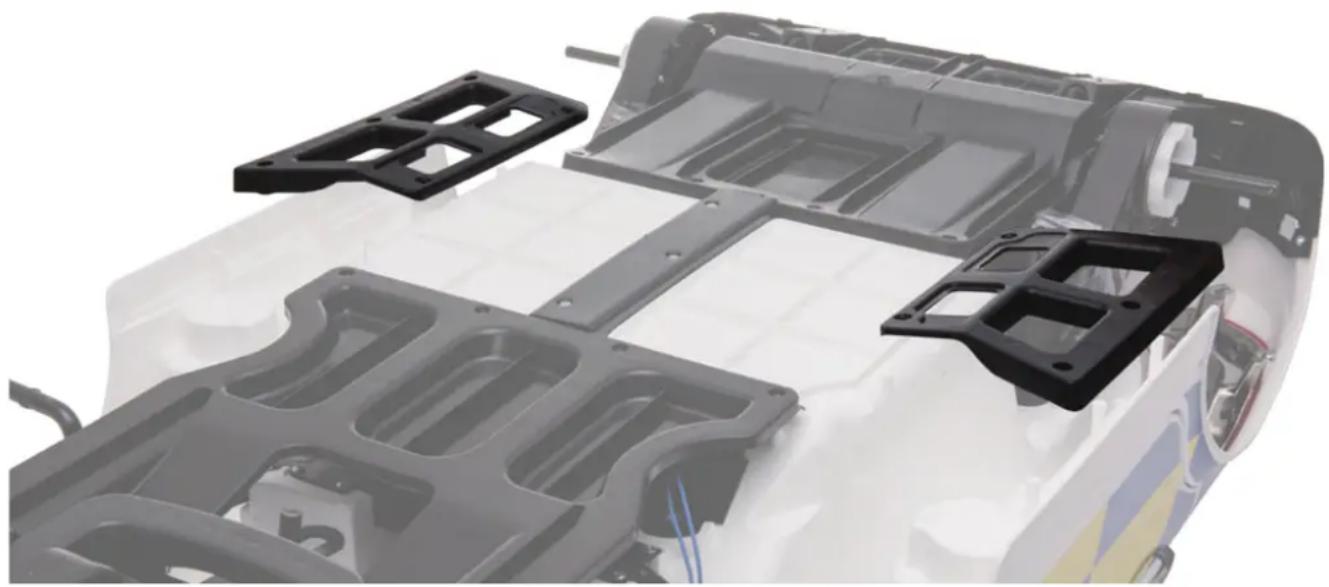

1. Right and left bracket assembly

Place the right and left brackets at the corresponding holes on the body and tighten it with screws.

Interior view of a vehicle chassis with black plastic components and wiring, no visible text or symbols

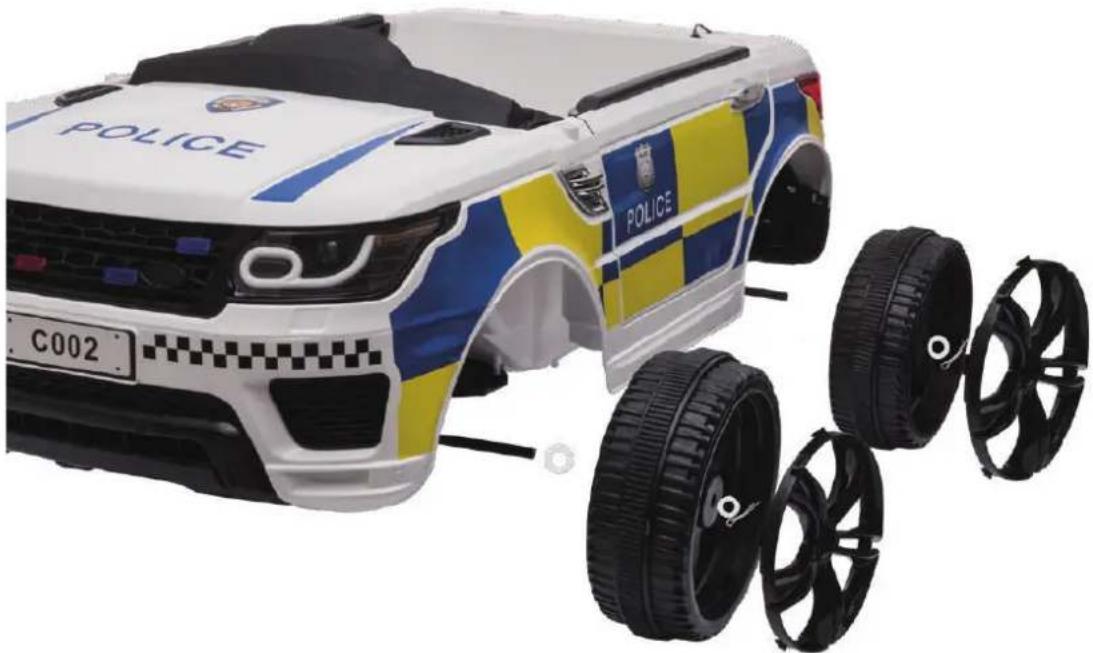

2.Front and rear wheels assembly

Assembling washer, front wheel, washer step by step, then using cotter pin to tighten, finally inserting wheel cover. Assembling rear wheel, washer step by step, then using cotter pin to tighten, finally inserting wheel cover. Same way to the other side.

Model of a white police car with blue and yellow stripes, connected to three black toy wheels (no text or symbols visible)

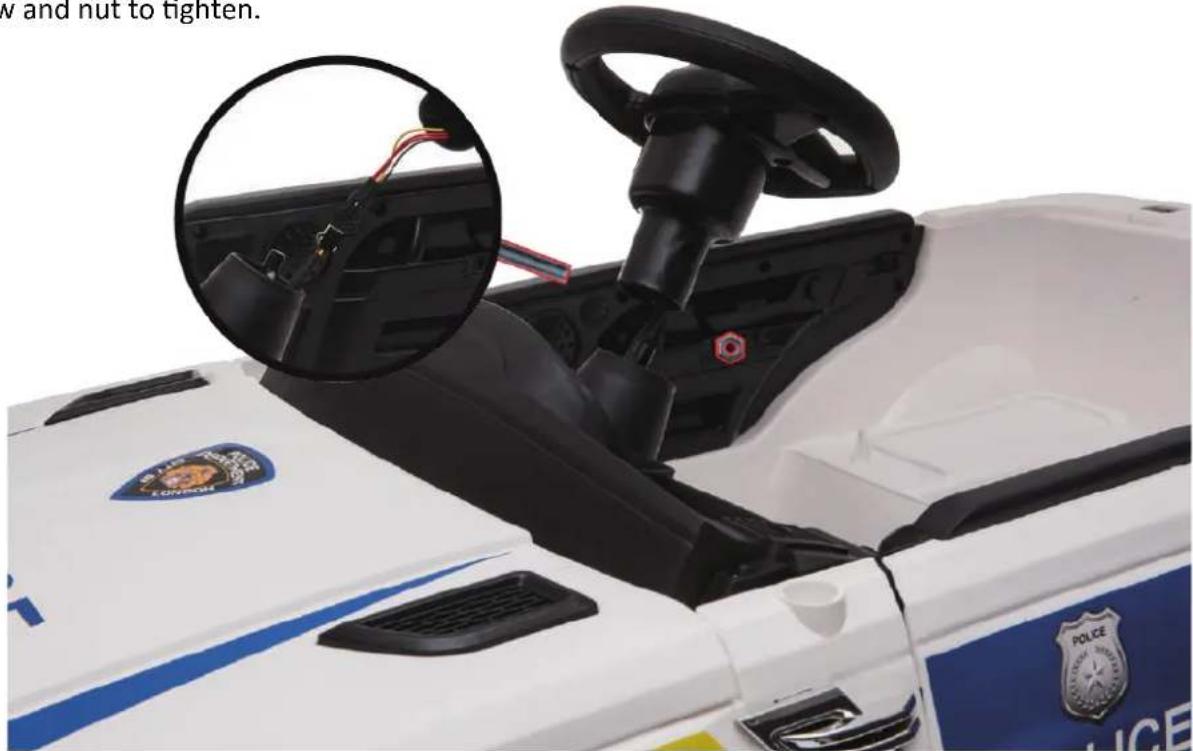

3. Steering wheel assembly

Connecting two lines like the picture, then inserting the steering wheel to the direction lever, finally use screw and nut to tighten.

Close-up of a white police car interior with visible steering wheel, dashboard, and gear (no text or symbols)

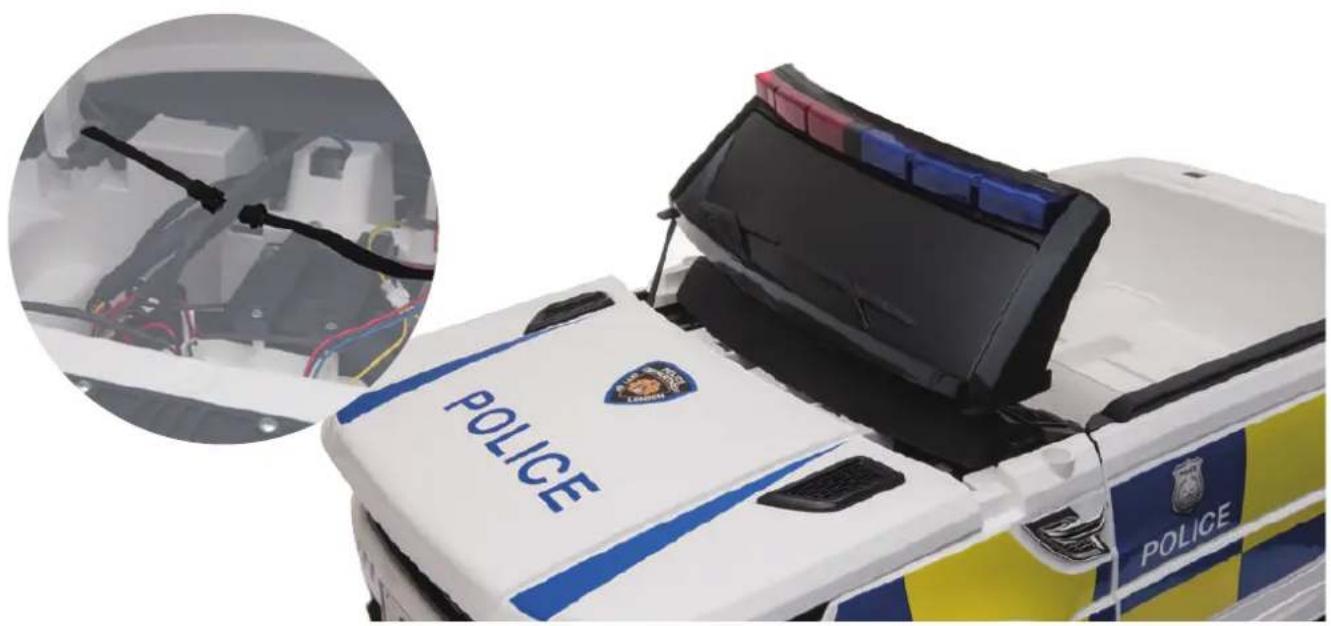

4. Windshield assembly

Open the hood, connecting the lines which are in the windshield and under the hood, inserting the windshield into the right place on the platform, finally using screw to tighten it.

Close-up of a police car's hood with visible 'POLICE' and 'LENSA' branding, showing internal wiring and battery compartment (no readable text beyond vehicle insignia)

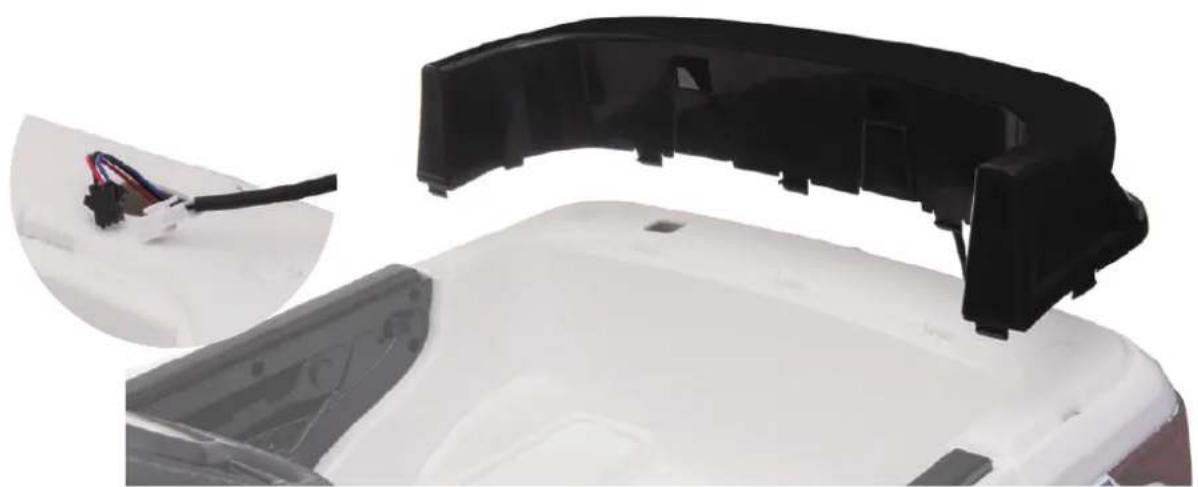

5. Rear wing assembly

Connecting the lines which are in the rear wing and car body, then inserting rear wing into the right hole on the car.

Close-up of a white automotive airfoil with black plastic cover and cable inserted, showing structural details (no text or symbols visible)

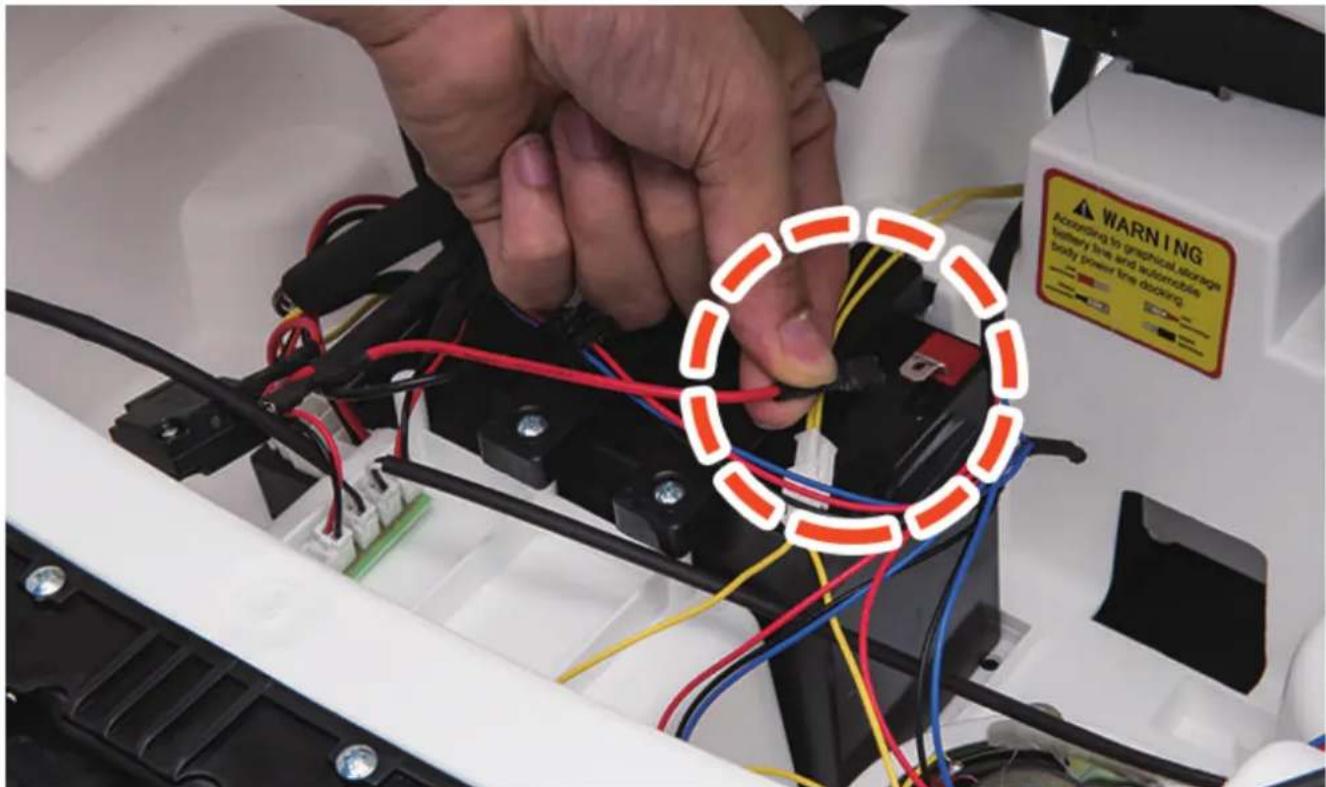

6. Battery line connecting

Connect the battery line correctly, red to red, black to black.

WARNING Accidenta to graphical, storage vocabulary links and bootretable body power tms docking

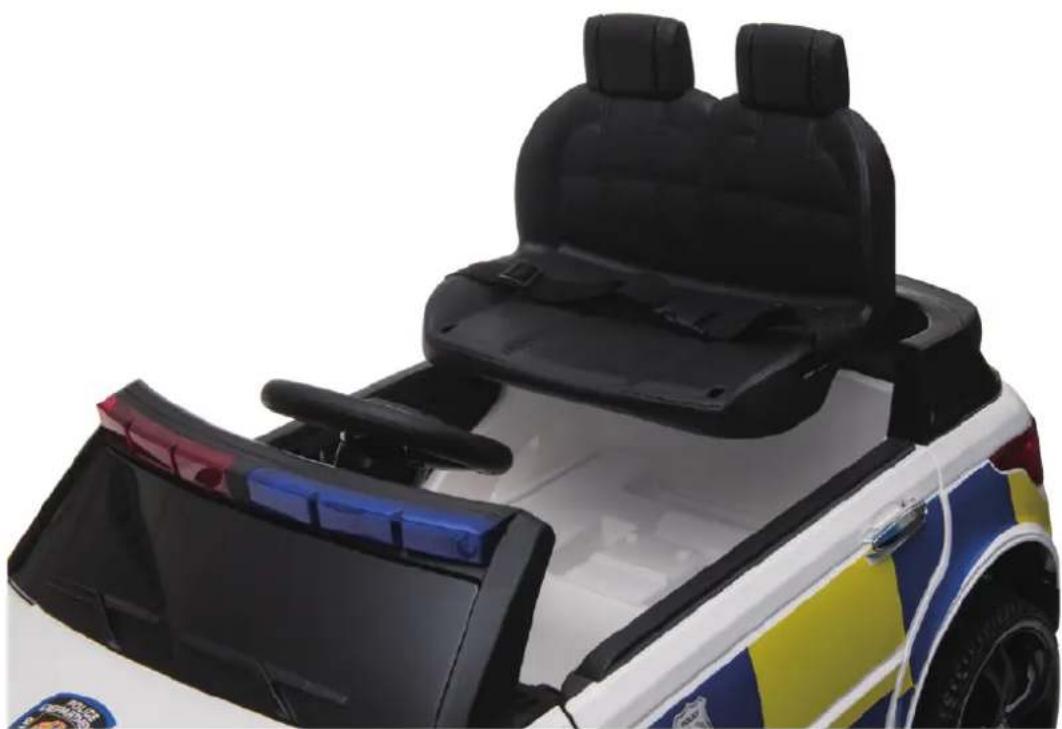

7.Seat assembly

Inserting the seat into the right place in the car, then using screws to tighten.

Close-up of a white and blue electric car with black seats and red/green traffic lights (no visible text or symbols)

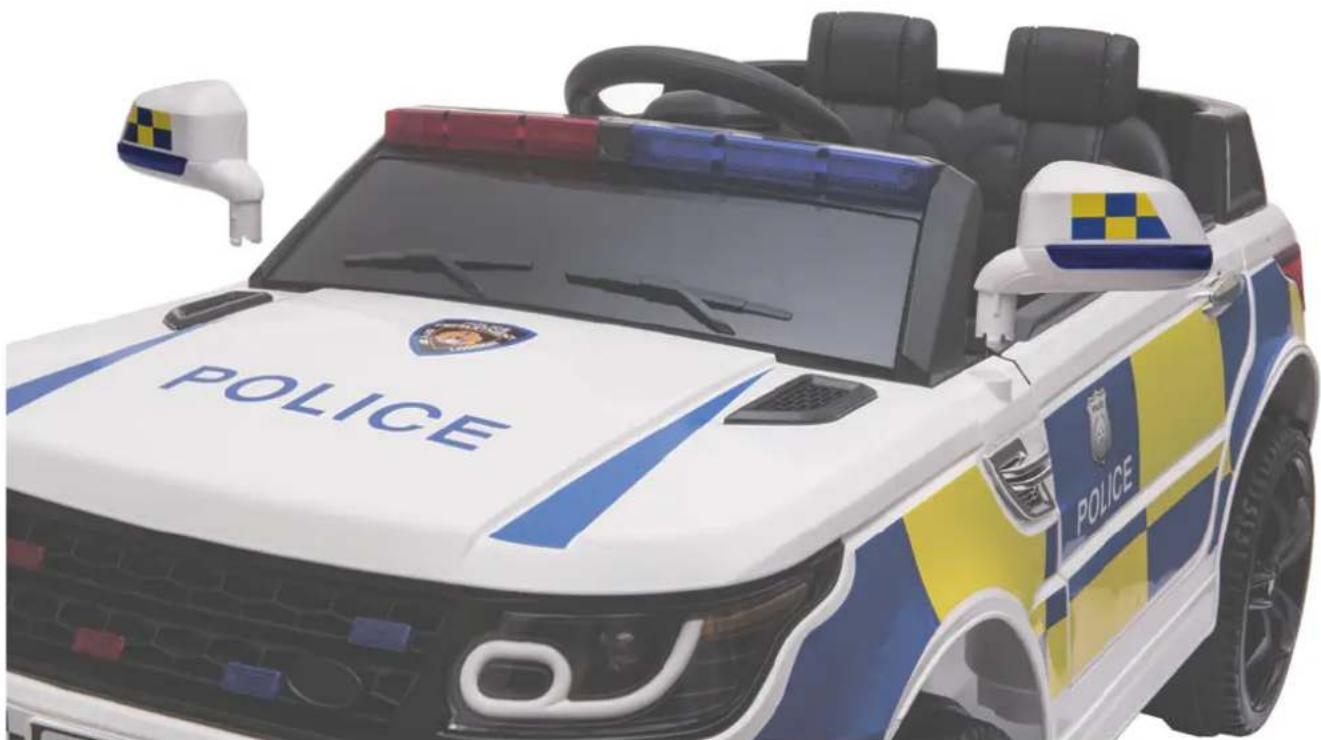

8. Rearview mirror assembly

Inserting right and left rearview mirror into the right place hole like the picture.

Front view of a white and blue police car with 'POLICE' branding, showing front wheel, dashboard, and steering wheel (no readable text beyond vehicle markings)

Warnings

• For children's safety, please read these carefully.
• Assembly and adjustment must be done by adults, keep children away.
• Keep children under 36 months away from small parts.
• Safe belt is a must when children playing. Do not be close to fire.
• Adult must teach how to play it and never leave children alone for playing.
• Do not stand up or play when children are stepping on foot pedal.
• Battery must be charged by adults only. Please charge it first before use.
• Keep children away from plastic bag, or suffocation may occur.
• Only use spare parts which provided by manufacturer.
• Charger is not a toy for playing.
  • Maximum loading capacity is 30KG. Do not overload.
• Suitable age: 37-95 months.

Charging notification

• For the first use, please charge 10 hours, or will damage the battery.
• Plug charger DC line into charge hole first, then plug charger into socket.
• Car can not be played when it charging.
  • Every time it charged, do not charge more than 18 hours.
• It is normal that charger and battery warm (under 60^ ) during charging.
• Do not charge if plug is wet, or will occur short-circuited.
• Only use charger provided by manufacturer, or will damage charger and battery or occur short-circuited.
• If long time no use, please charge 1 time per month at least.

Charging steps are as follows:

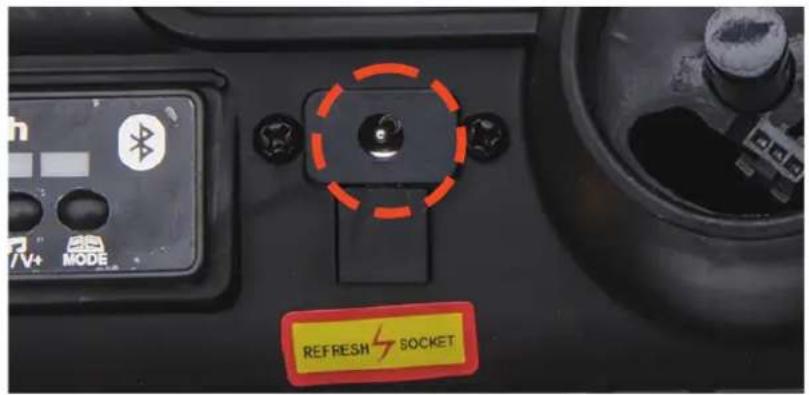

Step 1: The charging hole is on the multi-functional board.

Step 2: Put the charger plug into the plug hole.

Step 3: Connect the charger to the power socket.

REFRESH SOCKET

Simple line drawing of a battery connected to a tray with a plug (no text or symbols)

Warning: Car must be charged by adults only.

Car is useless during charging

Maintenance and Service

• Check battery, charger and other spare parts regularly. If any problem, please fix it before playing.
• Use lubricating oil to care iron parts. Keep car away from fire and sunshine. Park it on the even place, not reversal or gradient.
• Park it indoor and cover it with waterproof cloth.
• Keep car away from fire, like stove or heater, or plastic may melt.
• Keep away from flammable things, or may occur fire accident.
• Charge it after use and must be done by adults only. If long time no use, please charge it 1 time per month, in order to maintain battery.
• Clean the vehicle with a dry cloth only. Do not use chemical solvent to wipe plastic parts. Do not wash it with water or play it when raining or snowing. Water will damage motor, electric system or battery.
• Please turn power off after each use.
• Only use charger provided by manufacturer.
• Do not change car's structure or electric line. Check-job request some skills or under specialist's guidance.
