Product Type	Portable DAB+/FM radio with Bluetooth speaker
Brand	Lenco
Model	PDR-060WD
Dimensions (W x D x H)	120 x 120 x 185 mm
Net Weight	Approximately 1.2 kg
Power Supply	9 V / 2 A mains adapter (included) and built-in rechargeable lithium-ion battery 7.4 V / 1800 mAh
Battery Life	Varies with usage (not specified)
Main Functions	DAB/DAB+ radio (Band III), FM radio 87.5-108 MHz with RDS, Bluetooth 5.0, USB and Micro SD card player (up to 256 GB), dual alarm, sleep timer, 2.8 inch color TFT display
Supported Audio Formats (USB/SD)	MP3, WAV, FLAC, WMA, APE
Output Power	RMS 10 W
Signal-to-Noise Ratio	≥ 70 dBA
Total Harmonic Distortion	≤ 5%
Frequency Response	100 Hz – 18 kHz
Connectivity	USB port, Micro SD card slot, 3.5 mm Aux input, 3.5 mm headphone output
Remote Control	Included (button cell batteries not included)
Operating Temperature	0 °C to 35 °C (usage), -10 °C to 50 °C (working environment)
Storage Temperature	-20 °C to 70 °C
Care and Cleaning	Use a soft dry cloth. For stubborn stains, a damp cloth with diluted detergent solution. Do not use solvents.
Safety	Do not expose to water, heat or magnetic fields. Do not open the device. Disconnect during thunderstorms. Use only the supplied adapter.
Spare Parts and Repairability	Contact local dealer for any repairs. Opening by unauthorized repairer voids warranty. Use only accessories recommended by the manufacturer.
General Information	European warranty through the dealer. EU Declaration of Conformity available on Commaxx website. Do not dispose with household waste (WEEE).

Frequently Asked Questions - PDR-060WD LENCO

How to turn the Lenco PDR-060WD radio on and off?

Use the switch at the back of the device. Push it to ON to turn on, to OFF to turn off. You can also press the Standby button on the remote control or front panel to put it into standby mode.

How to set the time on the radio?

In DAB mode, the time is set automatically if a DAB signal is received. For manual setting, press and hold the MENU•INFO button, turn the CONNECTION dial to select 'Time/Date', then set the time, date and 12/24h format. Confirm with ENTER.

How to connect a smartphone via Bluetooth?

Press the MODE.LUM. button to switch to Bluetooth mode. Activate Bluetooth on your smartphone and search for 'Lenco PDR-060' in the device list. Select it to connect. You can then stream your music.

How to search for DAB stations?

At first power-on, the radio automatically performs a DAB station search. To start a new search, press and hold the SCAN button or go to the menu and select 'Scan'. Found stations are stored.

What to do if the radio does not receive any DAB station?

Extend the telescopic antenna vertically. Move the radio away from sources of interference (chargers, computers, large metal surfaces). Move it a few meters and start a full search via the DAB+ menu. DAB+ signal may be local.

How to set an alarm?

Press the ALARM button. Turn the CONNECTION dial to choose Alarm 1 or 2, then press ENTER. Set the ON/OFF state, time, source (DAB, FM or Buzzer), repetition (once, daily, etc.) and volume. Confirm each step with ENTER.

How to use the sleep timer?

Press and hold the MENU•INFO button, turn the CONNECTION dial to select 'SLEEP'. Choose a duration (15 min, 30 min, etc.) or OFF to disable. The device will turn off automatically after the selected delay.

How to clean the radio without damaging it?

Use a soft dry cloth. For stubborn stains, slightly dampen a cloth with a solution of water and mild detergent, then wring well. Never use solvents, alcohol or abrasive products. Avoid liquid entering the device.

What is the battery life and how to recharge it?

The 7.4 V / 1800 mAh lithium-ion battery offers variable battery life depending on usage (not specified). To recharge, connect the supplied mains adapter (9 V / 2 A) to the charging port. The red LED indicates charging, green means fully charged.

What to do if the radio does not turn on or does not respond?

Check that the rear switch is ON. If the battery is discharged, plug in the adapter. If the device remains stuck, disconnect the adapter, remove the battery if possible, wait a minute, then reconnect. In case of electrostatic discharge, reset by following the guide. If nothing works, contact the dealer.

USER MANUAL PDR-060WD LENCO

Model No.: PDR-060WD

User manual - DAB+, FM radio with Bluetooth and rechargeable battery Gebruikshandleiding - DAB+, FM-radio met bluetooth en oplaadbare batterij Benutzeranleitung - DAB+, UKW-Radio mit Bluetooth und wiederaufladbarem Akku Manuel d'utilisation - Radio DAB+, FM avec Bluetooth et batterie rechargeable Manual de usuario - Radio DAB+ y FM con Bluetooth y batería recargable Brugervejledning - DAB+, FM-radio med Bluetooth og genopladeligt batteri Användarmanual - FM-radio med DAB+, Bluetooth och uppladdningsbart batteri

Index

English....3

Nederlands....19

Deutsch 38

Français 58

Español....77

Dansk/Norsk 96

Svenska 114

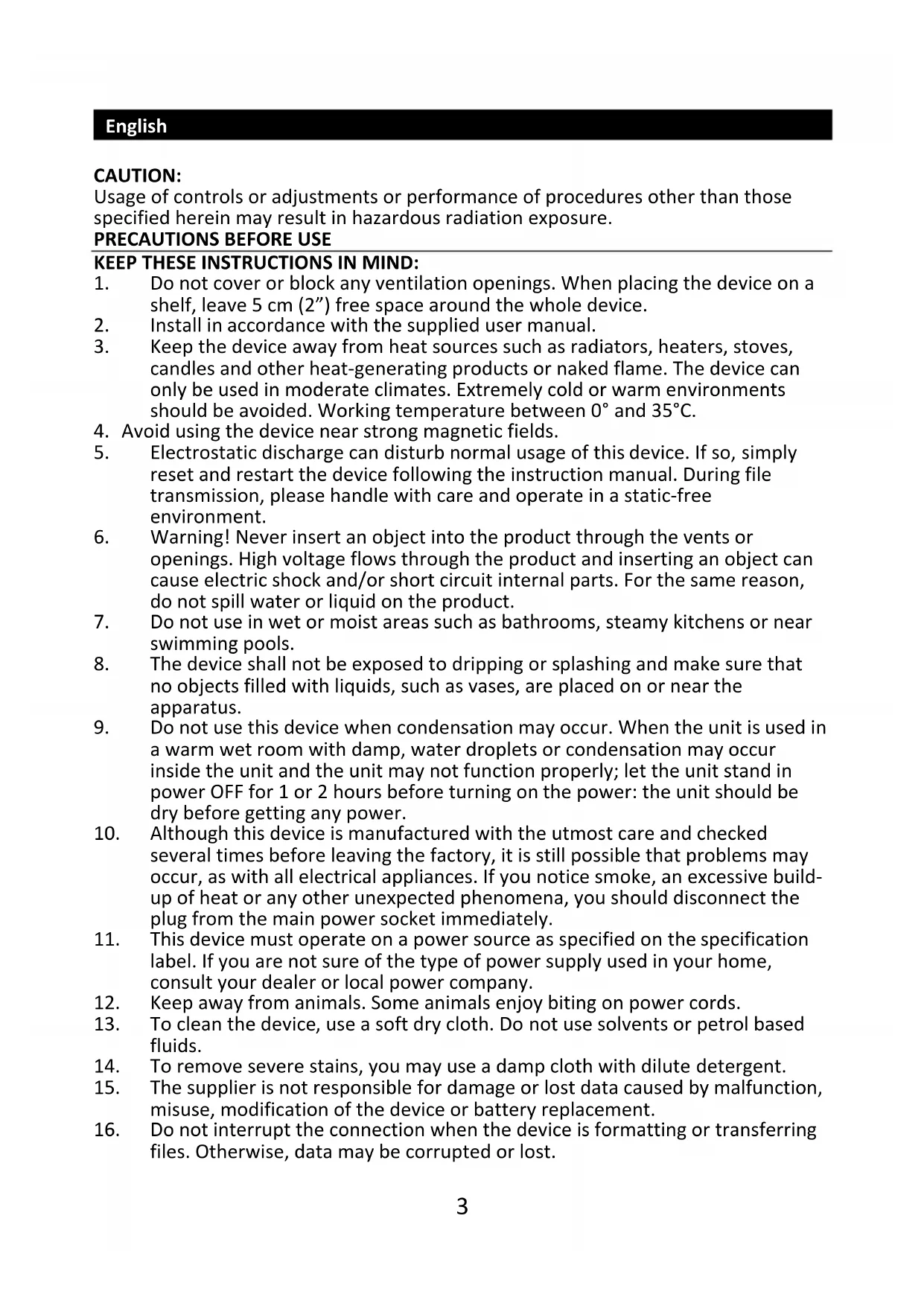

English

CAUTION:

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0^ and 35^ C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids.
14. To remove severe stains, you may use a damp cloth with dilute detergent.
15. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.

16. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.

17. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use an USB extension cable because it can cause interference resulting in failing of data.

18. The rating label has been marked on the bottom or back panel of the device.
19. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.
20. This product is intended for non professional use only and not for commercial or industrial use.
21. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
22. Never remove the casing of this device.
23. Never place this device on other electrical equipment.
24. Do not allow children access to plastic bags.
25. Only use attachments/accessories specified by the manufacturer.
26. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
27. Long exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

28. If the product is delivered with power cable or AC power adaptor:

29. If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel.

30. Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
    ● Unplug this device during lightning storms or when unused for a long period.
31. The socket outlet must be installed near the equipment and must be easily accessible.
32. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.
    ● Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.
    ● Devices with class 2 construction do not require a earthed connection.
    ● Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.
33. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

29. If the product contains or is delivered with a remote control containing coin/cell batteries:

Warning:

● "Do not ingest battery, Chemical Burn Hazard" or equivalent working.
● [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
- Keep new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

30. Caution about the use of Batteries:

● Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
● Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation.
● Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas.
● Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
● Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas.
● A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
- Attention should be drawn to the environmental aspects of battery disposal.

INSTALLATION

• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made

Charge Instructions:

Fully charge the radio using the supplied AC adapter (9V/2A) prior to the first use. A solid red LED light (under charging port) indicates that the device is charging. When fully charged the LED indicator will turn green.

Content in the box:

DAB Radio

Remote Control

Pure electrical circuit lines without any symbols

Audio Cable

Black electric motor with two leads and a coiled cable (no text or symbols visible)

Adaptor

User Manual

Function description

• This product is a comprehensive portable stereo digital multimedia speaker device, integrating DAB, Bluetooth, FM, USB and TF card playback
• Supports Band III DAB/DAB+ digital signal reception
  ● Supports Band II 87.5-108 MHz FM reception with RDS function
• Supports 5.0 standard Bluetooth version
• With 2.8 inch TFT color display
• With real-time clock function and automatic time update through DAB
• Two sets of alarm clock function with optional DAB/FM/Buzzer alarm sound source
  • Built-in 7.4V/1800mAh rechargeable lithium battery
• Supports multi-language (nine languages) system operation

Product View

1. Standby button: Press it to enter/exit standby mode.
2. Volume knob/Mute button: Turn the knob -- Adjust volume Short press -- Mute
3. Alarm button: Press it to enter Alarm clock set up interface.

4. Shortcut button 1/2/3:
   Short press 1/2/3 button to go to preset list radio station 1/2/3 directly.
   Long press 1/2/3 button to add current radio station into the preset list 1/2/3.

5. MENU.INFO button

Short press -- Show DAB information Long press -- Enter menu set up

1. SCAN button

DAB/FM mode: Long press -- Automatic searching radio stations.

BT/USB/SD mode: Short press -- Play/Pause

1. SKIP-(Previous)/SLEEP/SNOOZE button FM/BT/USB/SD mode:

Short press -- SKIP-(Previous)

Alarm clock mode: When the alarm rings, short press to activate snooze

function. All modes: Long press -- Enter Sleep timer set up interface.

1. TUNE knob/ENTER button Turn the knob -- Skip+/- Short press -- Enter

DAB/FM mode: Long press -- Automatic searching radio stations.

1. PRESET button

DAB/FM mode: Short press -- Go to preset radio station list.

Long press -- Add current radio station to preset radio list.

1. MODE.LUM button

Short press -- Switch between DAB/FM/AUX/BT/SD/USB modes.

Long press -- Adjust the display brightness level 1-2-3

1. SKIP+(Next)/SLEEP/SNOOZE button FM/BT/USB/SD mode:

Short press -- SKIP+(Next)

Alarm clock mode: When the alarm rings, short press to activate snooze

function. All modes: Long press -- Enter Sleep timer set up interface.

1. 2.8 inch TFT color display

2. Speaker

3. Remote sensor

4. USB port

5. 3.5mm Headphone jack

6. 3.5mm Aux-in jack

7. Antenna

8. Power switch

9. Charging port

10. Micro SD card (TF card) port

Remote Control Schematic

1. Standby key: short press to enter function mode/standby mode.
2. Scan key: DAB & FM mode: short press to search for radio stations.
3. Clock setting key: short press to enter Time&Date setting interface.
4. ALARM key: short press to enter alarm setting interface.
5. MENU key: short press to enter menu settings interface.
6. INFO key: short press to check information.
7. Numeric keys: in combination with the numbers 0-9, select the station or song number.
8. SKIP-
9. Mute key
10. Mode key
11. Sleep timer
12. Snooze key: when the alarm rings, short press to enter snooze function.
13. ENTER key: DAB/FM mode - Confirm, BT/USB/SD mode-Play or pause, Menu mode - Confirm/Enter
14. BACK key: short press to return.
15. Brightness key: press it to adjust the display brightness level 1-2-3
16. VOL +
17. VOL -
18. PRESET key: short press --- recall radio list, long press --- add current radio station to the radio list.
19. SKIP +

Power ON/OFF

When using this radio, please pull out the telescopic antenna. Move the power switch on the back of the device to ON/OFF side to power on/off the device.

DAB Radio

1. Upon being powered on, the device will go to DAB mode automatically and will start searching for available DAB stations, which will be stored after the search is complete. (If the device has already searched for radio stations, you can also press and hold the SCAN button to perform automatic searching).
2. Rotate the TUNE knob to select your desired DAB station, then press the ENTER(TUNE) button to play. Rotate the VOLUME knob to adjust volume. Press the MUTE(VOLUME) knob to mute sound.
3. Short press the MENU•INFO button to view the current station information: text information, signal strength, program type, episode name, channel number/frequency, signal error rate, bit rate, time and date, etc.
4. Saving stations into preset mode:
   (1) Long press SCAN button (if a full scan was previously done please move to step 2)
   (2) Find the radio station by rotating the TUNE knob.
   (3) Select the channel you want to save, and press the ENTER button to enter.
   (4) Press and hold the PRESET button for 3 seconds.
   (5) Pick one of the available (Empty) slots from the preset store screen.
   (6) Press the ENTER button to save the channel.

You also can press and hold the Shortcut button 1/2/3 to add current radio station into the preset list 1/2/3.

1. Short press the PRESET button to recall preset radio list. Rotate the TUNE knob to select DAB station, then press the ENTER button to play. (You also can press the Shortcut button 1/2/3 to go to preset list radio station 1/2/3 directly).

Note: Please press the PRESET button to access your preset radio stations in DAB mode, otherwise the stations will display in automatically set order.

IMPORTANT INFORMATION REGARDING DAB+ RECEPTION

DAB+ radio reception is different from FM radio reception.

• In FM, you can often still receive a weak station, but probably with a rustling or crackling sound.
• DAB + reception works digitally and if there is not enough signal you hear nothing. No hiss or crackle as with FM. This is not due to the radio, but to the fact that there is not enough DAB+ signal at that location.
  • DAB + rule is: no or weak reception = no sound.

What can you do if you do not have direct DAB+ reception.

• Always point the antenna straight up vertically first.
• Do not place the radio too close to potential sources of interference such as, battery chargers, rotating machinery, computers, large metal surfaces, etc.
• Move the radio a few meters.
  • Turn on the radio and activate a full scan in the DAB+ menu
• In the display of the radio you will see the progress of the scan and the number of stations found in the current position of the radio.

Important

• With DAB+ reception, there can be a very big difference in reception level between one location and "a few meters away". In case of a local weak DAB+ signal, move the radio to find a stronger signal.
• If you take the radio to another location, perform a full scan again. This will show you which DAB+ stations can be received there.

FM Radio

1. Press the MODE.LUM button to switch to FM mode.
2. Press and hold the SCAN button for 2\~3 seconds to start automatic searching for FM radio channels. Available channels will be stored after the search is completed. Scan Setting: Press and hold the MENU•INFO button for 2\~3 seconds to enter menu set up list. Rotate the TUNE knob to select "Scan Setting", press the ENTER button to confirm and enter. Rotate the TUNE knob to select All stations/Strong stations, and press the ENTER button to confirm. If select All stations, all available channels will be stored after the search is completed. If select Strong stations, only strong signal radio stations will be stored after the search is completed.
3. Press the PRESET button to go to the stored Radio station list, then rotate the TUNE knob to select the desired station and press the ENTER button to play. You also can press the Shortcut button 1/2/3 to go to preset list radio station 1/2/3 directly.)
4. Rotate the TUNE knob to adjust radio frequency by 0.05MHz at a time. Rotate the TUNE knob and hold it for 3 seconds to start automatic searching for next/previous radio station.
5. Long press the PRESET button to add current radio station to the radio list, rotate the TUNE knob to select list number you want to use, then press the ENTER button to confirm. You also can press and hold the Shortcut button 1/2/3 to add current radio station into the preset list 1/2/3.

Bluetooth music play

1. Press the MODE.LUM button to switch to Bluetooth mode.
2. To use your Bluetooth enabled device, make sure the Bluetooth function is enabled, then search for "Lenco PDR-060" on the list and click on it to connect.
3. Play music or any audio files from your Bluetooth enabled device. Rotate the TUNE knob (or press the SKIP button) to go the next/previous track, turn the volume knob to adjust volume.
4. Press the ENTER button to play/pause music. Press the VOLUME knob to mute sound.
5. Long press the ENTER button to disconnect Bluetooth

This product operates at 2400 - 2483.5 MHz and is designated only to be used inside a normal household environment. This product is suited for this purpose within all EU counties.

"This product has a bluetooth reception function, you can not transmit any bluetooth sound with it: this means that you can receive wirelessly a bluetooth sound signal from an external source like a smartphone."

USB/micro SD card playback

1. Insert USB/micro SD card, and press the MODE.LUM button to switch to USB/SD mode. It will play music from USB/micro SD automatically (Largest capacity of USB/micro SD the device can support 256GB).
2. Rotate the TUNE knob (or press the SKIP button) to go the next/previous song.
3. Turn the VOLUME knob to adjust volume.
4. Press the ENTER button to play/pause music. Press the VOLUME knob to mute sound.
5. Press the PRESET button to switch to loop playback mode. There are currently three switchable: Repeat All/Repeat one/Random.
6. Supports audio decoding format: MP3/WAV/FLAC/WMA/APE.

System Set up

Press and hold the MENU•INFO button for 2\~3 seconds to enter menu set up list. Rotate the TUNE knob to select the sub-menu items, press the ENTER button to confirm and enter. During operation, short press the IMENU•INFO button to return.

Time and Date Set up

A- In DAB radio mode, if DAB signal can be searched, the device will automatically set the local time.
B- Manual Time Set up:

Press and hold the MENU•INFO button for 2\~3 seconds to enter menu set up list. Rotate the TUNE knob to select , press the ENTER button to enter. Rotate the TUNE knob to select ////.

Set Time/Date: Press the ENTER button to enter time & date set up: Date - Month - Year - Hour- Minute (rotate the TUNE knob to select the numbers and press the ENTER button to confirm.)

Set Hour System: Press the ENTER button to enter 24h/12h set up, rotate the TUNE knob to select and press the ENTER button to confirm.

Set Date Format: Press the ENTER button to enter Date Format setting, rotate the TUNE knob to select and press the ENTER button to confirm.

Alarm clock Set up

This device can set 2 sets alarms.

1. Press the ALARM button to enter alarm clock setting.
2. Rotate the TUNE knob to select Alarm 1/Alarm 2, and press the ENTER button to confirm.

Alarm: Press the ENTER button to select ON/OFF

Time: Press the ENTER button to enter alarm time setting, rotate the TUNE knob to select the numbers, press the ENTER button to confirm.

Source: Press the ENTER button to enter, then rotate the TUNE knob to select FM/DAB/Buzzer as alarm source, press the ENTER button to confirm.

Repeat: Press the ENTER button to enter, then rotate the TUNE knob to select Once/Daily/Weekends/Workday, press the ENTER button to confirm.

Volume: Press the ENTER button to enter, then rotate the TUNE knob to select alarm volume. press the ENTER button to confirm.

1. When the alarm clock rings, press the snooze button to activate snooze function. After 5 min, the alarm will ring again.

2. Press the ALARM button (or press the STANDBY button) to stop alarm clock, the device goes into standby mode.

Sleep Timer Set up

1. Press and hold the MENU•INFO button for 2\~3 seconds to enter menu set up list, rotate the TUNE knob to select SLEEP, then press the ENTER button to enter sleep timer setting.

2. Rotate the TUNE knob to select 15 minutes/30 minutes/.../2 Hours.

3. Press the ENTER button to confirm sleep timer setting.

4. The device will go to standby mode after 15 minutes/30 minutes/.../2 Hours. (if you select "OFF" and then press the ENTER button, sleep timer will be turned off).

Specifications

• Output power: RMS 10W
• Signal to noise ratio: ≥70dBA
• Distortion: ≤ 5%
• Frequency response: 100HZ-18KHZ
• Audio input interface: DAB, FM, BT, USB, TF, Aux
- Adjustment form: Button or Remote
• Input power: 7.4V/1800mAh rechargeable lithium ion battery
• USB/Micro SD maximum input sensitivity: 0dBm
• DAB receiving input sensitivity: -97dBm
• FM receiving input sensitivity: -105dBm
• Working environment temperature: -10^ 50^
• Storage temperature: -20°C \~ 70 °C
• Product size specification: 120*120*185 mm
• Product Net weight: about 1.2kg

Power supply adaptor

Use only the power supply listed in the user instructions

Information	Value and precision
Manufacturers name or trade mark, commercial registration and address	Shenzhen Fushigang Technology Co., Ltd
Model Identifier	AS1801A-0902000EU
Input voltage	100-240 VAC
Input AC frequency	50/60 Hz
Output voltage	9 VDC
Output current	2.0 A
Output Power	18.0 W
Average active efficiency	>85.00%
Efficiency at low load (10%)	>70.92%
No load Power consumption	<=0.1W

1. Guarantee

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

2. Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation. No legal right or entitlements may be obtained from the description made in this manual.

3. Disposal of the Old Device

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

4. DECLARATION OF CONFORMITY

Hereby, Commaxx declares that the radio equipment type [Lenco PDR-060] is in compliance with directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

https://commaxx-certificates.com/doc/pdr-060_doc.pdf

Type RF	Frequency range (MHz)	Power (dBm)
Bluetooth	2402-2480	< 6
DAB	174-240	-
FM	87.5-108	-

5. Service

For more information and helpdesk support, please visit

www.lenco.com

Commaxx B.V. Wiebachstraat 37, 6466 NG Kerkrade, The Netherlands

VOORZICHTIG:

Pure electrical circuit lines without any symbols

Audiokabel

Black electric motor with two leads and a coiled cable (no text or symbols visible)

Adapter

Gebruikshandleiding

1. VOLUME-knop/MUTE (Demp)-toets :

Symbol of a trash bin crossed with two crossed lines and a blank rectangular bar below (no text or labels)

Pure electrical circuit lines without any symbols

Audiokabel

Electric motor with two leads and a coiled cable (no text or symbols visible)

Netzadapter

Bedienungsanleitung

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Pure electrical circuit lines without any symbols

Câble audio

Black electrical adapter with two leads and a coiled cable (no text or symbols visible)

Adaptateur

Guide d'utilisation

DAB/FM/AUX/BT/SD/USB.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

4. DÉCLARATION DE CONFORMITÉ

Pure electrical circuit lines without any symbols

Cable de audio

Black electrical adapter with two leads and a coiled cable (no text or symbols visible)

Adaptador

Manual del usuario

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Pure electrical circuit lines without any symbols

Lydkabel

Black electric guitar with two power cord and coiled cable (no text or symbols visible)

Strømforsyning

Brugervejledning

Funktionsoversigt

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Pure electrical circuit lines without any symbols

Ljudkabel

Black electric guitar with two power cord and coiled cable (no text or symbols visible)

Adapter

Bruksanvisning

Symbol of a trash bin crossed with diagonal lines, no text or numbers present
