Move 10 KM05000 - Smartphone Krüger&Matz - Free user manual and instructions

Product type	Smartphone
Brand	Krüger&Matz
Model	Move 10 KM05000
Sensors	Proximity sensor, light sensor
Ports	USB-C (charging and data), 3.5 mm headphone jack
Battery	Removable, USB-C charging
Supported cards	SIM card (nano?), microSD memory card
Connectivity	Wi-Fi, Bluetooth, mobile data transfer
Speaker	Built-in
Flash	Yes (for camera)
Main functions	Calls, SMS, internet browsing, camera, Google Assistant
Maintenance	Clean with a soft damp cloth; do not use chemicals
Safety	Turn off in airplanes and dangerous areas; avoid use near medical devices
Spare parts and repairability	Removable battery; repair by qualified service
Regulatory information	Compliant with Directive 2014/53/EU
Included accessories	USB-C cable, mains charger (not specified)
Operating temperature	Avoid extreme temperatures and direct sunlight

Frequently Asked Questions - Move 10 KM05000 Krüger&Matz

How to install the SIM card and memory card?

Before handling, turn off the device and unplug the charger. Open the back cover. Place the SIM card (contacts facing down) and the memory card in their dedicated slots. Carefully close the cover.

How to charge the phone for the first time?

Use the provided USB-C cable. Connect it to the phone and then to a mains charger or compatible USB port. Before first use, ensure the battery is fully charged. Only use accessories approved by the manufacturer.

What to do if overheating during charging?

Immediately disconnect the charger. Close all applications and wait for the device to cool down. Check the integrity of the USB cable; if damaged, replace it. Only recharge after complete cooling.

Can I use my phone while driving?

No, it is prohibited to use the phone in the traditional way while driving. If necessary, use a hands-free kit. Any conversation reduces attention and can cause an accident.

How to clean the screen and casing?

Use a soft, damp cloth. Never use chemicals, as they can permanently damage the device. Avoid any contact with water.

What to do if the device does not turn on?

Ensure the battery is charged. Press and hold the power button (about 3 seconds). If nothing happens, plug in the charger and wait a few minutes before trying again. If the problem persists, contact a qualified service.

How to change the phone language?

Go to the main menu, then Settings > System. Find the language tab, select Language and choose the desired one.

Is the phone compatible with all operators?

Some functions may vary depending on the network and operator. Emergency calls (112) may not be available on all networks. Consult your local operator for more information.

Can I use the phone on an airplane?

During the flight, the phone must be turned off or set to airplane mode. Wireless devices can interfere with the aircraft's control systems.

How to contact after-sales service?

For any repair, entrust the device to a qualified service. Any attempt at self-repair may damage the device and void the warranty. More information at www.krugermatz.com.

USER MANUAL Move 10 KM05000 Krüger&Matz

SAFETY ALERT AND CAUTIONS

Road safety comes first: Do not use a hand-held phone while driving. Use hands-free fittings when calls are unavoidable while driving. In some countries, dialing or receiving calls while driving is illegal!

Switch off in aircraft: Wireless devices can cause interference in aircraft. Please make sure that your mobile phone is powered off (or switch to flight mode) in flight.

Switch off before entering risky areas: Strictly observe the relevant laws, codes, and regulations on the use of mobile phones in risky areas. Turn off your mobile phone before entering a place susceptible to explosion, such as an oil station, oil tank, chemical plant or a place where a blasting process is under way.

Observe all special regulations: Follow any special regulations in force in any area such as hospitals and always switch off your phone whenever it is forbidden to use it or, when it may cause interference or danger. Properly use your mobile phone near medical apparatuses, such as pacemakers, hearing aids and some other electronic medical devices, as it may cause interference to such apparatuses.

Interference: The conversation quality of any mobile phone may be affected by radio interference. An antenna is built inside the mobile phone. Do not touch the antenna area during a conversation, as the conversation quality may deteriorate.

Qualified service: Only qualified personnel may install or repair phone equipment. Installing or repairing the mobile phone on your own may bring great danger and violates the warranty rules.

Accessories and batteries: Use only approved accessories and batteries.

Use sensibly: Use only in a normal and proper manner, and only as indicated in this instruction manual.

Emergency calls: Ensure the phone is switched on and in

service, enter the emergency number, e.g. 112, then press the Dial key. Give your location and state your situation briefly. Do not end the call until told to do so.

Note: Similarly to other mobile phones, this device may not support every function described in this manual due to network settings or radio broadcast operator. Some networks may not support 112 emergency calls too. Therefore, you should not rely only on mobile phones in critical situations. In case of any doubts, it is advised to contact local operator.

CLEANING AND MAINTENANCE

• Please don't leave the phone, the battery, and the charger in the bathroom and other high humidity places, and prevent them from rain.
• Please clean the phone, the battery, and the charger using soft and dry cloth.
• Please don't wipe the phone using alcohol, thinner, or benzene and other chemical reagents.

PRODUCT DESCRIPTION

1. Proximity sensor, Light sensor
2. Receiver
3. Front camera
4. Volume control button
5. Power button
6. Rear camera
7. Flash
8. Microphone
9. USB-C port (charging)
10. Speaker
11. Headphone jack

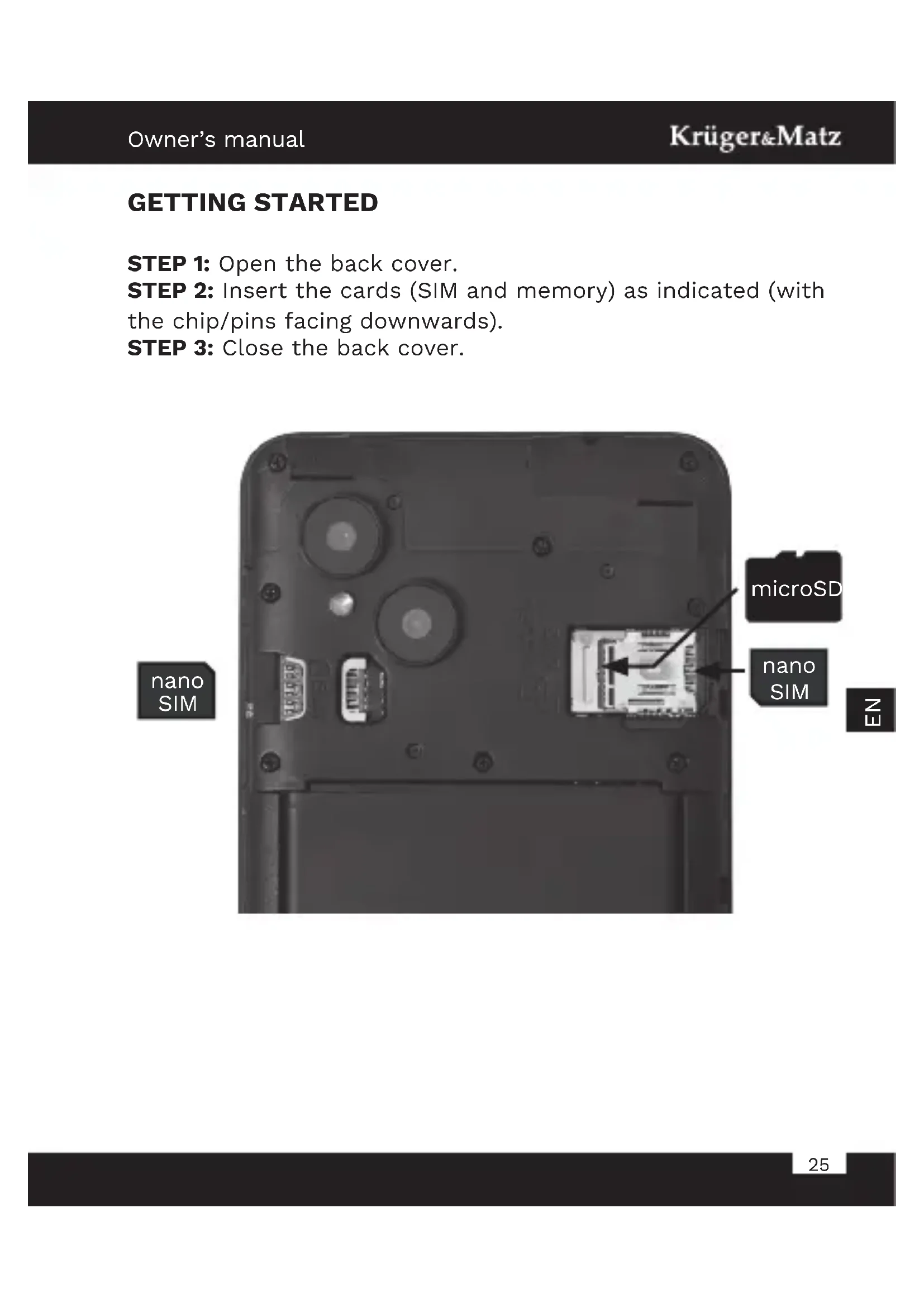

GETTING STARTED

STEP 1: Open the back cover.

STEP 2: Insert the cards (SIM and memory) as indicated (with the chip/pins facing downwards).

STEP 3: Close the back cover.

BATTERY/SIM CARD/MEMORY CARD INSTALLATION

• Power off the mobile phone and disconnect it from charger before unmounting battery or SIM cards.
• Before removing memory card, make sure it has been disconnected first!
• Exercise caution when operating SIM card/memory card, as friction or bending may damage the card.
• Keep the mobile phone and its fittings such as the SIM cards/ memory cards beyond children's reach.
• If the memory card cannot be read, please check whether it is has been inserted correctly.
• Producer does not guarantee compatibility with every memory card.
• Please note: Dual SIM in standby will shorten the standby time compared to single SIM.
• Make sure the battery is fully charged if it has been out of use for a long period.

图

Charge the smartphone using the provided USB cable. Connect the cable to USB-C port on the device. Other end of the cable plug into provided charger or compatible USB port.

• Make sure the phone is fully charged before turning it on for the first time.
• Use only original charging devices and batteries approved by the producer. Using other accessories may damage the device.

Overheating

While charging, the temperature of the device and the charger may get increased. This does not affect the device's lifespan or performance and is in the device's normal range of operation.

However, if there is an excessive increase in temperature or overheating, depending on the factor that caused it: device's performance may be significantly reduced, charging process may be stopped, the device may turn off or display notification about switching off for cooling. Function available only in selected models. Important: if the device displays notification about overheat, turn it off and do not turn it back on until completely cooled down!

In case of overheat during charging:

1. Disconnect the charger from the device.
2. Close any running apps.
3. Wait for the device to cool down, and then begin charging the device again.

If the part of the device where the USB port is placed overheats, check for damage to the connected USB cable. Replace the damaged USB cable with a new authorized cable.

The device may also overheat during operation when using several battery consuming applications or functions. In case of overheat during usage:

1. Close any running apps.
2. Disconnect any connectivity (Bluetooth, Wi-Fi, data transfer etc.).
3. Lower the screen brightness settings.
4. Wait for the device to cool down before attempting to use it again.

Safety precautions concerning operation environment In order to maintain battery's longevity, and to avoid overheat, follow basic precautions including provisions listed below:

1. Do not use / store the device in very hot or cold environments nor expose to direct sunlight (e.g. on a car's dashboard when using as a navigation).

2. Do not place the device on surfaces that may cause overheat e.g. electric heating mat.

3. Do not place near sources of heat e.g. radiators, microwave ovens, hot kitchen appliances nor high pressure containers.
4. DO NOT use damaged charger or battery!
5. Use only authorized chargers, batteries and cables! Using unauthorized accessories may damage the device or battery. Connecting charger with inadequate parameters may result with damage to the device and poses risk to the user.

TURN ON

Turn on: Press and hold the power button until the screen goes on.

Turn off: Press and hold the power button for about 2 seconds, then choose appropriate (Power off).

LANGUAGE

Once the phone is ON you can personalize it to your needs. To change language go to Main Menu, open Settings > System, go to Language and input, enter Language and select appropriate.

FUNCTION KEYS

Power button: Press and hold Power key to open the power key menu, where you can turn off the phone (Power off) or Restart. Volume button: Press the volume keys to change the ring volume

(on the home screen) or the earpiece volume (during a call).

Overview button: Press the button to display recently used apps menu.

Home button: Press Home to return to the home screen. Press and hold the button to open Google Assistant function.

Back button: Goes back to previous screen or closes keyboard (if open).

IMPORTANT: The producer allows the possibility for minor variations in display brightness and color between individual devices. There may be visible light or dark spots on the display. Up to 5 defective pixels are acceptable to be present on the display of the device. Above mentioned cases concerning device's display are not covered under warranty nor statutory warranty rights.

Google™, Google Chrome™, Google Play are trademark of Google LLC.

Lechpol Electronics Leszek Sp.k. hereby declares that smartphone KM05000 is consistent with directive 2014/53/UE. Full text of the EU Declaration of Conformity is available at following Internet address: www.lechpol.pl.

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolinska 1, 08-400 Mietne.
