Coach+ 2 YY5171FG - Food processor MOULINEX - Free user manual and instructions

Product type	Multifunction food processor / stand mixer
Brand	Moulinex
Model	Coach+ 2 YY5171FG
Power	1200 W
Bowl capacity	5 L (approx.)
Number of speeds	8 speeds + pulse (Pulse) + folding speed
Timer	From 10 seconds to 30 minutes, adjustable in increments
Automatic programs	8 programs (egg whites, whipped cream, crepe/waffle/pancake batter, cake, shortcrust pastry, white bread, pizza dough)
Display	Screen with touch controls
Accessories provided	Multi-wire whisk, dough hook, beater, pastry cutter; mini chopper depending on model
Multifunctions	Kneading, mixing, whisking, chopping, emulsifying, pastry cutting
Accessory outlets	Dough hook/beater outlet, whisk outlet, slow outlet, fast blender/mini chopper outlet, fast multiprocessor outlet
Standby function	Enters standby after 15 minutes of inactivity
Mobile apps	Compatible with Moulinex app (iOS and Android) with recipes and step-by-step guidance
Safety	Automatic stop if lid or head is unlocked; overheat and overload protection
Cleaning	Dishwasher-safe accessories; motor unit wiped with a damp cloth
Dimensions (W x D x H)	Approx. 40 x 25 x 35 cm
Weight	Approx. 6 kg
Materials	Plastic motor unit, stainless steel bowl, metal accessories
Repairability	Authorized service centers; spare parts available
Warranty	2 years (standard)

Frequently Asked Questions - Coach+ 2 YY5171FG MOULINEX

Which accessories are supplied with the Coach+ 2?

The accessories include a multi-wire whisk, a dough hook, a beater and a pastry cutter. A mini chopper may be included depending on the model.

How do I clean the appliance and its accessories?

Unplug the appliance before cleaning. The accessories are dishwasher-safe. The motor unit should be wiped with a dry or slightly damp cloth, never immersed in water.

What should I do if the motor overheats?

If the motor overheats, let it cool down for 30 minutes. Reduce the amount of mixture to avoid overloading.

The appliance does not start: what should I check?

Make sure the fast outlet cover and the head are properly locked. Check that the speed knob is set to a position other than 0. Press Start/Stop after locking.

How many automatic programs does the appliance offer?

The appliance offers 8 programs: egg whites, whipped cream, crepe/waffle/pancake batter, cake, shortcrust pastry, white bread and pizza dough. Times and speeds are adjusted automatically.

What is the maximum power and bowl capacity?

The power is 1200 W. The bowl capacity is approximately 5 litres, allowing you to prepare up to 2.7 kg of cake batter or 1.8 kg of bread dough.

How do I adjust the preparation time in manual mode?

Use the touch controls (B1/B2) to increase or decrease the time in 10-second increments up to 2 minutes, then in 30-second increments up to 30 minutes. Then press Start/Stop.

Can the appliance chop herbs or onions?

Yes, with the mini chopper (depending on model), you can chop herbs, onions or other small preparations using the Pulse mode for example.

Is there a mobile app for this appliance?

Yes, the Moulinex app is available for free on the App Store and Google Play. It offers hundreds of recipes, step-by-step programs and tips.

What should I do if the screen shows an error or the appliance stops during use?

Refer to the 'What to do if your appliance is not working?' section of the manual. Possible causes include overloading, overheating or automatic stop after 30 minutes. Press Start/Stop or turn the knob to clear the message. If the problem persists, contact an authorized service center.

USER MANUAL Coach+ 2 YY5171FG MOULINEX

Line drawing of a modern kitchen mixer with control panel and side arm (no text or symbols)

EN

APPLIANCE DESCRIPTION 01

TECHNICAL DATA FOR THE APPLIANCE 01

GETTING STARTED 02

CLEANING THE APPLIANCE 02

TIPS & ADVICE ....03

COACH: TO SUCCEED IN BAKING 05

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK? 08

RECYCLING 09

FR

DESCRIPTION DE L'APPAREIL 10

BESCHRIJVING VAN HET APPARAAT 19

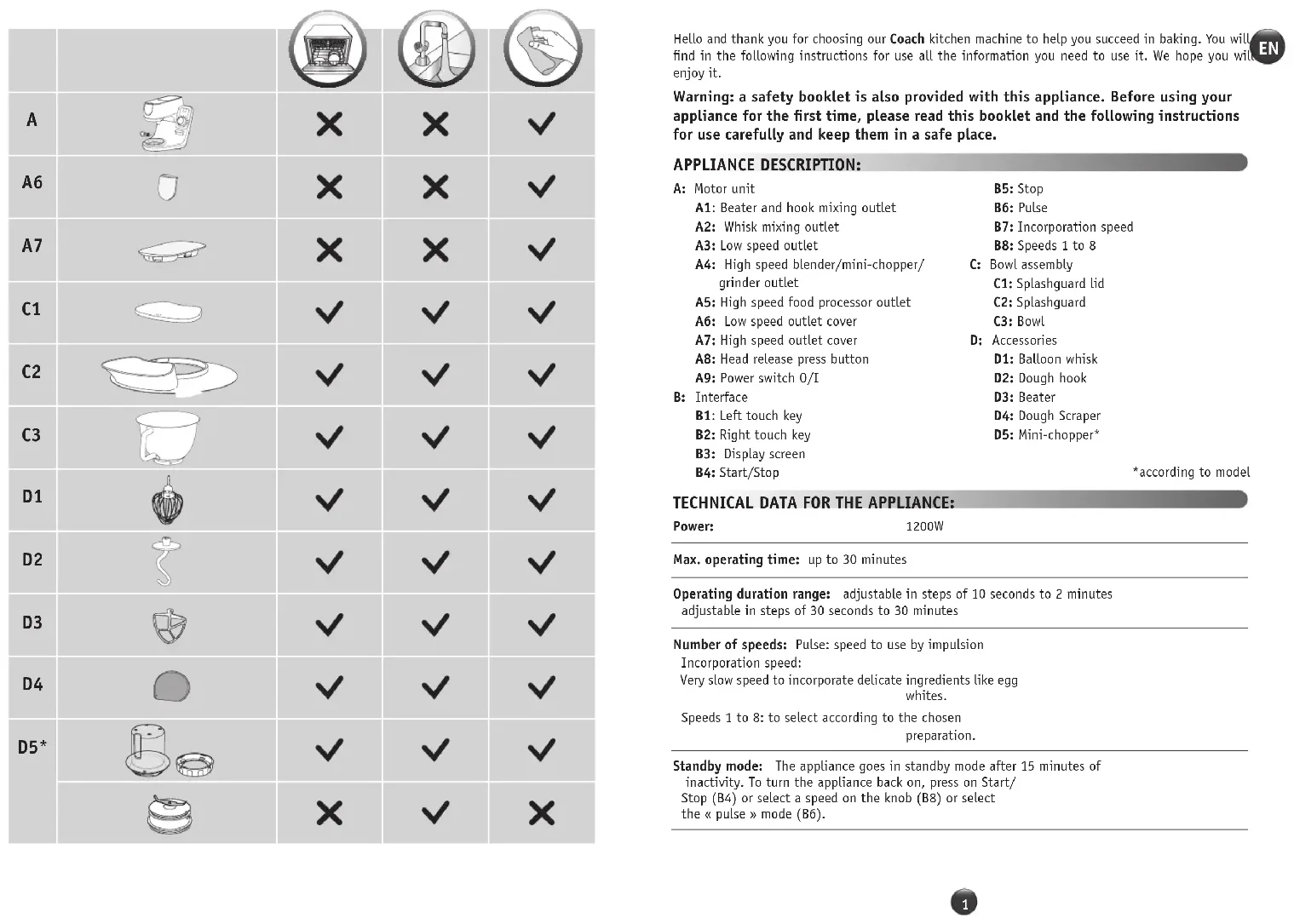

A		×	×	√
A6		×	×	√
A7		×	×	√
C1		√	√	√
C2		√	√	√
C3		√	√	√
D1	[YXGA]	√	√	√
D2	[80TY]	√	√	√
D3		√	√	√
D4		√	√	√
D5*		√	√	√
		×	√	×

Hello and thank you for choosing our Coach kitchen machine to help you succeed in baking. You will find in the following instructions for use all the information you need to use it. We hope you will enjoy it.

Warning: a safety booklet is also provided with this appliance. Before using your appliance for the first time, please read this booklet and the following instructions for use carefully and keep them in a safe place.

APPLIANCE DESCRIPTION:

A: Motor unit	B5: Stop
A1: Beater and hook mixing outlet	B6: Pulse
A2: Whisk mixing outlet	B7: Incorporation speed
A3: Low speed outlet	B8: Speeds 1 to 8
A4: High speed blender/mini-chopper/grinder outlet	C: Bowl assembly
A5: High speed food processor outlet	C1: Splashguard lid
A6: Low speed outlet cover	C2: Splashguard
A7: High speed outlet cover	C3: Bowl
A8: Head release press button	D: Accessories
A9: Power switch O/I	D1: Balloon whisk
B: Interface	D2: Dough hook
B1: Left touch key	D3: Beater
B2: Right touch key	D4: Dough Scraper
B3: Display screen	D5: Mini-chopper*
B4: Start/Stop

TECHNICAL DATA FOR THE APPLIANCE:

Power: 1200W

Max. operating time: up to 30 minutes

Operating duration range: adjustable in steps of 10 seconds to 2 minutesadjustable in steps of 30 seconds to 30 minutes

Number of speeds: Pulse: speed to use by impulsionIncorporation speed:Very slow speed to incorporate delicate ingredients like egg whites.Speeds 1 to 8: to select according to the chosenpreparation.

Standby mode: The appliance goes in standby mode after 15 minutes of inactivity. To turn the appliance back on, press on Start/Stop (B4) or select a speed on the knob (B8) or select the « pulse » mode (B6).

GETTING STARTED

Before using the appliance for the first time, wash all parts of the unit with soapy water except for the motor unit (see «Cleaning» section). We recommend washing all the accessories (D1), (D2) and (D3) in dishwasher at least once. Rinse and dry.

Place the appliance on a flat, clean and dry surface, make sure that the speed selector is in position "Stop" (B5) and then plug in your appliance. Select the O/I power switch (A9) to start the unit.

Never move the appliance by carrying it by an accessory fixed on the top (for example mini-chopper).

• ASSEMBLY:

Follow diagrams 1.1 to 1.9

- USAGE:

To start the appliance, turn the speed selector (B8) to the chosen speed and press the center of the selector on «Start/Stop» (B4).

Important: The appliance will only start if the high speed outlet cover (A7) and the head are locked. If you unlock the cover (A7) and/or the head during operation, the appliance will stop immediately. Place the cover (A7) and/or lock down the head, press «start» (B4) or choose the control knob (B8) to restart the machine.

The appliance goes in standby mode after 15 minutes of inactivity. To turn the appliance back on, press on "Start/Stop" (B4) or select a speed on the knob (B8) or select the pulse mode (B6).

Food can be added through the lid funnel (C2) during a preparation.

To stop the appliance, press the center of the speed selector "Start/Stop" (B4) and return the selector to "Stop" (B5)

• DISASSEMBLY

Wait for the appliance to come to a complete stop, then perform the assembly steps in reverse: diagrams 1.9 to 1.1.

CLEANING THE APPLIANCE

Unplug the appliance.

Do not immerse the appliance (A) in water or put it under running water. Wipe it with a dry or slightly damp cloth.

Disassemble completely and rinse the accessories soon after use.

Wash, rinse and dry the accessories. They are all dishwasher-safe.

Refer to the cleaning table.

Handle all blades with care to prevent injury (diagram 2.4).

TIPS & ADVICE

All models include the whisk, beater and dough hook attachments. Depending on the model the Mini Chopper may also be included. Below you will find recipe ideas, recommended speeds and times of use.

WHISK (D1)

To whisk eggs, whip creams and emulsify preparations.

Please find detailed recipes below.

Never use the balloon whisk to knead dough or heavy batters.

Egg whites Max 10 V8 1 min 45
Mayonnaise Max 1l V7 4 min
	V1-V3	5 sec
Crêpe batter Max 2l	V5	30 sec
	V6	1 min
	V4	2 min
Whipped cream Max 800ml	V5	2 min 30
	V6	75 sec
	V7	10 - 40 sec

Egg whites

5 egg whites

10g sugar

For best results, use room temperature eggs. Add the egg whites to the bowl with the lid. Start the appliance on speed 7. After 40 seconds, add sugar. Switch the appliance to speed 8 for 50 seconds.

Whipped

cream 250g Liquid whole cream(minimum 30% fat and cold)20g icing sugar

Place the bowl and whisk attachment in the refrigerator for 5 minutes before preparing the whipped cream. Add the cream and powdered sugar to the bowl with the lid on and start the appliance to speed 5 for 2 minutes 30, then speed 6 for 75 seconds and speed 7 for 10 to 40 seconds. Check consistency of the cream preparation, 30 second from the end, because it could quickly change.

Mayonnaise

2 egg yolks

20g mustard

1 pinch of salt

250ml oil

Add the egg yolks, mustard and salt to the bowl with the lid on and start the appliance at speed 7. Add the oil very gradually through the opening in the lid for 3 minutes. After 3 minutes, remove the bowl from the appliance and scrape down the sides with a spatula, smoothing the mayonnaise for 3 to 4 turns.

Crêpe batter

300g T45 flour

3 eggs

30g sugar

30 ml oil

600 ml milk

Add the flour, eggs, sugar, oil and 200 ml of milk to the bowl with the lid and run the appliance at speed 1 for 5 seconds, then at speed 3 for 5 seconds, at speed 5 for 30 seconds and finally at speed 6 for 1 minute. Scrape down the sides of the bowl, then start the appliance again at speed 4. Add the remaining 400 ml of milk gradually by the opening in the lid for 2 minutes. Remove the bowl from the appliance and pass the preparation through a fine sieve. Leave to rest for 1 hour before making your pancakes. Brush a pan with a little oil, heat over medium heat and add a ladleful of batter. Cook for 1 minute on one side and 30 seconds on the other.

DOUGH HOOK (D2)	To prepare yeast doughs: bread, pizza and brioche doughs and fresh pasta.
Recipe
White bread dough	Max 1,8kg(1kg flour)	V1V2	1 min10 min
Brioche dough	Max 2.5kg(750g flour)	V5 20 min
Pasta dough	Max 1kg(600g flour)	V2 5 min

White bread dough 500 g flour340 g water20 g fresh yeast10 g salt

In a separate bowl, let the yeast dissolve in the water for 5 minutes. Add the flour and salt to the bowl with the lid on and start the appliance at speed 1. Add the water and yeast gradually for 1 min. Switch to speed 2 for 10 minutes. Let the dough rise for 45 minutes at 30°C. Shape the bread and let it rise again for 90 minutes at 30°C. Preheat your oven to 230°C. Brush the surface of the bread with water and make slashes with a knife. Bake at 230°C for 25 minutes.

[IMAGE]	For mixing cake and cookie batters, shortcrust and shortbread doughs. Never use the beater to knead heavy (yeast) doughs.
	Recipe
	Cake batter Max 2,7kg	V1 V8 Pulse	30 sec 2 min 30 15 sec
	Shortcrust pastry Max 700g V5 5 min

Cake batter	Take out the butter 1 hour before preparing your dough or put it in the microwave for 15 seconds to soften it without melting it. Preheat your oven to 180^ . Add the flour, baking powder, eggs, soft butter and sugar in the bowl with the lid. Start the appliance at speed 1 for 30 seconds, then at speed 8 for 2 minutes and 30 seconds, then scrape the wall of the bowl, and finally launch the device in Pulse mode for 15 seconds, or until no more pieces of butter are visible. Butter and line a cake pan. Pour in the mixture and bake at 180^ for 1 hour. Let cool for 10 minutes before unmolding.
180 g flour
3 g baking powder
3 eggs
150 g soft butter
150 g sugar

[IMAGE]	Recipe	mix
	Figs 60g Pulse 3 sec

COACH: TO SUCCEED IN BAKING

The following control keys will light up when they are available for use:

You should press on "Start/Stop" (B4) to start or stop mixing at any speed

1. FIRST TIME USE

Coach is a smart appliance that helps you bake and succeed in all your preparations. It offers you 8 basic preparations with the right combination of time and speed, all available in just a few taps.

With its easy-to-use digital display and capacitive touch keys, you will be able to prepare anything you like: guaranteed results and success!

Turn on your Coach using the power switch 0/T (A9) and use the manual mode (for more info, go on next page) or try an automatic program.

Coach takes care of preparing and mixing your ingredients, and you can access even more services via the mobile application. In the app, discover hundreds of recipes, that you can follow step-by-step, 21 basic preparations with result verification, tips and tricks, and more! Follow the steps—it couldn't be easier!

Download the Coach app. Downloadable for free from the App Store (iPhone/iPad) and Google Play (Android).

Available on the App Store

For each program, simply add your ingredients to the bowl, select the program with the arrow touch keys (B1 / B2). Once you have chosen the program, press "Start/Stop" (B4) and the program will start automatically. A timer will show in real time how long it will take. When the program is done, the machine stops automatically and rings.

If this animated logo appears on the display when the appliance rings, you will need to add ingredients with star (*) progressively, according the recipe, and press "Start/Stop" (B4) again to finish the program. For more info, see here under or check your Quick Start Guide.

For egg whites 1 to 6- eggs

For egg whites : 6 to 10- eggs

For whipped cream: 200ml to 800ml of cream with 30% of fat mini.

Waffles, Pancakes & Crêpes 20 Pancakes 12 crêpes 12 waffles

Flour 250 g 300 g 300 g
Baking Powder 11 g		/	11 g
Sugar 30 g	30 g	75 g
Eggs		2	3	2
Oil		2 cl	3 cl	5 cl
Milk		15 cl	20 cl	20 cl
	*Milk	18 cl	40 cl	38 cl
BAKE		1 minute on one side, flip, 30 seconds on the other side		Bake in a waffle maker

Cakes		6 people	8 people	6 people	8 people
Flour		180 g	220 g	185 g	245 g
Baking Powder		3 g	5 g	6 g	11 g
Eggs 3	4	3	4
Sugar		150 g	200 g	//
Melted butter		150 g	200 g	//
Olive oil		//	9 cl	12,5 cl
Milk		//	9 cl	12,5 cl
Salt/Pepper		//	1 pinch	1 pinch
BAKE		50 minutes180°C	1 hour180°C	45 minutes180°C	55 minutes180°C

Shortcrust pastry For a 27 cm diameter pie or biscuit dish

Flour 220 g
Soft butter 100 g
	*Egg yolk	1
	*Water	4 cl
Leave to rest for 30 minutes before using in a pie, for biscuits or any other recipe.

Whitebread For 870 g bread dough

Flour 500 g
Baking powder 10 g
Salt 20 g
Water 34 cl
Leave to rest for 45 minutes, then form the bread, leave to rest for another 90 minutes before baking 25 minutes at 250°C

Pizza dough	For a 28 cm diameter pizza dough
Flour 150 g
Salt	1 pinch
Fresh yeast	6 g
Olive oil	1,5 d
Water	9 cl

Leave to rest for 2 hours before rolling out and garnishing with you own toppings

MANUAL MODE

You can select the speed of your choice thanks to the speed selector (B8) and click the « Start » button at the center of the selector (B4). A timer will start on the display screen (B3).

You can also set a timer before clicking « Start » (B4): select the right arrow touch key (B2) to increase the time, up to 30 minutes. Select the left arrow (B1) to decrease the time. Once you are satisfied, press the start button (B4) and at the end of the timer, the appliance will stop automatically and ring.

WHAT TO DO IF YOUR APPLIANCE DOES NOT WORK

	PROBLEM CAUSE SOLUTION
	The engine is on overheat	The amount of preparation is beyond appliance capacity	Let the engine cool down 30 minDecrease the quantity of preparation
	The engine is on overload	The appliance is severely overloaded	Decrease the quantity of preparaton. Push « start/stop » or turn the rotary knob to exit.Let the engine cool down 30 min
	The appliance has been running 30 min	Automatic stop	Push « start/stop » or turn the rotary knob to exit
	Electronic powerboard is out of order	Electronic failure Unplug your appliance.Contact a repair center.
	Electronic control of the engine is out of order	Electronic failure Unplug your appliance.Contact a repair center.
	The engine is locked	Motor failure	Unplug your appliance.Contact a repair center.

8

Is your appliance still not working?

Contact an approved service centre (see the list in the service booklet).

RECYCLING

• DISPOSING OF THE PACKAGING AND THE APPLIANCE

The packaging is made up of environmentally-safe materials and can therefore be disposed of in accordance with the recycling measures in force in your area. To dispose of the appliance, check with the appropriate service in your area.

• ENVIRONMENT PROTECTION FIRST!

⑤ Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

9
