USER MANUAL Pixma G1420 CANON

Read Safety and Important Information (addendum) first.

Icon showing a printer with a paper airplane and a document, symbolizing file transfer or sync (no text present)

Installing the Printer...... page 1

Line drawing of two hands opening a rectangular electronic device (no text or symbols)

Diagram showing a hand holding a printer with a red prohibition symbol indicating no liability.

Setting Up the Printer

For Setup, visit the URL

https://ij.start.canon

or scan the code with your mobile device

- Follow the instructions below if you do not have an internet connection.

1. Box Contents

- Print Heads

• Ink Bottles
  Power Cord
• Setup CD-ROM
  ● Safety and Important Information
  • Getting Started (this manual)

2. Removing Packing Materials

1 Remove and dispose of any packing materials and orange tape.

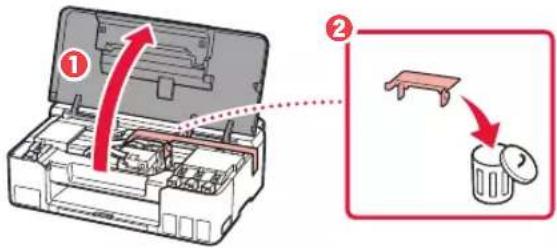

2 Open the top cover, remove and dispose of the orange tape and protective material inside.

Diagram showing a mechanical device with labeled parts and a magnified view of a trash bin with a handle.

3. Installing the Print Heads

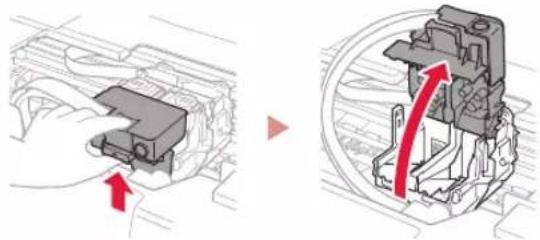

1 Open the print head locking cover.

Mechanical assembly diagram showing a component before and after assembly, with red arrows indicating motion direction (no text or symbols)

2 Take out each print head from the package and remove the label.

(C) (B)

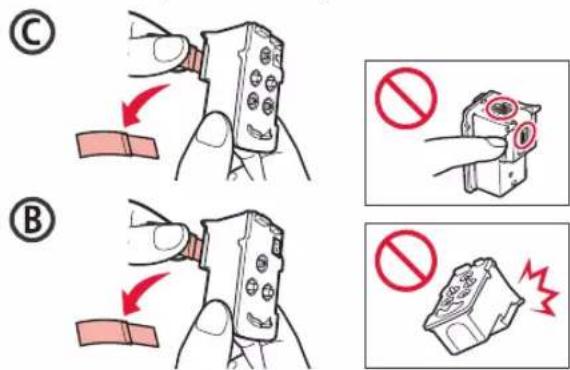

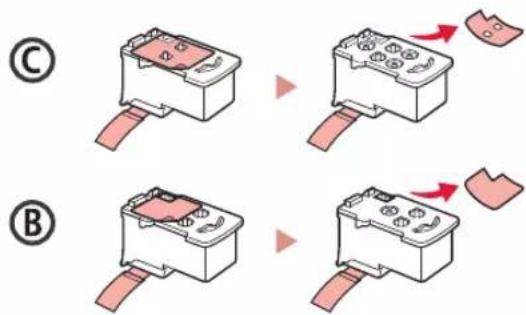

3 Remove the protective tape.

Illustration showing two-step instructions for installing a device, with labeled diagrams (C and B) and no text in Chinese.

Setting Up the Printer

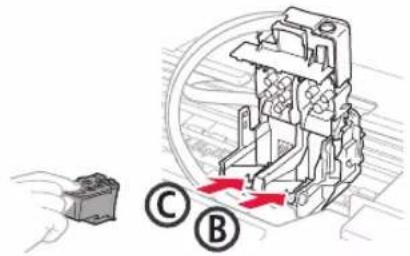

4 Insert the C (color) print head on the left and the B (black) print head on the right.

Diagram showing a mechanical component with labeled parts C and B, indicating assembly or inspection steps.

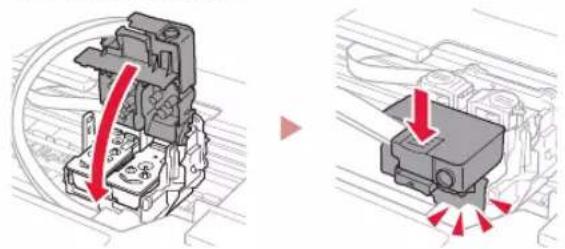

5 Close the print head locking cover and press down until it clicks.

Technical diagram showing mechanical assembly with red arrows indicating force directions (no text or symbols)

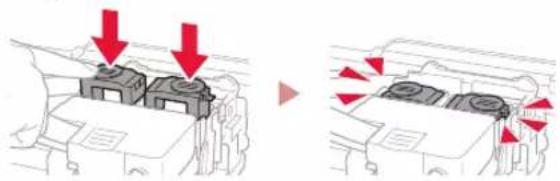

6 Press down both joint buttons completely until they click.

Diagram showing two mechanical components with red arrows indicating downward motion, no text or symbols present

Check!

7 Close the top cover.

Diagram of a mechanical device with an open lid and internal compartments, showing a red arrow indicating a process or operation (no text or symbols present)

4. Turning on the Printer

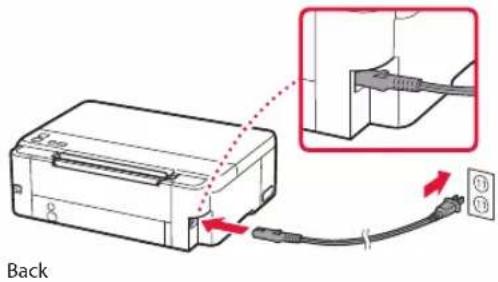

1 Connect the power cord.

Back

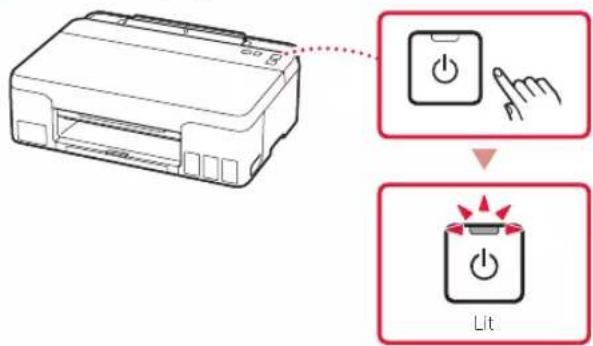

2 Press the ON button.

• The ON lamp lights.

Diagram showing a printer with power button and lit indicator, illustrating the process of battery charging.

Important

If the Alarm lamp flashes or lights, see "If the Alarm lamp flashes or lights" on page 4 and follow the instructions.

5. Pouring Ink

Important

This product requires careful handling of ink. Ink may splatter when the ink tanks are filled with ink. If ink gets on your clothes or belongings, it may not come off.

1 Open the top cover.

Diagram of a mechanical device with an open lid and internal compartments, showing a red upward arrow indicating motion (no text or symbols present)

2 Open the tank cap on the left of the printer.

Mechanical assembly diagram showing a lever mechanism with red arrows indicating motion direction (no text or symbols)

3 Hold the ink bottle upright and gently twist the bottle cap to remove.

Check!

PGBK

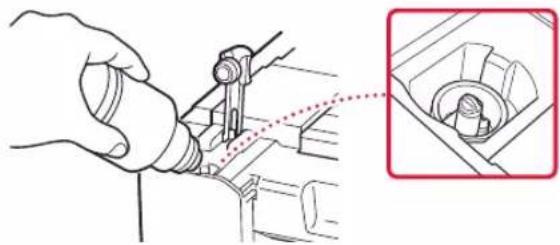

4 Align the nozzle of the ink bottle with the inlet.

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

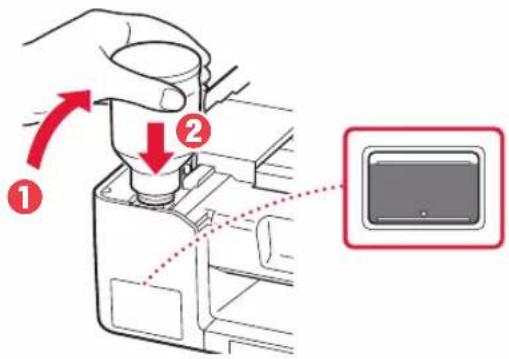

5 Slowly stand the ink bottle upside down and push down to pour the ink.

- If the ink does not pour, gently remove the ink bottle and try again.

Diagram showing a hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the screen.

6 Gently remove the ink bottle from the inlet.

- Be careful not to spill the ink.

Diagram showing a hand pressing a cylindrical component with red arrows indicating direction, labeled with numbers 1 and 2.

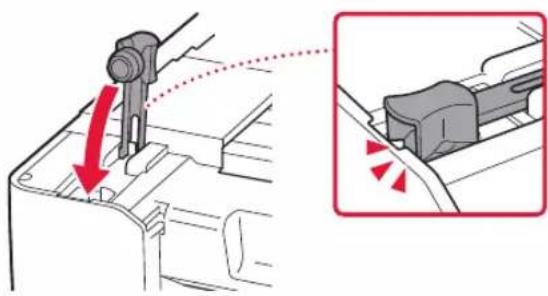

7 Replace the tank cap securely.

Mechanical assembly diagram showing a lever mechanism and a close-up of a component with red arrows indicating motion (no text or symbols)

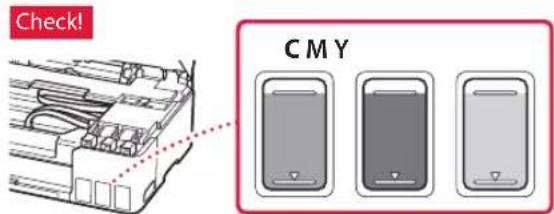

8 Repeat steps 2 through 7 to pour all ink into the corresponding ink tanks on the right.

Check! CMY

Setting Up the Printer

9 Close the top cover.

Diagram of a mechanical device with a red arrow indicating a component or operation (no text or symbols present)

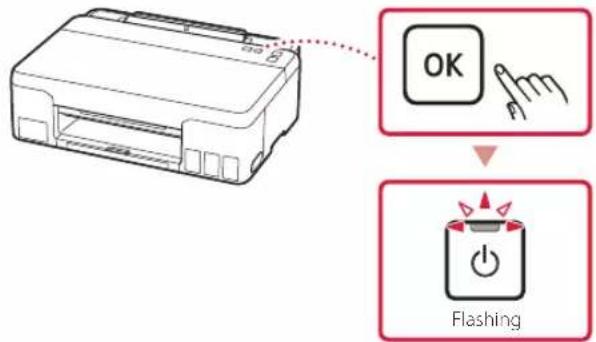

10 Press the OK button.

- The ON lamp flashes and the ink system preparation starts. It takes about 5 minutes to complete.

OK Flashing

→ Proceed to the next page.

If the Alarm lamp flashes or lights

Count the number of flashes.

• 9 times

Protective material remaining.

→ "2. Removing Packing Materials" on page 1

• 4 times

Print heads are not installed correctly.

→ "3. Installing the Print Heads" on page 1

- 5 times

Print heads cannot be recognized.

→ "3. Installing the Print Heads" on page 1

• The ON lamp and Alarm lamp flash alternately 8 times

Ink system preparation was not completed successfully. Press the ON button to restart the printer, and then see "5. Pouring Ink" on page 3.

For all other cases, refer to the Online Manual.

6

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer.

1 Access the Canon website from your computer.

https://ij.start.canon

2 Select Set Up.
3 Enter your printer's model name and click Go.
4 Click Start.
5 Click (B) Connecting to a Computer.

• The following steps are for Windows users.

6 Click Download.
7 Run the downloaded file.

• Follow the on-screen instructions.

• This may take some time.

Using the Setup CD-ROM

Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install the printer driver.

Loading Paper

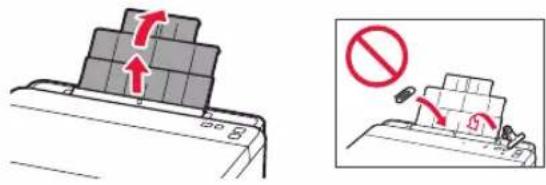

1 Extend the paper support.

Diagram showing a computer keyboard with directional arrows and a prohibition symbol on the keyboard.

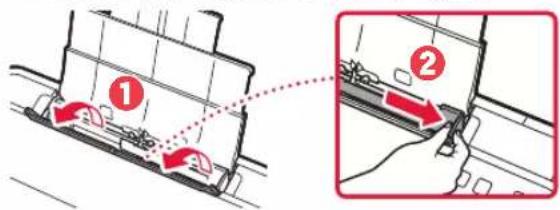

2 Open the feed slot cover and slide the right-hand side paper guide to the far right.

Diagram showing two steps of a mechanical or electrical component with numbered annotations and directional arrows indicating movement.

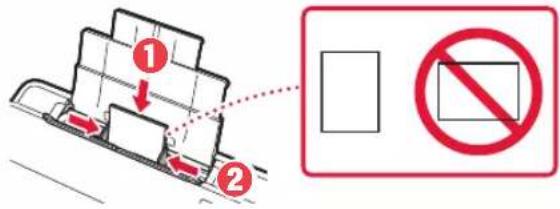

3 Load several sheets of paper with the print side facing up and slide the side paper guide against the edge of the paper stack.

Diagram showing a building with numbered components and a prohibition symbol, likely illustrating a safety or hazard scenario.

4 Close the feed slot cover.

Simple line drawing of a mechanical component with red ribbon clips (no text or symbols)

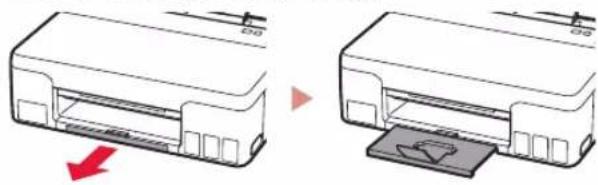

5 Extend the paper output tray.

Diagram showing two views of a printer or printer device with arrows indicating process direction (no text or symbols present)

Transporting Your Printer

When relocating the printer, check the following. Refer to the Online Manual for details.

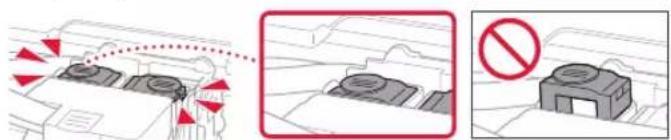

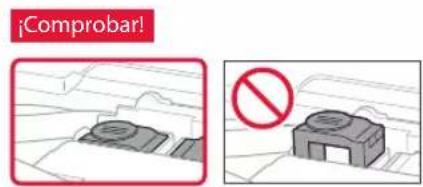

Check that both joint buttons are pressed down completely to avoid ink leaks.

Diagram illustrating HVAC system ventilation and noise suppression, showing fan placement and building structure with red arrows indicating airflow direction.

Check that the position of the ink valve lever is closed.

Diagram of a car wheel with a red curved arrow indicating motion (no text or symbols)

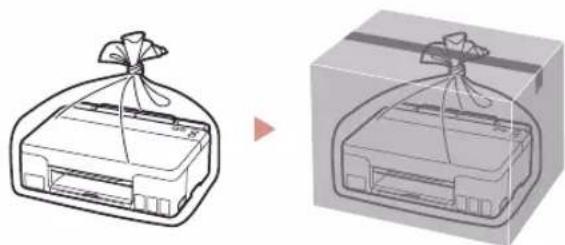

Pack the printer in a plastic bag in case ink leaks.

• Pack the printer in a sturdy box so that it is placed with its bottom facing down, using sufficient protective material to ensure safe transport.
• Do not tilt the printer. Ink may leak.
• Please handle with care and ensure the box remains flat and NOT turned upside down or on its side, as the printer may be damaged and ink in the printer may leak.
• When a shipping agent is handling transport of the printer, have its box marked "THIS SIDE UP" to keep the printer with its bottom facing down. Mark also with "FRAGILE" or "HANDLE WITH CARE".

Illustration of a gift box being wrapped in a paper bag, showing front and side views (no text or symbols)

Diagram showing a device open with a red arrow indicating rotation, and a close-up of a trash bin with arrows pointing to the waste.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or labels present)

Illustration showing two-step instructions for installing a device, with red prohibition symbols indicating no protection.

Technical diagram showing a mechanical assembly with labeled parts C and B, and a small component connected to it.

Technical illustration of a mechanical component before and after assembly, showing internal structure with red arrows indicating motion (no text or symbols)

Diagram illustrating vehicle door lock mechanism with red arrows indicating downward motion and a magnified view of the lock structure.

Warning sign indicating '¡Comprobar!' and a graphic showing a computer monitor and a prohibition symbol.

Diagram of a mechanical device with an open lid and internal compartments, showing a red arrow indicating direction (no text or symbols present)

Diagram of a mechanical device with an open lid and internal compartments, showing a red upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

Diagram showing a hand operating a device with labeled parts and directional arrows indicating motion or movement.

Diagram showing a hand operating a mechanical component with red arrows indicating direction of movement or force, labeled ① and ②.

Mechanical assembly diagram showing a lever mechanism and a close-up of a component with red arrows indicating motion (no text or symbols)

Diagram of a mechanical device with a red arrow indicating a cut or assembly process (no text or symbols present)

Diagram of a printer with stacked blocks and red arrows indicating motion (no text or symbols)

Diagram showing a mechanical or electrical component with numbered callouts and red arrows indicating direction or force vectors.

Diagram showing a hand holding a tool with a red arrow pointing to a component, labeled with number 2

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow, possibly illustrating a mechanical or architectural process.

Two symbolic icons: a blank rectangle and a red prohibition symbol with a circle.

Simple line drawing of a mechanical component with red ribbon-like elements (no text or symbols)

Technical line drawing of a rectangular electronic device with a red arrow indicating downward motion (no text or symbols)

Line drawing of a printer with a paper clip inserted (no text or symbols)

Diagram illustrating a mechanical or electrical component with directional arrows and a prohibition symbol, likely indicating movement or disassembly.

Diagram showing a car with a red curved arrow indicating motion or movement, no text or symbols present

Illustration of a printer with a bag wrapped around it, shown from two different angles (no text or symbols)

Configurando a impressora

Para configurar, visite a URL

https://ij.start.canon

Diagram showing a device open with a red arrow indicating direction, and a trash bin with arrows pointing to it.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or labels present)

Illustration showing two-step instructions for installing a device with red tape, including no text and red prohibition signs.

Configurando a impressora

Technical diagram showing a mechanical assembly with labeled parts C and B, and a small component connected to it.

Technical illustration of a mechanical component before and after assembly, showing red arrows indicating motion or force direction (no text or symbols present)

Diagram showing two mechanical components with red arrows indicating downward motion, no text or symbols present

Verificar!

Diagram of a mechanical device with a red arrow indicating a component or operation (no text or symbols present)

4. Ligando a Impressora

Diagram showing a printer with power button and Aceso button, illustrating the process of adding or removing.

Importante

Illustration of a mechanical device with an open lid and internal components, showing a red upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing close-up detail (no text or symbols)

Diagram showing a hand pressing a device into a container with labeled arrows and a close-up of the screen.

6 Remova lentamente a garrafa de tinta da entrada.

Diagram showing a hand holding a cylindrical object with red arrows indicating direction, labeled with numbers ① and ②.

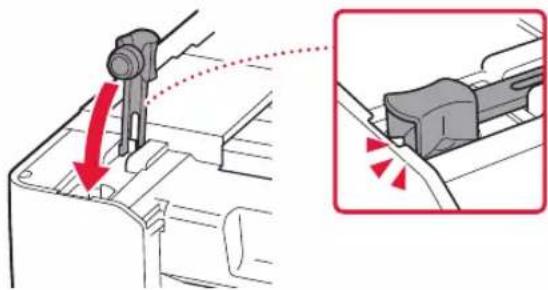

7 Recoloque firmemente a tampa do cartucho.

Mechanical assembly diagram showing a tool interacting with a bracket, with red arrows indicating motion direction (no text or symbols)

Verificar! CMY

Configurando a impressora

Diagram of a mechanical device with a red arrow indicating a cut or assembly process (no text or symbols present)

Diagram showing a printer with a stack of cubes and a prohibition symbol indicating no usage or disapproval.

Diagram showing two steps of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

Diagram illustrating a collision or collision scenario with numbered arrows and a prohibition symbol

Simple line drawing of a mechanical component with red ribbon-like elements (no text or symbols)

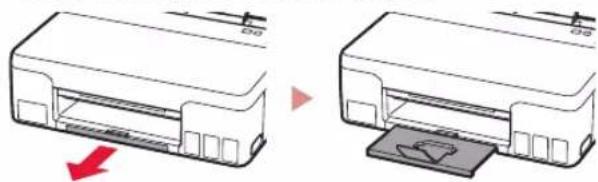

5 Abra a bandeja de saída do papel.

Two technical diagrams showing a printer or printer device before and after processing, with no visible text or symbols.

Transportando a Impressora

Diagram illustrating fire resistance warning and safety symbols, showing fire damage and no fire symbol in a building layout.

Diagram of a car under load with red curved arrows indicating motion (no text or symbols)

Illustration of a gift box being wrapped in a paper bag, showing front and side views (no text or symbols)

Configuration de l'imprimante

Diagram showing a device open with a red arrow indicating rotation, and a close-up of a trash bin with arrows pointing to the component.

Mechanical assembly diagram showing a component before and after assembly, with red arrows indicating motion direction (no text or symbols)

Diagram showing two steps (C and B) of a battery pack being inserted, with arrows indicating process direction.

Illustration showing two-step instructions for installing a device, with red prohibition symbols indicating no movement.

Configuration de l'imprimante

Diagram showing a mechanical component with labeled parts C and B, indicating assembly or inspection steps.

Technical illustration of a mechanical component with red arrows indicating direction (no text or symbols)

Diagram showing two mechanical components with red arrows indicating downward motion, no text or symbols present

Vérifiez!

Diagram of a mechanical device with an open lid and internal compartments, showing a red arrow indicating a process or operation (no text or symbols present)

Diagram showing a printer with power button and 'Allumé' label, illustrating the process of printing or printing.

Important

Diagram of a mechanical device with an open lid and internal compartments, showing a red upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

Diagram showing a hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the screen.

Diagram showing a hand operating a mechanical component with red arrows indicating direction of movement or force, labeled ① and ②.

Mechanical assembly diagram showing a tool interacting with a bracket, with red arrows indicating motion direction (no text or symbols)

Diagram of a mechanical device with a red arrow indicating a cut or assembly process (no text or symbols present)

Diagram showing a printer with a stack of blocks and a prohibition symbol indicating no usage or disapproval.

Diagram showing two steps of a mechanical or electrical component with labeled parts and directional arrows indicating movement.

Diagram showing a building with numbered arrows and a prohibition symbol, likely illustrating a safety or hazard scenario.

Simple line drawing of a mechanical component with red clamps (no text or symbols)

Two technical diagrams showing a printer or printer device before and after processing, with no visible text or symbols.

Diagram illustrating fire resistance warning and safety instructions with labeled arrows and a prohibition symbol

Diagram showing a car with a red curved arrow indicating motion or force, no text or symbols present

Illustration of a printer with a bag wrapped around it, shown from front and side views (no text or symbols)

Настройка принтера

Diagram showing a device open with a red arrow indicating direction, and a trash bin with arrows pointing to it.

Mechanical assembly diagram showing a component being inserted into a housing, with red arrows indicating direction (no text or labels present)

Illustration showing two-step instructions for installing a device with red tape, including no text and red prohibition signs.

Настройка принтера

Diagram showing a mechanical assembly with labeled parts C and B, and a hand holding a small component.

Technical illustration of a mechanical assembly with red arrows indicating force directions (no text or symbols present)

Diagram showing two mechanical components with red arrows indicating downward motion, no text or symbols present

Проверка!

Two technical diagrams showing a mechanical component and a building with a prohibition symbol (no text or labels present)

Diagram of a mechanical device with an open lid and internal compartments, showing a red arrow indicating a process or operation (no text or symbols present)

Illustration of a mechanical device with an open lid and internal components, showing a red upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

Diagram showing a hand operating a device with labeled parts and directional arrows, including a zoomed-in view of the screen.

Diagram showing a hand holding a container with red arrows indicating direction, labeled with numbers ① and ②.

Mechanical assembly diagram showing a tool interacting with a component, with an inset close-up highlighting the motion of motion (no text or symbols present)

Diagram of a mechanical device with a red arrow indicating a cut or assembly process (no text or symbols present)

OK Miraet

Diagram of a printer stack with red arrows indicating compression or movement (no text or symbols)

Diagram showing a mechanical component with numbered parts and directional arrows indicating motion or force vectors.

Diagram showing a hand holding a device with a red arrow pointing to a component, labeled with number 2.

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow, possibly illustrating a mechanical or architectural process.

Two geometric symbols: a blank rectangle and a red prohibition sign with a circle.

Simple line drawing of a mechanical component with red clamps (no text or symbols)

Technical line drawing of a rectangular electronic component with a red arrow indicating downward motion (no text or symbols)

Line drawing of a printer with a paper clip inserted (no text or symbols)

Diagram of a car interior with a red curved arrow indicating motion or movement (no text or symbols)

Line drawing of a rectangular printer with a ribbon tied around it (no text or symbols)

Illustration of a mechanical device with a handle and base, no visible text or symbols

Diagram showing a file organizer with an open lid and a trash bin, labeled with steps ① and ②.

Mechanical assembly diagram showing a component being rotated and then tilted, with red arrows indicating motion direction (no text or symbols)

Diagram showing two steps (C and B) of a battery pack being inserted, with arrows indicating process direction.

Illustration showing two-step instructions for installing a device, with red prohibition symbols indicating no movement.

Diagram showing a mechanical component with labeled parts C and B, and a hand holding a small component.

Technical diagram showing a mechanical component before and after disassembly, with red arrows indicating motion or force direction (no text or symbols present)

Diagram showing two mechanical components with red arrows indicating downward motion, no text or symbols present

Перевірте!

Diagram of a mechanical device with an open lid and internal compartments, showing a red arrow indicating a process or operation (no text or symbols present)

Diagram showing a printer with cable and connector, annotated with red arrows indicating connection to a device.

Задня сторона

Illustration of a mechanical device with an open lid and internal compartments, showing a red upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical assembly with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

Diagram showing a hand pressing a device into a container with labeled arrows and a close-up of the screen.

Diagram showing a hand holding a cylindrical object with red arrows indicating direction, labeled with numbers ① and ②.

Mechanical assembly diagram showing a lever mechanism with red arrows indicating motion (no text or symbols present)

Diagram of a mechanical device with a red arrow indicating a cut or assembly process (no text or symbols present)

Diagram of a computer monitor with a stack of cubes and red arrows indicating rotation or movement (no text or symbols)

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating movement or force.

Diagram showing a hand holding a tool with a red arrow pointing to a component, labeled with number 2.

Diagram showing two labeled components (① and ②) with arrows indicating movement or force, likely illustrating a mechanical or electrical system.

Two symbolic signs: a blank rectangle and a red prohibition symbol with a circle.

Simple line drawing of a mechanical component with red clamps (no text or symbols)

Two-step diagram showing a printer with a paper clip and a separate printer with a cover, both without any text or symbols.

Diagram of a car interior with a red curved arrow indicating motion or movement (no text or symbols)

Illustration of a gift box being wrapped in a paper bag, showing front and side views (no text or symbols)

تحميل الورق

Simple line drawing of a mechanical component with red clamps (no text or symbols)

Line drawing of a printer with a paper clip inserted (no text or symbols)

Diagram of a printer or scanner device with a red arrow indicating compression or disassembly (no text or symbols present)

Diagram of a printer with a stack of books and a red arrow indicating compression or shift (no text or symbols)

Diagram showing a mechanical component with red arrows indicating motion or force direction, labeled with number 1.

Diagram showing a hand holding a device with a red arrow pointing to a component, labeled with number 2.

Diagram showing two labeled mechanical or structural components with red arrows indicating movement or force direction.

Two symbolic signs: a blank rectangle and a red prohibition symbol with a crossed-out rectangle.

3

Diagram of a car under lane markings with a red curved arrow indicating motion (no text or symbols)

Illustration of a device with a paper airplane and a cloth cover, enclosed in a transparent box (no text or symbols)

Line drawing of a printer with a ribbon tied around it (no text or symbols)

Illustration of a printer case with a red arrow indicating compression or disassembly (no text or symbols present)

无法识别

Line drawing of a rectangular electronic device casing (no text or symbols)

بومض

Diagram showing a hand pressing a device into a container with labeled arrows and a close-up of the screen.

Diagram showing a hand operating a mechanical device with labeled parts and directional arrows indicating motion or force.

Mechanical assembly diagram showing a lever mechanism and a close-up of a component with red arrows indicating motion (no text or symbols)

Diagram of a mechanical device with an open lid and internal components, showing a red upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

4. تشغيل الطبعة

Line drawing of a rectangular electronic device casing (no text or symbols)

###

هام

Technical diagram showing a mechanical assembly with labeled parts C and B, and a connector icon.

Diagram of a mechanical component with red arrows indicating force or movement (no text or symbols)

Mechanical component diagram showing a red downward arrow indicating a specific assembly or motion (no text or symbols present)

Diagram of a printer's front panel with red triangular arrows indicating ports or connections (no text or symbols present)

Diagram of a vehicle engine compartment with two red arrows pointing to the top section (no text or symbols present)

تحفّ!

أغلق الغطاء العلوي.

7

Diagram of a printer case with an open lid and internal compartments, showing a red arrow indicating the process (no text or symbols present)

Mechanical assembly diagram showing a motor component with red directional arrows indicating motion (no text or labels)

Illustration showing a hand adjusting a remote control panel with a red arrow indicating the cable or cable extension.

Illustration showing a hand holding a device with a red arrow pointing to a cable, labeled with circled number B.

1. محتويات العليا

زجاجات الحير

specialist الطاقة

Two identical diagrams of a container with handles, labeled C and B, showing vertical alignment lines (no text or symbols beyond labels)

Diagram showing a device with an open lid and a trash bin, labeled with steps ① and ②.

Trademarks

- Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

Marcas comerciales

https://ij.start.canon
