Product type	Radio-controlled alarm clock with USB charging function
Brand	TFA
Model	60.2551
Housing dimensions	135 x 85 x 55 mm
Weight	149 g (unit only)
Main power supply	Included mains adapter: input 100-240 V AC, 50/60 Hz, 0.3 A max; output 5.0 V DC, 1.0 A, 6.0 W
Backup batteries	2 x 1.5 V AAA (not included; use alkaline batteries)
Display	Large LED digits, continuously adjustable (3 levels + wheel)
Time reception	DCF radio-controlled (77.5 kHz), range approx. 1500 km, automatic search at night
Time zone	Adjustable ±1 hour relative to DCF time
Time system	12 or 24 hours (selectable)
Alarm function	With audible alarm; automatic stop after 2 minutes; activation/deactivation via AL button
Snooze function	Adjustable alarm repeat from 5 to 60 minutes (touch-sensitive)
Volume adjustment	Continuous adjustment wheel
USB charging port	Output 5 V, 1 A max; for mobile devices (cable not included)
Package contents	Alarm clock, mains adapter, instruction manual
Care and cleaning	Soft damp cloth; no solvents or abrasives
Safety	Do not expose to water/moisture; do not open or modify; use only the supplied adapter; keep out of reach of children
Recycling	WEEE compliant; used batteries to be returned or disposed of at recycling center
Repairability	Do not repair yourself; contact the seller

Frequently Asked Questions - 60.2551 TFA

How to set the time manually if DCF reception fails?

Press and hold the MODE button for 3 seconds in normal mode. The time zone flashes; set it with UP or DOWN. Press MODE again to set hours and minutes. Confirm with MODE. Note: if DCF reception succeeds later, the manual time will be overwritten.

How to activate or deactivate the alarm?

Press the AL button in normal mode. The alarm symbol appears (activated) or disappears (deactivated).

How to set the alarm time and snooze interval?

Press MODE to enter alarm mode. Hold MODE for 3 seconds. The hour flashes: set with UP/DOWN, confirm with MODE. Then set the minutes and then the snooze interval (5 to 60 minutes), confirming each time with MODE.

What to do if the alarm does not ring?

Check that the alarm is activated (alarm symbol displayed). Make sure the volume is not at minimum: use the VOL wheel to increase it. If the problem persists, check the power supply.

How to adjust the display brightness?

Use the touch-sensitive SNOOZE button to choose from 3 predefined levels (HIGH/LOW/OFF). Additionally, the LIGHT wheel allows continuous adjustment within HIGH and LOW levels.

How to charge a mobile device via the USB port?

Connect a USB cable (not included) to the USB port on the back of the alarm clock, then connect it to your mobile device. Charging only works when the mains adapter is plugged in. The max output is 1 A – ensure your device is compatible.

Why is the DCF radio time not received?

Several possible causes: distance too great (>1500 km from Frankfurt), interference (screens, reinforced concrete), or reception only at night. You can force a search by holding UP for 3 seconds. Place the device near a window. If nothing works, set the time manually.

How to switch between 12h and 24h display?

In normal mode, press the DOWN button to switch between 24h and 12h. In 12h mode, the PM symbol is displayed in the afternoon.

What type of batteries to use for backup?

Use two 1.5 V AAA alkaline batteries, respecting polarity (+/-). Batteries are not included. Replace them as soon as they are low to avoid leakage.

How to clean the clock?

Use a soft, slightly damp cloth. Never use solvents or abrasive products. Remove batteries if the device is not used for a long time.

USER MANUAL 60.2551 TFA

Black digital alarm clock with dual buttons and display showing 13:24 (no text or symbols beyond clock face)

Kat. Nr. 60.2551

TFA_No. 60.2551_Anleitung_03_21 03.03.2021 18:15 Uhr Seite 2 Fig. 1 A7 A2 A1 PM 38:88 DST AL A3 A4 A5 Zz A6 -2--3- Fig. 2 B6 B3 B4 LIGHT UP VOL MODE AL DOWN SNOOZE B5 B1 B7 B2

Simple geometric lines forming a crosshair symbol (no text or labels)

Cd-Cadmium, Ag-Queckslider, Pb-Bie

Output: 5.0 V DC 1.0A, 5.0W

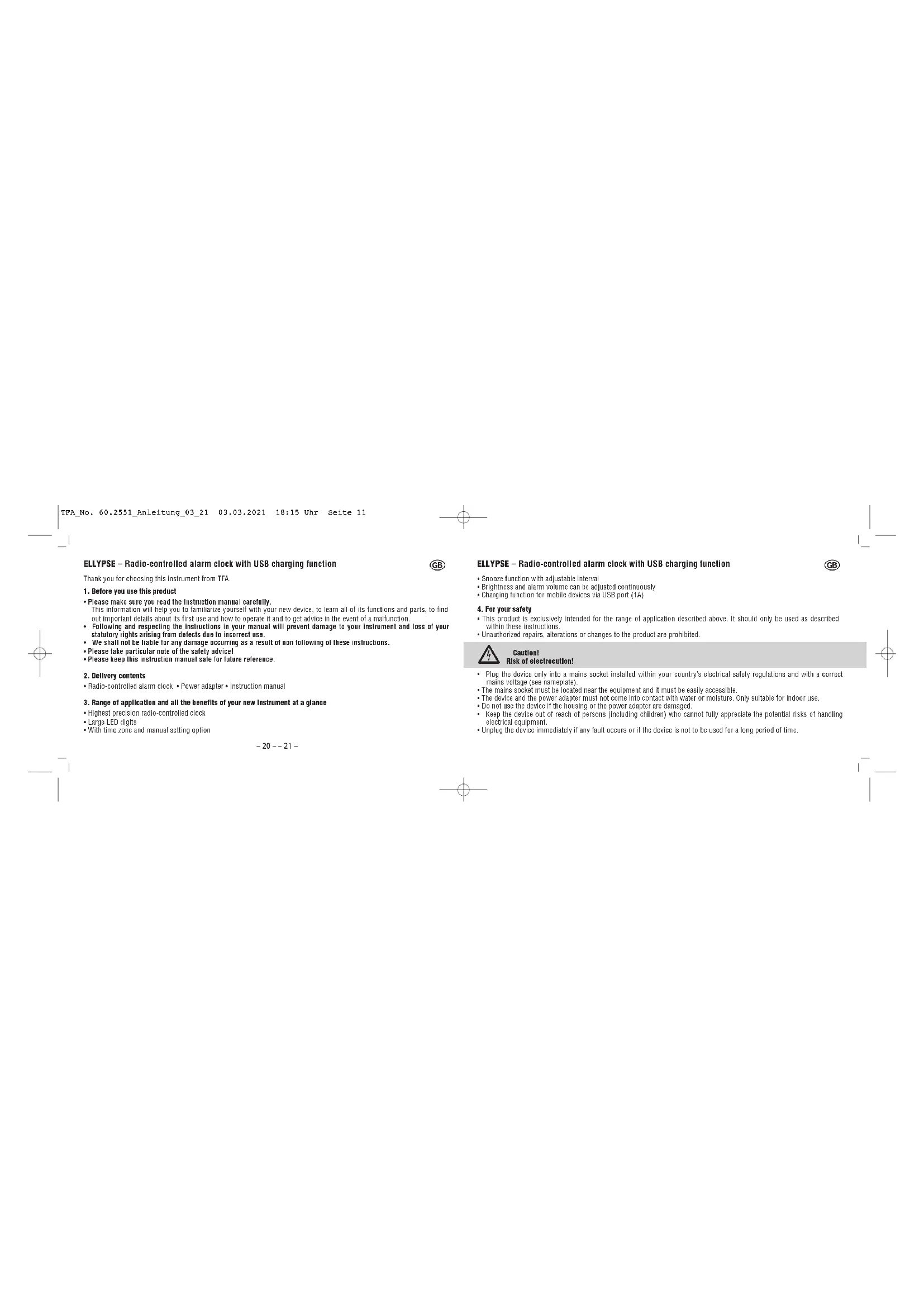

ELLYPSE - Radio-controlled alarm clock with USB charging function

GB

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
  This information will help you to familiarize yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it and to get advice in the event of a malfunction.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
  • We shall not be liable for any damage occurring as a result of non following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. Delivery contents

- Radio-controlled alarm clock - Power adapter - Instruction manual

3. Range of application and all the benefits of your new instrument at a glance

• Highest precision radio-controlled clock
• Large LED digits
- With time zone and manual setting option

-20--21-

ELLYPSE - Radio-controlled alarm clock with USB charging function

GB

• Snooze function with adjustable interval
• Brightness and alarm volume can be adjusted continuously
• Charging function for mobile devices via USB port (1A)
• This product is exclusively intended for the range of application described above. It should only be used as described within these instructions.
• Unauthorized repairs, alterations or changes to the product are prohibited.

4. For your safety

Caution!

Risk of electrocution!

• Plug the device only into a mains socket installed within your country's electrical safety regulations and with a correct main voltage (see nomenclature).
• The mains voltage (see participate).
• The mains socket must be located near the equipment and it must be easily accessible.
• The device and the power adapter must not come into contact with water or moisture. Only suitable for indoor use.
• Do not use the device if the housing or the power adapter are damaged
• Keep the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.
• Unplug the device immediately if any fault occurs or if the device is not to be used for a long period of time.

ELLYPSE - Radio-controlled alarm clock with USB charging function

• Only use the supplied power adapter.
• Route the mains cable so it does not come into contact with sharp-edged or hot objects.

Caution!

Risk of injury:

• Keep this instrument and the batteries out of reach of children.
• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types. Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

- Do not expose the device to extreme temperatures, vibrations or shocks.

-22--23

ELLYPSE - Radio-controlled alarm clock with USB charging function

1. Elements

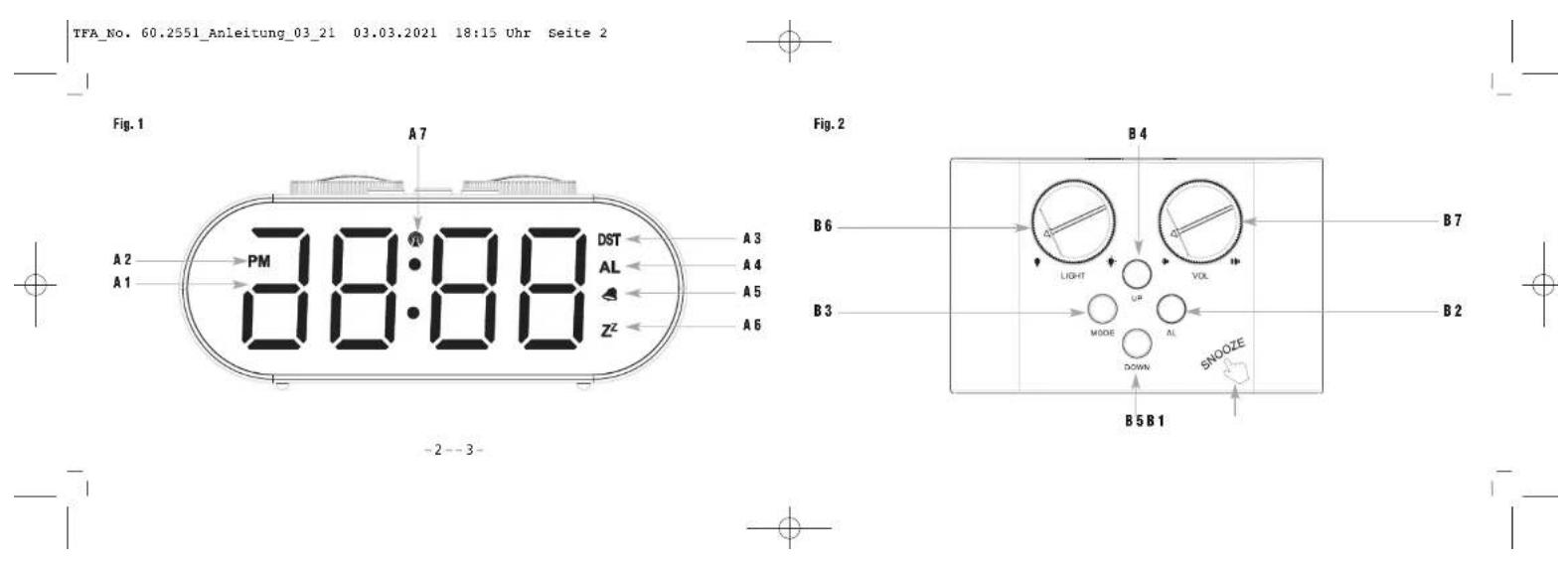

A: Display (Fig. 1):

A 1: Time A 2: PM

A 3: Daylight Saving Time symbol A 4: Alarm time

A 5: Alarm symbol A 6: Snooze symbol

A 7: DCF reception symbol

B: Buttons (Fig. 2):

B 1: SNOOZE sensor button B 2: AL button
B 3: MODE button B 4: UP button
B 5: DOWN button
B 7: VOL dial

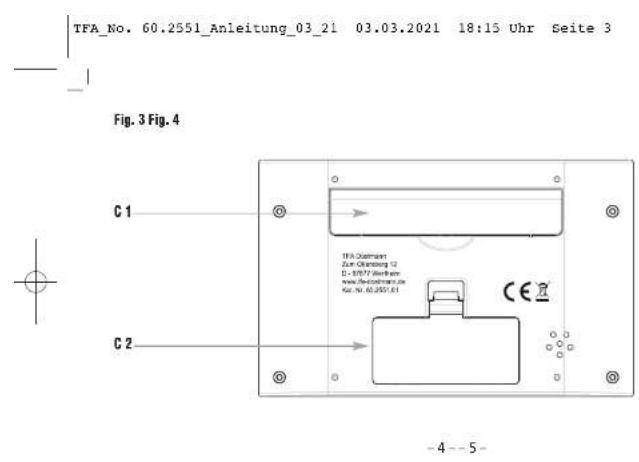

C: Housing (Fig. 3+4):

C1: Stand (fold out)
C 3: Power adapter jack

B 6: LIGHT dial

C 2: Battery compartment
C 4: USB port

ELLYPSE - Radio-controlled alarm clock with USB charging function

6. Gelting started

• Remove the protective film from the display.
• Insert the power adapter pin into the device jack and connect the plug to a wall socket.
• Important! Make sure that your household voltage is no more than 240V! Otherwise your device may be damaged.
• The device is ready for use. All segments will be displayed for about 2 seconds
• Open the battery compartment and insert two new AAA 1.5 V batteries, polarity as illustrated.
• Close the battery compartment again.
  • The device only works with the power adapter. The batteries will operate as a backup power source in case of power
  failure.

6.1 Radio-controlled time reception

• The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display. When the time code
  is successfully received after 3-8 minutes, the radio-controlled time and the DCF symbol will be shown steadily on the
  display.
  • To avoid interference, the display light becomes weak during the reception of the radio controlled clock and the USB port
  turns of
  • The DCF reception always takes place at 2:00 in the morning. If the reception is not successfully received, further
  attempts will be taken at 3:00 and 4:00 o'clock
• You can also start the initialization manually.

-24--25-

ELLYPSE - Radio-controlled alarm clock with USB charging function

• Press and hold the UP button for three seconds.
• The clock will now scan the DCF frequency signal and the DCF symbol will be flashing on the display.
  • To end the DCF reception attempt, press the UP button again. The DCF reception symbol disappears.
  • There are three different reception states:

flashing – reception is active

solid - reception is very good

no symbol - no DCF reception

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually.
• The clock will then work as a normal quartz clock. (see: Manual settings).

Note on radio-controlled time

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt bei Braunschweig (Brunswick), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. The adjustment to Daylight Saving Time (summer/winter time) is automatic. In Daylight Saving Time DST is shown on the display. The reception quality depends mainly on geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

ELLYPSE - Radio-controlled alarm clock with USB charging function

Therefore, please note the following steps:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.
- Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.
- During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

7. Operation

7.1 Manual settings

• Important: The device cannot be operated during the DCF time-signal reception.
• Press and hold the UP or DOWN button in setting mode for fast mode.
• The device will automatically quit the setting mode if no button is pressed for 20 seconds.

7.1.1 Time selling

• Press and hold the MODE button in normal mode for three seconds.
• The time zone (00 - default) will be flashing. Press the UP or DOWN button to make the time zone correction (+1/-1).
• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time is 0.4, one hourly.
  the DCF time (e.g. +1=one hour plus).
• Press the MODE button again and you can adjust the hours and the minutes with the UP or DOWN button.

ELLYPSE - Radio-controlled alarm clock with USB charging function

• Confirm the setting with the MODE button.
• The manually set time is overwritten once the DCF time signal is successfully received.

7.1.2 12 and 24 hours display

• Press DOWN button in normal mode to choose 12 HR or 24 HR system.
  • In 12 HR system PM appears after 12 h on the display.

7.2 Alarm settings

• Press the MODE button in normal mode to enter the alarm mode.
• AL and 06:00 (default) or the last adjusted alarm time appear on the display.
• Press and hold the MODE button for three seconds to enter the setting mode.
• The alarm symbol will appear on the display and the alarm is activated. The hour digits flash.
• Press the UP or DOWN button to set the desired time.
• Confirm with the MODE button.
• Set the minutes in the same way.
• Confirm with the MODE button.
• 5 [default] of the last adjusted shodze interval appear on the display.
• Press the UP or DOWN button to set the desired time duration (5 to 60 minutes).

ELLYPSE - Radio-controlled alarm clock with USB charging function

• Confirm with the MODE button.
• To activate and deactivate the alarm function press the AL button in normal mode.
  • The alarm symbol appears/disappears on the display.
• When the alarm is activated, the alarm starts to ring when the set alarm time is reached.
• Press any button (except SNOOZE) and the alarm will stop.
• If the alarm is not stopped manually, the ascending alarm tone automatically turns off after two minutes and it will be
  reactivated at the same set time on the following day.
  • The alarm symbol remains on the display.
• When the alarm rings, press the SNOUZE sensor button briefly and the snobze function is activated.
• Once the snooze function is activated, the snooze symbol will be flashing on the display.
  • The alarm will be interrupted for the set time.

7.3 Display light

• You can select between 3 levels of brightness with the SNOOZE sensor button (HIGH/LOW/OFF).
  • In addition, the brightness can be adjusted continuously to the desired level with the LIGHT dial (on level HIGH and LOW).

7.4 Volume

- The alarm volume can be adjusted continuously to the desired level with the VOL dial.

-28--29-

ELLYPSE - Radio-controlled alarm clock with USB charging function

7.5 Charging function

• Plug the USB cable (not included) into the USB port on the alarm clock and connect the other end to your mobile device.
  Make sure that the USB charging function is suitable for your mobile device (charging current 1A).
• Do not apply excessive force when connecting a USB cable. The USB plug fits only one way into the USB port.

8. Care and maintenance

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.
• Remove the batteries if the device will not be used for an extended period of time.
• Keep the device in a dry place.

8.1 Battery replacement

• Open the battery compartment and insert two new AAA 1.5 V batteries, polarity as illustrated.
• Close the battery compartment again.

9. Troubleshooting

Problem Solution

No or weak display → Connect the device to the power adapter

→ Check the power adapter

ELLYPSE - Radio-controlled alarm clock with USB charging function

GB

	→ Wait for the DCF signal reception→ Set brightness with the SNOOZE sensor button and LIGHT dial
No DCF reception	→ Press and hold the UP button in normal mode for three seconds→ Wait for an attempt reception during the night→ Change the location (interference)→ Restart the device according to the manual→ Set the clock manually
No charging function → Connect the device to the power adapter→ Check the USB port connection→ Wait for the DCF signal reception
No alarm sound	→ Increase volume with the VOL dial

If your device fails to work despite these measures, contact the retailer where you purchased the product.

10. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused. Never dispose of empty batteries and rechargeable batteries in ordinary household waste.

-30--31-

ELLYPSE - Radio-controlled alarm clock with USB charging function

GB

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

11. Specifications

Power consumption Power supply (included)

Input: 100-240V AC 50/60Hz 0.3A Max

Output: 5.0 V DC 1.0A, 5.0W

Average active efficiency: ≥73.62%

No-load power consumption: ≤0.10 W

ELLYPSE - Radio-controlled alarm clock with USB charging function

Backup batteries 2 x 1.5 V AAA (not included)

Use alkaline batteries

Charging output USB Port (1A)

Housing dimension 136 x 85 x 55 mm

Weight 149 g (device only)

No part of this manual may be reproduced without written consent of TFA Doshmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU Declaration of conformity

Hereby, TFA Dostmann declares that the radio equipment type 60.7551 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.tla-dostmann.de/service/downloads/to

www.ifa-dostmann.de

E-Mail: [e-mail]

TFA Dostmann GmbH & Co.KG. Zum Otersberg 12. D-97877 Wertheim, Germany

Commercial registration number: Reg. Gericht Mannheim HRA 570186 03/21

-32--33

GB

A 5: Alarmsymbol A 6: Snoozesymbol

A 7: DCF-ontvangstsymbool

B: Toetsen (Fig. 2)

B 1: SNOOZE tiptoets B 2: AL toets
