USER MANUAL HCW58F18EHMP HAIER

Legend Warning – Important Safety information General information and tips Environmental information Disposal Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic ap- pliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal oce. Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings. WARNING! Risk of injury or suffocation! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut o the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance. 2GB Content Accessories Check the accessories and literature in accordance with this list: Energy lable User manual “OK” Sticker User manual Warranty card Ice shovel Safety information

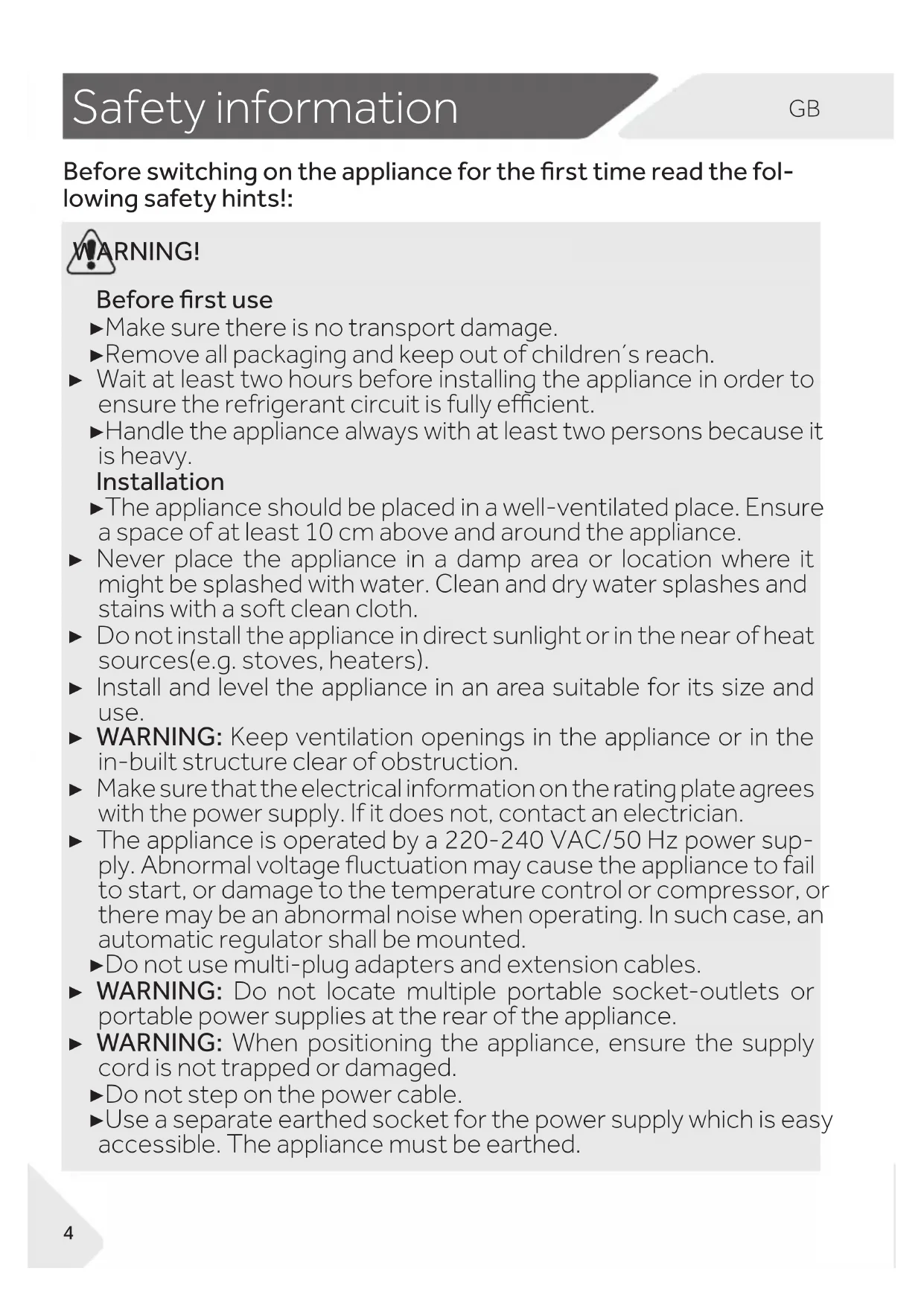

Before switching on the appliance for the rst time read the fol- lowing safety hints!: WARNING! Before rst use ▶ Make sure there is no transport damage. ▶ Remove all packaging and keep out of children´s reach. ▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully ecient. ▶ Handle the appliance always with at least two persons because it is heavy. Installation ▶ The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance. ▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. ▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters). ▶ Install and level the appliance in an area suitable for its size and use. ▶ WARNING: Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. ▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. ▶ The appliance is operated by a 220-240 VAC/50 Hz power sup- ply. Abnormal voltage uctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. ▶ Do not use multi-plug adapters and extension cables. ▶ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. ▶ Do not step on the power cable. ▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. 4GB Safety information WARNING! ▶ Only for UK: The appliance’s power cable is tted with 3-cord (grounding) plug that ts a standard 3-cord (grounded) socket. Never cut o or dismount the third pin (grounding). After the ap- pliance is installed, the plug should be accessible. ▶ WARNING: Do not damage the refrigerant circuit. Daily use ▶ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ▶ Children shall not play with the appliance. ▶ Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances. ▶ Keep away children under 3 years of age from the appliance un- less they are constantly supervised. ▶ Cleaning and user maintenance shall not be made by children without supervision. ▶ The appliance must be positioned so that the plug is accessible. ▶ If coal gas of other inammable gas is leaking into vicinity of the appliance, turn o the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the refrigera- tor/freezer or any other appliance. ▶ Notice that the appliance is set for operation at the specic arm- bient range between 10 and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or be- low the indicated range. ▶ Do not place unstable articles (heavy objects, containers lled with water) on top of the refrigerator/freezer, to avoid personal injury caused by falling or electric shock caused by contact with water. ▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple. ▶ Open and close the door only with handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these ares to avoid pinching your ngers. Open or close the re- frigerator/freezer doors only when there are no children standing within the range of door movement. 5Safety information

WARNING! ▶ To avoid contamination of food, please respect the following in- structions: ▶ – Opening the door for long periods can cause a signicant in- crease of the temperature in the compartments of the appliance. ▶ – Clean regularly surfaces that can come in contact with food and accessible drainage systems. ▶ – Clean water tanks if they have not been used for 48 h; ush the water system connected to a water supply if water has not been drawn for 5 days. ▶ – Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. ▶ – Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. ▶ – One-, two- and three-star compartments are not suitable for the freezing of fresh food. ▶ – If the refrigerating appliance is left empty for long periods, switch o, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. ▶ Never store bottled beer or beverages, liquids in bottles or cans (besides high percentage spirits) especially carbonated bever- ages in the freezer, as these will burst during freezing. ▶ Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance. ▶ Do not store medicines, bacteria or chemical agents in the ap- pliance. This appliance is a household appliance. It is not recom- mended to store materials that require strict temperatures. ▶ Check the condition of food if a warming in the freezer has taken place. ▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst ▶ Do not touch frozen goods with wet hands (wear gloves). Espe- cially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! ▶ Do not touch the inside surface of the freezer storage compart- ment when in operation, especially with wet hands, as your hands may freeze onto the surface. 6GB Safety information WARNING! ▶ Unplug the appliance in the event of a power interruption or be- fore cleaning. Allow at least 7 minutes before restarting the appli- ance, as frequent starting may damage the compressor. ▶ WARNING: Do not use electrical appliances inside the food stor- age compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning ▶ Make sure children are supervised if they carry out cleaning and maintenance. ▶ Disconnect the appliance from the electrical supply before un- dertaking any routine maintenance. Allow at least 5 minutes be- fore restarting the appliance, as frequent starting may damage the compressor. ▶ Hold the plug, not the cable, when unplugging the appliance. ▶ Do not clean the appliance with hard brushes, wire brushes, de- tergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special re- frigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution - about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with wa- ter and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher. ▶ Do not scrape o frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts. ▶ WARNING: Do not use mechanical devices or other means to ac- celerate the defrosting process, other than those recommended by the manufacturer. ▶ If the supply cord is damaged, it must be replaced by the manu- facturer, its service agent or similarly qualied persons in order to avoid a hazard. ▶ Do not try to repair, disassemble or modify the appliance by your- self. In case of repair please contact our customer service. ▶ If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. ▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by re, as well as increased energy consumption. 7Safety information

WARNING! The appliance contains the ammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open re sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. In case of eyes get into contact with the refrigerant, rinse immedi- ately it under running water and call immediately the eye specialist.

WARNING: The refrigeration system is under high pressure. Do not

tamper with it. Since the ammable refrigerants are used, please install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance. Refrigerant gas information WARNING! ▶ Do not spray or ush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass shelves or glass door with hot water. Sudden temperature change may cause the glass to break. ▶ If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside. WARNING! For refrigerators with ice-water function, please pay attention to the following warning: For appliances not intended to be connected to the water supply:

WARNING: ll with portable water only.

For appliances intended to be connected to the water supply:

WARNING: connect to potable water supply only.

If you want to clean the water system, please refer to the User Man- ual. If you have any questions, please contact the after-sales service. 8GB Safety information Intended use This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as sta kitchen areas in shops, oces and other working en- vironments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breackfast and catering business. It is not intended for commercial or industrial use. Changes or modications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims. Standards and directives and This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE and UKCA marking. fridge 9Product description

Storage tray Switch Zone storage drawer Door shelf Cabinet shelf Ceiling light 10 Ice storage bin 15 Storage drawer 17 Adjustable feet 12 Air duct 9 Air duct Air duct C:Switch Zone compartment 16 Adjustable feet

Water dispenser 5 Water filter 11 Storage tray Humidity zone drawer

Model (HCW58F18EHMP) 10GB Control panel Control panel (HCW58F18EHMP)

Before rst use ▶ Remove all packaging materials, keep them out of children`s reach and dispose them in an environmentally friendly manner. ▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. ▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION. ▶ Precool the compartments at high settings before loading with food. The function Power- Freeze helps to cool down the compartments quickly. ▶ The refrigerator temperature,Switch Zone temperature and freezer temperature are automatically set to 5° C, -18° C and -18° C respectively. These are the recommend- ed settings. If desired, you can change these temperatures manually. Please see AD- JUST THE TEMPERATURE. Buttons: L Temperature control “-” M Compartment selection N Temperature control “+” O Super Freeze function selector P Ice maker function selector Q Water On function selector R Wi-Fi function on/o S Panel lock selector Indicator: A Fridge Compartent B Switch Zone C Freezer Compartment D Temperature display E Ice Boost F Water Filter replacement Prompt G Super Freeze Function H Ice Maker I Water On J WIFI K Panel lock 11Use

edal boxGB Use Notice The appliance is preset to the recommended temperature of 5°C (refrigerator) ,-18°C(Switch Zone)and - 18°C (freezer). Under normal ambient condition you need not to set a temperature. When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached. Empty the appliance before switching o. To switch o the appliance,pull the power cord out o the power socket.

Switch on /of the appliance The appliance is in operation as soon as it is connected to the power supply. When the refrigerator is rst powered on, the indicator “D” (Temperature display) illumi- nates. The fridge temperature, Switch Zone temperature and freezer temperature are au- tomatically set to 5° C, -18° C and -18° C respectively. Maybe the panel lock is active. Sensor keys The buttons on the control panel are sensor keys, which already respond when lightly touched with the nger.Use

Lock/unlock panel Standby-mode The display screen turns o automatically 30 seconds after pressing a key.The display will be automatically locked.It lights up automatically by touching any key or opening the door.(Alarm does not light up the display screen) Adjust the temperature The indoor temperatures are inuenced by the following factors: ▶ Ambient temperature ▶ Frequency of door opening ▶ Amount of stored foods ▶ Installation of the appliance The display screen turns o automatically 30 sec- onds after pressing a key .The display will be au- tomatically locked. It lights up automatically when pressing any key or opening any door . Manual adjusting mode If you want to manually adjust the temperature of the appliance ,you can set the temperature adjust button (refer to ADJUST THE TEMPERATURE) Door alarm Door alarm will trigger when door opens for long time or not closed properly,as a reminder.GB Use Adjust the temperature for Fridge Unlock the settings by long pressing key “S” for 3 seconds. Under unlock state, press key “M”(Compartment selection ) to toggle across compartments. When indicator “A” (Fridge compartment indicator) lights up, press key “L” (Temperature control “-”) or key “N” (Temperature control “+”) to adjust the fridge compartment tem- perature. Value displayed on indicator “D” decreases by 1 °C when key “L” is pressed each time. The display ahes and turns solid with the set temperature, then goes o after a few seconds. Accordingly, value displayed on indicator “D” increases by 1 °C when key “N” is pressed each time. The display ahes and turns solid with the set tem- perature, then goes o after a few seconds. Fridge compartment temperature can be adjusted from 1 °C to 9°C with 1°C incremental.

Adjust the temperature for Freezer Unlock the settings by long pressing key “S” for 3 seconds. Under unlock state, press key “M” (Compartment selection) to toggle across compartments.When indicator “C” (Freezer Compartment indicator) lights up, press key “L” (Temperature control “-”) or key “N” (Temperature control “+”) to adjust Freezer compartment temperature.Value dis- played on indicator “D” decreases by 1 °C when key “L” is pressed each time. The display ahes and turns solid with the set temperature, then goes o after a few seconds. Accordingly, value displayed on indicator “D” increases by 1 °C when key “N” is pressed each time. The display ahes and turns solid with the set temperature, then goes o after a few seconds. Freezer compart- ment temperature can be adjusted from -14 °C to -24 °C with 1 °C incremental.

Notice Freezer temperature can‘t be adjusted under Super Freeze and lock state.GB Use Notice Switch Zone temperature can‘t be adjusted under lock state. Adjust Switch Zone temperature Unlock the settings by long pressing key “S” for 3 seconds. Under unlock state, press key “M” (Compart- ment selection) to toggle across compartments. When indicator “B” (Switch Zone indicator) lights up, press key “L” (Temperature control “-”) or key “N“(Temperature control “+”) to adjust Switch Zone compartment temperature. Value displayed on indicator “D” decreases by 1 °C when key “L” is pressed each time. The display ahes and turns solid with the set temperature, then goes o after a few seconds. Accordingly, value displayed on indicator “D” increases by 1 °C when key “N” is pressed each time. The display ahes and turns solid with the set temperature, then goes o after a few seconds. Switch Zone compartment tem- perature can be adjusted from 5 °C to -18 °C with 1 °C incremental. 17Use

Notice Under Super Freeze mode, key “L” (Temperature control “-”) & key “N”(Temperature control “+”) are locked when freezer compartment is selected and freezer compart- ment temperature cannot be adjusted. Super Freeze function Super Freeze function can freeze the fresh food as soon as possible to the core by accelerating the freezing to preserve the best nutritional value, appearance and taste of food. If you need to freeze a large amount of food once, it is recom- mended to set the Super Freeze function on ahead for 24 hours before the usage of freezer compartment. Unlock the settings by long pressing key “S” for 3 seconds. Under unlock state, press key “O” (Super Freeze function selector),indicator “G” (Super Freeze function indicator) lights up, product enters Super Freeze mode. Product automatically exits Super Freeze mode after 50 hours of activation. For manually exiting Super Freeze mode, press key “O” (Super Freeze function selector) under unlock state, indicator “G” (Super Freeze function indica- tor) goes o, product exits Super Freeze mode. 18GB Use Ice maker Under unlock state, press key “P” (Ice maker selector), indicator “H” (Ice maker indicator) lights up,product enters Ice maker mode. For exiting Ice maker mode, press key “P” (Ice maker selector) under unlock state, indica- tor “H” (Ice maker indicator) goes o, product exits Ice maker mode. Notice The ice maker is o by default when the refrigerator is powered on for the rst time. The ice maker is designed to automatically dispense ice into the ice storage bin and it will stop when it detects the bin is full. The more ice you use, the more ice it makes. 19Use

3 Sec.Ice Boost Under unlock state, press key “P”(Ice maker selector) for 3 seconds, indicator “H”(Ice maker indicator) and indicator “E”(Ice Boost indicator) light up, and Ice Boost function is enabled. In unlock state and under Ice Boost function, press key “P” (Ice maker selector) for 3 seconds, after hearing one beeping sound, Indicator “E”(Ice Boost indicator) goes o, product exits Ice Boost function. And Ice maker indicator “H” still lights up, with Ice maker function still activated. Notice If the Ice maker is enabled before entering the Ice Boost function. When products exits Ice Boost function, Ice maker indicator “H” still lights up and Ice maker is still wor- king normally; If the ice maker is disabled before entering the Ice Boost function, when product exits Ice Boost function, the Ice maker indicator “H” goes o and the ice maker stops working as well. 20GB Use Water filter function: After 6 months since the product is powered on for the rst time, indicator “F” (Water Filter replacement Prompt indicator) lights up as a reminder to replace water lter. After replacing the water lter, press the key “Q” (Water On function selector) for 3 seconds, after hearing a beeping sound, indicator “F” (Water Filter replacement Prompt indicator) goes o, the Water Filter replacement Prompt function is reset. 21Use

Water on function: In unlock state, press key “Q”(Water on function selector), after hearing one beeping sound, the indicator “I” (Water on indicator) lights up, Water on function is enabled, water will come out from the dispenser when you push the pedal.Press the key “Q” (Water on function selector) again, the in- dicator “I” (Water on indicator) goes o, Water on function is disabled, water will not come out from the dispenser when you push the pedal. Notice If the fridge compartment right door is open, water will not dispense when pedal is pressed, even when the Water on function is enabled. 22GB Use Step 1 wnload the hOn app on the storesStep 2 App hOn Step 3 Follow pairing instructions in the hOn App Wi-Fi mode setting

Wi-Fi function, s Wi-Fi y “R” for , th Wi-Fi icon blinks quickly and s th n mod

2. If th product has n d and th Wi-Fi function was turn , th

r will not r th n mod onc it is d to th .

1. Follow in app instructions to configure the Wi-Fi.

Press Wi-Fi key "R" for 3 seconds and the Wi-Fi icon "J" starts blinking quickly to activate the Wi-Fi model.

2. Once the Wi-Fi is configured and the connection established, the Wi-Fi icon "J" is on and fixed.

2. To turn on the Wi-Fi and start the conguration, press Wi-Fi key “R” and the Wi-Fi icon

“J” starts blinkly slowly. If want to turn o the Wi-Fi function, press key “R” once. If want to congure Wi-Fi function, press the key “R” for 3 sec but less than 20s, and an acous- tic singal is made, the Wi-Fi icon blinks quickly and enters the conguration mode. The above steps are repeated.

3. If the product has been congured and the Wi-Fi function was turn o, the refrigera-

tor will not enter the conbguration mode once it is reconnected to the power.

4. Once the Wi-Fi is congured and the connection established, the Wi-Fi icon “J” is on

and xed. Door alarm Door alarm will trigger when door opens for long time or not closed properly, as a reminder.

Water dispenser With the water dispender cool drinking water can be tapped. Getting water from the dispenser 1.Place a glass underneath the water outlet. 2.Push it gently against the water dispenser lever.Make sure the glass is in line with the dispenser to prevent the water from splashing out. 3.Water in the tray(B) should be removed in time,as it could overow when the door opens and closes. 24GB Use Ice maker instructions WARNING! ▶ Connect to potable water supply only. ▶ Connecting the water line must only be installed by a qualied plumber and in ac- cordance with local legislation and regulations governing water quality. Notice This water line installation is not covered by the appliance warranty. Connecting water to the appliance

1. Remove the rubber plug (1) from the water inlet

2. Firmly push the water tube onto the water inlet

valve and tighten up the collar nut. This water pipe needs to be cut from the middle and used, and the other section is used as a spare part.

Connecting to the water tap This feature is only available on some models.

1. Push the water tube into the hole of the tap connec-

tor supplied in the accessories. The pipe should be held rmly whilst the connector is pushed onto the pipe.

2. Ensure that the rubber washer is tted to the inside of

the tap connector before screwing it onto the tap. ▶ A separate connector or adaptor may need to be pur- chased if your tap tting does not match the thread size of the connector provided. Checking the Water Connection This feature is only available on some models. ▶ Turn on the water supply and switch on the appliance. Carefully check all ttings for possible leaks due to poorly tted hoses. ▶ Press and hold the 3Sec.Filter Reset button for three seconds. The new water lter has been activated. ▶ Place a cup under the water dispenser to verify that water is owing through the appliance. ▶ Check the connecting tube and joints for leaks once again. 25Use

Replacing the water lter

1. Uplift the water lter cover.

2. Remove the disposable water lter.

3. Replace with a new water lter. Insert the new lter into the lter head and rotate it

clockwise until the arrow on the new lter lines up with the arrow on the lter head. Swing the lter back into the compartment.

4. Close the water lter cover.

5. Press and hold the 3Sec.Filter Reset button for 3 seconds.

6. Dispense water for approximately 5 minutes to remove trapped air and contami-

nants. CAUTION! ▶ Failure to replace lters when required or using non Haier authorised water lters can cause the lter cartridge to leak and result in property damage. Model: Haier HRXWF ▶ System certied by IAPMO R&T against NSF/ANSI Standards 42, 53, 401 and P473 for the reduction of claims specied on the performance data sheet and at iapmort. org. ▶ Actual performance may vary with local water conditions. Application Guidelines/Water Supply Parameters Service Flow: 0.5 gpm (1.89 lpm) Water Supply: Potable Water Water Pressure: 25-120 psi (172-827 kPa) Water Temperature: 33°F-100°F (0.6°C-38°C) Capacity: 170 gallons (643.5 liter) 26GB Use 27Use

28GB Use 29Equipment

he OK-temperature indicator can be used to

etermine temperatures below +4°C. Gradually reduce

he temperature if the sign does not indicate OK".Equipment

32GB Care and cleaning Cleaning Clean the appliance when only little or no food is stored. The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors. WARNING! ▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ▶ Do not spray or ush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break . ▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. ▶ In case of heating check the condition of frozen goods. WARNING! Disconnect the appliance from the power supply before cleaning. ▶ Always keep the door gasket clean. ▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.

1. Please scrub the interior and exterior of the re-

frigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neu- tral detergent into the warm water). Defrosting The defrosting of the fridge and the freezer compartment are done automatically; no manual operation is needed.

2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the ow

water, dry and place it back into the fridge.

3. If there is spilled cream (such as the cream, melting ice cream), please remove all the

contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the ow water, dry and place it back into the fridge.

4. In case some small part or component gets stuck inside of the fridge (between

shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service ▶ Rinse and dry with soft cloth. ▶ Do not clean any of the parts of the appliance in a dishwasher. ▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor. 33Care and cleaning

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G. compartment Voltage max Power Energy efficiency class Model Refrigerator DC 12V 5 W

34GB Care and cleaning Cleaning the ice cube tray 1 Turn o the icemaker function via the display panel, hold down the handle of the icemaker, and use strength to pull out the icemaker.

2. Remove the icemaker assembly from the refrigerator and turn over the icemaker,

so that the ice cube tray is visible.

3. Pull the oval shaped fastener on the ice tray in the direction of arrow 1. Tilt the ice

tray upward and pull it out in the direction of arrow 2.

4. After cleaning the tray, put it back in, then rmly push in the icemaker, close the freezer

drawer, and switch on the icemaker function via the display panel. Icemaker usage precautions For newly installed appliance, you should wait for 24 hours. This will enable the freezer compartment to cool down, so that it can make ice.

• The ice machine will make 8 ice cubes each time; but the specic ice-making quantity will depend on the indoor temperature, frequency that the doors are opened, water pressure, freezer compartment temperature, etc.

• In order to ensure that the ice tray gets lled up with ice cubes, the ice tray should be frequently pulled out so that the ice cubes get evenly distributed.

• It is a normal phenomenon that some of the ice cubes will clump together during removing.

• When the freezer compartment reaches or is pelow-8 °C, the icemaker will start making ice (if you are just beginning to use the icemaker, or it has not been used to make ice in a long time, you should discard the rst several ice cubes, so that impurities in the water l ine get run out.)

• The icemaker must be installed in the refrigerator through an authorized service agency.

• NEVER expose the water pipe to temperatures below 0°C to avoid freezing.

• Test the tubing for leaks by ushing the tube through with water, until the water runs clear.

• After the appliance has been sited into the location of your choice, make sure that the water tube is arranged so it does not incur damage through bends and kinks and is clear of any heat sources.

• Once the temperature inside the freezer is at -8°C ice production will begin.

• DO NOT touch the ice cube outlet with your hands, or any implements to avoid injury or damage. 35Care and cleaning

• DO NOT manually add water - this is an automatic water system. If the ice maker is turned on but the appliance is not connected to water, the ice maker will not work。 If you occasionally hear unusual sounds in the refrigerator You may occasionally hear some “crunching” sounds, but these are just normal sounds that are emitted during ice making, so do not worry. If you do not often use ice cubes “Old” ice cubes will become cloudy, and will not taste fresh; therefore, please periodically clean the ice cube tray and wash it out with warm water. Before replacing the ice cube tray, be sure to cool it down, otherwise, ice will stick to other parts of the ice machine and aect the ice making function. If the icemaker in the freezer compartment is not used for a long time If not used for a long time, please remove the automatic icemaker and any residual ice cubes in the ice storage compartment, wash the ice cube tray and the ice storage compartment with warm water, wipe them dry with a clean towel and put them somewhere else in order to increase storage space. The water reservoir should be removed, any residual water should be drained out. If the icemaker in the freezer compartment is not used for a long time The ice making capacity is 0.8kg/24 hours(this gure is the test result in lab under the 25°C ambient temperature condition). During the daily use of the appliance, due to the dierent ambient temperature and water pressure, the ice making capacity may dier a little. Do not store ice cubes, which are produced during the rst batch of cubes following appliance start up, or after a prolonged break. Discard these cubes. To allow the ice cube tray to ll to maximum capacity, you will need to manually arrange the ice cubes periodically. Some ice cubes may stick together when dropped into the storage box - you will need to separate these to allow maximum use of the icebox. Throw out the rst few batches of ice cubes if you are making ice for the rst time or have not made it for a long time. If the cubed ice becomes smaller, this may suggest that the lter is blocked from the impuri- ties. 36GB Troubleshooting Many occuring problems could be solved by yourself without specic expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. Problem Possible Cause Possible Solution The compressor does not work.

• Mains plug is not connected in the mains socket.

• The appliance is in the defrosting cycle

• Connect the mains plug.

• This is normal for an automatic defrosting The appliance runs frequently or runs for a too long period of time.

• The indoor or outdoor tempera- ture is too high.

• The appliance has been o power for a period of time.

• A door of the appliance is not tightly closed.

• The door has been opened too fre- quently or for too long.

• The temperature setting for the freezer compartment is too low.

• The door gasket is dirty, worn, cracked or mismatched.

• The required air circulation is not guaranteed.

• In this case, it is normal for the appliance to run longer.

• Normally, it takes 8 to 12 hours for the appliance to cool down completely.

• Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.

• Do not open the door/drawer too frequently.

• Set the temperature higher until a satisfactory refrigera- tor temperature is obtained. It takes 24 hours for the refrig- erator temperature to become stable.

• Clean the door/drawer gasket or replace them by the custom- er service.

• Ensure adequate ventilation. The inside of the re- frigerator is dirty and/ or smells.

• The inside of the refrigerator needs cleaning.

• Food of strong odour is stored in the refrigerator.

• Clean the inside of the refrig- erator.

• Wrap the food thoroughly.. WARNING! ▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. ▶ Electrical equipment should be serviced only by qualied electrical experts, because improper repairs can cause considerable consequential damages. ▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. 37Troubleshooting

Problem Possible Cause Possible Solution It is not cold enough inside the appli- ance.

• The temperature is set too high.

• Too warm goods has been stored.

• Too much food has been stored at one time.

• The goods are too close to each other.

• A door/drawer of the appliance is not tightly closed.

• The door/drawer has been opened too frequently or for too long.

• Reset the temperature.

• Always cool down goods before storing them.

• Always store small quantities of food.

• Leave a gap between several foods allowing air owing.

• Close the door/drawer.

• Do not open the door/drawer too frequently. It is too cold inside the appliance.

• The temperature is set too low.

• The Super-Frz/Super-Coolfunc- tion is activated or is running too long.

• Reset the temperature.

• Switch o the Super-Frz/Su- per-Cool function Moisture formation on the inside of the refrigerator com- partment.

• The climate is too warm and too- damp.

• A door/drawer of the appliance is not tightly closed.

• The door/drawer has been opened too frequently or for too long.

• Food containers or liquids are left open.

• Increase the temperature.

• Close the door/drawer.

• Do not open the door/drawer too frequently.

• Let hot foods cool to room temperature and cover foods and liquids. Moisture accumu- lates on the refrig- erators outside surface or between the doors/door and drawer.

• The climate is too warm and too damp.

• The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.

• This is normal in damp climate and will change when the hu- midity decreases.

• Ensure that he door/drawer is tightly shut. Strong ice and frost in the freezer com- partment.

• The goods were not adequately packaged .

• A door/drawer of the appliance is not tightly closed.

• The door/drawer has been opened too frequently or for too long.

• The door/drawer gasket is dirty, worn, cracked or mismatched.

• Something on the inside prevents the door/drawer to close properly.

• Always pack the goods well.

• Close the door/drawer.

• Do not open the door/drawer too frequently.

• Clean the door/drawer gasket or replace them by new ones.

• Reposition the shelves, door racks, or internal containers to allow the door/drawer to close. 38GB Troubleshooting Problem Possible Cause Possible Solution The sides of the cabinet and door strip get warm.

• - • This is normal. The appliance makes abnormal sounds.

• The appliance is not located on level ground.

• The appliance touches some ob- ject around it.

• Adjust the feet to level the ap- pliance.

• Remove objects around the ap- pliance. A slight sound is to be heard similar to that of owing wa- ter.

• - • This is normal. You will hear an alarm beep.

• The fridge storage compartment door is open.

• Close the door. You will hear a faint hum.

• The anti-condensation system is working

• This prevents condensation and is normal The interior lighting or cooling system does not work.

• Mains plug is not connected in the mains socket.

• The power supply is not intact.

• The LED-lamp is out of order.

• Connect the mains plug.

• Check the electrical supply to the room. Call the local electric- ity company!

• Please call the service for changing the lamp. Power interruption In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer: ▶ Open the door/drawer as few times as possible. ▶ Do not put additional food into the appliance during a power interruption. ▶ If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment. ▶ An inspection of the goods is required immediately after the interruption. ▶ As temperature in the refrigerator will rise during a power interruption or other fail- ure, the storage period and edible quality of food will be reduced. Any food that de- frosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks. Memory function during power interruption After restoration of power the appliance continues with the settings that were set before the power failure. To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section “website”, choose the brand of your product and your country. You will be re- directed to the specic website where you can nd the telephone number and form to contact the technical assistance. 39Installation

Notice: For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance Unpacking ▶ Take the appliance out of the packaging. ▶ Remove all packaging materials. Environmental conditions The room temperature should always be between 10° C and 38° C, since it can inuence the temperature inside the appliance and its energy consumption. Do not install the appli- ance near other heat-emitting appliances (ovens, refrigerators) without isolation. Space requirement Required space when door is opened: W1=1076 mm W2=1360 mm D1=628 mm D2=1064mm WARNING! ▶ The appliance is heavy. Always handle with at least two persons. ▶ Keep all packaging materials out of children´s reach and dispose them in an environ- mentally friendly manner. Ventilaton cross-section To achieve sucient ventilation of the appliance for safety reasons, the information of the required ventila- tion cross sections must be observed. Aigning the appliance The appliance should be placed on a at and solid sur- face.

1. Tilt the refrigerator slightly backwards.

2. Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 10 cm for the door to open properly. 40GB Installation Fine tuning of the doors If the doors are not in one level, this mismatch can be remedied by following: Using adjustable foot Rotate the adjustable foot according to the direction of arrow to turn up or down the foot. Contact after-sale service if needed. Notice: In the future use of refrigerator, doors uneven phenomenon may occur to the weight of stored food. Then please adjust according to the above methods.

1. The stability can be checked by alternately bump-

ing on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

Waiting time To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Be-fore connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule. 2 h WARNING! To avoid risks a damaged power cord must be replaced by the customer service (see warranty card). Electrical connection Before each connection check if: ▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶ the power plug and socket are strictly according.Connect the plug to a properly installed household socket. Ice and Water Your Ice and Water and Automatic ice refrigerator must be installed by a qualied plumber or Haier trained and supported service technician as incorrect plumbing can lead to water leaks.Haier appliances does not accept responsibility for damage (including water damage) caused by faulty installation or plumbing. 42GB Installation

Product che according to regulation EU No. 2019/2016 Brand Haier Model name / identier HCW58F18EHMP Category of the model Refrigerator-freezer Energy eciency class

Annual energy consumption(kWh/year)(1) 293 Total volume(L) 504 Volume refrigerator(L) 319 Volume freezer(L) 86 Volume variable temperature compartment(L)

Star rating Temperature of other compartments>14°C Non applicable Frost-free system Yes Freezing capacity(kg/24h)

Ice making capacity 0.8kg/24h Type of appliance freestanding Others

44GB Technical data Additional technical data Explanations:

• Yes, featured (1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance. (2) Climate rating SN: This appliance is intended for use in an ambient temperature of be- tween + 10°C and +32°C Climate rating N: This appliance is intended for use in an ambient temperature of be- tween + 16°C and +32°C Climate rating ST: This appliance is intended for use in an ambient temperature of be- tween + 16°C and +38°C Climate rating T: This appliance is intended for use in an ambient temperature of be- tween + 16°C and +43°C Voltage / Frequency 220-240V ~/ 50Hz Input current (A)

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please rst check section TROUBLESHOOT- ING. If you cannot nd a solution there, please contact ▶ your local dealer or ▶ our European Call Service-Center (see listed phone numbers below) or ▶ the Service & Support area at www.haier.com where you can activate the service ▶ claim and also nd FAQs. To contact our Service, ensure that you have the following data available. The information can be found on the rating plate. Model _____________ Serial No. _____________ Also check the Warranty Card supplied with the product in case of warranty. European Call Service-Center Country* Phone number Costs Haier Italy (IT)

• max 20 Ct/Min all others Haier United Kingdom (UK)

• For other countries please refer to www.haier.com Haier Europe Trading S.r.l Branch UK Westgate House, Westgate, Ealing London, W5 1YY *Duration of the guarantee of the refrigerating appliance: Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required. *The period of spare parts for the repair of the appliance: Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market. *For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance. 47Haier Smart Home Co.,Ltd. No.1 Haier Road,Haier Industry Park,Hi-Tech Zone, 266103 Qingdao,Shandong,China

• 14,53 Ct/Min Festnetz
