USER MANUAL HCR59F19ENMM HAIER

Thank You Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions- contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

General information and tips

Environmental information

Disposal Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING! Risk of injury or suffocation! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.EN Content

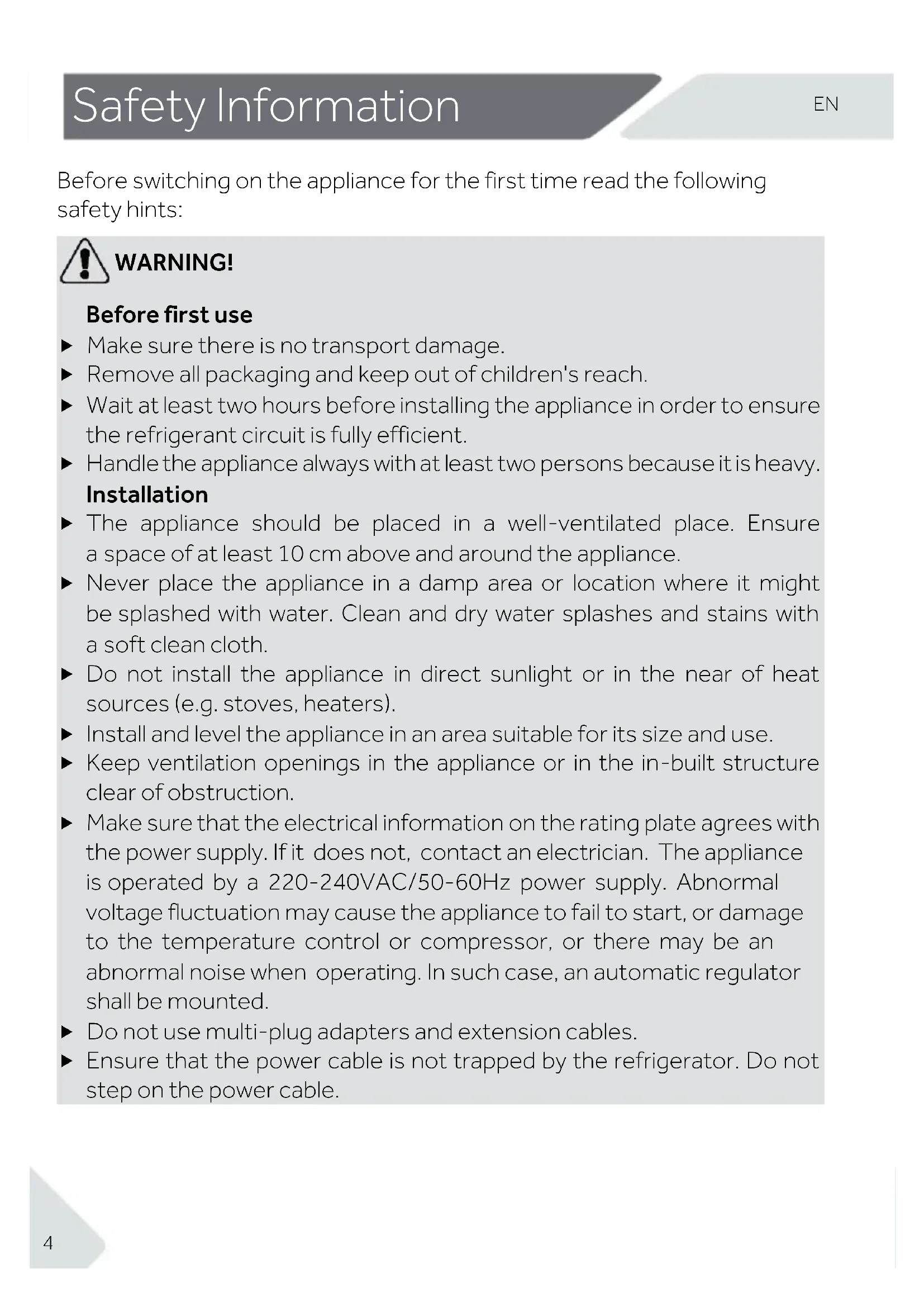

Safety Information Before switching on the appliance for the first time read the following safety hints:

WARNING! Before first use Make sure there is no transport damage. Remove all packaging and keep out of children's reach. Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient. Handle the appliance always with at least two persons because it is heavy. Installation The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance. Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). Install and level the appliance in an area suitable for its size and use. Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. The appliance is operated by a 220-240VAC/50-60Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. Do not use multi-plug adapters and extension cables. Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.EN Safety Information

WARNING! Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. Only for UK: The appliance's power cable is fitted with 3-cord (grounding) pug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible. Do not damage the refrigerant circuit. Daily use This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep away children under 3 years of age from the appliance unless they are constantly supervised. Children shall not play with the appliance. If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance. Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range. Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water. Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple. Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.Safety Information

WARNING! Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity. Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures. Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. Check the condition of food if a warming in the freezer has taken place. Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface. Unplug the appliance the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor. Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommend ed by the manufacturer. Maintenance / cleaning Make sure children are supervised if they carry out cleaning and maintenance. Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.EN Safety Information

WARNING! Hold the plug, not the cable, when unplugging the appliance. Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organ solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners c other sources of heat in order to avoid damage to the plastic part Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. If the supply cord is damaged, it must be replaced by the manufacturer. its service agent or similarly qualified persons in order to avoid a hazard. Do not try to repair, disassemble or modify the appliance by you self. In case of repair please contact our customer service. Eliminate the dust on the back of the unit at least once in the yea to avoid hazard by fire, as well as increased energy consumption. Do not spray or flush the appliance during cleaning. Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.Safety Information

WARNING! The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

WARNING! The symbol indicate there is risk of fire since flammable materials used. Taking care to avoid causing a fire by igniting flammable material.

WARNING: When positioning the appliance, ensure the supply cord is not

power supplies at the rear of the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Since the flammable refrigerants are used, please installed, handle, and service the appliance strictly according to the instruction and contact the professional agent or our after-sale service to dispose of the appliance. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

ENVIRONMENTAL INFORMATION CYCLOPENTANE, a flammable substance not harmful to ozone, is used as an expander for the insulating foam.EN Intended use

Intended use Intended use This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims. Standards and directives and This product meets the requirements of all applicable EC directives with the corresponding harmonized standards and UK standards, which provide for CE and UKCA marking.Intended use

If you try to close the left door and the vertical door strip is unbent (2), you should bend it firstly, otherwise the door strip will hit the fixing shaft or right door. Thus a damage to the door slip or a leak will occur. There is a heating thread inside the frame. The temperature of the surface will rise a little, which is normal and won't affect the function of appliance.EN Product description

Notice Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

A: Refrigerator compartment B: Freezer compartment

MyZone boxControl panel

Control panel Control panel

Panel lock selector Indicators:

Panel lock Before first use Remove all packaging materials, keep them out of children`s reach and dispose them in an environmentally friendly manner. Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION. Precool the compartments at high settings before loading with food. The function Power- Freeze helps to cool down the freezer compartment quickly. The refrigerator temperature and freezer temperature are automatically set to 4°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.EN Use

Use Sensor keys The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger. Switch on/off the appliance The appliance is in operation as soon as it is connected to the power supply. When the appliance is powered on for the first time, the actual refrigerator and freezer temperatures are displayed. The display will flash. If the doors are closed it will switch off after 30 seconds. Maybe the panel lock is active.

Notice The appliance is present to the recommended temperature of 4°C (refrigerator) and -18°C (freezer). Under normal ambient condition you need not to set a temperature. When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached. Empty the appliance before switching off. To switch off the appliance, pull the power cord out of the power socket. Lock/unlock panel

Notice The control panel is automatically blocked against activation if the doors are closed and 30 seconds no button is pressed. For any settings the control panel must be unlocked. Touch button "F" for 3 seconds to block all panel elements against activation. The buzzer alarms and the related indicator "f" is now displayed; the lightening of the panel is switched off. The icon flashes if a button will be pressed, when the panel lock is activated. The change is not running. For unlocking press again the button.

Select the working mode You may need to select one of the following two ways to set the appliance:

Under Auto Set mode, the appliance can automatically adjust the temperature setting according to the ambient temperature and temperature change in the appliance. If you do not have any special requirements, we recommend that you use Auto Set mode (refer to Auto Set mode later on).

2) Manual adjusting mode:

If you want to manually adjust the temperature of the appliance in order to store a particular food, you can set the temperature via a temperature adjusting button (refer to ADJUST THE TEMPERATURE).

Door opening alarm When the refrigerator door is opened for more than 1 minute, the door opening alarm will sound. The alarm can be silenced by either closing the door or touching the control panel. If the door is left open for more than 7 minutes, the light inside the compartment and control panel illumination will automatically switch off. Adjust the temperature The indoor temperatures are influenced by the following factors: Ambient temperature Frequency of door opening Amount of stored foods Installation of the appliance Adjust the temperature for fridge

1. Unlock the panel by pressing button "F” if it is locked.

2. Press button „A" (Fridge) for select the fridge

compartment. An alarm sounds. The actual temperature in the refrigerator compartment is displayed.

3. Press button "A" to set the fridge temperature.

A signal will sound at each key press. The temperature down shifts in sequences of 1°C from the set temperature to 1°C, switching to 9°C again when pressing further. The optimum temperature in the refrigerator is 4°C. Colder temperatures mean unnecessary energy consumption. If no key is operated in 5 sec., the setting confirms automatically.EN Use

Adjust the temperature for freezer

1. Unlock the panel by pressing button "F" if it is locked.

2. Press button "B" (Freezer) for select the freezer

compartment. An alarm sounds. The actual temperature in the freezer compartment is displayed

3. Press button "B" (Freezer) to set the freezer

temperature. A signal will sound at each key press. The temperature down shifts in sequences of 1°C from the set temperature to -24°C, switching to -14°C again when pressing further. The optimum temperature in the freezer is -18°C. Colder temperatures mean unnecessary energy consumption. If no key is operated in 5 sec., the setting confirms automatically.

Notice The temperature in the corresponding compartment cannot be adjusted if any other function (Power-Freeze, Super-Cool, Holiday or Auto Set mode) is activated or the display is locked. The corresponding indicator will flash accompanying with a buzzer.

Auto Set mode In the Auto Set mode, the appliance can automatically adjust the temperature setting according to the ambient temperature and temperature change in the appliance. This function is totally hand free.

1. Unlock the panel by pressing button

"F" if it is locked.

2. Press button "C" (Auto Set). An alarm sounds.

3. Indicator "c2" illuminates and the function

is activated. By repeating the above steps or selecting an other function this function can be switched off again.Use

Holiday function This function sets the refrigerator temperature permanently to 17°C. This allows to keep the door of the empty refrigerator closed without causing an odour or mold - during a long absence (e.g. during holiday). The freezer compartment is free for your setting.

1. Unlock the panel by pressing button

"F" if it is locked.

2. Press button "C" (Auto Set) for 3 seconds.

3. Indicator "c1" illuminates, and the function

is activated. By repeating the above steps or selecting an other function this function can be switched off again.

WARNING! During the holiday function no goods must be stored in the refrigerator compartment. The temperature of +17 ° C is too high for storing food.

Super-Cool function Switch on the Super-Cool function if larger quantity of food should be stored (for example after the purchase). The Power-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. The factory setting temperature is 0 to +1°C.

1. Unlock the panel by pressing button

"F" if it is locked.

2. Press button "D" (Super-Cool).

3. Indicator "d" illuminates and the function

is activated. By repeating the above steps or selecting an other function this function can be switched off again.

Super-Freeze function Fresh food should be frozen as quickly as possible to the core. This preserved the best nutritional value, appearance and taste. The Super-Freeze function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If you need to freeze a large amount of food once, it is recommended to set the Super-Freeze function on ahead for 24 h before the usage of frozen room. The function setting temperature is below -24 °C.

1. Unlock the panel by pressing button

"F" if it is locked.

2. Press button "E" (Super-Freeze).

3. Indicator "e" illuminates and the function

is activated. By repeating the above steps or selecting an other function this function can be switched off again.

Notice The Super-Freeze function will automatically switch off after 50 hours. The appliance is then operated at the previously set temperature. Fridge off function This function shuts down the refrigerator. This has no effect on the freezer compartment. Set the temperature for the refrigerator compartment to 0°C (OF) regarding section ADJUST THE TEMPERATURE OF FRIDGE.

WARNING! Empty the appliance before switching off. Keep the door of the refrigerating compartment open, when Refrigerator off function is activated, in order to avoid odour or mold..Use

Tips on storing fresh food Storing into the refrigerator compartment Keep your fridge temperature below 5°C. Hot food must be cooled to room temperature before storing in the appliance. Foods stored in the refrigerator should be washed and dried before storing Food to be stored should be properly sealed to avoid odour or taste alterations. Do not store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogeneous cooling. Foods eaten daily should be stored at the front of the shelf. Leave a gap between foods and the inner walls, allowing air flowing. In special way don't store foods against the rear wall: foods could freeze against rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found. Defreeze frozen food in the fridge storage compartment. This way, you can use the frozen food to decrease the temperature in the compartment and save energy. The ageing process of fruit and vegetables such as courgettes, melons, papaya, banana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature. Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See CARE AND CLEANING. Different foods should be placed in different areas according to their properties:

Notice Please keep the distance more than 10 mm between the food placed and air duct or sensors to ensure the cooling effect.

1 Butter, cheese, etc. 2 Eggs, cans, canned food, spices, etc. 3 Drinks and bottled foods. 4 Pickled foods, canned food, etc. 5 Meat products, snack foods, pasta, canned food, milk, tofu, dairy etc. 6 Cooked meat, sausages, etc. 7 My Zone drawer: dry fruits, butter oils, chocolate 8 Humidity box drawer: Fruit, vegetables, salad, etc.EN Use

Storage into the freezer compartment Keep the freezer temperature at -18°C. 24 hours before freezing switch on the Power-freeze function; -for small quantities of food 4-6 hours are sufficient. Hot food must be cooled to room temperature before storing in the freezer compartment. Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic. In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.

WARNING: Acid, alkali and salt etc. could erode the internal surface of the freezer.

Do not place the food having these substances (e.g. sea fish) directly on the internal surface. Salt water in the freezer should be cleaned up immediately. Do not exceed the food storage times recommended by the manufacturers. Only take the required amount of food out of the freezer. Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is first cooked, otherwise it may bless edible. Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer - See TECHNICAL DATA or data at the type plate. Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months) When freezing fresh food, avoid bringing it in contact with already frozen food. Risk of thawing! When storing commercially frozen foods, please follow these guidelines: Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines! Try to keep the length of time between purchase and storage as short as possible to preserve food quality. Buy frozen foods, which have been stored at a temperature of -18 °C or below. Avoid buying food which has ice or frost on the packaging - This indicates that the products might have been partially defrosted and refrozen at some point - temperature rises affect the quality of food.

Notice Please keep the distance more than 10 mm between the food placed and air duct to ensure the cooling effect.Equipment

Multi-air-flow The refrigerator is equipped with a multi-air-flow system, with which cool airflows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Adjustable shelves The height of the shelves can be adjusted to fit your storage needs.

1. To relocate a shelf, remove it first by uplifting its

hind edge (1) and pulling it out (2).

2. To reinstall it, put it on the lugs on both sides and

push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

Notice: Ensure that all ends of a shelf are level. My Zone drawer In this compartment the humidity level is around 45% This drawer is suitable to store dry fruit and other dry food with low water content like butter, fats and oils or chocolate. Humidity box drawer In this compartment the humidity level is around 85%. It is controlled automatically by the system and is suitable to store fruits, vegetables, salads etc.

Do not remove the plastic cover inside the two zone They maintain the humidity. Cold-sensitive fruits like pineapple, avocado, bananas grapefruits and vegetables such as potatoes, aubergines, beans, cucumbers, zucchini and tomatoes and cheese should not be stored in these two drawers.EN Equipment

Removable door racks The door racks can be removed for cleaning: Place hands on each side of the rack, lift it upwards (1) and pull it out (2). In order to insert the door rack, the above steps are carried out in reverse order.

OPTIONAL: OK-temperature indicator The OK-temperature indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate OK".

Notice: When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

Removable freezer drawer To remove the drawer out, pull out to the maximum extent (1), lift and remove (2). In order to insert the drawer, the above steps are carried out in reverse order.

Storing large items Large items of e.g. frozen food can be stored after: removing and overturning by 180° the upper freezing tray, or after removing both upper freezing trays as well as the middle freezer drawer and storing the food directly on the shelf.

The Light The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliances other settings.Equipment

Energy saving tips Make sure the appliance is properly ventilated (see INSTALLATION). Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set. Functions like POWER- FREEZE consume more energy. Allow warm food to cool down before placing it in the appliance. Open the appliance door as little and as briefly as possible. Do not overfill the appliance to avoid obstructing the air flow. Avoid air within the food packaging. Keep door seals clean so that the door always closes correctly. Defreeze frozen food in the fridge storage compartment.EN Care and cleaning

WARNING! Disconnect the appliance from the power supply before cleaning. Cleaning Clean the appliance when only little or no food is stored. The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING! Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. Do not spray or flush the appliance during cleaning. Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. In case of heating check the condition of frozen goods. Always keep the door gasket clean. Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent. Rinse and dry with soft cloth. Do not clean any of the parts of the appliance in a dishwasher. Allow at least 7 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.Care and cleaning

WARNING! Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorized service agent. The lamp adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Replaceable (LED only) light source by a professional. This product contains a light source of energy efficiency class G.

Voltage Energy efficiency class Model Refrigerator Top lamp 12V

Non-use for a longer period If the appliance is not used for an extended period of time, and you will not Take out the food. Unplug the power cord. Empty and clean the water tank Clean the appliance as described above. Keep the doors open to prevent the creation of bad odours inside.

1. Remove all food and unplug the appliance.

2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

WARNING! Do not lift the appliance by its handles. Never place the appliance horizontally on the ground.EN Troubleshooting

Troubleshooting Many occuring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution The compressor does not work.

• Mains plug is not connected in the mains socket.

• Connect the mains plug.

• The appliance is in the defrosting cycle

• This is normal for an automatic defrosting The appliance runs frequently or runs for a too long period of time.

• The indoor or outdoor temperature is too high.

• In this case, it is normal for the appliance to run longer.

• The appliance has been off power for a period of time.

• Normally, it takes 8 to 12 hours for the appliance to cool down completely.

• A door/drawer of the appliance is not tightly closed.

• Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.

• The door/drawer has been opened too frequently or for too long.

• Do not open the door/drawer too frequently.

• The temperature setting for the freezer compartment is too low.

• Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.

• The door/drawer gasket is dirty, worn, cracked or mismatched.

• Clean the door/drawer gasket or replace them by the customer service.

• The required air circulation is not guaranteed.

• Ensure adequate ventilation. The inside of the refrigerator is dirty and/ or smells.

• The inside of the refrigerator needs cleaning.

• Clean the inside of the refrigerator.

• Food of strong odour is stored in the refrigerator.

• Wrap the food thoroughly..Troubleshooting

It is not cold enough inside the appliance.

• The temperature is set too high.

• Reset the temperature.

• Too warm goods has been stored.

• Always cool down goods before storing them.

• Too much food has been stored at one time.

• Always store small quantities of food.

• The goods are too close to each other.

• Leave a gap between several foods allowing air flowing.

• A door/drawer of the appliance is not tightly closed.

• Close the door/drawer.

• The door/drawer has been opened too frequently or for too long.

• Do not open the door/drawer too frequently. It is too cold inside the appliance.

• The temperature is set too low.

• Reset the temperature.

• The Power- freeze function is activated or is running too long.

• Switch off the Power- freeze function Moisture formation on the inside of the refrigerator compartment.

• The climate is too warm and too damp.

• Increase the temperature.

• A door/drawer of the appliance is not tightly closed.

• Close the door/drawer.

• The door/drawer has been opened too frequently or for too long.

• Do not open the door/drawer too frequently.

• Food containers or liquids are left open.

• Let hot foods cool to room temperature and cover foods and liquids. Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.

• The climate is too warm and too damp.

• This is normal in damp climate and will change when the humidity decreases.

• The door/drawer is not closed tightly. The cold air in the appliance and the warm air outside it condensates.

• Ensure that he door/drawer is e tightly shut. Strong ice and frost in the freezer compartment.

• The goods were not adequately packaged.

• Always pack the goods well.

• A door/drawer of the appliance is not tightly closed.

• Close the door/drawer.

• The door/drawer has been opened too frequently or for too long.

• Do not open the door/drawer too frequently.

• The door/drawer gasket is dirty, worn, cracked or mismatched.

• Clean the door/drawer gasket or replace them by new ones.

• Something on the inside prevents the door/drawer to close properly.

• Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.EN Troubleshooting

The sides of the cabinet and door strip get warm.

• This is normal. The appliance makes abnormal sounds.

• The appliance is not located on level ground.

• Adjust the feet to level the appliance.

• The appliance touches some object around it.

• Remove objects around the appliance. A slight sound is to be heard similar to that of flowing water.

• This is normal. You will hear an alarm beep.

• The fridge storage compartment door is open.

• Close the door or silence the alarm manually. You will hear a faint hum.

• The anti-condensation system is working

• This prevents condensation and is normal The interior lighting or cooling system does not work

• Mains plug is not connected in the mains socket.

• Connect the mains plug.

• The power supply is not intact.

• Check the electrical supply to the room. Call the local electricity company!

• The LED-lamp is out of order.

• Please call the service for changing the lamp. Power interruption In the event of a power cut, food should remain safely cold for about 12 hours. Follow these tips during a prolonged power interruption, especially in summer: Open the door/drawer as few times as possible. Do not put additional food into the appliance during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than 12 hours, make some ice and put it in a container in the top of the refrigerator compartment. An inspection of the goods is required immediately after the interruption. As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that de frosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks. Memory function during power interruption After restoration of power the appliance continues with the settings that were set before the power failure.Installation

WARNING! The appliance is heavy. Always handle with at least two persons. Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner. Take the appliance out of the packaging. Remove all packaging materials. Environmental conditions The room temperature should always be between 10° C and 43° C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space requirement Required space when door is opened: W1=1221 mm W2=1534 mm D1=660 mm D2=1142 mm

Ventilation cross-section To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

Aligning the appliance The appliance should be placed on flat and solid surface.

1. Tilt the appliance slightly backwards.

2. Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 100 mm for the door to open properly.

3. The stability can be checked by alternately bumping on the

diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.

Fine tuning of the doors If the doors are not in one level, this mismatch can be remedied by following: A) Using adjustable foot Rotate the adjustable foot according to the direction of arrow to turn up or down the foot.

B) Using spacers Open the upper door and lift it. Carefully clip the spacer (enclosed in the accessory bag) in the white plastic ring of the middle hinge by hand or using tools like pliers. Do not scratch or bruise the door.

Notice In the future use of refrigerator, doors uneven phenomenon may occur to the weight of stored food. Then please adjust according to the above methods.Installation

Waiting time To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait 2-5 hours so that the oil runs back into the capsule. Electrical connection Before each connection check if: power supply, socket and fusing are appropriate to the rating plate. the power socket is earthed and no multi-plug or extension. the power plug and socket are strictly according. Connect the plug to a properly installed household socket.

WARNING! To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).EN Technical data

Technical data Product fiche according to regulation EUNO. 2019/2016 Trade mark Haier Model identifier HCR5919ENMM Category of the model Refrigerator-freezer Energy efficiency class

Annual energy consumption (kWh/year)

Storage volume freezing (L)

Temperature of other compartments > 14°C Not applicable Frostfree system Yes Temperature rise time (h)

Climate class This appliance is intended to be used at an ambient temperature between 10 °C and 43°C. SN/N/ST/T Airborne acoustical noise emissions (dB(A) re 1pW)

based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. Additional technical data Voltage / Frequency 220-240V ~/ 50-60Hz Input current (A)

Total Net Capacity (L)

Freezer Net Capacity (L)

Rated Voltage (V) 220-240 Rated Frequency (Hz)

Max. Lamp's Rated Power (W)

Overall Dimension (mm) W*D*H 908*748*1905EN Customer service

Customer service Customer Service We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLESHOOTING. If you cannot find a solution there, please contact your local dealer or the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim. To contact our Service, ensure that you have the following data available. The information can be found on the rating plate. Model

WYPRODUKOWANO W CHINACH

Agent frigorific R600a Greutate agent frigorific (g)
