USER MANUAL Dhyana Aqua Marina

Abstract geometric line drawing with nested angular shapes (no text or symbols)

EN

AQUA MARINA

2021

INFLATABLE

STANDUP PADDLE BOARD

USER MANUAL

WARNING

For your own safety and that of your equipment, make sure to take the following precautions.

Failure to follow warning notices and instruction may result in property damage, serious injury or death.

GENERAL PADDLING INFORMATION

This manual has been compiled to help you operate your Inflatable Stand Up Paddle Board (Hereinafter referred to as ISUP) with safety and pleasure. It contains details of the ISUP, the equipment supplied, and information on their operation. Please read it carefully and familiarize yourself with the ISUP before using it.

SAFETY

There is a risk of serious injury or death from drowning. Paddle sports can be very dangerous and physically demanding. The user of this product acknowledges, understands, and assumes the risks involved in paddle sports. Observe the following warning labels and safety standards carefully whenever using this product.

QR code image containing encoded data, no visible human-readable text

aquamarina.com

WARNING LABEL INSTRUCTIONS

MANDATORY INSTRUCTION

• Wear personal flotation device
• Read instructions first
  • Fully inflate all air chambers
• Numbers of users
• Max. load capacity
• Safe distance to shore 150 m (492.1')

PROHIBITION INSTRUCTION

• Do not use in white water (except BT-20RP)
• Do not use in breaking waves (except BT-20WA)
• Do not use in offshore current
• Do not use in offshore wind
• Not for children 14 years old and below (except BT-19VIP)

ATTENTION / DANGER / WARNING

• Design working pressure
  • No protection against drowning

MANDATORY INSTRUCTION

• Swimmers only
  • Always supervise children in water

CN-ORP

Item No.:

Oriental Recreational Products (Shanghai) Co., Ltd.

1699 Daye Road, Fengxian Shanghai, China 201402

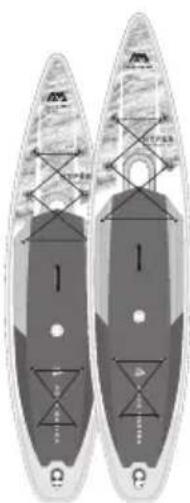

PRODUCT SERIAL NUMBER

• Item No.
  • Manufacturer information

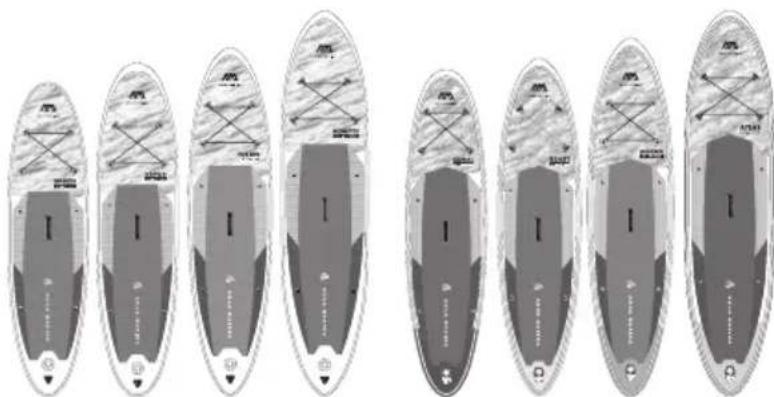

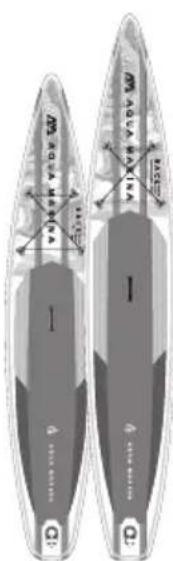

ALL AROUND

TOURING

RACING

RIVER

MODEL

BREEZE

VAPOR

FUSION

MONSTER

CORAL

BEAST

MAGMA

ATLAS

HYPER

HYPER

RACE

RACE

RAPID

BT-21BRP

BT-21VAP

BT-21FUP

BT-21MOP

BT-21COP

BT-21BEP

BT-21MAP

BT-21ATP

BT-21HY01

BT-21HY02

BT-21RA01

BT-21RA02

BT-20RP

SIZE

9'10"

10'4"

10'10"

12'0"

10'2"

10'6"

11'2"

12'0"

11'6"

12'6"

12'6"

14'0"

9'6"

30"

31"

32"

33"

31"

32"

33"

34"

31"

32"

27"

27"

33"

4.7"

6"

6"

6"

4.7"

6"

6"

6"

6"

6"

6"

6"

6"

300 cm

315 cm

330 cm

366 cm

310 cm

320 cm

340 cm

366 cm

350 cm

381 cm

381 cm

427 cm

289 cm

76 cm

79 cm

81 cm

84 cm

78 cm

81 cm

84 cm

86 cm

79 cm

81 cm

69 cm

69 cm

84 cm

12 cm

15 cm

15 cm

15 cm

12 cm

15 cm

15 cm

15 cm

15 cm

15 cm

15 cm

15 cm

15 cm

FIN

1 CENTER FIN 1 CENTER FIN

1 RACING FIN

1 RACING FIN

1 RIVER FIN+ 4 FIXEDFINS

VOLUME

220 L

310L

320L

380L

230L

300L

330L

390L

330L

370L

320L

360L

300L

MAX. RIDER WGT

220 LBS

308LBS

330LBS

374LBS

231LBS

308LBS

330LBS

396LBS

330LBS

374LBS

330LBS

352LBS

286LBS

100 KG

140KG

150KG

170KG

105KG

140KG

150KG

180KG

150KG

170KG

150KG

160KG

130KG

MAX. AIR PRESSURE

15 PSI 15 PSI

15 PSI/10 PSI(center chamber)

18 PSI

18 PSI

SURF

WINDSURF

MULTI-PERSON FISHING

FITNESS

KID

Yoga Dock BT-19YDOutter Diameter: 290cm/9'6"Inner Diameter: 170cm/67"Thickness: 12cm/4.7"

WAVEBT-20WA

BLADEBT-20BL

SUPERTRIPBT-21ST01

SUPERTRIP TANDEMBT-20ST02

MEGABT-20ME

AIRSHIPRACEBT-20AS

PEACEBT-20PC

DHYANABT-21DHP

DRIFTBT-20DRP

VIBRANTBT-19VIP

8'8"30"4"

10'6"33"4.7"

12'2"32"6"

14'0"34"6"

18'1"60"8"

22'0"34"8"

8'2"35"6"

11'0"36"6"

10'10"38"6"

8'0"28"4"

265 cm75 cm10 cm

320 cm84 cm12 cm

370 cm82 cm15 cm

427 cm86 cm15 cm

550 cm152 cm20 cm

670 cm87 cm20 cm

250 cm90 cm15 cm

336 cm91 cm15 cm

330 cm97 cm15 cm

244 cm71 cm10 cm

1CENTERFIN

1 CENTERFIN+1 DAGGERFIN

1CENTERFIN

2CENTERFINS

5CENTERFINS

1 RACINGFIN

/

1CENTERFIN

1CENTERFIN

1CENTERFIN

165L

280L

400L

500L

1400L

1000L

340L

360L

284L

140L

209LBS95KG

264LBS120KG

462LBS210KG

507LBS230KG

1433LBS650KG

1014LBS460KG

330LBS150KG

352LBS160KG

286LBS130KG

132LBS60KG

18 PSI

18 PSI

15 PSI

18 PSI

8 PSI

18 PSI

15 PSI

15 PSI (board) /3PSI (side air chambers)

15 PSI

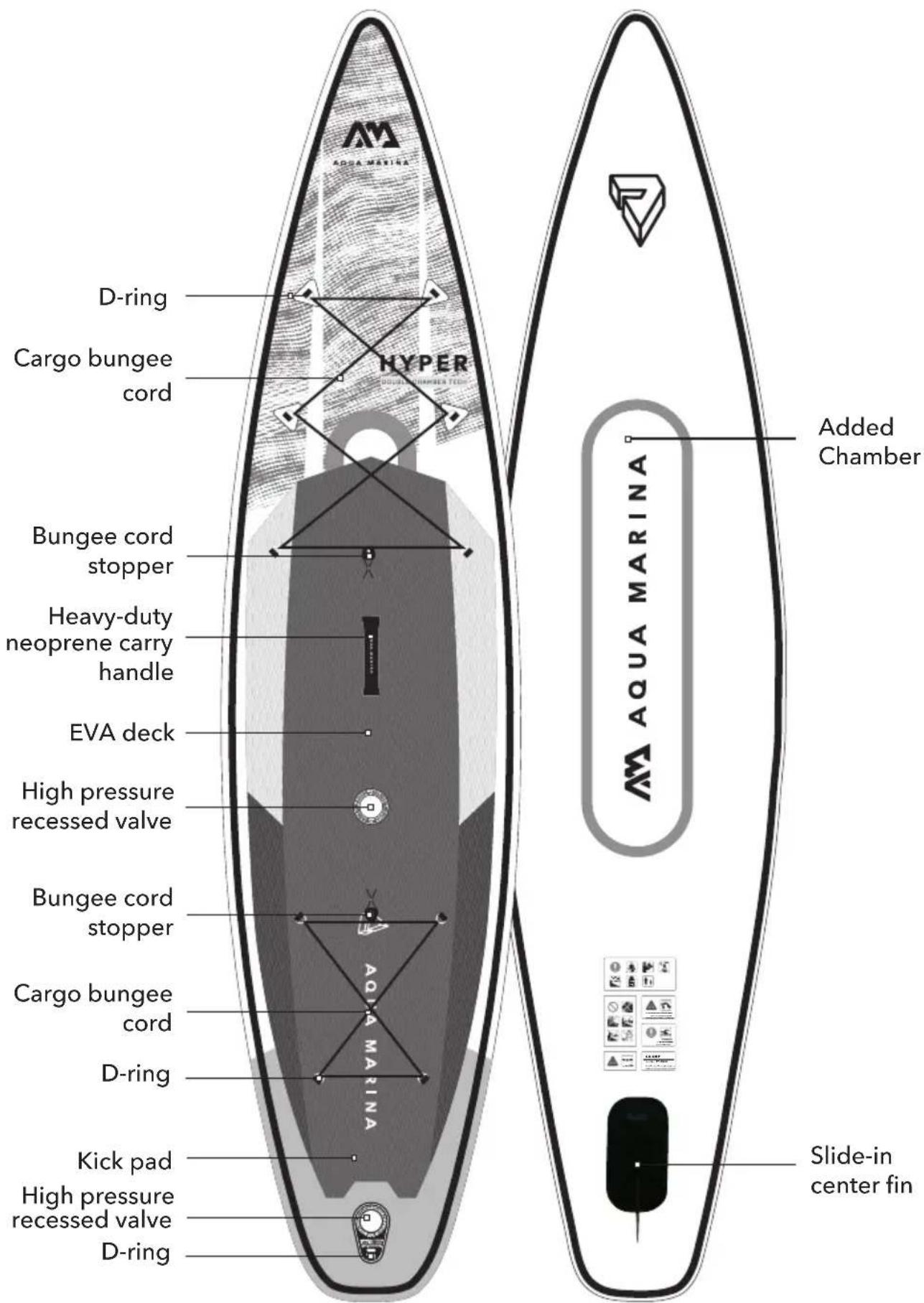

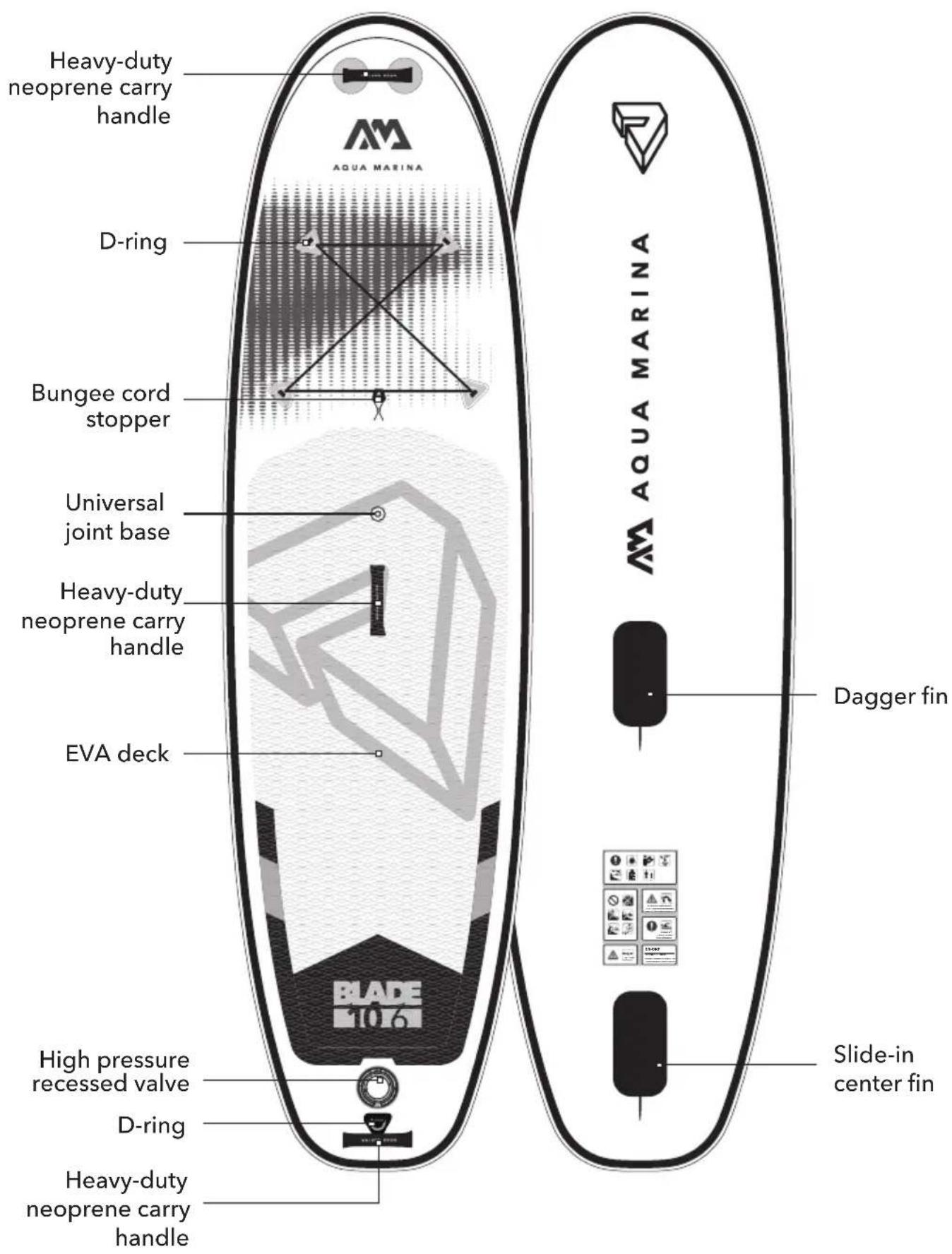

D-ring Cargo bungee cord HYPER Bungee cord stopper Heavy-duty neoprene carry handle EVA deck High pressure recessed valve Bungee cord stopper Cargo bungee cord D-ring Kick pad High pressure recessed valve D-ring Added Chamber AQUA MARINA AQUA MARINA Slide-in center fin

Actual configuration may vary upon different models.

Heavy-duty neoprene carry handle D-ring Bungee cord stopper Universal joint base Heavy-duty neoprene carry handle EVA deck Blade 10.6 High pressure recessed valve D-ring Heavy-duty neoprene carry handle Dagger fin Slide-in center fin

Actual configuration may vary upon different models.

STANDARD

Zip Backpack

AGVA MARINA MOSSER ALL BREADS

Double-Action Pump - LIQUID AIR V1

(Mega/Airship Race/ Super Trip Tandem x 2)

(Coral/Beast/Magma/Atlas/Hyper/Race comes with LIQUID AIR V2)

Line drawing of a portable water dispenser with handle and cable (no text or symbols)

Slide-in Center Fin

(Mega x 5/

Super Trip Tandem x 2)

Cargo Bungee Cord

(except Wave) (Hyper x 2)

Repair Kit

Leash

(except Super Trip/ Super Trip Tandem/Mega/Airship Race/Peace/Yoga Dock)

DRIFT N

Fishing Rod Holder x 2

Technical line drawing of a mechanical device with no visible text or symbols

Paddle Holder

Carry Bag

Line drawing of a closed bag with straps and straps (no text or symbols)

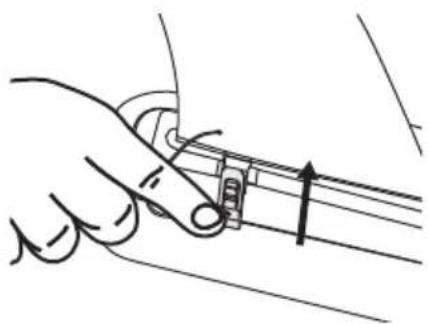

CORAL/YOGA

Board Strap

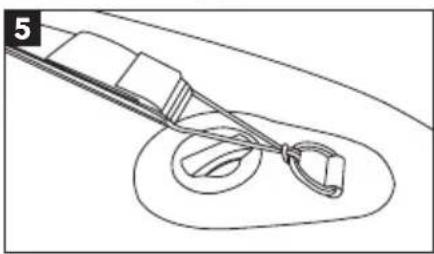

Paddle Holder (Only for Dhyana)

Straps x 3 (Only for Dhyana)

PADDLE

Paddle (excluded from Race/Hyper/Rapid/Super Trip/Mega/Airship Race/Blade/Wave/Peace/Super Trip Tandem)

Line drawing of a long, pointed object resembling a stylized spoon or pipette (no text or symbols)

INSTRUCTION FOR ASSEMBLING AND DISASSEMBLING

Technical line drawing of a mechanical device with threaded ports and a central dial (no text or symbols)

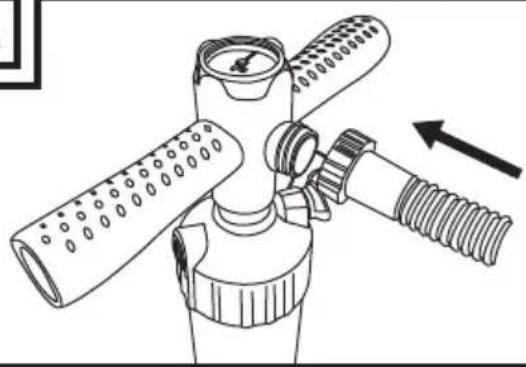

Pump Set Up And Inflation

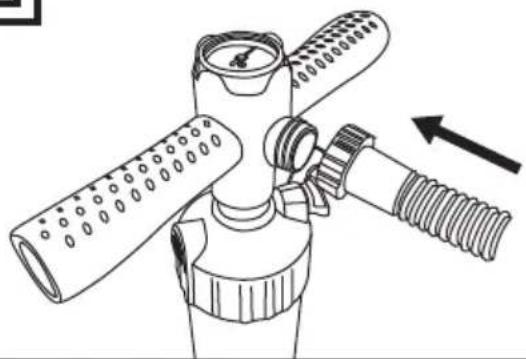

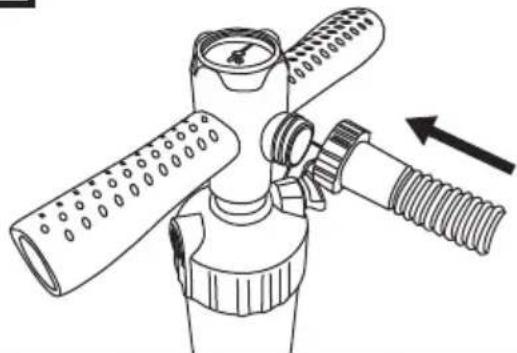

Connect the pump hose to the gauge housing and secure it tightly.

Simple circular diagram with two opposing arrows indicating rotational or cyclical motion (no text or symbols)

Diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows indicating motion or flow.

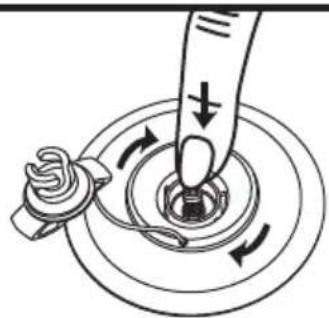

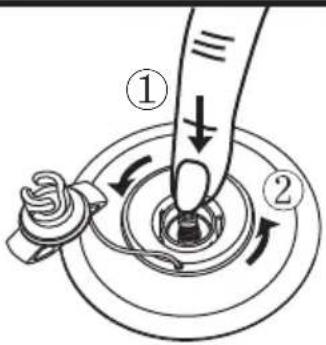

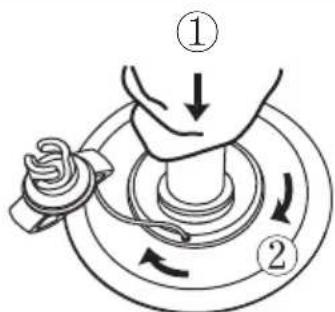

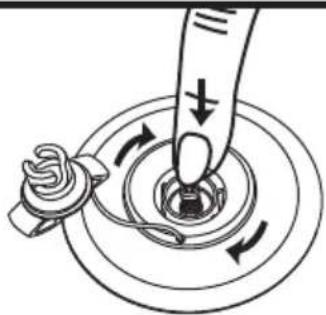

1. Open the valve cap by twisting counter-clockwise. Ensure the valve is clear from debris, sand, or dirt before releasing.

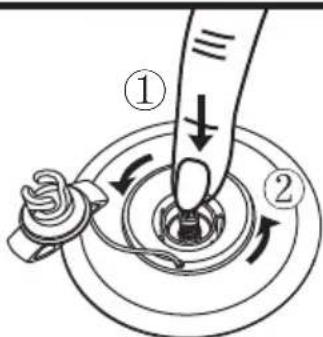

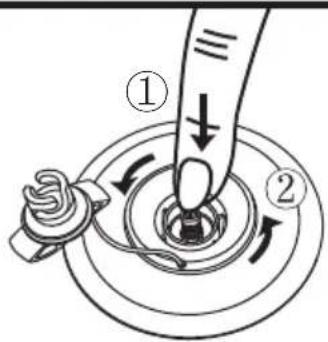

2. Push valve button in and turn counter-clockwise 90 degrees so it pops up and is in the "OUT" position.
3. Insert the pump hose and twist it 45 degree clockwise to lock in place. Inflate until you reach the required pressure.

12PSI minimum (8PSI for MEGA/ 10PSI for HYPER inner chamber) for proper inflatable boards operation and 15PSI maximum (18PSI for SUPER TRIP TANDEM/ RAPID/ RACE/ WAVE/ BLADE/ AIRSHIP RACE ). Over inflation will void your warranty.

Medical illustration showing two stages of a catheter insertion procedure, with arrows indicating direction of movement.

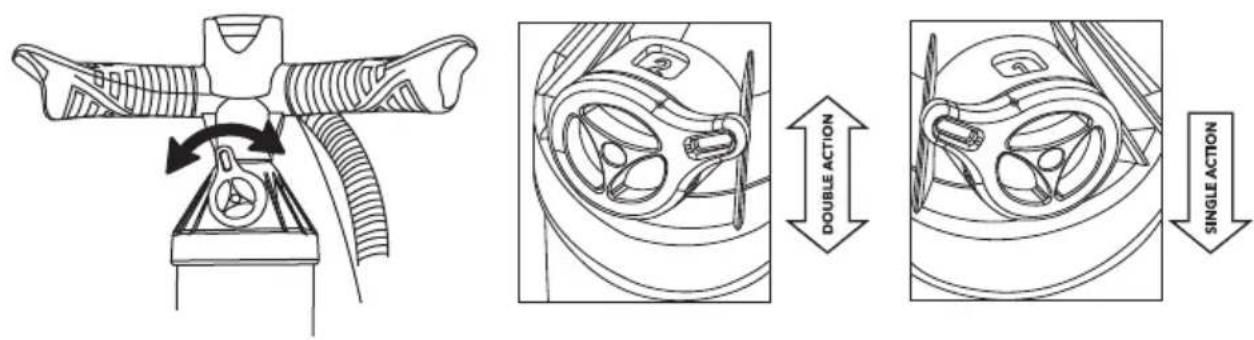

Inflate Faster With Less Effort

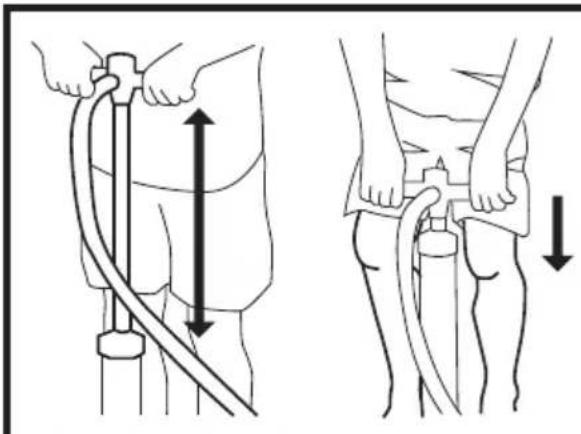

• Use full range of the pump cylinder while keeping your arms extended.
• Bend your knees and use the body weight.

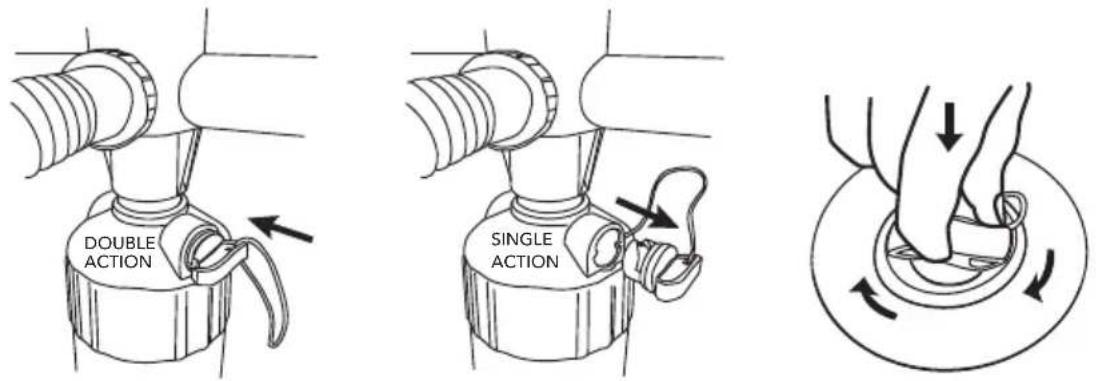

LIQUID AIR V1

DOUBLE ACTION SINGLE ACTION

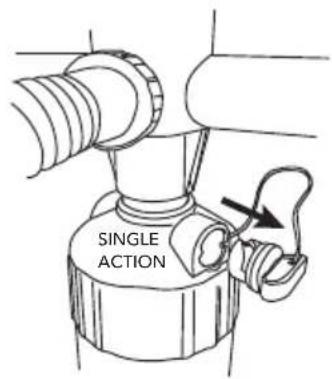

1. Use DOUBLE ACTION mode by closing the air-tap to pump the board up to 7 psi.
2. Switch to SINGLE ACTION position by opening the air-tap to pump the board up to 15 - 18 psi.

LIQUID AIR V2

Technical diagram illustrating the mechanism of a vehicle's steering wheel, showing double and single action states with labeled arrows.

1. Use DOUBLE ACTION mode with the top cap displaying "2" to pump the board up to 7 - 10 psi.
2. Rotate the switch to SINGLE ACTION mode with the top cap displaying "1" to pump the board up to 15 - 18 psi.

After inflation, return the valve cover and tighten in clockwise direction to lock in place.

PRECAUTION & TIPS

• Electric Pumps can be used to inflate board up to 80-90%. However, the remaining pressure required should be achieved by using the hand pump to avoid over-inflation.
• Do not use air compressors as this voids warranty of board.
• Before long trips, ensure the board has been inflated and has maintained pressure for a minimum of 24 hours.

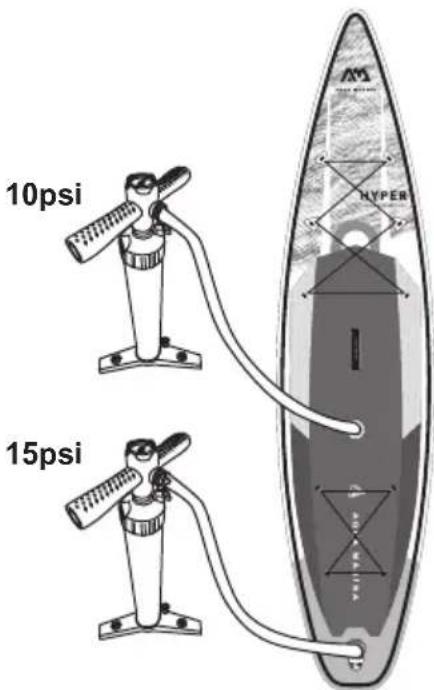

10psi 15psi HYPER

For Double Chamber Board

For best performance, the double chamber should always be inflated to ensure the highest stiffness and safety.

• Inflate the inner chamber up to 10 PSI.
  • Inflate the outer chamber up to 15 PSI.

Simple line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand pressing a small mechanical component on a curved surface (no text or symbols)

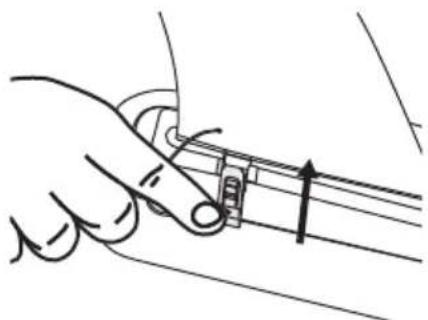

Slide-in Center Fin Installation

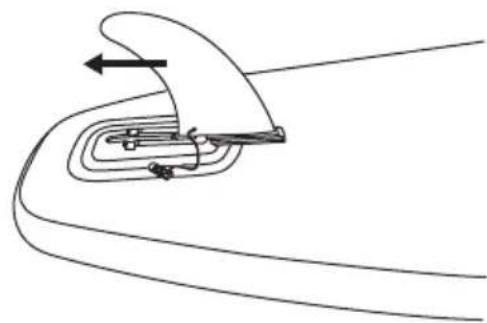

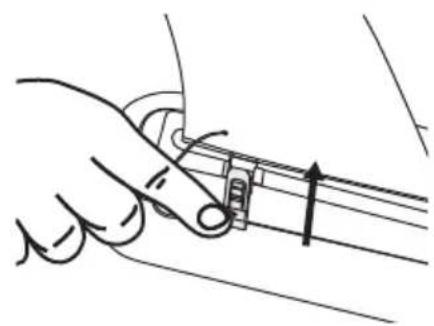

Once the board is inflated, slide in the large Center Fin to the fin base and insert the push-in pin.

Illustration of hands performing a circular motion on a rotating disc with directional arrows indicating rotation (no text or symbols)

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

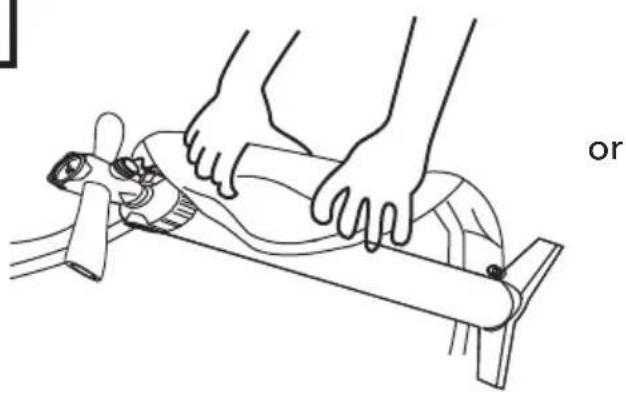

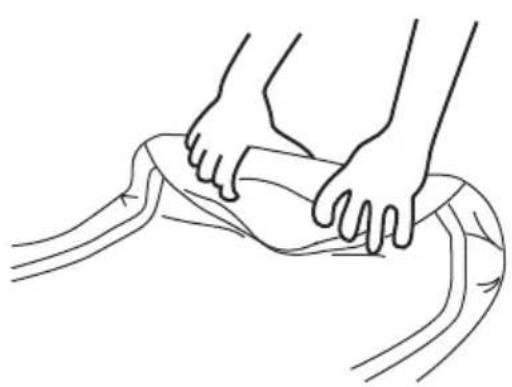

Deflation

To deflate your board, follow the instructions below.

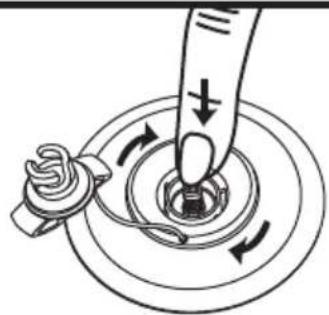

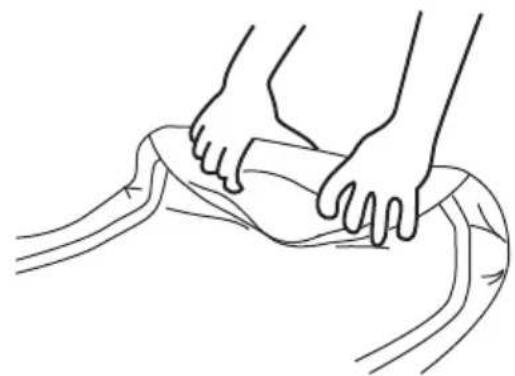

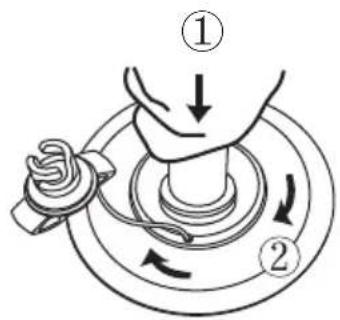

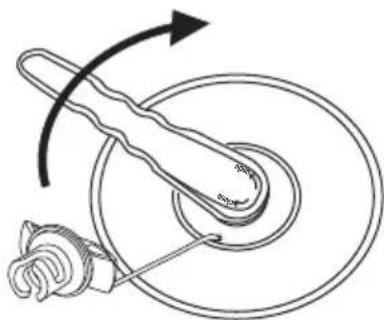

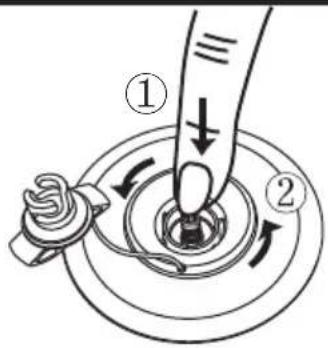

1. Open the valve cap by twisting counter-clockwise. Ensure the valve is clear from debris, sand, or dirt before releasing.
2. Push valve button in and turn clockwise to lock it in DOWN position.

Line drawing of hands performing a physical exercise on a rotating platform (no text or symbols)

Line drawing of two hands performing a massage on a curved object (no text or symbols)

or

Diagram of hands pressing down on a circular component with directional arrows indicating motion (no text or symbols)

Folding Steps

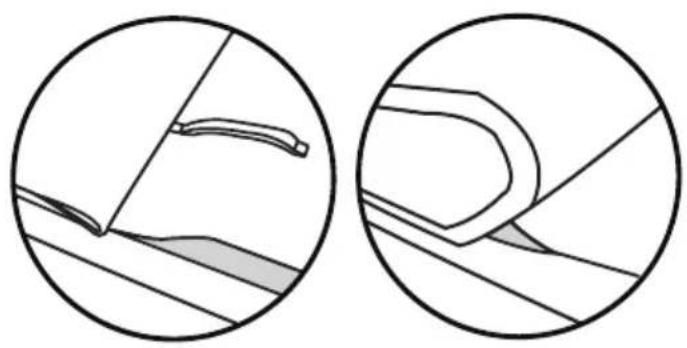

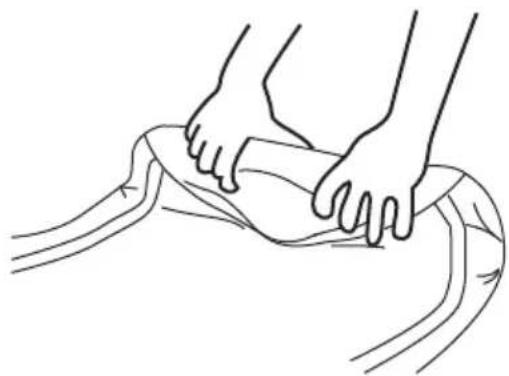

1. We recommend rolling your board around the pump and pushing all air out as you roll. Alternatively, you can roll up your board from nose to tail, pushing out any remaining air as you roll, or use the pump on "deflate" position (for LIQUID AIR V1 only) for faster deflation.
2. Press all air out of the board; close the valve cap, and tighten in clockwise direction to lock in place.

NOTE:

For RACE board, we still recommend rolling your board around the pump. Alternatively, please fold in the dotted line as below (Fig. A) to avoid bending the side rail pads.

Two circular diagrams showing mechanical or structural components, one with diagonal lines and a curved blade, the other with layered sections (no text or symbols)

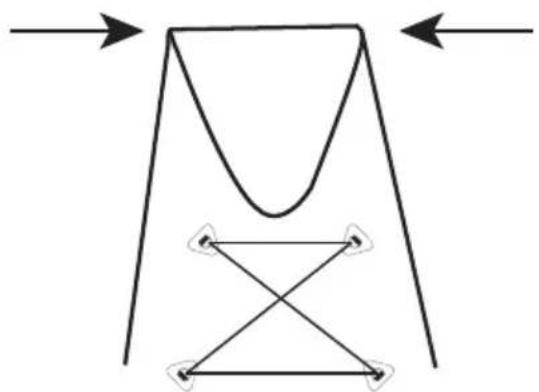

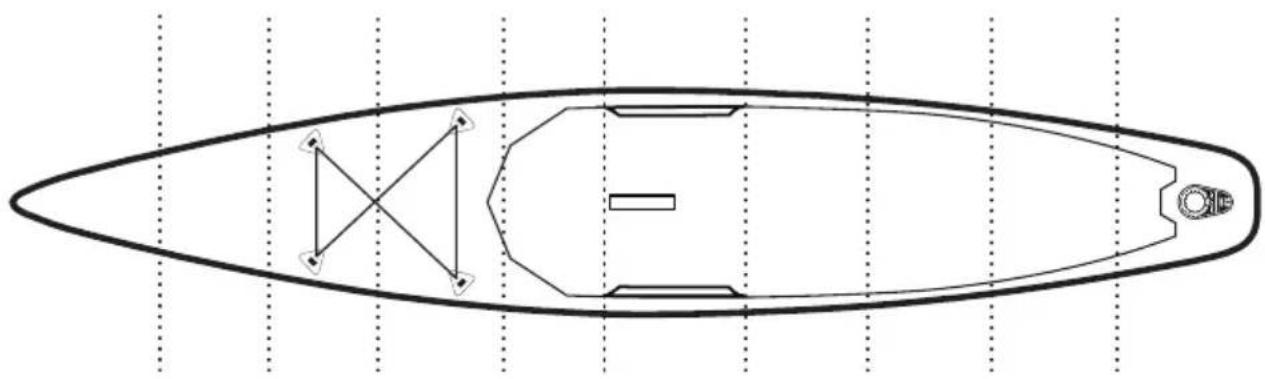

TIP:

Start to fold from here.

Pure geometric diagram with arrows and intersecting lines, no text or symbols present

Top-down schematic of a boat hull with structural elements and no text or symbols

(Fig. A)

HOW TO REPAIR A CUT OR PUNCTURE IN YOUR INFLATABLE BOARD

Line drawings of various hair and makeup items including a hairdryer, spray bottle, rolled paper, glue, brush, and spoon (no text or symbols)

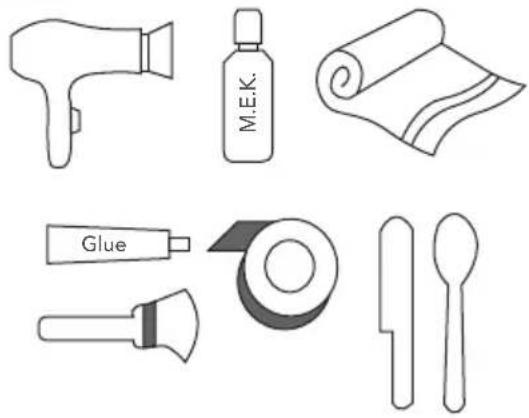

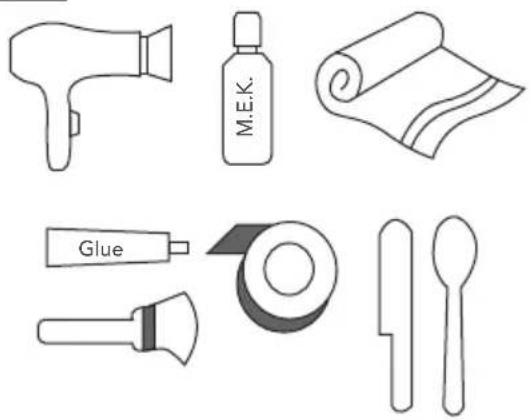

SUPPLIES REQUIRED

• Glue (AQUASEAL® is recommended)
• Acetone or methyl ethyl ketone (M.E.K.)
• Hairdryer
• Brush
• Tape
• Spatula or spoon
• Towel

(Not provided in the SUP board package)

Illustration of hands performing a gentle massage technique with sparkles and a bottle nearby (no text or symbols)

Simple line drawing of two hands holding a rectangular object, with a black dot below (no text or symbols)

Line drawing of hands using a tool to cut a wooden block (no text or symbols)

1. Clean the area around the cut or puncture using acetone or M.E.K.
2. Draw the outline of the patch using chalk or pencil (do not use ink). Cut the patch, cover the cut or puncture with approximately 2.5cm (1 inch) overlap on all sides.
3. Apply tape along the outline of the patch. This will prevent the glue from spreading outside the patch area.

Illustration of hands using a tool to apply a component on a cutting board (no text or symbols)

Line drawing of two hands performing a curved motion on a wooden table (no text or symbols)

Line drawing of a hand holding a tool over a flat surface, with a black dot nearby (no text or symbols)

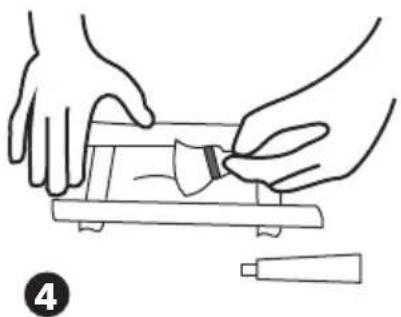

1. Apply glue on both the board and patch using a brush or other applicator. Make sure the glue is spread evenly and completely over the board and patch. Let the glue dry for 5 minutes.

2. Apply the patch starting on one side and move towards the other side. Be careful not to trap any air bubbles.

3. Use a hairdryer to gently heat the area to ensure a good bond between the patch and the board.
   Use a metal spatula or spoon and firm pressure to ensure a good bond and to remove any air bubbles.

24h

Allow the glue to cure with the board un-inflated for 24 hours prior to use.

HOW TO FIX A LEAKING VALVE

H

A. Try to tighten the valve

Technical diagram showing a mechanical component with rotational motion and dimension annotations

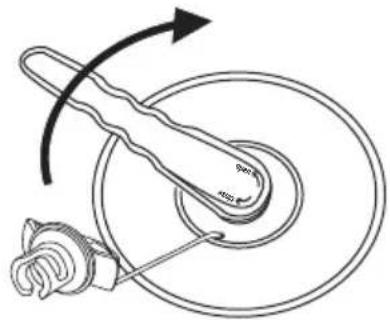

1. Inflate your board up to the max air pressure

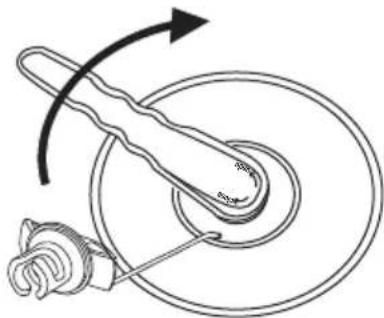

2. Stick your valve wrench down inside of valve and turn clockwise to tighten the valve back down onto the board

B. Re-install or replace a valve

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrow indicating rotation or movement.

Technical line drawing of a mechanical assembly with a central component and a curved arm (no text or symbols)

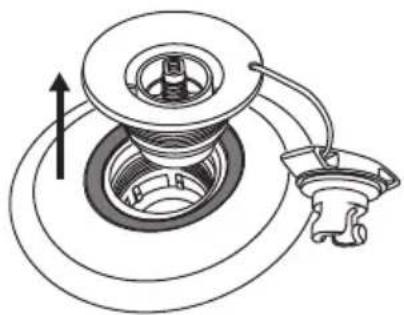

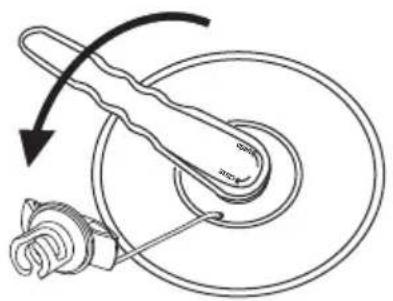

1. Completely deflate your board

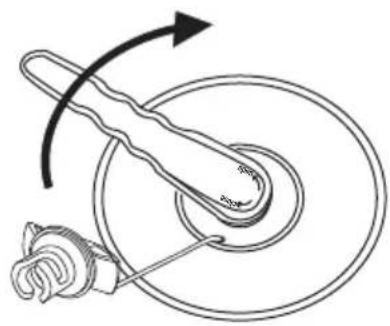

2. Undo the dust cap and insert the valve wrench into the valve and twist counterclockwise to remove the valve

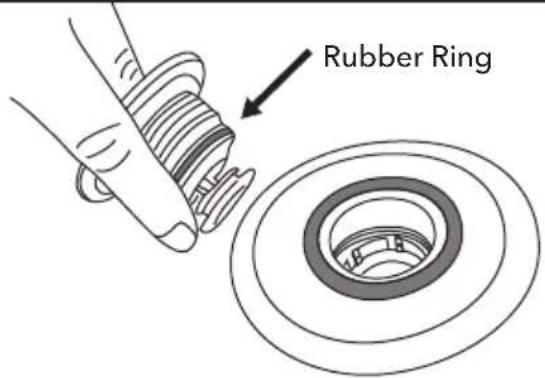

Rubber Ring

Technical illustration of a mechanical assembly with a spring and concentric rings (no text or symbols)

1. Check the rubber ring to make sure that it is in the correct position, tight around the valve and there is no debris in the way

2. Be sure the pin spring is functioning properly and that there are no cracks along the edges

Diagram showing a hand pressing down on a circular object with an arrow indicating rotation (no text or symbols)

Mechanical diagram showing a mechanical assembly with a rotating component and a hand holding a tool (no text or symbols present)

Diagram of a mechanical device with rotating shaft and base, showing rotational motion (no text or symbols)

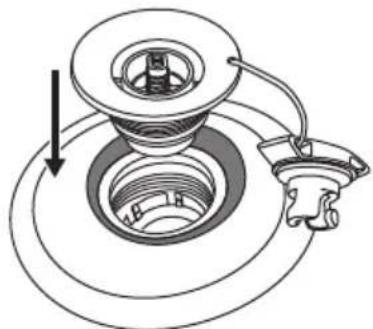

1. Ensure there are no strings from the drop stitching material

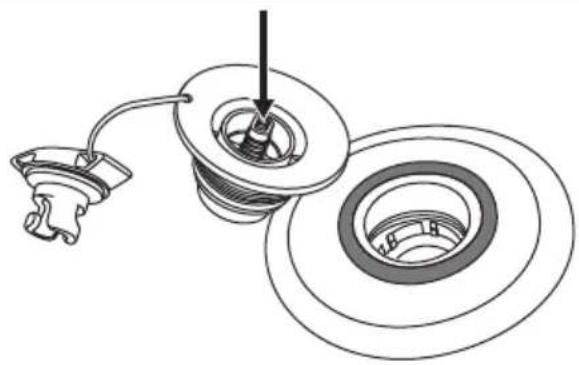

2. Note the bottom piece of the valve is not attached to anything

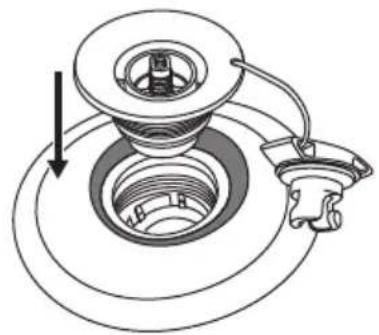

3. Fit the valve back into your board

4. Align all the threads and twist to tighten

5. Once the valve is hand tight, use the valve wrench to seal completely

NOTE: Correctly use the wrench by pressing it with one hand on top.

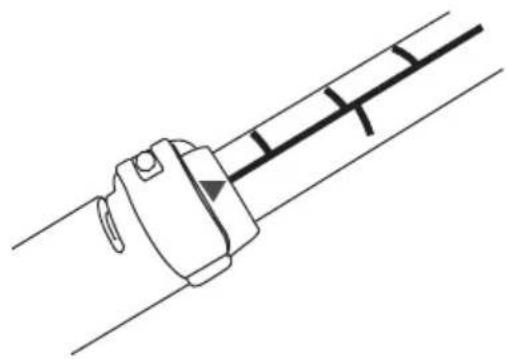

PADDLE ASSEMBLY

Silhouette of a person holding a pole and arrow, no text or symbols present

Silhouette of a person holding a pole crossed out by a diagonal line, enclosed in a circle with no text or symbols.

Front

Simple line drawing of a curved object resembling a tool or tool handle (no text or symbols)

Front

Simple line drawing of a curved object resembling a stylized human head or abstract form (no text or symbols)

Correct Incorrect

Aqua Marina 3-piece adjustable shaft uses a secure spring pin system and comes with an additional clamp to reduce any play.

SECURE SPRING PIN CLAMP SYSTEM FOR

Diagram of two pipes with a directional arrow indicating movement or force (no text or symbols)

CLAMP SYSTEM FOR CARBON and FIBERGLASS SHAFT

Easily adjust the level of tightness by rotating the hasp to avoid any play.

Line drawing of a mechanical component with rotational motion arrows (no text or symbols)

ALUMINUM SHAFT

Simple line drawing of a mechanical clamp or connector with a curved arrow indicating rotation (no text or symbols)

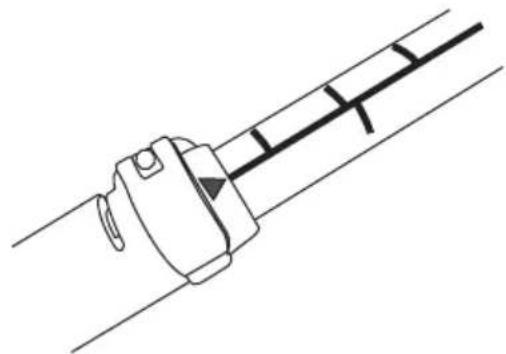

Ensure the center line of the scale is aligned with the indicator on clamp

Technical line drawing of a mechanical component with no visible text or symbols

NOTE: Always drain the water left in the paddle shaft after each use.

3 PCS ADJUSTABLE 2 P

Line drawing of three laboratory glassware items: a pipette, a test tube, and a funnel-shaped object (no text or labels)

• SPORTS III B0303012

Adjustable Aluminum iSUP Paddle

• SOLID B0303013

Adjustable Fiberglass iSUP Paddle

• CARBON GUIDE B0303014

Carbon / Fiberglass iSUP Paddle

• CARBON PRO B0303015

Carbon iSUP Paddle

2-IN-1

Simple line drawing of a laboratory flask and a pipette (no text or symbols)

• CARBON X B0303016 B030DUAL-TECH

2-section Carbon iSUP Paddle

Line drawing of laboratory glassware including a pipette and two test tubes (no text or labels)

2-in-1 iSUP & Kayak Paddle

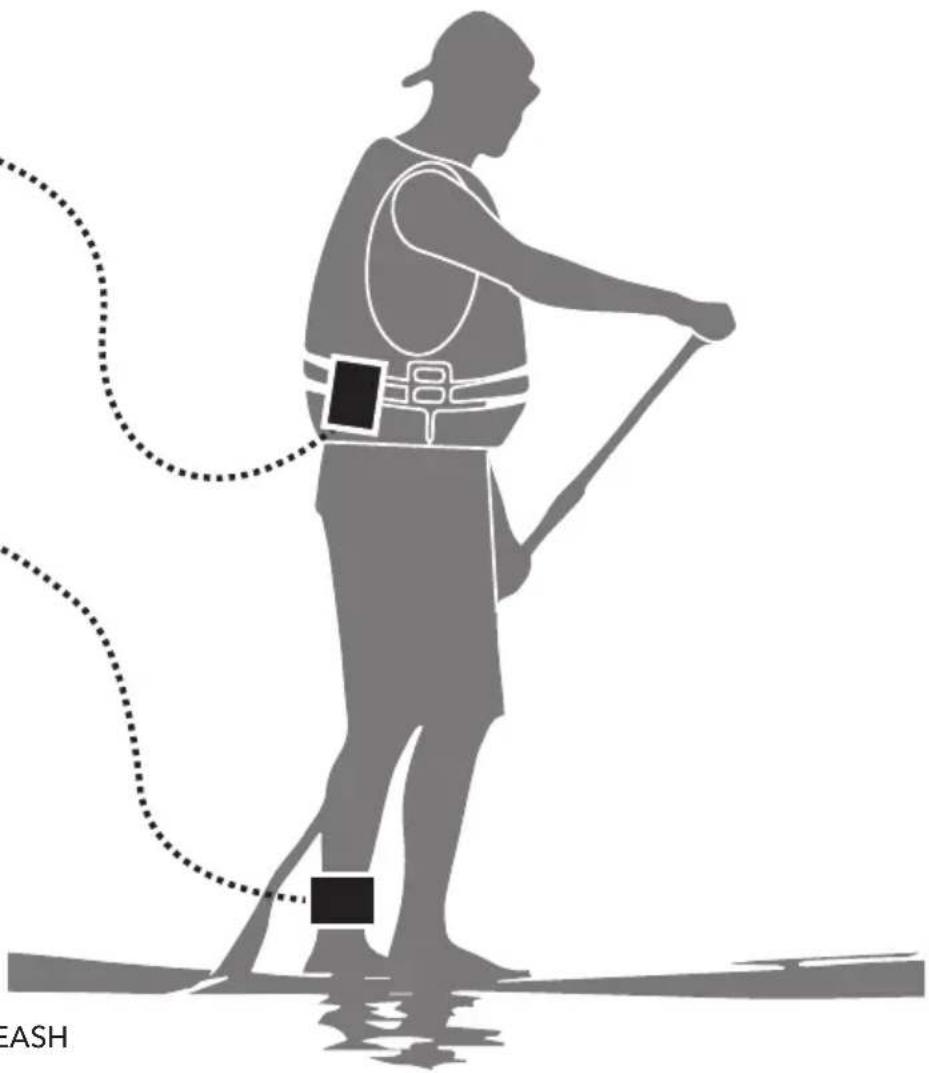

HOW TO WEAR A SAFETY LEASH

WAIST

Coiled black wrist strap with attached ear and connector (no visible text or symbols)

RIVER LEASH
B0303025

ANKLE

COIL LEASH
B0303023

Black-and-white photo of a wrist strap with coiled cable and a contactor (no text or symbols visible)

SURF LEASH
B0303024

B0302765

STANDARD LEASH

Silhouette of a person using a handheld device with a dotted line indicating motion or signal path (no text or symbols)

STANDARD LEASH INSTALLATION

Illustration of a hand using scissors to cut a component into a circular opening (no text or symbols)

Illustration of a hand holding a cable or connector with wires, no text or symbols present

Simple line drawing of a mechanical component with a circular inset and connecting rod (no text or symbols)

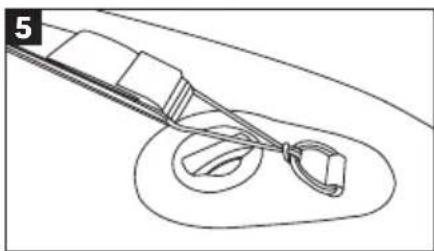

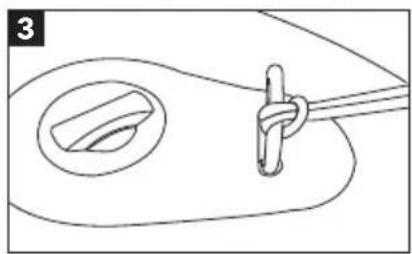

COIL/SURF/RIVER LEASH INSTALLATION

Simple line drawing of a mechanical clamp or clip assembly (no text or symbols)

Simple line drawing of a rope knot securing a curved surface (no text or symbols)

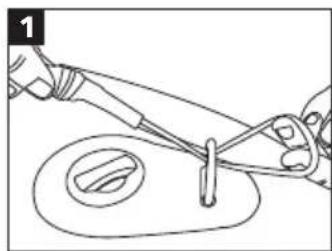

Simple line drawing of a mechanical clamp or tool interacting with a circular component (no text or symbols)

Line drawing of a mechanical clamp or clip assembly with a circular base and handle (no text or symbols)

Line drawing of a medical or laboratory procedure with a tool and loop (no text or symbols)

FAQs (Frequently Asked Questions)

Q: How much air should I pump into my board, and how long does it take to inflate?

A: The maximum pressure is 15 - 18 PSI (8 PSI for MEGA, 10 PSI for HYPER inner chamber), any higher you risk over inflating and damage. Depending on the size of your board it can take anywhere from 5 to 8 minutes.

Q: When detaching the pump from the board, the air starts to release from the valve. How do I stop this from happening?

A: The air is releasing as the valve spring pin has been left in the deflating position. Simply push down and turn the pin until it lifts up into the inflation position and stops air from releasing; continue to inflate the board until up to pressure.

Q: Can I leave my board inflated in the sun and over night?

A: If leaving the board inflated, we strongly recommend you to remove it from direct sunlight and deflate the board at least to 10PSI (5PSI for MEGA).

Q: How should I clean and how should I store my board?

A: We only recommend water and a mild soap. Heavy detergents and solvents can damage your board. It is best to clean and dry your board, take out the fins, roll it up and put in the bag.

Q: If I puncture my board, can I repair by myself?

A: Yes, you can use the required tools listed in the manual with the supplied repair kit or email us for more information at [e-mail].

WARRANTY

1 AM warrants this product to be free from major defects in material or workmanship to the original purchaser for a period of one (1) Year from the date of purchase. This warranty is subject to the following limitations

1. The warranty is valid only when this product is used for normal recreational activities and does not cover products used in rental or school operations.
2. AM will make the final warranty determination, which may require inspection and/or photos of the equipment, which clearly show the defect(s). If necessary, this information must be sent to the AM distributor in your country with prepaid postage. Product can be returned only if a return authorization number is given in advance by the AM distributor. The return authorization number must be clearly labelled on the outside of the package, or it will be refused.
3. If a product is deemed to be defective by AM, the warranty covers the repair or replacement of the defective product only. AM will not be responsible for any costs, losses, or damages incurred as a result of loss or misuse of this product.
4. This warranty does not cover damage caused by misuse, abuse, neglect, normal wear and tear including, but not limited to punctures, damage due to excessive heat exposure, damage caused by improper handling and storage, damage caused by use in waves or shore break, board breakage caused by filling or crashing in surf conditions, or damage caused by anything other than defects in material and workmanship.
5. This product must not be modified and/or fitted with a motor except AM BlueDrive power fin.
6. This product must not be used in excess of the manufacturers recommended maximum load capacity.
7. This warranty is void if any unauthorized repair, change or modification has been made to any part of the equipment.
8. The warranty for any repaired or replacement equipment is good from the date of the original purchase only.
9. The original purchase receipt must accompany all warranty claims. The name of the retailer and date of purchase must be clear and legible.
10. There are no warranties that extend beyond the warranty specified here in.

This product is designed in accordance with standards for a specific use. Any modifications or transformations higher than that indicated by the manufacturer could result in serious risks for the user and will void the warranty.

Abstract geometric line drawing with nested angular shapes (no text or symbols)

FR

AQUA MARINA

2021

GONFLABLE

PLANCHE DE STANDUP PADDLE

MANUEL DE L'UTILISATEUR

ATTENTION

QR code image containing encoded data, no visible human-readable text

AVERTISSEMENT INSTRUCTIONS SUR L'ÉTIQUETTE

INSTRUCTIONS OBLIGATOIRES

Oriental Recreational Products (Shanghai) Co., Ltd. 1699 Daye Road, Fengxian Shanghai, China 201402

NUMERO DE SÉRIE

Line drawing of a portable water pump with handle and base (no text or symbols)

Aileron central coulissant
(Mega x 5 /
Super Trip Tandem x 2)

Cordon cargo
(sauf Wave) (Hyper x 2)

Kit de réparation

Laisse
(sauf Super Trip/ Super Trip Tandem/Mega/Airship Race/Peace/Yoga Dock)

DRIFT M

Technical line drawing of a mechanical device with no visible text or symbols

Porte-palette

Carry Bag

Line drawing of a rectangular box with straps and straps (no text or symbols)

CORAL/YOGA

Line drawing of a long, pointed object resembling a stylized spoon or pipette (no text or symbols)

INSTRUCTION D'ASSEMBLAGE ET DE D ÉMONTAGE

A

Technical line drawing of a mechanical device with threaded ports and a dial indicator (no text or symbols)

Simple line drawing of a circular object with two opposing arrows indicating rotational motion (no text or symbols)

Diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows indicating motion or flow.

Medical illustration showing two different techniques for using a bandage device, with arrows indicating direction of movement.

DOUBLE ACTION

SINGLE ACTION

Illustration of hands performing a circular motion on a rotating disc with directional arrows indicating rotation (no text or symbols)

Diagram of a mechanical device with rotating components and a circular component, no text or symbols present

Line drawing of a car interior with steering wheel and dashboard (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a tool with a bracket, no text or symbols present

Illustration of hands performing a circular motion exercise on a rotating wheel (no text or symbols)

Diagram of a hand turning a mechanical component with rotating arrows (no text or symbols)

Dégonflage

Line drawing of a person performing a rolling motion on a roller, with hands adjusting the motion (no text or symbols)

Line drawing of two hands performing a massage on a curved surface (no text or symbols)

or

Illustration of hands pressing down on a circular mechanical component with directional arrows indicating motion (no text or symbols)

Étapes de pliage

Two circular diagrams showing mechanical or structural components, one with a tool and shaded area, the other with curved and straight lines (no text or symbols)

TIP:

Pure geometric diagram with arrows and intersecting lines, no text or symbols present

Top-down schematic of a boat with structural elements and a small boat at the bottom (no text or labels)

(Photo A)

COMMENT RÉPARER UNE COUPURE OU UN TROU DANS VOTRE PLANCHE GONFLABLE

Illustration of various hair tools including a hair dryer, M.E.K. bottle, rolled-up sheet, glue, and spoon (no text or symbols)

MATERIEL NECESSAIRE

Illustration of hands performing a procedure with a bottle and towel, no text or symbols present

Simple line drawing of two hands holding a rectangular object, with a black dot below (no text or symbols)

Line drawing of two hands using a tool to cut a wooden block (no text or symbols)

Line drawing of hands using a tool to apply material on a tray (no text or symbols)

Line drawing of two hands manipulating a curved object on a wooden surface (no text or symbols)

Simple line drawing of a hand holding a tool over a flat surface, with a black dot nearby (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled dimensions and rotation direction

Technical diagram showing a mechanical component with labeled parts and directional arrow indicating rotation or assembly.

Technical line drawing of a mechanical assembly with a central component and a hand holding a spring (no text or symbols)

Three-step diagram illustrating a mechanical assembly: wheel, valve, and tool (no text or symbols)

Diagram of a pipe joint with an arrow indicating direction, no text or symbols present

SYSTÈME DE SERRAGE POUR ARBRE EN CARBONE ET FIBRE DE VERRE

Line drawing of a mechanical component with rotational motion arrows (no text or symbols)

SYSTEME DE MANCHE ALUMINUM

Simple line drawing of a mechanical clamp or connector with a rotation arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of three laboratory glassware items: a pipette, a test tube, and a funnel (no text or labels)

- SPORTS III B0303012

Simple line drawing of a laboratory flask and a pipette (no text or symbols)

• CARBON X B0303016 B030DUAL-TECH

Pagaie iSUP 2 parties en carbone

Line drawing of four laboratory glassware items: two flasks and a pipette (no text or labels)

2-en-1 iSUP & pagaie de kayak

COMMENT PORTER UN LAASH DE SÉCURITÉ

TAILLE

Coiled black wrist strap with attached ear and connector (no visible text or symbols)

LEASH EN RIVIÈRE B0303025

CHEVILLE

LEASH BOBINE B0303023

Illustration of a black-and-white photo of an adjustable band with a coiled cable and a black wrist strap (no text or symbols)

LEASH DE SURF B0303024

LEASH STANDARD B0302765

INSTALLATION DU LEASH STANDARD

Line drawing of a hand using a tool to cut a circular object with a small inset (no text or symbols)

Illustration of hands connecting a cable to a plug (no text or symbols)

Simple line drawing of a hook and ring assembly with a circular inset showing a slot (no text or symbols)

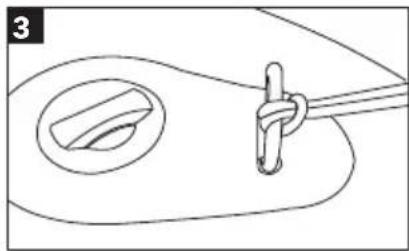

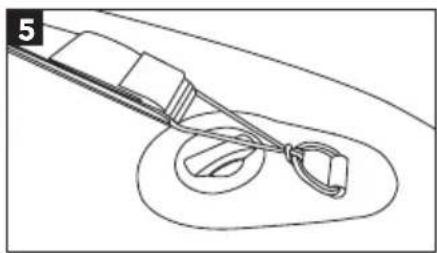

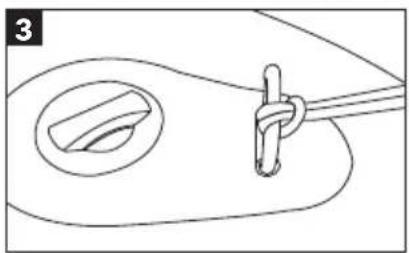

INSTALLATION LEASH EN RIVIÈRE/ SURF/BOBINE

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Simple line drawing of a rope knot securing a ball (no text or symbols)

Line drawing of a hand using a tool to lift or lift a surface, with no visible text or symbols

Line drawing of a mechanical clamp or clip assembly with a circular base and handle (no text or symbols)

Line drawing of a medical or laboratory procedure with a tool and circular component (no text or symbols)

Abstract geometric line drawing with nested angular shapes (no text or symbols)

DE

AQUA MARINA

2021

AUFBLASBARES

STAND-UP PADDLE

BEDIENUNGSANLEITUNG

WARNUNG

QR code image containing encoded data, no visible human-readable text

Oriental Recreational Products (Shanghai) Co., Ltd. 1699 Daye Road, Fengxian Shanghai, China 201402

PRODUKTSERIENNUMMER

(Mega/Airship Race/ Super Trip Tandem x 2)

Line drawing of a portable water dispenser with handle and base (no text or symbols)

(außer Super Trip/ Super Trip Tandem/Mega/Airship Race/Peace/Yoga Dock)

DRIFT N

Angelstockhalter x 2

Technical line drawing of a mechanical device with no visible text or symbols

Paddelhalter

Tragtasche

Line drawing of a rectangular box with straps and a zipper (no text or symbols)

CORAL/YOGA

Brettriemen

Line drawing of a long, pointed object resembling a stylized spoon or pipette (no text or symbols)

Technical line drawing of a mechanical device with threaded ports and a directional arrow (no text or symbols)

Simple line drawing of a circular object with two opposing arrows indicating rotational motion (no text or symbols)

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows indicating motion or flow.

Illustration showing two different positions of a medical device with arrows indicating movement or force direction (no text or symbols present)

Technical diagram illustrating mechanical assembly and action states: double and single actions with labeled arrows.

Simple line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a small mechanical component, no text or symbols present

Diagram of hands performing a circular motion on a rotating disc with directional arrows indicating rotation (no text or symbols)

Diagram of a hand turning a mechanical component with rotating arrows (no text or symbols)

Luft ablassen

Line drawing of a person performing a physical exercise on a roller, no text or symbols present

oder

Line drawing of two hands performing a massage on a curved surface (no text or symbols)

oder

Diagram of hands rotating a circular component with directional arrows indicating rotation (no text or symbols)

Faltschritte

Two circular diagrams showing mechanical components or parts, one with a tool and shaded area, the other with a curved component (no text or symbols)

TIP:

Pure geometric diagram with arrows and intersecting lines, no text or symbols present

Top-down schematic of a boat hull with structural elements and no text or symbols

(Abb. A)

Illustration of various hair tools including a hair dryer, M.E.K. bottle, rolled-up cloth, glue, and spoon (no text or symbols)

MATERIALIEN

Illustration of hands performing a gentle massage or cleaning technique with a bottle and scroll (no text or symbols)

Simple line drawing of two hands holding a rectangular object with a black dot below (no text or symbols)

Line drawing of hands using a tool to cut a wooden block (no text or symbols)

Line drawing of hands using a tool to apply material on a cutting board (no text or symbols)

Line drawing of two hands operating a table with a curved line and a pointer (no text or symbols)

Simple line drawing of a hand holding a tool over a flat surface, with a black dot nearby (no text or symbols)

Technical diagram showing a mechanical component with labeled dimensions and rotation arrow

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrow indicating rotation or movement.

Technical diagram of a mechanical assembly with a central component and a hand holding a tool (no text or symbols present)

Mechanical assembly diagram showing a spring-loaded component and a circular housing with internal components (no text or symbols)

Diagram of a hand holding a circular object with an arrow indicating rotation or movement (no text or symbols)

Mechanical diagram showing a car tire being inserted into a housing with a hand holding the component (no text or symbols present)

Diagram of a mechanical or electrical component with curved arrows indicating rotation, no text or symbols present

Silhouette of a person holding a cane, no text or symbols present

Silhouette of a person holding a protractor with a diagonal line, crossed out by a circle (no text or symbols)

Vorne

Vorne

Korrek Falsch

Diagram of two pipes with a falling object, one with an arrow indicating direction (no text or symbols)

KLEMMSYSTEM FÜR KOHLE- UND GLASFASERSTANGE

Diagram of a mechanical component with rotational motion arrows (no text or symbols)

ALUMINIUMSTANGE

Pure mechanical diagram showing a lever mechanism with no text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of three laboratory glassware items: a pipette, a test tube, and a funnel (no text or labels)

• SPORTS III B0303012 Anpassbares Aluminium iSUP Paddel
• SOLID B0303013 Anpassbares Fiberglas iSUP Paddel
• CARBON GUIDE B0303014 Kohle- / Glasfaser iSUP Paddel
• CARBON PRO B0303015 Kohle iSUP Paddel

IN-1

Simple line drawing of a laboratory flask and a pipette (no text or symbols)

• CARBON X B0303016 B030DUAL-TECH

Line drawing of laboratory glassware including a funnel, bulb, and pipette (no text or labels)

2-in-1 iSUP & Kayak Paddel

Black and white photo of a coiled cable with attached accessories (no visible text or symbols)

Black-and-white illustration of a wrist strap with a coiled cable and a contactor (no text or symbols)

SURFBOARD
LEASH
(SICHERUNGSLEINE)
B0303024

STANDARD-LEASH
(SICHERUNGSLEINE)
B0302765

MONTAGE DER STANDARD-LEASH (SICHERUNGSLEINE)

Line drawing of a hand using scissors to cut a piece of paper or tape (no text or symbols present)

Illustration of hands connecting cables to a plug (no text or symbols)

Simple line drawing of a mechanical component with a circular inset showing a slot and a looped end (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text or symbols

Simple line drawing of a rope knot securing a curved surface (no text or symbols)

Line drawing of a mechanical clamp or tool interacting with a surface (no text or symbols)

Line drawing of a mechanical clamp or clip assembly with a circular base and a handle, no text or symbols present.

Line drawing of a medical or surgical tool interacting with a circular component (no text or symbols)

Häufige Fragen

Abstract geometric line drawing with nested angular shapes (no text or symbols)

ES

AQUA MARINA

2021

INFLABLE

STANDUP PADDLE BOARD

Manual de Usuario

ADVERTENCIA

QR code image containing encoded data, no visible human-readable text

aquamarina.com

Oriental Recreational Products (Shanghai) Co., Ltd.

1699 Daye Road, Fengxian Shanghai, China 201402

NÚMERO DE SERIE DEL PROD

Line drawing of a portable water pump with handle and base (no text or symbols)

Aleta central
(Mega x 5 / Super Trip Tandem x 2)

Correa
(excepto Super Trip/ Super Trip Tandem/Mega/Airship Race/Peace/Yoga Dock)

DRIFT M

Technical line drawing of a mechanical device with no visible text or symbols

Soporte de remo

Bolsa de transporte

Line drawing of a rectangular box with straps and straps (no text or symbols)

CORAL/YOGA

Tira de tabla

Line drawing of a decorative spoon or pipette with handle and base (no text or symbols)

INSTRUCCIONES DE MONTAJE Y DESMONTAJE

A

Technical line drawing of a mechanical device with threaded ports and a pressure gauge (no text or symbols)

Simple circular diagram with two opposing arrows indicating rotational or cyclical behavior (no text or symbols)

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating motion or flow.

Medical illustration showing two different techniques for using a pressure monitor, with arrows indicating direction of movement.

Technical diagram illustrating the three types of car wheel mounting mechanisms: double, single, and single action.

Simple line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a tool with a directional arrow (no text or symbols)

Diagram of hands performing a circular motion on a rotating ring, with arrows indicating clockwise motion (no text or symbols)

Diagram of a hand turning a mechanical component with rotating arrows (no text or symbols)

Desinflado

Illustration showing four different techniques for foot massage or grip handling, with Chinese and English labels.

Pasos de Plegado

Two circular diagrams showing mechanical components or parts, one with a curved tool and shaded area, the other with a curved bracket and diagonal lines (no text or symbols)

TIP:

Pure geometric diagram with arrows and intersecting lines, no text or symbols present

Top-down schematic of a boat hull with structural elements and no text or symbols

(Imagen A)

Illustration of various hair tools including a hair dryer, glue, and surfboard (no text or symbols present)

Suministros Requeridos

Illustration of hands performing a procedure with a dropper and a bottle, no text or symbols present

Simple line drawing of two hands holding a rectangular object, with a black dot below (no text or symbols)

Line drawing of hands using a tool to cut a wooden block (no text or symbols)

Illustration of hands using a tool to apply material to a small object (no text or symbols present)

Line drawing of two hands operating a curved mechanical component on a base (no text or symbols)

Simple line drawing of a hand holding a pen over a surface, with a black dot nearby (no text or symbols)

Technical diagram showing a mechanical component with labeled dimensions and rotation arrow

Diagram of a mechanical device with a rotating shaft and spiral component, showing motion direction (no text or symbols)

Technical line drawing of a mechanical assembly with a central component and a hand holding a tool (no text or symbols)

Mechanical assembly diagram showing a spring-loaded component and a circular housing with a handle (no text or symbols)

Diagram of a hand holding a circular object with internal lines, enclosed in concentric ovals (no text or symbols)

Mechanical diagram showing a mechanical assembly with a rotating component and a hand holding a tool (no text or symbols)

Diagram of a mechanical device with rotating arm and base component (no text or symbols)

Silhouette of a person holding a cane, no text or symbols present

Silhouette of a person holding a pole crossed out by a diagonal line, with a circular background symbol (no text or symbols)

Frent

Diagram of two pipes with a directional arrow indicating movement or force (no text or symbols)

DE ALUMINIO

Pure mechanical diagram showing a lever mechanism with no text or symbols

ABRAZADERA PARA EJES CARBONO Y FIBRA DE VIDRIO CLAMP

Line drawing of a mechanical component with rotational motion arrows (no text or symbols)

Technical line drawing of a mechanical clamp or connector (no text or symbols)

Line drawing of three laboratory glassware items: a pipette, a test tube, and a funnel-shaped object (no text or labels)

• SPORTS III B0303012 iSUP Tabla ajustable de aluminio
• SOLID B0303013 Tabla ajustable de Fibra iSUP
• CARBON GUIDE B0303014 Tabla carbono/fibra de vidrio
• CARBON PRO B0303015 Tabla iSUP de carbono

2 UDS AJUSTABLES

Simple line drawing of a laboratory flask and a pipette (no text or symbols)

Line drawing of laboratory glassware including a bulb, pipette, and funnel (no text or labels)

• CARBON X B0303016 B030DUAL-TECH

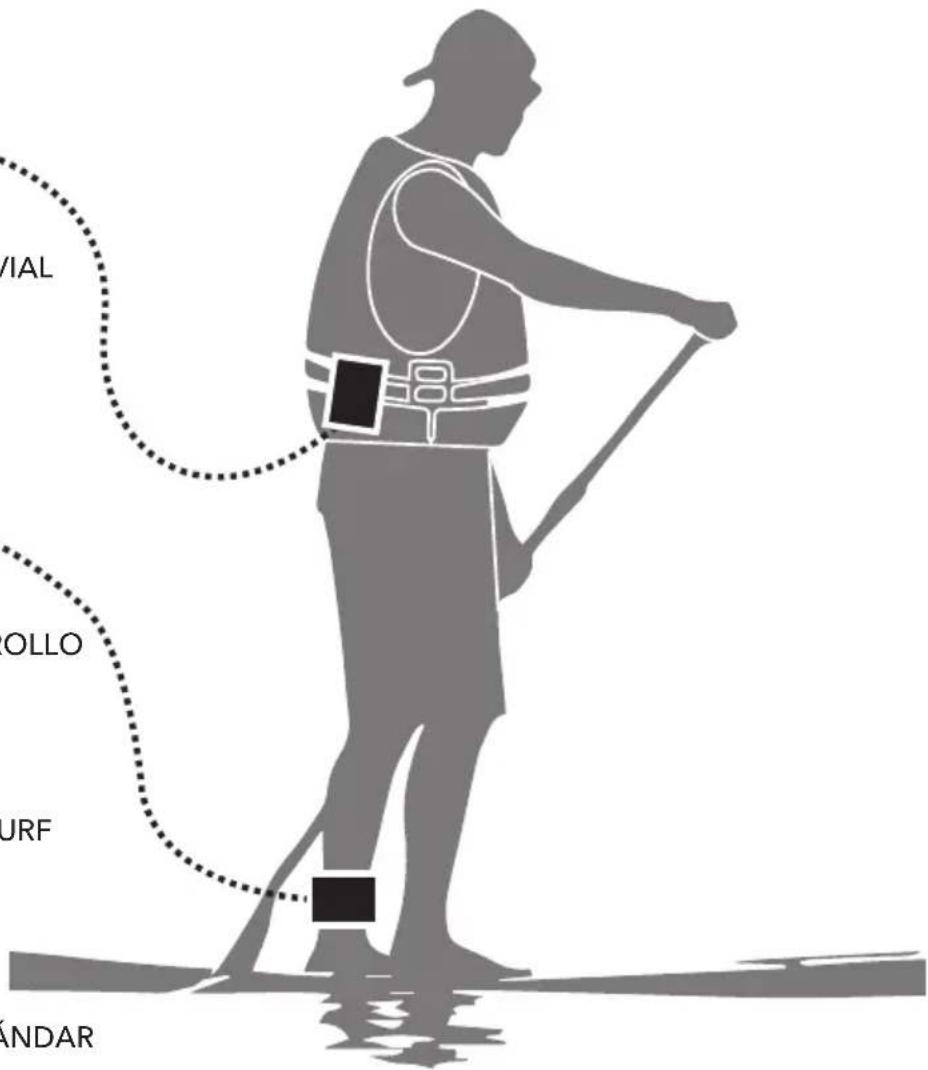

Coiled black cable with attached connectors and a small connector (no visible text or symbols)

CORREA FLUVIAL B0303025

TOBILLO

CORREA DE ROLLO B0303023

Illustration of a black-and-white photo frame with a coiled cable and a probe-like device (no text or symbols)

CORREA SE SURF B0303024

CORREA ESTÁNDAR B0302765

VIAL OLLO JRF ANDAR

Line drawing of a hand using scissors to cut a piece of material into a circular opening (no text or symbols)

Illustration of a hand connecting wires to a plug (no text or symbols)

Simple line drawing of a hook and ring assembly with a circular inset showing a slot (no text or symbols)

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Simple line drawing of a rope knot securing a curved surface (no text or symbols)

Simple line drawing of a mechanical clamp or tool on a surface, no text or symbols present

Line drawing of a mechanical clamp or clip assembly with a circular base and handle (no text or symbols)

Line drawing of a medical or laboratory procedure with a tool and tubing, no text or symbols present
