Product type	Cordless blower
Brand	Honda
Model	HHB36AXB
Maximum air speed	66 m/s
Maximum air flow	860 m³/h
Fan type	Axial fan
Weight (without battery)	2.7 kg
Sound pressure level	81 dB(A)
Sound power level	100 dB(A)
Vibration value	0.46 m/s²
Power supply	Li-Ion battery (compatible models: DP3640XA, DP3660XA, DPW3660XA, DPW3690XA)
Compatible charger	CV3680XA
Intended use	Blowing leaves, grass, paper in gardens, stadiums, parking lots
Control	Variable speed trigger
Thermal protection	Yes, power reduction then stop in case of overheating
Safety	Automatic stop when trigger is released; intake protection
Maintenance	Regularly clean the air intakes and nozzle; check fastenings
Storage	Store dry, away from sunlight, without battery
Included accessories	Blower nozzle, user manual
Repairability	Contact an authorized Honda agent for any repairs

Frequently Asked Questions - HHB36AXB Honda

Which batteries should I use with the Honda HHB36AXB blower?

This blower works only with Honda Li-Ion batteries DP3640XA, DP3660XA, DPW3660XA and DPW3690XA. Do not use other batteries.

How to start the blower?

Insert the battery adapter into the compartment until it clicks. Then press the trigger to start. Release it to stop.

What to do if the blower does not start?

Check that the battery is charged and correctly inserted. If the trigger was pressed during insertion, release it and reinsert the battery. Consult the Troubleshooting section of the manual.

How to clean the blower?

Remove the battery. Clean the intake guard and the nozzle with a dry cloth. Never use water or solvents. Check for debris in the battery compartment.

What is the noise level of the blower?

The sound pressure level is 81 dB(A) and the sound power level is 100 dB(A). Always wear hearing protection.

Can I use this blower indoors?

No, the blower is designed for outdoor use only. Do not use it indoors.

Is the blower protected against overheating?

Yes, it is equipped with thermal protection. In case of overheating, power decreases and then the device stops. Let it cool down before reusing.

How to store the blower at the end of the season?

Remove the battery. Clean the tool. Store it in a dry, away from sunlight place. Also store the battery separately in a cool, dry place.

Can I transport the blower with the battery?

No, always remove the battery adapter before transport. For transport by a third party, follow the dangerous goods regulations for lithium-ion batteries.

Where can I get the blower repaired?

Contact an authorized Honda dealer or authorized repair center. Do not attempt to repair the device yourself.

USER MANUAL HHB36AXB Honda

Line drawing of a handheld device with a cylindrical shaft and handle (no text or symbols)

Owner's Manual (Original instructions)

Identification of the Machine 2

Safety Notes 3

Operation 3

Maintenance 4

Recommendations for Optimal Handling of the battery adapter and Charger 4

Symbols 4

Intended Use 4

Technical Data 4

Noise/Vibration Information 5

Mounting and Operation 5

Working Advice 5

During operation 5

After operation 5

Troubleshooting 6

Maintenance and Service 6

MAJOR Honda DISTRIBUTOR ADDRESSES 56

EC Declaration of Conformity 58

English

Introduction

Congratulations on your selection of a new generation of powered leaf blower.

It has been designed, engineered and manufactured to give you the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact your local authorised Honda dealer.

This manual contains important information on to the safe assembly, operation and maintenance of your leaf blower.

Read it carefully before using the leaf blower. Keep this manual handy so you can refer to it at any time.

SERIAL NUMBER ____ DATE OF PURCHASE ____

YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE

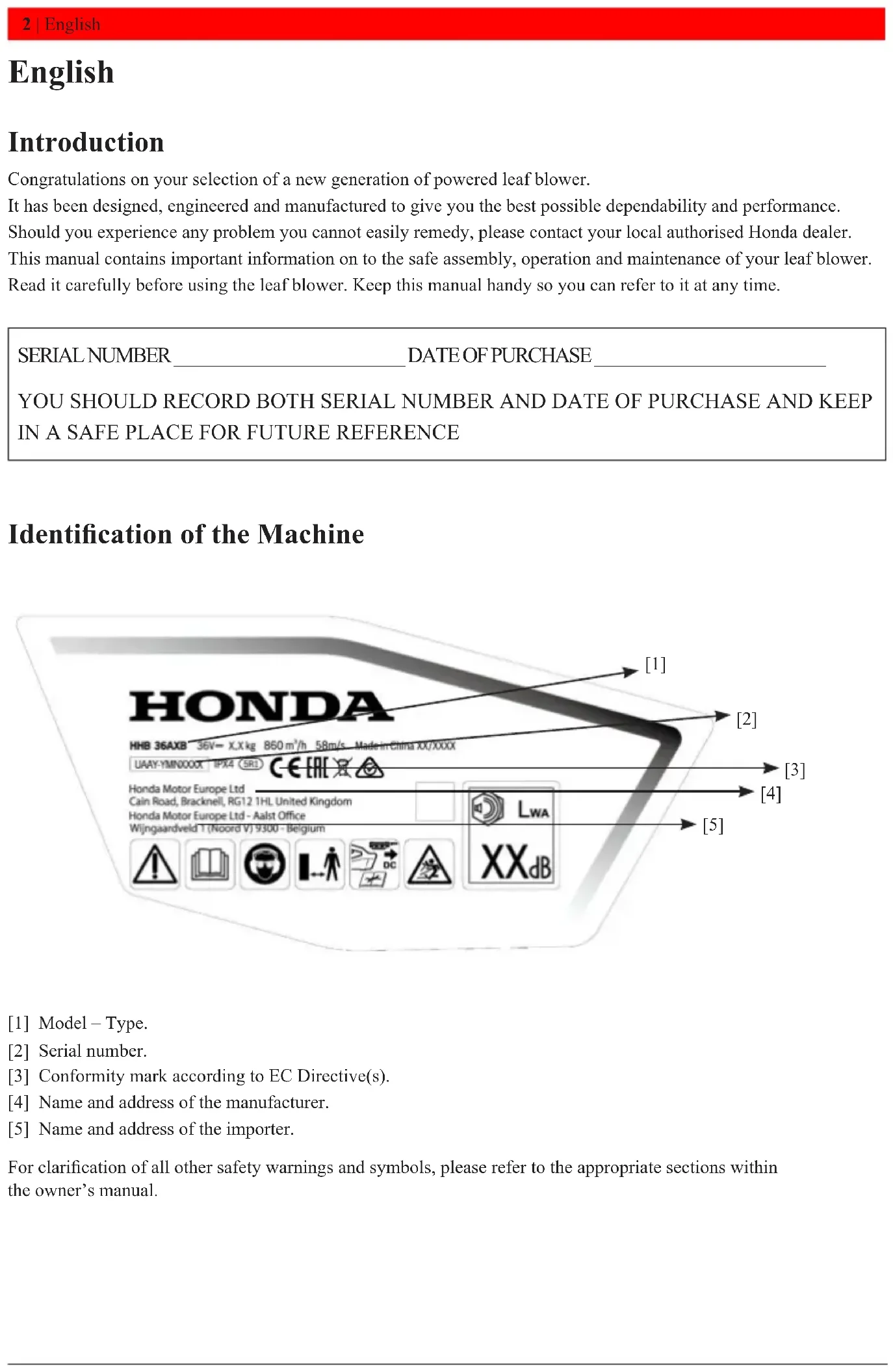

Identification of the Machine

[1] Model - Type.
[2] Serial number.
[3] Conformity mark according to EC Directive(s).
[4] Name and address of the manufacturer.
[5] Name and address of the importer.

For clarification of all other safety warnings and symbols, please refer to the appropriate sections within the owner's manual.

Safety Notes

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the instructions safe for later use!

Explanation of symbols on the machine

General hazard safety alert.

Read instruction manual.

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Warning: Keep a safe distance from the machine when operating.

Wear eye and ear protection.

Switch off and remove battery adapter before adjusting, cleaning, maintenance or if the cable is entangled or if the cable is cut or damaged and before leaving the leaf blower unattended for any period.

Operation

▶ Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children.
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.
▶ In Addition, observe instructions for off board battery carrier.

If dust levels are very high, always wear a suitable respirator.

▶ Do not try to force the battery into the garden tool, please only use the battery adapter!
The operator or user is responsible for accidents or hazards occurring to other people or their property.
▶ Other persons and animals should remain at a distance of 3 metres or more when the machine is being used. The operator is responsible for third persons in the working area.
▶ Never operate the machine while people, especially children or pets, are nearby.
▶ Use the machine only in daylight or good artificial light.
▶ Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
▶ Always wear suitable clothing on the upper body and limbs when operating this tool.
▶ Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.
- Avoid operating the machine in bad weather conditions especially when there is a risk of lightning.
▶ Do not operate the blower or the battery adapter in combination with the DP3640XA or DP3660XA batteries in rain or wet conditions. Water contacting the DP3640XA or DP3660XA batteries will increase the risk of electric shock, fire and the risk of damage to the battery pack and/or attached device.
▶ Failure to keep loose clothing from being drawn into air intake could result in personal injury.
▶ Do not operate without tubes in place
▶ Failure to keep long hair away from the air inlet could result in personal injury.
▶ Always be sure of your footing on slopes throughly inspect the area where the machine is to be used and remove all wires and other foreign objects.
- Keep all cooling air inlets clear of debris never operate the leaf blower with defective guards or shell, or without safety device.
▶ Never blow debris in the direction of bystanders.
▶ Do not modify this product. Unauthorised modifications may impair the safety of your product and may result in increased noise and vibration.
▶ Do not work on a ladder (cleaning gutters etc) or insecure support.

4 | English

▶ Watch out for obstacles: be careful of refuse, tree stumps, roots and ditches which could cause you to trip or stumble.
▶ Do not blow/sweep hazardous material.
▶ When blow-sweeping, watch out for small animals to avoid harming them.
▶ While operating the leaf blower always be sure of a safe and secure operating position at all times.
▶ Do not overreach and keep your balance at all times.
▶ Walk, never run.
▶ Always be aware of your surroundings and stay alert for possible hazards that you may not hear whilst operating the leaf blower.

Maintenance

• Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition.
  ▶ Examine the machine and replace worn or damaged parts for safety.
  ▶ Ensure replacement parts fitted are Honda approved.

Recommendations for Optimal Handling of the battery adapter and Charger

▶ Warning! Do not attempt to charge non rechargeable batteries with the charger.
▶ Ensure battery adapter is the right way up.
▶ Insert the battery adapter until the locking mechanism clicks. To remove the battery adapter, operate locking lever.
For care use and maintenance please use charger and battery manuals which are supplied with the products.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

	Movement direction
	Reaction direction
[179]	Switching On
[180]	Switching Off
[356]	Weight
CLICK!	Audible noise
[184]	Accessories/spare parts sold separately

Intended Use

The blower is intended for use for blow-sweeping leave grass, paper and similar materials, e. g. in gardens, sports stadiums, car parks and driveways.

Do not operate your blower indoors.

Do not use the blower for any other purpose because of the increased risk of accidents and damage to the blower. Never at-tempt to modify the blower in any way since this may result in accidents or damage to the blower.

Technical Data

Air speed, max. m/s 66
Air volume m	^3 /h 860
Fan type Axial flow fan
Weight according to EPTA-Procedure 01:2014	kg 2.7

Only LI-Ion batteries DP3640XA, DP3660XA, DPW3660XA, DPW3690XA and battery charger CV3680XA can be used with this machine. Please do not use non-rechargeable batteries with this appliance, only those specified by the manufacturer.

Noise/Vibration Information

Sound emission values determined according to EN 50636-2-100.

Typically the A-weighted noise levels of the product are: Sound pressure level 81 dB(A); sound power level 100 dB(A). Uncertainty K = 1.0 dB.

Vibration total values ah (triax vector sum) and uncertainty K determined according to EN 50636-2-100: ah = 0.46 m/s2, K = 1.5 m/s2.

Mounting and Operation

The numbering of the figures refer to the illustrations of the machine on the graphics page.

Delivery Scope	1	62

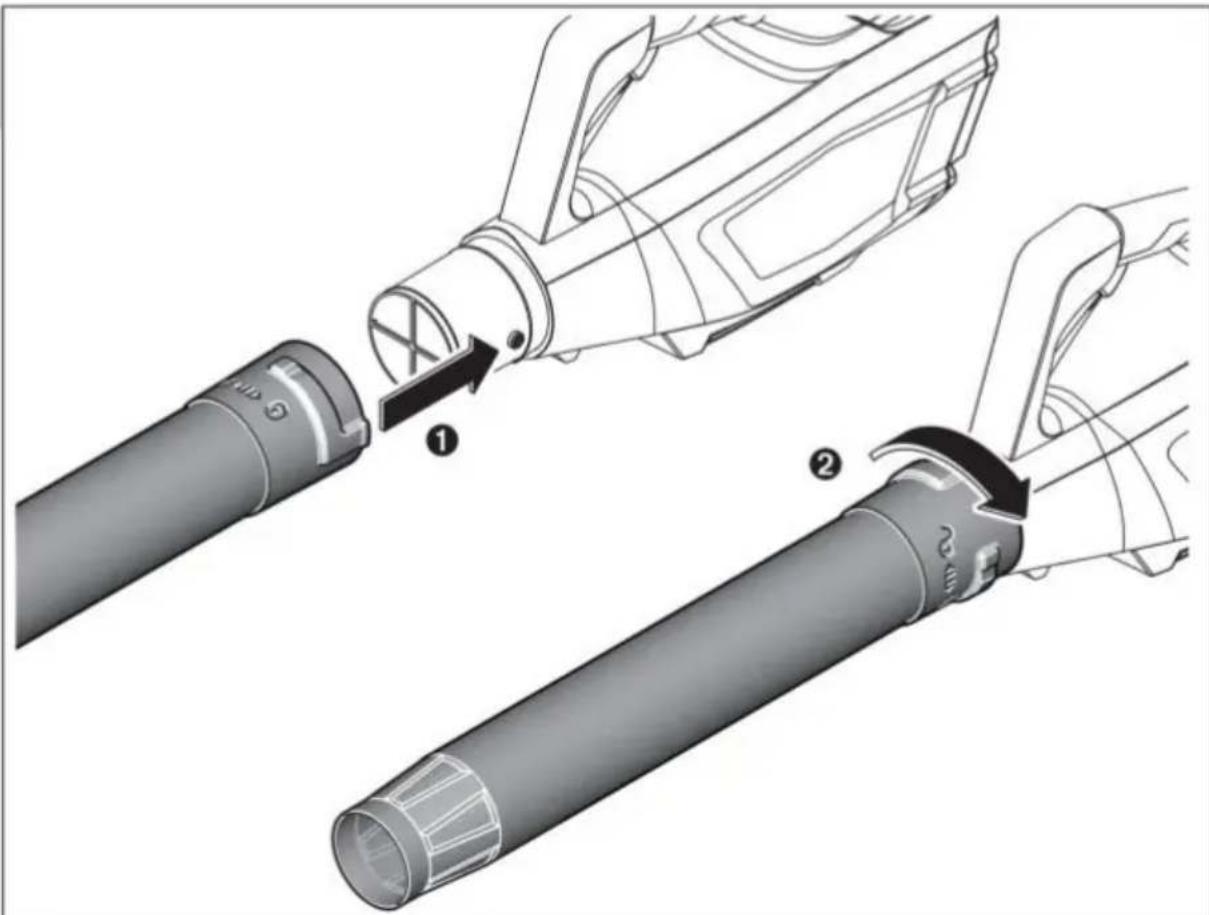

Tube Assembly	2	62

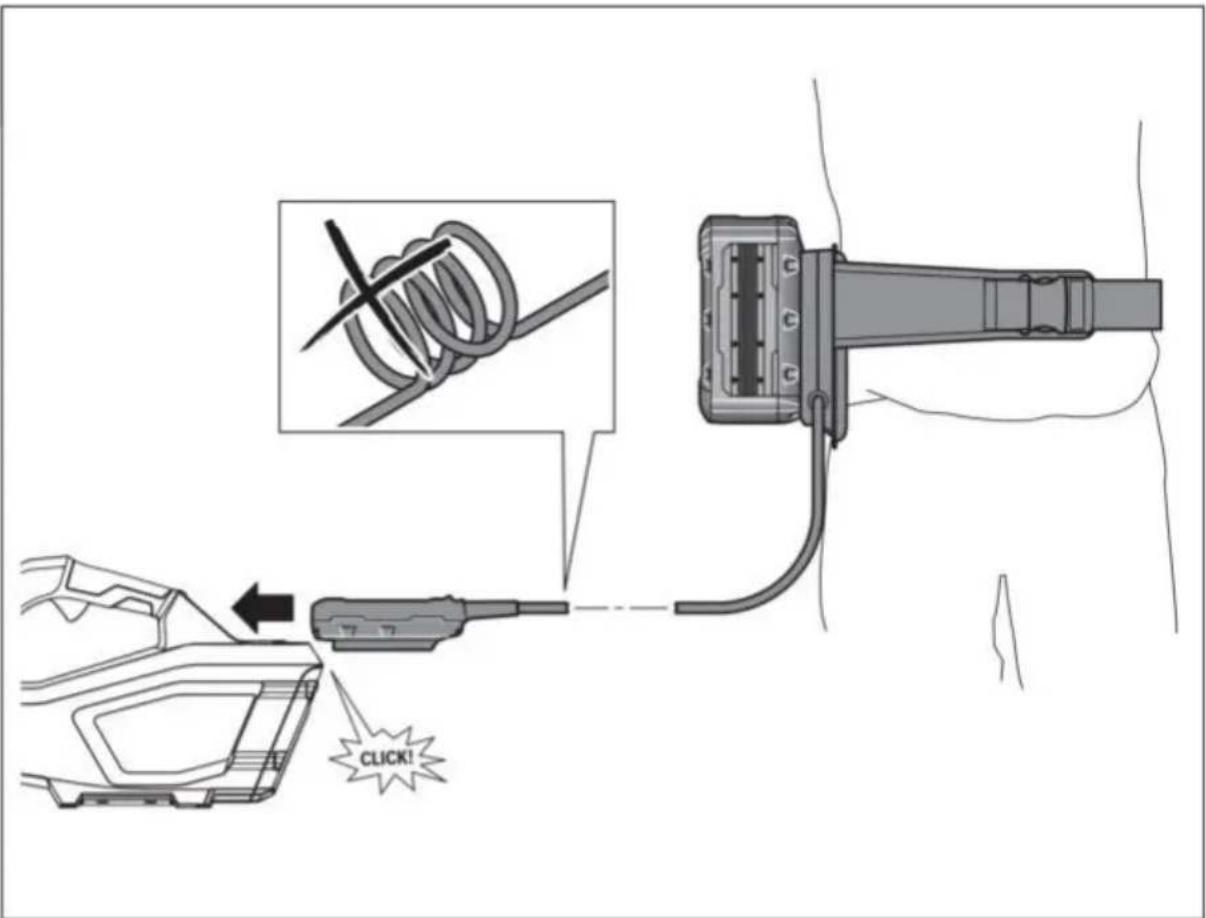

Inserting the adapter into the garden tool	3	63

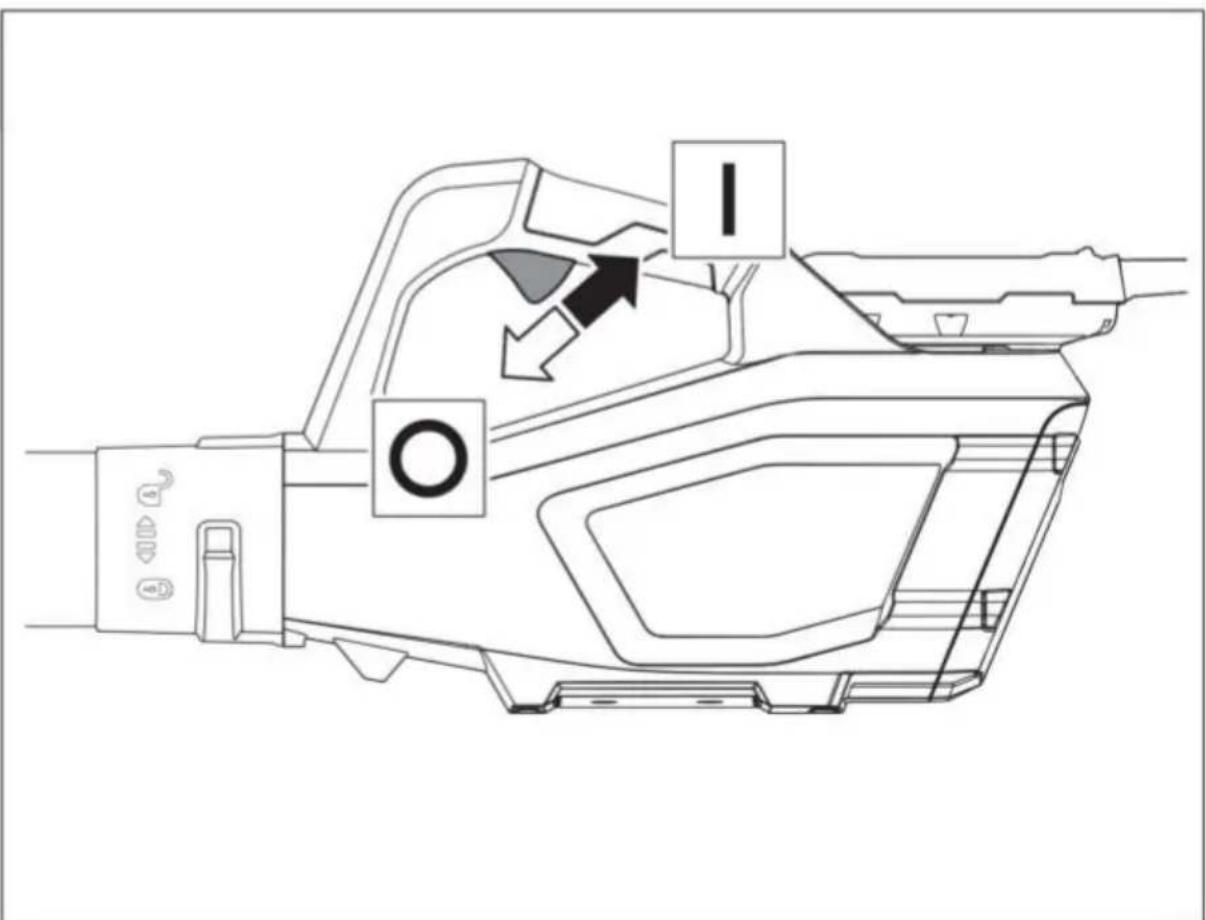

Starting	4	63
Stopping	4	63
Working Advice	6	64
Maintenance and Cleaning	6	64
Selecting Accessories	7	65

Working Advice

Product transportation

Always transport tool without the battery adapter fitted to the product.

Make sure the product is properly secured to prevent turnover and damage to the garden tool.

Before starting the tool

Before using; check that your garden tool is properly assembled and in good condition.

Inspect all guards for damage. Do not use if the guards are damaged in any way to reduce the risk of personal injury. Consult your Honda service centre for repairs.

Check to see if the inlet guard is free from debris.

Check to see if the fan is not obstructed/blocked by any debris. If it is blocked, only clear the blockage with the battery adapter removed from the product. Return product to service centre if this cannot be done safely.

Check the battery adapter compartment for debris and damage, debris must be cleared. If damaged do not use the product, return it to a Honda service centre for repair/replacement.

Check the battery adapter for damage.

Check trigger movement is free, not obstructed and returns back to its off position.

Make sure the nozzle is properly fitted to the product.

Battery adapter is fitted properly to the product and is locked into position.

Make sure the handle is clean and dry from any fluids/oil for safe control of the garden tool.

During operation

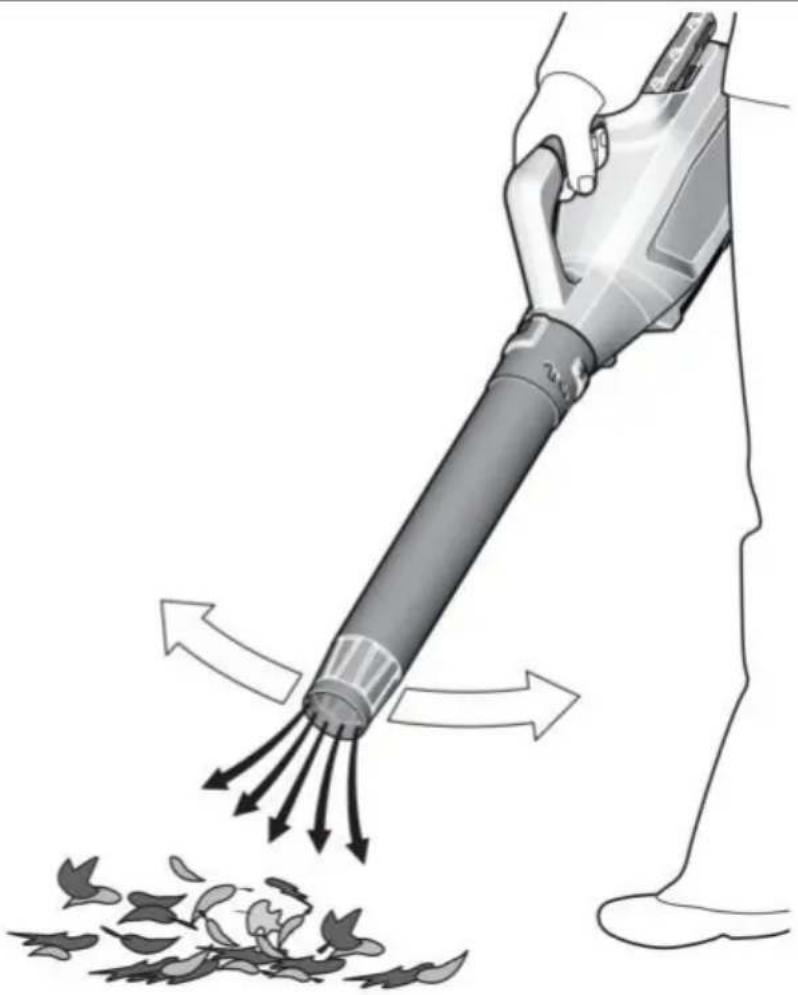

Always hold the garden tool firmly in your hand.

Walk slowly forwards as you work, observe the nozzle outlet at all times.

To reduce the risk of injury, operate the unit only with a properly mounted blower tube.

The flat nozzle produces a broad and powerful airstream at ground level. It can be aimed and controlled very accurately.

This garden tool is design to be used by one person only. Do not allow other persons in the work area.

Do not direct the airflow towards bystanders or animals since the airflow can blow small objects at great speeds.

This product is fitted with thermal protection for safety – if the product overheats the power output will be automatically reduced to prevent damage to the tool. If the overheating still occurs, the product will switch off and will not start again until a safe temperature is reached. Refer to the battery and battery carrier manual for troubleshooting.

To reduce the risk of accidents, take a break in good time to avoid tiredness or exhaustion.

If there is a noticeable change in running behaviour (e.g. higher vibration), stop work and rectify the cause of the problem – refer to troubleshooting

After operation

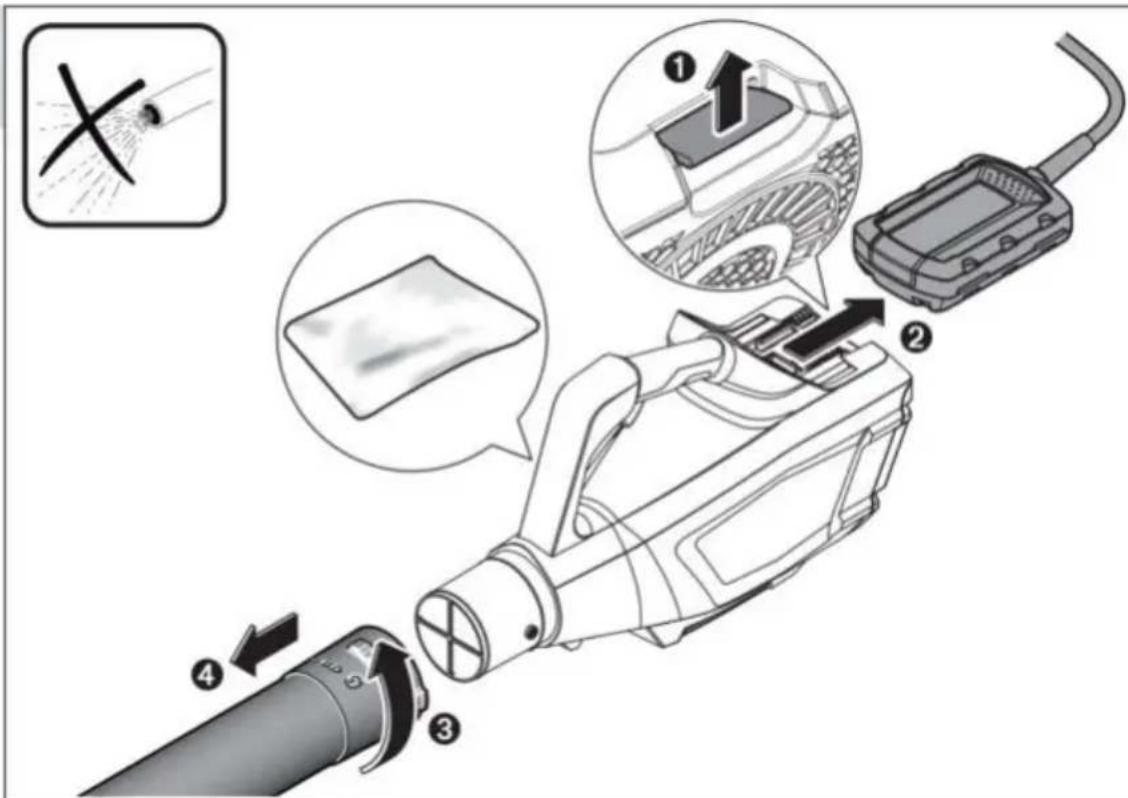

Always make sure the product is turned off and remove the battery adapter from the garden tool.

Troubleshooting

Machine does not start after turning off	The switch was not turned off properly before the battery adapter was inserted	Turn the switch off, remove the battery adapter from the product for 5 seconds. Re-insert the battery adapter into the product.
Machine runs intermittently	On/Off switch defective Have the power tool repaired by an authorised service dealer.
	Low battery capacity Ensure battery is fully charged before use.
	The machine is overheated Allow tool to cool and try again.
	Battery discharged Recharge battery.
	Battery too hot/cold Allow to cool/warm.
	Machine defective Contact authorised service dealer.
Machine fails to operate	Battery carrier defective	Contact authorised service dealer. See battery carrier manual.
	Battery adapter not fully inserted Ensure battery adapter is inserted correctly.
	Garden tool is too hot Allow tool to cool and try again.
	Trigger engaged when battery fitted Release trigger and reapply.
	Tube obstructed	Switch off the machine, remove battery and remove material.
	Battery adapter contacts on machine damaged/ obstructed	Clean contacts/Contact authorised service dealer.
Machine does not blow	Tube obstructed	Remove battery adapter Clear tube.
	Inlet guard obstructed	Remove battery adapter Clear inlet guard.
Excessive vibrations/noise	Machine defective Contact authorised service dealer.
Run time per battery charge too low	Battery dead or defective	Replace the battery.
Tube cannot be mounted on the machine	Incorrect assembly	See “assembly”.
	Blower tube is damaged/defective	Replace the tube.

If you are unable to resolve the problem using the troubleshooting guide then please contact your dealer in the first instance.

Maintenance and Service

Correct storage is essential for maintaining the life of the product. If possible, avoid storage areas with high humidity which could cause rust or corrosion.

End of season storage: Remove battery adapter from tool and store machine and battery in a dry safe place away from direct sunlight.

After-sales Service

In the unlikely event that you encounter a problem with your product, please contact your Honda authorised service dealer.

The product must be periodically inspected and maintained for safety and to keep it running at a high level of performance. Periodic maintenance will also help to extend service life. Honda recommends annual service to be completed by your local authorised Honda dealer.

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Disposal

Do not dispose of electric or electronic equipment, battery charger and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European law 2012/19/EU, electrical and electronic equipments that are no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Consult your local waste authority for information regarding available

recycling and/or disposal options.

Battery packs/batteries:

Li-Ion:

Please observe the instructions in section "Transport".

Subject to change without notice.

Inhalt

Vorwort 10

Informations relatives aux bruits/vibrations 28

Informations relatives aux bruits/vibrations

Blocs-batteries/batteries :

Lithium-ion :

[1] Model - typ.
[2] Sériové číslo.
[3] Značka zhody podľa smernice ES.
[4] Názov a adresa výrobcu.
[5] Názov a adresa dovozcu.

(Estonia/Latvia/Lithuania)

NCG Import Baltics OU

Meistri 12

13517 Tallinn

Harju County Estonia

Tel.: [phone]

Fax: [phone]

[e-mail]

BELARUS

JV Scanlink Ltd

Montazhnikov lane 4th, 5-16

Minsk 220019

Republic of Belarus

Tel.: [phone]

Fax: [phone]

[e-mail]

BELGIUM

Honda Motor Europe Ltd

Doornveld 180-184

1731 Zellik

Tel.: [phone]

Fax: [phone]

http://www.honda.be

[e-mail]

BULGARIA

Premium Motor Ltd

Andrey Lyapchev Blvd no 34

1797 Sofia

Bulgaria

Tel.: [phone]

Fax: [phone]

http://www.hondamotor.bg

[e-mail]

CROATIA

AS Domžale Moto center

d.o.o.

Brezence

SI-8216 Mirna Peč

Tel.: [phone]

http://www.honda-as.com

[e-mail]

CYPRUS

Powerline Products Ltd

Cyprus - Nicosia

Vasilias 18 2232 Latsia

Tel.: [phone]

[e-mail]

http://www.powerlinecy.com

CZECH REPUBLIC

BG Technik cs, a.s.

U Zavodiste 251/8

15900 Prague 5 - Velka

Chuchle

Tel.: [phone]

Fax: [phone]

http://www.honda-stroje.cz

DENMARK

TIMA A/S

Ryttermarken 10

DK-3520 Farum

10442 Athens, Greece

Tel: [phone]

Fax: [phone]

[e-mail]

HUNGARY

MP Motor Co., Ltd.

Kamaracerdei ut 3.

2040 Budaors

Tel.: [phone]

Fax: [phone]

http://www.hondakisgepek.hu

[e-mail]

IRELAND

Two Wheels ltd

M50 Business Park,

Ballymount

Dublin 12

Tel.: [phone]

Fax: [phone]

http://www.hondaireland.ie

[e-mail]

ISRAEL

Mayer's Cars and Trucks Co.

Ltd. -

Honda Division

Shevach 5, Tel Aviv, 6777936

Israel

[phone]

[e-mail]

ITALY

Honda Motore Europe Ltd

The Associated Motors

Company Ltd.

New Street in San Gwakkin

Road

Aries Power Equipment

Puławska 467

02-844 Warszawa

Tel.: [phone]

Fax: [phone]

http://www.ariespower.pl

http://www.grow.com.pt

[e-mail]

ROMANIA

Agrisorg SRL

Sacadat Str Principala

Nr 444/A Jud. Bihor

Romania

Tel.: [phone]

[e-mail]

SWEDEN

Honda Motor Europe Ltd filial Sverige

SPAIN & all Provinces

Greens Power Products, S.L.

Poligono Industrial Congost –

EC Declaration of Conformity

1. The undersigned, Peter Neckebroeck, on behalf of the authorized representative, herewith declares that the machinery described below fulfils all the relevant provisions of:

● Directive 2006/42/EC on machinery
- Directive 2014/30/EU on electromagnetic compatibility
- Directive 2000/14/EC – 2005/88/EC on outdoor noise
- Directive 2011/65/EU – (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

1. Description of the machinery

a) Product:
Leaf blower
b) Function:
to clear leaves

c) Model	d) Type	e) Serial number
*1	*1	*2

1. Manufacturer

Honda Motor Europe Ltd.

Cain Road, Bracknell, RG12 1HL, United Kingdom

1. Authorized representative and able to compile the technical documentation

Honda Motor Europe Ltd – Aalst Office

Wijngaardveld 1 (Noord V), 9300 Aalst - Belgium

1. References to applied standards

EN 50636-2-100:2014

EN 60335-1:2012 +A11:2014

EN 55014-1:2006 +A1:2009 +A2:2011

EN 55014-1:2017

EN 55014-2:1997 +A1:2001 +A2:2008

EN 55014-2:2015

EN 50581:2012

1. Outdoor noise Directive

a) Measured sound power (dB(A)):
b) Guaranteed sound power (dB(A)):
c) Noise parameter (m3/s):
d) Conformity assessment procedure:
e) Notified body:

1. Done at:

2. Date:

Aalst, BELGIUM

*2

*1: See Specification page
*2: See Original EC Declaration Of Conformity
*1: Siche Seite mit Spezifikationen
*2: Siehe ursprüngliche EG-Konformitätserklärung
*1: vedere la pagina delle specifiche
*2: vedere la Dichiarazione di conformità CE originale
*1 : voir page des spécifications
*2 : voir Déclaration de conformité CE originale
*1: zie bladzijde met specificaties
*2: zie ook de originele EU-conformiteitsverklaring

Peter Neckebroeck

Head of Certification

Honda Motor Europe Ltd – Aalst Office

Illustration of a handheld device with internal components including a scanner, two cylindrical devices, and a power cord (no text or symbols present)

2

3

4

5

Illustration of a hand using a cleaning brush to clean leafy material, with arrows indicating flow direction (no text or symbols)

6

7

3D rendered image of a cylindrical mechanical component with a flanged end (no text or symbols visible)

3D rendered image of a cylindrical mechanical component with flanges (no text or symbols visible)

Medical illustration showing a medical device connected to a patient's abdomen (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component with slots and housing (no text or symbols)

• CV3680XABM (UK)
• CV3680XAEM (Europe)
• CV3680XASM (Switzerland)
• CV3680XAUM (Australia)

DPW3660XA

DPW3690XA

DP3640XA

DP3660XA

3RY0C610

00X3R-Y0C-6100

Printed in Europe
