Product type	Cordless circular saw
Brand	Metabo
Model	MS 18 LTX 15
Rated voltage	18 V
Battery type	Li-Ion (Metabo / CAS)
Recommended battery capacity	2.0 - 10.0 Ah
Blade diameter	165 mm
Max. cutting depth	55 mm
No-load speed	5000 rpm
Weight (with battery)	3.5 kg
Dimensions (L x W x H)	350 x 200 x 250 mm
Sound level (LpA)	85 dB(A)
Compatible charger	ASC 30-36, ASC 55, ASC 55 SE, ASC 145, ASC 145 SE, ASC ultra, SC 60 Plus, SC 30
Charging time (e.g. battery 4.0 Ah)	Approx. 30 min with ASC 55 charger
Protection	Protection class II
Intended use	Cutting wood and derived materials
Maintenance	Regularly clean the charger's ventilation slots
Safety	Do not expose to moisture; use indoors only
Repairability	Repairs to be carried out by a Metabo specialist
Environmental information	Do not dispose of with household waste; recycle according to local regulations

Frequently Asked Questions - MS 18 LTX 15 METABO

How do I charge the battery of my Metabo MS 18 LTX 15 saw?

Insert the battery fully into the sliding compartment of the charger until it stops. The control indicator flashes during charging. Once charging is complete, the indicator lights up steadily and the charger switches to maintenance mode.

What types of batteries are compatible with the charger?

The charger is compatible with Metabo and CAS (Cordless Alliance System) Li-Ion batteries with voltages from 12 V to 36 V and capacities from 1.3 Ah to 10 Ah, as well as some NiCd batteries (only for ASC 55/55 SE models).

What does the flashing warning indicator on the charger mean?

A flashing warning indicator indicates a defective battery or incorrect insertion. Immediately remove the battery and check its condition. If the problem persists, contact customer service.

Can I leave the battery in the charger after charging?

Yes, the charger automatically switches to maintenance mode once charging is complete. The battery can safely remain in the charger and will be ready for use at any time.

What is the recommended ambient temperature for charging?

The recommended ambient temperature for charging is between 0 °C and 40 °C. If the battery is too hot or too cold, the charger will wait for the temperature to return to this range before starting charging.

How do I clean the charger?

Unplug the charger before cleaning. Use a dry, lint-free cloth to wipe the exterior. Ensure the ventilation slots remain clear; never insert metal objects or sharp items.

What should I do if the warning indicator remains permanently lit?

A warning indicator that stays lit indicates that the battery is not charging due to an inadequate temperature. If the battery temperature is between 0 °C and 50 °C, charging will start automatically. Otherwise, wait for the battery to cool down or warm up.

Can I use the charger outdoors?

No, the charger is designed for indoor use only. Protect it from moisture and do not expose it to rain or snow. Use it in a dry, well-ventilated location.

How do I know if the battery is defective?

If the warning indicator flashes after inserting the battery and the battery is correctly positioned, the battery is likely defective. Remove it immediately and do not use it anymore. Contact customer service for a replacement.

Where can I get my Metabo charger repaired?

Repairs must be carried out by an authorized Metabo specialist. To find a service center, visit www.metabo.com or contact your dealer. Never attempt to repair the charger yourself.

USER MANUAL MS 18 LTX 15 METABO

Two Metabo AGC ultrasonic charging unit units shown from different angles (no visible text or symbols on the devices themselves)

AIR C2-A5D MEMS 2 3 4

ASC ultra

ASC 30-36

ASC 55

ASC 55 SE

ASC 145

ASC 145 SE

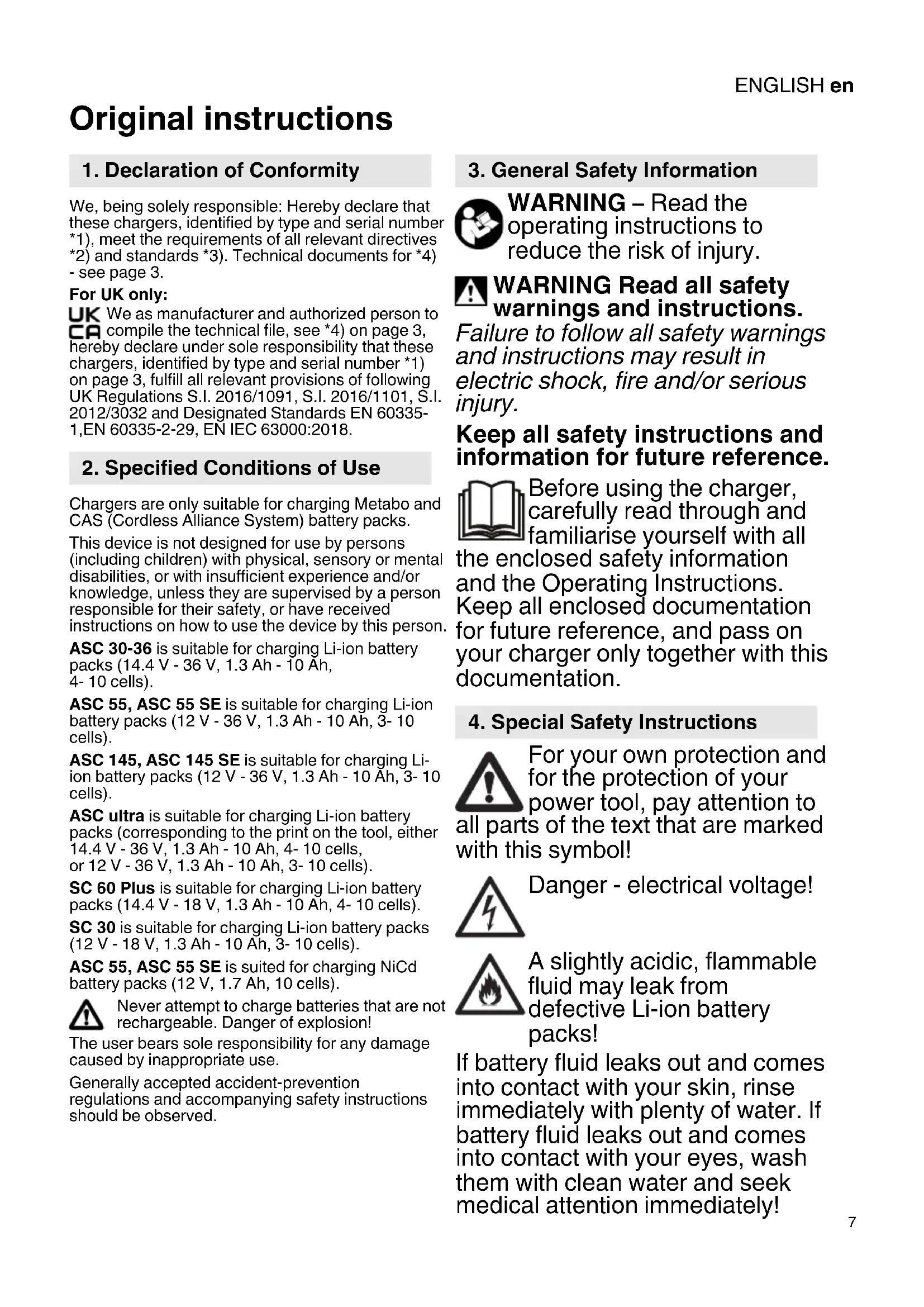

Original instructions

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these chargers, identified by type and serial number *1), meet the requirements of all relevant directives *2) and standards *3). Technical documents for *4) - see page 3.

For UK only:

UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these chargers, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2016/1101, S.I. 2012/3032 and Designated Standards EN 60335-1, EN 60335-2-29, EN IEC 63000:2018.

2. Specified Conditions of Use

Chargers are only suitable for charging Metabo and CAS (Cordless Alliance System) battery packs.

This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the device by this person.

ASC 30-36 is suitable for charging Li-ion battery packs (14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells).

ASC 55, ASC 55 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 145, ASC 145 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC ultra is suitable for charging Li-ion battery packs (corresponding to the print on the tool, either 14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells, or 12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

SC 60 Plus is suitable for charging Li-ion battery packs (14.4 V - 18 V, 1.3 Ah - 10 Ah, 4-10 cells).

SC 30 is suitable for charging Li-ion battery packs (12 V - 18 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 55, ASC 55 SE is suited for charging NiCd battery packs (12 V, 1.7 Ah, 10 cells).

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.

3. General Safety Information

WARNING – Read the operating instructions to reduce the risk of injury.

WARNING Read all safety warnings and instructions.

Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the charger, carefully read through and familiarise yourself with all closed safety information. The Operating Instructions. All enclosed documentation are reference, and pass on charger only together with this presentation.

4. Special Safety Instructions

For your own protection and for the protection of your power tool, pay attention to its of the text that are marked is symbol!

Danger - electrical voltage!

A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!

ENGLISHen

Do not recharge a fully charged battery pack!

Only for use in indoor rooms.

Protect the charger from moisture.

Never allow children to use the device.

Children should be supervised to ensure that they do not play with the tool.

Keep children away from the battery charger and the working area!

Keep your battery charger out of reach of children!

Pull out the mains plug immediately if the battery charger starts to smoke or flames emerge!

Do not insert objects into the ventilation slots on the battery charger – there is a danger of electric shocks and short circuits!

Do not use faulty battery packs. In areas with high metal dust exposure do not charge any battery packs with AIR COOLED chargers.

5. Overview

See page 2. The illustrations are regarded as exemplary for all devices.

1 Battery pack (not in scope of delivery)
2 Sliding seat
3 Operation display
4 Warning display

6. Initial Operation

Before commissioning, check that the rated mains voltage and mains frequency stated on the type plate match your power supply.

Devices like these that generate direct current can influence simple earth leakage protection devices. Use a type F or better, with a release current of max. 30 mA.

Before commissioning the charger, ensure that the air slots are free. Minimum distance to other objects is 5 cm!

6.1 Self-test

Plug in.

The warning display (4) and the operating indicator (3) light up one after the other for approx. 1 second and the installed fan runs for approx. 5 seconds.

7. Use

7.1 Charging battery pack

Push the battery pack completely to the stop on the sliding seat (2).

The operating indicator (3) flashes.

Note: To have the charge level displayed on Li-ion battery packs, first take the battery pack out of the charger and then press the button on the battery pack.

7.2 Conservation charge

Once the charging process has finished, the battery charger automatically switches to conservation mode.

The battery pack can remain in the battery charger and is therefore always ready for use.

The operating display (3) lights up continuously.

8. Faults

8.1 Warning display (4) lights up continuously

Battery pack is not charged. Excessive/insufficient temperature. When the temperature of the battery pack is between 0 °C and 50 °C, the charging process begins automatically.

8.2 Warning display (4) flashes

• Battery pack is defective. Remove the battery pack immediately from the charger.
• The battery pack was not pushed correctly onto the sliding seat (2). See chapter 7.1.

9. Repairs

Repairs to the charger must only be carried out by qualified electricians.

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer

or the Customer Service department of the manufacturer or a similarly qualified person to prevent endangering personnel and property.

If you have Metabo charges that require repairs, please contact your Metabo service centre. See www.metabo.com for addresses.

10. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Packaging materials must be disposed of according to their labelling in accordance with municipal guidelines. Further information can be found at www.metabo.com in the “Service” section.

Only for EU countries: never dispose of power tools in your household waste! According to European Directive 2012/19/EU

on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner.

11. Technical Specifications

See page 3.

U = voltage ranges of the battery packs

C = battery pack capacity

I_c = charging current _1

t_1= charging time

^1) Depending on the residual capacity and the temperature of the battery pack, real charging times may deviate from the specifications.

Recommended ambient temperature when charging: 0 °C to 40 °C

Changes due to technological progress reserved.

□ Device of protection class II

\~ AC Power

FRANÇAISfr

Notice originale

C = accupack-capaciteit

I_C = laadstroom_1) t = laadtijd

1. 2ndwquwnwnlpwfinrpjwl hwlywwwnqhp

Uanfani huijnwnpwnai lii puqwnhj wunnuuowufiwndniipjwiup, np wju jhgfuilapduul uwpflpp, jnlpwfu6yjnlpu hp nhwni] lc utphwlquh hudwpni] funfghwlqfunglmd *1), hudwnpwnnuomfimci ki hpuhwhqfikph *2) lc knpukph *3) pnlnp hudwnpwnnuomfijnpnjpfkphi: Sluhfhlwulwih whunwnpnpplph hudwp *4) mlu l2 3:

2. Чршнімі рішкімі

Ihgfwajnpawfu ampflpp fuwwnlunwud le dhwjfi Metabo lc CAS (Cordless Alliance System) lqnwnwlhjs dwpmwngftkph Ihgfwajnpawfu hundwp:

Uju uwpfp guipwuntuwd sL wuhwngwnwh jhiqhlqnwg lwd dnnulap nliwlnnpjnntglpnl, qqwjulwfi panlghwudlp howlgqwpnntglpnl, powlwhwwswh qhpà lwd qhunkihfgp sntggnq wdawfg oqnwnqnpdawf hundwp, tpt hptfg hnqfhg slw hptfg wqlywngqnprjn66 trpwclwnlpnn a lhpwnndw6 hmunnl hpwhw6gtp mllyn wd:

ASC 30-36 -p fwnpwntuqlwδ t Llphnud-lnfwnjhi dwpwnqngfth p Lhgfwnlpndwi hwnwp (14,4 ч. - 36 ч., 1,3 U,d - 10 U,d, 4- 10 p6[hqftpm])

ASC 55, ASC 55 SE -p guwunutuwd t lhpnnid-hngwjh6 wpmwnghtp hlgfwnnpdmh hndwp (12 q. - 36 q., 1,3 U.d - 10 U.d, 3- 10 p6lq6tpm):

ASC 145, ASC 145 SE -p guwunutudt, lhpmu-
lngmjhi gdwpnlqngkph lghfwnnpdwg hwomp (12 vt. - 36 vt.,
1,3 Ud - 10 Ud,
3- 10 p6hq6kpml):

ASC ultra -6 gm|vmwku|wd f, Lhp|muδ-hnfωj|fd δmpw|nghtph|Lhgfw|npdmb hnmfwp (wt'v μησgμndfp umpf|h lpm, lpmf 14,4 q, -36 q, 1,3 Ud - 10 Ud, 4- 10 pf|hl|klpmd, lpmf 12 q, -36 q, 1,3 Ud - 10 Ud, 3- 10 pf|hl|klpmd):

SC 60 Plus -μ fim|pwn|tu|md ή μ|p|mu|f-|n|f|m|μ|fi d|m|pu|ng|ft|ph |μ|g|fu|u|np|mf| hu|nf|up (14,4 q. - 18 q., 1,3 U,d - 10 U,d, 4- 10 μ|h|h|fl,pm|):

lhgfwnnpdwgl uwpfl oqnuwqnpdklng wnug nlcwnhln ll wdpnngnlpjwuf lpwnwgtf

w6jwnw6qnipjw6 hpwhw6q6tpp l u oqnuwqnpd6fu6 nlntgnljgp: Ucunwuku wwhwuw6tf uwpfh nlntlgnn pnlnp chwwwnwpnpptpp l uwpfp qhnvw6gtliu qhnvw6gtf w36 wjn qwwwnwpnpptpnl:

4. Ufiunfuqnipjwi hwnnli gnignufkp

Qtp wliunwliqnlpjwi li Qtp qnpdhf h uwpfhgnlpjwi li wqwhnijnlpjwi hi wudwp

8.2 Ubqnuficwfuujhi hifihluwnpp (4) pwnppnui

Stnthlnpynli qünpph hwüwp.

Zwifwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnwnww No EA3C RU C-DE.ΓБ09.B.00131/20, qnpdnuf l, ulpuus 10.02.2020 dhpysl 09.02.2025 pp., upuikl t, «Ukqnllhuhdym Jfnuqtpunjqu» UQF' wpnnnynm6ff h wnfwwnnnqnndh dwpddh lpugh, hwugt (hpwlpwufwuhfu li qnpdnftlnnpjuah) 115280, fncuwwnnwfi, fuqnf Unaljwa, fhuqng Lfghfuwrwu Ulpnnpu, claf 19, 2-pq huapl, ufgjwhfkp '21w8, 21w9, 21w10, 21w11: Zbnuwnu ' [phone]; tL. yhuunh hwugt' [e-mail]: Zwifwwnnnqnndh dlhwjwhp No POCC RU.0001.11ΓБ09 nn 09.09.2014 p.: Zwifwwnnnnwnwnwnwnwnwnwnwnwnwnwntn ' No EA3C N RU D-DE.ΓБ09.B.00348/20, qnpdnuf l, ulpuus 04.03.2020 dhpysl 26.02.2025 pp., qpuqgkl t, «Ukqnllhuhdym w fnuqtpunjqu» UQF' wpnnnynm6ff h wnfwwnnnqnndh dwpddh lpugh, hwugt (lpwlpwufwuhfu li qnpdnftlnpjuah) 115280, fncuwwnnwfi, fuqnf Unaljwa, fhuqng Lfghfuwrwu Ulpnnpu, claf 19, 2-pq huapl, ufgjwhfkp '21w8, 21w9, 21w10, 21w11: Zbnuwnu ' +7 (495 ) 722-61-68; tL. yhuunh hwugt' [e-mail]: Zwifwwnnnqnndh dlhwjwhp No POCC RU.0001.11ΓБ09 nn 09.09.2014 p.: Upnnnwpnng kphlp ' Qfbwwnnw6 , Ybtuwnd Upnnnwpnn ' "Metabowerke GmbH", Uftnwpnwljt 1, D-72622 Ympwphgt6 , Ytpnmgm Utpnmdnn fncuwwnnm6niu' "Uftnwpn bfpnwlm" UQF. fncuwwnnm6 , 127273 , Unluhjm Φ. Flpjnqnvlwju wklu, wnli 5 a, chi.-fi 7, qpwwbfyuj 106 htn.' [phone] Upnnnwpnng wdwwphlp gciudst k Lhgfwlpndh owpf h ipw Ynpdhfh dwwwnjnpjwbi dwuhtup 7 umph t: hnphnpry sh wplnud wnmig hgufohlwgi wmmiqfwi oqnqnnpdtl qnpdhp wpnnnwpnng wdwwpllg uhpuid ' 5 umph cmpnfmlw myb ymhnnwwnnlpnkng htunn (wpnnnwpnng wdwwphlp mku ymhnnwl hipu):
