Product Type	Speaker Stand
Brand	Sanus
Model	WSSE11
Compatibility	Sonos Era 100 (only)
Maximum Supported Weight	2.2 kg (5 lbs)
Stand Weight (estimated)	0.6 kg
Height	30 cm
Base Diameter	20 cm
Material	Robust Steel
Color	Black
Required Tool	Screwdriver (not included)
Cable Management	Yes, with cable ties
Mounting Type	Floor-standing (free-standing)
Included Items	Base, tube, top plate, cable ties, rubber isolation pads, carpet spikes (optional), hardware
Additional Features	Rubber isolation pads to reduce vibrations; carpet spikes for stability on carpet
Maintenance	Clean with a soft dry cloth; avoid harsh chemicals
Safety	Do not exceed 2.2 kg; use only with Sonos Era 100; follow assembly instructions
Warranty	2 years (to verify)

Frequently Asked Questions - WSSE11 SANUS

Is this stand compatible with my Sonos Era 100 speaker?

Yes, the Sanus WSSE11 is specifically designed for Sonos Era 100 speakers.

What is the maximum weight this stand can support?

It supports up to 2.2 kg, which matches the weight of the Era 100.

What are the dimensions of the stand?

Height approximately 30 cm, base diameter 20 cm.

Is the stand easy to install?

Yes, assembly is simple and only requires a screwdriver. The steps are clearly illustrated in the manual.

How to manage cables?

The stand is equipped with cable ties to route and hide the power cord and USB cable.

Can I use this stand on carpet?

Yes, carpet spikes are included as an option to improve stability on carpet.

How to clean the stand?

Use a soft dry cloth. Do not use abrasive products.

Are there anti-vibration pads?

Yes, rubber isolation pads are provided to reduce vibrations.

Is this product warranted?

Sanus offers a 2-year warranty (please check the conditions).

What to do if a part is missing?

Contact customer service: US [phone], EMEA [phone], UK [phone].

USER MANUAL WSSE11 SANUS

We'll Make It Stress-Free

If you have any questions along the way, just give us a call.

US: [phone] · EMEA: [phone] · UK: [phone]

We're ready to help!

Texto en español, pagina 16 Deutscher Text Seiten 20 Svensk text sida 24

IMPORTANT SAFETY INSTRUCTIONS

Pleases eAD ENTIRE MANUAL PRIOR TO USE SAVE THESE INSTRUCTIONS

Before getting started, let's make sure this product is perfect for you!

This stand is designed to support only Sonos® Era 100™ speakers.

CAUTION: Avoid potential personal injuries and property damage!

• Check your speaker owner's manual to see if there are any special requirements for mounting your speaker.
• Please read through these instructions completely to be sure you're comfortable with this easy install process.
• Do not use this product for any purpose not explicitly specified by manufacturer.
• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
  If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at US: [phone] - EMEA: [phone] - UK: [phone].

Speaker Weight Limit

DO NOT EXCEED

Tool Needed

Screwdriver

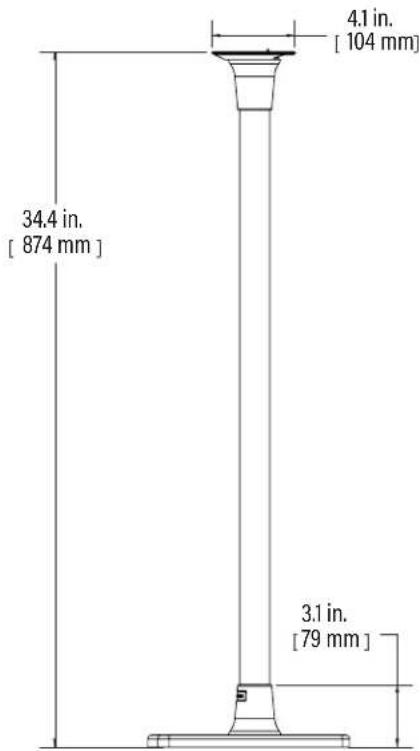

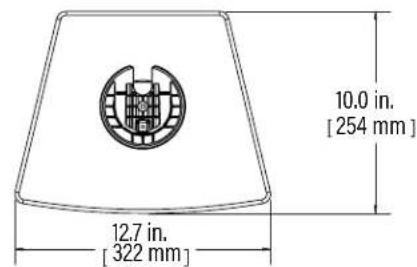

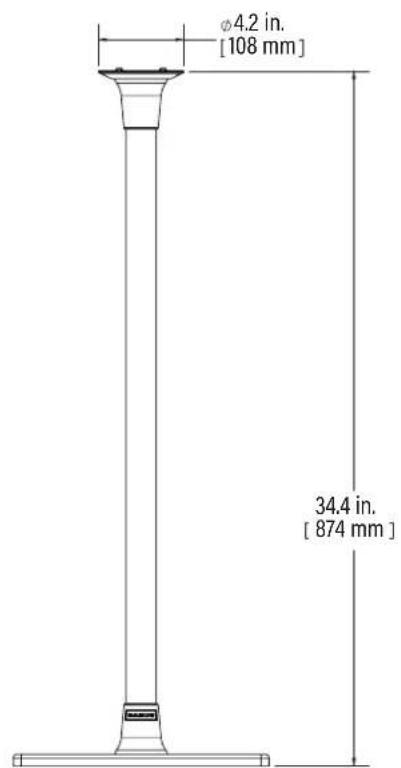

Dimensions

TOP VIEW

FRONT VIEW

SIDE VIEW

3D

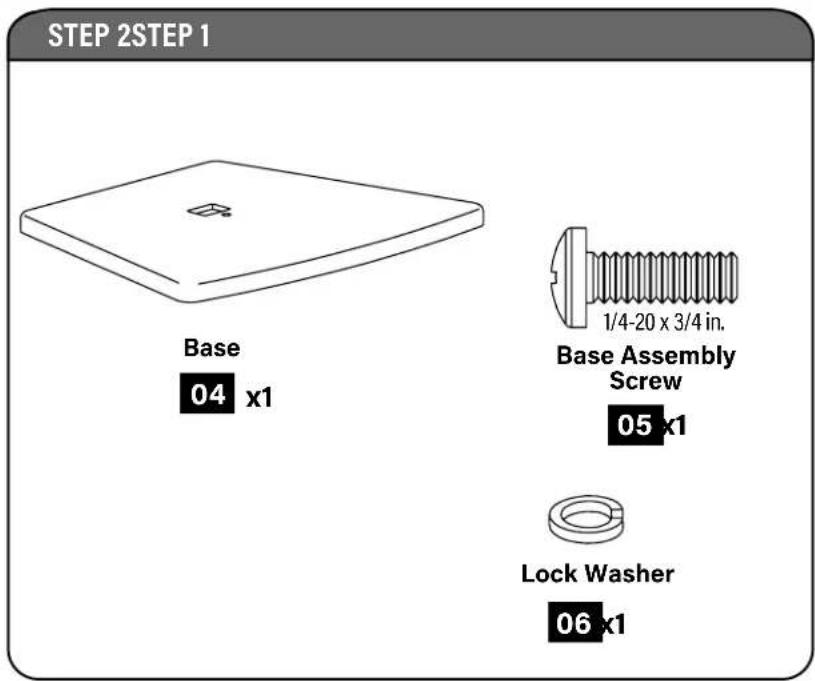

Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

Quantities shown are for one speaker stand.

STEP4

Rubber Pad

07x4

OPTIONAL

M6x20mm

Carpet Spike

08x4

M6

Jam Nut

09x4

STEP5

Top Bracket

10 k1

1/4-20 x 5/8 in.

Top Bracket

Screw

11 k1

STEP6

Speaker Bracket

12 k1

M5 x 14mm

Speaker

Screw

13 k1

STEP7

10-24 x 3/8 in.

Securement

Screw

14x1

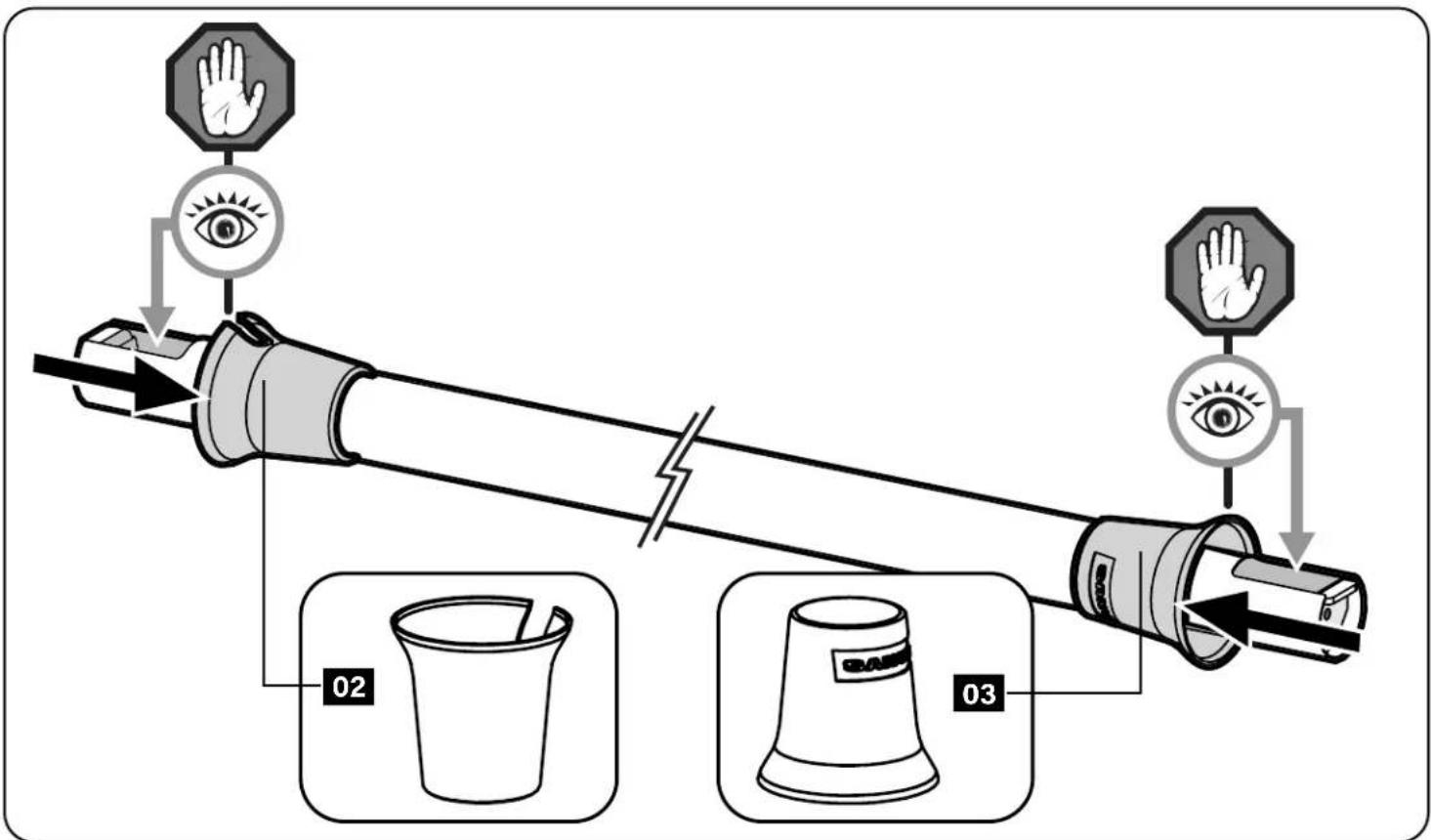

STEP1

Slide Collars onto Tube

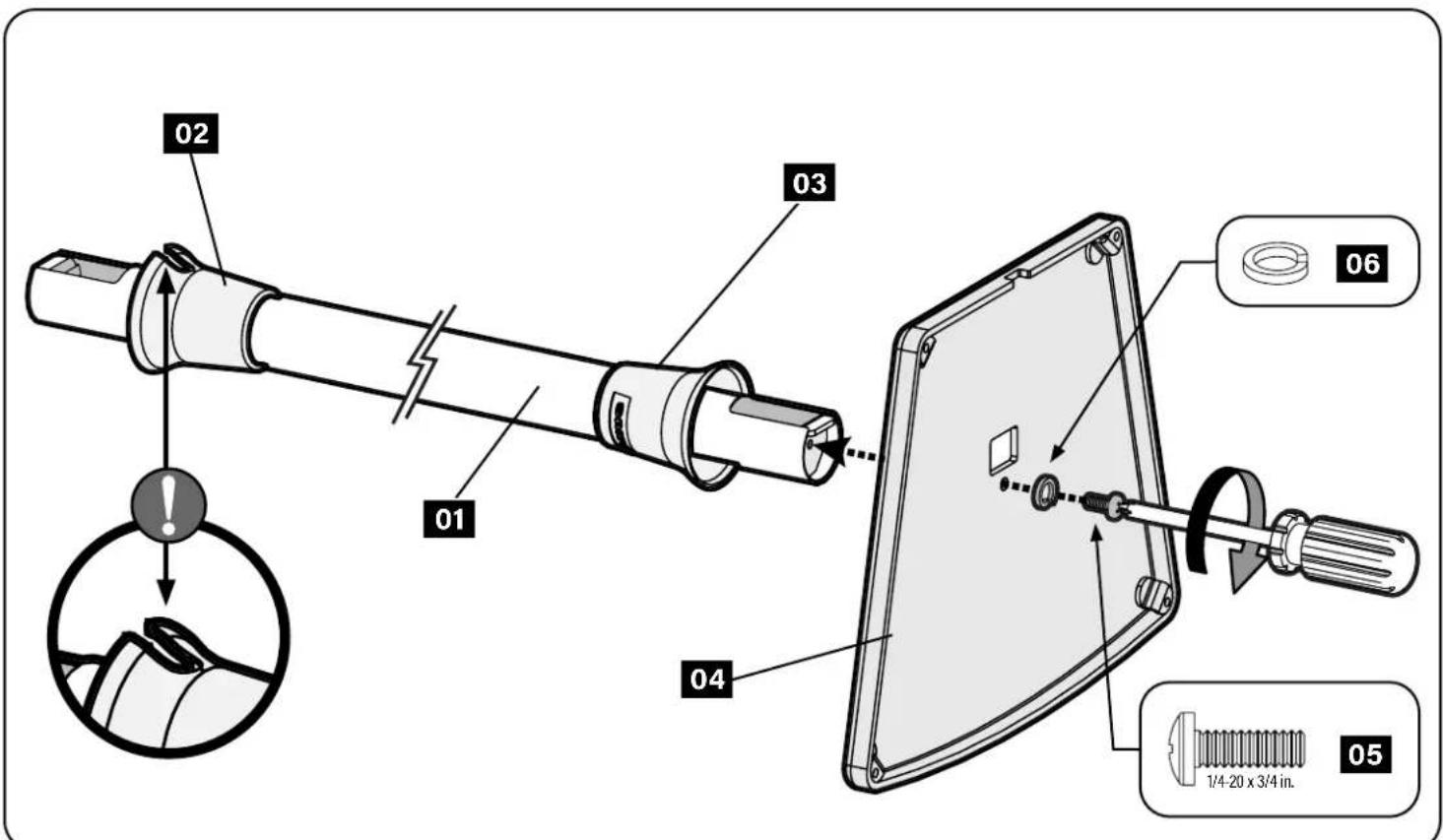

STEP2

Attach Base to Tube

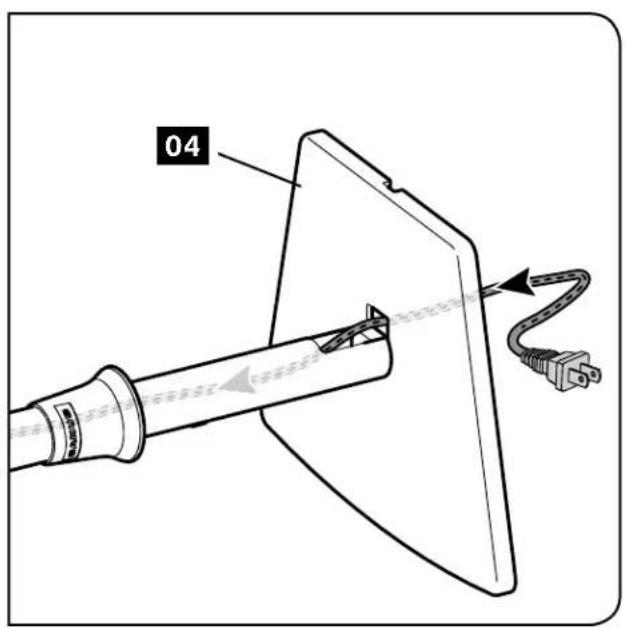

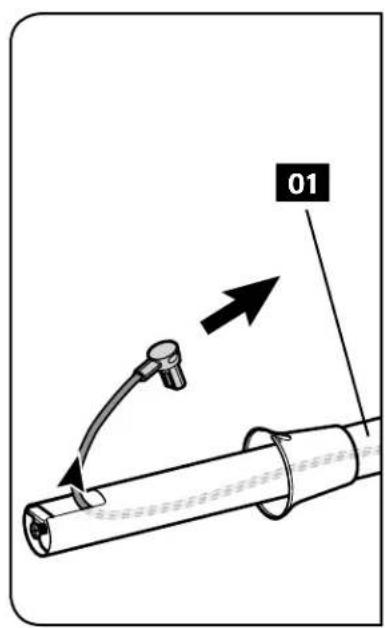

STEP3

Route Speaker Power Cable

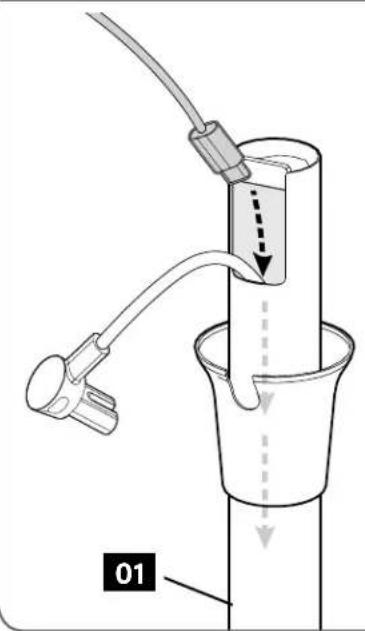

USB [OPTIONAL]

NOTE: USB, if required (see your speaker manual), installs easier AFTER the power cable.

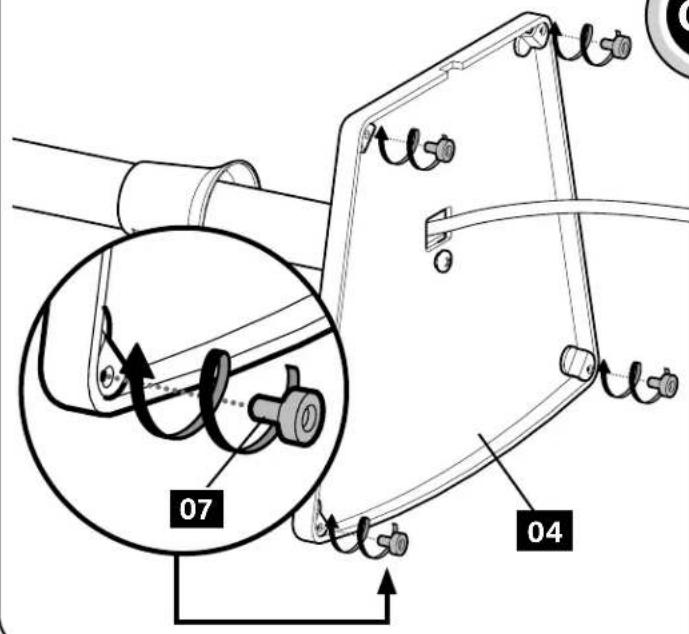

STEP4

Install Rubber Pads -or- Carpet Spikes

Rubber Pads

Twist rubber pads 07 into the base 04

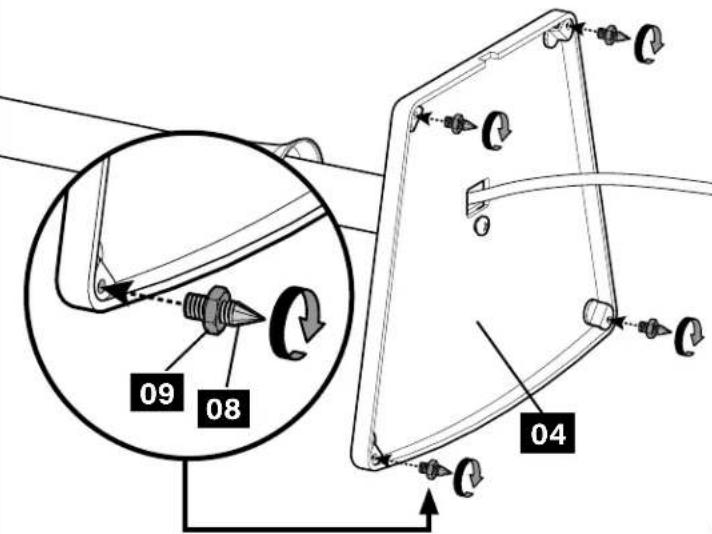

Optional Carpet Spikes

WARNING: The ends of carpet spikes 08 are sharp and may scratch flooring, damage wiring, or be hazardous to children.

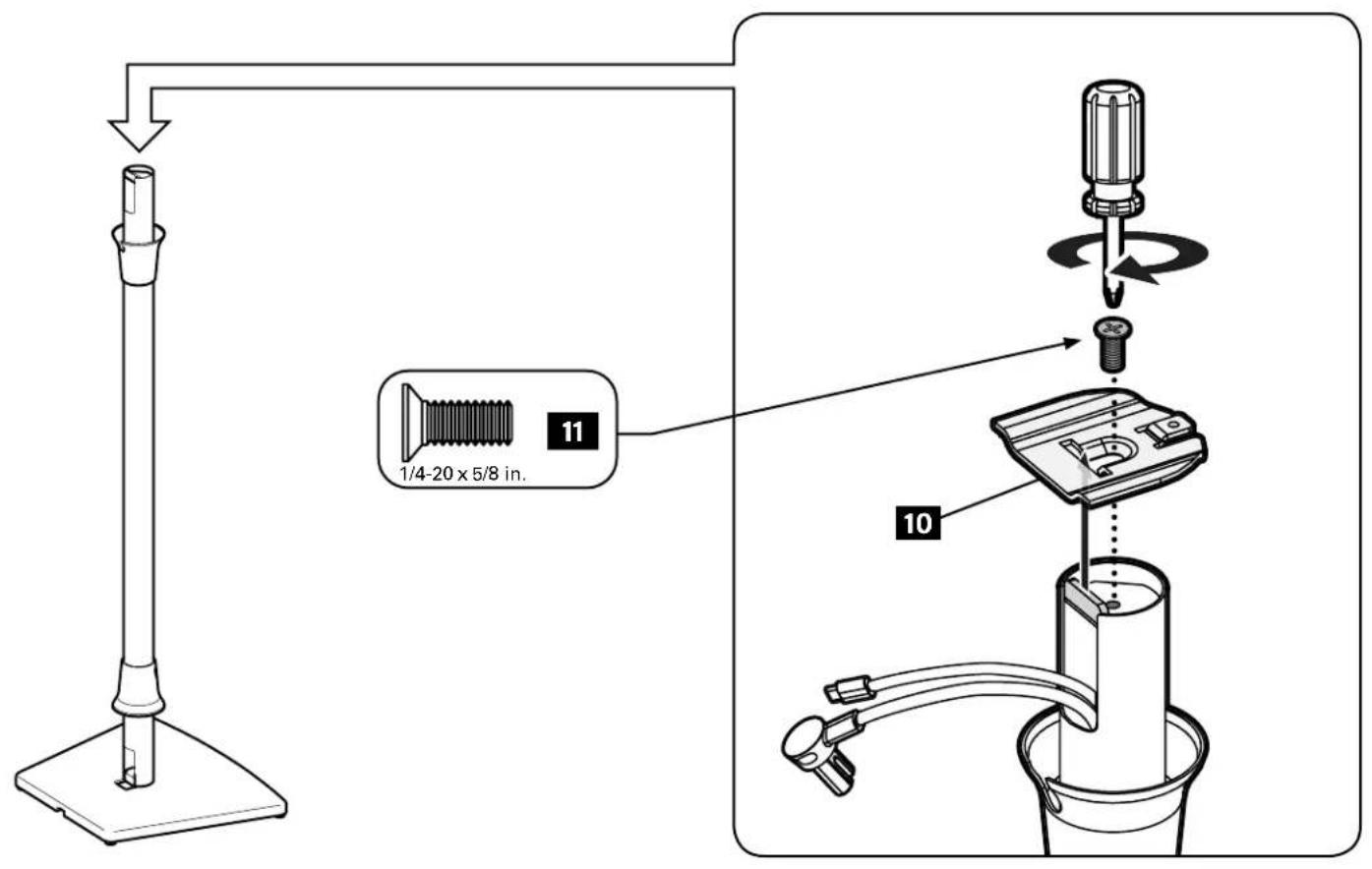

STEP5

Attach Top Bracket

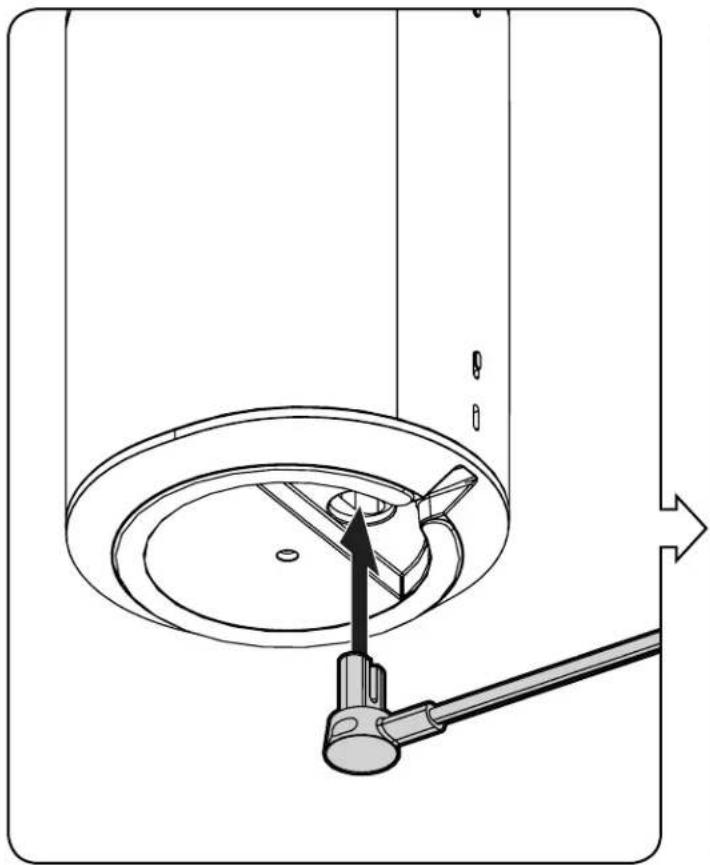

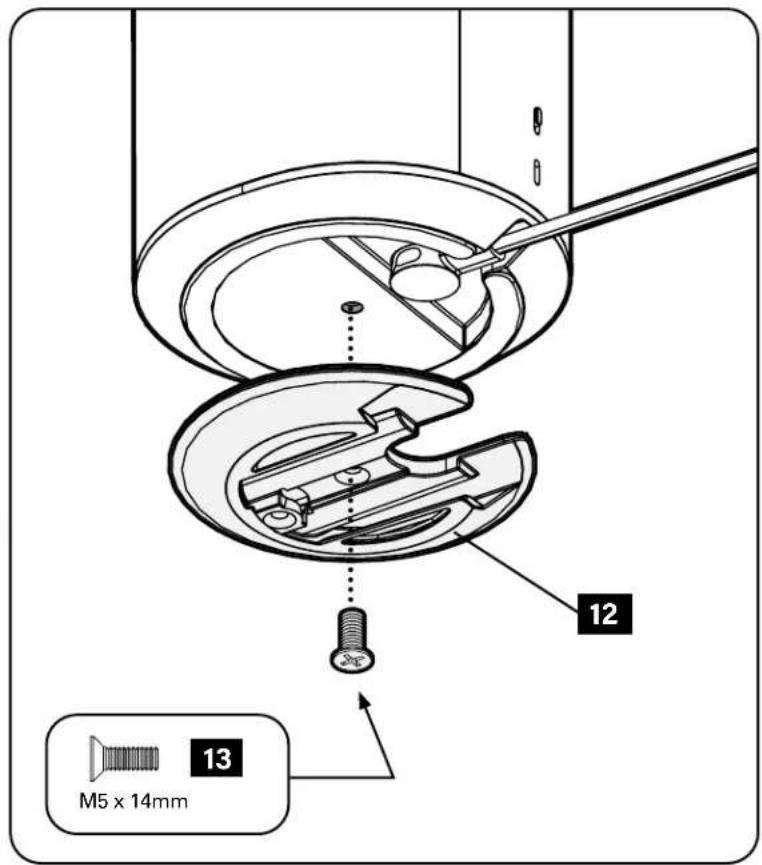

STEP6

Install Speaker Bracket

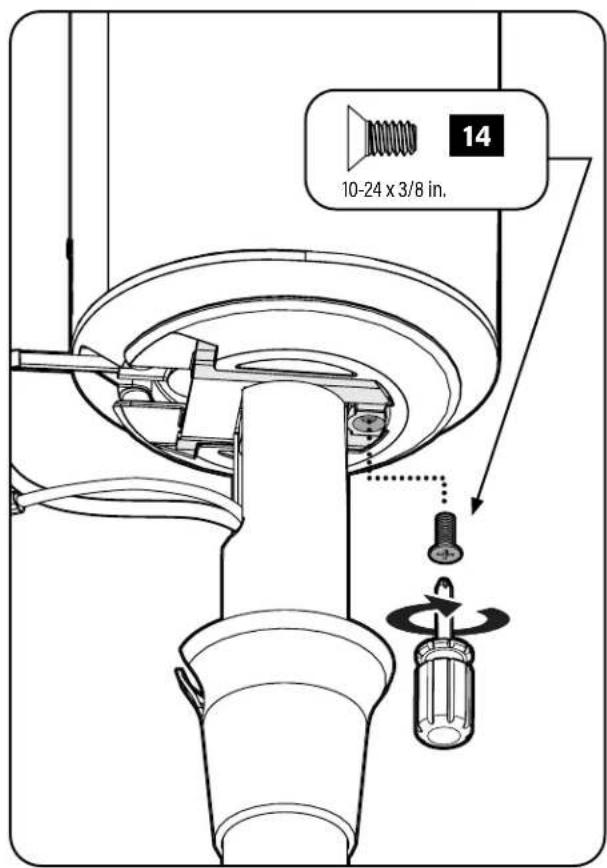

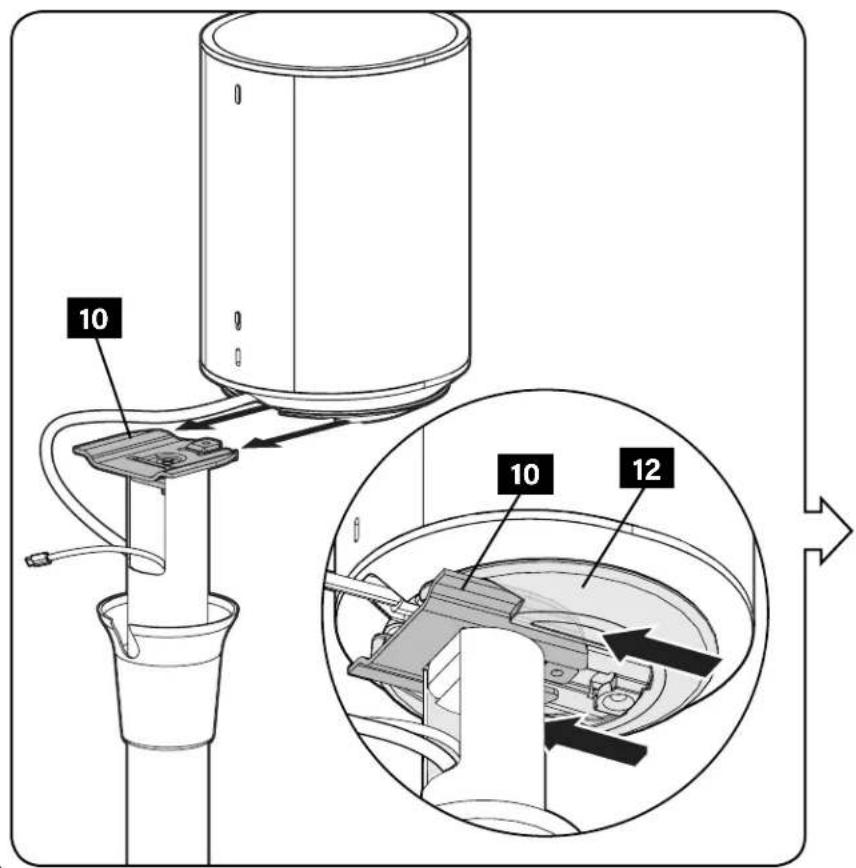

STEP7

Attach Speaker

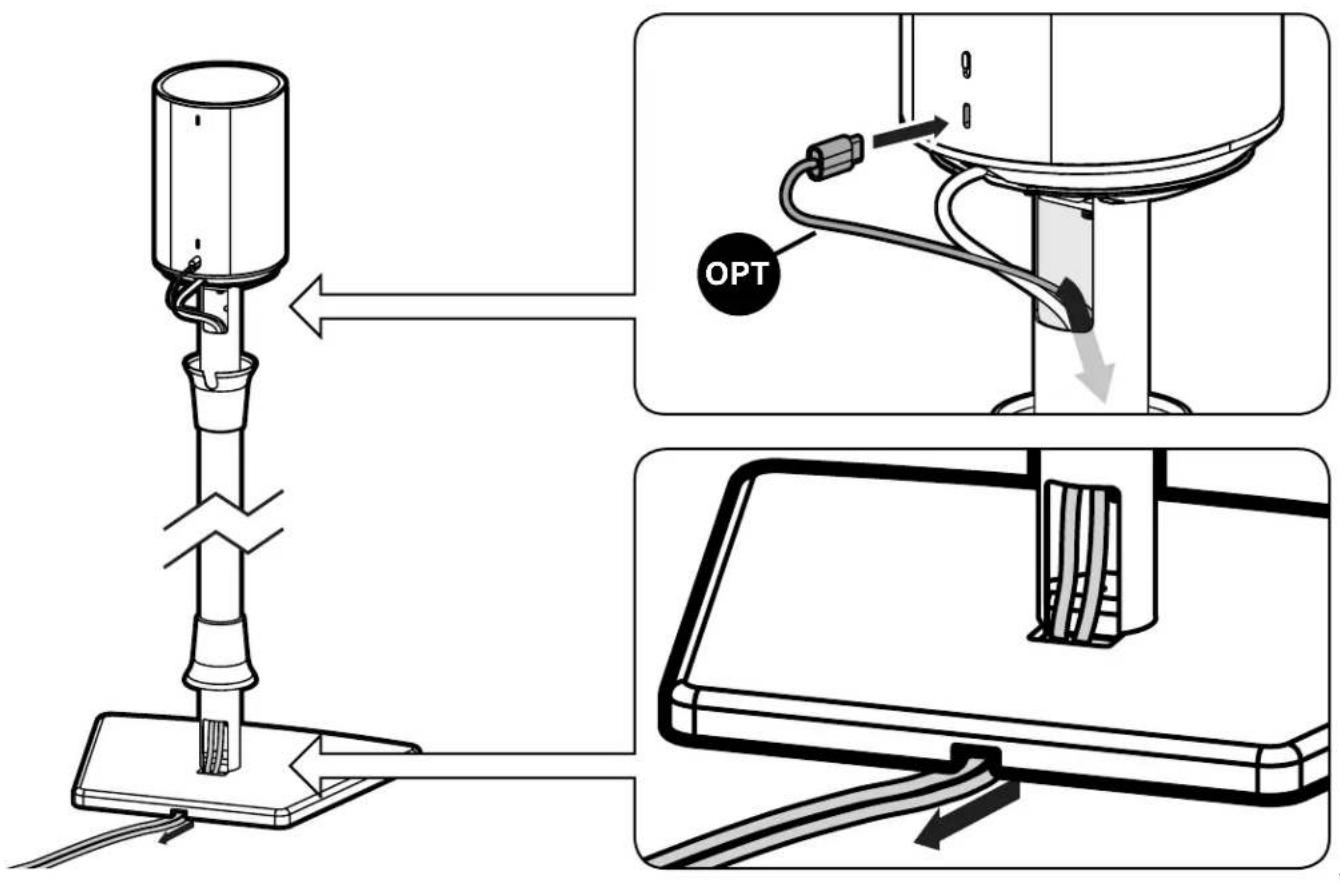

STEP8

Adjust Cables

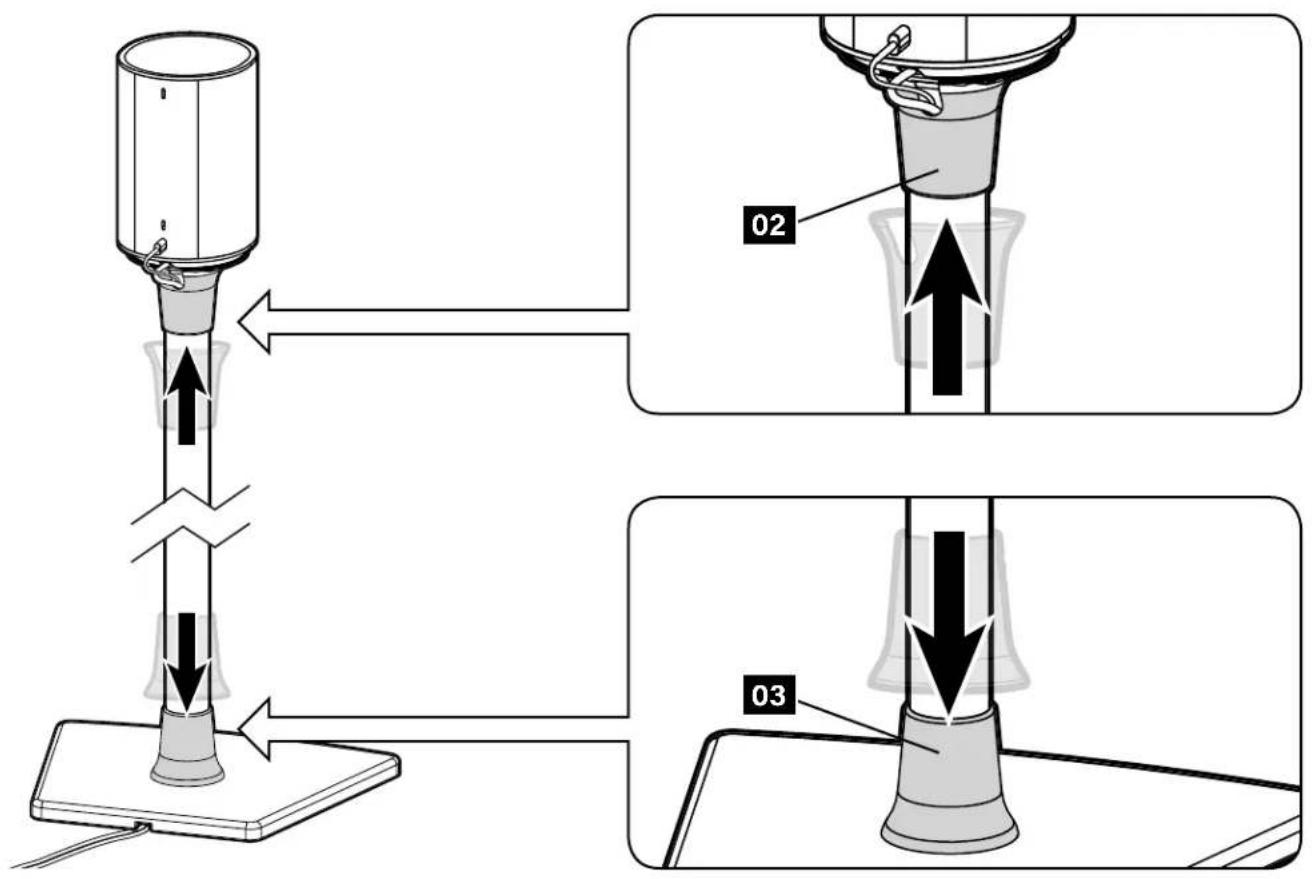

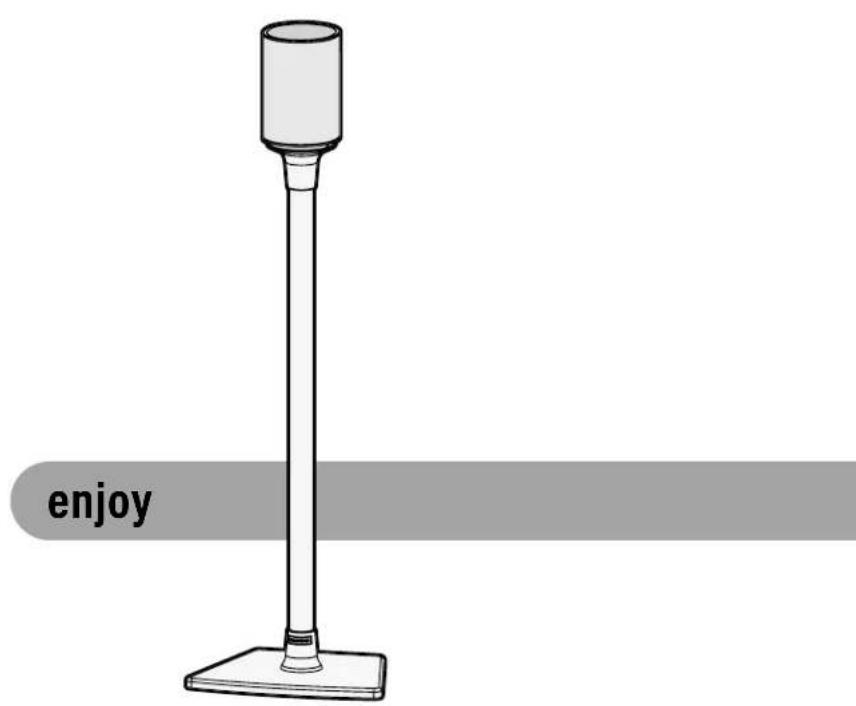

STEP9

Position Collars

ESPANOL

-NEPED3KcIyATAuENI3dIINaIIOHOCbIO IPOOTTE DAHHOE PYKOBOCTBO

Ipeed nauanom yctaHOBKn Heo6xOJMo y6eunTbcra, 7TO 3TO u3dJIne noXoJNT Inra BaWero TeNeBu3opa!

HaedeHbTe MyoTbI Ha Tpy6Ky (cm. ctp. 6)

WAR2

YcTaHOBnTE OCHOBaHHe Ha Tpy6Ky (CM. ctp.7)

WAR3

NoKIOHHTe shypt nITAHN KOLOHKN (cm. cTp. 8)

PIMMEAHHE. Ecn tpe6yetra HcnoIb3oBaT bHyp USB (cm. nhtpykmm K KOHOHe, eO cneJeYt noKIOHuaHn noKIOHoeHn Hhypa nHTaHa.

MAT 4

YcTaHOBtpe3HOBbIe 30JauOHHbIe ONOpblnn KOBpObIe TB03m (cm. ctp.9)

PE3HNOBBIE N30JIaUOHHbIe OTOpBI -BCTabBepe3HIOBBIE N30JIaUOHHbIe OTOpBI 07 BOCHOBAHNE 04

DIOONHHTBbIE KOBPOBbIE TBO3DN - PEPUYPEXJEHEINE! KOHbI KOBPOBbIX TBO3Dei 08 octpbe. OH MOrT noapanaTb non, nopeDb npOBAky HnnpctABJrTbn MaHneBkHex DetEe.

WAR5

PpIKpeHnTE BepXHIOI naHeJIb (cm. ctp. 10)

MAT6

PpHKpenITE KpoHHTeHH KOLOHNK (cm. ctp. 11)

WAR7

PpKpeNITE KOLOHky (cm. ctrp. 12)

WAR8

PpOTHHTe npOBoJa (cM. cTp. 13)

WAR9

YCTaHOBtMyTbI (cm. ctp. 14)
