USER MANUAL Royal TMP 1000-S NIRO/NIRO EINHELL

Before start-up, note the following!

The pump can be connected to any shock-proof plug which has been installed according to regulations. The plug must have a supply voltage of 230V 50Hz Fuse min.6 Amp.

Caution:

When the pump is to be used near swimming pools or garden ponds and in their area of protection, it must be equipped with a ground-fault circuit interruptor with a nominal trip current of max. 30mA (according to VDE 0100, part 702). The pump must not be operated while people are in the swimming pool or in the garden pond! Please contact your electrician!

Attention!

(Important for your own security) Before starting to run your new submersible pump, please have the following items checked by an expert:

Ground connection
Zero conductor
- Fault current breaker switch must correspond the the safety regulations of the power plants and they must work faultlessly.
The electrical connections must be protected from moisture.
If there is danger of loading, the electrical connections must be taken to higher ground.
Circulation of aggressive fluids, as well as the circulation of abrasive materials must be avoided at all costs.
The submersible motor-driven pump must be protected from frost.
The pump must be protected from running dry.

Access on the part of children should also be prevented with appropriate measures.

Consistency

Your submersible pump is designated for the circulation of water with a maximum temperature of 35^ . This pump may not be used for other fluids, especially motor fuels, cleaning fluids, and other chemical products!

Installation

The submersible motor pumps is installed as follows:

In a stationary position with fixed pipeline or
in a stationary position with a flexible hose pipe.

Please note!

You should never install the pump by suspending it unsupported from its delivery pipe or power cable. The submersible motor pump must be suspended from the specially provided handle or be placed on the bottom of the shaft. To guarantee that the pump works properly, the bottom of the shaft must be kept free of sludge and dirt of all kinds.

If the level of water sinks too far, any sludge in the shaft will dry out quickly and stop the pump from starting up. It is necessary, therefore, to check the submersible motor pump regularly (by carrying out start-up tests).

The floater is adjusted in a way that the pump can immediately be started

Note!

The pump shaft should have minimum dimensions of 40 × 40 × 50 cm, so that the floating switch can move freely.

Mains supply

Your new submersible pump is equipped with a shock-proof plug according to regulations. The pump is designed to be connect-ed to a 220 / 230V 50Hz safety socket. Make sure that the socket is sufficiently secured (min. 6 Amp.) and is in excellent condition. Introduce the plug into the socket and the pump is ready to go.

Important Note!

If the mains cable or plug suffers any damage from external action, repairs to the cable are prohibited.

Important!

This work may only be performed by a qualified electrician or your Einhell Customer Service.

Areas of use

This pump is used primarily as cellar pump. When installed in a shaft, this pump provides protection from flooding.

The pump can however, be used everywhere where water is to be moved, for instance in the household, in farming, in the garden or yard, in sanitation installations, and many other ways as well.

GB

Setting to work

After having read these instructions carefully, you can set your pump to work, reconsidering the following items:

• Check if the pump rests on the ground of the shaft.
• Check of pressure cord has been attached properly.
• Check if electrical connection is 230V 50Hz
• Check if socket is in good condition.
  Make sure that water and humidity can never come to the mains supply.
  Avoid pump running dry.

Maintenance guidelines

This submersible pump is an approved, maintenance-free high quality product, which is subject to severe final controls.

We recommend, regular inspection and maintenance to ensure long equipment life and uninterrupted operation.

Important! Note!

• Remove the mains plug before all maintenance work.
  In the event that the pump is often transported in the course of operation, it should be cleaned out with clear water after every use.
  In case of stationary installation, the function of the loating switch should be checked every 3 months.
  All fibrous particles which may have built-up inside the pump housing should be removed with a water jet.
  In the case of excessive deposits in the pump casing, the lower part of the pump must be disassembled as described below:

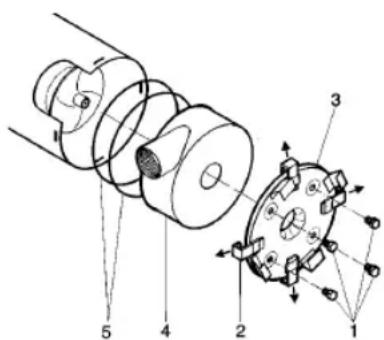

• Release the four bolts (1) from the bottom of the pump.

• Push the clamps (2) to the outside.

• Remove the baseplate (3).
• Pull out the suction cover (4). Now you can clean the paddle wheel using pure water.

Two packing rings (5) are still within the pump casing. Please make sure that they are not lost during cleaning.

Attention: Do not deposit or rest the pump on the paddle wheel! For assembly, reverse disassembly procedure.

Every 3 months the shaft ground and as should be cleaned from mud.
- Remove deposits on the floater with clear water.

Incidents – Causes – Remedies

Incidents	Causes	Remedies
Pump does not start	- No mains supply - Floater does not switch	- Check mains supply - Bring floater in a higher position
No flow	- Inlet sieve is clogged - Pressure hose in bent	- Clean inlet sieve water jet - Reset hose
Pump does not switch off	- Floater cannot sink down	- Place pump properly on shaft ground
Insufficient flow	- Inlet sieve is clogged - Reduced pumping capacity by dirty and abrasive water	- Clean inlet sieve - Clean pump and replace worn-out parts
Pump switches of after short operating period	- Thermal cutout stops pumps due to dirty water - Water too hot. Thermal-cutout stops pump	- Remove mains plug. Clean pump and shaft - Maximum temperature is 35°C. Please regard!

Guarantee note:

Not covered by guarantee:

• Destruction of rotating mechanical seal by dry running or addition of foreign bodies in water
• Blockage of running wheel through foreign bodies
  Transport damage
  Damage caused by unauthorised persons

Technical data ROYAL TMP 1000-S NIRO/NIRO

Supply voltage: 230 V ~ 50 Hz
Current input: 3,55 A
Power consumption: 830 W
Protective system: IP 68
Engine speed: 2830 min	-1
Required fuse min.: 6 A
Delivery head max.: 10 m
Pumping capacity max.: 13 m	3/h
Submersion depth: 4 m
Water temperature: max. 35°C
Switching point high: ON 55 cm
Switching point high: OFF 10 cm
Foreign matter: Ø 28 mm

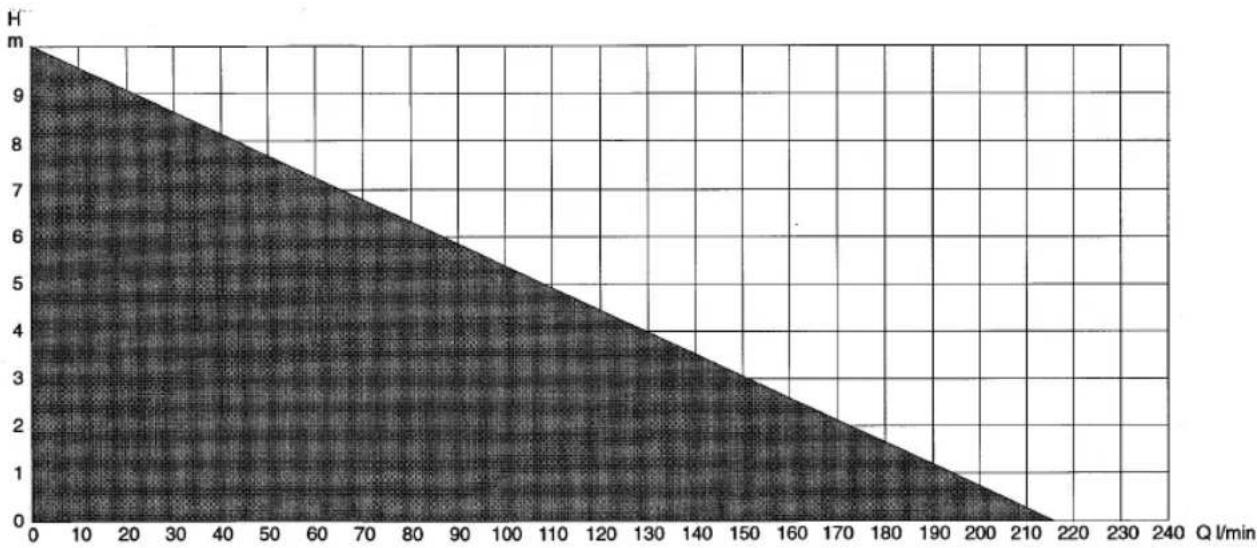

Characteristic curve

Attention! Important!

The guarantee period begins on the sales date and is valid for 1 year.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

GARANTIE EINHELL

Eschenstraße 6 - D-94405 Landau/Isar (Germany)

15 Warwick House Ind. Park, Banbury Road,

Sautham, Warwickshire CV 33 OPS

Technical changes subject to change
