USER MANUAL H1339 PureGuardian

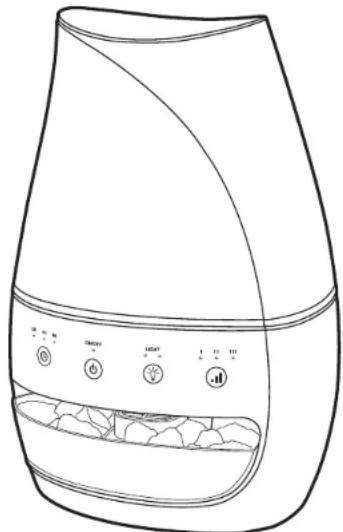

Salt Lamp Humidifier with Aroma Tray Model No. H1339 1-Year Limited Warranty English E - 1 French F - 1 Spanish S - 1 Date Purchased month ________ year _________ Keep Receipt

USE & CARE INSTRUCTIONS

Customer Service 1.866.603.5900 www.guardiantechnologies.com Use GENUINE Guardian Technologies replacement parts only.REV0821 E-1 ©2016 Guardian Technologies LLCGuardian Technologies LLC26251 Bluestone Blvd. • Euclid, OH 441321.866.603.5900 • www.guardiantechnologies.com LIMITED WARRANTY To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials orworkmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only. This warranty does not cover Guardian Technologies products that are used outside of the US and Canada as the appliance must be plugged directly into a 120V AC electrical outlet without the use of an adapter. This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to statein the U.S.A.)To submit product under warranty the complete machine must be delivered pre-paid to GuardianTechnologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Repair Department, at the address below. Additional questions or comments can be made toll free to the number listed below.USA and CanadaGuardian Technologies LLC26251 Bluestone Blvd.Euclid, Ohio 441321.866.603.5900www.guardiantechnologies.comAdditional copies of the instruction manual can be obtained by accessing andprinting directly from our website or calling customer service.Please go to www.guardiantechnologies.com to register your product. We consider the registration processimportant to ensuring superior service to our customers, however submitting the registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.READ AND SAVE THESE INSTRUCTIONS WARNINGS Failure to comply with the warnings listed below may result in electric shock or serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.

• Caution is necessary when any appliance is used by or near children or people with disabilities and whenever the appliance is left operating unattended.

• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.

• The product is for indoor use only.

• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.

• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.

• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.

• Do not use if the plug is damaged or loose.

• Before filling or cleaning the unit, make sure it is unplugged.

• Once the humidifier has been plugged in, do not tilt or move the unit.

• Do not handle the plug with wet hands.

• Do not excessively bend, twist, pull or damage the power cord.

• Avoid placing this product where the humidity spout is pointed directly at an object or person.

• Do not inhale the mist/vapor expelled from the product or drink water from the tank.

• Do not fill the water tank with hot or boiling water.

• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.

• If the water tank becomes cracked or damaged, do not use.

• Do not keep this product running for an extended period of time.

• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.

• Do not keep water in the tank when not in use for an extended period of time.

• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.

• The use of water additives in the tank including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives in the tank will void the manufactures warranty.

• Do not add essential oil to salt crystals. Use on the designated aroma pad only.

• Do not use this product near any other electronic device.

• Do not cover the spray spout at any time during use. Do not put anything on or in the tank. E-2 E-3 This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.

• When unplugging from outlet hold humidifier securely.

• Do not place cord over objects.

• Do not get water in or on the power cord or where it connects to the product.

• Do not use near a sink.

• Do not touch the water tank during operation.

• Do not submerse the unit in water or pour water on the unit or in the humidity spout.

• Do not cover the spout with cloth or hand and do not use without the spout.

• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.

• DO NOT wash salt crystals with water or detergents. Do not immerse in any form of liquid.

• DO NOT place the salt lamp near any electrical appliances. The natural evaporation may cause humidity or damage to other appliances.

• Due to the nature of salt, each crystal varies in color, shape, size, and weight.

• Although the salt crystals are non-toxic, they are not made for consumption and may present a choking hazard

• Wash hands after handling of the salt crystals.

WARNING: Cancer or Reproductive Harm.

For more information go to www.P65Warnings.ca.gov. Stop using your humidifier and contact your physician if you have respiratory symptoms which you believe are associated with periods of use of your home humidifier, even if you are following maintenance directions. This equipment has been tested and found to comply with the limits for a Consumer ISM equipment, pursuant to Part 18 of the FCC Rules. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.E-4 E-5 Removable Mist Spout

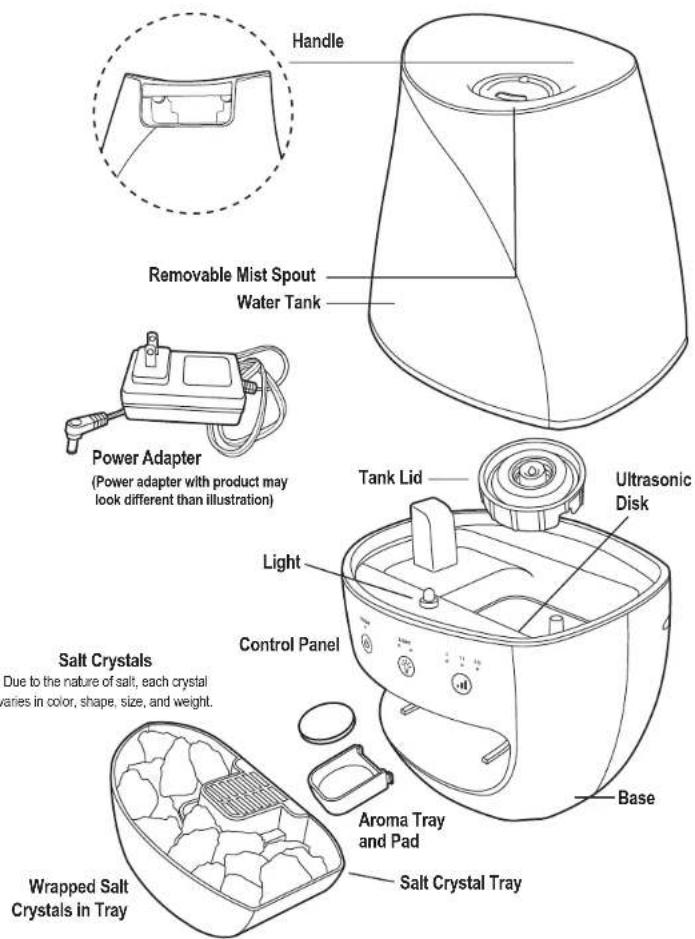

PRODUCT SPECIFICATIONS AND PARTS

Water TankTank LidUltrasonic Disk Light Base Control PanelAroma Trayand PadSalt Crystal TraySalt CrystalsDue to the nature of salt, each crystalvaries in color, shape, size, and weight.Power Adapter(Power adapter with product may look different than illustration) FUNCTION HIGHLIGHTS This 3-in-1 product provides the benefits of a Himalayan salt lamp and ultrasonic humidifier with an aromatherapy tray for essential oils. Select a firm, level, flat location – at least six inches (15 cm) from any wall or object for proper air flow. Take care when carrying, remove or secure salt crystal tray to prevent from sliding out.Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring.Do not place unit directly on carpet, towels, blankets or other absorbent surfaces.Guardian Technologies will not accept responsibility for damage caused by water spillage. Filling – Make sure the unit is unplugged.

1. Separate the tank from the base of the unit.2. Open the tank lid, turning it to the left.3. Pour cool, clean water directly into the tank. Do not pour anything but water into the tank.4. Close the tank lid, turning it to the right. FIRMLY secure cap after filling the tank. 5. Replace mist nozzle and return the tank to the base of the unit. 6. Remove salt crystal tray.7. Carefully remove wrapping. Arrange salt crystals to be distributed evenly in the tray. Wrapped SaltCrystals in TrayHandleNOTE: If you live in a hard-waterarea, we recommend the use ofdistilled water for your humidifier. This will help reduce the precipitationof minerals or ‘white dust’.Are minerals in your water producing white dust?Try Decalcification Cartridge FLTDC20Look for cartridge at your local retailer or visitwww.guardiantechnologies.com 2E-6 OPERATING INSTRUCTIONS Water Refill Indicator When the unit is low on water the Power LED will turn from white to flashing white. Power Press the power button to turn the humidifier on and again to turn off. Timer Press the timer button to select 2, 4 or 8 hours. The humidifier will turn off after that time. Any lights on the salt lamp will need to be turned off manually. Light Select preferred light level. Press once for upper lamp only. Press twice for both upper and salt crystal lamp. Press three times for the salt crystal lamp only. Press four times to turn off lights. Mist Select low, medium or high mist by pressing the control button. Default speed: II speed (Medium) 1st press: III speed (High) 2nd press: I speed (Low) E-7 Always unplug the unit before servicing in any way. GENERAL CLEANING

1. Remove salt tray and dust off the salt crystals with a clean dry cloth. Do not wash or clean

salt crystals with water or liquid detergents. If the salt crystal becomes moist, gently pat down the crystal surface with a dry cleaning cloth.

2. Empty water tank. Remove mist spout and clean with fresh water and a light brush (bottle cleaning

brush is recommended).

3. Wipe outer surface of the unit with a soft, damp cloth if needed. If you notice an accumulation

of water during usage, reduce humidity and dry outer surface with a cloth. DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.

• If you live in a hard water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or ‘white dust’.

• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind. ULTRASONIC DISK

2. Remove the tank and empty all water from unit base and tank.

3. Locate the ultrasonic disk on the inside center of the base unit.

4. Use ONLY the enclosed cleaning brush to gently clean disk

and remove build up and deposits. Do not scrub or scrape the ultrasonic disk. If scale becomes difficult to remove with brush:

1. Fill the Base with: mixture of 1 tsp. white vinegar and 1 tsp. water.

2. Let solution stand for 5 minutes.

3. With the vinegar in the Base, clean all interior surfaces with a soft

cloth or brush to help remove scale.

4. Also check mist nozzle and mist tube in water tank. Clean as needed.

5. Rinse the Base thoroughly with water to remove scale and vinegar solution.

END OF SEASON STORAGE

1. Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end

2. Carefully remove the salt crystals and store in a sealed bag or container.

3. Dry the humidifier completely before storing. DO NOT store with water inside the base or water tank.

4. Pack the unit and in its original carton and store in a cool, dry location.

8. Add Essential Oil: slide aroma tray out from back of the salt

tray. Add a few drops of your favorite essential oil to the pad in the tray (oil not included). WARNING: DO NOT add oils or other additives directly into the water tank. DO NOT add oils directly to the salt crystals. Add only to the pad in the tray.

10. Plug cord into back of humidifier and then plug unit into the wall outlet.

NOTE: The salt lamp can be operated with or without the humidifier.

9. Return the salt tray to the

humidifier so that it fits firmly in the unit. If it doesn’t fit rearrange the crystals for a better fit.E-8

TROUBLE SHOOTING GUIDE

Water vapor and humidity are not produced. Power Plug: Unplug and then try again. Power Failure: When the power is returned, try again. Tank Installation: Make sure the tank is correctly attached. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. PROBLEM SOLUTION Air blows but water vapor is not produced. Excessive Water: Remove a certain amount of water from the tank. The desired humidity is lower than the current temperature: Increase the desired humidity. Detergent residue and/or oil ingredients from cosmetics, etc. may be in tank; wash out tank and try again. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. If you use hard water, replace with softer water. Humidity level is low. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. The water in the unit is too cold: Replace with cool, but not cold water. Damage on the ultrasonic disk: Contact Customer Service The humidity has a bad smell. Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water. White dust is forming on nearby furniture. Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance. Unit has stopped working. No or low water. Unplug unit and refill water tank. Water is accumulating outside of unit or area surrounding unit. Saturation of humidity. Lower mist control setting. Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor. Unit shuts off unexpectedly or does not operate. Check that the safety device triggered. To restart, unplug for 5 sec/replug then press the power button. Call Customer Service. Water dripping when refilling. Water remaining on bottom of tank. Wipe tank or tilt to drain before transporting. Make sure tank cap is secured tightly. Increased noise level. Unit must be placed on a flat, level, hard surface. Make sure it is NOT placed on a soft or absorbent surface. Cannot smell aroma scent. Add a few more drops of oil to the aroma pad or replace aroma pad with a new one. Light bulb is not turning on. Light bulb might need replaced. Call Customer Service.Humidificateur à lampe au sel avec plateau d’arômes
