Product type	Center speaker
Brand	Jamo
Model	S7-25C
Series	Studio7
Nominal impedance	4 ohms
Wiring type	Conventional (positive and negative terminals)
Recommended cable diameter	≥1.3 mm² (16 AWG)
Recommended distance between main speakers	1.80 m to 4.60 m
Recommended distance to wall	≥60 cm
Recommended positioning	Under the screen, as close as possible
Cleaning	Occasional dusting; do not use abrasive or solvent-based products
Safety	Avoid prolonged exposure to high volume to prevent hearing damage; avoid short circuits when connecting
Usage	Home theater system

Frequently Asked Questions - S7-25C JAMO

How to connect the S7-25C center speaker?

Use speaker cable with a minimum diameter of 1.3 mm² (16 AWG). Connect the red (+) terminal of the speaker to the red (+) terminal of the amplifier's center channel, and the black (-) terminal to the black (-) terminal. Refer to diagram 3 in the manual.

What distance between the left and right main speakers?

Jamo recommends a distance of 1.80 m to 4.60 m between the main speakers for best stereo reproduction.

How far from walls should the speakers be placed?

Place the speakers at least 60 cm from walls to avoid unwanted sound reflections.

How to clean the S7-25C speaker?

Occasional dusting of the speaker. Never use abrasive or solvent-based products or harsh detergents. The grilles can be cleaned with a vacuum brush.

Can I use an 8 ohm amplifier with this speaker?

The speaker has a nominal impedance of 4 ohms. Ensure your amplifier is designed to work with a 4 ohm load, otherwise you risk damaging the amplifier.

How to avoid short circuits when connecting?

Make sure that no bare wire touches another terminal. Use quality cables and check connections before powering on the amplifier.

Where to place the center speaker?

The center speaker should be placed as close as possible to the screen, ideally directly below it, so that dialogues seem to come from the screen.

What type of cable to use for connection?

Use speaker cable with a minimum diameter of 1.3 mm² (16 AWG) to ensure good transmission and avoid losses.

Can I mount the S7-25C speaker on the wall?

The manual does not mention wall mounting for the S7-25C model. Wall brackets are not included. For the S7-15B surround speakers, a wall option exists, but it is not recommended for this model.

What to do in case of sound distortion?

Reduce the volume. If distortion persists, check that your amplifier is compatible with a 4 ohm load and that cables are properly connected without short circuits.

USER MANUAL S7-25C JAMO

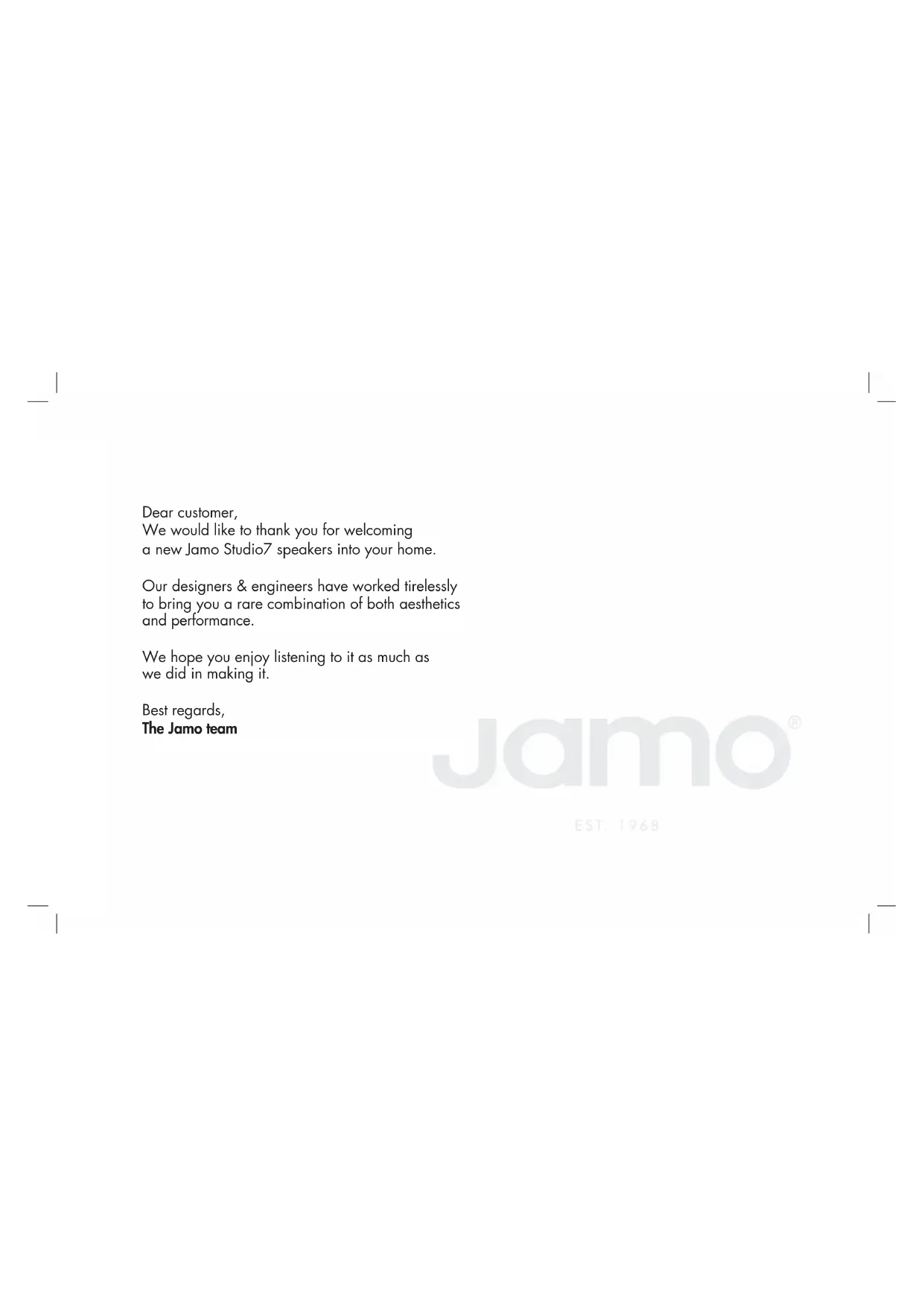

We would like to thank you for welcoming

a new Jamo Studio7 speakers into your home.

Our designers & engineers have worked tirelessly to bring you a rare combination of both aesthetics and performance.

We hope you enjoy listening to it as much as we did in making it.

Best regards,

The Jamo team

Jamo STUDIO7 SERIES BEFORE YOU START

ENGLISH

Some Jamo speakers have feet and other accessories that may need to be installed prior to use.

Line drawing of a three-tiered speaker tower with circular blades and a central hub (no text or symbols)

Line drawing of a three-tiered speaker tower with circular components and a base labeled 'JATTIE' (no text or symbols on the tower itself)

FLOORSTANDING SPEAKERS (METAL SP

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

OTHER SPEAKERS (RUBBER FEET)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central circular component (no text or symbols)

ROOM PLACEMENT CONNECTION

Left and Right Main Channel Speakers - For optimum performance, Jamo suggests placing your speakers 6 to 15 feet (1.8 m to 4.6 m) apart and at least 24" from the walls. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

Center Channel Speakers - Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Surround Channel - The surrounds should be adjacent to the listening position. Another option would be behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience. Refer to Figures 1, 3 and 4 for connection and placement.

Conventional Connection - Using minimum 16 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (−) terminal of the LEFT speaker to the BLACK "negative" (−) terminal of your amplifier's LEFT channel. Repeat the above procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short circuit and damage your equipment.

Amplifier Requirements - Jamo Studio7 speakers are efficient and rated as a 4 ohm load. For optimum performance, please ensure your amplifier is rated for use into a 4 ohm. Your Jamo speakers are capable of very high acoustic output at low distortion levels, so please exercise caution when listening at high levels over long periods as this could lead to hearing damage. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application.

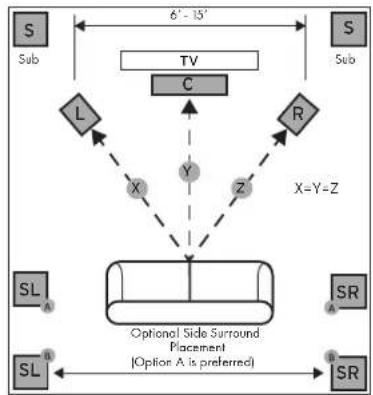

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA
    note right of Y "X=Y=Z"
        "Optional Side Surround Placement (Option A is preferred)"
    end

FIGURE 3 STANDARD CONNECTIONS

FIGURE 2 CENTER CHANNEL

Illustration showing a person sitting in bed with legs extended, and a monitor on a side table with 'Below' label (no text or symbols on the diagram itself)

(Optional - Brackets not included in the box) CAUTION! Do not use keyhole for ceiling or wall mounting!

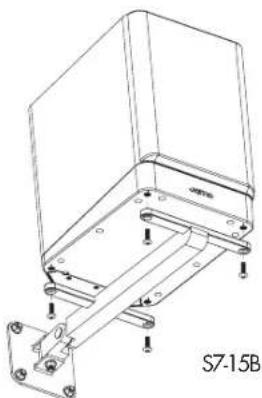

WALL MOUNTING OPTION FOR S7-15B

(OPTIONAL / BRACKETS NOT INCLUDED IN THE BOX)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.jamo.com.

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.

Jamo STUDIO7 SERIES

AVANT DE COMMENCER

FRENCH

Technical line drawing of a mechanical component with mounting holes and a central mounting bracket (no text or symbols)

AUTRES ENCEINTES (PIEDS EN CAOUTCHOUC)

Technical line drawing of a mechanical enclosure with mounting holes and a central hub (no text or symbols)

POSITIONNEMENT DANS LA PIÈCE BRANCHEMENT

Line drawing of two identical audio speakers with circular speaker blades (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

ENTRETIEN ET NETTOYAGE

Line drawing of a three-tiered speaker or speaker tower with circular components and directional arrows (no text or symbols)

Line drawing of a three-tiered speaker with circular components and a base (no text or symbols)

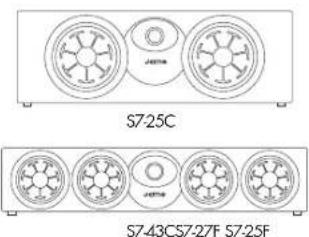

S7-25C S7-43CS7-27F S7-25F

ANTES DE EMPEZAR

SPANISH

Technical line drawing of a mechanical component with mounting holes and a central mounting bracket (no text or symbols)

OTROS ALTAVOCES (PIES DE GOMA)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central mounting bracket (no text or symbols)

FIGURA 2 CANAL CENTRAL

Debajo

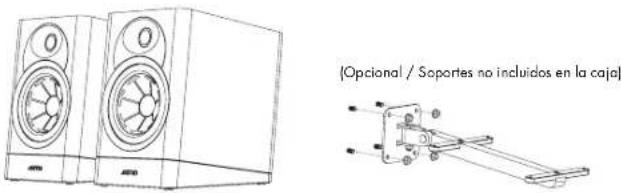

FIGURA 4 MONTAJE DE LOS ALTAVOCES SURROUND EN LA PARED S7-15B

Technical line drawing of a mechanical bracket assembly (no text or symbols)

CUIDADO Y LIMPIEZAMONTAJE EN PARED DEL S7-1

Technical line drawing of a mechanical component with mounting holes and a central housing (no text or symbols)

Technical line drawing of a mechanical enclosure with mounting holes and a central hub (no text or symbols)

Illustration showing a seated person in bed with legs, next to a side table with a monitor and sound waves labeled 'Unter' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical bracket assembly with mounting flanges and mounting holes (no text or symbols)

Line drawing of a three-tiered speaker tower with circular blades and a base (no text or symbols)

Line drawing of a three-tiered speaker with circular components and a base (no text or symbols)

OPERAZIONI PRELIMINARI

ITALIAN

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

ALTRI ALTOPARLANTI (PIEDINI IN GOMMA)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central mounting bracket (no text or symbols)

Line drawing of a person sitting in a chair next to a simple TV stand with sound waves, labeled 'Sotto' (no text or symbols on the diagram itself)

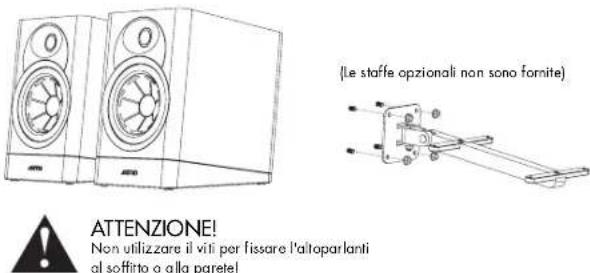

FIGURA 4 FISSAGGIO A PARETE DEGLI ALTOPARLANTI SURROUND S7-15B

Technical line drawing of a mechanical bracket assembly (no text or symbols)

CURA E PULIZIA

Line drawing of a three-tiered speaker tower with circular speakers and directional arrows (no text or symbols)

Line drawing of a three-tiered speaker with circular components and a base (no text or symbols)

S7-25C S7-43CS7-27F S7-25F

ANTES DE COMEÇAR

PORTUGUESE

Technical line drawing of a mechanical component with mounting holes and a central mounting bracket (no text or symbols)

OUTROS ALTO-FALANTES (PES DE BORRACHA)

Technical line drawing of a mechanical enclosure with mounting holes and a central hub (no text or symbols)

Line drawing of a person sitting in bed with sound waves, next to a side table labeled 'Abaixo' (no text on diagram)

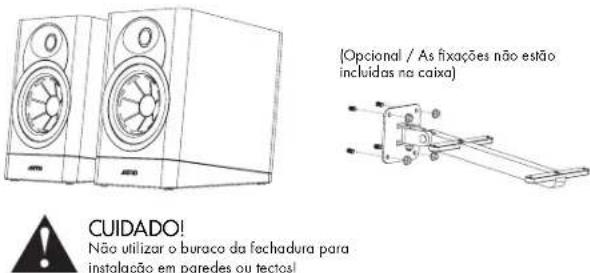

FIGURA 4 MONTAGEM NA PAREDE DO ALTO-FALANTE SURROUND S7-15B

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

CUIDADO E LIMPEZA

Line drawing of a three-tiered speaker or speaker tower with circular components and directional arrows (no text or symbols)

Line drawing of a three-tiered speaker with circular components and a base (no text or symbols)

开始使用之前

Technical line drawing of a mechanical component with mounting holes and a central mounting bracket (no text or symbols)

其他扬声器 (橡胶脚)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central mounting bracket (no text or symbols)

室内音箱的布放 电气连接

Line drawing of a person sitting in a chair facing a screen with sound waves, next to a small TV (no text or symbols)

图4 S7-15B入墙式环绕扬声器。

Technical line drawing of a mechanical bracket assembly with mounting flanges and mounting holes (no text or symbols)

保养和清洁
