S7-43C - Speaker JAMO - Free user manual and instructions

Product Type	Center Speaker
Brand	Jamo
Model	S7-43C
Series	Studio7
Speaker Type	2-way, bass-reflex
Nominal Impedance	4 ohms
Sensitivity	89 dB
Power Handling (RMS)	150 W
Frequency Response	60 Hz - 26 kHz
Dimensions (W x H x D)	500 x 150 x 200 mm
Weight	8 kg
Color	Black
Enclosure Material	MDF
Grille Type	Magnetic, removable
Terminals	Bipolar (one pair)
Main Functions	High-fidelity sound reproduction for center channel
Maintenance	Dust with vacuum cleaner brush, clean with soft cloth
Safety	Do not use abrasive products or solvents; avoid short circuits
Spare Parts	Optional wall mount (not included)
General Information	Designed for 4-ohm amplifier; ideal placement under TV screen

Frequently Asked Questions - S7-43C JAMO

What is the best position for the S7-43C center speaker?

Place the center speaker as close as possible to the screen, ideally directly below it, so that dialogue appears to come from the screen.

How do I connect the center speaker to my amplifier?

Use a speaker cable of at least 1.3 mm² (16 AWG). Connect the red positive (+) terminal of the speaker to the positive (+) terminal of the amplifier's center channel, and the black negative (-) terminal to the negative (-) terminal. Avoid any contact between exposed wires to prevent short circuits.

Can I use the center speaker with an 8-ohm amplifier?

The speaker has a nominal impedance of 4 ohms. Make sure your amplifier is designed to handle a 4-ohm load. Using it with an 8-ohm amplifier may reduce power and increase distortion.

How do I clean the center speaker?

Dust regularly with a soft cloth. Never use abrasive products, solvents, or harsh detergents. You can clean the grille with a vacuum cleaner brush.

Can I mount the center speaker on the wall?

The S7-43C speaker is not designed for wall mounting. Only the S7-15B surround models can be wall-mounted with optional brackets (not included).

What is the recommended amplifier power?

For optimal performance, use an amplifier capable of delivering at least 50 W RMS per channel into 4 ohms. The speaker can handle up to 150 W RMS.

Is the center speaker magnetically shielded?

The manual does not mention magnetic shielding. Avoid placing the speaker in direct proximity to older CRT televisions to prevent interference.

Can I use a standard speaker cable?

Yes, a speaker cable with a minimum diameter of 1.3 mm² (16 AWG) is recommended. Larger diameter cables can be used for long distances.

What should I do if the speaker produces no sound?

Check the cable connections at the speaker and amplifier terminals. Make sure the amplifier is on and the audio source is outputting a signal. Test with another speaker to isolate the problem.

How can I improve the sound quality of the center speaker?

Place the speaker at ear level of listeners, avoid obstacles in front of the driver. Adjust the amplifier's equalization for a balanced sound. Use a subwoofer to complement the low frequencies.

USER MANUAL S7-43C JAMO

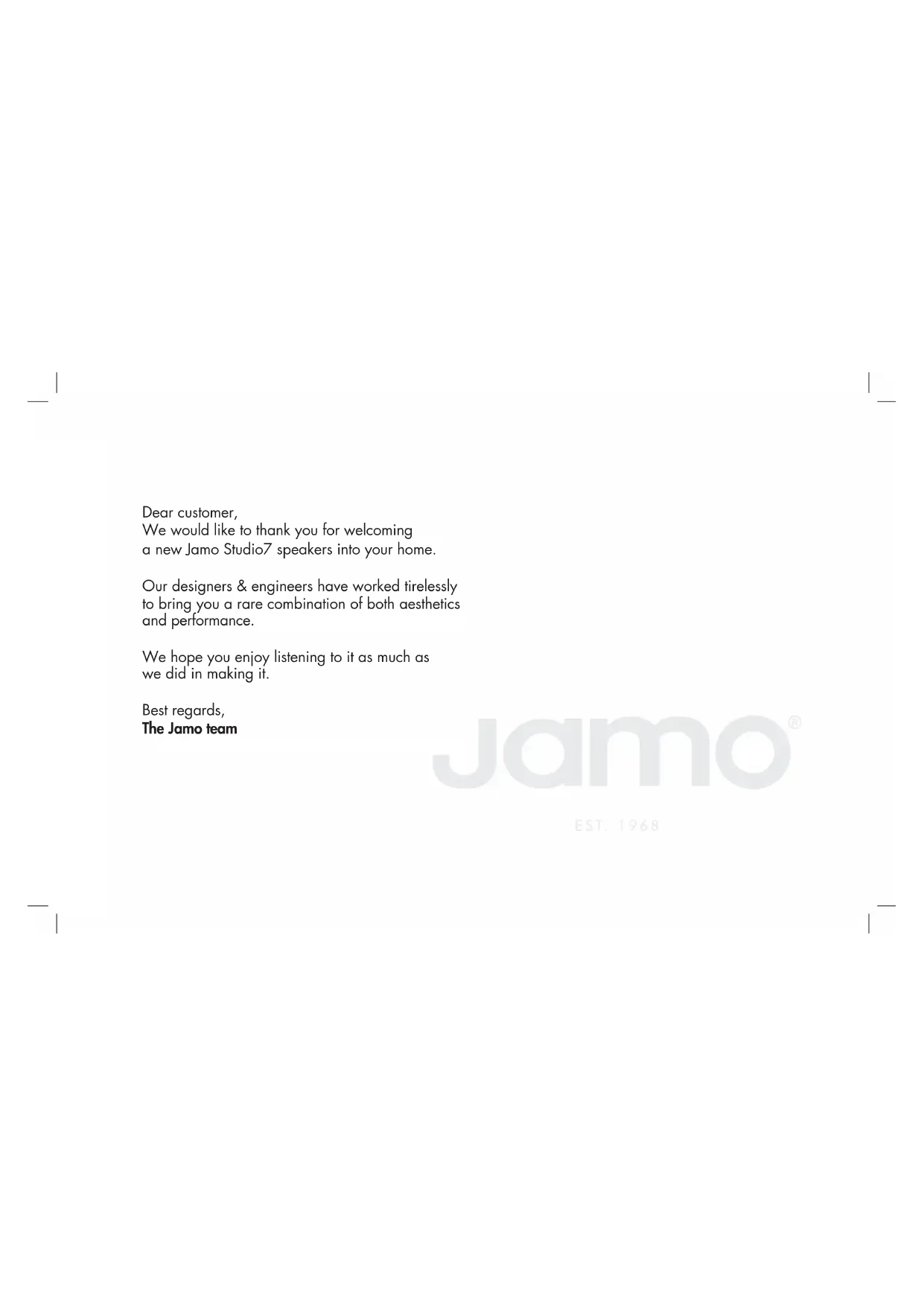

We would like to thank you for welcoming

a new Jamo Studio7 speakers into your home.

Our designers & engineers have worked tirelessly to bring you a rare combination of both aesthetics and performance.

We hope you enjoy listening to it as much as we did in making it.

Best regards,

The Jamo team

Jamo STUDIO7 SERIES BEFORE YOU START

ENGLISH

Some Jamo speakers have feet and other accessories that may need to be installed prior to use.

FLOORSTANDING SPEAKERS (METAL S
OTHER SPEAKERS (RUBBER FEET)

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

Technical line drawing of a mechanical enclosure or enclosure with mounting feet and a central circular component (no text or symbols)

ROOM PLACEMENT CONNECTION

Left and Right Main Channel Speakers - For optimum performance, Jamo suggests placing your speakers 6 to 15 feet (1.8 m to 4.6 m) apart and at least 24" from the walls. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

Center Channel Speakers - Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Surround Channel - The surrounds should be adjacent to the listening position. Another option would be behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience. Refer to Figures 1, 3 and 4 for connection and placement.

Conventional Connection - Using minimum 16 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (−) terminal of the LEFT speaker to the BLACK "negative" (−) terminal of your amplifier's LEFT channel. Repeat the above procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short circuit and damage your equipment.

Amplifier Requirements - Jamo Studio7 speakers are efficient and rated as a 4 ohm load. For optimum performance, please ensure your amplifier is rated for use into a 4 ohm. Your Jamo speakers are capable of very high acoustic output at low distortion levels, so please exercise caution when listening at high levels over long periods as this could lead to hearing damage. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application.

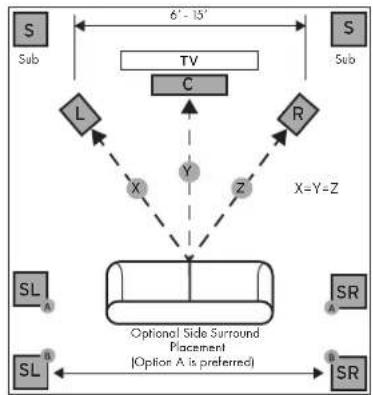

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA
    note right of Y "X=Y=Z"
        "Optional Side Surround Placement (Option A is preferred)"
    end

FIGURE 3 STANDARD CONNECTIONS

FIGURE 2 CENTER CHANNEL

Illustration showing a person sitting in bed with legs extended, and a monitor on a side table with 'Below' label (no text or symbols on the diagram itself)

(Optional - Brackets not included in the box) CAUTION! Do not use keyhole for ceiling or wall mounting!

WALL MOUNTING OPTION FOR S7-15B

(OPTIONAL / BRACKETS NOT INCLUDED IN THE BOX)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.jamo.com.

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.

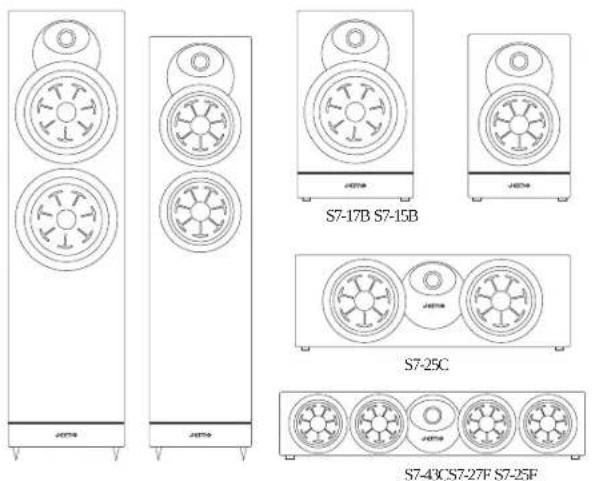

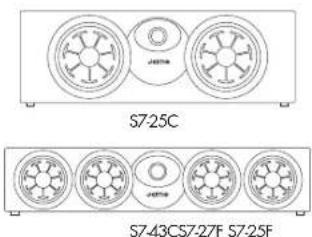

Jamo STUDIO7 SERIES

Line drawing of a three-tiered speaker tower with circular blades and a central hub (no text or symbols)

Line drawing of a vertical speaker with two circular fans and a central hub (no text or symbols)

S7-25C S7-43CS7-27F S7-25F

AVANT DE COMMENCER

FRENCH

Technical line drawing of a mechanical component with mounting holes and a central mounting bracket (no text or symbols)

AUTRES ENCEINTES (PIEDS EN CAOUTCHOUC)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central circular component (no text or symbols)

POSITIONNEMENT DANS LA PIÈCE BRANCHEMENT

Line drawing of two identical audio speakers with circular speaker blades (no text or symbols)

Technical line drawing of a mechanical bracket assembly with mounting holes and mounting fasteners (no text or symbols)

ENTRETIEN ET NETTOYAGE

Line drawing of a three-tiered speaker tower with circular blades and a central hub (no text or symbols)

Line drawing of a vertical speaker with two circular fans and a central hub (no text or symbols)

S7-25C S7-43CS7-27F S7-25F

ANTES DE EMPEZAR

Technical line drawing of a mechanical component with mounting holes and a central mounting bracket (no text or symbols)

OTROS ALTAVOCES (PIES DE GOMA)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central mounting bracket (no text or symbols)

FIGURA 2 CANAL CENTRAL

Debajo

FIGURA 4 MONTAJE DE LOS ALTAVOCES SURROUND EN LA PARED S7-15B

Technical line drawing of a mechanical bracket assembly (no text or symbols)

CUIDADO Y LIMPIEZAMONTAJE EN PARED DEL S7-1

Technical line drawing of a mechanical component with mounting holes and a central housing (no text or symbols)

Technical line drawing of a mechanical enclosure with mounting holes and a central hub (no text or symbols)

Illustration showing a seated person in bed and a side table with sound waves, labeled 'Unter' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical bracket assembly with mounting flanges and mounting holes (no text or symbols)

Line drawing of a three-tiered speaker tower with circular blades and a central hub (no text or symbols)

Line drawing of a vertical speaker with two circular fans and a central hub (no text or symbols)

OPERAZIONI PRELIMINARI

ITALIAN

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

ALTRI ALTOPARLANTI (PIEDINI IN GOMMA)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central circular component (no text or symbols)

Line drawing of a person sitting in a chair next to a simple TV stand with sound waves, labeled 'Sotto' (no text or symbols on the diagram itself)

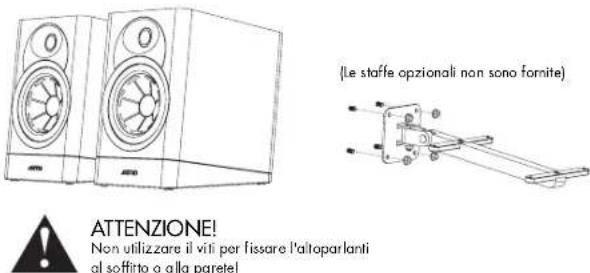

FIGURA 4 FISSAGGIO A PARETE DEGLI ALTOPARLANTI SURROUND S7-15B

Technical line drawing of a mechanical bracket assembly (no text or symbols)

CURA E PULIZIA

Line drawing of a three-tiered speaker tower with circular speakers and directional arrows (no text or symbols)

Line drawing of a three-tiered speaker with circular components and a base (no text or symbols)

S7-25C S7-43CS7-27F S7-25F

ANTES DE COMEÇAR

PORTUGUESE

Technical line drawing of a mechanical component with mounting holes and a central mounting bracket (no text or symbols)

OUTROS ALTO-FALANTES (PES DE BORRACHA)

Technical line drawing of a mechanical enclosure with mounting holes and a central hub (no text or symbols)

Line drawing of a person sitting in bed with sound waves, next to a side table labeled 'Abaixo' (no text on diagram)

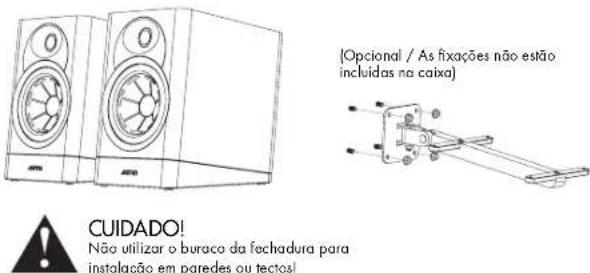

FIGURA 4 MONTAGEM NA PAREDE DO ALTO-FALANTE SURROUND S7-15B

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

CUIDADO E LIMPEZA

Line drawing of a three-tiered speaker tower with circular blades and a base (no text or symbols)

Line drawing of a three-tiered speaker with circular components and a base (no text or symbols)

开始使用之前

Technical line drawing of a mechanical component with mounting holes and a central mounting bracket (no text or symbols)

其他扬声器 (橡胶脚)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central circular component (no text or symbols)

室内音箱的布放 电气连接

Illustration of a person relaxing in bed and watching a TV on a side table, with sound waves indicating sound (no text or symbols)

图4 S7-15B入墙式环绕扬声器。

Technical line drawing of a mechanical bracket assembly with mounting flanges and mounting holes (no text or symbols)

保养和清洁
