Ab Firmware V2.2.3 / V2.1.2 build 201029:

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control

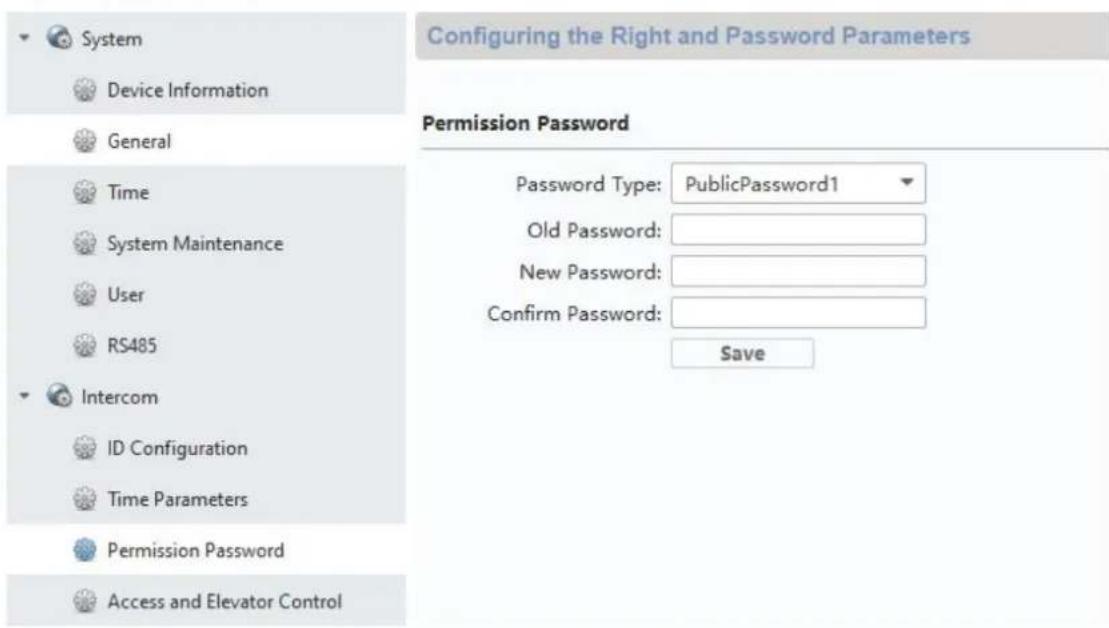

Configuring the Right and Password Parameters
Permission Password

Password Type: PublicPassword1 Old Password: New Password: Confirm Password: Save

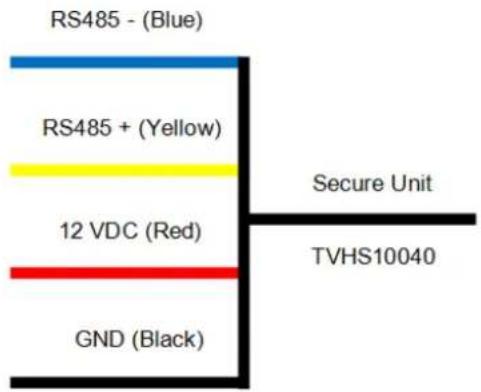

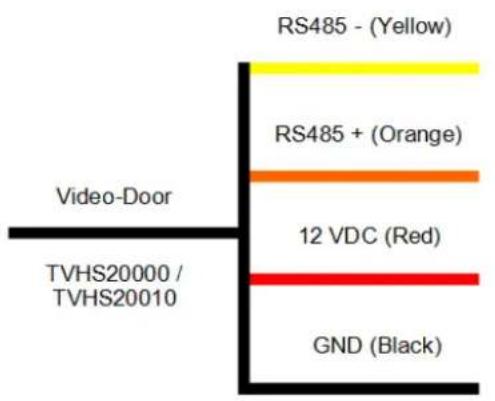

RS485 - (Blue) RS485 + (Yellow) 12 VDC (Red) GND (Black) Secure Unit TVHS10040

Bis Firmware V2.0.8 / V2.1.2 build 200410:

Ab Firmware V2.2.3 / V2.1.2 build 201029:

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial IO Input/Output IO Input IO Input No: AI1 Input: Door Status IO Output IO Output No: DOOR1 Output: Electric Lock Save

Remote Configuration System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Configuring the Room Numbers Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

Remote Configuration Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Local Network Configuration Linked Network Configuration FTP Settings Advanced Settings Configuring the Network and Sip Parameters Linked Network Configuration Device Type: Door Station Master Station IP Address: 0.0.0.0 (Main) Door Station IP Address: 192.168.0.45 SIP Server IP Address: 0.0.0.0 Security Control Panel IP Address: 0.0.0.0 Security Control Panel Port No.: 0 Save

Remote Configuration

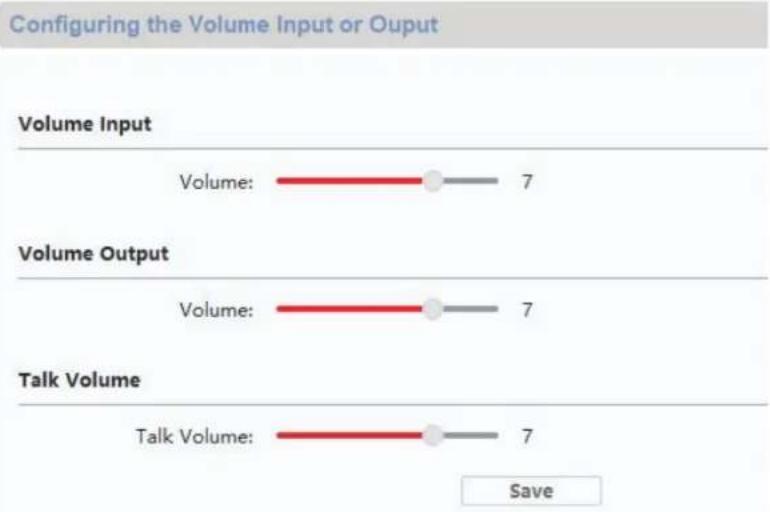

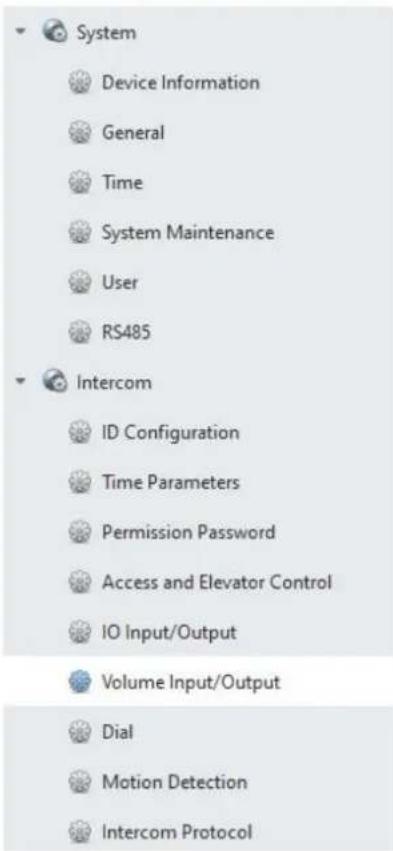

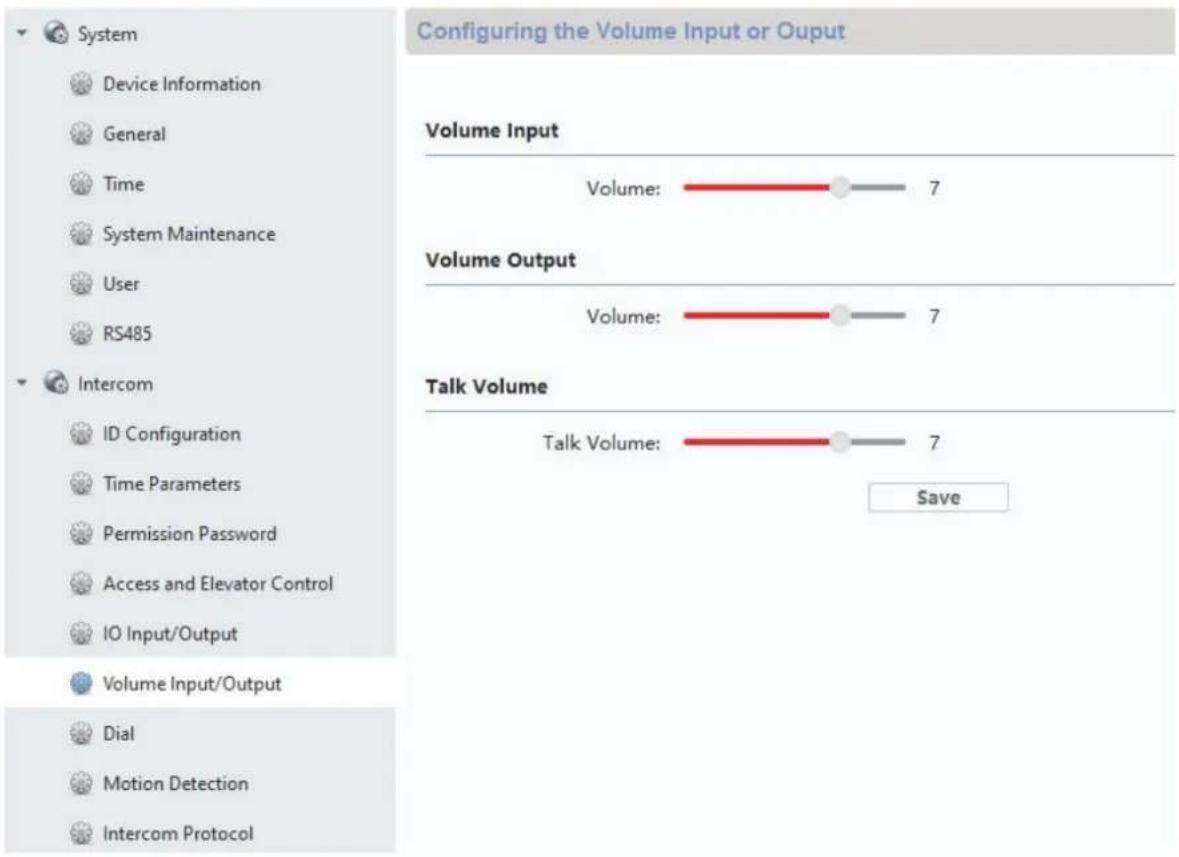

Configuring the Volume Input or Output Volume Input Volume: 7 Volume Output Volume: 7 Talk Volume Talk Volume: 7 Save System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol

Line drawing of a rectangular electronic device with concentric circles and a base (no text or symbols)

LAN GND 12V OUT 465+ 485- RSABS OUT AIN4 AIN3 AIN1 AIN2 Alarm to GND 12V DC GND NO2 NC2 COM NO1 NC1 DOOR 12 VAC

Technical line drawing of a mechanical or electronic component with internal ports and a dome-shaped top (no text or symbols)

Exterior view of a metallic industrial control unit with a vertical glass lid (no visible text or symbols)

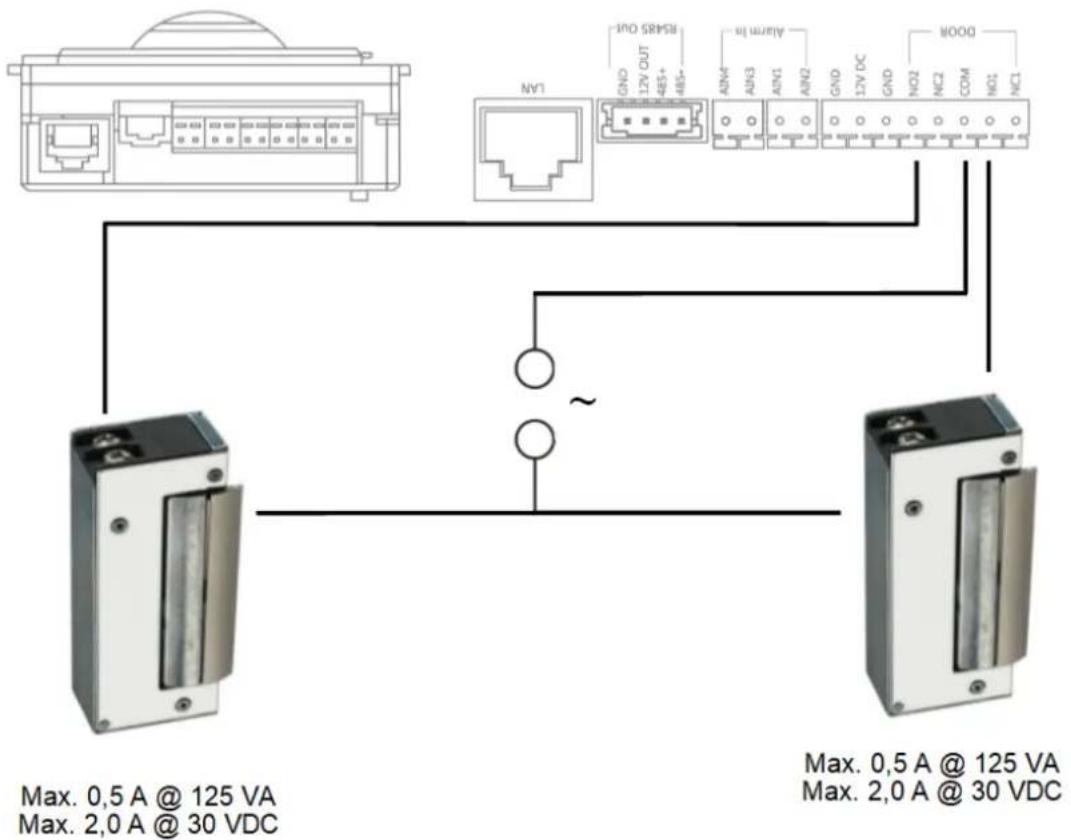

Max. 0,5 A @ 125 VA Max. 2,0 A @ 30 VDC

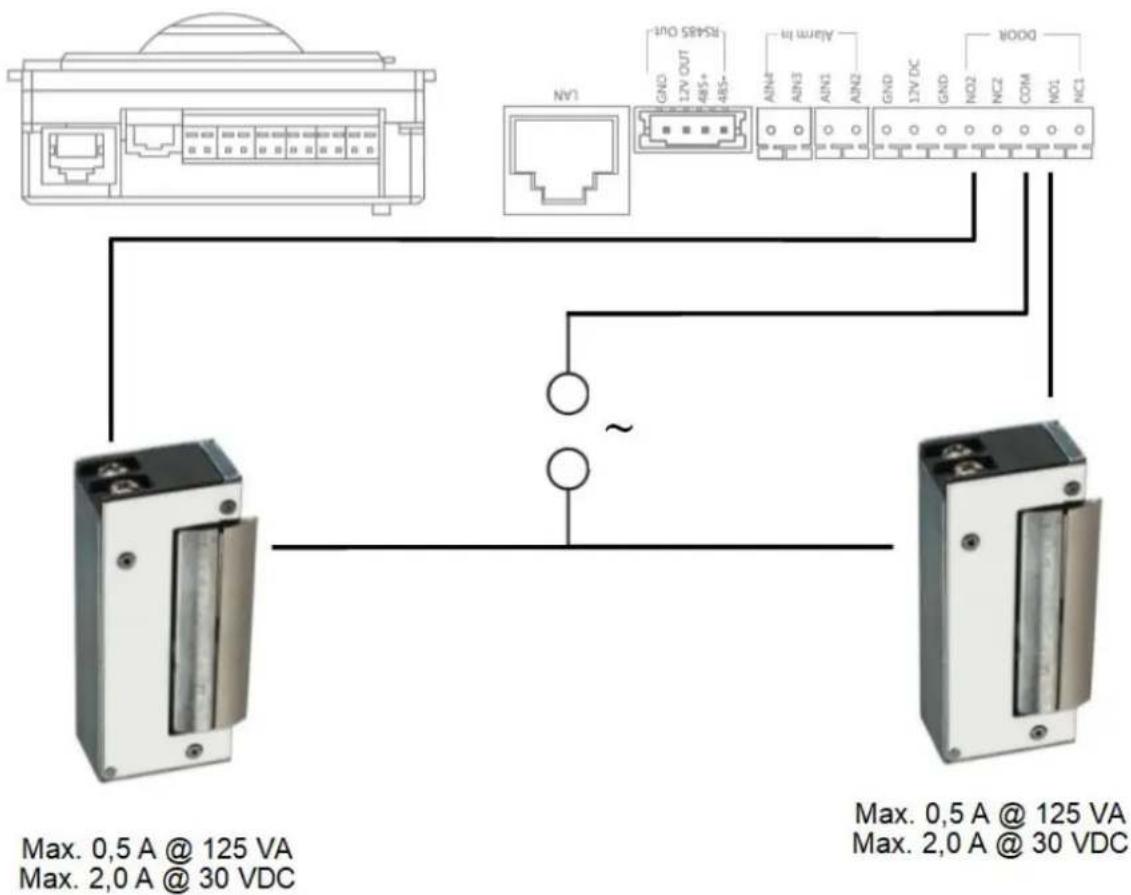

Max. 0,5 A @ 125 VA Max. 2,0 A @ 30 VDC NY1 GND L2V OUT RS45 OUT AIN4 AIN3 AIN1 AIN2 GND L7V DC GND NO2 NC2 COM NO1 NO1 DOOR ~ Max. 0,5 A @ 125 VA Max. 2,0 A @ 30 VDC

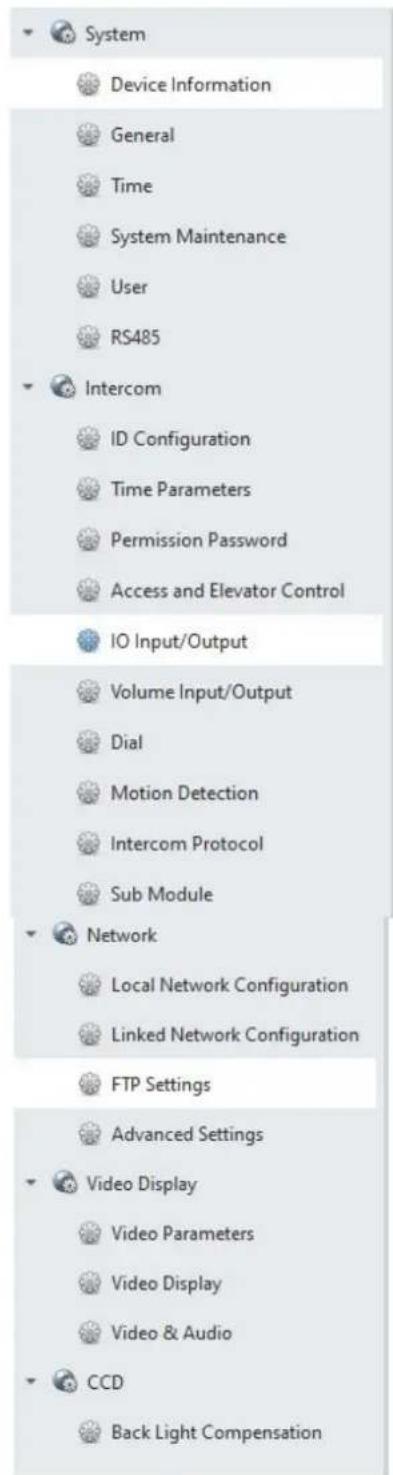

Remote Configuration

System

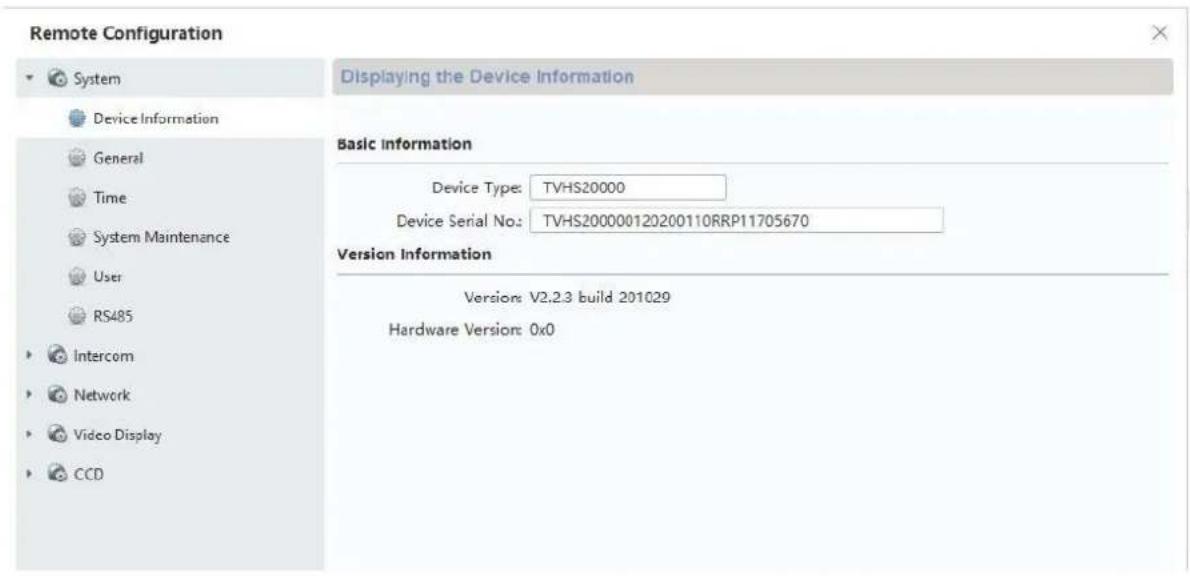

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Zone Alarm

IP Camera Information

Volume input/Output

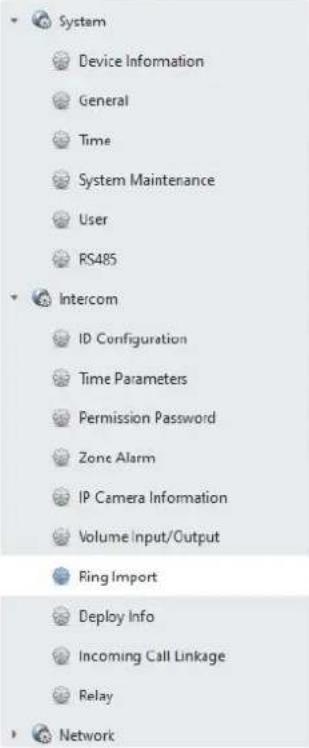

Ring Import

Deploy Info

Incoming Call Linkage

Relay

Network

Ring Configuration

Index	Name	Size	Type	Add	Delete
1	Sprach...1_sd_2	185466	wav	+	×
2				+	×
3				+	×
4				+	×

Remote Configuration System Device Information General Time System Maintenance User RS485 Intercom Network Video Display CCD System Maintenance System Management Reboot Restore Default Settings Restore All Import Configuration File Export Configuration File Remote Upgrade Select Type: Controller Upgra... Select File: ... Upgrade Progress: System Type NetworkVideoIntercomSystem Sve

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Access and Elevator Control

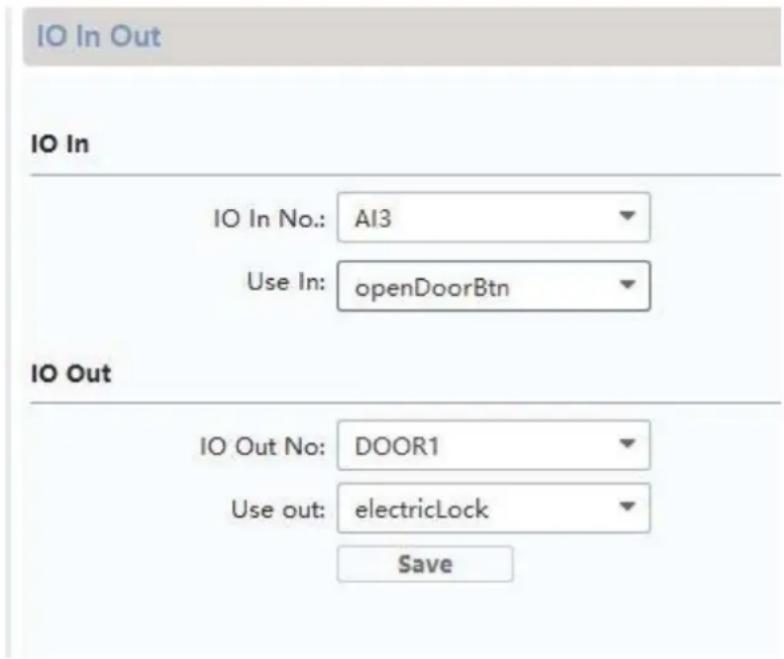

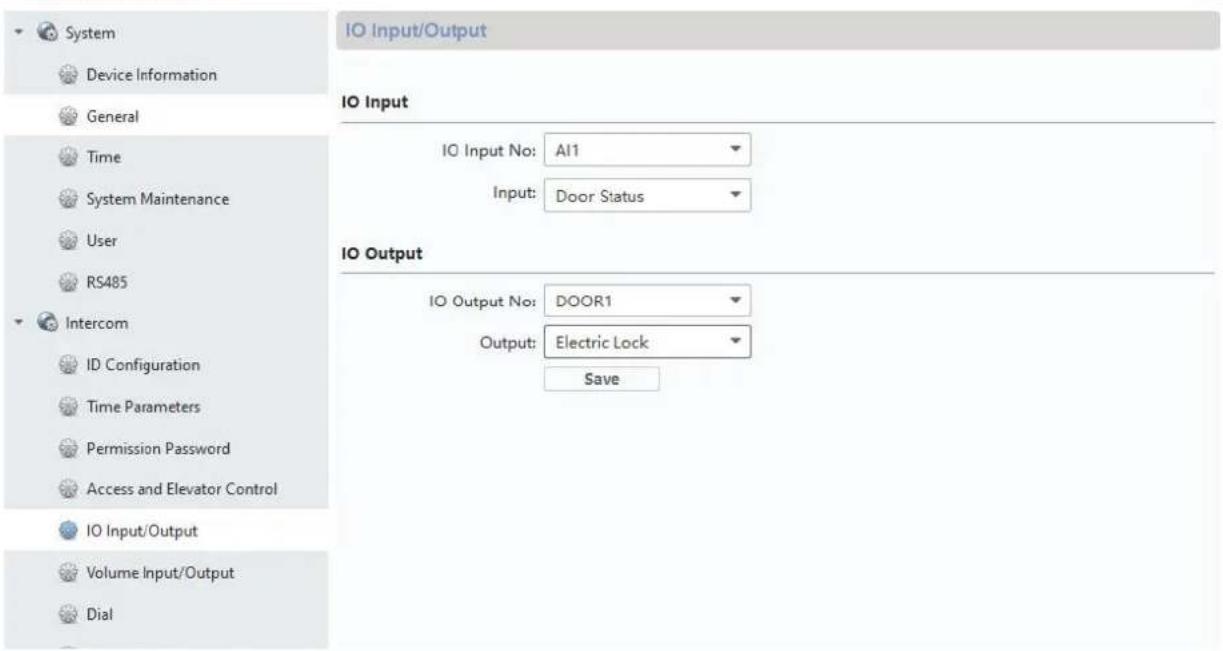

IO Input/Output

Volume Input/Output

Dial

Motion Detection

Intercom Protocol

Sub Module

Network

Local Network Configuration

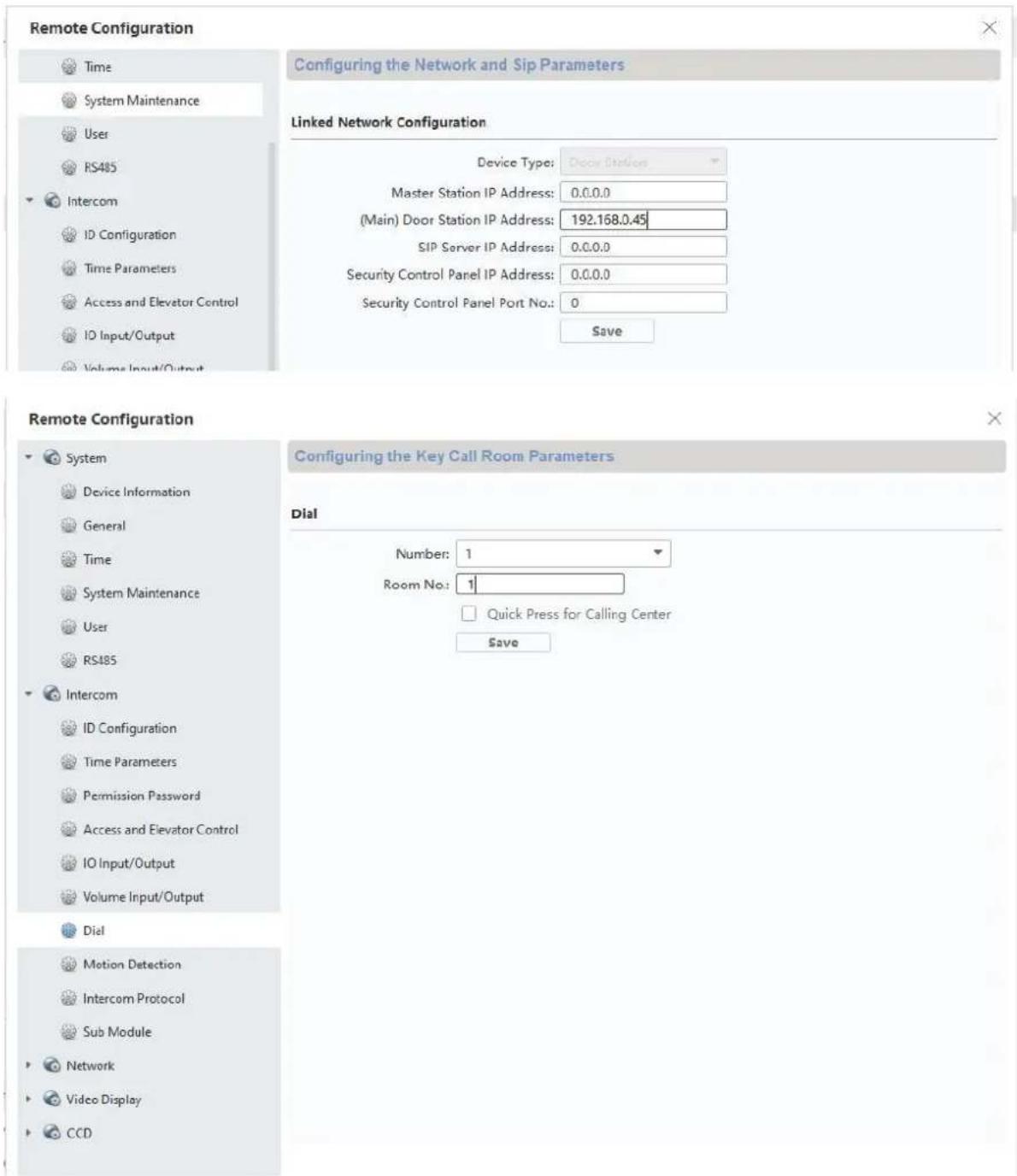

Linked Network Configuration

FTP Settings

Advanced Settings

Video Display

Video Parameters

Video Display

Video & Audio

CCD

Back Light Compensation

TVHS20200, TVHS20210, TVHS20220":

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Zone Alarm

IP Camera Information

Volume Input/Output

Ring Import

Deploy Info

Incoming Call Linkage

Relay

Network

Local Network Configuration

Linked Network Configuration

Advanced Settings

ABUS Link Station

Streampfad: Streaming/Channels/101 (Main Stream)

Streaming/Channels/102 (Sub Stream)

Diagram showing connections between network device interfaces and terminal blocks, including Ethernet ports, I/O ports, and a power supply unit.

Max. 2A @ 30 VDC
Max. 0.5A @ 125 VAC

Technical line drawing of a device front panel and internal ports (no text or symbols)

NVT IPD SIMPSB 12V OUT 485+ 485- AN4 AN3 AN2 AN1 AN0 12V DC GND NC2 COM NO3 NC3 90000

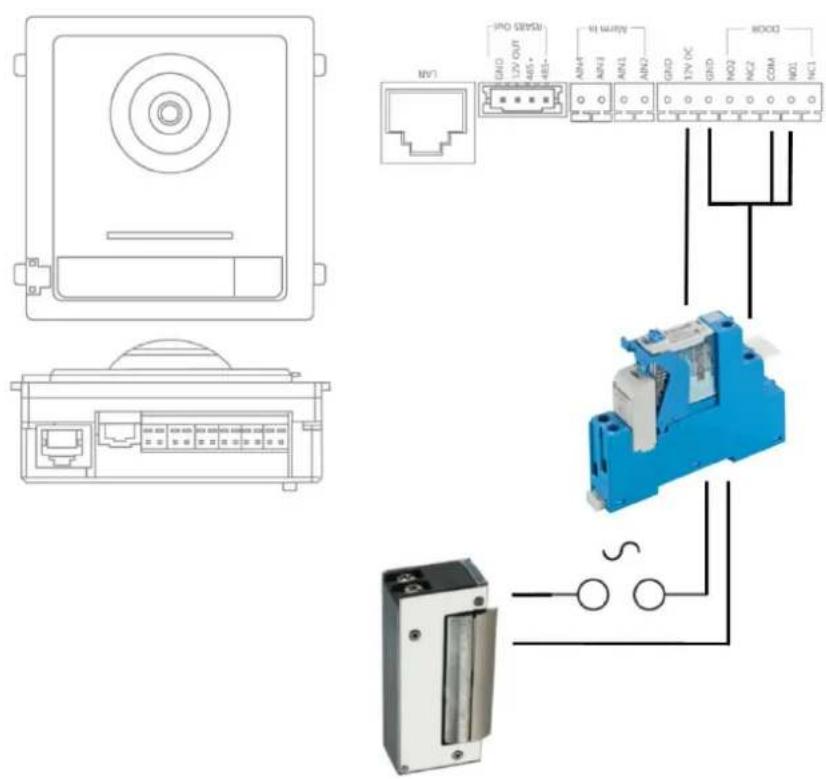

Hutschienen Relais:

Blue and silver mechanical component with no visible text or symbols

Close-up of a green electronic component with black and green terminals, no visible text or symbols.


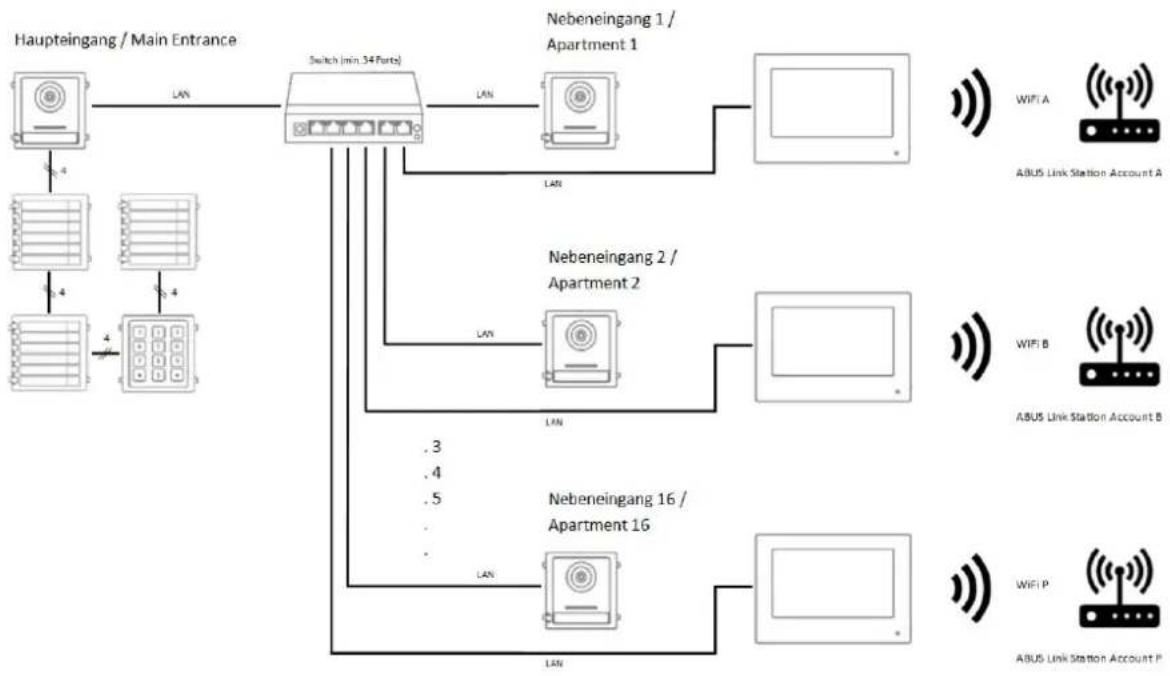

    A["Haupteingang / Main Entrance"] -->|2-Draft / 2-wire| B["TVH00150"]
    B -->|2| C["Nebeneingang 1 / Apartment 1"]
    B -->|2| D["Nebeneingang 2 / Apartment 2"]
    B -->|2| E["Nebeneingang 16 / Apartment 16"]
    C --> F["Apartment 1"]
    D --> G["Apartment 2"]
    E --> H["Apartment 16"]
    F --> I["WIFI A"]
    F --> J["ABUS Link Station Account A"]
    G --> K["WIFI B"]
    G --> L["ABUS Link Station Account B"]
    H --> M["WIFI P"]
    H --> N["ABUS Link Station Account P"]
    B -->|2| O["Info: 6 x TVH=203B.0"]
    D -->|2| P["Info: .3, .4, .5"]
    E -->|2| Q["Info: .3, .4, .5"]
    E --> R["Info: .3, .4, .5"]

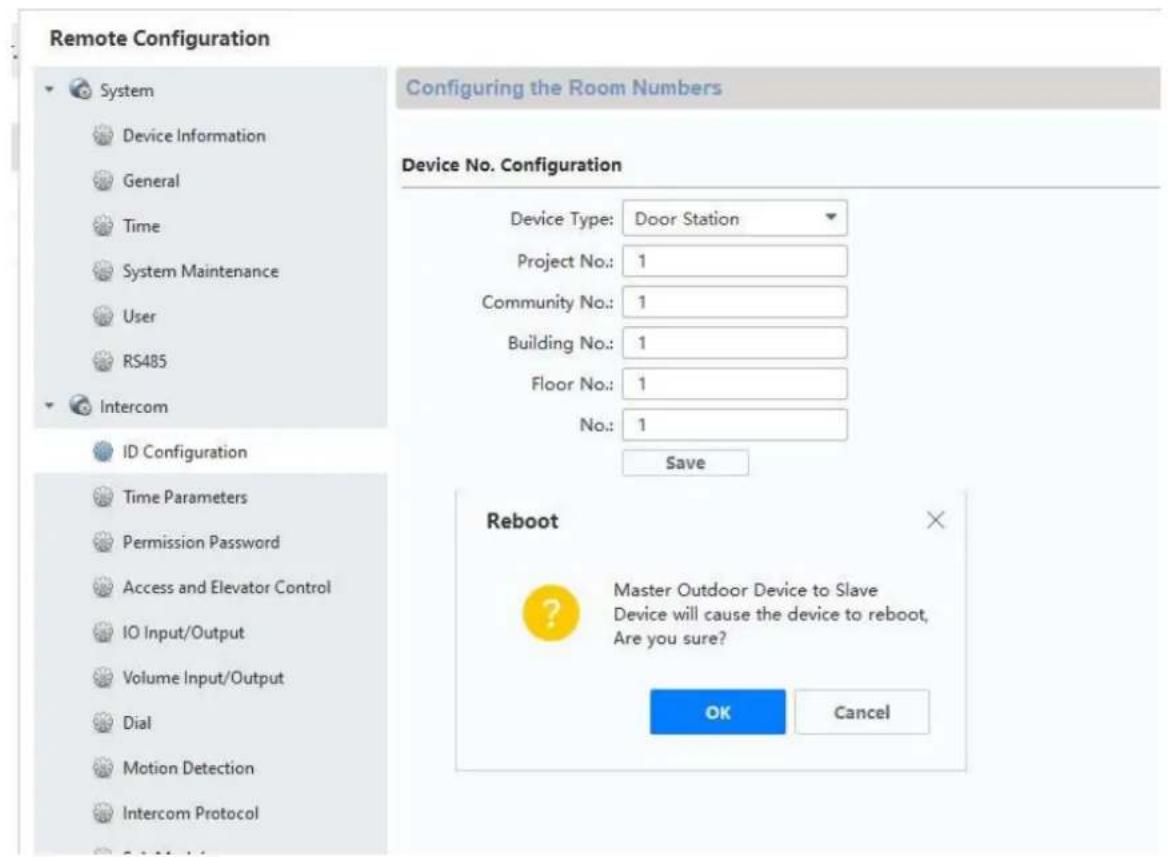

Remote Configuration Configuring the Room Numbers System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Video Display CCD Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

Remote Configuration Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Access and Elevator Control ID Input/Output Volume Input/Output Configuring the Network and Sip Parameters Linked Network Configuration Device Type: Door Station Master Station IP Address: 0.0.0.0 (Main) Door Station IP Address: 192.168.0.45 SIP Server IP Address: 0.0.0.0 Security Control Panel IP Address: 0.0.0.0 Security Control Panel Port No.: 0 Save Remote Configuration System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Video Display CCD Configuring the Key Call Room Parameters Dial Number: 1 Room No: 1 Quick Press for Calling Center Save

Solid dark rectangular shape with no visible text, symbols, or features.

User manual

Version 06/2021 (V1.2)

CE

English translation of the original German user manual. Retain for future reference.

EN Introduction

Dear Customer,

Thank you for purchasing this product.

TVHS20000 / TVHS20000S

The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU.

TVHS20010 / TVHS20010(S)

The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU.

TVHS20020 / TVHS20020(S)

The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU.

TVHS20030 / TVHS20030S

The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU.

TVHS20040

The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU.

TVHS20200

ABUS Security-Center hereby declares that the device complies with Radio Equipment Directive (RED) 2014/53/EU. Additionally, these devices comply with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at the following internet addresses: www.abus.com/product/TVHS20200

TVHS20210

ABUS Security-Center hereby declares that the device complies with Radio Equipment Directive (RED) 2014/53/EU. Additionally, these devices comply with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at the following internet addresses: www.abus.com/product/TVHS20210

TVHS20220

ABUS Security-Center hereby declares that the device complies with Radio Equipment Directive (RED) 2014/53/EU. Additionally, these devices comply with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The full EU Declaration of Conformity text can be found at the following internet addresses: www.abus.com/product/TVHS20220

TVHS10040 / TVHS20340

The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU.

To ensure this remains the case and to guarantee safe operation, it is your obligation to observe these operating instructions.

Please read the entire user guide carefully before commissioning the product, and pay attention to all operating instructions and safety information.

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

If you have any questions, please contact your specialist installation contractor or specialist dealer.

Disclaimer

This user guide has been produced with the greatest of care. Should you discover any missing information or inaccuracies, please let us know about them.

ABUS Security-Center GmbH & Co. KG does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user manuals at any time and without prior warning.

ABUS Security-Center GmbH is not liable or responsible for any direct or indirect damage resulting from the installation, performance and use of this product. No guarantee is made for the contents of this document.

Important safety information

All guarantee claims are invalid in the event of damage caused by non-compliance with this user manual. We cannot be held liable for resulting damage.

We cannot be held liable for material or personal damage caused by improper operation or non-compliance with the safety information. All guarantee claims are void in such cases.

Dear customer,

The following safety information and hazard notes are not only intended to protect your health, but also to protect the device from damage. Please read the following points carefully:

• There are no components inside the product that require maintenance by the operator. Opening or dismantling the product invalidates the CE certification and guarantee claims/warranty.
• The product may be damaged if it is dropped, even from a low height.

Avoid the following adverse conditions during operation:

• Moisture or excess humidity
• Extreme heat or cold
• Direct sunlight
• Dust or flammable gases, vapours or solvents
• Strong vibrations
  • Strong magnetic fields (e.g. next to machines or loudspeakers)
• The camera must not be installed on unstable surfaces.

General safety information:

• Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc. can pose a danger to children if played with.
• The video surveillance camera contains small parts which could be swallowed and must be kept out of the reach of children for safety reasons.
• Do not insert any objects into the device through the openings.
• Only use replacement devices and accessories that are approved by the manufacturer. Do not connect any non-compatible products.
• Please pay attention to the safety information and user manuals for the other connected devices.
• Check the device for damage before putting it into operation. Do not put the device into operation if you identify any damage.
• Adhere to the normal voltage limits specified in the technical data. Higher voltages could destroy the device and pose a health risk (electric shock).

When installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the mains power circuit and low-voltage circuit.

If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the power supply system or domestic installation puts both you and other persons at risk.

Connect the installations so that the mains power circuit and low-voltage circuit always run separately

from each other. They should not be connected at any point or become connected as a result of a malfunction.

Contents

1. INTENDED USE....84
2. EXPLANATION OF SYMBOLS....84
3. SYSTEM OVERVIEW 85

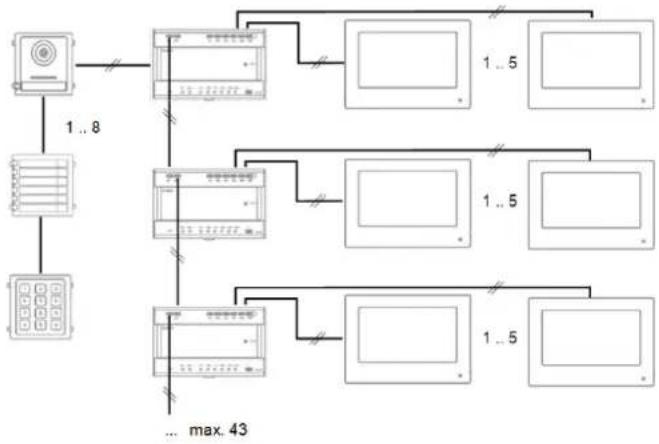

3.1 2- WIRE VARIANT....87

3.1.1 C COMPONENTS....87
3.1.2 R ECOMMENDED CABLE TYPES 88

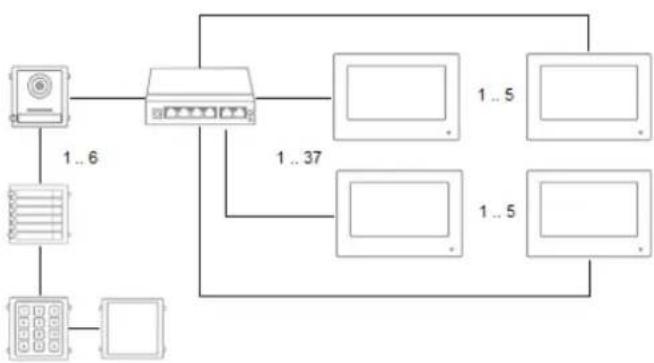

3.2 IP NETWORK VARIANT 88
3.2.1 C COMPONENTS....88

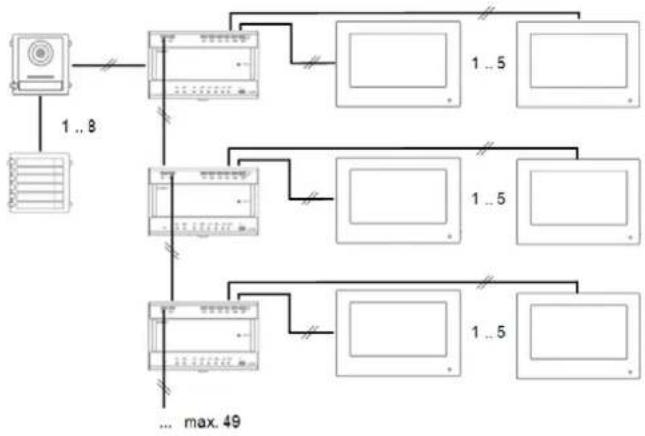

3.3 I INSTALLATION COMPONENTS 89
3.4 S YSTEM VARIANTS 90

1. START-UP 95

4.1 W IRING 95
4.1.1 I INSTALLATION HEIGHT 95
4.2 A CTIVATION OPTIONS / INITIAL PASSWORD ASSIGNMENT 96
4.2.1 A CTIVATION VIA DOOR STATION MONITOR 96
4.2.2 A CTIVATION VIA IP NETWORK.... 100
4.2.3 P PASSWORD RESET FOR MONITOR/VIDEO DOOR MODULE 100

1. MONITOR OPERATION (2-WIRE & IP).... 101

5.1 L IVE IMAGE 101
5.2 M AIN PAGE OVERVIEW....102
5.2.1 M ENU ITEM: CALL SETTINGS 107
5.2.2 W I-FI SETTINGS 111
5.2.3 F LOOR BUTTONS.... 112
5.2.4 O THER SETTINGS.... 113
5.2.4.1 C ONFIGURATION - LOCAL INFORMATION.... 113
5.2.4.2 C ONFIGURATION – NETWORK SETTINGS 117
5.2.4.3 C ONFIGURATION - DEVICE MANAGEMENT 118
5.2.4.4 C ONFIGURATION - DEFAULT SETTINGS.... 120
5.2.5 R ELAY CONFIGURATION.... 120
5.2.6 MICROSD CARD 122
5.2.7 L OCK SCREEN....122
5.2.8 D EVICE INFORMATION 122
5.2.9 T IME SETTING 122
5.2.10 R ESTART DEVICE 122
5.2.11 P PASSWORD SETTINGS (PIN CODE).... 123
5.2.12 S YSTEM LANGUAGE.... 124
5.2.13 B RIGHTNESS SETTING 124
5.2.14 F LOOR BUTTON.... 124
5.2.15 O PEN SOURCE LICENCE INFORMATION.... 124

1. MAINTENANCE AND CLEANING 125

6.1 FUNCTION TEST.... 125
6.2 CLEANING....125

1. DISPOSAL.... 125
2. OPEN SOURCE LICENCE INFORMATION 125
3. INSTALLATION AND OPERATING INFORMATION.... 126

9.1 U SING THE SECURITY MODULE (TVHS10040).... 126

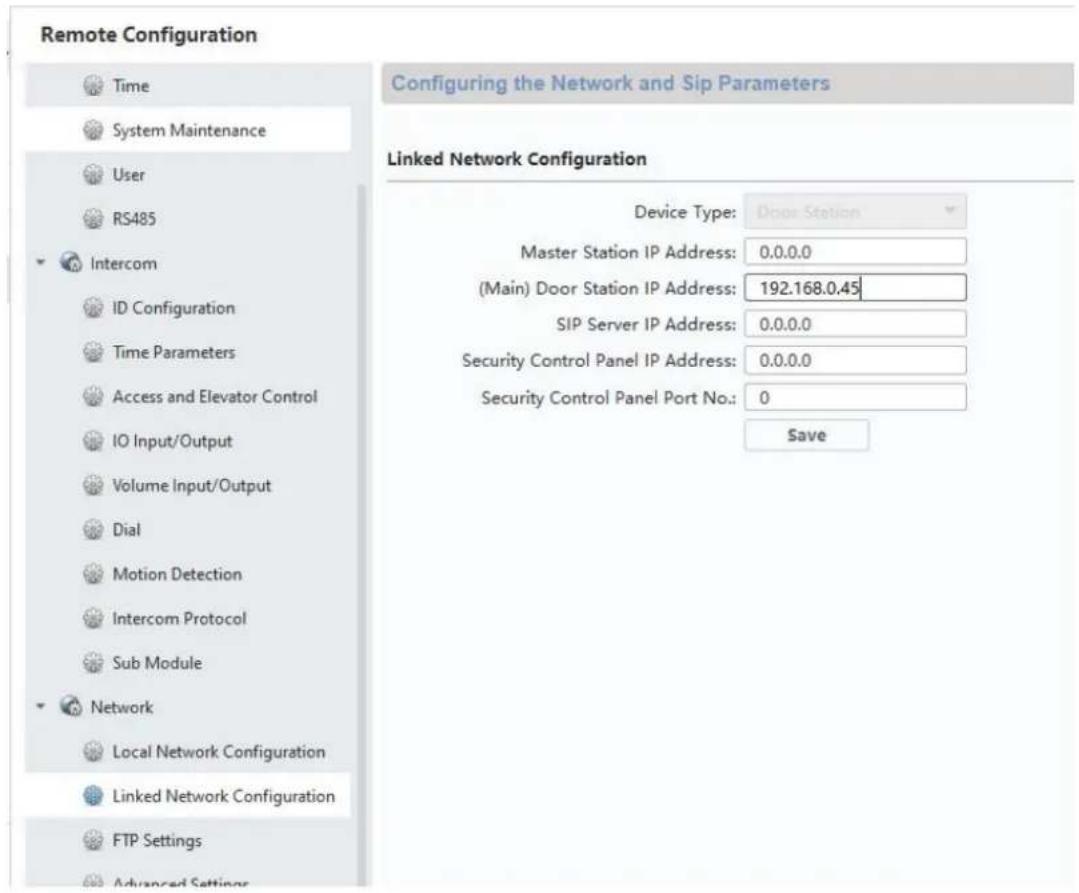

9.2 S ETTING UP BACK DOORS.... 128

9.3 S ETTING UP EXTENDED CALL BUTTONS (TVHS20020) FOR MULTI-FAMILY HOMES 129

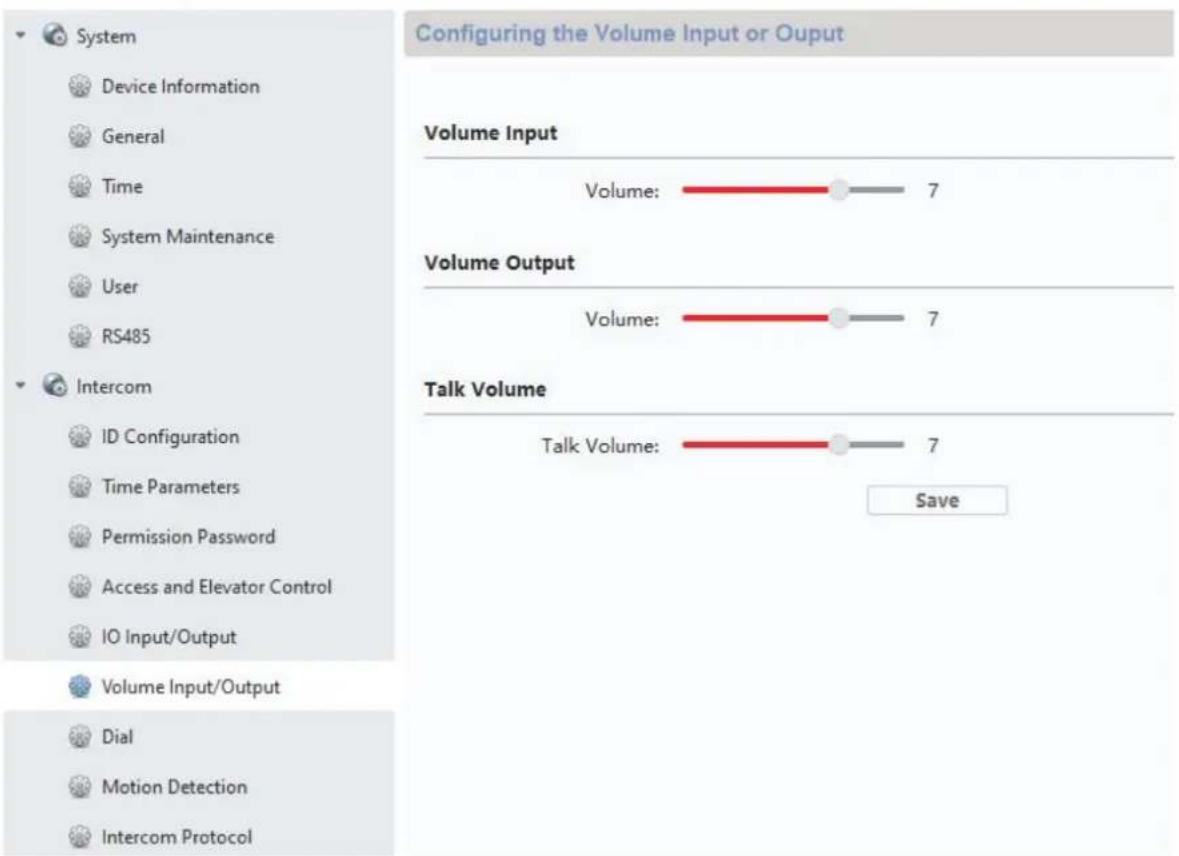

9.4 A DJUSTING THE VOLUME ON THE DOOR VIDEO MODULE (TVHS20000(S), TVHS20010(S))...... 133

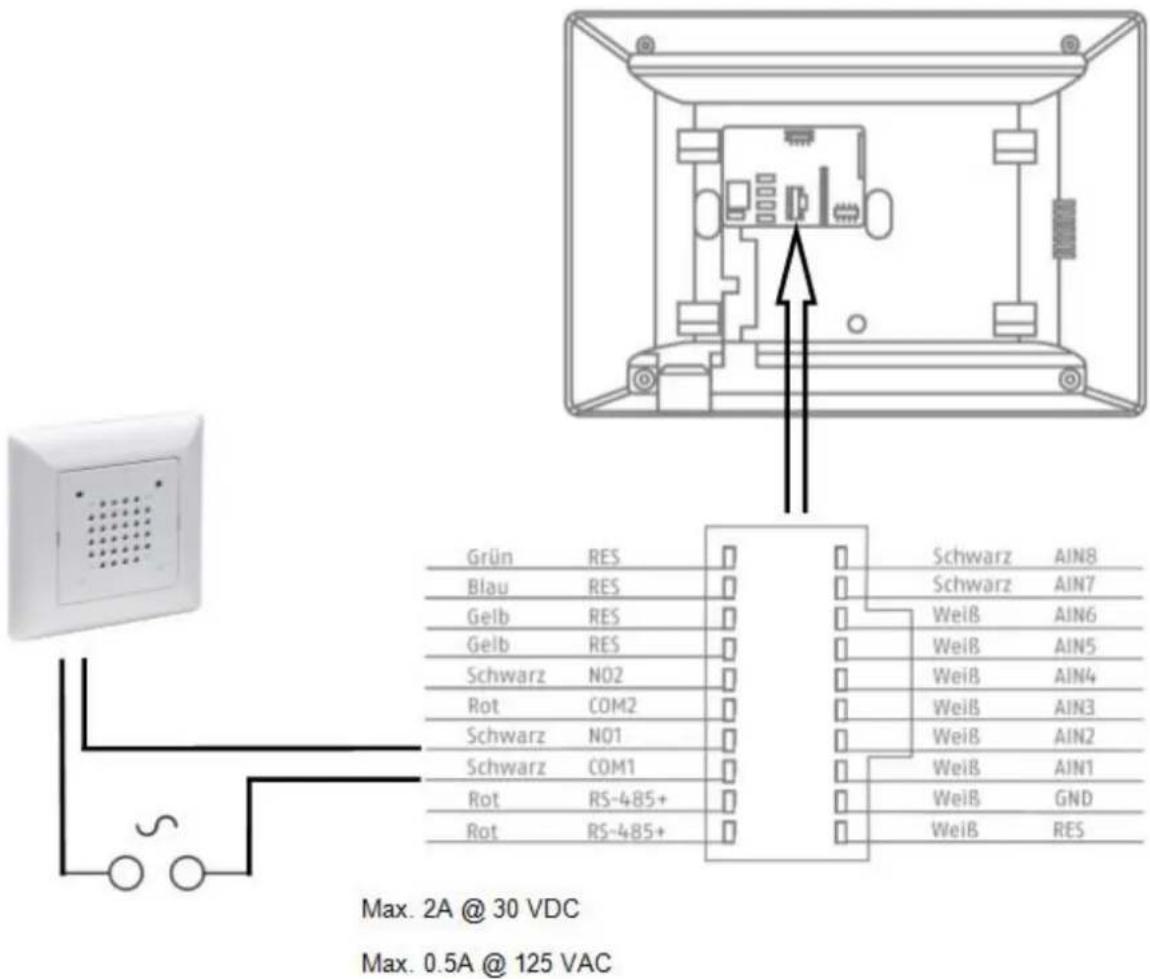

9.5 C ONNECTING AN EXISTING DOORBELL 134

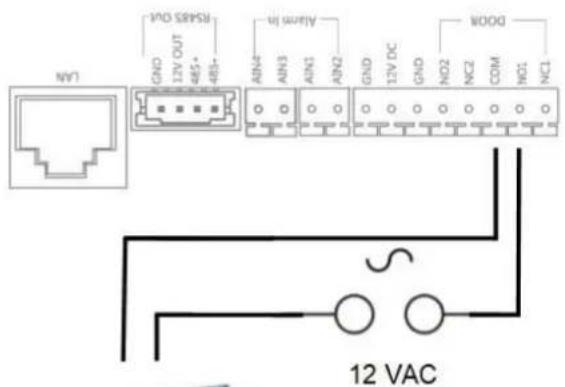

9.6 C ONNECTING EXISTING DOOR OPENERS TO THE DOOR STATION MONITOR 134
9.7 C ONNECTING FLOOR CALL BUTTONS TO THE MAIN MONITOR 135
9.8 C ONNECTING ELECTRICAL DOOR OPENERS TO THE VIDEO MODULE (INCLUDING "GARDEN GATE")... 136
9.9 P LAYS YOUR OWN RING TONES IN THE DOOR STATION MONITOR 138
9.10 ABUS CMS: PERFORM FIRMWARE UPDATE FOR MODUVIS COMPONENTS.... 140
9.11 ABUS CMS: ADVANCED SETTING OPTIONS.... 142
9.12 MODUVIS AND ABUS LINK STATION APP RANGE OF FUNCTIONS.... 146
9.13 C OMPATIBILITY WITH ABUS PRODUCTS 146
9.14 C ONNECTING THE VIDEO DOOR MODULE TO ABUS NVR.... 146
9.15 "E MERGENCY DOOR OPENER" BUTTON ON DOOR VIDEO MODULE 147
9.16 R ELAY CONNECTION.... 149
9.17 I NSTRUCTIONS FOR MEASURING THE CURRENT DOOR OPENER.... 150

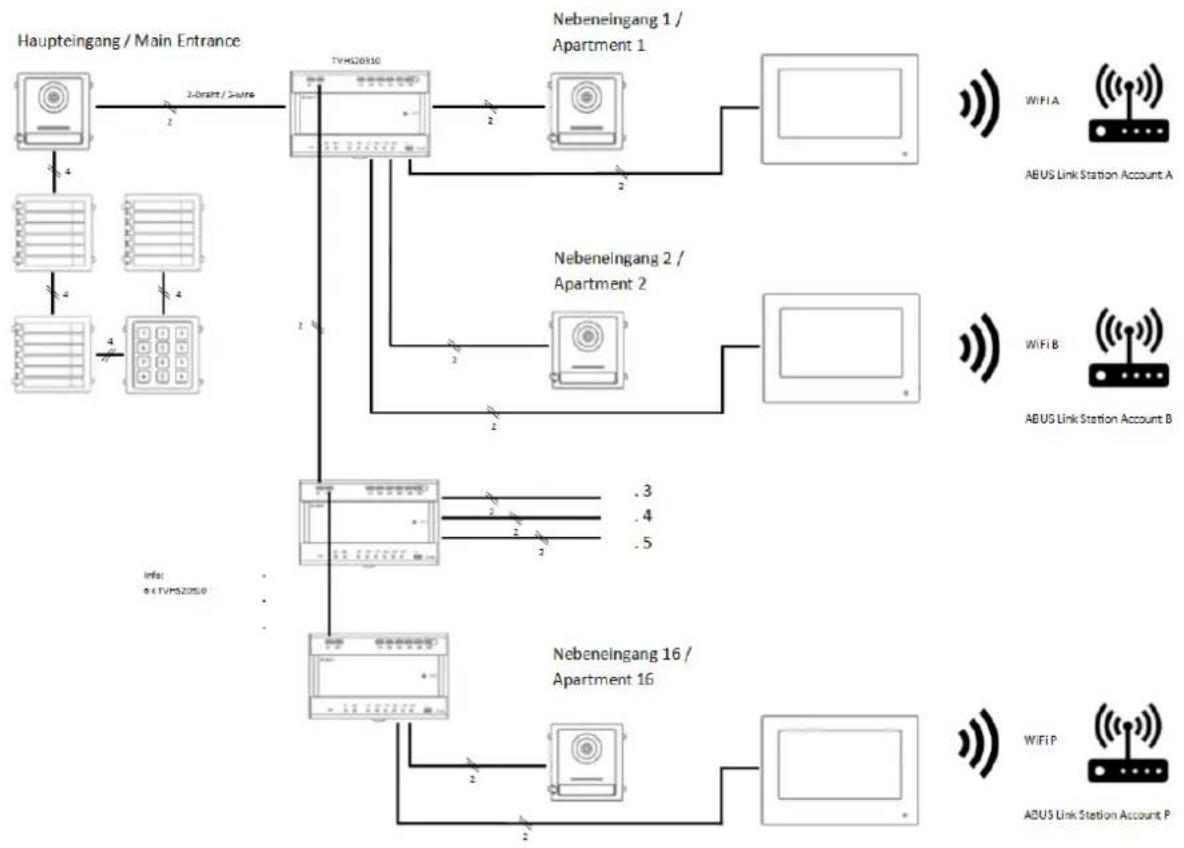

9.18 A PPLICATION EXAMPLE "VIDEO MODULE IN FRONT OF EVERY APARTMENT DOOR" 150
9.19 A PPLICATION EXAMPLE "INDIVIDUAL WIFI ACCESS" 153

1. WIRING GUIDELINES (2-WIRE).... 154

1. Intended use

This MODUVIS door intercom is a two-way communication system with a video display of the door area. The system can be used for a single or multi-family home. With extension monitors in a living unit, the system can also be used as a two-way communication system (without video) within the home.

The MODUVIS door intercom is not a video surveillance system, nor may it be used as one.

Use of this product for any other purpose than that described may lead to damage to the product and other hazards. All other uses are not as intended and will result in the invalidation of the product guarantee and warranty. No liability can be accepted as a result. This also applies to any alterations or modifications made to the product.

Read the operating instructions fully and carefully before using the product. The operating instructions contain important information on installation and operation.

2. Explanation of symbols

The triangular high voltage symbol is used to warn of the risk of injury or health hazards, e.g. caused by electric shock.

The triangular warning symbol indicates important notes in this user guide which must be observed.

This symbol indicates special tips and notes on the operation of the unit.

3. System overview

This door intercom is also available with two different wiring technologies:

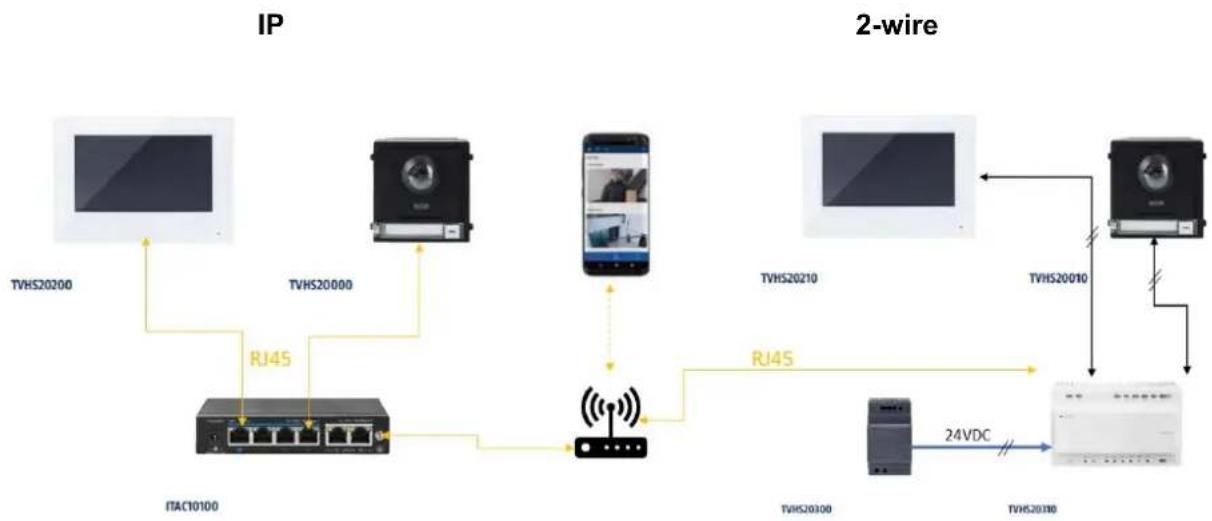

2-wire variant: Communication and power supply are transmitted through 2 wires (1 pair). The wiring is star-shaped, with the central point a 2-wire distributor. A basic system consists of the 2-wire distributor, 2-wire monitor and 2-wire video module.

IP variant: Communication and power supply are transmitted through Ethernet (network) cables. The components support power over Ethernet (PoE) (optional 12 VDC) The wiring is star-shaped, with the (PoE) switch at the central point. A basic system consists of the IP monitor and IP video module.


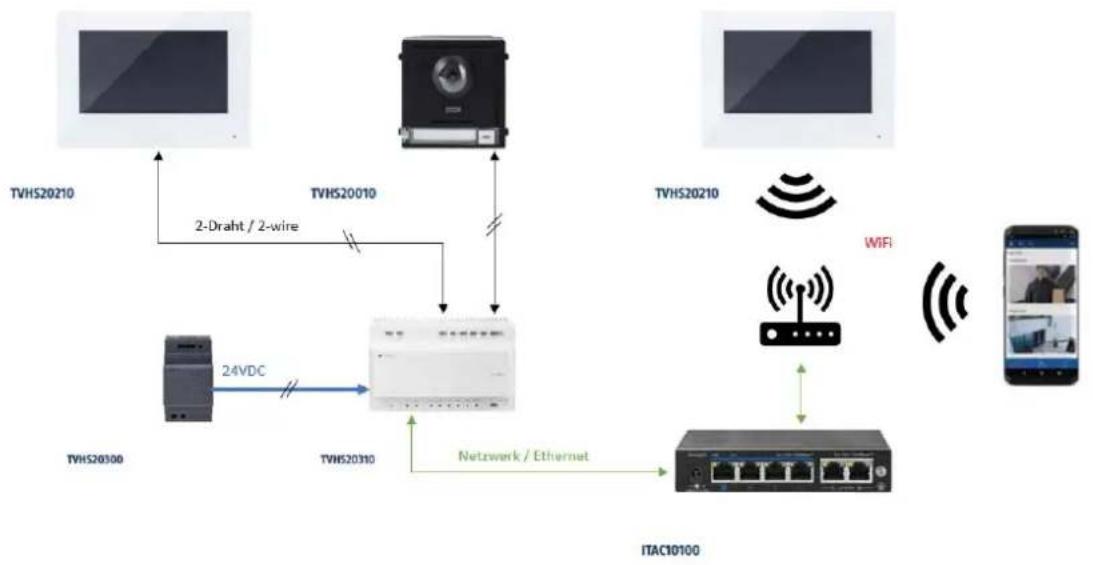

Both system variants can be combined with one another. This allows for optimal adaptation to the building conditions present.

Examples of combined systems:

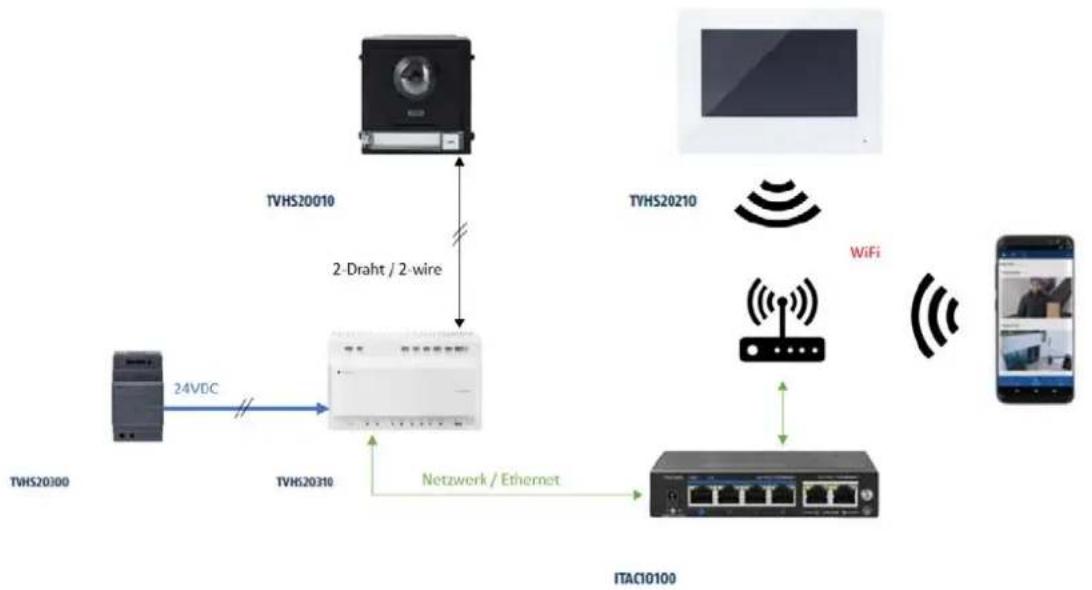

This example shows the mixed operation of a main monitor via 2-wire and an extension monitor via WiFi.

This example shows the mixed operation of a video door module via 2-wire with a main monitor via WiFi.

3.1 2-wire variant

3.1.1 Components

TVHS202102-wire monitor	TVHS20010 / TVHS20010S2-wire video module	TVHS203102-wire distributor
TVHS20020 / TVHS20020SBell push button(6 buttons)	TVHS20030 / TVHS20030SNumeric keypad	TVHS20040Information module
TVHS2030024 VDC power supply unit for hat rail	TVHS10040 / TVHS20340Security module

3.1.2 Recommended cable types

Select the type of cable based on the distance between the video module, distributor and monitor.

2-wire video module (TVHS20010 / TVHS20010S)
2-wire monitor (TVHS20210)
2-wire distributor (TVHS20310)

Cable type	24AWG (10 Ω per 100m)	20AWG (7 Ω per 100m)	18AWG (4 Ω per 100m)
Cable length
TVHS20310 / TVHS20310	Max. 60 m Max.	60 m Max. 60 m
TVHS20010(S) / TVHS20310	Max. 35 m Max.	60 m Max. 60 m
TVHS20210 / TVHS20310	Max. 35 m Max.	60 m Max. 60 m

3.2 IP network variant

3.2.1 Components

TVHS20200 / TVHS20220IP 7"/10" PoE monitor	TVHS20000 / TVHS20000SIP video module	TVHS20020 / TVHS20020SBell push button(6 buttons)
TVHS20030 / TVHS20030SNumeric keypad	TVHS20040Information module	TVHS10040 / TVHS20340[IMAGE]Security module

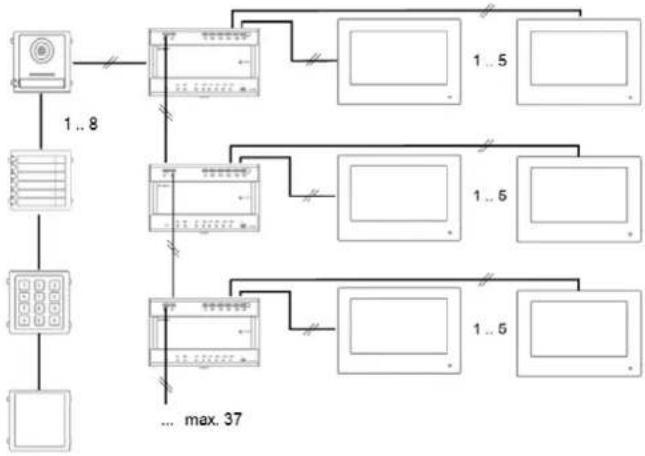

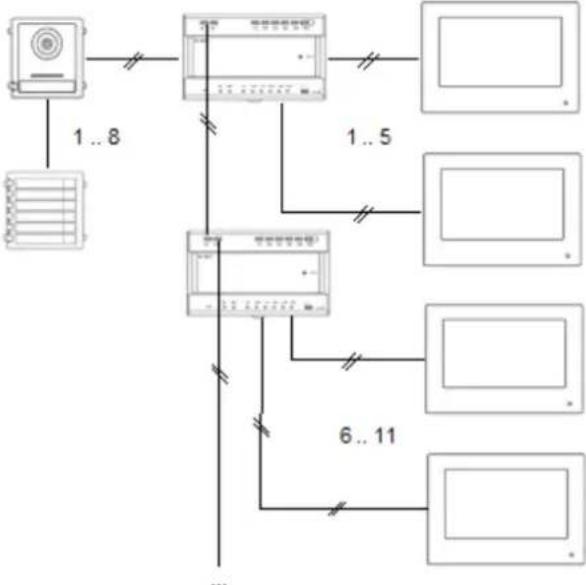

3.3 Installation components

These available installation components can be used for either the 2-wire or the IP variant of the Moduvis video door intercom

TVHS20050Blank module aperture	TVHS20060Aperture for unused call button	TVHS20100(S)Frame for 1 module flush mounting
TVHS20110(S)Frame for 2 modules flush mounting	TVHS20120(S)Frame for 3 modules flush mounting	TVHS10130(S)Frame for 1 module on-wall mounting
TVHS10140(S)Frame for 2 modules on-wall mounting	TVHS10150(S)Frame for 3 modules on-wall mounting	TVHS20160Outdoor housing for frame on-wall mounting (1 module)
TVHS20170Outdoor housing for frame on-wall mounting (2 modules)	TVHS20180Outdoor housing for frame on-wall mounting (3 modules)

3.4 System variants

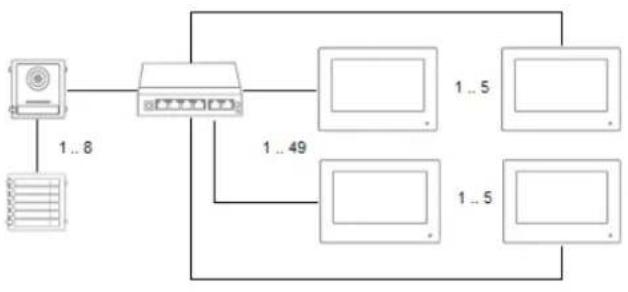

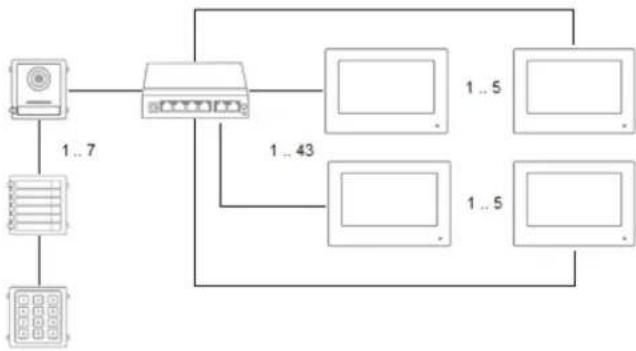

# Technology / wiring	System configuration Application	example
1 IP		Single-family home
2 IP		Single-family home with app access
3 IP		Single-family home with interior extension monitors
4 IP		Single-family home with interior extension monitors and back doors
5 IP		Multiple dwelling house

6 IP			Multi-family home with interior extension monitors
7 IP			Multi-family home with interior extension monitors and back doors
8 IP			Multi-family home with interior extension monitors, numeric keypad module and illuminated info module
9 2-wire			Single-family home
10			Single family home with side entrance

11 2-wire		Single-family home with app access
12 2-wire Single-family		home with interior extension monitors
13 2-wire		Single-family home with interior extension monitors and back doors
14 2-wire		Multiple dwelling house
15 2-wire		Multi-family home with interior extension monitors
16 2-wire		Multi-family home with interior extension monitors and back doors
17 2-wire		Multi-family home with interior extension monitors, numeric keypad module and illuminated info module

18 2-wire / IP

Combination of 2-wire and IP technology:Interior extension monitor over WiFi connection

NOTE:Each monitor and each door video module will appear separately in the network and have its own IP address. It makes no difference whether the systems are connected via PoE network or to the “2-wire distributor” in the 2-wire variant. The “TVHS20200” monitor can also be integrated into the network structure via WLAN.

Note:Each terminal device must be connected directly to the distribution unit. Forwarding from one monitor to the next is not permitted.

4. Start-up

4.1 Wiring

Please see the quick-start guide that comes with the product for more detailed wiring information. The brief instructions can also be found using the product search at www.abus-sc.de.

4.1.1 Installation height

The installation height of the video module TVHS20000(S) or TVHS20010(S) should not be less than 1.40 m (top edge). Otherwise it can happen that people standing too close to the video module cannot be recognized by their face.

4.2 Activation options / initial password assignment

4.2.1 Activation via door station monitor

1) Establish the system's power supply and make sure that the door station is also located in the same network.

Assign a password during initial monitor setup. This password will also automatically be used for door station activation. The password will also be required for the password-protected area of the monitor.

• 8-16 characters
• valid characters: numbers, lower-case letters, capital letters, special characters ( ! \$ % & / ( ) = ? + - )
• You must use at least two different types of character

2) Select the desired language and confirm by clicking "CONTINUE".

<	Language assistant 1/4
English
Deutsch
Italiano
Francais
Dutch

Firmware version note

Function: Dutch language

Video module (THVS20000(S) / TVHS20010(S)): V2.2.3_build_201029

Monitor (TVHS20200 / 210 / 220): V2.1.2_build_201029

3) Now choose between DHCP / Fixer IP address. It is highly encouraged to assign each separate device a fixed IP address, as otherwise new IP addresses may be assigned in the event of a power outage and this can cause serious disruptions in the system.

	Network assistant 2/4
DHCP
Local IP 192.168.0.11

Subnet mask	255.255.255.0
Gateway	192.168.0.1

4) Select the type of monitor you wish to configure.

	Wizard assistant 3/4
Indoor station Type Indoor station		>
Floor 0
Apartment no. 1

Indoor station:

The monitor acts as the main monitor for a home's door intercom system. It can be set up in a single-family or multi-family home. The main monitor in a residence must always be set up with the type "indoor station". If you only use one call button and one residence, the apartment number will remain on "1". If multiple residences/main monitors are used, the apartment numbers must be changed.

Example: Residence 1 => apartment number 1 Residence 2 => apartment number 2 (etc...)

This is the only way the call buttons can be assigned to different parties.

Note: A main monitor (indoor station) must always be linked to the main door station in the system.

Interior extension:

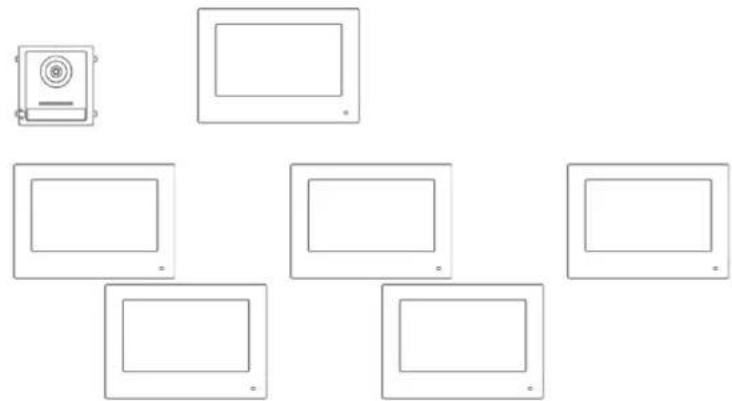

The monitor is used as an extension monitor in a system to equip more rooms in a home. All extension monitors are linked to the main monitor and display the same functions as the main monitor when the call button is pressed.

You can link up to a maximum of 5 additional monitors to a main monitors. (No. 1-5). You can also assign each monitor a “room name”. The room names will automatically appear under “Contacts” on the other monitors in the system.

Note: An extension monitor (indoor station) must always be linked to the main monitor in the system.

The following menu items are not available on the monitor for the installation type “interior extension”. They can only be set/accessed on the system’s main monitor:

• Switch "automatic acceptance" for answering machine on/off.
• Listen to answering machine messages
• ABUS LINK Station App – menu
• Add network cameras
• Configure network address and set factory settings on end devices

5) "Assistant-connected devices"

	Assistant-releated devices
Search by serial number
ABUS item no.	IP address	Firmware version	Enable
ABUS item no.	IP address	Firmware version	Enable
ABUS item no. [IMAGE]	IP address	Firmware version	Enable

Here you can see the available network devices in the TVHS20xxx door station series.

The main door station must be selected here if you are setting up a main monitor. The main monitor must be selected here if you are setting up an extension monitor.

You can also “enable” the door station here. The main monitor will then automatically activate the door station with the same password used on the monitor.

Select the main door station from the list and click "Enable" to do this. After successful activation, please select the door station. A green confirmation tick will appear on the left side of the list. The door station is now activated and successfully linked.

If no device is found in the network, make sure that the door station is located in the same network and supplied with power.

Open the IP settings for the device by clicking the corresponding "cog". This allows you to change the IP address of the door video module.

If you would like to add other back doors, please turn to chapter "9.2 Setting up back doors" under Installation and operating information.

4.2.2 Activation via IP network

Install and start up the ABUS IP Installer (which is available for each respective product from the ABUS website www.abus.com).

Each connected device should now appear in the selection list without the relevant IP address for the target network, where appropriate.

Each device must first be enabled, i.e. a correspondingly secure password must be assigned for the main user "admin". A secure password must meet the following minimum requirements:

• 8–16 characters
• Valid characters: numbers, lower-case letters, capital letters, special characters ( ! \$ % & / () = ? + - )
• You must use at least two different types of character

The IP settings for the camera can be changed using the IP installer.

The “browser” button is not available for door intercom system components as they do not have their own web server.

Most programming for the components can be done on the door intercom system's monitor. For more complex system setup, however, you will need to use the CMS software for programming (connecting a component such as an IP device, open the menu item "remote configuration").

Activation in the IP network can also be done using the ABUS CMS software.

The ABUS CMS software may be necessary for certain other setup steps.

4.2.3 Password reset for monitor/video door module

To reset the password for monitors or video door modules, please contact our Technical Support.

5. Monitor operation (2-wire & IP)

5.1 Live image

Button/display Description
	Accepts the call and opens the video/voice connection.
	Ends a call and hangs up.
	Saves an instant snapshot of the current video image
	Opens the doors. If multiple relay outputs are used simultaneously, there will be up to 3 key symbols. (2x door relays in door video module, 1x door relay in monitor).For help connecting a door opener to the relay or using the security module TVHS10040, please see Installations and operating information in section“9.8 Connecting electrical door openers to the video module (including “garden gate”)” and“9.1 Using the security module (TVHS10040)”

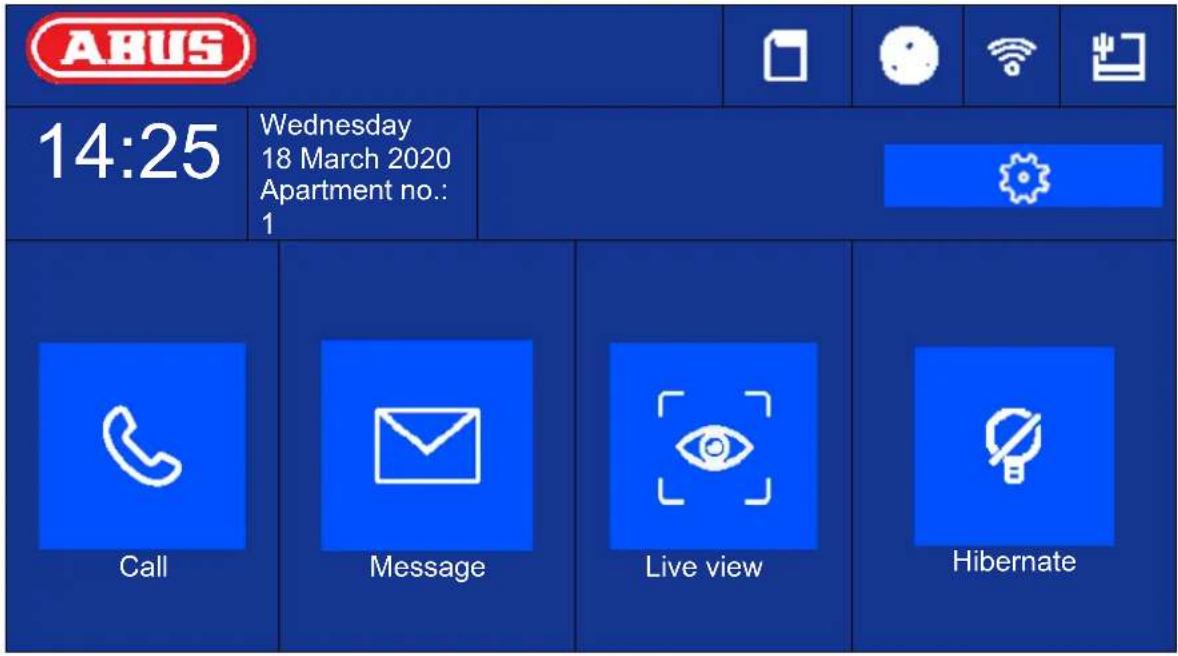

5.2 Main page overview

ABUS 14:25 Wednesday 18 March 2020 Apartment no.: 1 Call Message Live view Hibernate

Button/display Description
Time Displays time	Typing in the display field will open the dialogue to set the date and time.
Day of week/date Current weekday display	Date display
Apartment number Display of configured apartment numbers for this indoor station.Up to 49 apartments per system possible.
[Call] Set up intercom to indoor station or interior extension.Display/manage contactsView call log (including information about the door bell station, single frame, date, time)
[Message] Information about notes, visitor notifications and single frames of the answer
[Live View] Display live image of connected door stations and configured network cameras
[Settings/cog] General call settings: Ring tone, ring duration, call duration, call re-routing, microphone volume, ring volume, conversation volume, key tone, auto accept, do not disturb modeWLAN settings for the monitor (only use for IP variant!)Other device settings: Configuration (system), relay behaviour, microSD card, time, screen brightness

Blue square icon with a white telephone handset symbol (no text or numbers)

Blue square icon with a white envelope symbol (no text or numbers)

Blue square icon with a white eye symbol and corner brackets (no text or symbols)

Blue square icon with a white prohibition symbol (no text or numbers)

Call

Start calls between apartments or extension monitors. Contacts can also be created here. An interior extension is created automatically.

	*Enter phone number (0-0 for indoor station, 0-1 indoor station extension no. 1)
1	2	3	-
4	5	6	0
7	8	9

Contacts

You can edit or delete created contacts here. To delete a contact, press and hold the contact row for 3 seconds. A menu will then appear with the option to delete contacts.

	Contacts
Room 1

Call log

Displays the calls/door bells received. Can also directly access a snapshot.

	Call log
	Main door station		14-03-2020 11:21:08
	Main door station		14-03-2020 10:55:37
	Main door station		14-03-2020 10:55:37
	Main door station		14-03-2020 10:55:37
	Main door station		14-03-2020 10:55:37
	Main door station		14-03-2020 10:55:37
	Main door station		14-03-2020 09:55:37

Note

	Note
No note		...

Visitor notification (answering machine)

Audio messages left on the answering machine can be played here, if there are any and it is enabled.

	Visitor notification
No.1		14-03-202010:47:35
No.2		13-03-202014:47:39
No.3		13-03-202014:26:06

Recording log

Here you can find an overview of images sorted by day

	Recording log
14-03
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany

5.2.1 Menu item: Call settings

Call settings
Door bell tone	Door bell tone 6		>
Enable door bell tone
Door bell duration		30 seconds
Call duration		30 seconds
Call re-routing		0 s
Microphone volume		10%
Door bell volume (monitor)		70%
Conversation volume		10%
Key tone
Auto answer
Auto Anwer Immediately
Do not disturb mode	Indoor station			>
Do not disturb	All day			>

Button/display Description
Door bell tone (1~6): Choose between 6 default door bell tones.
Enable door bell tone:	You can enable or mute the door bell tone here.
Door bell tone (1~60s): Sets the door bell tone for an incoming call.After the set time, the door bell tone will automatically be muted. The call will still be active.
Call duration (1~60s):	Sets the call duration. After the set time, the incoming call will automatically be ended.
Call re-routing (0~20s): Call re-routing delays the call to the ABUS LinkStation app.Example: 10 seconds. After a door bell call,
	the door station monitor rings immediately, but the ABUS Link Station is called with a delay of 10 seconds.
Microphone volume (0~100%):	Set the monitor's microphone volume here. The higher the percent, the louder (and more sensitive) the monitor's microphone will be.
Door bell volume (monitor) (0~100%): Set the monito r's door bell volume here.
Conversation volume (10~100%):	Set the desired conversation volume on the monitor here.
Key tone: Enables the key tone when typing on the monitor's touchscreen.
Auto anser If the function is activated, the door intercom system accepts the call with the answering machine after the bell call has expired (ring duration).
Auto Answer Immediately When the function is enabled, the door intercom immediately accepts a call with the answering machine. If the function is disabled, the answering machine will accept the call automatically after the set call duration.
Do not disturb mode: Indoor station:	Allows calls from door stations and extension monitors. Calls from other apartments will not be allowed. To allow calls from apartments, please set the “do not disturb” function to “disabled”. All: All calls will be rejected. (Calls from door station, extension monitor or other apartment)
Do not disturb: Disabled, all day, time schedule (daily from/to hour/minute). Determines the time of day during which the “Do not disturb” function is active.

Firmware release note

Function: Auto Answer, Instant Auto Answer

Video module (THVS20000(S) / TVHS20010(S)): V2.2.3_build_201029

Monitor (TVHS20200 / 210 / 220): V2.1.2_build_201029

If you want to reuse an (already existing) door bell, turn to chapter "

9.5 Connecting an existing doorbell" in the section Installation and operating information. For information on changing the volume of the video door module, turn to chapter "

9.4 Adjusting the volume on the door video module (TVHS20000(S), TVHS20010(S)).

To record your own ring tones in the monitor, turn to chapter „9.9 Plays your own ring tones in the door station monitor“.

5.2.2 Wi-Fi settings

	Wi-Fi settings
MAX MUSTERWLAN

Button/display Description
Arming/disarming	Enable/disable the Wi-Fi interface on the monitor
WiFi network list	You can find available Wi-Fi networks in your area here. By selecting an entry, you will be prompted to enter the Wi-Fi password. After connecting successfully, a green confirmation tick will appear in the list in front of the selected network.
Wi-Fi Info Icon	You can see the Wi-Fi parameters such as network name, signal level and IP parameters here.Click “Disconnect” to disconnect the monitor from Wi-Fi.

5.2.3 Floor buttons

	Floor bell
		On/Off

The floor button is connected directly to the monitor via the wired inputs and creates a direct door bell on the front door. This function is primarily used in multi-family homes. The main-door station is at the bottom of the main entrance here. Each home has a direct door bell button on the front door, however. The ring tone for the floor button is different from the normal ring tone of the video door module.

Button/display Description
Line 1 – Line 8	Describes which input on the monitor is used for the floor button. Input 1 (line 1) is used as standard.
NO / NC	Normally Open / Normally Closed. This determines whether the call button on the front door is an open or closed contact. Typically it is a “NO” contact switch.

Further information can be found in the Installation and operating information section in chapter "9.7 Connecting floor call buttons to the main monitor".

5.2.4.1 Configuration – local information

<	Local information
Apartment no.				1
Live image duration		30 seconds
ABUS Link Station service settings					>
Synchronise time					>
Summer Time					>
Assistant					>

This area is password-protected. Please enter the password for initial setup.

Note: The following menu items are not available on the monitor for the installation type “interior extension”. They can only be set/accessed on the system’s main monitor:

• Switch "automatic acceptance" for answering machine on/off.
• Listen to answering machine messages
• ABUS LINK Station App – menu
• Add network cameras
• Configure network address and set factory settings on end devices

Installation type: Options: indoor station, interior extension

Indoor station: Main monitor for door intercom system in a home/apartment

Interior extension: up to 5 more monitors can be connected within a home/apartment

Example: Video module + indoor station + 5 interior extensions

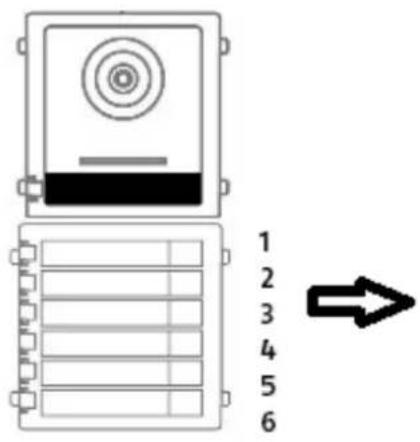

Pure diagram of six rectangular panels arranged in a grid, no text or symbols present

Apartment no.: This is the maximum number of indoor station monitors that can be connected to a door video module with 8 call button extensions. This maximum number is 49 indoor station monitors or 49 homes/apartments.

+ ... 1-8 ... (equals 49 call buttons)

Only for setting "Interior extension":

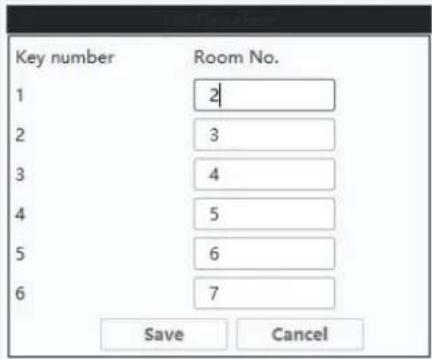

No. (1\~5): Number configuration for interior extension. A maximum of 5 extension monitors are possible.

Room name: Name for the room where the extension monitor is located.

Live image duration (10\~60s): Duration of the manually triggered live image display for a door video module or connected IP camera. (can be accessed via the main page/live image)

Information about setting up other call buttons in a multi-family home can be found in section Installations and operating information in chapter "9.3 Setting up extended call buttons (TVHS20020) for multi-family homes".

ABUS Link Station service settings:

The ABUS Link Station function helps make it easier to set up and connect a smartphone app to the door intercom system. It only takes a few steps. The door station must have an active internet connection in order to do this.

This menu only exists on monitors with the setting "Indoor station" (main monitor).

Enable this function if you would like to use the app to access the door intercom.

Procedure:

1. Install the ABUS Link Station APP (lite/pro) (Android/iOS)

2. Click "Add device" or "Scan QR Code" in the app.
   3 Scan the QR code in the settings page for the ABUS Link Station service. Each indoor station monitor has its own QR code.

3. You will need to enter the verification code during the setup process. It is also on the setup page and can be changed as you like.

A QR code can only be added to an ABUS Link Station account. Other accounts can be granted access to the door intercom if approved.

	ABUS Link Station service settings
Activating ABUS Link Station service
Verification code		xxxxx
ABUS Link Station server status		Connected

Synchronise time: Enable time setting via the NTP protocol.

The interval determines the update frequency in minutes.

The field IP address allows an NTP server address or IP address to be entered.

The port number is fixed as 123 (standard port for NTP protocol.

Select the time zone in which the door intercom is located (generally GMT+01:00)

	Synchronise Time
Enable NTP
Synchronise interval		60
IP address / Domain		ntp.org
Port no.		123
Time Zone		(GMT+1:00 Amsterdam, Berlin, Rome, Paris)	>

When using the ABUS Link Station service in connection with the push function for a bell call, the NTP function must be activated and correctly configured.

Make sure to use the correct NTP server address "0.pool.ntp.org".

Summer time: Input details for changing between summer and standard time.

Summer Time

Enable DST

Start time	Last week of March, Sunday 2:00
End time	Last week of October, Sunday 3:00

Shift

60min

Assistant: Restart the installation assistant. The following steps are performed

with the assistant:

a) Language setting
b) Network setting (wired interface)
c) Monitor installation type or mode (indoor station or interior extension) and apartment number
d) Device connection to monitor.

If indoor station-> assign a video module

If extension -> assign the main monitor

(indoor station)

5.2.4.2 Configuration – network settings

This menu primarily concerns the settings for the wired network interface

	Network settings
DHCP
Local IP		192.168.0.11
Subnet Mask	255.255.255.0
Gateway	192.168.0.1
DNS address	192.168.0.1
DNS address 2		194.25.2.129

Button/display Description
DHCP Switch DHCP on/off. It is highly recommended to set all door intercom system components to a fixed IP.
Local IP Set the device's local IP here
Subnet Mask Set the device's subnet mask here
Gateway Set the device's Gateway here. The router IP is generally used here.
DNS address Set the device's DNS address here. The router IP is generally used here.
DNS address 2 Set the device's alternative DNS address here. The router IP is generally used here.

5.2.4.3 Configuration - device management

<	Device Management		+
Main door station		192.168.0.26
				[BCCY]

The function of this menu is different for the indoor station and interior extension. You can change the device assignments here.

Attention:

The main monitor in a system must always be connected to the main video module.

An extension monitor in a system must always be linked to the main monitor in the system.

Indoor station: - Assigning the main door station

- Add other IP network cameras for a live view. To do this, click the “+” symbol at the top right and select “Private protocol” for an ABUS network camera.

Indoor extension: - Assigning the indoor station (main monitor)

The following interactions can also be carried out from this menu:

• Set network parameters (DHCP, IP address etc.) for door stations
• Reset door stations to factory settings

Setting the network parameters of the video door module

Door Station Settings
192.168.0.26
255.255.255.0
192.168.0.1
DHCP
Microphone volume	70%
Ring tone volume	70%
Talk volume	70%
Cancle OK

Lines 1 -3: IP address, gateway and subnet mask
DHCP: When the button is pressed, the request for the IP address data from the DHCP server is started. The switch then goes back to the left.
The received IP address data are then set as fixed data. There is no further automatic query of the data.
Microphone volume: Setting the sensitivity of the microphone in the video door module Ring tone volume: Setting the volume of the ring tone after pressing the bell button on the video door module
Call volume: Setting the volume during a call on the video door module

Performing a reset to the factory settings of the video door module

All settings of the video door module can be reset here via the main monitor.

Reset all settings to default?
Cancle OK

To add an ABUS network camera to the system, please click the “+” symbol at the top right under “Add device”.

Select "Private protocol" for ABUS cameras and assign a device name of your choosing. The IP address of the camera in the network and the RTSP port (default 554) are also required for connection. Then you still need to enter the username and password for your network camera.

The list of compatible ABUS network cameras can be found at www.abus.com.

5.2.4.4 Configuration – default settings

Default settings:

Resets the monitor to default settings. It will still be activated and the password will remain the same.

Factory settings: Completely resets the monitor including password to factory settings. The monitor will then be in "inactive" status.

5.2.5 Relay configuration

	Relay configuration
		Relay 1
Duration				3s
Interval				5s
	Relay 2

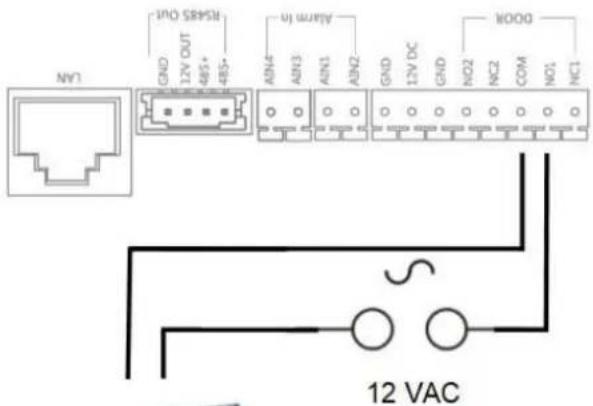

Under “Relay configuration”, the two monitor relays themselves are configured. The configuration in this menu has no impact on the video door module relay.

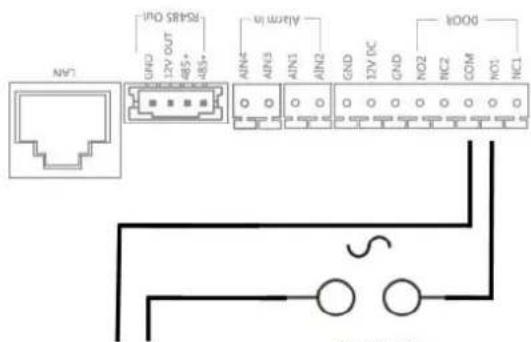

The relay outputs are on the back of the monitor and can be connected via the enclosed splitter cable. The assignment is printed on the back of the monitor.

The relay 1 is switched between COM1 and NO1, relay 2 is connected to COM2 and NO2.

Button/display Description
Relay 1 Activates/deactivates the function	for an additional (or already existing) doorbell. The relay 1 on the monitor is triggered in parallel to a call.
Duration Determines how long the relay for the additional doorbell is triggered when pressed.
Interval Determines the interval in which the relay is triggered for the set “duration” of the additional doorbell when pressed.
Relay 2 Activates/deactivates the additional	switchingoutput on the monitor (e.g.: for a door opener on the front door of the respective floor). If the function is enabled, another “key symbol” labelled “3” will appear on the local monitor.

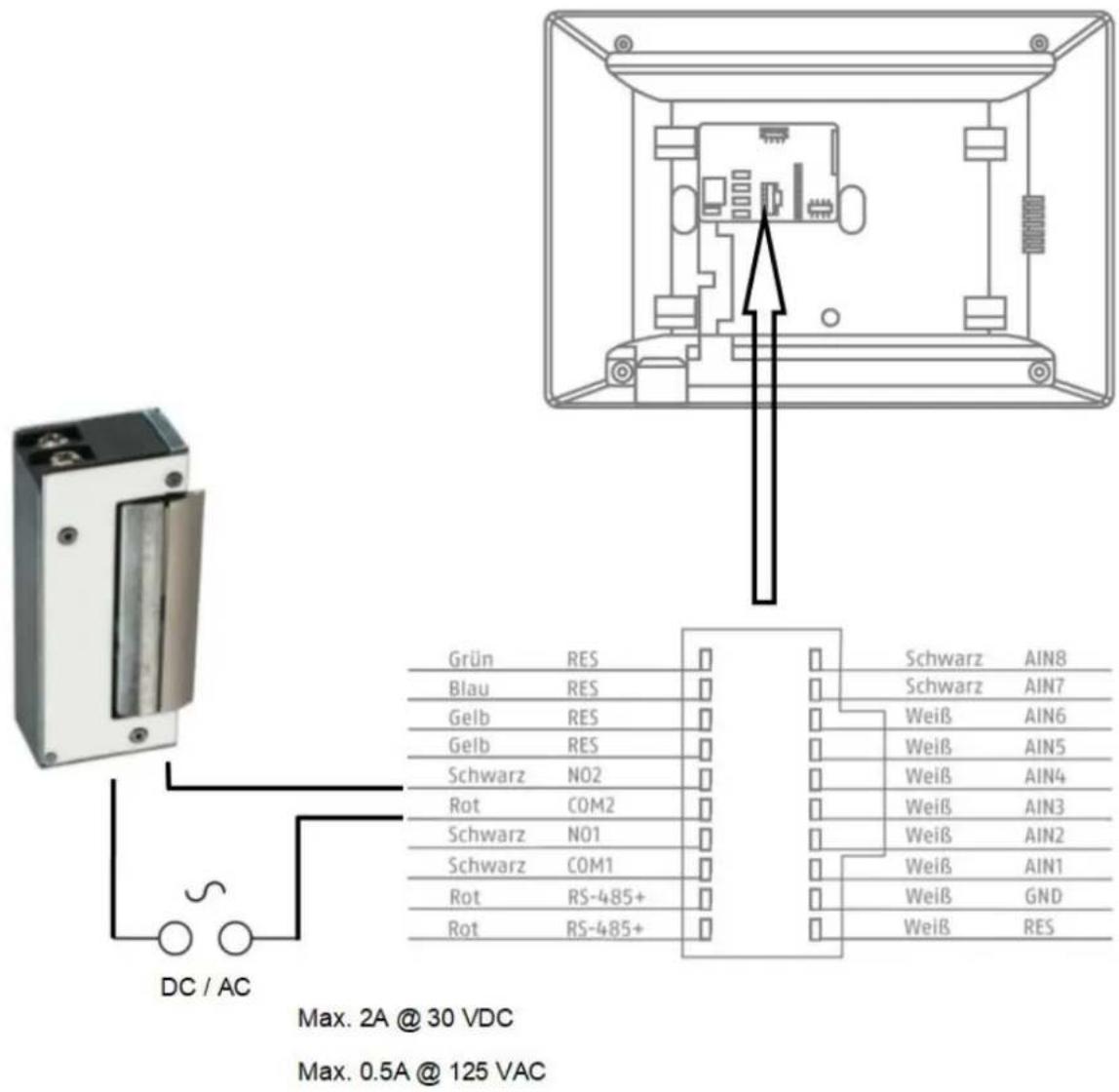

For more information, read chapter "9.6 Connecting existing door openers to the door station monitor" and

“

9.5 Connecting an existing doorbell" in the section Installation and operating information.

You can also find information about the following topic here: "9.8 Connecting electrical door openers to the video module (including "garden gate")"

5.2.6 microSD card

Button/display Description
Format	Important: The complete micro SD card is formatted and all data on it will be erased.
uninstall, deinstall, uninstallation, deinstallation, uninstalling, deinstalling	Deactivates the microSD card, after which it will no longer continue to record. You can safely remove the microSD card.

5.2.7 Lock screen

Locks the screen for 30 seconds. During this time, the touch panel will be disabled and can be cleaned, for example.

5.2.8 Device information

Here you can find the firmware version of the monitor as well as the model and serial number of your device. For update information, please turn to chapter "ABUS CMS software: Firmware Update" in section Installation and operating information.

5.2.9 Time setting

Here you can manually set the date and time on the monitor. Alternatively, you can also click directly on the time on the main screen.

5.2.10 Restart device

Restarts the monitor.

5.2.11 Password settings (PIN CODE)

PIN assignment for keypad TVHS20030

	Password settings
Pin code

Note: You will need the keypad for PIN CODE entry TVHS20030 for this.

You can set a 6-digit key here that will then be used to open the doors via keypad. The PIN code is always 6 digits.

Please press the following combination to enter the PIN on the keypad:

Up to firmware V2.0.8 / V2.1.2 build 200410:

"#" 6-digit PIN "#". Example: # 123456 #

From firmware V2.2.3 / V2.1.2 build 201029:

"#" Apartment number 6-digit PIN "#". Example: # 1123456 #

• i.e. from this firmware the PIN can be set individually for each apartment.
• It is now possible to change and delete apartment-dependent PINs

Locally on the monitor, one PIN CODE can be assigned. Three more codes can be entered using remote configuration with the ABUS CMS software. This means that a total of up to 4 PIN codes are possible. To add a code via ABUS CMS software, open remote configuration for the door video module and select the menu item "Intercom" and "Permission password". The PIN codes are generally saved in the video module and not in the keypad.

5.2.12 System language

Select your desired language.

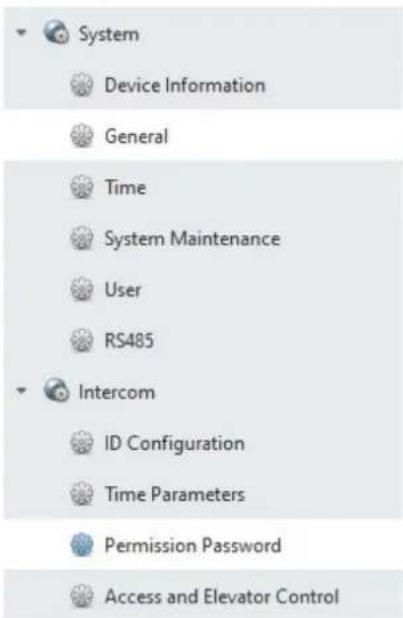

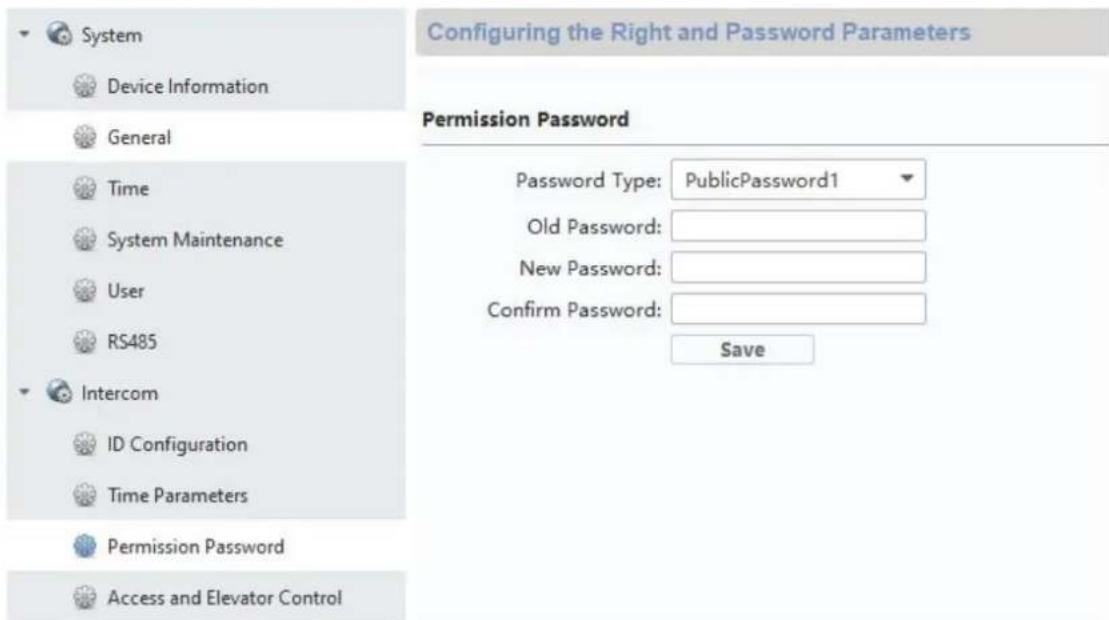

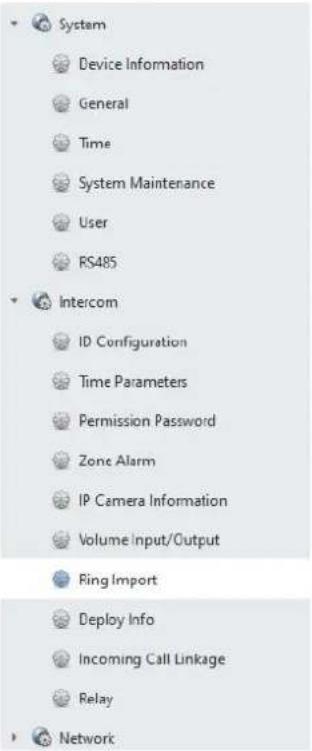

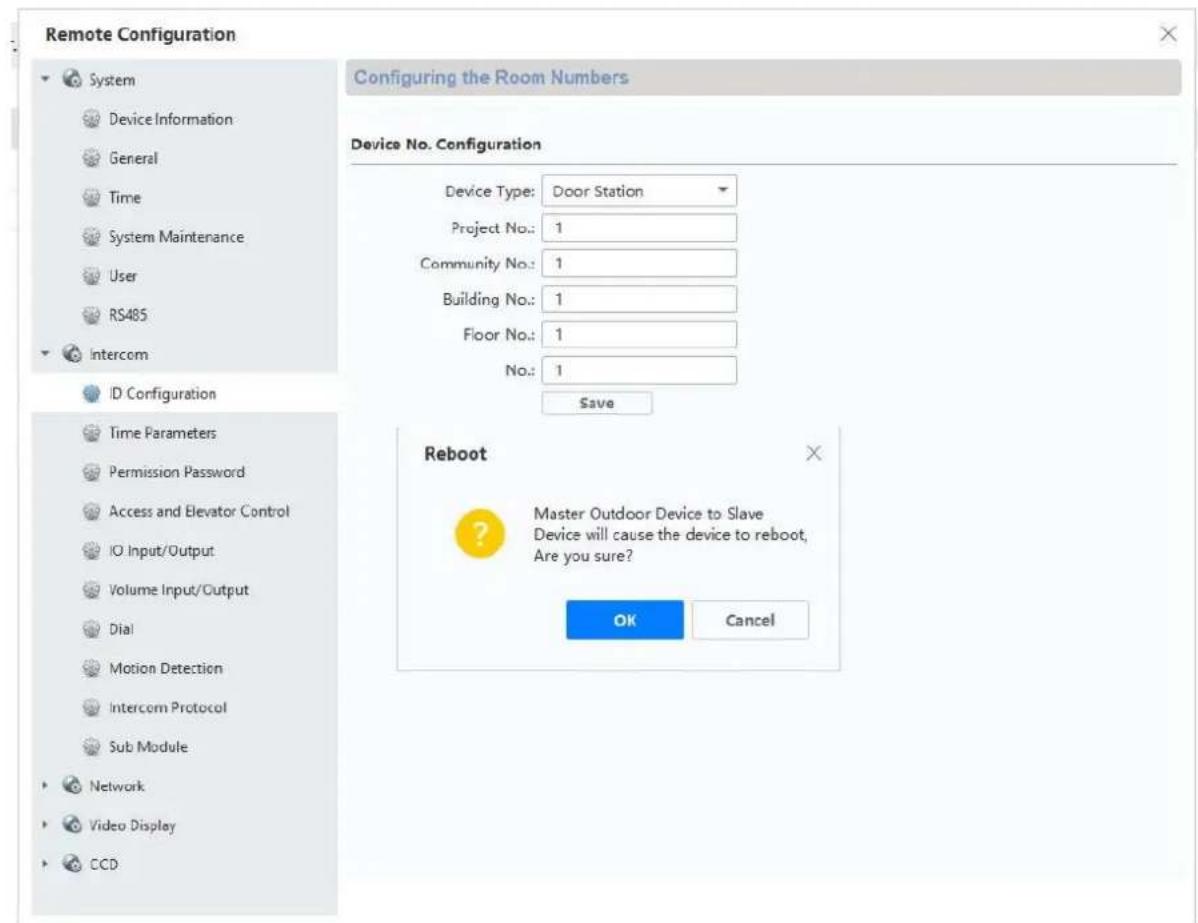

Remote Configuration

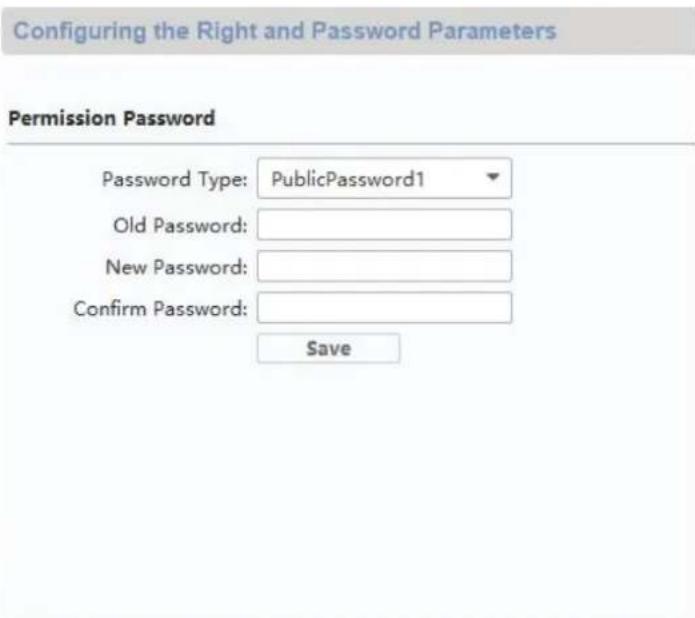

Configuring the Right and Password Parameters System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control Permission Password Password Type: PublicPassword1 Old Password: New Password: Confirm Password: Save

5.2.13 Brightness setting

Here you can adjust the monitor's brightness from 0 - 100%.

5.2.14 Floor button

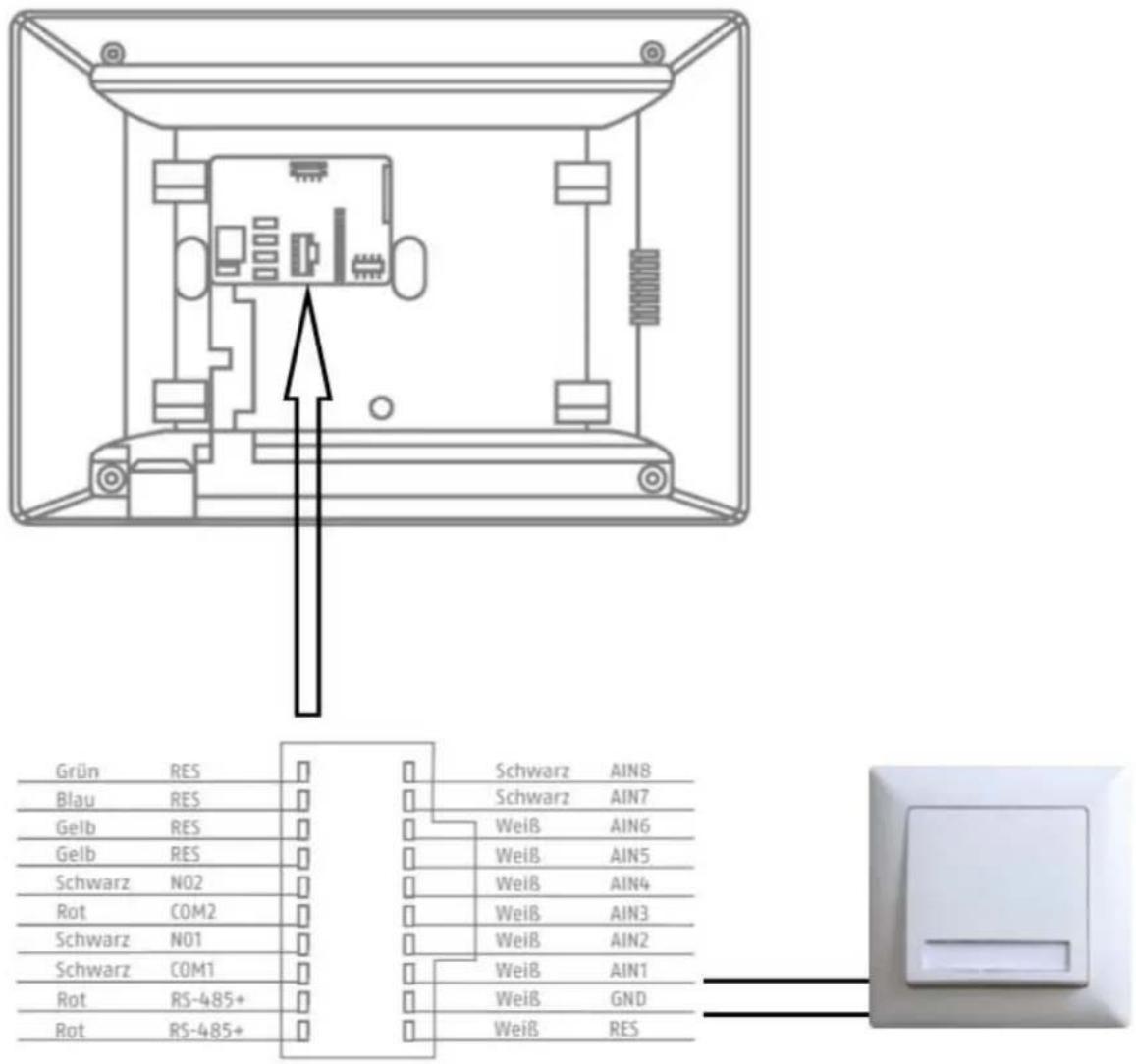

Activates/deactivates the floor button function. If the function is enabled, another menu item will appear on the right under the "Wi-Fi" symbol. The floor button function is now available and can be used via the monitor's wired inputs. Further clarification can be found under "9.7

Connecting floor call buttons to the main monitor" and "in the section Installation and operating information.

5.2.15 Open Source Licence information

Please read the Open Source Licence information at the end of this document.

6. Maintenance and cleaning

6.1 Function test

Regularly check the technical safety of the product, e.g. check the housing for damage.

If it appears to no longer be possible to operate the product safely, stop using it and secure it to prevent unintentional use.

It is likely that safe operation is no longer possible in the event that:

• the device shows signs of visible damage
• the device no longer works correctly
  • the device has been stored in adverse conditions for a long period of time
• the device has been exposed to stresses during transportation.

Please note:

You do not need to perform any maintenance on the product. There are no components requiring servicing or checking inside the product. Never open it.

6.2 Cleaning

Clean the product with a clean, dry cloth. The cloth can be dampened with lukewarm water to remove stubborn dirt.

Make sure that no liquids get into the apparatus and thereby destroy the device. Do not use any chemical cleaning products, as they could damage the surface of the housing.

7. Disposal

Devices displaying this symbol may not be disposed of with domestic waste. At the end of its lifespan, dispose of the product according to the applicable legal requirements.

Please contact your dealer or dispose of the products at the local collection point for electronic waste.

8. Open Source Licence information

The product contains software components that are licensed by the rights holders as free software or open source software (hereinafter referred to as "OSS"). The corresponding licenses are enclosed with the product in printed form and / or can be accessed via a graphical user interface. You can acquire usage rights to the extent regulated there directly from the rights holders. The open source licenses take precedence over all other license conditions and contractual agreements with ABUS in relation to the corresponding OSS software components contained in the product.

In general, license information on ABUS products can be called up at www.abus.com in the download area of the product description.

9. Installation and operating information

9.1 Using the security module (TVHS10040)

The security module TVHS10040 (new item number TVHS20340) serves to fit the door opener contact indoors under protection and thus prevent tampering. The security module is supplied with 12V voltage and clamped to the door video module by means of RS485-BUS.

Please use the enclosed 4-pin cable for the door video module. This cable must be isolated on one side of the connector and the cable must be connected to the security module. The ID DIP switches on the security module are not needed for this and will remain set to their default value. (DIP switch 1 on, DIP Schalter 2/3/4 off)

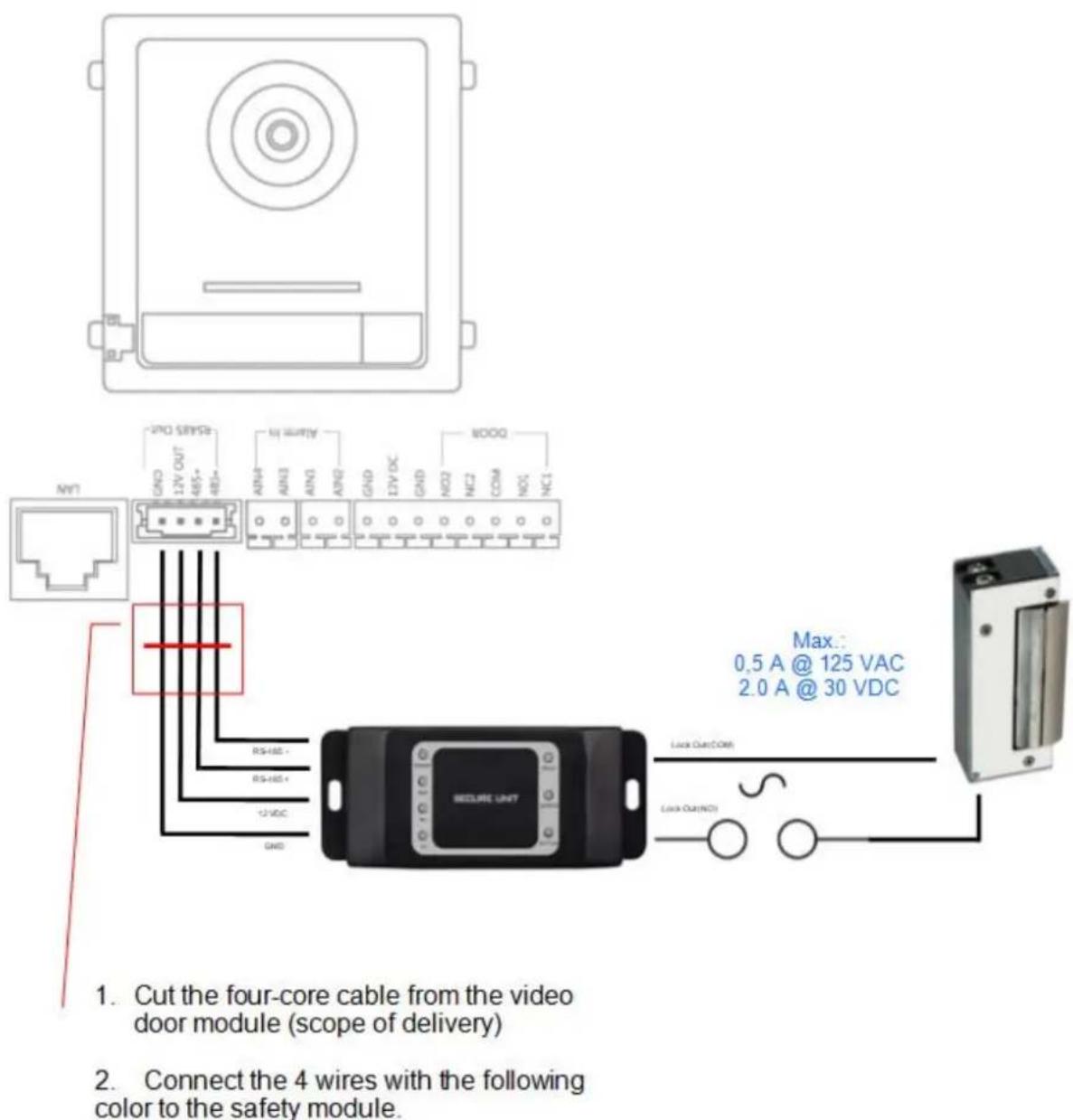

1. Cut the four-core cable from the video door module (scope of delivery) 2. Connect the 4 wires with the following color to the safety module. MAX: 0,5 A @ 125 VAC 2.0 A @ 30 VDC

Video-Door TVHS20000 / TVHS20010 RS485 - (Yellow) RS485 + (Orange) 12 VDC (Red) GND (Black)

RS485 - (Blue) RS485 + (Yellow) 12 VDC (Red) GND (Black) Secure Unit TVHS10040

Up to firmware V2.0.8 / V2.1.2 build 200410:

The security module still has to be configured as a new door relay. To do this, open the remote configuration of the door video module with the ABUS CMS software and go to the "Intercom" / "IO In Out" menu and set "IO Out" for "DOOR 1" to "securityModule"

From firmware V2.2.3 / V2.1.2 build 201029:

After connecting the safety module, it is automatically recognized.

Now the relay security module will be triggered instead of the internal relay for the door video intercom module when the door is opened. While the relay is active, the green LED "Relay" will light up on TVHS10040.

Attention: Only one security module TVHS10040 / TVHS20340 may be used per video door module!

Note: The security module is always the last module connected, whether there is only a video door module or additional extension modules are connected.

Maximum relay load: max. 2A 30VDC / 0.5A 125AC

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial IO Input/Output IO Input IO Input No: AI1 Input: Door Status IO Output IO Output No: DOOR1 Output: Electric Lock Save

9.2 Setting up back doors

If you would like to integrate another door video module (maximum of 16) into the system to add a back door (e.g.: receiving goods, cellar doors etc.), follow these steps:

1) Connect the door video module for the back door to the network for the main door intercom station. All devices at the door intercom station must be located on the physical LAN.
2) Open the ABUS CMS software and activate the door module for the back door.
3) Add the door intercom module for the back door in ABUS CMS software and open remote configuration.
4) Now turn to "Room Number" under "Intercom". The numbers for the back door are entered under "No.:". The main door video module must have the number "0". The additional back doors will be numbered 1-9. Do not change the "Period/Building/Unit or Floor" numbers.

After savings, the system will restart. Confirm by pressing "OK".

Remote Configuration System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Configuring the Room Numbers Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

5) After successful restart, you will still need to assign the main doors for the back door. To do this, enter and save the IP address of the main door station under "Network" / "NetConfig SIP" under "(Main)Outdoor IP Address".

Attention: The menu “(Main) Outdoor IP Address” will only appear if you have properly completed step 4).

Remote Configuration Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Local Network Configuration Linked Network Configuration FTP Settings Advanced Settings Configuring the Network and Sip Parameters Linked Network Configuration Device Type: Door Station Master Station IP Address: 0.0.0.0 (Main) Door Station IP Address: 192.168.0.45 SIP Server IP Address: 0.0.0.0 Security Control Panel IP Address: 0.0.0.0 Security Control Panel Port No.: 0 Save

6) Setup for a back door is now complete. Now if a call button is pressed at the back door, the monitor will show that the call was started at a back door. Under "LIVE IMAGE" you can now directly access the video image of the back door on the monitor and open the doors.

9.3 Setting up extended call buttons (TVHS20020) for multi-family homes

Up to 49 call buttons can be used for multi-family homes via the additional module (TVHS20020(S)). The extension module is connected directly to the main video module via connecting cables.

If only one additional call button module is used, the installation can be done without the ABUS CMS software.

The main door module is by default the bell with "Apartment number 1". The extension module TVHS20020 is automatically set to apartment number 2–7. The "apartment" here corresponds to a separate residence.

If you do not use the call button for the main video module and seal it with a cover plate, you will need to configure the extension module TVHS20020(S) via the ABUS CMS software. All extension modules connected to the RS-485 can be found under "Intercom" / "Submodules". (Exception: the security module TVHS10040/TVHS20340 does not appear here)

In the menu "Submode", click the "Settings" symbol to assign the apartment numbers.

The submodule ID is based on the ID set via DIP switch on the back of the extension module's housing. This allows you to easily make the proper assignments when setting up multiple extension modules.

Attention: After changing the ID via IP switch, the respective extension module must be briefly disconnected from the cable and restarted.

Remote Configuration Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Access and Elevator Control ID Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Local Network Configuration Configuring Sub Module Information Module A... Module Type Module Status Module Version Settings 1 Keypad Module Online V1.0.0 ...d191009

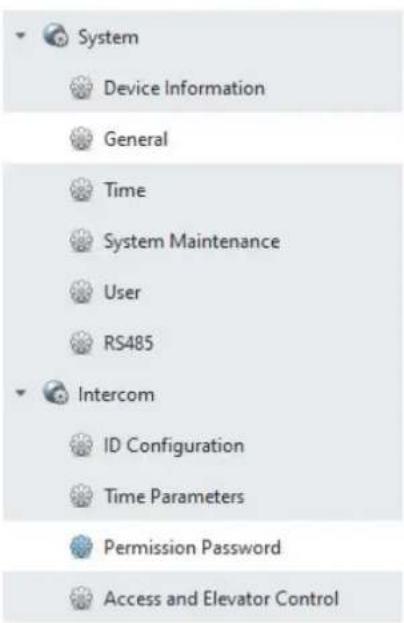

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Access and Elevator Control

IO Input/Output

Volume Input/Output

Dial

Motion Detection

Intercom Protocol

Sub Module

Network

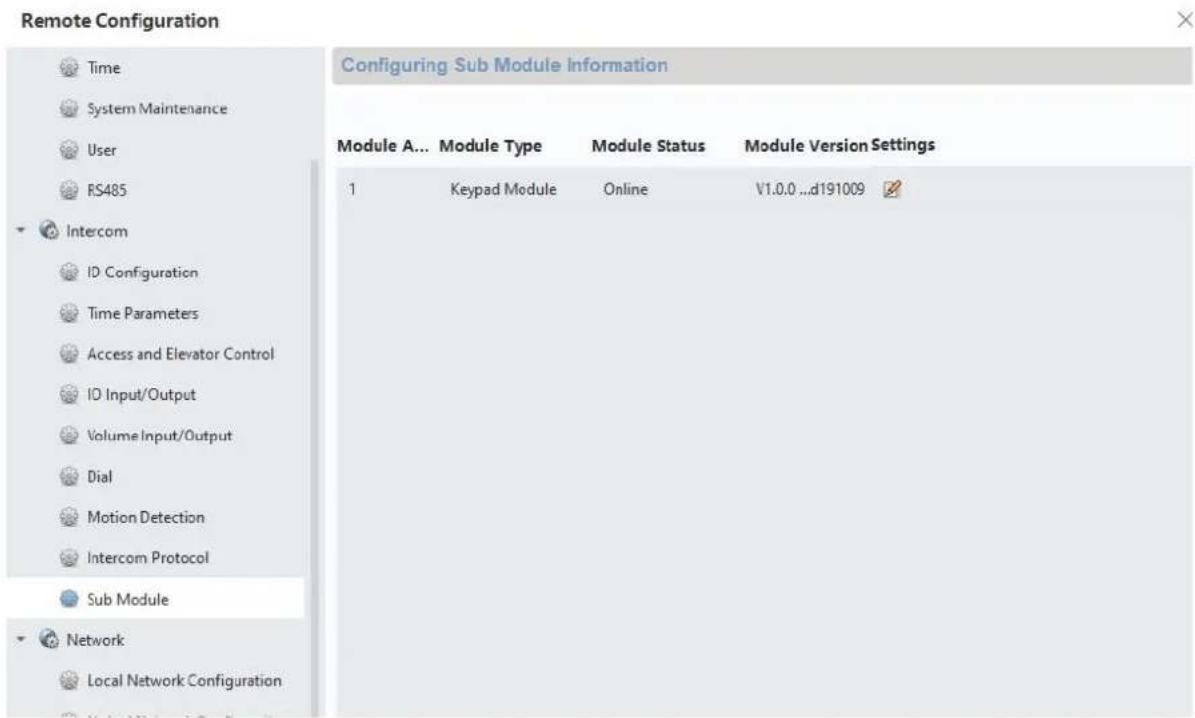

Configuring Sub Module Information

Module Add... Module Type		Module Status	Module Version	Settings
1	Nametag Module	Online	V1.0.0 ...d190522
2	Keypad Module	Online	V1.0.0 ...d191009

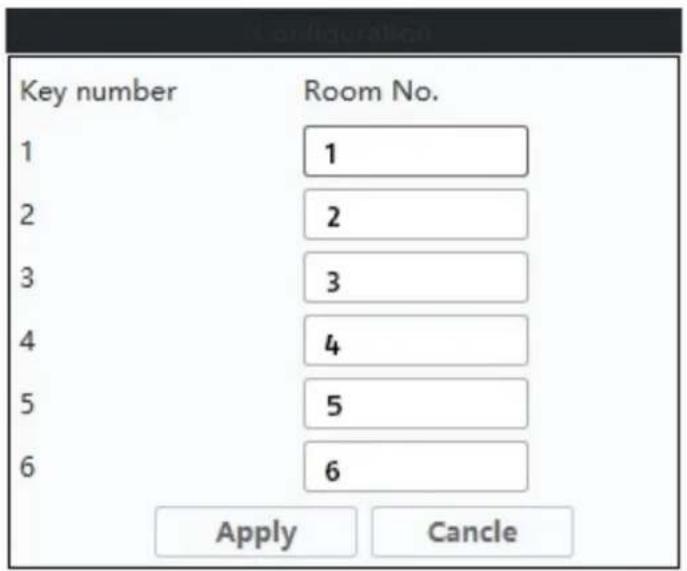

Key number Room No. 1 2 3 4 5 6 Save Cancel

Configuring the apartment number/residence number in the monitor:

In order to assign the call buttons in the residence to the correct monitors, the apartment numbers for the monitors must match the call button numbers.

The apartment numbers for the respective monitor are displayed in the monitor's main overview. You can either change the numbers directly in Configuration on the monitor (configuration/apartment no.) or access the respective monitor using ABUS CMS software and, in the menu "Intercom"/Room Number", change the apartment/residence numbers under "room.No.".

1 2 3 4 5 6

Key number Room No. 1 1 2 2 3 3 4 4 5 5 6 6 Apply Cancel

9.4 Adjusting the volume on the door video module (TVHS20000(S), TVHS20010(S))

Microphone sensitivity and voice volume on the door video volume can be adjusted using the ABUS CMS software. You can also set or fully disable the confirmation tones/call tones/busy signal volume.

Button/display Description
Volume In Controls the microphone sensitivity for the door video module. The higher the value, the louder we will transmit voice to the monitor.
Volume Out Controls automatic voice output (e.g.: leave a message, call failed etc. This controller can also be used to adjust the volume of confirmation tones/call tones and busy signals. (0 is completely mute)
Talk Volume Voice volume is adjusted here.	The higher the value, the louder the voice will be transmitted from the monitor to the door station.

Remote Configuration

Configuring the Volume Input or Output Volume Input Volume: 7 Volume Output Volume: 7 Talk Volume Talk Volume: 7 Save System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol

9.5 Connecting an existing doorbell

If you already have a doorbell, it can be connected to the relay output 1 (COM / NO I) on the monitor. The maximum relay load is 2A @ 30VDC or 0.5A @ 125AC.

If a call button is pressed, the relay will be switched at the desired interval and for the desired duration. The configuration for “Relay 1” can be found in the monitor’s menu under “Relay configuration”.

The relay, as well as the local ring tone on the monitor, will be triggered as long as is set under "Ring tone duration" in the "Call settings" menu.

If you only want to hear your external doorbell ring once, you can simply enable or disable the door bell tone on the monitor in the "Call settings" in the "Enable door bell tone" menu.

Max. 2A @ 30 VDC Max. 0.5A @ 125 VAC

9.6 Connecting existing door openers to the door station monitor

To open a front door separately from a main entrance door, the monitor offers the option to control another door via a relay output (relay 2). The maximum relay load is 2A 30VDC or 0.5A 125AC.

To use the relay on the monitor, please enable "relay 2" under "relay configuration" in the monitor menu. Now another "key" symbol labelled "3" will appear in the monitor. Labels "1" and "2" are reserved for the door video module relays.

Relay "3" on the monitor can only be switched directly via the monitor, and not via the ABUS LINK STATION app.

DC / AC Max. 2A @ 30 VDC Max. 0.5A @ 125 VAC

9.7 Connecting floor call buttons to the main monitor

The floor button (call button directly on the front door of a multi-family home) can be connected directly to the monitor. Directly wired to alarm input 1, the monitor can emit a bell signal and signal to the customer that someone has rung the upper front door.

Note: The floor button ring tone cannot be changed. It is different from the call button on the door video module so that it is obvious where the call originated. The floor button does not trigger an interaction on the monitor. Only a short ring tone will sound.

Grün RES Blau RES Gelb RES Gelb RES Schwarz N02 Rot COM2 Schwarz N01 Schwarz COM1 Rot RS-485+ Rot RS-485+ Schwarz AIN8 Schwarz AIN7 WeiB AIN6 WeiB AIN5 WeiB AIN4 WeiB AIN3 WeiB AIN2 WeiB AIN1 WeiB GND WeiB RES

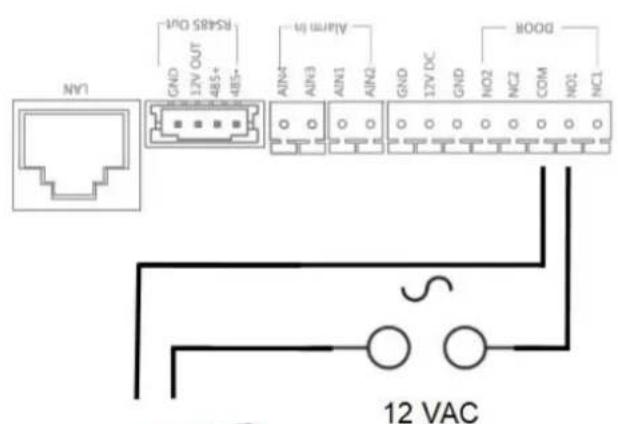

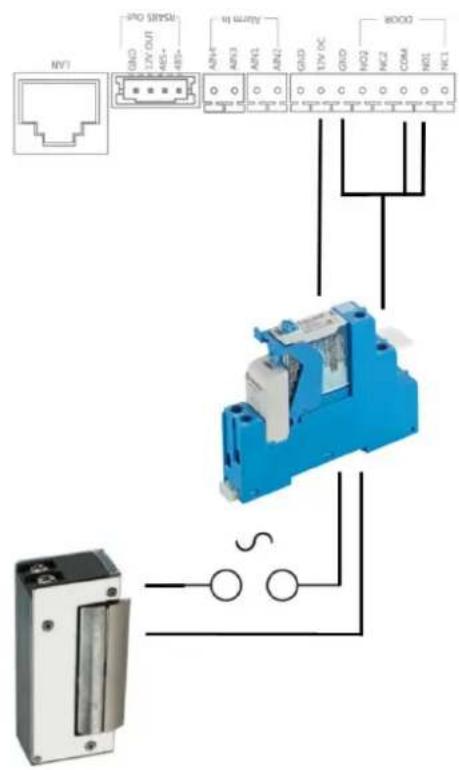

9.8 Connecting electrical door openers to the video module (including "garden gate")

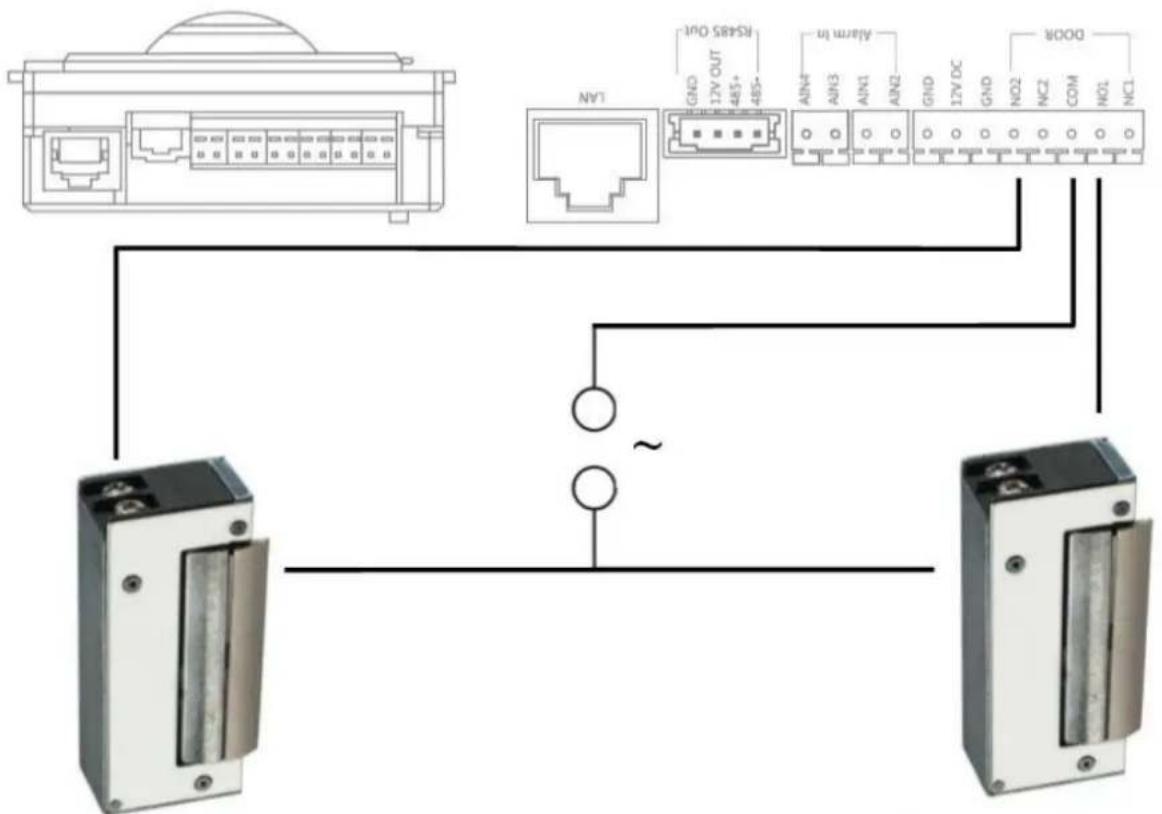

2 independent relays can be switched on the door video module and used to e.g.: open doors. To configur the relays, open remote configuration for the door video module with the ABUS CMS software and go to the menu "Intercom" / "IO In Out".

The respective relays for DOOR 1 and DOOR 2 can be configured under "IO out" or disabled if necessary. If the relay is disabled, the "key" symbol to open the door will not in the ABUS Link Station app or on the monitor.

Note: Only one of the two relays may be on "securityModule" (security module TVHS10040).

Button/display Description
Disable The relay is not used and hidden from view
electricLock The internal relay for the door video module is used
securityModule The external security module	TVHS10040 is used. (See menu item “security module”)

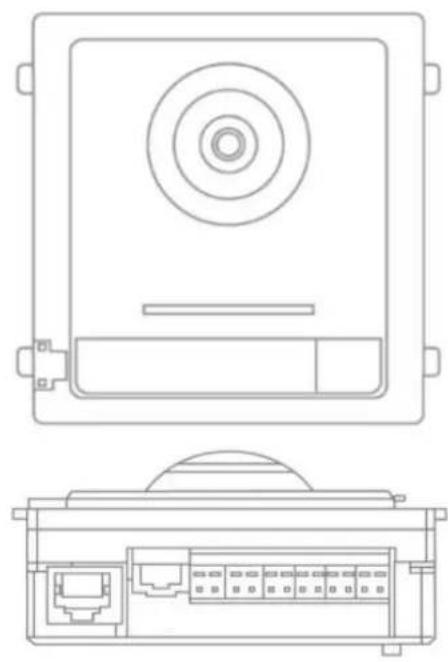

Technical line drawing of a device rear panel and internal connector housing (no text or symbols)

LAN GND 12V OUT 485+ 485- RSABS OUT AIN4 AIN3 AIN1 AIN2 ALARM IN AIN1 GND 12V DC GND NO2 NC2 COM NO1 NC1 DOOR 12 VAC

Exterior view of a rectangular electronic device with a metallic panel and mounting holes (no visible text or symbols)

Max. 0,5 A @ 125 VA Max. 2,0 A @ 30 VDC

Max. 0,5 A @ 125 VA Max. 2,0 A @ 30 VDC NV1 GND 12V OUT 48E+ 48E- RMSRS OUT AIN4 AIN3 AIN1 AIN2 GND 12V DC GND NO2 NC2 COM NO1 NO0 ~ Max. 0,5 A @ 125 VA Max. 2,0 A @ 30 VDC

9.9 Plays your own ring tones in the door station monitor

You can load your own ring tones in *wav format to your monitor using the ABUS CMS software. To do this, open remote configuration for the respective monitor and go to "Intercom" in the "Ring import" menu. Select an open slot here and upload the *WAV audio file. Once it has successfully uploaded, the file will be available under "ring tones" directly on the monitor.

Attention: A ring tone selected in the monitor cannot be erased using ABUS CMS. First select another ring tone in the monitor and then try again to erase the ring tone in CMS.

The WAV file must fit the following parameters:

Format: wav;

Maximale size: ≥300Kb;

Bit rate: 8KHz;

Channel: Mono

Bit rate: 128Kbps

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Zone Alarm IP Camera Information Volume Input/Output Ring Import Deploy Info Incoming Call Linkage Relay Network

Ring Configuration
Index	Name	Size	Type	Add	Delete
1	Sprach...1_sd_2	185466	wav	+	×
2				+	×
3				+	×
4				+	×

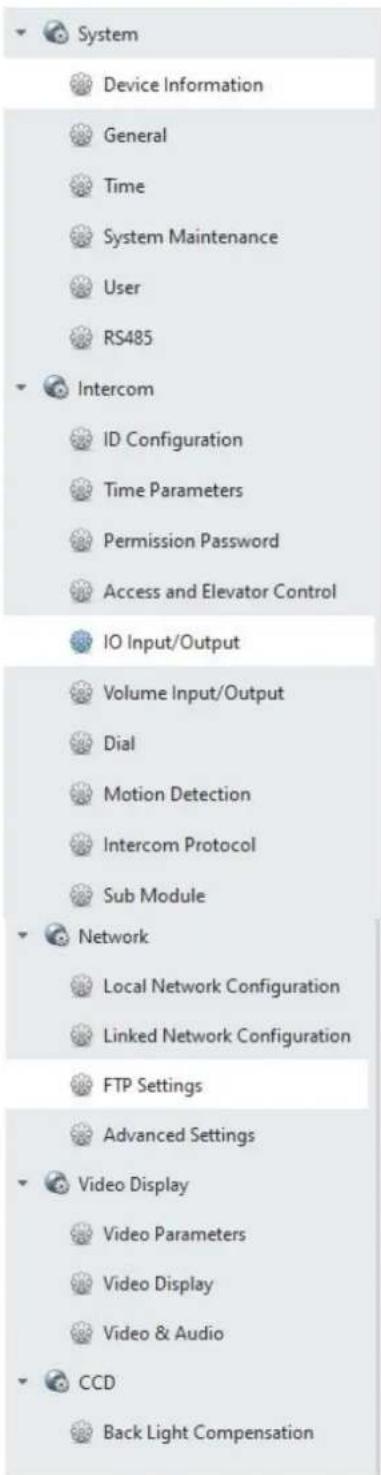

9.10 ABUS CMS: Perform firmware update for Moduvis components

Attention: Never disconnect the power supply or network cable during an upgrade

Attention: Only perform the update in a stable network environment (LAN).

We recommend setting each device to factory settings after a firmware update.

The ABUS CMS software is required to upload a firmware update to a monitor or the video door. Connect the devices to the network and open the remote configuration for the respective devices.

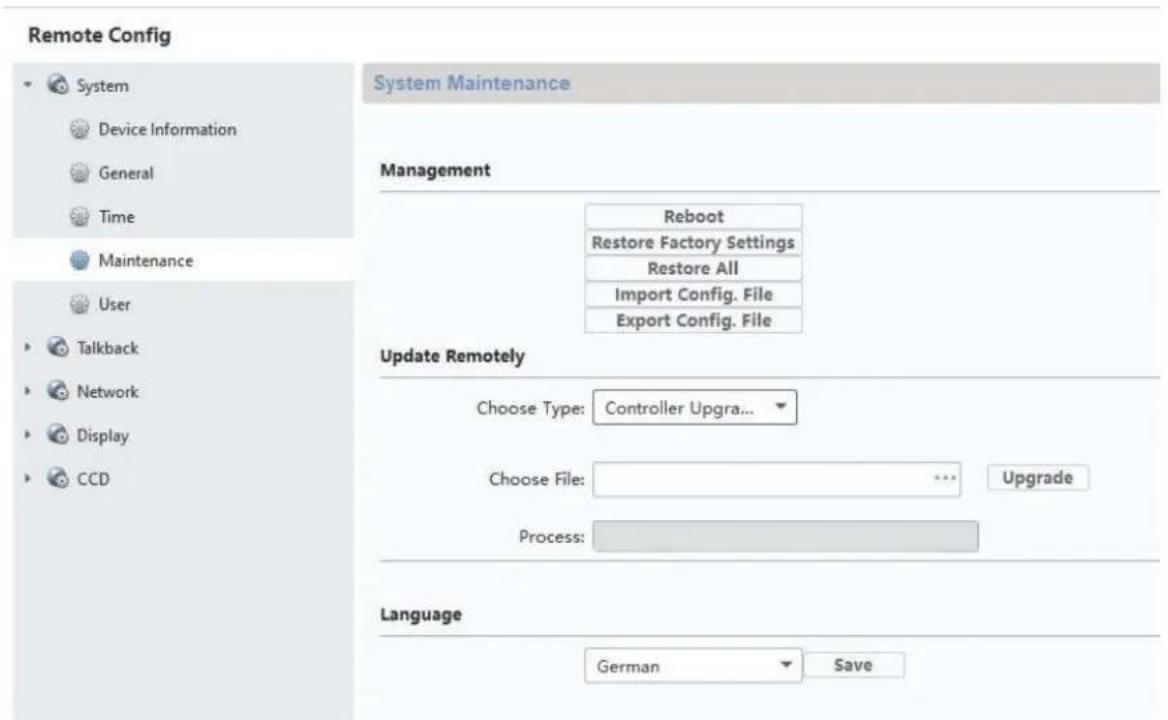

Go under "Maintenance" / "System Maintenance" and select the corresponding file for the device.

Remote Config System Device Information General Time Maintenance User Talkback Network Display CCD System Maintenance Management Reboot Restore Factory Settings Restore All Import Config. File Export Config. File Update Remotely Choose Type: Controller Upgra... Choose File: .... Upgrade Process: Language German Save

"Controller upgrade" must be selected when updating a door video module (TVHS20000(S), TVHS20010(S)).

The current firmware version can be determined using ABUS IP Installer or in the CMS software in the respective device configuration under "Device Information".

Remote Configuration Displaying the Device Information System Device Information General Time System Maintenance User RS485 Intercom Network Video Display CCD Basic information Device Type: TVHS20000 Device Serial No: TVHS200000120200110RRP11705670 Version Information Versions: V2.2.3 build 201029 Hardware Version: 0x0

After a firmware update, the following steps must be carried out:

1. Restart the entire system by removing the supply voltage
2. Reset all updated devices to factory settings ("Restore all")

9.11 ABUS CMS: Advanced setting options

Below is a brief overview of the setting options via remote configuration with the ABUS CMS software.

Each monitor and each door video module will appear in the network as a separate network device, regardless of whether the device is connected via 2-wire or PoE.

Remote settings for TVHS20000(S), TVHS20010(S), video door module:

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Local Network Configuration Linked Network Configuration FTP Settings Advanced Settings Video Display Video Parameters Video Display Video & Audio CCD Back Light Compensation

“System” section
Device Information	General information about firmware, serial number
General Device	name and device ID (not relevant for door intercom system)
Time Settings for date/time, summer time and NTP server
Maintenance Maintenance menu for firmware update, set factory settings and restart device
User Menu is not used
RS485 Menu is not used
“Intercom” section
ID Configuration	“Device type” must always be on “Outdoor unit”. Please do not change any numbers for the units “Period, Building, Unit, Floor” as these values are not needed here. Back doors are set up under “No.”. 0 = main doors, “1” – “9” = back doors. Please consult the chapter “Setting up back doors”. (See Installation and operating information)
Time Parameters	Max talk time: Maximum conversation duration for an accepted call. (90-120s)Max Msg time: Recording time for answering machine (30-60s)
Permission Password	3 additional PIN codes (6-digit) can be set here to use in combination with TVHS20030.
Access and Elevator Control	Door. No.: Select between relay output 1 and 2.Open door time: Determines how long the relay should engage the door opener. (1-255s)“Door name” and “Card encrypt” not used.

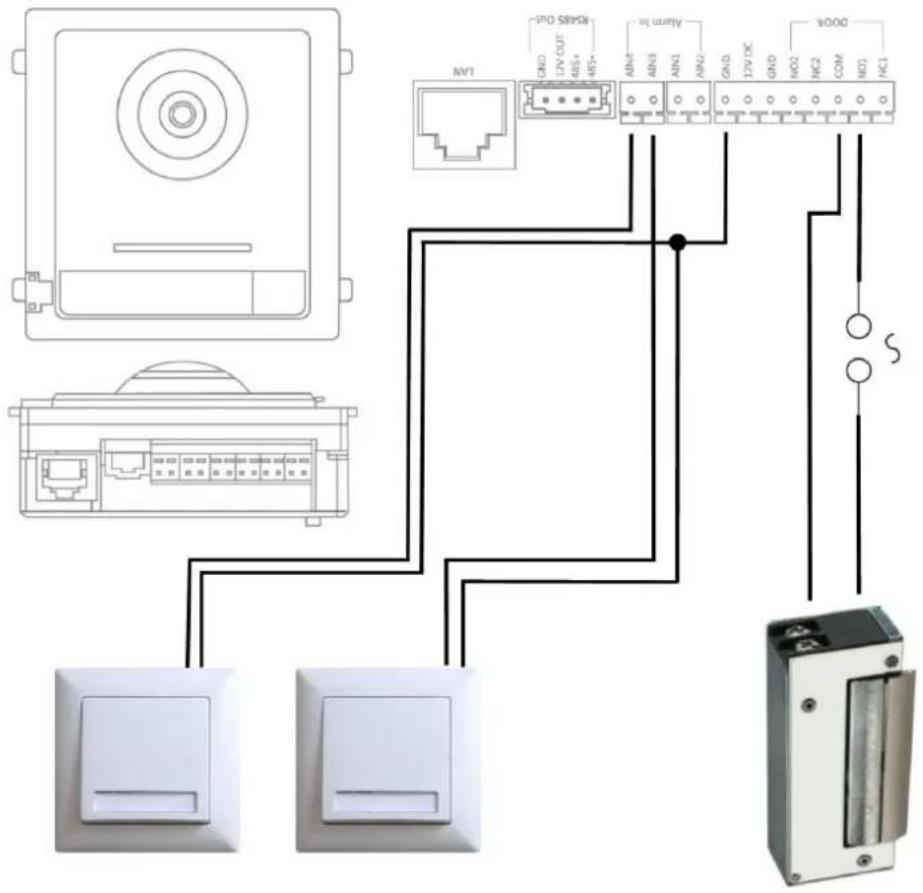

IO Input/Output	Settings for digital inputs (for emergency door opener) and the relay for door opener.
Volume Input / Output	Audio parameter settings for video door module. (See Installation and operating information)
Dial	Determines the apartment assignment for the call button on the door video module itself. A “1” will be under “room no.” as standard from the factory. This means the monitor is called with apartment number 1.
Motion Detection	Motion detection setting in connection with ABUS NVR. (Please only set up and configure the motion detection directly via ABUS NVR)
Intercom Protocol	Not used
Sub Module Overview of connected extension modules e.g.: TVHS20020, TVHS20030, TVHS20040
“Network” section
Local NetCfg IP address of video door module. (IP address, subnet mask, standard gateway)Port: 8000 is needed to connect to an ABUS NVRhttp Port is not needed as there is no web interface
Linked Network Configuration	Menu item is not used on a main video door module.Main Outdoor IP Address: Is used to assign the main door station to a back door. (See Installation and operating information)
FTP Configuration	Not used
Advanced Settings	Configuration of DNS server address for door video module
“Display” section
Video Parameter	Settings for image parameters (brightness, contrast, saturation)
Video Display Settings for OSD display (camera name, date, time, text position)
Video&Audio Stream parameter settings for video door module camera.Attention: We do not recommend modifying settings.
Back Light Compensation	BLC function options for compensating for back light.

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Zone Alarm

IP Camera Information

Volume Input/Output

Ring Import

Deploy Info

Incoming Call Linkage

Relay

Network

Local Network Configuration

Linked Network Configuration

Advanced Settings

ABUS Link Station

Device Information	Information such as “firmware”, “serial number” etc.
General Device	name and device ID (not relevant for door intercom system)
Time Settings for date/time, summer time and NTP server
Maintenance Maintenance menu for firmware update, set factory settings and restart device
User Not used
RS485 Not used
“Intercom” section
ID Configuration	Selection of apartment numbers in “Indoor station” mode (main monitor)In “Station Extension” mode (extension monitors), the number of the extension monitor is configured.Note: The “main monitor” or “extension monitor” mode is typically selected and the numbers assigned through the menu on the respective monitors. (e.g.: In setup process via installation wizard)
Time Parameters	Settings for call duration, live image display time, call forwarding delay, ring tone duration.Note: These settings can also be changed directly in the monitor’s menu.
Permission Password	Is not used in the monitor’s remote configuration.
Zone Alarm Not used
IP camera information	Add ABUS network cameras. (See compatibility list) Up to 16 ABUS network cameras can be added and watched live. (Camera cannot be played back or configured directly from the door station)
Volume Input/ Output	(See Installation and operating information)
Ring Import Manage own ring tones (See Installation and operating information)
Deploy Info Not used
Incoming Call Linkage	Not used
Relay	Not used
“Network” section
Local NetCfg Monitor IP address. (IP address, subnet mask, standard gateway)
	Port: 8000 is not needed herehttp Port is not needed as there is no web interface
Linked Network Configuration	Assign the main monitor and the main door video module. The IP address of the main door module is entered here in the case of a main monitor.The entry “MainOutdoorUnit” may not be changed.Note: The door video module is typically already assigned to the monitor when setting up locally on the monitor itself.
Advanced Settings	Configuring monitor’s DNS server.
ABUS Link Station	Configure access via ABUS Link Station App.See ABUS settingsLink Station service.Connection to the ABUS Link Station app can simply be done via the interface on the monitor itself.

9.12 MODUVIS and ABUS Link Station app range of functions

The MODUVIS door intercom can be integrated into the ABUS Link Station app. The following options are available:

Change verification code: The verification code should first be changed in the menu item "ABUS Link Station Service". Click on the code currently displayed to do this.

Add: Scan the QR code and add the device to the app. You still need to enter the verification code.

Share device: The door intercom can be shared with other users. This allows multiple people or apps to access the system.

Push options: The ABUS Link Station app will be called immediately or on a delay when someone rings the door intercom. The call can be accepted on the app and two-way audio with video of the door station is possible. Video may be disabled with voice-only if reception quality or mobile bandwidth is limited.

Door open: relay 1 or relay 2 can be switched in the app. This allows electrical door openers, for example, to be controlled.

Event log: The app has a notification page with entries from the most recent door bell activity with a picture of the event.

9.13 Compatibility with ABUS products

This section addresses possible interaction with other ABUS products.

ABUS product Compatibility
Secvest No
WAppLoxx Relay connection
WAppLoxx Pro Relay connection
ABUS IP cameras	See compatibility listwww.abus.com,www.abus-sc.de
ABUS NVR For integrating the door station video, see section 9.14
ABUS Link Station APP Access live image from door stationPush notification when bell rings

9.14 Connecting the video door module to ABUS NVR

The video image from the video door module can also be integrated into an ABUS NVR. The video is tapped using the RTSP protocol, which only enables permanent display or permanent recording (no motion detection or other types of event recording).

Please note the data protection regulations prevailing at the installation site!

The following steps are necessary for the integration:

1. Creation of a user-defined protocol in the camera management of the ABUS NVR.
2. The following stream details are to be used:

Protocol: RTSP

Transfer protocol: Automatic

Port: 554 (standard port)

Stream path: Streaming / Channels / 101 (Main Stream)

Streaming / Channels / 102 (Sub Stream)

1. When adding a new channel to the NVR, this custom protocol will be selected for the video door module.

Username ("admin") and password are usually the same as the door station monitor. If the password was changed via the CMS software, this changed password must be used.

9.15 "Emergency door opener" button on door video module

A button/switch can be attached directly to the door video module via alarm input 3 (AIN 3 = relay 1) and alarm input 4 (AIN 4 = relay 2), which actuates when the door relay is engaged.

To enable alarm input 3 (AI3 and AI4), open the remote configuration for the respective door video module with the ABUS CMS software and set AI3 to "openDoorBtn"

The AIN3 for the door video module now opens the relay 1 door The AIN4 for the door video module now opens the relay 2 door

For security reasons, this function is disabled when the system is delivered.

IO In Out IO In IO In No.: AI3 Use In: openDoorBtn IO Out IO Out No: DOOR1 Use out: electricLock Save

Diagram showing connections between device interfaces and a terminal block, with labeled ports and wiring paths.

Max. 2A @ 30 VDC
Max. 0.5A @ 125 VAC

9.16 Relay connection

The door video module relay (TVHS20000(S) / TVHS20010(S)), security module TVHS10040 / TVHS20340 and monitors TVHS20200 / 210 / 220 have maximum loads of 2A 30VDC / 0.5A 125AC. An overload will cause the device to malfunction.

Be sure to determine the power consumption of your current door opener / motorised lock. If the permissible current is exceeded, we recommend connecting an external relay.

The door video module has a separate 12V DC voltage output. This allows an external auxiliary relay to be clamped on directly without further power supply.

Technical diagram showing connections between a device with labeled ports and an electrical component, including wiring and terminal labels.

Example: Fully assembled 12V relay PCB with protective diode

Hat rail relays:

Blue industrial component with metallic housing and label (no visible text or symbols)

Close-up of a green and black electronic component with a red indicator light and a black label (no readable text or symbols)

9.17 Instructions for measuring the current door opener

If you would like to control an already existing door opener and do not have any information about the current consumption, determine whether the maximum power consumption will overload the relay before connecting to the door video module relay.

To do this, measure the power consumption using a multimeter. Separate a live cable and switch the ammeter in between (in series).

9.18 Application example "video module in front of every apartment door"

Often there is a desire to also place a video module in front of every apartment door in an apartment building in order to get a 180^ video of the area in front of the apartment door (peepholes are usually very acute-angled in your field of vision).

This can be programmed for up to 16 apartment doors using the "Side entrance" function in the video module.

LAN Version

2-wire version

Remote Configuration Configuring the Room Numbers System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Video Display CCD Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot ? Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

Remote Configuration Configuring the Network and Sip Parameters Linked Network Configuration Device Type: Door Station Master Station IP Address: 0.0.0.0 (Main) Door Station IP Address: 192.168.0.45 SIP Server IP Address: 0.0.0.0 Security Control Panel IP Address: 0.0.0.0 Security Control Panel Port No.: 0 Save Remote Configuration Configuring the Key Call Room Parameters Dial Number: 1 Room No.: 1 Quick Press for Calling Center Save Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Video Display CCD

9.19 Application example "Individual WiFi access"

In an apartment building, there is often no central Internet connection for all residential units. Each residential unit may have its own internet connection.

A connection to the customer-specific internet connection can be established via the WiFi function of the main monitor.

This means that there is also access to the ABUS Link Station function with push notification when the doorbell rings individually for each residential unit.

A document with further information on wiring the 2-wire door intercom system can be found at www.abus.com, e.g. on the TVHS20010 product:

https://www.abus.com/var/ImagesPIM/d110001/medias/docus/25/Moduvis Verkabelung Wiring 2wire_V1.1.pdf

MODUVIS

Interphone

TVHS20XXX(S)

Mai Magermann — Fau-Matermann — — — — — — — —

Solid dark rectangular shape with no visible text, symbols, or features.

Blue square icon with a white telephone handset symbol (no text or numbers)

Blue square icon with a white envelope symbol (no text or numbers)

Blue square icon with a white eye symbol and corner brackets (no text or symbols)

Blue square icon with a white light bulb symbol (no text or numbers)

	Journal des images
14-03
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany		[ABUSSecurity Tech Germany]
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany		ABUSSecurity Tech Germany
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany		ABUSSecurity Tech Germany

Pure diagram of six rectangular panels arranged in a grid, no text or symbols present

Remote Configuration

Configuring the Right and Password Parameters System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control Permission Password Password Type: PublicPassword1 Old Password: New Password: Confirm Password: Save

RS485 - (Blue) RS485 + (Yellow) 12 VDC (Red) GND (Black) Secure Unit TVHS10040

Jusqu'au firmware V2.0.8 / V2.1.2 build 200410:

Remote Configuration System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control ID Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Configuring the Room Numbers Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot ? Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

Remote Configuration Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Local Network Configuration Linked Network Configuration FTP Settings Advanced Settings Configuring the Network and Sip Parameters Linked Network Configuration Device Type: Door Station Master Station IP Address: 0.0.0.0 (Main) Door Station IP Address: 192.168.0.45 SIP Server IP Address: 0.0.0.0 Security Control Panel IP Address: 0.0.0.0 Security Control Panel Port No.: 0 Save

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Access and Elevator Control

10 Input/Output

Volume Input/Output

Dial

Motion Detection

Intercom Protocol

Sub Module

Network

Configuring Sub Module Information

Module Add... Module Type

Module Status

Module Version

Settings

1

Nametag Module

Online

V1.0.0 ...d190522

2

Keypad Module

Online

V1.0.0...d191009

Key number Room No. 1 2 3 4 5 6 Save Cancel

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol

Line drawing of a rectangular electronic device with concentric circles and a battery (no text or symbols)

Technical line drawing of a device rear panel with internal connectors and a dome-shaped top (no text or symbols)

NY GND 12V OUT 485+ 485- SANS OUT AIN4 AIN3 AIN1 AIN2 Alarm to GND 12V DC GND NO2 NC2 COM NO1 NC1 OOO 12 VAC

Exterior view of a rectangular electronic device with a central screen and mounting holes (no visible text or symbols)

Max. 0,5 A @ 125 VA

Max. 2,0 A @ 30 VDC

Technical line drawing of a device rear panel with internal ports and connectors (no text or symbols)

Exterior view of a rectangular electronic device with a central vertical glass and two mounting holes (no visible text or symbols)

Max. 0,5 A @ 125 VA

Max. 2,0 A @ 30 VDC

NV1 GND 12V OUT 485+ 485- IS485 O/U ANN4 ANN3 ANN1 ANN2 Alarm to ANN1 ANN2 GND 12V DC GND NO2 NC2 COM NO1 NC1 DOOR

Exterior view of a rectangular electronic device with a vertical glass panel and mounting holes (no visible text or symbols)

Max. 0,5 A @ 125 VA

Max. 2,0 A @ 30 VDC

Remote Configuration System Device Information General Time System Maintenance User RS465 Intercom Network Video Display CCD System Maintenance System Management Reboot Restore Default Settings Restore All Import Configuration File Export Configuration File Remote Upgrade Select Type: Controller Upgra... Select File: ... Upgrade Progress: System Type NetworkVideoIntercomSystem Sve

Incoming Call Linkage

Relay

Local Network Configuration

Linked Network Configuration

Advanced Settings

ABUS Link Station

Diagram showing connections between device interfaces and an PLC module, with labeled ports and wiring paths.

Max. 2A @ 30 VDC
Max. 0.5A @ 125 VAC

9.16 Circuit relais

Technical line drawing of a device front panel and internal connector housing (no text or symbols)

HV1 SPD SRPSB L2V DN1 485- 485- AHP ARX3 ARX2 GND TV DC GND NC2 NC2 COM NE1 NC1

Blue and white industrial component with no visible text or symbols

Close-up of a green and black electronic component with red indicator lights (no visible text or symbols)

Remote Configuration Configuring the Room Numbers System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Video Display CCD Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

Remote Configuration

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Access and Elevator Control

ID Input/Output

Volume Input/Output

Configuring the Network and Sip Parameters

Linked Network Configuration

Device Type:

Dress Station

0.0.0.0

(Main) Door Station IP Address:

192.168.0.45

SIP Server IP Address:

0.0.0.0

Security Control Panel IP Address:

0.0.0.0

Security Control Panel Port No.:

0

Save

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Access and Elevator Control

IO Input/Output

Volume Input/Output

Dial

Motion Detection

Intercom Protocol

Sub Module

Network

Video Display

CCD

Configuring the Key Call Room Parameters

Dial

Number:

1

▼

Room No.:

1

m = 311

m = 311

Quick Press for Calling Center

Save

Solid dark rectangular shape with no visible text, symbols, or features.

Firmware-release-opmerking

	Opnamelogboeken
14-03
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany

5.2.1 Menupunt: Oproepinstellingen

Firmware-release-opmerking

Functie: automatisch beantwoorden, direct automatisch beantwoorden Videomodule (THVS20000 / TVHS20010): V2.2.3_build_201029 Monitor (TVHS20200 / TVHS20210): V2.1.2_build_201029

Simple line drawing of six rectangular frames arranged in a scattered pattern (no text or symbols)

Tot firmware V2.0.8 / V2.1.2 build 200410:

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control

Configuring the Right and Password Parameters Permission Password Password Type: PublicPassword1 Old Password: New Password: Confirm Password: Save

5.2.11 Systeemtaal

Tot firmware V2.0.8 / V2.1.2 build 200410:

Remote Configuration Configuring the Room Numbers System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

Remote Configuration Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Local Network Configuration Linked Network Configuration FTP Settings Advanced Settings Configuring the Network and Sip Parameters Linked Network Configuration Device Type: Door Station Master Station IP Address: 0.0.0.0 (Main) Door Station IP Address: 192.168.0.45 SIP Server IP Address: 0.0.0.0 Security Control Panel IP Address: 0.0.0.0 Security Control Panel Port No.: 0 Save

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Access and Elevator Control

IO Input/Output

Volume Input/Output

Dial

Motion Detection

Intercom Protocol

Sub Module

Network

Configuring Sub Module Information

Module Add... Module Type		Module Status	Module Version	Settings
1	Nametag Module	Online	V1.0.0 ...d190522
2	Keypad Module	Online	V1.0.0 ...d191009

Key number Room No. 1 2 3 4 5 6 Save Cancel

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol

Line drawing of a rectangular electronic device with concentric circles and a horizontal bar (no text or symbols)

Technical line drawing of a device rear panel with internal ports and a dome-shaped top (no text or symbols)

LAN GND 12V OUT 465+ 485- RS485 DVL AIN4 AIN3 AIN2 Alum to GND 12V DC GND NO2 NC2 COM NO1 NC1 DOOM 12 VAC

Exterior view of a metallic industrial device with a vertical glass lid and mounting holes (no visible text or symbols)

Max. 0,5 A @ 125 VA

Max. 2,0 A @ 30 VDC

Max. 0,5 A @ 125 VA
Max. 2,0 A @ 30 VDC
Max. 0,5 A @ 125 VA
Max. 2,0 A @ 30 VDC

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Zone Alarm IP Camera Information Volume Input/Output Ring Import Deploy Info Incoming Call Linkage Relay Network

Ring Configuration
Index	Name	Size	Type	Add	Delete
1	Sprach...1_sd_2	185466	wav	+	×
2				+	×
3				+	×
4				+	×

9.10 ABUS CMS: firmware Moduvis-componenten update

Remote Configuration System Maintenance System Management Reboot Restore Default Settings Restore All Import Configuration File Export Configuration File Remote Upgrade Select Type: Controller Upgra... Select File: *** Upgrade Progress: System Type NetworkVideoIntercomSystem SVE

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Local Network Configuration Linked Network Configuration FTP Settings Advanced Settings Video Display Video Parameters Video Display Video & Audio CCD Back Light Compensation

Incoming Call Linkage

Relay

Network

Local Network Configuration

Linked Network Configuration

Advanced Settings

ABUS Link Station

Diagram showing connections between device interfaces and a terminal block, with labeled ports and wiring paths.

Max. 2A @ 30 VDC
Max. 0.5A @ 125 VAC

9.16 Relaiscircuit

Technical diagram showing connections between a device with labeled ports and internal components, including wiring and terminal labels.

Blue industrial component with metallic housing and internal components (no visible text or symbols)

Close-up of a green and black electronic component with red indicator lights (no visible text or symbols)

Remote Configuration Configuring the Room Numbers System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Video Display CCD Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

Remote Configuration

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Access and Elevator Control

ID Input/Output

Volume Input/Output

Configuring the Network and Sip Parameters

Linked Network Configuration

Device Type:

Dress Station

0.0.0.0

(Main) Door Station IP Address:

192.168.0.45

SIP Server IP Address:

0.0.0.0

Security Control Panel IP Address:

0.0.0.0

Security Control Panel Port No.:

0

Save

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Access and Elevator Control

IO Input/Output

Volume Input/Output

Dial

Motion Detection

Intercom Protocol

Sub Module

Network

Video Display

CCD

Configuring the Key Call Room Parameters

Dial

Number:

1

▼

Room No.:

1

m = 311

m = 311

Quick Press for Calling Center

Save

Solid dark rectangular shape with no visible text, symbols, or features.

9.8 T ILSLUTNING AF ELEKTRISK D∅RÅBNER TIL VIDEOMODULET (INKL. "HAVELÅGE") ...... 350

9.9 T ILPASNING AF EGNE RINGETONER PÅ D∅RSTATIONENS MONITOR.... 352

9.10 ABUS CMS: UDF∅R FIRMWAREOPDATERING AF MODUVIS-KOMPONENTERNE.... 353

9.11 ABUS CMS: UDVIDEDE INDSTILLINGSMULIGHEDER.... 355

9.12 F UNKTIONER MODUVIS OG ABUS LINK STATION APPEN.... 359

9.13 K OMPATIBILITET MED ABUS PRODUKTER 359

9.14 I NTEGRERING AF VIDEO-D∅RMODULET I ABUS NVR 359

9.15 "N ∅D-D∅RÅBNER"-TAST PÅ D∅R-VIDEOMODULET 360

9.16 R ELÆTILSLUTNING 362

9.17 V EJLEDNING TIL MÅLING AF DEN EKSISTERENDE D∅RÅBNER 363

9.18 A NVENDELSESEKSEMPEL "VIDEOMODUL FORAN HVER LEJLIGHEDSD∅R" 363

9.19 A PPLIKATIONSEKSEMPEL "INDIVIDUEL WIFI-ADGANG" 366

10. LEDNINGSF∅RING (2-LEDER) 367

1. Korrekt anvendelse

Blue square icon with a white telephone handset symbol (no text or numbers)

Blue square icon with a white envelope symbol (no text or numbers)

Blue square icon with a white eye symbol and corner brackets (no text or symbols)

Blue square icon with a white lightning bolt symbol (no text or numbers)

Blue square icon with a white eye symbol and corner brackets (no text or symbols)

	Optagelsesprotokol
14-03
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany
	ABUSSecurity Tech Germany		ABUSSecurity Tech Germany

Pure diagram of six rectangular panels arranged in a grid, no text or symbols present

Fra firmware V2.2.3 / V2.1.2 build 201029:

"#" Lejlighedsnummer 6-cifret PIN "#". Eksempel: # 1123456 #

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control

Configuring the Right and Password Parameters Permission Password Password Type: PublicPassword1 Old Password: New Password: Confirm Password: Save

5.2.11 Systemsprog

RS485 - (Blue) RS485 + (Yellow) 12 VDC (Red) GND (Black) Secure Unit TVHS10040

Op til firmware V2.0.8 / V2.1.2 build 200410:

Fra firmware V2.2.3 / V2.1.2 build 201029:

Remote Configuration Configuring the Room Numbers System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot ? Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

Remote Configuration Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Local Network Configuration Linked Network Configuration FTP Settings Advanced Settings Configuring the Network and Sip Parameters Linked Network Configuration Device Type: Door Station Master Station IP Address: 0.0.0.0 (Main) Door Station IP Address: 192.168.0.45 SIP Server IP Address: 0.0.0.0 Security Control Panel IP Address: 0.0.0.0 Security Control Panel Port No.: 0 Save

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Access and Elevator Control

10 Input/Output

Volume Input/Output

Dial

Motion Detection

Intercom Protocol

Sub Module

Network

Configuring Sub Module Information

Module Add... Module Type		Module Status	Module Version	Settings
1	Nametag Module	Online	V1.0.0 ...d190522
2	Keypad Module	Online	V1.0.0 ...d191009

Key number Room No. 1 2 3 4 5 6 Save Cancel

Remote Configuration

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol

Simple line drawing of a rectangular device with a circular top and horizontal base (no text or symbols)

Technical line drawing of a device rear panel with internal ports and a dome-shaped top (no text or symbols)

NAN GND 12V OUT 485+ 485- RS485 OUT AIN2 AIN3 AIN1 AIN2 Alum to GND 12V DC GND NO2 NC2 COM NO1 NC1 0000 S

Exterior view of a rectangular electronic device with a metallic panel and mounting holes (no visible text or symbols)

Max. 0,5 A @ 125 VA

Max. 2,0 A @ 30 VDC

Technical line drawing of a mechanical or electronic component with internal ports and a dome-shaped top (no text or symbols)

LAN GND 12V OUT RS485 OUT 485+ AIN4 AIN3 AIN1 AIN2 Alarm in GND 12V DC GND NO2 NC2 COM NO1 NC1 DOOR

Exterior view of a rectangular electronic device with a metallic panel and mounting holes (no visible text or symbols)

Max. 0,5 A @ 125 VA

Max. 2,0 A @ 30 VDC

Exterior view of a rectangular electronic device with a vertical glass lid and mounting holes (no text or symbols visible)

Max. 0,5 A @ 125 VA

Max. 2,0 A @ 30 VDC

Remote Configuration System Maintenance System Management Reboot Restore Default Settings Restore All Import Configuration File Export Configuration File Remote Upgrade Select Type: Controller Upgra... Select File: ... Upgrade Progress: System Type NetworkVideoIntercomSystem Sve

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom
Network
Video Display
CCD

Displaying the Device Information

Basic Information

Device Type: TVHS20000

Device Serial No.: TVHS200000120200110RRP11705670

Version Information

Versions V2.2.3 build 201029

Hardware Version: 0x0

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Access and Elevator Control

IO Input/Output

Volume Input/Output

Dial

Motion Detection

Intercom Protocol

Sub Module

Network

Local Network Configuration

Linked Network Configuration

FTP Settings

Advanced Settings

Video Display

Video Parameters

Video Display

Video & Audio

CCD

Back Light Compensation

System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Zone Alarm IP Camera Information Volume Input/Output Ring Import Deploy Info Incoming Call Linkage Relay Network Local Network Configuration Linked Network Configuration Advanced Settings ABUS Link Station

Diagram showing connections between device interfaces and an PLC module, with labeled ports and wiring paths.

Max. 2A @ 30 VDC
Max. 0.5A @ 125 VAC

9.16 Relætilslutning

Technical diagram showing connections between a device with labeled ports and internal components, including wiring and terminal labels.

Blue industrial component with metallic housing and mounting holes (no visible text or symbols)

Close-up of a green electronic component with black and red pins, no visible text or symbols on the main body.

Remote Configuration Configuring the Room Numbers System Device Information General Time System Maintenance User RS485 Intercom ID Configuration Time Parameters Permission Password Access and Elevator Control IO Input/Output Volume Input/Output Dial Motion Detection Intercom Protocol Sub Module Network Video Display CCD Device No. Configuration Device Type: Door Station Project No.: 1 Community No.: 1 Building No.: 1 Floor No.: 1 No.: 1 Save Reboot Master Outdoor Device to Slave Device will cause the device to reboot, Are you sure? OK Cancel

Remote Configuration

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Access and Elevator Control

ID Input/Output

Volume Input/Output

Configuring the Network and Sip Parameters

Linked Network Configuration

Device Type:

Dress Station

0.0.0.0

(Main) Door Station IP Address:

192.168.0.45

SIP Server IP Address:

0.0.0.0

Security Control Panel IP Address:

0.0.0.0

Security Control Panel Port No.:

0

Save

Remote Configuration

System

Device Information

General

Time

System Maintenance

User

RS485

Intercom

ID Configuration

Time Parameters

Permission Password

Access and Elevator Control

IO Input/Output

Volume Input/Output

Dial

Motion Detection

Intercom Protocol

Sub Module

Network

Video Display

CCD

Configuring the Key Call Room Parameters

Dial

Number:

1

▼

Room No.:

1

m = 311

m = 311

Quick Press for Calling Center

Save

2

2

2

2

2

-

9.19 Applikationseksempel "Individuel WiFi-adgang"
