Silképil 5 5810 - Epilator BRAUN - Free user manual and instructions

Brand	Braun
Model	Silképil 5 5810
Category	Epilator
Product type	Cordless electric epilator with shaving function
Power supply	Rechargeable battery, charges via special cable (1 hour for full charge)
Battery life	30 minutes cordless after full charge
Charge indicator	Green flashing (charging), green steady (full), yellow steady (15 min left), yellow flashing (5 min left)
Speeds	2 speeds (speed 1 and speed 2)
Main functions	Epilation (dry or wet skin), shaving, contour trimming, 5 mm trimming, massage
Included accessories	Skin contact accessory, massage accessory, protective cap for beginners, shaving head with trimmer accessory
Water use	Usable in the bath or under the shower, cordless only
SensoSmart™ technology	Light indicator turns red if excessive pressure is applied
Safety	Travel lock (activate for 3 seconds)
Care and cleaning	Rinse epilation head under water; clean tweezers with brush; do not clean shaving foil with a brush
Spare parts and repairability	Replacement accessories available (ref. #771WD); rechargeable battery replaceable only at an authorized service center
Warranty	2 years (excluding normal wear, foil and cutter block)
Operating temperature	15 to 35 °C for charging and use
Target audience	Adults; children over 8 years under supervision; personal hygiene, do not share
Environmental note	Do not dispose of with household waste, recyclable at authorized centers

Frequently Asked Questions - Silképil 5 5810 BRAUN

How to charge the Braun Silképil 5 5810 epilator?

Plug the special cable (6) into an electrical outlet and charge the device for 1 hour. The charge indicator (3a) flashes green during charging and turns solid green when fully charged.

Can I use the epilator in the shower?

Yes, the device can be used in the bath or under the shower, but only cordless. Make sure your skin is well moisturized for better glide.

What does the SensoSmart™ indicator turning red mean?

The SensoSmart™ indicator (3b) turns red when you apply excessive pressure on the skin. It helps you adopt the right pressure for optimal comfort.

How to use the protective cap for beginners?

The beginners cap (8) combines epilation and shaving for first uses. Use it only on wet skin with shaving foam, on legs. After 4 weeks, you can switch to normal accessories.

How to clean the epilation head?

Remove the used accessory and rinse it under water. To clean the tweezers, use the provided brush. After use on wet skin (especially with gel), rinse the head under water. Regular cleaning ensures optimal hygiene.

How long does the battery last and how to know when to recharge?

The battery life is 30 minutes after a full charge. The charge indicator turns solid yellow when 15 minutes remain, and flashing yellow when 5 minutes remain. Recharge as soon as the indicator turns yellow or if the motor stops.

How to activate the travel lock?

Press the on/off button (4) for at least 3 seconds until you hear a beep. To unlock, press again for 3 to 5 seconds or plug the device into the mains.

What accessories are included with the Silképil 5 5810 model?

The model includes: skin contact accessory (1), massage accessory (7), protective cap for beginners (8), shaving head with trimmer accessory (9). (This depends on the exact model.)

How to maintain the shaving head?

Tap the shaving foil (II) on a flat surface to clean it. Do not use a brush, as this could damage it. Lubricate the shaving parts every three months. Replace the foil and cutter block if performance decreases.

What to do in case of skin irritation after epilation?

Mild irritation (redness, itching) is normal, especially at the beginning. It usually goes away quickly. If it persists for more than 36 hours, consult a doctor. Use a moisturizing cream after epilation to soothe the skin.

USER MANUAL Silképil 5 5810 BRAUN

Illustration of a hand holding a circular object with wavy lines, pointing to a black arrow (no text or symbols)

90°

4 90°

Illustration showing two steps of a person applying a medical or therapeutic device to another person's arm (no text or symbols present)

6 !

shower gel shave gel

Medical diagram showing a foot with an arrow pointing to a warning symbol and a triangular warning sign.

7

Diagram showing two hands inserting a container into a water container with arrows indicating flow direction (no text or symbols)

Illustration of a hand holding a device with water droplets falling, no text or symbols present

Illustration of a hand holding a connector with water droplets falling, no text or symbols present

B

Deutsch

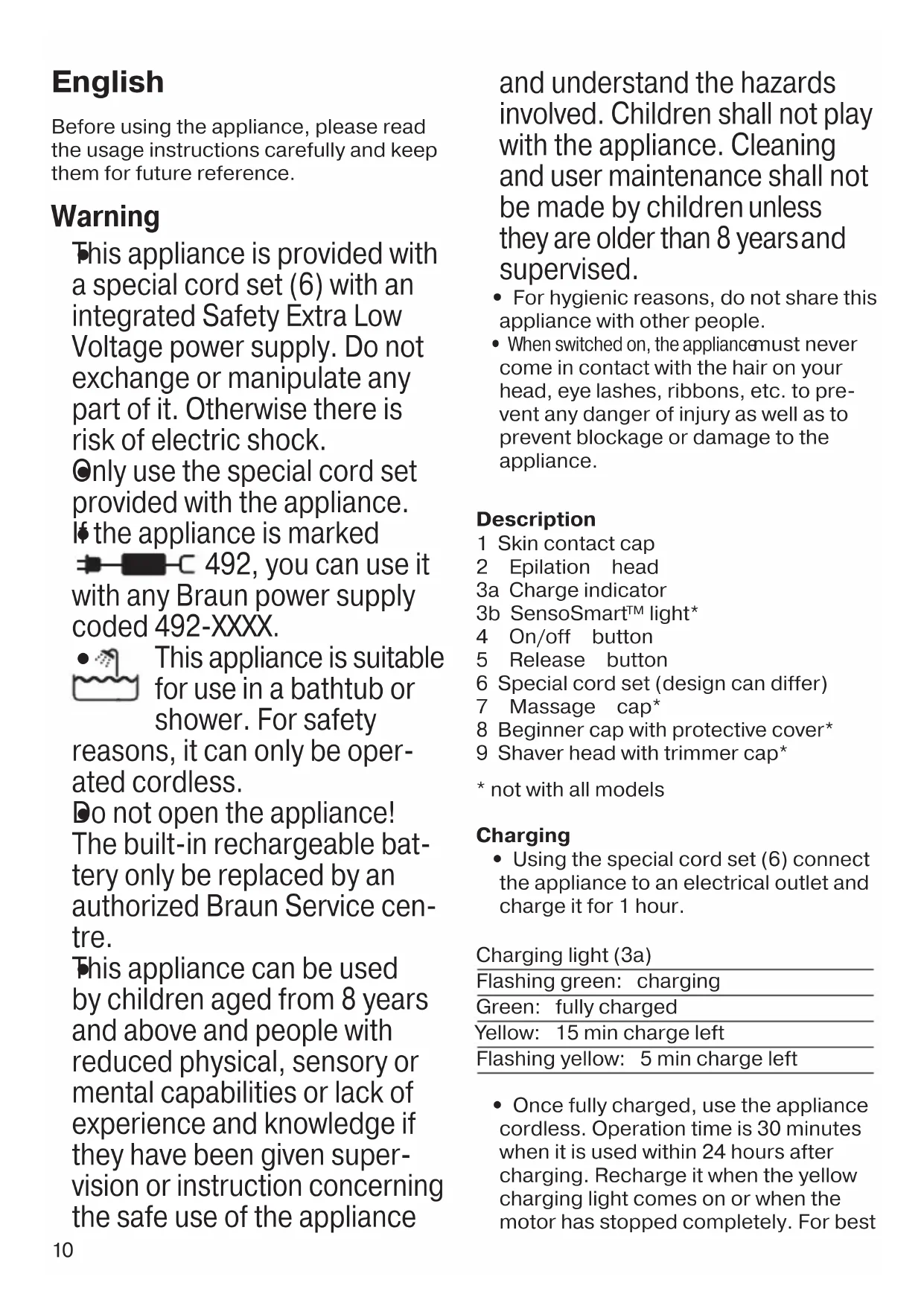

Before using the appliance, please read the usage instructions carefully and keep them for future reference.

Warning

This appliance is provided with a special cord set (6) with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock.

Only use the special cord set provided with the appliance.
If the appliance is marked

492, you can use it with any Braun power supply coded 492-XXXX.

This appliance is suitable for use in a bathtub or shower. For safety reasons, it can only be operated cordless.

Do not open the appliance! The built-in rechargeable battery only be replaced by an authorized Braun Service centre.
This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance

and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

• For hygienic reasons, do not share this appliance with other people.
• When switched on, the appliance must never come in contact with the hair on your head, eye lashes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.

Description

1 Skin contact cap
2 Epilation head
3a Charge indicator
3b SensoSmart™ light*
4 On/off button
5 Release button
6 Special cord set (design can differ)
7 Massage cap*
8 Beginner cap with protective cover*
9 Shaver head with trimmer cap*

* not with all models

Charging

- Using the special cord set (6) connect the appliance to an electrical outlet and charge it for 1 hour.

Charging light (3a)

Flashing green: charging

Green: fully charged

Yellow: 15 min charge left

Flashing yellow: 5 min charge left

- Once fully charged, use the appliance cordless. Operation time is 30 minutes when it is used within 24 hours after charging. Recharge it when the yellow charging light comes on or when the motor has stopped completely. For best

performance, always use a fully charged appliance.

- The best environmental temperature for charging, using and storing the appliance is between 15 °C and 35 °C. In case the temperature is beyond this range, the charging time might be longer whereas the cordless operation time might be reduced.

Switching on

Push the on/off button (4) to switch on (speed 1).

Push a second time to switch to speed 2. Push one more time to turn off the appliance.

The SensoSmart ^™ light (3b) shines red when you apply too much pressure.

Travel lock

Push and hold the on/off switch at least 3 seconds to activate the travel lock. A beep confirms that the switch is locked. To unlock, push and hold 3 to 5 seconds. You can also unlock the switch by connecting the appliance to the mains.

Epilation

• When epilating on dry skin, your skin must be free from grease or cream.

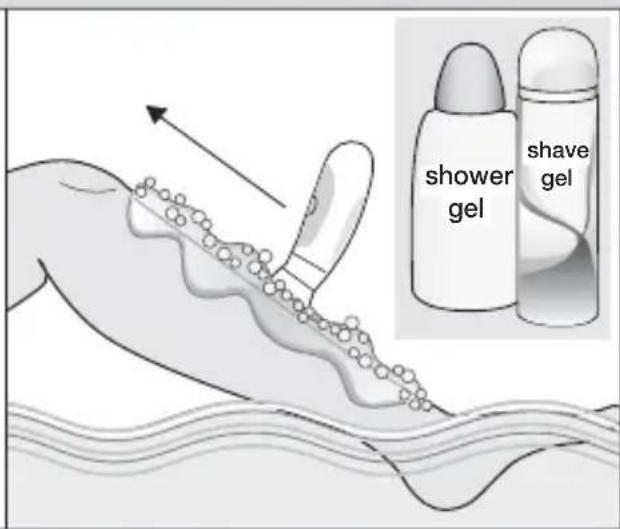

• The appliance can be used on wet skin, even under running water. Make sure that the skin is very moist. In order to achieve optimum gliding conditions for the appliance, you may use a shower gel while epilating.

The epilation head (2) is equipped with different caps (1, 7 or 8 depending on model). Choose the cap according to your needs:

Skin contact cap (1): provides a close skin contact and adapts to all body areas. Whenever the SensoSmart™ light shines red, this is to remind you not to press too hard.

Massage cap (7): can be used instead of the skin contact cap (1). It stimulates the skin to make the epilation process more comfortable.

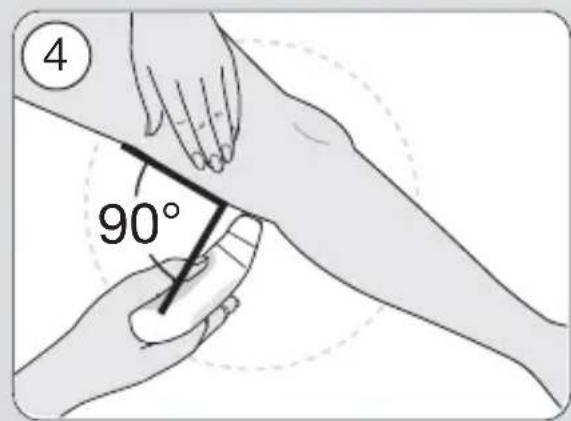

Always stretch your skin while epilating. Hold the appliance at a right angle (90°) against your skin and guide it in a slow, continuous motion against the hair growth in the direction of the switch.

Use on legs: Epilate your legs in an upward direction. When epilating behind the knee, keep the leg stretched out straight. Keep your leg stretched out straight when removing hair in the area behind the knee.

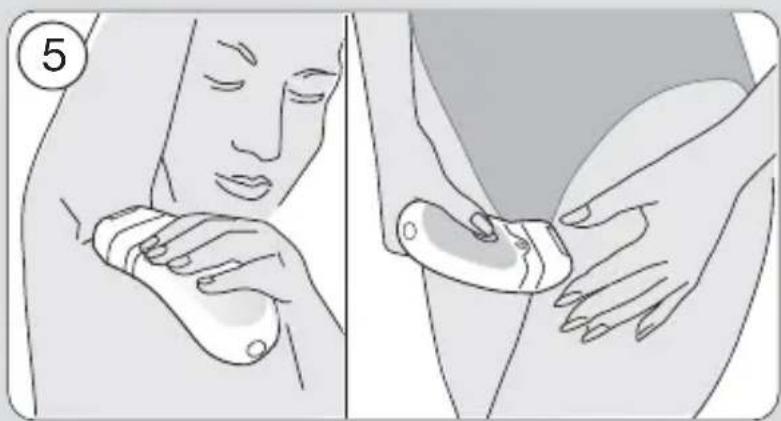

Use on underarm and bikini zone: Since these areas are sensitive to pain, start with speed I. With repeated usage, the pain sensation will diminish. Before epilating, thoroughly clean the respective area to remove residues (like deodorant). When epilating the underarm, keep your arm raised up and guide the appliance in different directions in order to catch all hairs that might grow in various directions.

Beginner cap (8) for first time users: combines epilation and shaving to help getting used to hair removal from the root. It has been designed for wet usage on legs only. Always apply shave foam or gel on your wet skin when using the beginner cap.

In the beginning phase (first 4 weeks), use the epilator with the beginner cap once a week to epilate and shave. Take special care on bony, uneven skin areas in order to avoid injuries caused by the blades. Between usages, rinse off the foam built up on the beginner cap.

After 4 weeks, you will be used to hair removal and can switch to epilation using the skin contact (1) or massage cap (7). If you want to continue to use the beginner cap, make sure to replace it after 12 usages (or in case the blade shows signs of wear, kinks, or damage). Replacement caps (reference #771WD) are available from the retailer where the appliance was bought,

from Braun Service Centres or via www.service.braun.com.

Epilation tips

• If you have not used an epilator before, or if you have not epilated for a long period of time, it may take a short time for your skin to adapt to epilation. The discomfort experienced in the beginning will decrease considerably with repeated use as the skin adapts to the process.
• When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisturizing cream after epilating.
• Epilation is easier and more comfortable when the hair is at the optimum length of 2 to 5 mm. If hairs are longer, we recommend that you first shave and epilate the shorter, re-growing hairs after 3 to 5 days.
• Fine, re-growing hairs might not grow up to the skin surface. Exfoliation helps preventing in-grown hairs by scrubbing/removing the upper skin layer so that fine hairs can get through to the skin surface.

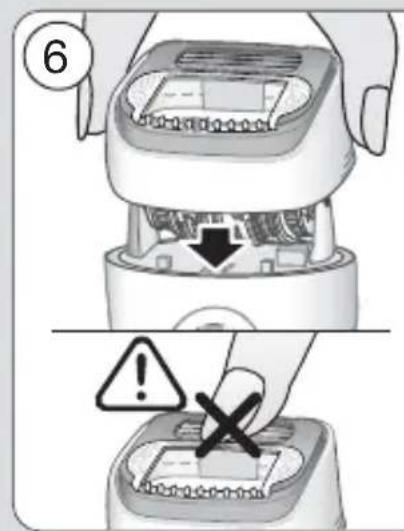

Cleaning the epilation head

Regularly cleaning the epilation head ensures good hygienic conditions. First remove the cap used (1, 7 or 8) and rinse it under running water. To remove the epilation head, press the release button (5).

Dry: Thoroughly clean the tweezers element using the cleaning brush.

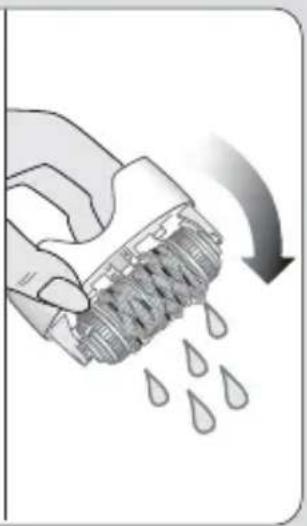

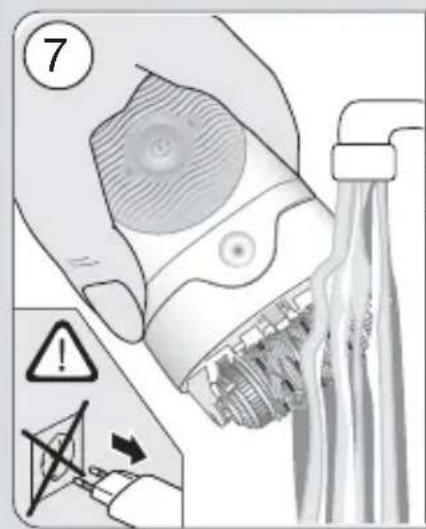

Wet: After each wet usage (especially with gel), clean the epilation head under running water. During cleaning, turn on the epilator for a few seconds. Re-attach one of the caps only when the epilation head is completely dry.

General information on epilation

All methods of hair removal from the root can lead to in-grown hairs and irritation

(e.g. itching, discomfort or reddening of the skin), depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair from the root for the first few times or if you have sensitive skin.

If after 36 hours the skin still shows irritation, we recommend that you contact your physician.

In general, the skin reaction and the sensation of pain tend to diminish considerably with repeated use of Silk-épil.

In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head before each use will minimize the risk of infection.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles), varicose veins, around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, haemophilia, immune deficiency or candida.

Shaving (see picture section B)

The shaver head (9) is designed for a fast and close shave of legs, underarms and bikini line, contour trimming and cutting hair to 5 mm length. Use the shaver head only on dry skin and with speed II.

a Shaving: Select « 3».
b Contour trimming: Select «∅».
c Cutting hair to 5 mm length:

Select » and put on the trimmer cap (I).

d Cleaning

Tap the shaver foil (II) on a flat surface. Do not clean it with the brush as this may damage the foil.

e The shaving parts need to be lubricated regularly every 3 months.
f Replace the foil frame (II) and cutter block (III) when you notice a reduced shaving performance. Replacements parts can be obtained from your retailer or Braun Customer Service Centres or via www.service.braun.com. Do not shave with a damaged foil.

Disposal

The products contain batteries and recyclable electronic waste. To protect the environment, do not dispose of them in the household waste, but take them to appropriate local collection points.

Subject to change without notice

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance.

The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For Claims in Australia please contact:

Procter & Gamble Australia Pty Ltd 1 Innovation Road, Macquarie Park NSW 2113 Telephone: [phone] Facsimile: [phone] Email: [e-mail]

For claims in New Zealand please contact:

Procter & Gamble Distributing New Zealand Limited c/o Simpson Grierson 88 Shortland Street, Auckland 1010 New Zealand Telephone: [phone] Facsimile: [phone] Email: [e-mail]

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New

Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infi rm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or

any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service (free call): 1 800 641 820

New Zealand Consumer Service (free call): 0 800 108 909

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd trading as J A Appliances

17-19 Hossack Avenue

Coburg North, VIC 3058

Tel. [phone]

Fax. [phone]

Email: jaappliances@statewideservices.

com.au

QUEENSLAND

Walters Import trading as Brisbane

Appliance Service Centre

449 Beaudesert Road

Moorooka QLD 4105

Tel. [phone]

Fax. [phone]

Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances

Unit 1, 46 Abernethy Road

Belmont, WA 6104

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd

Shop 4,

9 Evans Road,

Rooty Hill, NSW 2766

Tel. [phone]

Fax. [phone]

Email: [e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre

Shop B2,

Parkholme Shopping Centre

319 Oaklands Road, Parkholme

Adelaide, SA 5043

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW ZEALAND

Key Service Ltd

34A Cryers Road

East Tamaki

Auckland

New Zealand

(PO Box 38569, Howick, Auckland, New

Zealand)

Tel. [phone]

Fax. [phone]

Email: [e-mail]

Français

ELMIN, Đurđevac 48350

R. Boškovića 20, Tel. [phone], [e-mail]

BKS d.o.o., Slavonski brod 35 000

J. J. Strossmayera 29, Tel. [phone], [e-mail]

FRUK d.o.o., Virovitica 33 000

J. J. Strossmayera 23, Tel. [phone], [e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE, Varaždin 42 000

Krešimira Filića 9, Tel. [phone], [e-mail]

RADAN ELEKTRINIK CENTAR d.o.o., Dubrovnik 20 000

Ob. Pape I. Pavlall. 17, Tel. [phone], [e-mail]

Tehno -Jelčić d.o.o., Šibenik 22 000

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

MERC&DUJMOVIĆ, Split 21 000

Alojzija Stepinca 6, Tel. [phone], [e-mail]

SINGULI D.O.O., 21000 SPLIT-KAMEN

UL. 4. Gardijske brigade 43, Tel. [phone] (u sklopu poslovnog prostora ROBOT COMMERCE d.o.o. (TTTS)) [e-mail]

Slovenski

Pred uporabo aparata pozorno preberite navodila za uporabo in jih shranite za nadaljnjo uporabo.

Opozorilo

Blocare la transport

Country of origin: Germany Year of manufacture

To determine the year of manufacture, refer to the 4-digit production code starting with "PC" located near the type plate. The first digit refers to the last digit of the year of manufacture. The next three digits refer to the day in the year of manufacture. Example: "PC7123":

The product was manufactured on day 123 of 2017.
