Product type	Grill plate (Adjustable Salamander Grill)
Brand	Buffalo
Model	CD679
Usage	Commercial (professional)
Housing material	Stainless steel
Heating zones	2 individually controlled zones
Height adjustment	Adjustable counterweight height
Maximum temperature	Continuous heat (MAX) or programmed
Power supply	220-240 V / 50-60 Hz
Control knobs	Rotary knob with green (power on) and red (heating) indicators
Drip tray	Removable for grease
Grill rack	Removable
Cleaning	Soft damp cloth, non-corrosive cleaner
Safety	Hot surface, do not touch during/after use
Installation	On a solid, level surface, away from moisture and dust
Wall mounting	Possible (bracket sold separately)
Compliance	WEEE, EN 60335-2-36, EN 55014-1, etc.
Package contents	Adjustable Salamander Grill, drip tray, grill rack, manual
Manual languages	FR, DE, EN, ES, IT, NL, PT and others
Number of manual pages	48

Frequently Asked Questions - CD679 BUFFALO

How to install the Buffalo CD679 Salamander Grill?

Installation must be carried out by a qualified person. Place the appliance on a solid, level surface in a well-ventilated area away from moisture and dust. Before first use, remove the two transport fixing bolts at the rear. Plug the appliance into a grounded power outlet.

How to adjust the cooking height?

The top part of the grill is equipped with a counterweight. Pull the handle up or down vertically to adjust the distance between the food surface and the heat source. Raise the top part to its maximum position to remove grilled food.

What to do if the green light does not come on?

Check that the appliance is properly plugged into a functional power outlet. If the problem persists, replace the fuse. If the light remains off, contact an authorized Buffalo technician.

How to clean the Salamander Grill?

Unplug the appliance and let it cool completely. Remove the grill rack and drip tray (removable) to clean them separately. Clean the exterior with a soft damp cloth and a non-corrosive cleaner. Never use a direct water spray.

Can I cook frozen food?

No, avoid heating frozen foods or those containing too much water, as this could damage the appliance or cause splashes.

What is the warranty on this product?

The manual does not specify the warranty period. Contact your Buffalo dealer for more information. Buffalo declines all responsibility in case of misuse or intervention by an unqualified person.

Can I mount the appliance to the wall?

Yes, the Salamander Grill can be wall-mounted using a mounting bracket (sold separately). Ensure the wall and fixings can support the weight of the appliance. Follow the provided mounting instructions.

How to replace the power cord?

Replacement of the power cord must be carried out by the manufacturer, its service agent, or a qualified person in accordance with safety instructions.

What types of dishes can I prepare with this grill?

This grill is ideal for grilling and gratinating ingredients such as cheese, Mornay sauces, and toppings. It is not suitable for steaming or cooking very watery foods.

Where can I find spare parts?

Spare parts such as the grill rack, drip tray, or power cord are available from your Buffalo dealer or an authorized service agent. Use only genuine parts.

USER MANUAL CD679 BUFFALO

(UK)

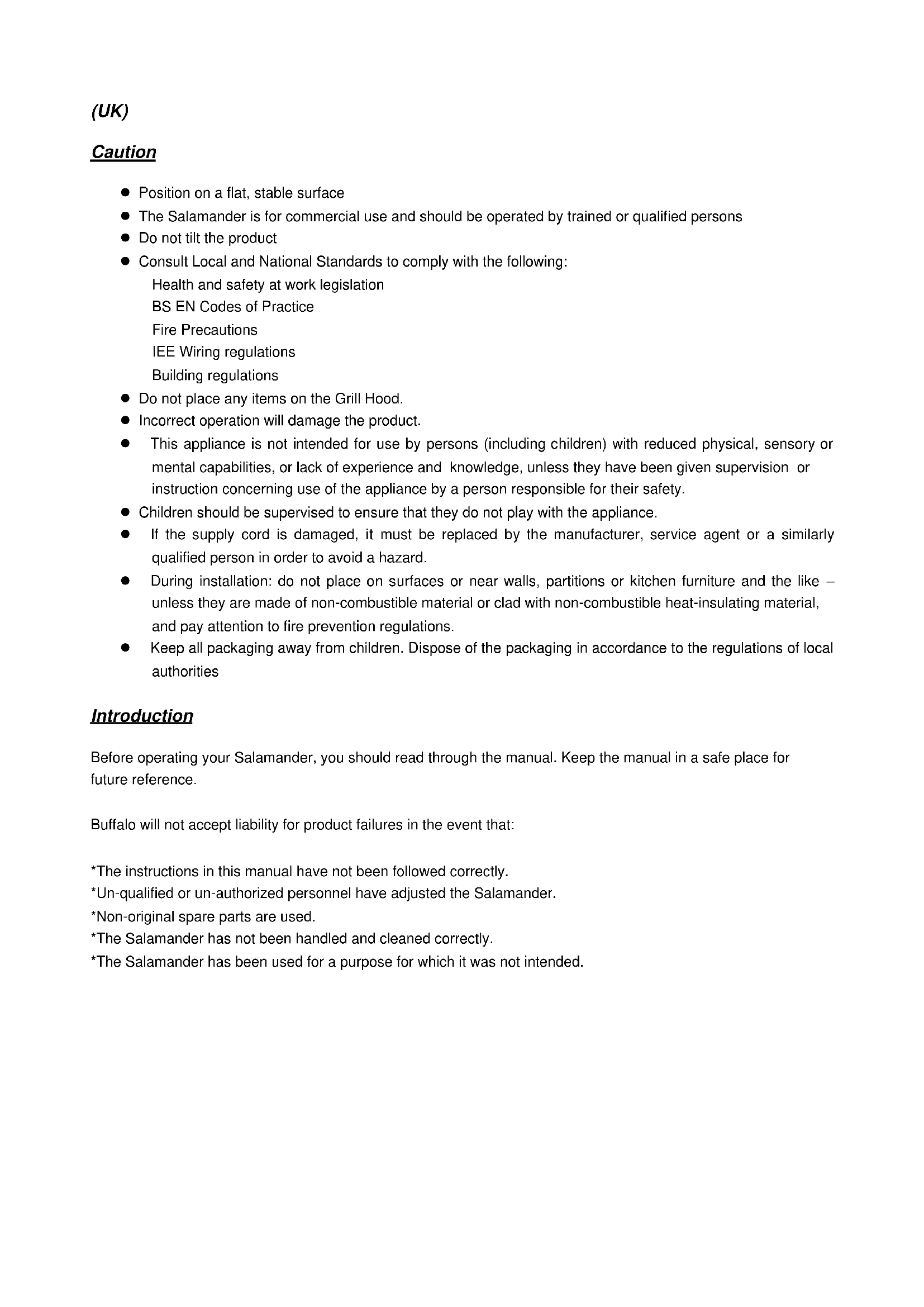

Caution

• Position on a flat, stable surface
  ● The Salamander is for commercial use and should be operated by trained or qualified persons
• Do not tilt the product
• Consult Local and National Standards to comply with the following:

Health and safety at work legislation

BS EN Codes of Practice

Fire Precautions

IEE Wiring regulations

Building regulations

• Do not place any items on the Grill Hood.
• Incorrect operation will damage the product.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or a similarly qualified person in order to avoid a hazard.
• During installation: do not place on surfaces or near walls, partitions or kitchen furniture and the like – unless they are made of non-combustible material or clad with non-combustible heat-insulating material, and pay attention to fire prevention regulations.
• Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities

Introduction

Before operating your Salamander, you should read through the manual. Keep the manual in a safe place for future reference.

Buffalo will not accept liability for product failures in the event that:

*The instructions in this manual have not been followed correctly.
*Un-qualified or un-authorized personnel have adjusted the Salamander.
*Non-original spare parts are used.
*The Salamander has not been handled and cleaned correctly.
*The Salamander has been used for a purpose for which it was not intended.

(UK)

Packaging

Buffalo prides itself on quality and service, ensuring that at the time of packing all products is supplied fully functional and free of damage.

PacK Contents:

*Adjustable Salamander Grill
*Drip tray
*Grilling Rack
*Manual

Should you find any damage as a result of freight, please contact your Buffalo dealer immediately.

Installation

Be sure that the Salamander is free of all protective plastics and residues before operation.

● The Salamander must be installed by a qualified person.
- Locate the Salamander on a firm level surface.

Important Notice:

- Please remove the 2 tranist fixing bolts from on the rear panel of the unit before operation.

● The Salamander Grill should be located in a well ventilated area.
- Do not move the Grill when in use.
- Do not locate the Salamander Grill in areas that are wet, dusty, steamy or close to inflammable or explosive articles.
- Do not heat or warm any food if the salamander is not installed with oil tray or grilling rack.
- Do not put any objects on the top of the Salamander Grill.
- Do not use excessive force when moving the Grill Hood.

Note: the Salamander Grill can be wall mounted. Please refer to the instructions on the wall mounting option and details of the wall bracket.

(UK)

Power connection

● The equipment must be grounded.
- The Salamander Grill is supplied with a 3 pin, BS1363 plug and lead, with a 13 amp fuse as standard. The equipment must be connected to a suitable mains socket, wired as follows:

Live wire - coloured brown with terminal marked L

Neutral wire - coloured blue with terminal marked N

Earth wire - coloured yellow-green with terminal marked

Operation

● Plug in and turn the control dial clockwise. The green indicator light indicates power to the salamander.
● The Salamander has 2 heat zones which are individually controlled.
- Turn the control dials clockwise to the desired temperature. The red indicator light will indicate the elements are heating and will switch off when the temperature is met. The green indicator light will remain on as long as power is connected and the unit is on. The red indicator light will cycle on and off heating according to the set temperature. As temperature drops the energy regulator will control and adjust to maintain the set temperature.
- For continuous heat, the control dial can be turned to the MAX setting. The heating element will remain on full power unless set to a lower setting. This will provide continuous full heat as opposed to a set temperature.
● The Grill Hood is counter balanced and allows you to adjust the cooking height
- Pull the handle up or down, adjusting the distance between food surface and heating source.
- Raise the Grill Hood to the top position to take out the grilled food.
● Turn control knob counterclockwise to OFF position after finishing operation

Cleaning, Care and Maintenance

Switch off and disconnect the Salamander from the power supply before cleaning, maintaining or moving.

• Allow the Salamander to cool down before cleaning.
• Please use soft and wet cloth and non corrosive cleaning agent to clean the equipment.
• Do not use water jet/hose to clean the product.
  ● The racks and oil tray are removable for cleaning

(UK)

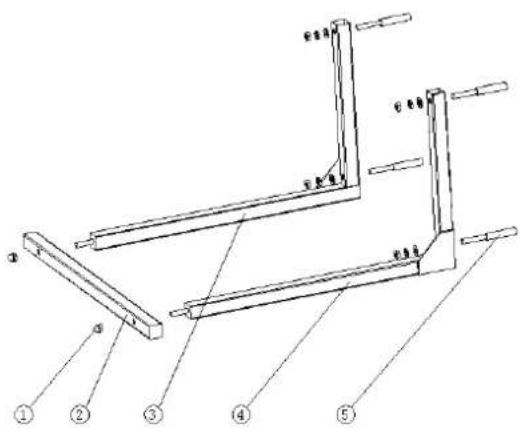

Instruction for Mounting Bracket (Supplied Separately)

• Ensure the substrate and fixings used are suitable to support the weight of the loaded brackets.
  ● Assemble the bracket as figure show.
• If necessary seek professional help to ensure the brackets are safely mounted.

No	Description	Quantity
1	Cap nut	2
2	Front bar	1
3	Left frame	1
4	Right frame	1
5	Anchor	4

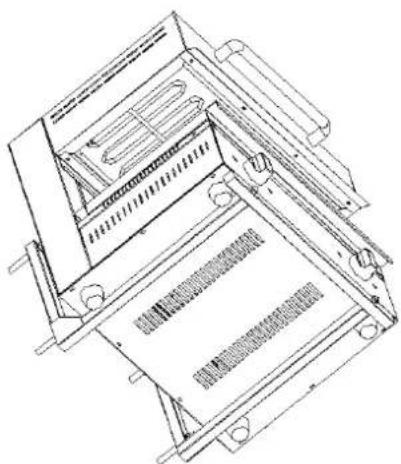

- Put the grill on the bracket as figure show.(View from unit bottom)

Specification

Model	Voltage	Power (watts)	Amps	Dimensions (mm) WxHxD
CD679	220-240V	2900W	12.6A	600x500x450

Trouble Shooting

If the product stops working, please check:

● the Salamander is connected to power supply.
● the energy regulators are switch on.
- Whether the setting of energy regulator is correct.

Please find the trouble shooting table as below:

Fault	Probable Cause	Remedial Action
The green indicating light is off	The unit is not connected to power supply.	Check power supply or change fuse.
	Indicating light has failed.	Call BUFFALO agent or qualified technician
Red indicating light is off, when element is working	Red indicating light is failed.	Call BUFFALO agent or qualified technician
	Loose connecting cable.
Red indicating light is on but the element fails to work.	Element wire is broken.	Call BUFFALO agent or qualified technician
	Energy regulator is broken.
	Connecting cable is broken off.
Grill Hood can’t be lifted up or down/has abnormal sound.	Unknown object stuck between the Grill Hood and main body.	Call BUFFALO agent or qualified technician
	Lifting device fails to work.
	Bearing has stuck.

(UK)

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

(NL)

Opgelet

(NL)

Specificatie

Model	Voltage	Voeding (watt)	Amps	Afmetingen (mm) BxHxD
CD679	220-240V	2900W	12.6A	600x500x450

Probleemoplossing

Caractéristiques

Modèle	Tension	Puissance (Watts)	A	Dimensions (mm)I x H x P
CD679	220-240 V	2900 W	12,6 A	600 x 500 x 450

(DE)

Spezifikation

(IT)

Specifiche

Modello	Tensione	Alimentazione (watt)	Amperaggio	Dimensioni in mm LxHxP
CD679	220-240V	2900W	12,6A	600x500x450

Especificações

Especificación

Modelo	Voltaje	Potencia (vatios)	Amps	Dimensiones (mm) AnxAlxF
CD679	220-240V.	2900W	12.6A	600x500x450

(SP)

Declaration of Conformity

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

- Declaración de conformidad • Declaração de conformidade

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho

Standards • Standaarden • Normes • Normen • Standard • Estándares • Normas

LVD Directive 2006/95/EC

EMC Directive 2004/108/EC

Buffalo

Fourth Way,

Avonmouth,

Bristol,

BS11 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
