Product type	Quartz grill plate
Brand	Buffalo
Model	GF453
Power	2800 W
Power supply	230 V / 50 Hz, single phase
Current	12.2 A
Dimensions (H x W x D)	302 x 386 x 643 mm
Weight	13.2 kg
Heating elements	Upper and lower (quartz)
Timer	Yes, with auto shut-off and audible alarm
Power level	Operates only at full power (via timer)
Element selector	Allows selecting upper element only or both
Indicator lights	Indicate when elements are powered on
Included accessories	Cooking grid, crumb tray, instruction manual
Exterior material	Stainless steel (likely)
Safety	Automatic timer shut-off, hot surfaces indicated
Cleaning	Removable crumb tray, washable with soapy water. Exterior: damp cloth
Maintenance	Regularly empty tray, avoid grease buildup
Usage	Indoor use only
Compliance	CE, WEEE

Frequently Asked Questions - GF453 BUFFALO

How to turn on the Buffalo GF453 grill?

Plug in the appliance, insert the grid, set the element selector knob to the desired position (upper element only or both) and turn the timer to the desired cooking time. The appliance heats immediately.

Does the grill always heat at full power?

Yes, the GF453 model only operates at full power. The cooking time is controlled by the timer. Once the time is up, the appliance shuts off automatically.

How to clean the crumb tray?

Let the appliance cool down, then remove the tray. Wash it with warm soapy water. Never remove it during or immediately after use as it is very hot.

What to do if the grill does not heat?

Check that the appliance is plugged in and turned on, and that the timer is set to a non-zero duration. If the problem persists, the element or thermostat may be faulty. Contact a qualified technician.

Can I use the grill continuously without the timer?

No, the GF453 is designed to operate only with the timer. For continuous use, you would need to set a long timer duration, but never leave the appliance unattended.

What items are supplied with the grill?

The package contains the Buffalo quartz grill, cooking grid, crumb tray, and instruction manual.

How to maintain the appliance to avoid burnt residues?

Regularly clean the crumb tray and exterior with a damp cloth. Do not let grease build up; clean after each use once the appliance has cooled.

Is the grill suitable for outdoor use?

No, this appliance is for indoor use only. Do not expose it to rain or moisture.

What to do if the power cord is damaged?

The cord must be replaced by a Buffalo agent or qualified technician to avoid danger. Do not use the appliance with a damaged cord.

How to recycle this appliance at the end of its life?

Do not dispose of it with household waste. Take it to an approved recycling point in accordance with the WEEE directive. Contact your local council or the manufacturer for more information.

USER MANUAL GF453 BUFFALO

Infrared Quartz Grill

Instruction manual

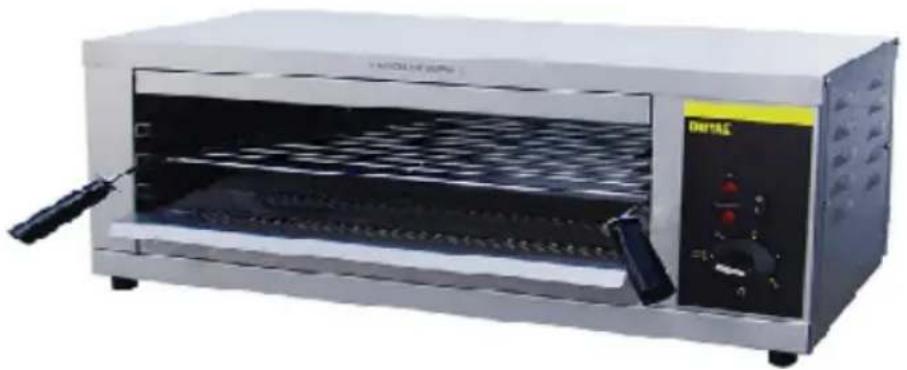

Exterior view of a stainless steel electric stove with open lid and control panel (no visible text or symbols)

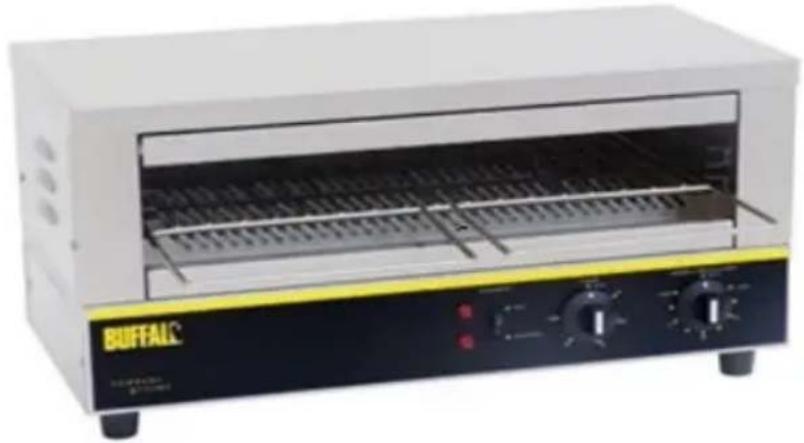

Exterior view of a Buffal commercial toaster with open lid and control knobs (no visible text or symbols)

NL Quartz Grill

Handleiding

FR Gril à quartz

Mode d'emploi

DE Quartz-Grill

Bedienungsanleitung

IT Grill al quarzo

Cleaning, Care & Maintenance .... 3

Crumb Tray 3

Troubleshooting 3

Technical Specifications 3

Electrical Wiring 4

Compliance 4

NL

Inhoudsopgave

Veiligheidstips 5

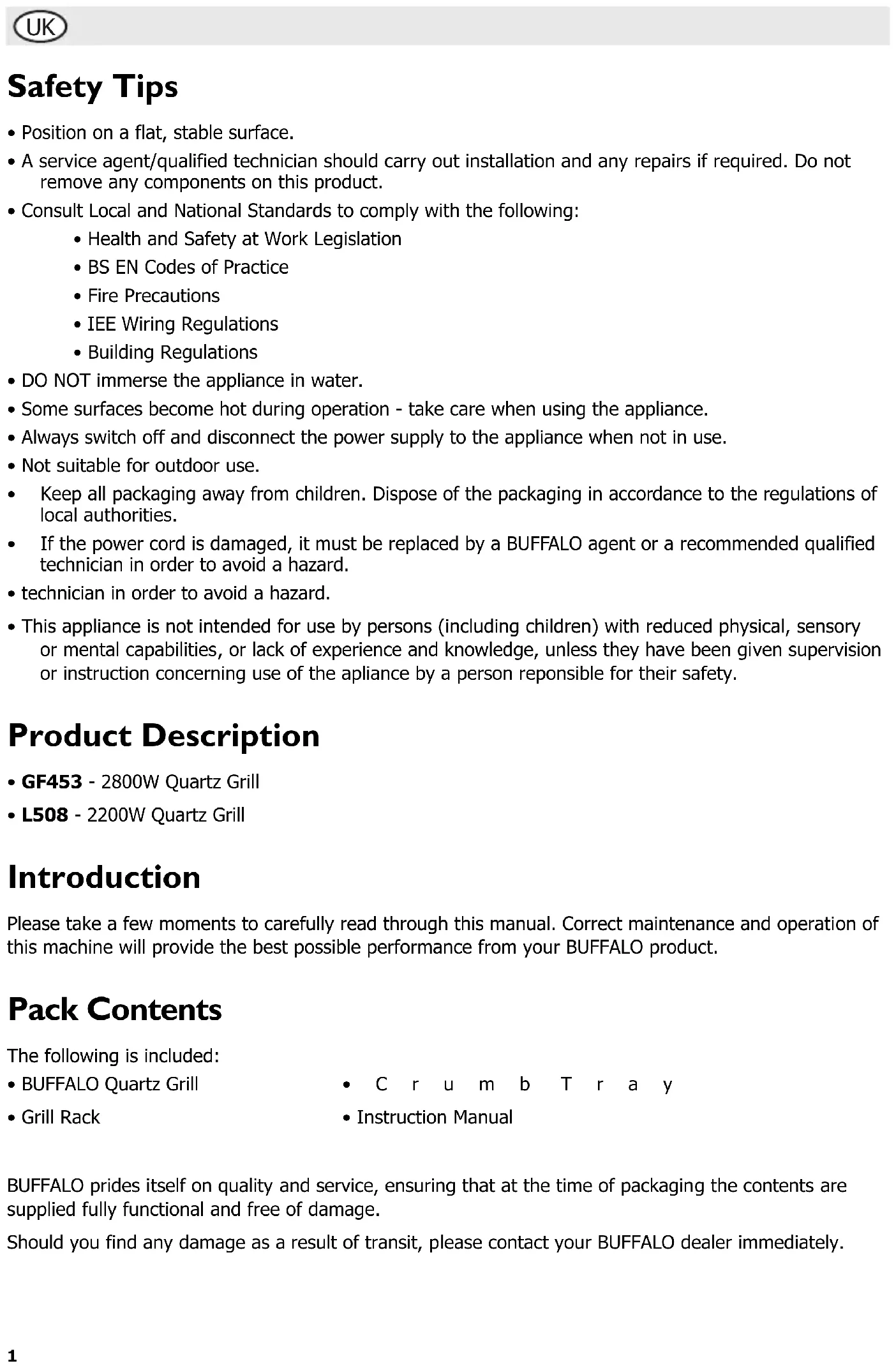

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation
• BS EN Codes of Practice
- Fire Precautions
• IEE Wiring Regulations
• Building Regulations

• DO NOT immerse the appliance in water.
- Some surfaces become hot during operation - take care when using the appliance.
• Always switch off and disconnect the power supply to the appliance when not in use.
• Not suitable for outdoor use.
- Keep all packaging away from children. Dispose of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
• technician in order to avoid a hazard.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Product Description

• GF453 - 2800W Quartz Grill
• L508 - 2200W Quartz Grill

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Quartz Grill
- Grill Rack

• Crumb Tray
- Instruction Manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Operation

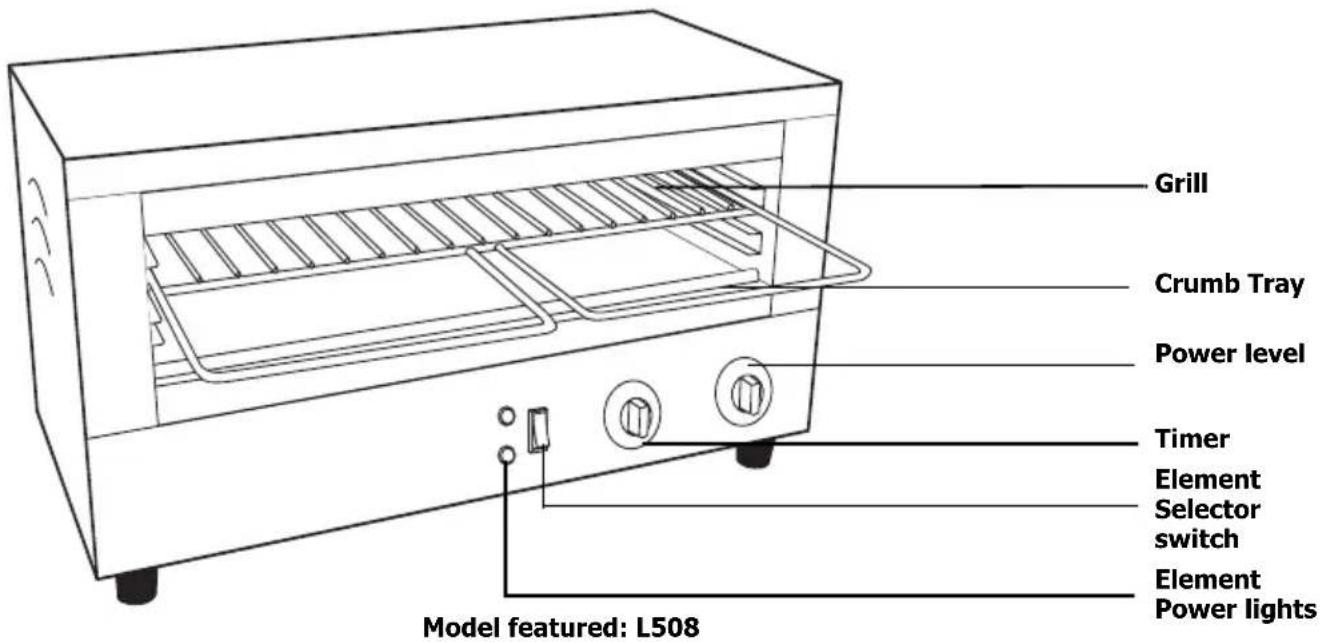

Grill Crumb Tray Power level Timer Element Selector switch Element Power lights Model featured: L508

GF453

I. Connect the appliance to the mains power supply.
2. Slide the grill rack into the appliance.
3. Set the Element Selector switch to grill using the upper element [I] or the upper and lower elements together [O].
4. Set the Timer switch to the deisred cooking time. The appliance powers up straight away.

Note: The GF453 only grills at FULL power and is controlled by the Timer switch.

1. When the set time has expired the timer sounds an audible alarm and the grill(s) turn Off.

L508

I. Connect the appliance to the mains power supply.
2. Slide the grill rack into the appliance.
3. Set the Element Selector switch to grill using the upper element [I] or the upper and lower elements together [O].
4. Set the power level with the Power Level switch

or

Set the Timer switch to the desired cooking time. The appliance powers up straight away.

Note: The Timer switch overrides the Power Level switch. Ensure the Timer switch is at '0' when grilling by power level.

WARNING: Grilling using the Power Level knob is continuous and the appliance does not switch off automatically. DO NOT leave the grill unattended.

Cleaning, Care & Maintenance

• Always turn Off the appliance and disconnect from the power supply before cleaning.
- Allow the appliance to cool before cleaning.
- Use warm, soapy water and a damp cloth to clean the exterior of the appliance.
- Dry t h o r o u g h l y after cleaning.
- A BUFFALO dealer or qualified technician should carry out repairs if required.

Crumb Tray

Periodically remove the crumb tray and empty.

WARNING: DO NOT remove the tray during or immediately after use as it will be hot.

Clean the crumb tray using warm, soapy water.

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable Cause Action
The appliance is not working	The appliance is not switched on	Check the appliance is plugged in correctly and switched on
	Plug and lead are damaged Call BUFFALO agent or qualified technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault	Call BUFFALO agent or qualified technician
Appliance does not reach set temperature	Faulty thermostat	Call BUFFALO agent or qualified technician
	Faulty element	Call BUFFALO agent or qualified technician
Appliance heats up but indicator light does not come on	Bulb has expired	Call BUFFALO agent or qualified technician
Power indicator light comes on but appliance does not heat up	Faulty element	Call BUFFALO agent or qualified technician
	Faulty thermostat	Call BUFFALO agent or qualified technician
	Thermostat set incorrectly (L508 only)	Check thermostat
Appliance slow to heat up	Faulty element	Call BUFFALO agent or qualified technician

Technical Specifications

Model	Voltage	Power	Current	Dimensions h x w x d (mm)	Weight (kg)
GF453	230V 50Hz	2800W	12.2	302 x 386 x 643	13.2
L508	230V 50Hz	2200W	9.6A	315 x 598 x 405	16.5

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

C€

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità • - Declaración de conformidad • Declaração de conformidade •

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento •

Infrared Quartz Grill

GF453, L508

EMC Directive 2004/108/ECLVD Directive 2006/95/EC

EN55014-1:2006+A1:2009+A2:2011, EN61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3:2008, EN55014-2:1997+, A1:2001+A2:2008, EN60335-1:2002+A11:2004+A1:2004+A12:2006+A2:2006+A13:2008+A14:2010+A15:2011, EN60335-2-48:2003+A1:2008, EN62233:2008

BUFFALO

Fourth Way Avonmouth Bristol BSII 8TB United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
