USER MANUAL GF452 BUFFALO

Salamander Grill/ Salamander Grill with Griddle

Instruction manual

NL Salamander Grill/ Salamander Grill met grillplaat Handleiding
FR Grill salamandre / combiné salamandre + plaque de cuisson Mode d'emploi
DE Salamander-Grill/ Salamander-Grill mit Toaster Bedienungsanleitung
IT Salamandra elettrica/ Salamandra elettrica con tostiera Manuale di istruzioni
ES Grill Salamandra/Grill Salamandra con plancha Manual de instrucciones

PT Grelha de Salamandra/Grelha de Salamandra compla grelhadora Manual de instruções
Salamander grill/Salamander grill med brödrost Bruksanvisning
DK Salamander Grill/Salamander Grill med bageplade Instruktionsvejledning
N Salamandergrill / Salamandergrill med smorbrdgrill Brukerhandbok
FIN Salamanteri-grilli/ Salamanteri-grilli grillilaatan kanssa Ohjekirja

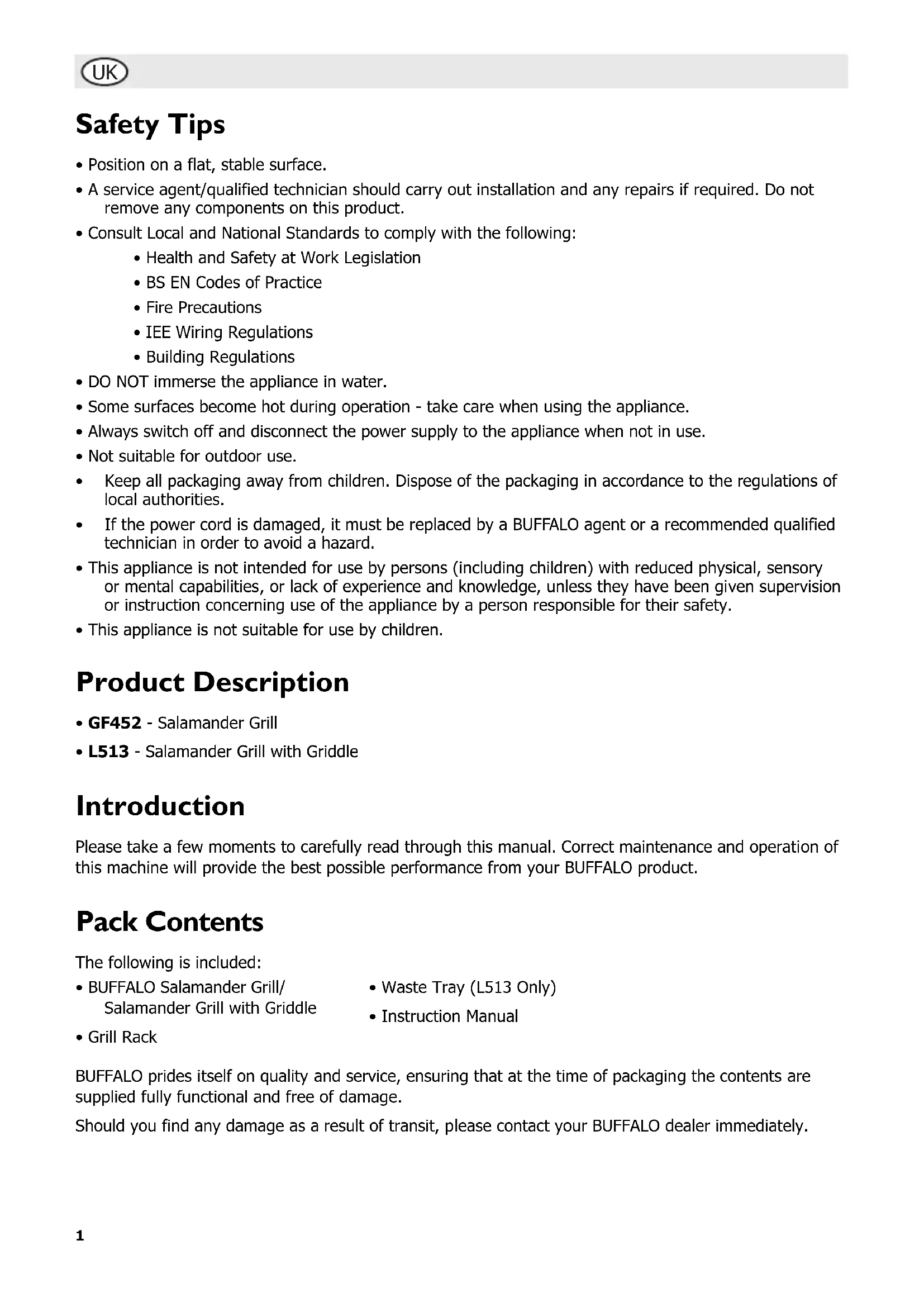

Table of Contents

Safety Tips 1

Product Description

Introduction

Pack Contents 1

Operation 2

Seasoning the Griddle Plate (L513 Only) 2

Cooking 2

Cleaning, Care & Maintenance 3

Scraping (L513 Only) 3

Waste Tray (L513 Only) 3

Crumb Tray 3

Troubleshooting 4

Technical Specifications 4

Electrical Wiring 4

Compliance 5

NL Inhoudsopgave

Veiligheidstips 6

Spcifications techniques 14

Raccordement electrique 14

Conformité 15

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:

Health and Safety at Work Legislation
BS EN Codes of Practice
Fire Precautions
- IEE Wiring Regulations
Building Regulations

DO NOT immerse the appliance in water.
- Some surfaces become hot during operation - take care when using the appliance.
- Always switch off and disconnect the power supply to the appliance when not in use.
- Not suitable for outdoor use.
- Keep all packaging away from children. Dispos of the packaging in accordance to the regulations of local authorities.
- If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- This appliance is not suitable for use by children.

Product Description

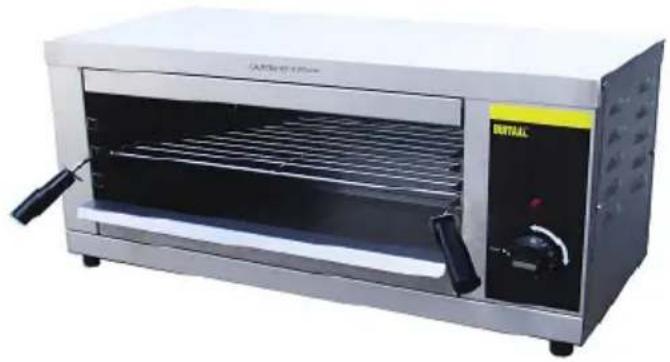

GF452 - Salamander Grill

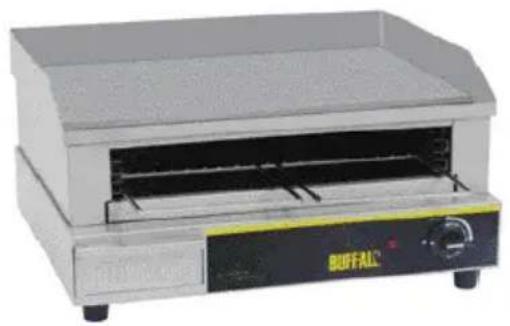

L513 - Salamander Grill with Griddle

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

• BUFFALO Salamander Grill/ Salamander Grill with Griddle

Waste Tray (L513 Only)

• Instruction Manual

• Grill Rack

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Operation

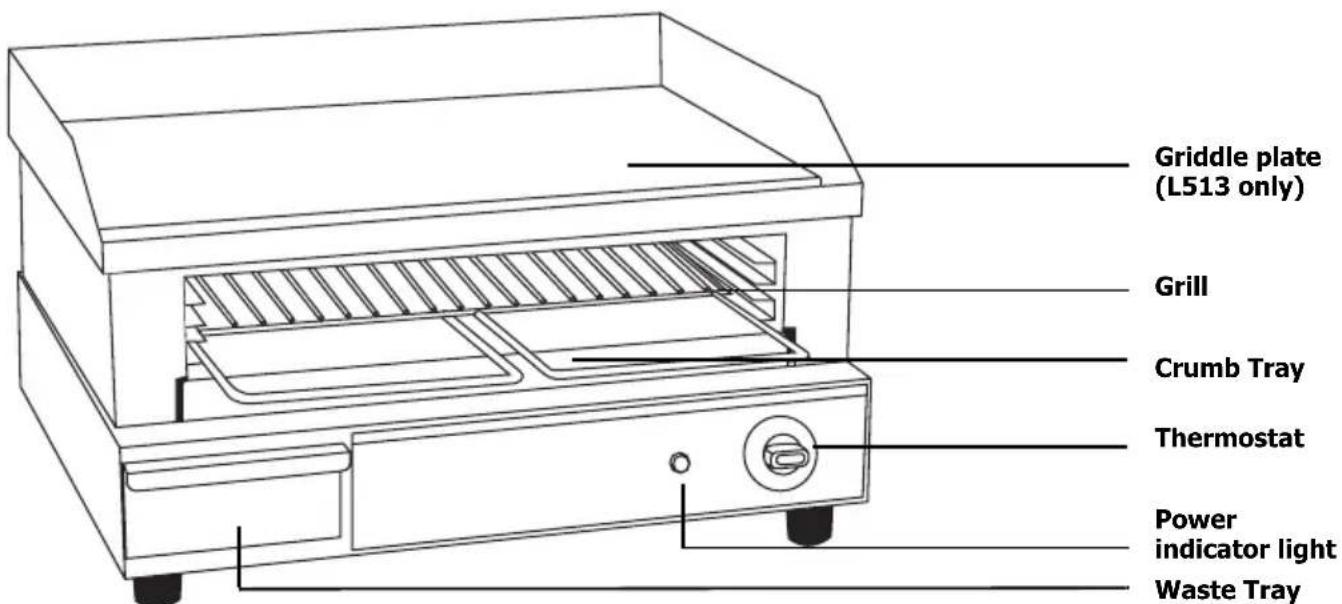

Model featured: L513

Seasoning the Griddle Plate (L513 Only)

Before using for the first time the cooking surface needs to seasoned.

1. Ensure the cooking surface is clean.
2. Brush the surface with cooking oil.
3. Set the thermostat to 110^ and turn the appliance On. The power indicator light turns on.
4. Once the appliance reaches temperature the power indicator light turns off.
5. Turn the appliance Off and allow the to cool before wiping away any excess oil.
6. The appliance is now ready to use.

Cooking

Note: The thermostat controls both the Griddle and the Toaster at the same time. They do not operate independently of each other.

1. Connect the appliance to the mains power supply.
2. Set the thermostat to the desired temperature (60^ - 300^) . The power indicator light comes on and the appliance begins to heat up.

Note: 200^ C to 220^ C is sufficient for general cooking.

1. The power indicator light turns off when the appliance has reached the set temperature.

Note: BUFFALO recommend the cooking surface is lightly oiled before cooking.

1. Place the foodstuffs on and/or in the appliance and cook as required.

Cleaning, Care & Maintenance

• Always turn Off the appliance and disconnect from the power supply before cleaning.
• Allow the appliance to cool before cleaning.
• Use warm, soapy water and a damp cloth to clean the exterior of the appliance.
• Take care when using scrapers to clean as they can damage the cooking surface.
  Periodically 'season' the cooking surfaces after cleaning (L513 only).
• D r y t h o r o u g h l y after cleaning.
• A BUFFALO dealer or qualified technician should carry out repairs if required.

Scraping (L513 Only)

If grease is permitted to accumulate, it will begin to carbonise into a hard substance that is extremely difficult to remove. To prevent this follow the cleaning steps below:

After each use, scrape the appliance with a scraper/grill stone/copper brush or flexible spatula to remove excess fat and food. A waste tray is provided for the scrapings if necessary.

If there is an accumulation of burned fat or food, the cooking surface should be thoroughly scoured and reseasoned.

NOTE: IT IS VITAL THAT THE COOKING SURFACE IS RE-SEASONED AFTER SCOURING

WARNING: DO NOT USE STEEL WOOL AS IT MAY LEAVE SHARDS THAT Could CONTAMINATE FOOD.

Waste Tray (L513 Only)

All BUFFALO Griddles feature a waste tray to collect any liquid or fats that run off during cooking.

WARNING: DO NOT remove the tray during or immediately after use as the contents will be hot.

At least once a day, remove and empty the waste tray before washing with warm soapy water. Do not allow the tray to overfill or excess grease will run out of the overflow hole at the front of the tray.

Crumb Tray

Periodically remove the crumb tray and empty.

WARNING: DO NOT remove the tray during or immediately after use as it will be hot.

Clean the crumb tray using warm, soapy water.

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Fault Probable Cause	Action
The appliance is not working	The appliance is not switched on	Check the appliance is plugged in correctly and switched on
	Plug and lead are damaged Call BUFFALO agent or qualified technician
	Fuse in the plug has blown Replace the plug fuse
	Power supply Check power supply
	Internal wiring fault Call BUFFALO agent or qualified technician
Appliance does not reach set temperature	Faulty thermostat Call BUFFALO agent or qualified technician
	Faulty element Call BUFFALO agent or qualified technician
Appliance heats up but indicator light does not come on	Bulb has expired	Call BUFFALO agent or qualified technician
Power indicator light comes on but appliance does not heat up	Faulty element Call BUFFALO agent or qualified technician
	Faulty thermostat Call BUFFALO agent or qualified technician
Power indicator light comes on but appliance does not heat up	Thermostat set incorrectly	Check thermostat
Appliance slow to heat up	Cooking surface not clean	Clean cooking surface
	Faulty element	Call BUFFALO agent or qualified technician

Technical Specifications

Model	Voltage	Power	Current	Griddle Plate Dimensions w x d (mm)	Dimensions h x w x d (mm)	Weight (kg)
GF452	230V 50Hz	2800W	12.2A	-	302 x 386 x 643	12
L513	230V 50Hz	2200W	9.6A	515 x 330	305 x 480 x 525	28.5

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

Specifications techniques

Modèle Tension Puissance	Pouissance Courant		Dimensions de la plaque de cuisson I x p (mm)	Dimensions h x l x l mm	Poids (kg)
GF452	230V 50Hz	2800W	12,2A	-	302 x 386 x 643
L513	230V 50Hz	2200W	9,6A	515 x 330	305 x 480 x 525

DECLARATION OF CONFORMITY

• Conformiteitsverklaring - Déclaration de conformité - Konformitätserklung - Dichiarazione di conformità - Declaración de conformidad - Declaración de conformidade -

Equipment Type • Uitrustingtype • Type d'équipement • Gerätotyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento •

Model · Modèle · Modell · Modello · Modelo:

Application of Council Directives(s) Toepassing van Europese Richtlijn(en) Application de la / des directive(s) du Conseil: Anwendbare EU-Richtlinie(n) Applicazione delle Direttive: Aplicacion de la(s) directiva(s) del consejo Aplicacao de directa(s) do Conselho

Standards • Standaarden • Normes • Normen • Standard • Estandares • Normas • Normer • Standarder • Standardit:

Producers Name • Naam fabrikant • Nom du producteur • Name des Herstellers • Nome del produttore • Nombre del fabricante • Nome do fabricante • Tillverkarens namn • Fabrikantens navn • Produsentens navn • Valmistajan nimi:

Producers Address • Adres fabrikant • Adresse du producteur • Anschrift des Herstellers • Indirizzo del produttore • Dirección del fabricante • Endereço do fabricante • Tillverkarens adress • Fabrikantens adresse • Produsentens adresse • Valmistajan osoite:

Infrared Quartz Grill

GF452

EMC Directive 2004/108/EC
LVD Directive 2006/95/EC

EN55014-1:2006+AI:2009+A2:2011, EN61000-3-2:2006+AI:2009+A2:2009, EN61000-3-3:2008, EN55014-2:1997+, AI:2001+A2:2008, EN60335-1:2002+AI:2004+AI:2004+A12:2006+A2:2006+AI3:2008+AI4:2010+A15:2011, EN60335-2-48:2003+AI:2008, EN62233:2008

BUFFALO

Fourth Way Avonmouth Bristol BS11 8TB United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

DECLARATION OF CONFORMITY

• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärgung • Dichiarazione di conformità •

• Declaración de conformidad - Declaração de conformidade - Overensstämmlseförsakran
  Overensstemmelseserklaering • Konformitetserklaring • Selvitys vaatimustenmukaisuudesta •

Salamander Grill with Toaster

L513

EMC Directive 2004/108/EC

LVD Directive 2006/95/EC

EN55014-1:2006, EN61000-3-2:2006

EN55014-2:1997+A1:2001+A2:2008,

EN61000-3-3:2008, EN60335-1:2002+A11:2004

+A1:2004+A12:2006+A2:2006+A13:2008,

EN60335-2-38:2003+AI:2008, EN60335-2-

48:2003+AI:2008, EN62233:2008

BUFFALO

Fourth Way

Avonmouth

Bristol

BSII 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
