USER MANUAL Timon Lionelo

Black baby crib with a flat-screen seat and side legs, no visible text or symbols

Line drawing of a baby crib with adjustable legs and feet (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Simple diagram of a capsule-shaped object with three vertical dashed lines inside, enclosed in a rounded rectangular border (no text or symbols)

Illustration of a multi-ring mechanical component with multiple blades, enclosed in a rounded square frame (no text or symbols)

Two types of cable or rope packages, one open and one closed, shown in side-by-side illustrations with no visible text or symbols.

Click Click 6

Line drawing of a folding chair with straps and seat (no text or symbols)

Line drawing of a bathtub with a magnified inset showing a hand inserting a clip into the seat (no text or symbols)

Click 9

Diagram of a device interior with a highlighted area and an arrow indicating direction (no text or symbols)

Diagram showing two car seatbelting scenarios with arrows indicating seatbelt movement and lock symbols

Line drawing of a small car with two wheels and a handle, enclosed in a rounded square frame (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and a magnified inset highlighting a component with numbered callouts.

max 2cm 14

Diagram illustrating a foot massage technique with magnified detail and directional arrows, labeled with number 15.

Line drawing of a person performing a walking motion, showing posture and movement direction (no text or symbols)

Two identical line drawings of a person seated in a chair, showing motion and rotation (no text or symbols)

Diagram showing two furniture items with checkmark and X symbols, labeled '19' in corner

Diagram showing a mechanical assembly with an inset close-up of a component detail (no text or symbols)

Line drawing of a mechanical device with a handle and lever, no text or symbols present

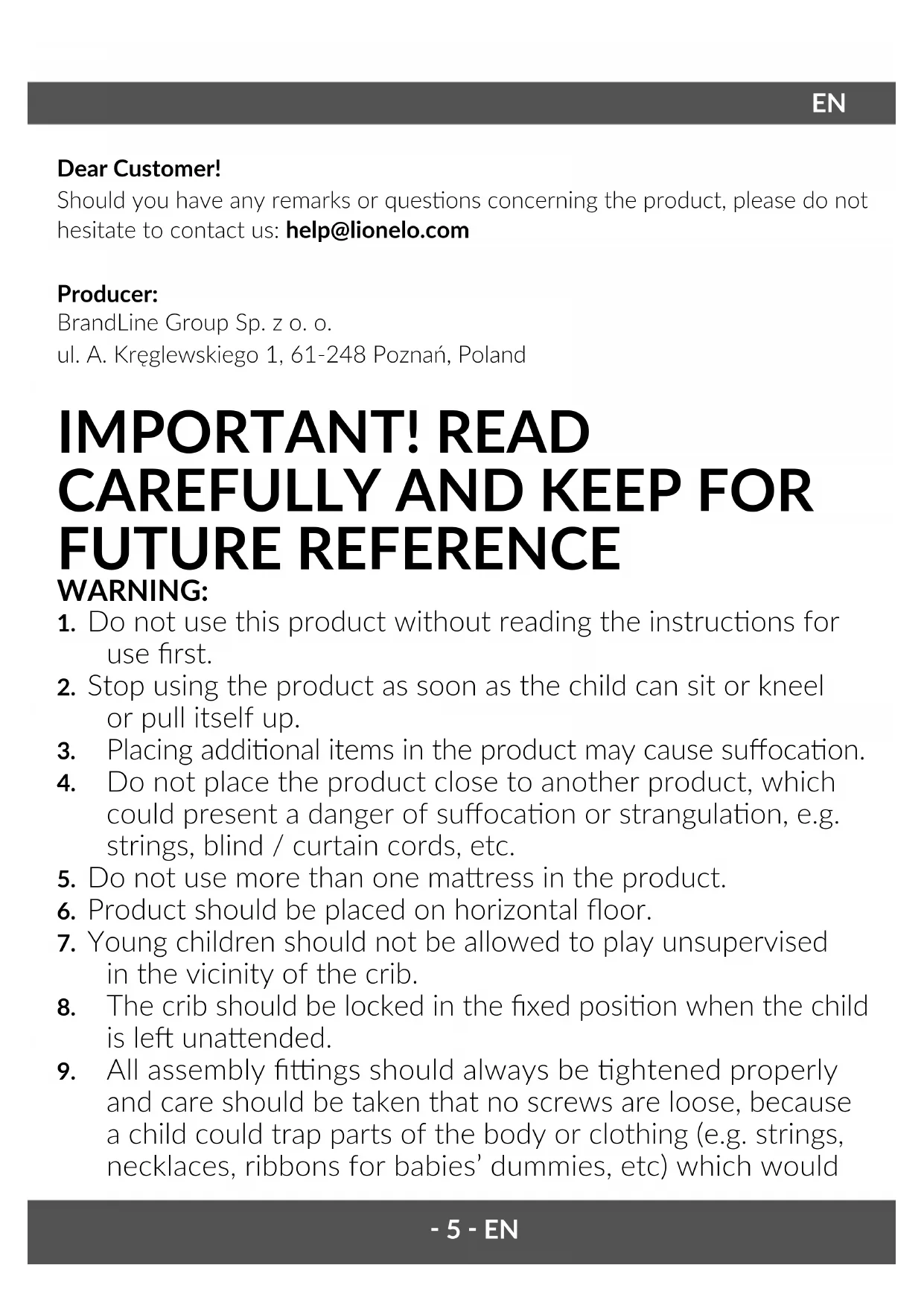

Dear Customer!

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Producer:

BrandLine Group Sp. z o. o.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING:

1. Do not use this product without reading the instructions for use first.
2. Stop using the product as soon as the child can sit or kneel or pull itself up.
3. Placing additional items in the product may cause suffocation.
4. Do not place the product close to another product, which could present a danger of suffocation or strangulation, e.g. strings, blind / curtain cords, etc.
5. Do not use more than one mattress in the product.
6. Product should be placed on horizontal floor.
7. Young children should not be allowed to play unsupervised in the vicinity of the crib.
8. The crib should be locked in the fixed position when the child is left unattended.
9. All assembly fittings should always be tightened properly and care should be taken that no screws are loose, because a child could trap parts of the body or clothing (e.g. strings, necklaces, ribbons for babies' dummies, etc) which would

pose a risk of strangulation.

1. The maximum thickness of the mattress is marked by a red lining on the inside of the crib. Do not use a mattress thicker than indicated.
2. Be aware of the risk of burning cigarettes, open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the crib.
3. DO NOT use crib if any parts are missing, damaged, or broken. Contact Lionelo for replacement parts and instructional literature if needed. DO NOT substitute parts.

WARNING for mattress:

1. Do not use the mattress if any part is broken, torn, or missing, use only spare parts approved by manufacturer.
2. Intended for cots of maximum internal size 51 x 90 cm.
3. Do not use more than one mattress in the cot.
4. Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. in the near vicinity of the cot.

WARNING for bedside sleepers:

1. DO NOT use bedside sleeper if any parts are missing, damaged, or broken. Contact Lionelo for replacement parts and instructional literature if needed. DO NOT substitute parts.
2. The height from the floor of the adult's bed for which the bedisde sleeper is suitable: 51 - 67 cm.

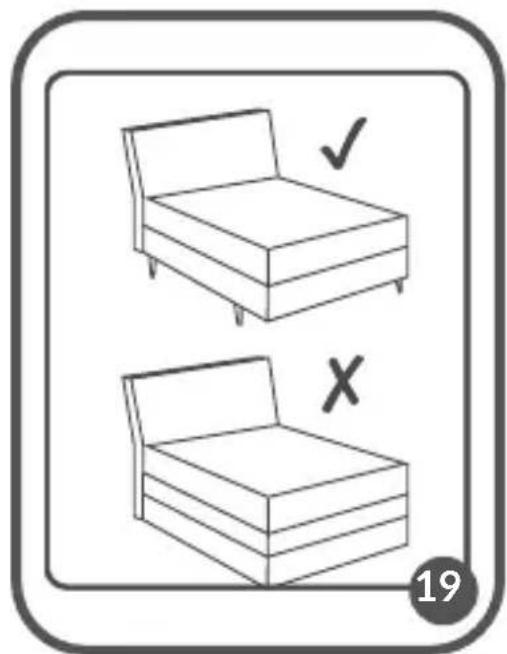

3. The bedside sleeper is intended for standard type adult beds only. Do not use the product with waterbeds or bed and mattresses with rounded corners (fig. 19).
4. Do not use attachment systems other than those described in the manual.
5. Bedside sleepers shall never be used in an inclined position.
6. To prevent a suffocation hazard from entrapment, the bedside sleeper shall be properly secured to the adult bed using the attachment system.
7. There shall never be a gap between the lower side of the

bedside sleeper and the mattress of the adult bed.

1. Check the tightness of the attachment system before each use by pulling the bedside sleeper in a direction away from adult bed.
2. If there is a gap between the bedside sleeper and the adult bed DO NOT use the product.
3. Gaps should not be filled with pillows, blankets and other items.
4. DANGER! Always completely raise the drop side when not attached to the adult's bed.
5. WARNING: To avoid hazards from the child's neck being caught on the top rail on the side that is next to the adult bed, the top rail must not be higher than the adult bed mattress.
6. WARNING: To avoid risk of your child being strangled the attachment system to the adult's bed shall always be kept away from and out of the crib.

LIST OF COMPONENTS

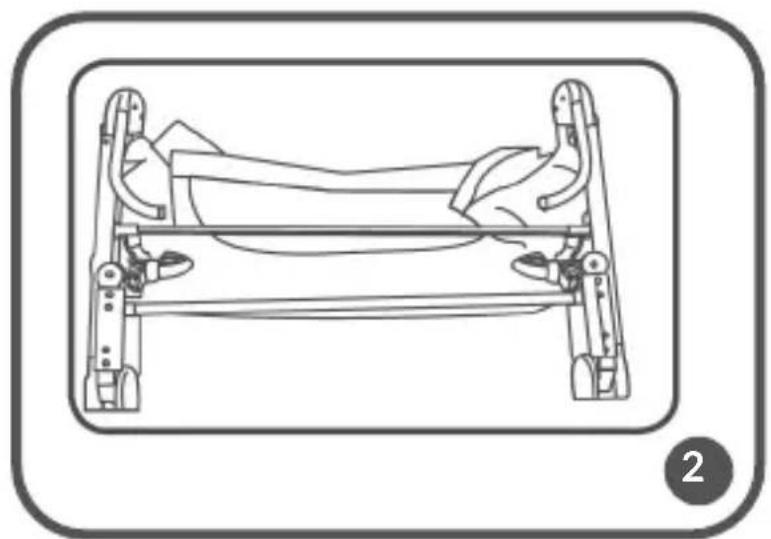

1. Baby bed's frame with a base (fig. 2)

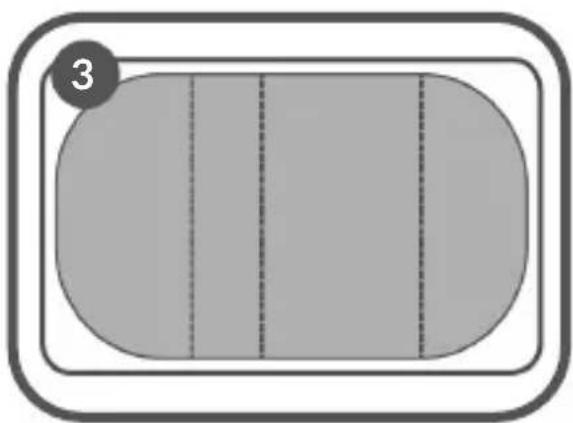

2. Mattress (fig. 3)

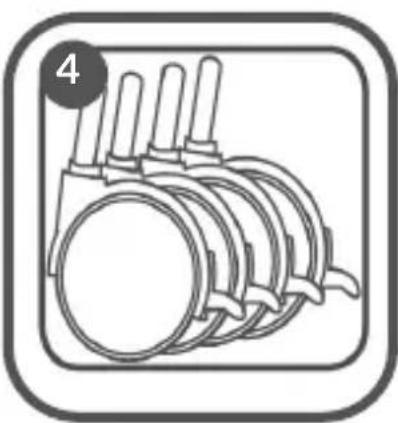

3. Wheels (4 pcs) (fig .4).

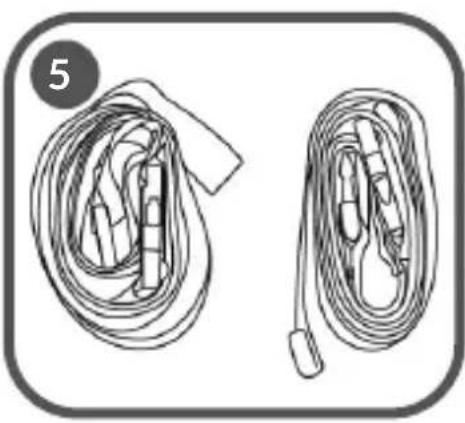

4. Fastening belts (fig. 5)

HOW TO ASSEMBLE

1. Take the frame and a base out of the packaging carefully and place them on a flat surface.
2. Part lower elements of the bed's frame until you can hear a distinctive click.

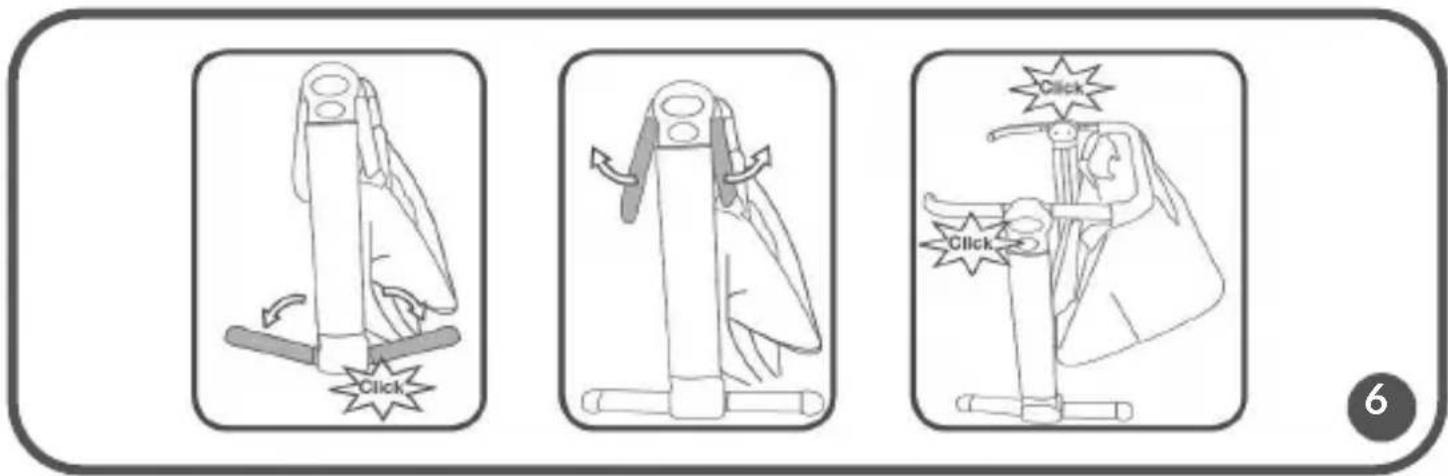

3. Part upper elements of the bed's frame until you can hear a distinctive click (fig. 6).

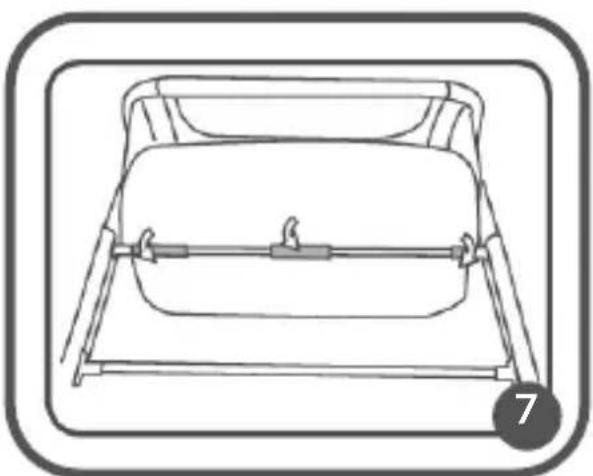

4. Fasten the material under the bed's base by wrapping a metal tube underneath the bed with Velcro bands (fig. 7).

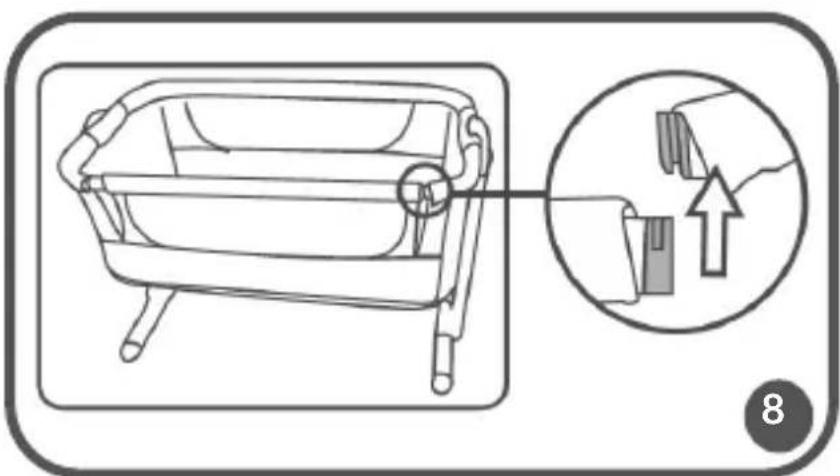

5. Lift the tube and use snap fasteners to attach it to the top frame of the baby's bed (fig. 8).
6. Buckle on both sides of the opening side.

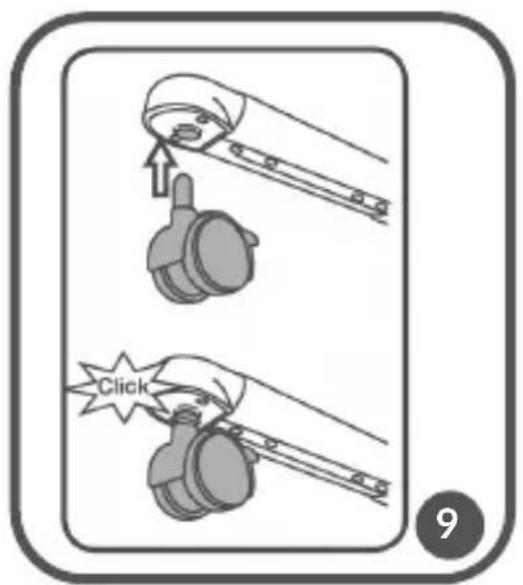

7. Press the wheels into the holes by the leg bases. They should engage automatically. When they do, you will hear a distinctive click (fig. 9).

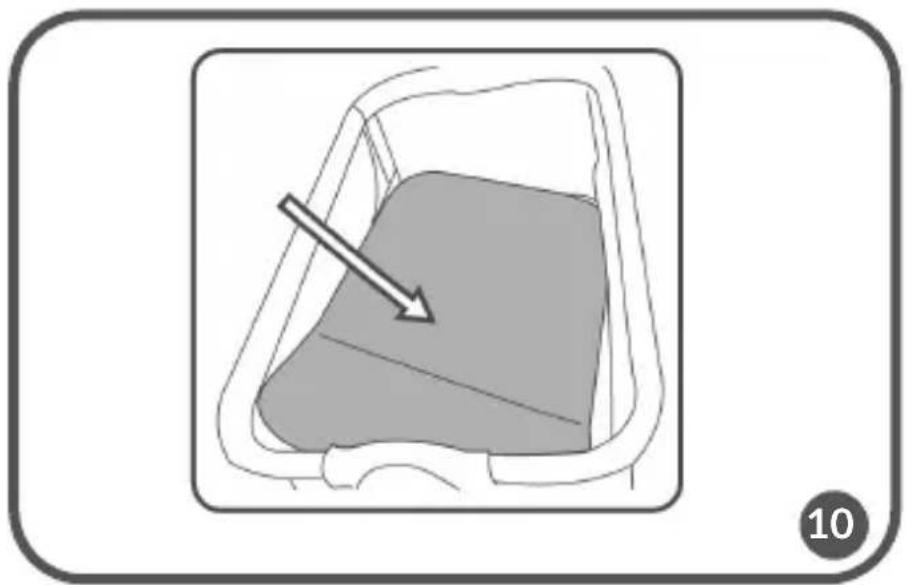

8. Put the mattress inside (fig. 10).

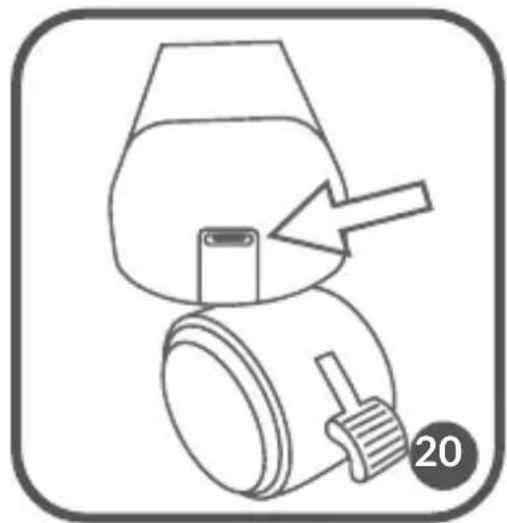

9. In order to disassemble the wheels, press the button (fig. 20) with a flat hard object.

LOCKING MECHANISM

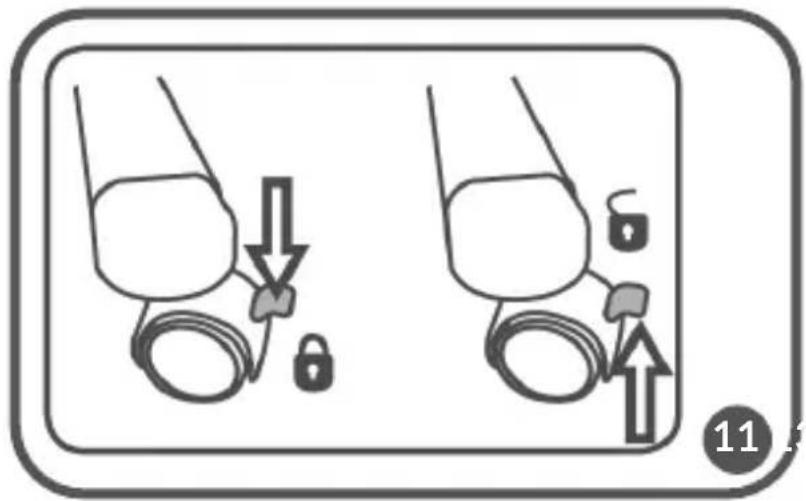

Every wheel has a built-in locking mechanism. To lock a wheel, press the brake by

pulling the plastic level downwards (fig. 11).

NOTE! When using the baby's bed, remember to lock all wheels.

BABY'S BED HEIGHT ADJUSTMENT

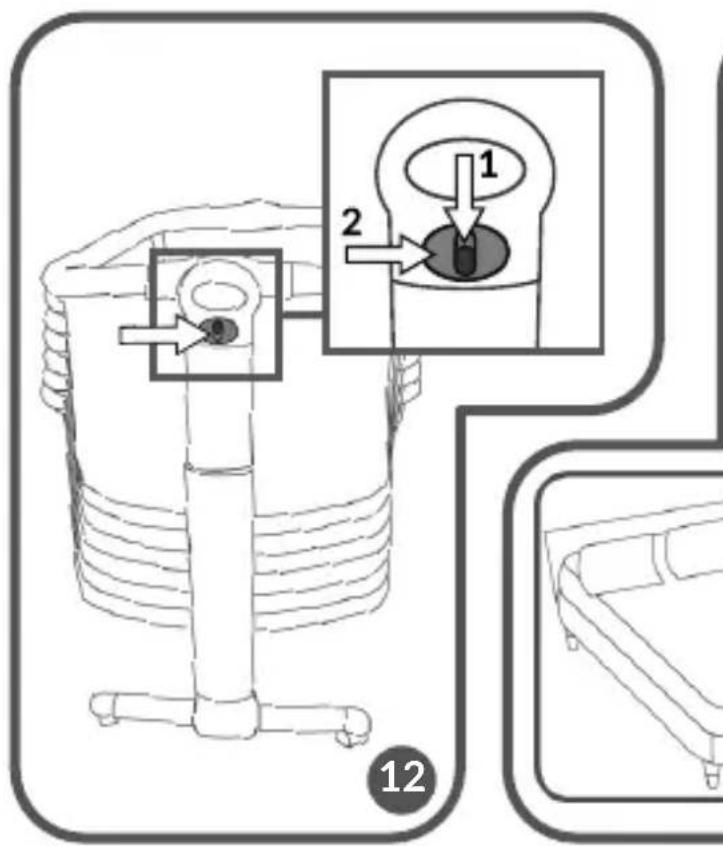

The baby's bed height can be adjusted at 6 levels. The product's height can be adjusted independently from each side, thanks to which it is possible to set an inclination. The height changing buttons are located on both sides of the product, just under the top frame of the bed. To change the height, press the button on one side of the bed, then lift or lower the bed as desired. Do the same on the other side WARNING: The maximum permissible inclination of the baby's bed is a difference of 2 levels. The child's head must always be higher than other parts of the body (fig. 12) NOTE! Before you change the height of the mattress, take the child out of the bed.

FUNCTION OF THE BEDSIDE SLEEPER

Timon baby's bed can be used as an bedside sleeper (attached to parents' bed). Before you use the product for this purposes, make sure the baby's bed has been placed properly, and linking belts have been attached and tensed up as requested. The product must be attached to parents' bed in a way that excludes any gaps between the product and the mattress. When using, make sure the bedding, quilt, etc. do not take space in the bed.

NOTE! It is allowed to use the product solely by the beds and/or mattresses with straight sides. The use of the product by the round or water beds and/or mattresses is forbidden.

To make use of the bedside sleeper, prepare the product for such use properly. To do so, follow the points below:

1. Unzip on both sides of the opening side (fig. 13)
2. Release the protection by pressing the buttons on the frame and slide the metal frame tube out of the clips.
3. Push the baby's bed closer to the parents' bed.

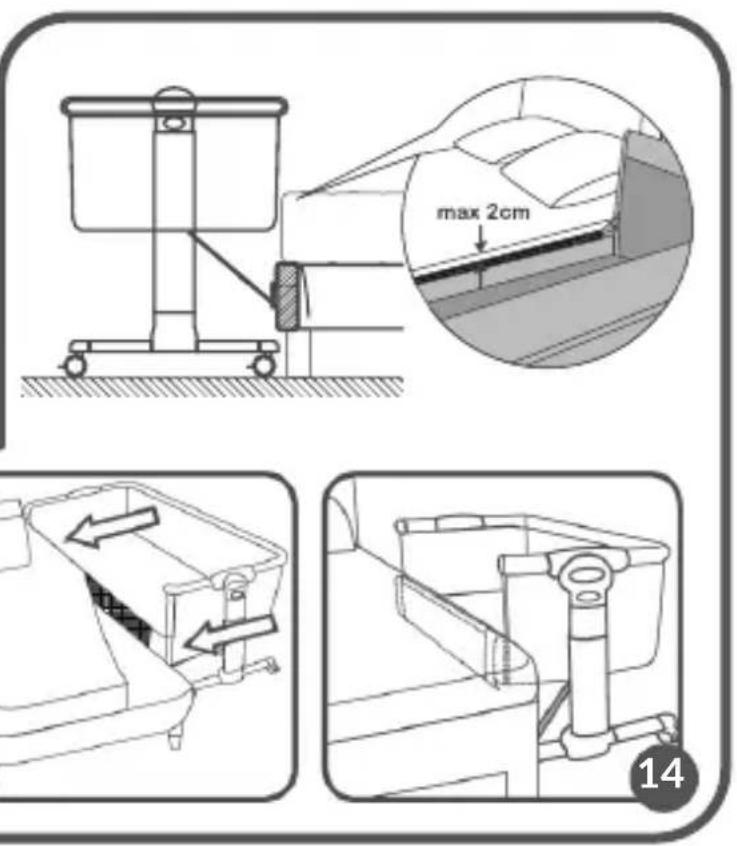

4. Adjust the height of the cot (fig. 14).

NOTE! When using the baby's bed as an bedside sleeper, the height must be the same on both sides.

1. Use the belts to attach the baby's bed to parents' bed. Fasten the belt from the internal side of the left and right frame, and then wrap around the bed's frame and fasten it.

2. Tighten the belts and make sure the baby's belt has been attached to parents' bed properly.

TRAP RISK

In order to avoid trap risk, the baby's bed must be secured properly and attached to parents' bed as recommended. The product must be attached to parents' bed in a way that excludes any gaps between the product and the mattress.

If this is impossible, do not use the product as a bedside sleeper.

WARNING! Before each use, check that there is no gap between parents' mattress and the side wall of the baby's bed.

FALL RISK

The baby's bed is designed for children whose weight does not exceed 9 kg. Remember! Always lift the side of the baby's bed when it is not attached to the parents' bed.

NOTE! If the child can sit, kneel or pull itself, it should not use the baby's bed anymore.

HOW TO DISASSEMBLE

1. Take the mattress out.
2. Set the height of the baby's bed to level II.

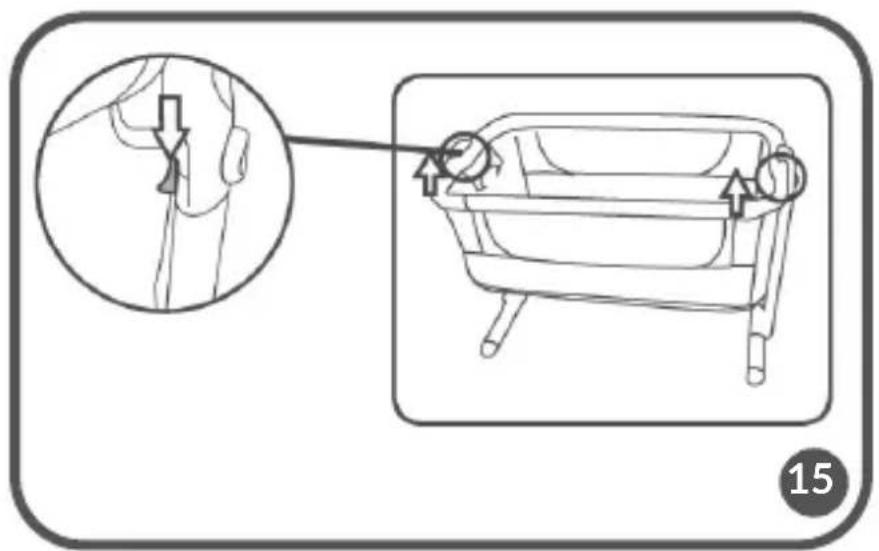

3. Press both buttons under the top frame of the baby's bed at a time (on both sides) (fig. 15).

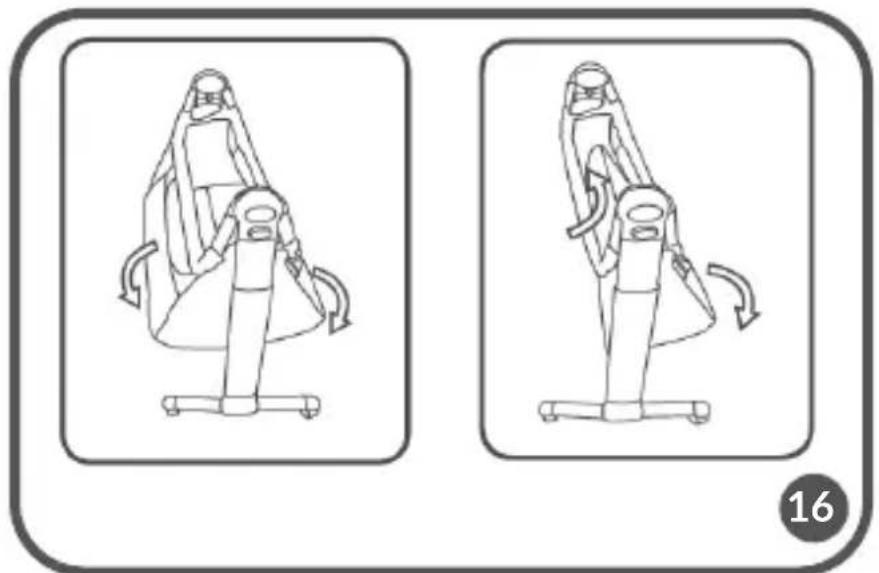

4. Upper components of the bed's frame will fold (fig. 16).
5. Fold in the bottom of the bed.
6. Fold up the basket by lifting it up.

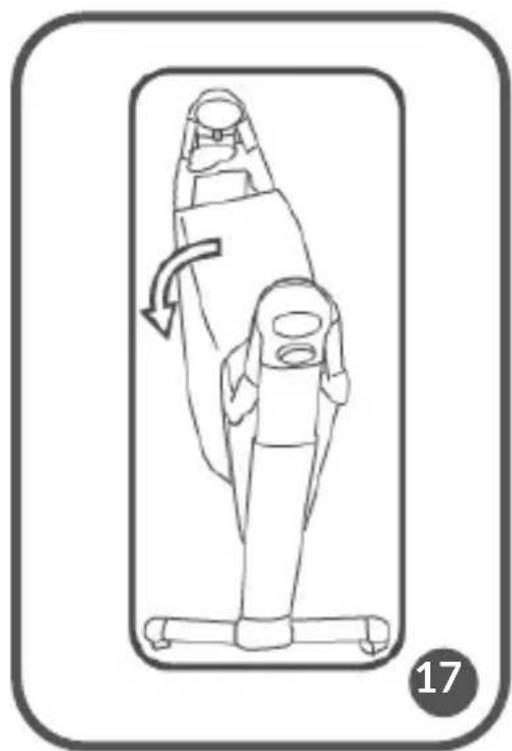

7. Wrap the mattress around the internal part of the baby's bed (fig. 17).

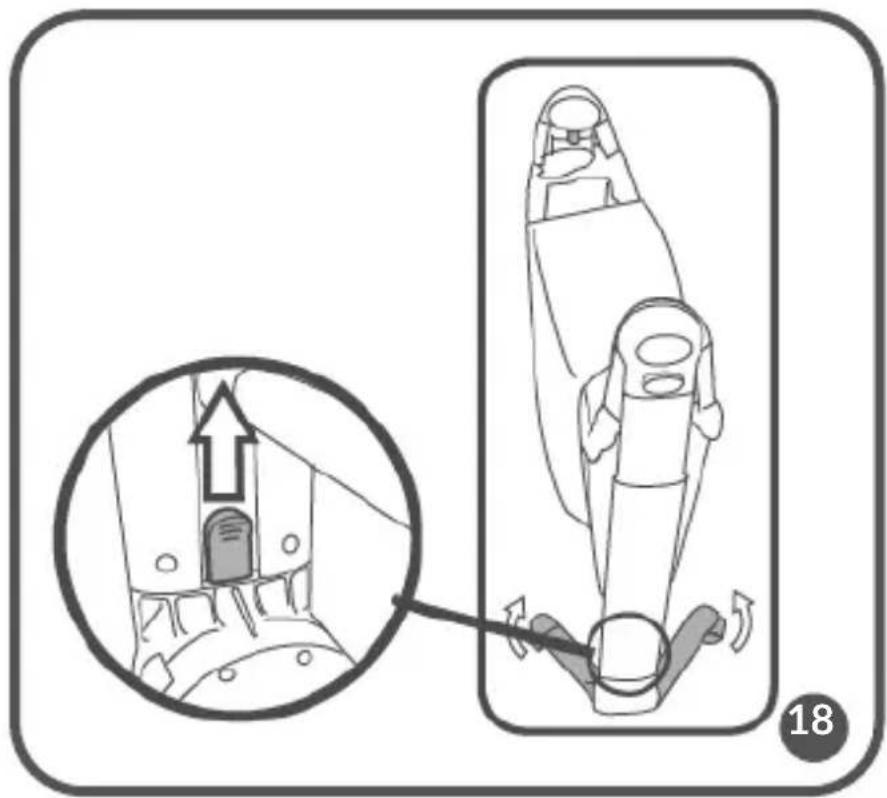

8. Press the button by the base to fold lower components of the bed's frame (fig. 18).
9. Do the same on the other side.

CLEANING AND MAINTENANCE

The product should be washed by hand using a mild detergent. Do not iron, do not tumble dry. Mattress: machine wash at 60^ C.

The product has been tested and meets all the requirements of the following standards: EN

1130:2019+AC:2020, EN 16890:2017+A1:2021

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.
