USER MANUAL WS 8056 TECHNOLINE

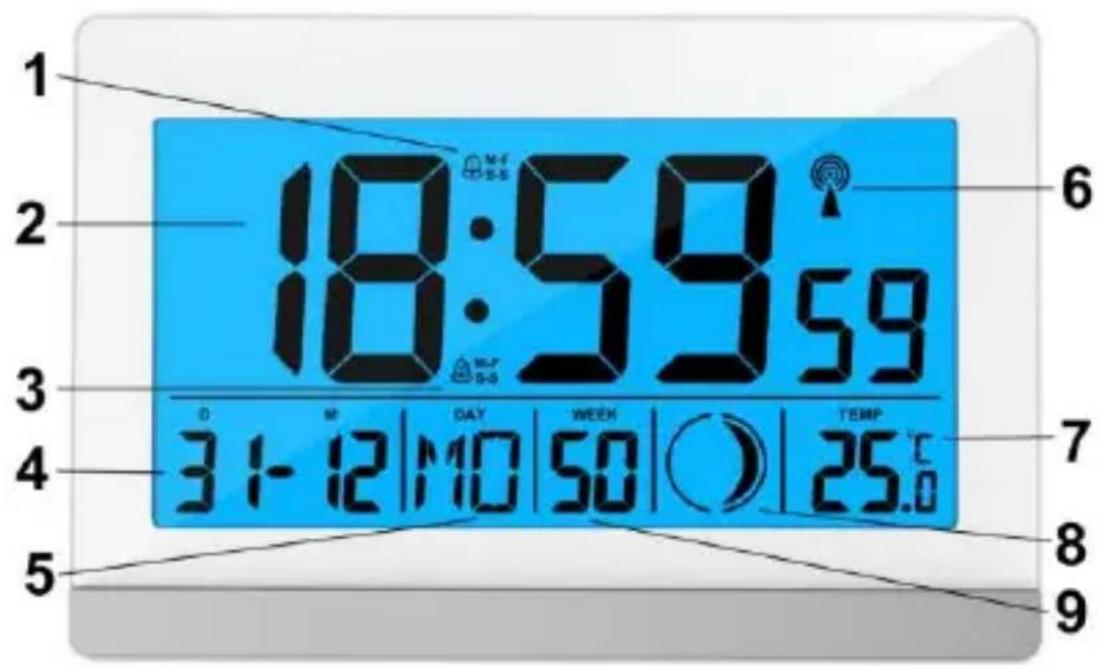

1 – Alarm 1 icon
3 – Alarm 2 icon
5 - Weekday
7 – Indoor temperature
9 - Calendar week

2 - Time
4 – Date and month
6 - RCC reception icon
8 – Moon phase display

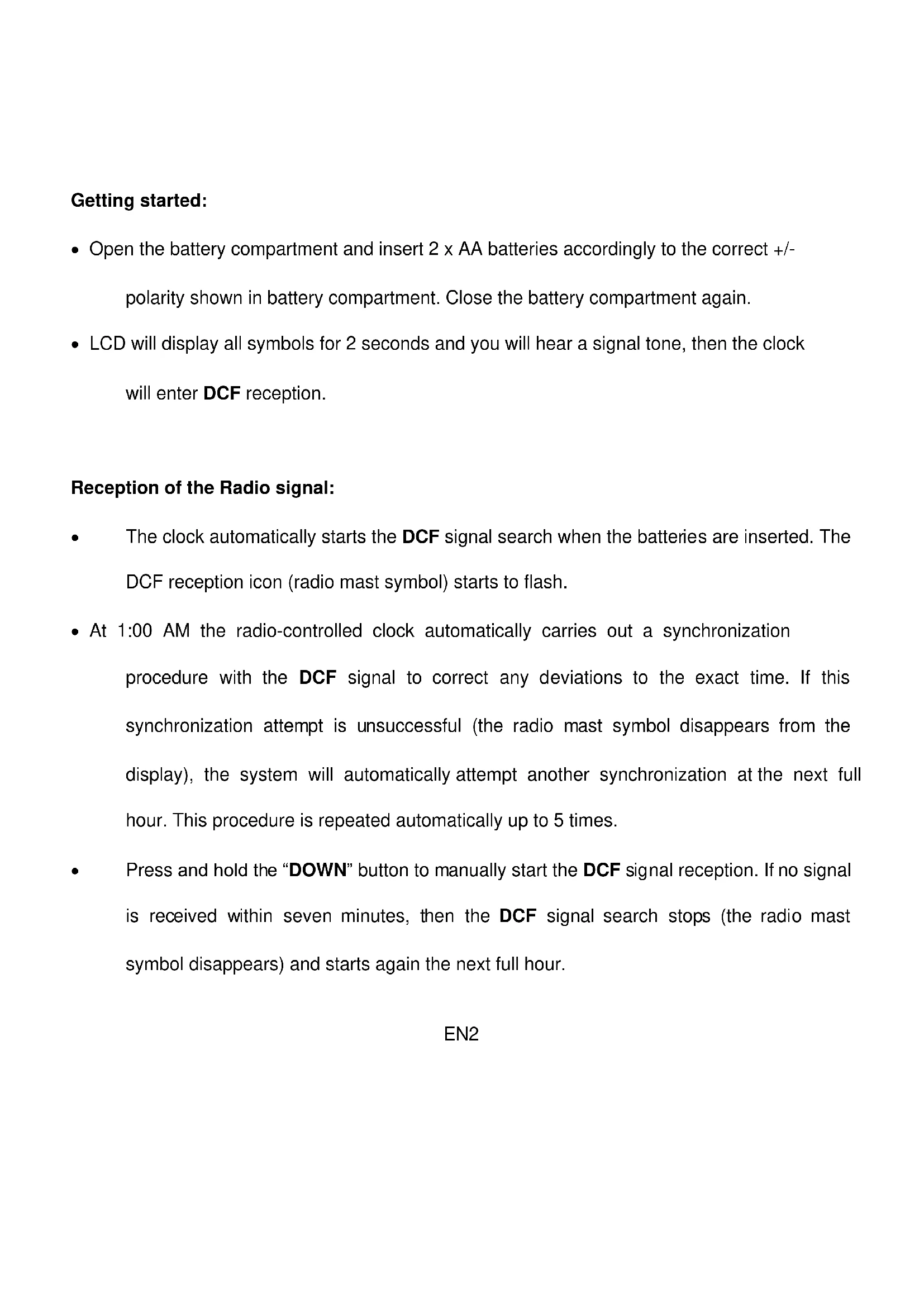

Getting started:

• Open the battery compartment and insert 2 x AA batteries accordingly to the correct +/- polarity shown in battery compartment. Close the battery compartment again.
• LCD will display all symbols for 2 seconds and you will hear a signal tone, then the clock will enter DCF reception.

Reception of the Radio signal:

• The clock automatically starts the DCF signal search when the batteries are inserted. The DCF reception icon (radio mast symbol) starts to flash.
• At 1:00 AM the radio-controlled clock automatically carries out a synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (the radio mast symbol disappears from the display), the system will automatically attempt another synchronization at the next full hour. This procedure is repeated automatically up to 5 times.
• Press and hold the “DOWN” button to manually start the DCF signal reception. If no signal is received within seven minutes, then the DCF signal search stops (the radio mast symbol disappears) and starts again the next full hour.

Notes

• A flashing radio mast icon indicates that the DCF signal reception has started.
• A continuously displayed radio mast icon indicates that the DCF signal was received
- successfully

- If the clock cannot receive the DCF signal (because the distance is too great to receive a signal from the transmitter in Germany), you have the option of setting the time manually as mentioned above. As soon as the reception of the DCF signal is possible, then the clock is readjusted automatically.

- We recommend a minimum distance of 2.5 meters (8.2 Feet) to all sources of interference, such as televisions or computer monitors, Radio reception is weaker in rooms with concrete walls and in offices. In such extreme circumstances, place the system close to the window.

- When the clock receives the Daylight Saving Time, "DST" symbol will be shown top of the seconds.

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
  • nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site
• among tall buildings
  • inside concrete buildings
  • inside moving vehicles

• near electrical appliances (computers, TV's, etc) and metallic structures

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Manual time setting:

- Press and hold down the "SET" button for 2 seconds, the weekday language display starts to flash. Press the "UP" or the "DOWN" button to set the correct weekday language.

Language

English

German

Italian

French

Dutch

Spanish

Danish

Weekday	EN	GE	IT	FR	DU	SP	DR
Sunday	SU	SO	DO	DI	ZO	DO	SO
Monday	MO	MO	LU	LU	MA	LU	MA
Tuesday	TU	DI	MA	MA	DI	MA	IT
Wednesday	WE	MI	WE	ME	WO	MI	ON
Thursday	TH	DO	GI	JE	DO	JU	TO
Friday
Saturday

EN5

• Press the “SET” button to confirm your setting, the Year display 2015 starts to flash. Press the “UP” or the “DOWN” button to set the correct year.
• Press the "SET" button to confirm your setting, the date format displays starts to flash. Press the "UP" or the "DOWN" button to set the correct date format.
• Press the "SET" button to confirm your setting, the month display starts to flash. Press the "UP" or the "DOWN" buton to set the correct month.
• Press the “SET” button to confirm your setting, the date display starts to flash. Press the “UP” or the “DOWN” button to set the correct date.

• Press the "SET" button to confirm your setting, the hour display starts to flash. Press the "UP" or the "DOWN" button to set the correct hour.

• Press the "SET" button to confirm your setting, the minute displays starts to flash. Press the "UP" or the "DOWN" button to set the correct minute.

• Press the "SET" button to confirm your setting, the 12/24Hour display starts to flash. Press the "UP" or the "DOWN" button to set the correct 12/24Hour.
• Press the “SET” button to confirm your setting, the time zone display starts to flash. Press the “UP” or the “DOWN” button to set the correct time zone. For example 00 for Germany or -1 for the UK.
• Press the "SET" button to confirm your setting, the DCF function "ON" starts to flash. Press the "UP" or the "DOWN" button to open or close the DCF function.
• Press the "SET" button to confirm your setting and to end the setting procedures, enter the clock mode.

Notes:

• After 30 seconds without pressing any button the clock automatically goes back to normal display mode. In the normal time mode, press the "DOWN" button enter zone mode.
• Press and hold the "UP" or the "DOWN" button to speed up the setting of values.

Setting the alarms A1 and A2:

• To view the set alarm times, under the clock mode, press the “ALARM” button repeatedly, LCD display the A1, A2, AP icon.
• While viewing alarm A1 or A2, press and hold down the “ALARM” button for 2 seconds until hour display of the alarm time starts to flash. Use the “UP” and “DOWN” buttons to set the required hour. Press “ALARM” button to confirm your setting.
• The minute display of the alarm time starts to flash. Use the "UP" and "DOWN" buttons to set the required minute. Press "ALARM" button to confirm your setting and to end the setting procedure.

Notes:

• After 30 seconds without pressing any button the clock switches automatically from alarm setting mode to normal display mode.
• Press and hold the "UP" or the "DOWN" button to speed up the setting of values.

Setting the alarm AP:

• The AP alarm is a date-related alarm.
• To view the set alarm times, under the clock mode, press repeatedly "ALARM" button, LCD display the A1, A2, AP icon.

EN8

• While viewing alarm AP, press and hold down the “ALARM” button for 2 seconds until year display of the alarm date starts to flash. Use the “UP” and “DOWN” buttons to set the required hour. Press “ALARM” button to confirm your setting.
• The month display of the alarm time starts to flash. Use the "UP" and "DOWN" buttons to set the required month. Press "ALARM" button to confirm your setting.
• The date display of the alarm time starts to flash. Use the "UP" and "DOWN" buttons to set the required date. Press "ALARM" button to confirm your setting.
• The hour display of the alarm time starts to flash. Use the "UP" and "DOWN" buttons to set the required hour. Press "ALARM" button to confirm your setting.
• The minute display of the alarm time starts to flash. Use the "UP" and "DOWN" buttons to set the required minute. Press "ALARM" button to confirm your setting and to end the setting procedure.

Notes:

• After 30 seconds without pressing any button the clock switches automatically from alarm setting mode to normal display mode.
• Press and hold the "UP" or the "DOWN" button to speed up the setting of values.

Activating/deactivating Alarm A1, A2 and AP:

• Press the "ALARM" button to select A1, A2 or AP. Use the "SET" button repeatedly to set a certain type of alarm.
  • A1 / A2 alarm will be activated with corresponding alarm 1 / alarm 2 bell icon displayed together with icons M-F, S-S, M-F and S-S, or deactivated with no icon displayed.

M - F = Monday to Friday

S - S = Saturday to Sunday

M - F and S - S = Monday to Sunday

- AP alarm will activated with AP alarm bell icon displayed, or deactivated with no icon displayed.

Notes:

- When alarm time is reached, alarm will sound for 2 minutes if you do not stop it by pressing any button. In this case the alarm will be repeated automatically next time.

- Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is heard

Snooze function:

- While the alarm is sounding, press the “☀️ / ZZ” button to activate snooze function and the “ Zicon appears on the display.

• This alarm stops and will sound again after 5 minutes.

- The snooze function can be interrupted by pressing any button but “☀️ / zZ”.

°C/°F temperature display:

- The temperature is displayed either in °C or °F. Press the “UP” button to change temperature display unit to °C or °F.

Timer mode:

- Press and hold the “☀️ / ZZ” button for 3 seconds in normal display mode to enter the timer mode.

- Press "UP" button to set the correct hour.

- Press "DOWN" button to set the correct minute.

- Pressing "UP" and "DOWN" buttons at the same time will reset the timer to 0:00.

- Press "按钮" button to start or pause the count down timer.

- Press the "SET" button to return to normal display mode.

Hereby, Technotrade declares that this product WS 8056 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665080567

Precautions

• This unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

- Use only alkaline batteries, not rechargeable batteries.

EN12

• Install batteries correctly by matching the polarities (+/-).
• Always replace a complete set of batteries.
- Never mix used and new batteries.
- Remove exhausted batteries immediately.
- Remove batteries when not in use.

- Do not recharge and do not dispose of batteries in fire as the batteries may explode.

- Ensure batteries are stored away from metal objects as contact may cause a short circuit.

- Avoid exposing batteries to extreme temperature or humidity or direct sunlight.

- Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed

by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This

applies to all countries of the European Union, and to other European countries with a separate waste collection system.
