Digital Aerofryer 182061 - Deep fryer PRINCESS - Free user manual and instructions

Product type	Air fryer
Brand	Princess
Model	Digital Aerofryer 182061
Power supply	220-240 V ~ 50/60 Hz
Power	Approx. 1500 W (estimated)
Temperature range	80 °C to 200 °C
Timer	1 to 60 minutes
Number of programs	12 preset cooking programs
Basket capacity	Approx. 3-5 liters (estimated)
Display	Touchscreen
Material	Plastic and metal (removable parts)
Cleaning	Basket and drum washable with hot water and dish soap, do not put in dishwasher
Safety	Auto shut-off, automatic cooling after cooking, hot surface
Cord storage	Integrated compartment under the appliance
Country of origin	Not specified (likely made in China)
Dimensions (approx)	Approx. 30 x 30 x 35 cm (estimated)
Weight (approx)	Approx. 4-5 kg (estimated)

Frequently Asked Questions - Digital Aerofryer 182061 PRINCESS

How to clean the Digital Aerofryer 182061?

Unplug the appliance and wait for it to cool down. Wash the basket and the drum with hot water and a little dish soap using a non-abrasive sponge. Do not put them in the dishwasher. For stubborn dirt, soak for 10 minutes in hot soapy water. Never immerse the appliance itself.

Can I use frozen ingredients without thawing?

Yes, frozen fries and other frozen foods can be cooked directly. Refer to the cooking chart for recommended times and temperatures. It is advisable to shake the basket halfway through for even cooking.

Why does my appliance emit an odor during first use?

This is normal. A slight odor may be emitted during the first few uses due to the heating element. Make sure to place the appliance in a well-ventilated area. The odor will disappear after a few uses.

How long does cooling take after cooking?

The appliance activates an automatic cooling process after the timer ends. Do not unplug the appliance before this cycle finishes to avoid damaging components. The duration varies, but allow approximately 10 to 20 minutes.

Can I open the basket during cooking?

Yes, you can remove the drum at any time. The appliance will automatically turn off after 5 seconds and resume the program when you put the drum back. Always use the handle as the drum becomes very hot.

What is the maximum food capacity?

The manual specifies quantities in grams depending on the food. For example, for fries: 300 to 700 g. In general, do not exceed half the basket for optimal cooking. The exact capacity is not specified, but estimate approximately 3 to 5 liters.

What to do if the basket is stuck?

Make sure the basket is properly inserted into the drum. To remove it, press the unlock button on the handle. If the jam persists, let it cool completely and check that no food is obstructing the mechanism.

Can I bake a cake in this air fryer?

Yes, use a suitable cake pan placed in the basket. The 'CAKE' program is set for 300 g at 160 °C for 20-25 minutes. Make sure the pan is heat-resistant and does not exceed the basket size.

How to manually set time and temperature?

Use the timer buttons (1 to 60 minutes) and the temperature buttons (80 to 200 °C in 5 °C steps). Press briefly to adjust by one minute/5 degrees, or hold for fast scrolling. Confirm with the On/Off button.

Is the appliance under warranty?

The manual does not explicitly mention warranty, but Princess generally offers a 2-year warranty on manufacturing defects. Visit www.princesshome.eu or contact customer service for more information.

USER MANUAL Digital Aerofryer 182061 PRINCESS

ENL Instruction manual

Black PRINCESS air fryer with fried food being opened, no visible text or symbols on the device itself.

Digital AEROFRYER

01.182061.01.001

PARTS DESCRIPTION / ONDERDELENBESCHRIJVING / DESCRIPTION DES PIÈCES / TEILEBESCHREIBUNG / DESCRIPCIÓN DE LAS PIEZAS / DESCRÍÇÃO DOS COMPONENTES / DESCRIZIONE DELLE PARTI / BESKRIVNING AV DELAR / OPIS CZĘŚCI / POPIS SOUČÁSTÍ / POPIS SÚČASTÍ / ОПИСАНИЕ ЗАПЧАСТИ

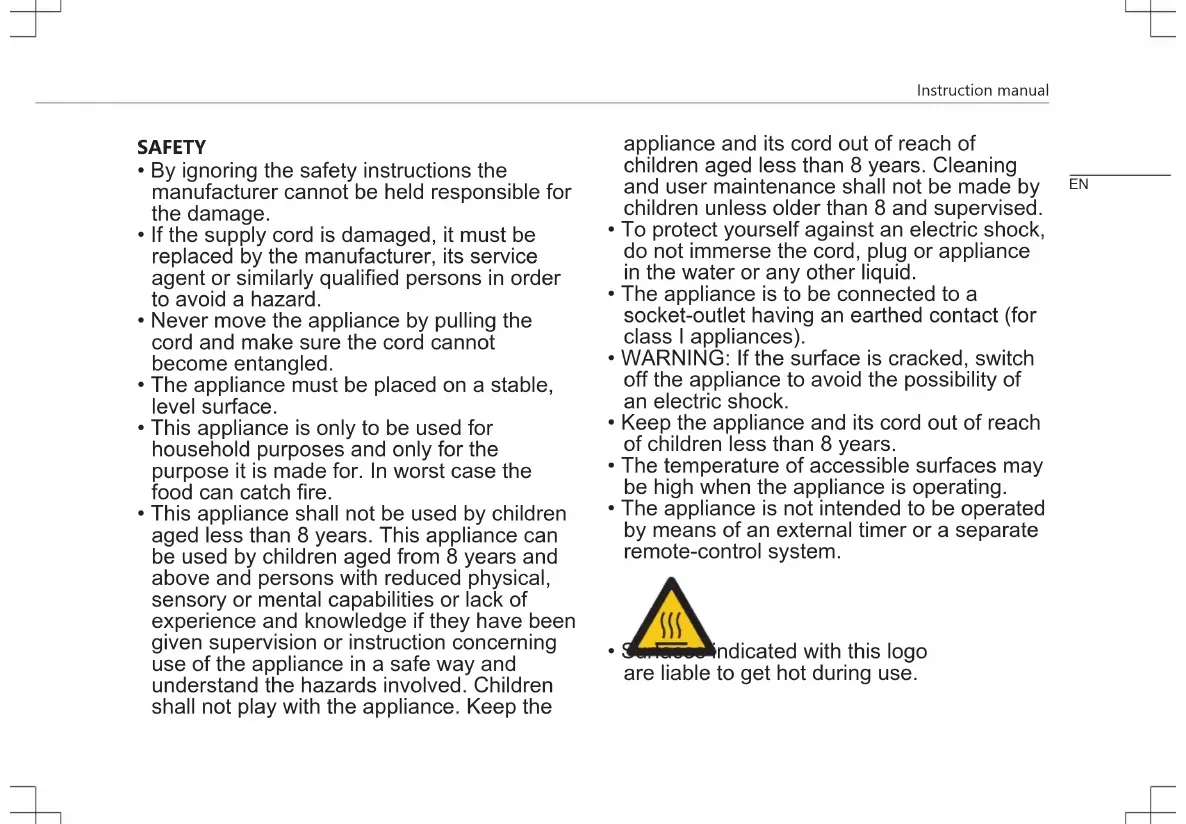

SAFETY

• By ignoring the safety instructions the manufacturer cannot be held responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
  • The appliance must be placed on a stable, level surface.
  • This appliance is only to be used for household purposes and only for the purpose it is made for. In worst case the food can catch fire.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the

appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• The appliance is to be connected to a socket-outlet having an earthed contact (for class I appliances).
- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.
- Keep the appliance and its cord out of reach of children less than 8 years.
- The temperature of accessible surfaces may be high when the appliance is operating.
- The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

• Surface indicated with this logo are liable to get hot during use.

Instruction manual

• In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimeter of free space around the appliance.
  • After the baking process the appliance needs to cooldown, this cooling process will activate automatically when the timer is done. Avoid to unplug the appliance from the net socket before the cooling process is finished because the remaining hot air can damage the appliance.
• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments.
• By clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.
  • Farm houses. SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

The universal recycling symbol, logo, or icon is an

internationally recognized symbol used to designate recyclable materials. The recycling symbol is in the public domain and is not a trademark.

This product complies with conformity requirements of the European regulations or directives.

The Green Dot is the registered trademark of Der Grüne

Punkt – Duales System Deutschland GmbH and is protected as a trademark worldwide. The logo may only be used by customers of DSD GmbH holding a valid trademark usage contract or by engaged waste management companies within the Federal Republic of Germany. This also applies to reproduction of the logo by third parties in a dictionary, an encyclopaedia or an electronic database containing a reference manual.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local Authority or local store for recycling advice.

EAC The Eurasian Conformity mark (EAC) is a certification mark to indicate products that conform to all technical regulations of the Eurasian Customs Union.

This symbol is used for marking materials intended to come into contact with food in the European Union as defined in regulation (EC) No 1935/2004.

The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispose it separately, following the illustrated packaging symbols, for better waste treatment. The Triman logo is valid in France only.

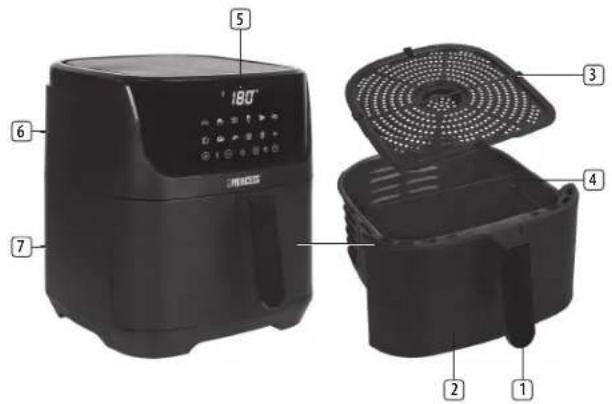

PARTS DESCRIPTION

1. Basket handle
2. Basket
3. Frying trivet
4. Divider
5. Touch screen display
6. Air outlet opening
7. Power cord storage
8. 12 Cooking presets
9. Time adjustment
10. Power on/off
11. Temperature adjustment

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
- Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
- Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V\~50/60Hz).
- When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This smell is only temporary and will soon fade.
• We advise to place a heat resistant coating between your table and the appliance (this way you don't get burn marks on your table or table cloth).
- Place the device in a well ventilated space.

USE

• Put the mains plug in an earthed wall socket.
• Carefully pull the pan out of the air fryer.
• Put the ingredients in the basket.
• Slide the pan back into the air fryer.
• Never use the pan without the basket in it.
• Do not touch the pan during and some time after use, as it gets very hot. Only hold the pan by the handle.
• Press the on/off + start button to turn on the appliance.

Manual settings

Instruction manual

- The time can be adjusted with the timer control buttons. Press the timer control buttons one time to increase or decrease the frying time by one minute. Press and hold one of the buttons to adjust the time faster. You can set the timer between 1 and 60 minutes.

Automatic Switch Off

• The appliance has a built in timer, it will automatically shut down the appliance when the counter reaches to zero. You can manually switch off the appliance by pressing the [ON/OFF] icon.
  • The temperature can be adjusted with the temperature control buttons. Press the temperature control buttons one time to increase or decrease the temperature by 5 degrees. Press and hold one of the buttons to adjust the temperature faster. You can set the temperature between 80 and 200 degrees.
• When the desired time and temperature are set, then press the on/off + start button to start.

Programmed modes

• There are 12 frying pre-sets included: CHIPS, SHRIMP, CAKE, CHICKEN LEGS, CHICKEN, BACON, STEAK, PORK, TOAST, VEGETABLES, FISH and KEEP WARM. Press the mode icons to choose between the programmed modes.
• When you pull out the pan during the frying process, the device will shut off automatically within 5 seconds. When you reinsert the device, the program will resume.
• To cancel any program, press the on/off + start button. The device will shut off after 20 seconds.

• Excess oil from the ingredients is collected on the bottom of the pan.

• Some ingredients require shaking halfway through the preparation time. To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the air fryer. Do not press the basket release button during shaking

• When you hear the timer beep, the set preparation time has elapsed. The device will shut off after 20 seconds. Pull the pan out of the appliance and place it on a heatresistant surface.
• Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.
• To remove small ingredients (e.g. chips), press the basket release button and lift the basket out of the pan. Do not turn the basket upside down with the pan still attached to it, as any excess oil that has collected on the bottom of the pan will leak onto the ingredients.
• Empty the basket into a bowl or onto a plate. When a batch of ingredients is ready, the air fryer is instantly ready for preparing another batch.

Settings

Note: These settings are only indications and may differ according to the brand, shape or size of the food being air fried. Adjust the timing and temperature accordingly.

Food Min-	Max (g)	Time (min)	Temp (C) Shake	Remark
French fries
Thin frozen fries	300 - 700	9 -16 195°C Yes

Thick frozen fries	300 - 700	11 - 20 195°C Yes Add 12	tbsp. of oil
Homemade fries (8x8mm)	300 - 800	10 - 16 195°C Yes Add 12	tbsp. of oil
Homemade potato wedges	300 - 800	18 - 22 180°C Yes Add 12	tbsp. of oil
Steak 100 - 500		8 - 12 180°C
Meat chops 100 - 500		10 - 14 180°C
Hamburger 100 - 500		7 - 14 180°C
Sausage roll 100 - 500		13 - 15 195°C
Drumsticks 100 - 500		18 - 22 160°C
Chicken breast 100 - 500		10 - 15 180°C
Snacks
Spring rolls 100 - 400		8 - 10 195°C Yes Use oven-ready
Frozen chicken nuggets	100 - 500	6 - 10 195°C Yes Use oven-ready

Frozen fish fingers	100 - 400	6 - 10 195°C Use oven-			ready
Stuffed vegetables	100 - 400	8 - 10 160°C
Cake 300 20 - 25 160°C		Use baking tin
Quiche	300 20 - 22 160°C		Use baking tin /oven dish

Tips

• Shaking smaller ingredients halfway during the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you've added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the air fryer.
• Place a baking tin or oven dish in the basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
• You can also use the air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150°C for up to 10 minutes.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Never immerse the device in water or any other liquid. The device is not dishwasher proof.

Instruction manual

• Clean the pan and basket with hot water, some washing-up liquid and a non-abrasive sponge. The pan and basket are not dishwasher-proof.
• If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the basket in the pan and let the pan and the basket soak for about 10 minutes.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the appliance.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.princesshome.eu!
