GigKit - Musical instrument MAX - Free user manual and instructions

Product Type	Electric guitar with amplifier and clip-on tuner
Brand	MAX
Model	GigKit
Amplifier power supply	Mains 220-240 V AC / 50 Hz, fuse 10-16 A
Tuner power supply	CR2032 battery (included)
Amplifier functions	Gain, boost, volume controls, 3-band equalizer (treble, middle, bass), headphone output, auxiliary input
Tuner functions	Chromatic, guitar, bass modes; indicator backlight; auto-off after 3 min
Operating temperature	5 °C to 35 °C (41 °F to 95 °F)
Cleaning	Soft, dry cloth; avoid insecticides
Safety instructions	Disconnect during storms or extended non-use; do not open; use grounded outlet; do not expose to humidity or extreme temperatures
Repairability	Repairs by qualified technician; modifications void warranty
Warranty	Valid if instructions followed; modifications or damage from non-compliance void warranty
Certification	CE
Included accessories	Amplifier, clip-on tuner, CR2032 battery

Frequently Asked Questions - GigKit MAX

How do I tune my guitar with the built-in tuner?

Attach the tuner to the guitar headstock, turn it on, select the mode (chromatic, guitar, or bass), play a string and adjust the tension until the backlight turns green and the indicator is centered.

How do I adjust the string height?

Use the bridge screws. The recommended height at the last fret is between 1.9 mm (string 1) and 2.4 mm (string 6). Turn the screws gradually.

How do I change a guitar string?

Unwind the old string, remove it through the bridge hole, insert a new string, pass it through the nut and the machine head hole, bend and wind using the tuning peg.

What sound adjustments can I make on the amplifier?

You can adjust gain, volume, and the equalizers: treble, middle, and bass. Activate boost for more distortion.

How do I connect headphones or an audio source?

Connect headphones to the Phones jack and an audio source (MP3 player, phone) to the Aux jack.

How do I maintain my guitar and amplifier?

Clean with a soft, dry cloth. Do not spray insecticides. For the amplifier, disconnect it before cleaning.

What to do if the tuner does not work?

Check the CR2032 battery, replace it if necessary. If the problem persists, remove and reinsert the battery to reset the device.

Can I use the amplifier outdoors?

No, the amplifier is designed for indoor use only, within a temperature range of 5 to 35 °C.

How to store the guitar when not in use?

Place it on a stable stand or in its case. Avoid direct sunlight, extreme temperatures, and humidity. Occasionally open the case to allow air circulation.

What to do in case of storm or extended non-use?

Disconnect the amplifier from the mains to avoid any damage.

USER MANUAL GigKit MAX

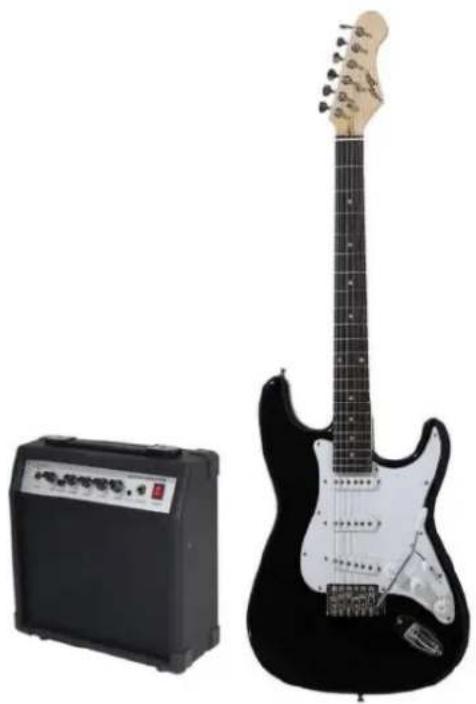

GigKit Electric Guitar Pack

Ref. nr.: 173.223; 173.224; 173.225; 173.226

Black electric guitar with a small black-and-white portable amplifier nearby (no text or symbols visible)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

V1.1

ENGLISH

Congratulations to the purchase of this Max product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• When using a shoulder strap, make sure the shoulder strap is securely attached to the guitar.
• Do not place your face close to the instrument when changing or adjusting the strings.
• After changing the strings, cut off the leftover string ends.
• The guitar has been properly adjusted before being shipped from the factory. In For those adjustments that can be performed by the owner, please closely follow the instructions given in the Owner's Manual for the procedure.
• When playing the instrument, pay attention to the volume level. Especially late at night, take neighbors and those who are close by into consideration.
• Broken guitar necks are mostly the result of accidents such as dropping the guitar, the guitar falling over, or from shocks occurred during transport. When the guitar is not being used, make sure it is kept on a sturdy stand where it won't fall over, or place it in its case.
• Do not treat the instrument in a rough manner like swinging it around, throwing objects at the instrument, dropping the instrument, etc. And do not put excessive force on the switches or control knobs, etc.
• When cleaning the instrument, use a soft, dry cloth. Also, do not spray insecticides close to the instrument. And when cleaning the headstock, be careful not to injure yourself on the sharp string ends.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/ 41^ F and 35^ C/ 95^ F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

STORE THE GUITAR

• Do not keep the instrument close to a fire or flame, and keep it on a low, stable surface.
• Do not leave the instrument leaning against the wall, etc., in the vicinity of children.
• Long-term storage in the hard case may have an adverse effect on the guitar. Open the case occasionally to let air circulate in the case.

• If the instrument is not going to be used for an extended period of time, keep the instrument in a place other than those listed below.

• Locations subject to direct sunlight.

• Locations subject to extremely high or low temperatures.
• Locations subject to high humidity, dust, or vibration.
  During the summer season, temperatures inside of a car can become extremely hot. Do not leave the instrument inside of a car.

AMPLIFIER

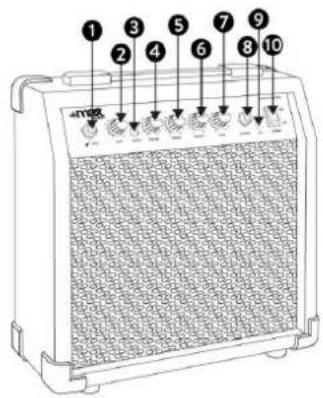

1. Guitar input – Plug your guitar in here.
2. Gain - Adjust the amount of pre-amp gain. High gain setting will supply more distortion and sustain.
3. Boost – Turn on/off the gain control
4. Volume – Adjust amplifier loudness
5. Treble – Adjust the treble tone.
6. Middle - Adjust the middle tone.
7. Bass - Adjust the bass tone.
8. Phones – For connecting stereo headphones.
9. Aux - Connect an audio source (e.g. MP3 player, mobile phone) to play along.
10. Power – Switch the amplifier On or OFF.

SETTING THE STRING

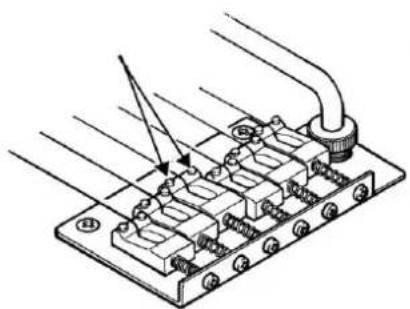

String height refers to the space between the strings and frets, and has an affect on playability. String height is adjusted with the bridge and/or the saddle on the bridge. Adjust height by alternately turning the screws little by little on the left and right sides. Set too high and the instrument is hard to play. Too low results in fret noise. Adjust so that the space between the string and the last fret measures as follows:

String	Tuning	Height
1	E	1.9mm
2	B	2.0mm
3	G	2.1mm
4	D	2.2mm
5	A	2.3mm
6	E	2.4mm

Height adjustment screw (for each strings)

Technical diagram of a mechanical assembly with no visible text or symbols

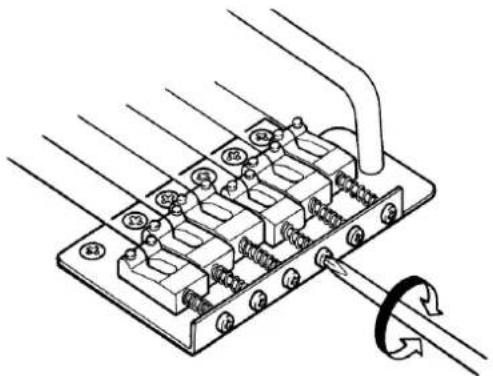

Following is the procedure for adjusting the vintage vibrato system

Technical line drawing of a mechanical assembly with spring-loaded components and a rotating arm (no text or symbols)

To check intonation, compare the harmonic tone (12th fret) to the fretted tone (12th fret).

- If fretted pitch is higher than harmonic, saddle must be moved backward to lengthen string.

Mechanical diagram showing a spring-loaded tool interacting with a rotating component (no text or symbols)

- If fretted pitch is lower than harmonic, saddle must be moved forward to shorten string.

Technical line drawing of a mechanical assembly with no visible text or symbols

TUNING MACHINE TENSION ADJUSTMENT

The tuning machines have spring-loaded mechanisms which automatically take up wear, preventing backlash. However, it is possible to adjust the amount of pressure required to turn the machines. Each machine has a tension adjustment screw, as illustrated.

Clockwise screw rotation tightens the machine. The tuning machines should be adjusted to the extent that they are firm, but can turn smoothly. This adjustment is normally unnecessary, and excessive tightening can lead to premature tuning machine wear.

Illustration of a hand holding a coiled spring or cable with a hook, no text or symbols present

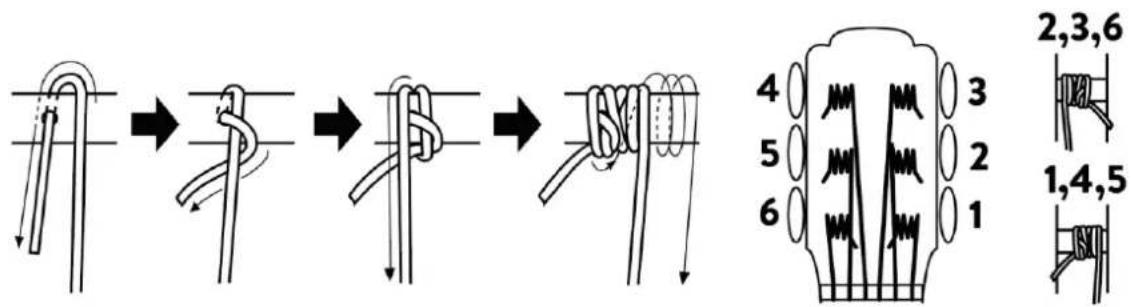

CHANGE THE STRINGS

1. Unwind the old string at the tuning machine at the top of the neck (it is recommended to change 1 string at a time)
2. Push the old string through the body of the guitar through the hole in the bridge.
3. Insert a new string through the corresponding hole (compare the thickness of the new string to the old string to make sure it is the correct string).
4. Run the string over the nut in the bridge and along the neck.
5. Feed the string through the hole in the tuning machine post.
6. Bend the string around the post and wind the string using a tuning peg.

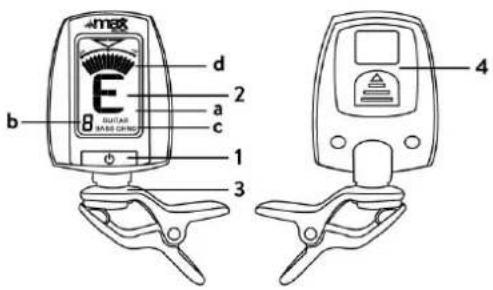

1. Power / Mode button

2. Display

a. Note name
b. String number
c. Chromatic / Guitar / Bass
d. Measuring range

1. Clip

2. Battery compartment

Inserting the battery

Press on the battery compartment cover as marked on the back of the device. Open the compartment and insert a fresh CR2032 battery, paying close attention to the polarity. The life of the battery depends on the conditions of use.

Note: If the device does not work as described in this manual, and you do not solve the problem by switching it off and on again, remove the battery and reinstall it to possibly solve the problem.

Operating

1. Attach the device to your instrument via the clip.
2. Press and hold the button for 2 seconds to turn the unit on.
3. Select the tuning. Press the button repeatedly to select 'Chromatic', 'Guitar' or 'Bass' as the tuning.

- If you select 'Chromatic', the display will show the note name.

If you select 'Guitar' or 'Bass', the display will show the string number and the note name.

1. Play a single note on your instrument, the note name or string number is displayed. The backlight changes and the measuring range is displayed.

2. If the backlight turns green and the gauge is centered, the note is in tune correctly.
   If the backlight turns blue and the indicator is pointing to the left, the tuning is too low.
   If the backlight turns blue and the display is pointing to the right, the tuning is too high.

3. If the unit does not detect any signal for 3 minutes after switching it on, it will switch off automatically.

NEDERLANDS

Technical diagram of a mechanical assembly with threaded components and a pipe (no text or symbols)

Technical line drawing of a mechanical assembly with spring-loaded components and a rotating arm (no text or symbols)

Mechanical diagram showing a spring-loaded tool interacting with a nut, with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a spring-loaded tool interacting with a connector (no text or symbols present)

AFSTELLING VAN DE SPANNING STELKNOPPEN

Illustration of a hand holding a coiled spring with a hook, no text or symbols present

SNAREN VERWISSELEN

Technical diagram of a mechanical assembly with multiple components and a pipe fitting (no text or symbols)

Technical diagram of a mechanical assembly with spring-loaded components and a rotating arm (no text or symbols)

Mechanical diagram showing a spring-loaded tool interacting with a rotating shaft (no text or symbols)

Mechanical assembly diagram showing a spring-loaded tool interacting with a connector (no text or symbols)

Illustration of a hand holding a spring with a coiled spring (no text or symbols)

AUSWECHSELN VON SAITEN

CLIP-ON DIGITALER STIMMGERÄT

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with spring-loaded components and a rotating arm (no text or symbols)

Mechanical diagram showing a tool interacting with a spring and valve (no text or symbols)

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

Illustration of a hand holding a rack with a curved arrow indicating rotation (no text or symbols)

CAMBIAR LAS CUERDAS

Technical diagram of a mechanical assembly with multiple components and a pipe connection (no text or symbols)

Technical line drawing of a mechanical assembly with spring-loaded components and a rotating arm (no text or symbols)

Technical diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical clamp or spring assembly with no visible text or symbols

REGLAGE DE LA TENSION

Illustration of a hand holding a rack with a curved arrow indicating rotation (no text or symbols)

REEMPLACEMENT DES CORDES

TUNER DIGITAL CLIPSABLE

1. Bouton "Power / Mode

2. Afficher

Inserting the battery

Press on the battery compartment cover as marked on the back of the device. Open the compartment and insert a fresh CR2032 battery, paying close attention to the polarity. The life of the battery depends on the conditions of use.

Note: If the device does not work as described in this manual, and you do not solve the problem by switching it off and on again, remove the battery and reinstall it to possibly solve the problem.

The products referred to in this manual is conforming European and UK legislation directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2022 by Tronios The Netherlands
