Fit Connect 200 HR - Sports Watch SOEHNLE - Free user manual and instructions

Product Type	Sports Watch / Fitness Tracker
Brand	Soehnle
Model	Fit Connect 200 HR
Screen Dimensions	40.5 x 11.5 mm (OLED display)
Weight	Approx. 25 g
Power Supply	Rechargeable lithium-polymer battery via magnetic USB cable
Battery Life	≥ 5 days standby
Data Storage	Approx. 14 days
Protection Rating	IPx4 (protected against water splashes)
Connectivity	Bluetooth 4.0
Main Functions	Heart rate, step counter, distance, calorie expenditure, activity duration, daily goal, sleep mode, alarm, call and message notifications, movement reminder
App Compatibility	Soehnle Connect for Android 4.4.4+ and iOS 9.0+; compatible with Google Fit and Apple Health
Care and Cleaning	Clean the screen with a soft damp cloth; air dry; do not use harsh products or submerge in water
Safety	Do not disassemble, short-circuit, or throw into fire; keep away from young children; do not expose to extreme temperatures
Package Contents	1x Fit Connect 200 HR, 1x USB charging cable, 1x instruction manual
Warranty and Service	Consumer service: toll-free hotline [phone] (Mon-Fri 8am-6pm), website soehnle.com

Frequently Asked Questions - Fit Connect 200 HR SOEHNLE

How do I charge the Fit Connect 200 HR?

Use the provided USB charging cable. Plug it into an active USB port, then magnetically attach the cable to the contacts on the back of the watch. The screen shows the charging status. Fully charge before first use.

How do I pair the watch with my smartphone?

Install the Soehnle Connect app, enable Bluetooth on your phone, then open the app. Follow the instructions to add the device. Make sure the watch screen is on.

How do I measure heart rate?

Wear the watch directly on your skin. Navigate to heart rate mode (press the button), then hold the button for about 5 seconds. The measurement will be displayed after a few moments.

How do I activate sleep mode?

Press the button to access the sleep mode display (4.10), then hold the button for about 5 seconds. To deactivate, wake the screen and hold the button again for 5 seconds.

Is the watch waterproof?

No, it is only splash-proof (IPx4). Do not hold it under water or submerge it.

How do I clean the watch?

Clean the screen with a slightly damp soft cloth. Let it air dry completely before wearing again. Do not use chemicals, hard brushes, or sharp objects.

What is the battery life?

Standby time is at least 5 days. The watch stores data for up to 14 days. If not used for a long time, fully recharge it every 3 to 6 months.

How do I reset or fix a connection issue?

To disable Bluetooth, hold the button for 5 seconds in any mode except time or heart rate. To reconnect, follow the pairing procedure in the Soehnle Connect app.

Can I set an alarm on the watch?

Yes, the watch has an alarm function (4.8). You can set it in the Soehnle Connect app under device settings.

Which apps are compatible?

The Soehnle Connect app is compatible with Android 4.4.4+ and iOS 9.0+. It can sync with Google Fit and Apple Health.

USER MANUAL Fit Connect 200 HR SOEHNLE

Close-up of a black smartwatch with visible branding and control buttons (no readable text or symbols)

Bluetooth®

Technical diagram of a mechanical device with labeled parts A, B, and C

(A) Fitness tracker (C) Sensor button
(B) USB charge lead (D) Pulse monitor

Your personal Soehnle Fit Connect 200 HR fitness tracker records your daily activities, such as pulse rate, number of steps, distance covered, activity period, calorie consumption and achievement of your daily activity target to help you in matters of fitness and health. Sleep mode is used to record sleep duration as well as sleep phases. Using Bluetooth ^® , the data is transferred to your Soehnle Connect app where it can be analysed.

FR

GET IT ON Google Play Download on the App Store

Apple, iOS, Apple Health and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

Android, Google Fit, Google Play and the Google Play logo are trademarks of Google Inc.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

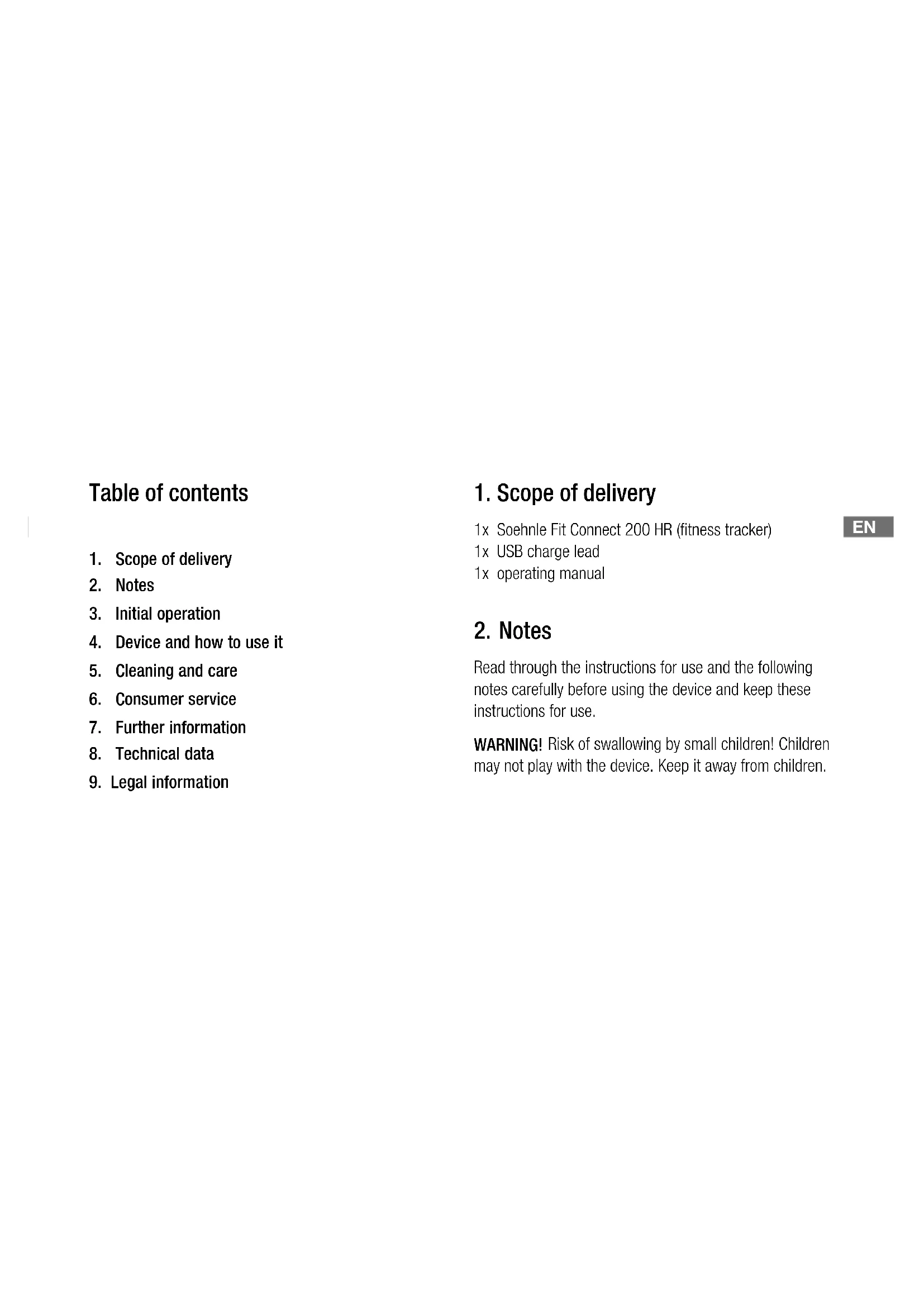

Table of contents

1. Scope of delivery
2. Notes
3. Initial operation
4. Device and how to use it
5. Cleaning and care
6. Consumer service
7. Further information
8. Technical data
9. Legal information

1. Scope of delivery

1x Soehnle Fit Connect 200 HR (fitness tracker)
1x USB charge lead
1x operating manual

2. Notes

Read through the instructions for use and the following notes carefully before using the device and keep these instructions for use.

WARNING! Risk of swallowing by small children! Children may not play with the device. Keep it away from children.

WARNING! Risk of fire/explosion or chemical burns! The product contains a rechargeable lithium polymer battery. This may not be removed, taken apart, thrown into fire or short-circuited.

ATTENTION! Possible material damage! The device is splash proof but not waterproof. Do not hold the device under water.

ATTENTION! Possible material damage! Do not drop the device and protect it against impacts. Do not expose the device to extreme temperatures or high temperature fluctuations. Also protect the device against direct sunshine and dust. Do not use any strong chemicals, aggressive or abrasive detergents for cleaning purposes. Protect the display from hard and scratching objects.

NOTE! Intended use: the product is designed for personal, non-commercial household use. It is not a medical device.

NOTE! If you do not use the device for an extended period, charge the battery completely once every 3-6 months nevertheless in order to ensure the functionality of the rechargeable battery.

Battery disposal, EC Directive 2008/12/EC

Standard and rechargeable batteries must not be disposed of with household waste.

You must take your old standard and

rechargeable batteries to the public collection points in your local authority or wherever batteries of the relevant type are sold.

Waste disposal of electric and electronic equipment, EC Directive 2002/96/EC

This product is not to be treated as normal household waste, but must be taken to a collection point for the recycling of electric

and electronic equipment. You can get further information from your local authority, the local waste disposal companies or the shop where you bought the product.

Soehnle hereby declares that this device complies with the basic requirements and the other relevant provisions of Directive

2014/53/EU. You can find the EU Declaration of Conformity at www.soehnle.com.

3. Initial operation

Charging the battery

Charge the fitness tracker (A) completely before using it for the first time. To do so, plug the USB charge lead into a standard, active USB port and connect the lead with the contacts on the inside of the tracker (3.1). The connection is magnetic and snaps into place automatically when the contacts are correctly on top of each other. Please make sure that the tracker rests safely whilst charging and the connection between the contacts is not broken, otherwise the device will not charge.

The battery's charging status is shown on the display (4.1) (☐ = completely charged / ☐ = battery empty).

Soehnle Connect app

For full functionality, install the free Soehnle Connect app on your smartphone or tablet. Scan the QR code to take you to the app. Alternatively you will find the app for your Android™ device on Google Play or for your Apple® device in the App Store.

SCAN

Android™ 4.4.4 and higher, iOS® 9.0 and higher, Bluetooth® 4.0 and higher

GET IT ON Google Play Download on the App Store

Activate Bluetooth® on your smartphone or tablet and start the Soehnle Connect app. When you start the app for the first time, you will be automatically guided through the process for connecting a Soehnle appliance. Make sure that the fitness tracker's display is switched on.

If you have already used the Soehnle Connect app, to connect go to the "Main menu" in the Soehnle Connect app and press "my devices" and then "Add device".

Compatibility

The Soehnle Connect app is compatible with Google Fit® and Apple Health®.

4. Device and how to use it

Fig. Mode
4.1	Time, date, battery status
4.2	Pulse rate
4.3	Step counter*
4.4	Calorie consumption*
4.5	Distance covered*
4.6	Activity period in hours and mins.*
4.7	Daily target* set in % (display variants)
4.8	Alarm clock
4.9	Missed calls and messages
4.10	Sleep mode: movement activity whilst sleeping, sleep duration, sleep phases
4.11	Movement reminder

* Day-related data is automatically reset to zero at midnight each day

Various data can be recorded and displayed with the fitness tracker. Touching the sensor button starts the display in time mode (4.1). By touching the sensor button again, the different functions can be scrolled through (4.2 - 4.10). Via the Soehnle Connect app you can use additional functions and collate and manage your recorded data.

Note: You can find further information about the Soehnle Fit Connect 200 fitness tracker under manual.soehnle.com/68101

Setting your fitness tracker

Set your fitness tracker conveniently using the Soehnle Connect app's user interface. Time and date are set automatically after connecting according to the system time on the smartphone or tablet. You also set e.g. daily targets, alarm clock or movement reminders here and you

can use the device settings in the app to define which values and functions your device displays.

Measuring your pulse

To measure your pulse, put the fitness tracker on and switch to pulse rate mode (4.2). Hold the sensor button down for approx. 5 seconds. The pulse is now measured and shown on the corresponding display. Finding the pulse can take a few seconds initially. Wear the tracker directly against your skin, otherwise no measurement is possible. To deactivate the pulse function, hold down the sensor button for approx. 5 seconds whilst pulse measurement is switched on. Once released, pulse measurement switches off.

Activating sleep mode

First switch to displaying sleep mode (4.10) by touching the sensor button. Now hold the sensor button down for approx. 5 seconds. Sleep mode is activated.

Deactivating sleep mode

Touch the sensor button to activate the display. Touch the sensor button again and hold this down for approx. 5 sec..

Data transmission to smartphone / tablet

Start the Soehnle Connect app. Drag the app down in the main screen (dashboard). The data saved from your tracker will then be automatically transferred to the app via Bluetooth®. Make sure that Bluetooth® is activated on your appliance.

Switch Bluetooth® on and off

You can switch Bluetooth ^® off in any mode except in clock (4.1) or pulse frequency mode (4.2). Touch and hold the sensor button for approx. 5 seconds to enter the menu to switch the function on and off. Then switch Bluetooth ^® on or off by pushing the button again. The tracker automatically switches

to clock mode after approx. 10 seconds without any action.

Bluetooth ^® is activated upon delivery as factory standard and must not be activated again.

5. Cleaning and care

Cleaning the fitness tracker

Clean the display with a soft, damp cloth. Leave the device to air dry completely before putting it on or putting it away again.

Handling the device incorrectly can lead to damage. Do not use any aggressive detergents, brushes with hard bristles, or sharp objects. These can damage the surfaces. Do not immerse the display in water or other liquids.

6. Consumer service

Our consumer service is at your disposal for questions and suggestions:

Hotline: [phone] (free of charge) Mon – Fri, 8:00 – 18:00

Internet: soehnle.com

7. Further information

For further information visit our website www.soehnle.de.

8. Technical data

Product number: 68101

Bluetooth® Version: 4.0

USB port: 2.0 type A

Frequency band: 2.4 GHz

Max. transmission power: 1 mW

Battery type: Lithium polymer

Display type: OLED

Display dimensions: 40.5 x 11.5 mm

Protection category: IPx4

Data memory: approx. 14 days

Battery life (standby): ≥ 5 days

9. Legal information

Apple, iOS, Apple Health and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.

Android, Google Fit, Google Play and the Google Play logo are trademarks of Google Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

Table des matières

Application Soehnle Connect

GET IT ON Google Play Download on the App Store

GET IT ON Google Play Download on the App Store

GET IT ON Google Play Download on the App Store

measure, collect, analyse, advise

Quality & Design by

LEIFHEIT AG

Leifheitstraße 1

56377 Nassau/Germany

www.soehnle.com
