68033 - Heated blanket/cushion SOEHNLE - Free user manual and instructions

Product type	Heating blanket
Model	68033
Brand	Soehnle
Dimensions	180 x 130 cm
Weight	1.2 kg
Power supply	220–240 V, 50 Hz
Power	100 W
Number of heat levels	3 levels
Automatic shut-off function	Yes, after 3 hours
Material	Soft fleece
Machine washable	Yes, at 30°C, cord removed
Detachable cord	Yes
Maximum temperature	60 °C
Overheat protection	Yes
Certifications	CE
Warranty	2 years
Spare parts	Power cord, controller
Repairability	Repairable by a professional

Frequently Asked Questions - 68033 SOEHNLE

How to adjust the temperature?

Use the supplied controller to select one of the 3 heat levels. Turn the dial or press the buttons depending on the model.

Can I wash the blanket in the machine?

Yes, first remove the power cord. Wash at 30°C on a delicate cycle. Do not use bleach or fabric softener. Air dry.

Does the blanket turn off automatically?

Yes, it is equipped with an automatic shut-off after approximately 3 hours for safety reasons.

What are the risks of overheating?

The blanket has overheat protection that cuts off the power if the temperature exceeds a safe threshold.

Can I use the blanket all night?

It is recommended not to use it continuously for more than 8 hours. The automatic shut-off provides additional safety.

How to clean the controller?

The controller must not be immersed. Clean it with a dry cloth or slightly damp. Do not use abrasive products.

What if the blanket stops heating?

First check the cord connection and the outlet. If the problem persists, contact Soehnle customer service.

Is the cord interchangeable?

Yes, the power cord is detachable. You can order a replacement from the manufacturer.

What is the warranty?

The blanket comes with a 2-year warranty against manufacturing defects. Keep the proof of purchase.

Can I use it with a pet?

Not recommended, as claws could damage the fabric or heating wires. Preferably use without animals present.

USER MANUAL 68033 SOEHNLE

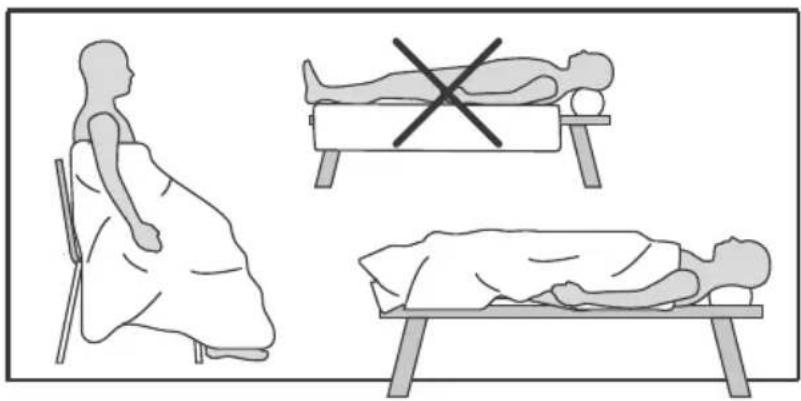

Illustration showing three different positions of a person in different poses: kneeling, resting on a table with a cross symbol, and lying on a bench (no text or symbols present)

WICHTIGE HINWEISE!

BITTE BEWAHREN SIE DIE

4. Inbetriebnahme

Hinweis

Line drawing of a plug connecting two cards (no text or symbols)

1. Proper use 12
2. Safety information 13
3. Operating elements 15
4. Start-up operation 15
5. Automatic Shut-Off 16
6. Cleaning and care 16
7. Storage and periodic inspection 17
8. Problems – Causes - Troubleshooting 17
9. Technical information 17

10. Declaration of conformity 18

11. Disposal 18

12. Consumer service 18
13. Guarantee 19

1. Proper use

With this electronic cosy heating blanket you will be able to pleasantly warm your body or specific body regions. The use of this heated cuddly blanket supports blood circulation and therefore the relaxation of tense muscle areas and increases your general well-being. Enjoy the cuddly warmth for relaxing moments, e.g. on the couch or patio, whenever you like.

The device is intended exclusively for domestic use, not for commercial applications or the use in hospitals or medical offices. In order to be able to utilize all the benefits of your electric warming device, please thoroughly read these instructions and observe the notes on care and safety. You will then be able to enjoy this device for a long time.

Please store these instructions for further use or in case you hand this device over to another person.

Further information can be found at our website at www.soehnle.com.

2. Safety information

Danger

• This device uses supply voltage. Therefore, the same safety regulations apply as for any other electric device.
• Operate the device only with the stated supply voltage.
• Inspect that all components of the device are in a faultless condition prior to each start-up of the device. In the event of a defect or a malfunction, switch the device off immediately and disconnect the power plug from the power network. Repairs must be performed exclusively by authorized customer service technicians. Never open the device. The individual components of this device may not be disassembled, repaired or modified.

- Use the device only in dry rooms and with a dry body – never in the bathtub, shower, above filled sinks, in pools, saunas, or outdoors.

- Never operate the device too close to other heat sources.

- Do not pull the power cord across sharp edges.

- Do not pull on the cord or the device to disconnect the power plug or transport the device.

- Disconnect the power plug if the device is not in use.

- If you dispose of the device at any one point in time, please cut off the cable to make it useless.

- This device may not be used by persons (to include children) with physical, sensory, or mental disabilities or by persons with insufficient experience or knowledge, unless such persons use the device under the supervision of a responsible person or after receiving necessary instructions.

- Please ensure that children do not use the device as a toy.

EN

- Disconnect the device from the power network prior to cleaning it. During cleaning, ensure that no liquids come into contact with the switch and buttons and that the device is used only in an absolutely dry condition.

- Do not insert any needles or pointy objects into the device.

Warnings

• Please consult a physician prior to using the device if you suffer from an illness (e.g. varicose veins, thrombosis, etc.).
• Never use the device with open wounds, burns, hematoma, swellings, or similar conditions.
• Stop treatment if it feels uncomfortable to you. Heat-sensitive persons in particular should use the device with care and stop the treatment in a timely manner.
  • Never use the heat device on animals.

Attention

- In order to ensure the proper functionality of the operating element (thermostat), do not place it on top of or underneath the device.

- Never use the heat device if it is folded, wrinkled, or pushed together.

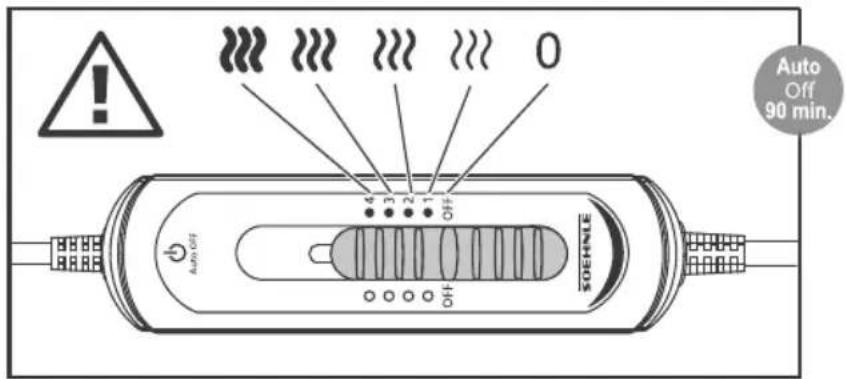

3. Operating elements

Controller with thermostat

OFF

1 Low temperature for longer-term use. Please select the lowest possible temperature level if the device is operated for more than one hour.

2-3 Medium temperature

4 High temperature (not suitable for long-term use).

4. Start-up operation

Note

Ensure that the heated blanket is not pinched.

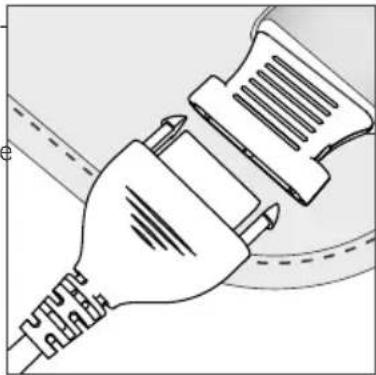

Connect the connector to the plug of the heated blanket. Ensure that the connection is done properly and the plug fits tightly. In order to switch the heated blanket on, insert the plug into the power outlet and switch the device on.

Line drawing of a plug connecting two cards (no text or symbols)

Use only original parts!

Do not attach any other control unit!

Attention

Please ensure that the heated blanket covers the object loosely, i.e. that some air circulates between the heated blanket and your skin during use. Accumulation of heat must be prevented.

5. Automatic shut-off

The electric heated blanket shuts off automatically after 90 minutes of continuous use. This saves energy and grants additional safety in that the heated blanket is never in operation without supervision.

The LED light will blink. In order to switch the heated blanket back on again, first set the thermostat to “OFF” and then back to the desired temperature.

After use please disconnect the power plug from the power outlet.

6. Cleaning and Care

• Disconnect the power connection and remove the plug connection from the blanket prior to cleaning the blanket!
• The heated blanket may be washed by hand or in the washing machine with mild detergent at 30°C.

Important

• Do not iron the heated blanket.
- Please do not use any chlorine-based cleaning agents.
- Do not have the heated blanket dry-cleaned.
• The heated blanket cannot be dried in a dryer.
• Do not use pressure cleaners.
- Please ensure that the thermostat does not come into contact with any liquids. The liquid could cause damages.
- Never use the heated blanket while it is wet or damp. The heated blanket cannot be switched on while it is drying.
- Let the heated blanket air-dry. Do not use laundry pins to hang it. This could damage the wires.

7. Storage and periodic inspection

• Do not wrinkle the device. Fold the product carefully for storage.
• Store the device at a dry location if it is not in use.
• Let the device cool off prior to folding or rolling it.
• Regularly inspect the device and power cord for possible signs of wear or damage.
• Do not use chemical moth protection.
• Do not place any heavy objects on top of the device while storing it; these could damage electric wires.
• Please return the device to your point of sale in case of any wear or malfunction.

8. Problems - Causes - Troubleshootingg

Problem Cause	Troubleshooting
The device does not heat up.	Device not connected to the power network	Insert power plug into the power outlet and switch device on.
	Device not switched on	Switch on.
	Device defect	During the guarantee period, return the device to your seller who will assist you in receiving a replacement.

9. Technical information

Dimensions XL \~ 140 x 180 cm / S \~ 75 x 100 cm

Rated power XL 150W / S 110 W

Rated voltage 220-240 V / 50 Hz

The device is equipped with double protective insulation and corresponds to protection class II.

10. Declaration of conformity

SOEHNLE herewith declares that this device is in compliance with the basic requirements and all other relevant regulations of applicable European directives. You will find the EU compliance declaration on www.soehnle.com.

11. Disposal of used electronic devices

After its service life, please dispose of this device according to the Directive on Waste Electrical and Electronic Equipment 2002/96/EC (WEEE). The symbol on the product or its packaging informs you that this product cannot be treated as normal

household waste, but must be returned at a collection point for recycling electronic and electrical devices.

12. Customer service

Our SOEHNLE customer service will be happy to assist you if you have any questions or comments:

Germany Ph.: (08 00) 5 34 34 34 (free of charge)

International Ph.: [phone]

Monday through Friday 08:30 a.m. to 12:00 noon CET

If you'd like to contact us in writing, please use the contact form at the SOEHNLE homepage www.soehnle.com.

13. Guarantee

SOEHNLE guarantees rectification of faults based on material or production errors, free of charge, either by repair or replacement, for 5 years as of the date of purchase. Please retain the receipt of purchase and guarantee slip. In case of a guarantee claim, please return the device, guarantee slip and receipt of purchase to your seller.

All SOEHNLE heat products are marked with the Eco-Tex Certificate 100, which is globally recognized and certifies that none of the textile components contain any substances that are harmful to your health.

The SOEHNLE Safety Concept guarantees the consumer the maximum level of safety. Exclusive manufacture, additional test criteria, and high SOEHNLE safety standards, e.g. switch monitoring, heating element insulation, auto-off timer, mains-in safety, and thermal safety with auto-off function, convey a good feeling all around.

With this certification mark, the products as well as the production processes are subject to periodic control by TÜV Süd.

Illustration of a plug connecting a cable to a sheet of paper (no text or symbols)

Technical line drawing of a plug with connector, showing internal wiring and a curved track (no text or symbols)

Illustration of a plug connecting two cards (no text or symbols visible)

4. Puesta en marcha

Advertencia

Diagram of a plug with attached cable and connector, no text or symbols present

Illustration of a cable connector with a paper clip and wire (no text or symbols)

Line drawing of a plug connecting wires to a cable (no text or symbols)

ВАЖНЫЕ УКАЗАНИЯ!

Line drawing of a plug connecting two cards (no text or symbols)

56377 Nassau/Germany

Service +49 (0)26 04 - 977 - 0

www.soehnle.com
