USER MANUAL DOC Urban NILOX

Thank you for purchasing a NILOX DOC URBAN electric scooter. Please read this manual carefully before using the product and store it in a safe place for future reference.3

This product is a foldable assisted electric scooter. It can accelerate by being pushed and decelerate using the foot brake or the brake on the handlebars.

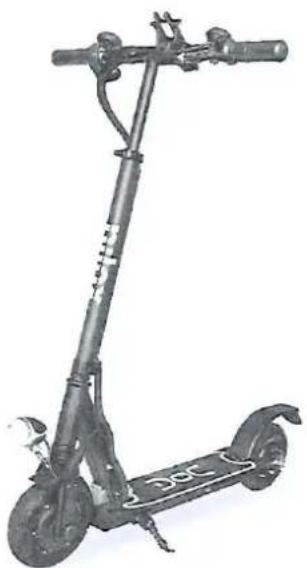

2. Introduction to product parts

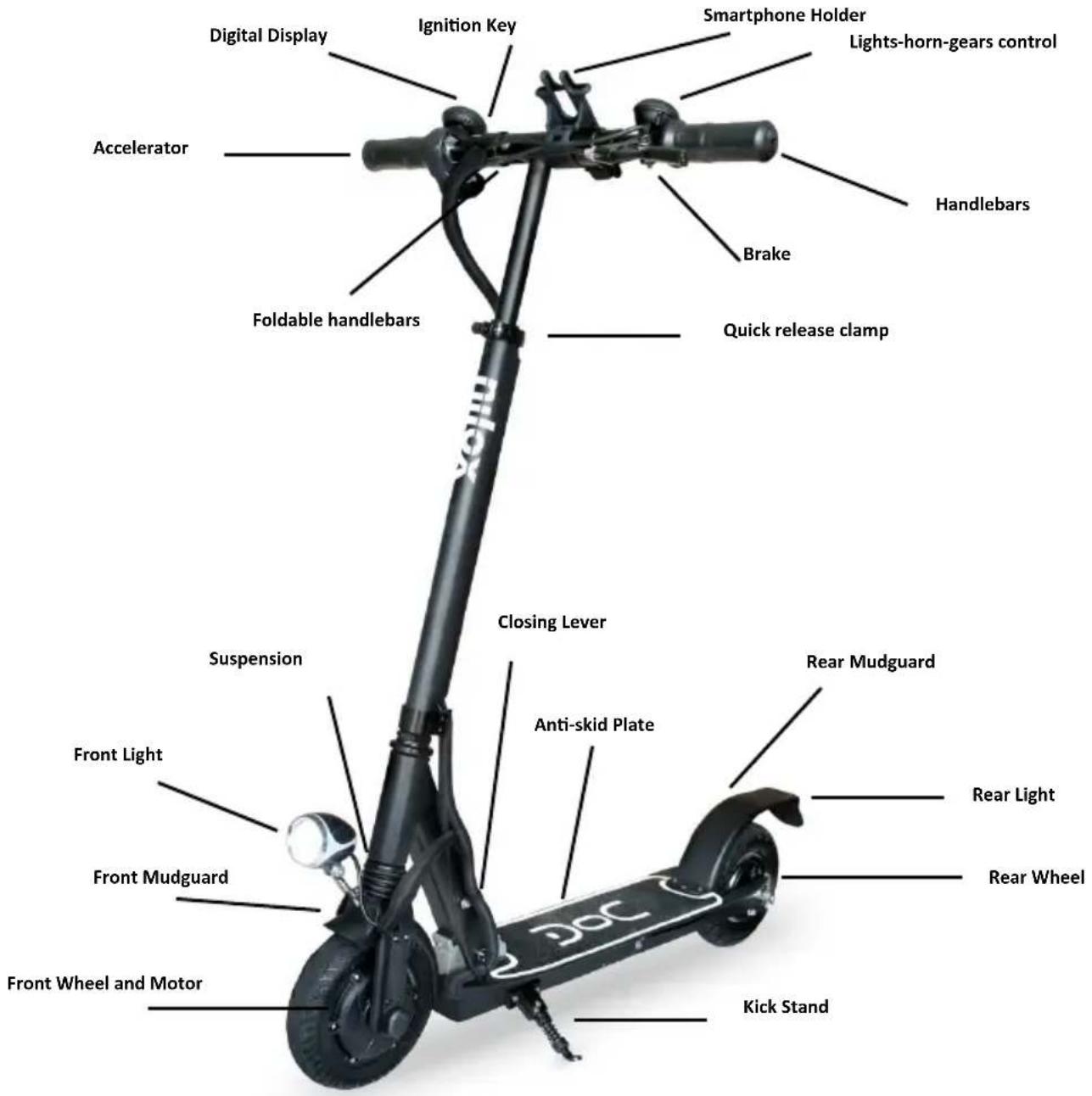

Lights-horn-gears control Smartphone Holder Brake Accelerator Digital Display Front Light Rear Light Rear Wheel Kick Stand Anti-skid Plate Front Wheel and Motor Quick release clamp Suspension Handlebars Foldable handlebars Rear Mudguard Front Mudguard Closing Lever Ignition Key4

- Only use the battery supplied. - This is not a toy. This product should be used by adults or minors with AM licences. - Check the current traffic regulations relating to scooters where the Doc Urban is used. - In pedestrian areas it is not possible to exceed a speed of 6 Km/h - Ensure that all parts of the Doc Urban are secured (for example that the screws on the handlebars are tight) - Always wear comfortable clothing that does not restrict movement and use personal protection equipment: on hands/wrists, knees, head and elbows. - Do not transport objects while riding the scooter - When using the scooter pay attention to other people around you and keep a safe distance - Ensure that both feet are positioned correctly on the plate - We recommend not to accelerate and stop the suddenly to avoid losing control of the scooter. - Do not do any tricks. - Do not get on and off the scooter when it is still moving. - Respect the maximum rider weight.5 - Avoid using the product in adverse weather conditions (for example rain, hail or snow) to avoid damage to the electrical circuits or motor. In addition avoid using Doc Urban on slippery surfaces or on gravel or sand. Do not get on and of the Doc Urban on steep paths or when going up or down hill. - In the event of poor visibility it is necessary to turn on the front and rear lights and wear high-visibility reflective clothing. - Do not use the Doc Urban in temperatures below -5°. - Do not use the Doc Urban with the kick bar lowered. - The Doc Urban is intended to be used by only one person at a time. - Using the Doc Urban is not recommended for people with limited motor skills, those with impaired psychological status or pregnant women. - When using the Doc Urban for the first time first try it in an open area away from dangers to practice safely. - Do not use in flammable environments. - The manufacturer, importer and distributor are not liable for any damage caused to persons or things in the event of improper use of the Doc Urban. - Do not attempt to repair the product by yourself, in the event of malfunction contact your dealer. - Disconnect from the power supply before cleaning6 - To clean it wipe with a damp cloth or use a solution suitable for cleaning similar devices. Do not immerse in water or try to clean it with jets of water. - To preserve the battery, it must be charged every 30 days even if the Doc Urban is not used, otherwise the battery loses efficiency at the expense of autonomy - The maximum travel distance when charged can vary according to various factors such as the rider’s weight, the gradient of the journey, surface characteristics and correct battery maintenance.

4. Folding and unfolding the scooter

l. Install the pedal with the spare tools supplied along upon delivery. l. Install the pedal with the spare tools supplied along upon delivery.

3.1.To unfold/fold the scooter ensure there are no obstacles around you.

3.2 Pull the knob on the handlebars outwards and pull downwards.

3.3.Open the quick release clamp.

3.4.Lower the handlebars as much as possible.

3.5 Hold the scooter still with one foot and push the steering column with one hand.

3.4.Push the release clamp upwards with one finger.7

5. Introduction on how to use it

Battery indicator Battery capacity "5 Bars" Battery charged "4 Bars" Around 80% "3 Bars” Around 60% "2 Bars” Around 40% “1 Bar” Below 20% recharge the scooter.

Turn the ignition key. Rotate the throttle handle to move the scooter at the desired speed. Doc Urban has three different speeds of 6/20/25 km/h. Pushing the +/- buttons the gears change from 1-2-3. To slow down, push the brake lever and turn the throttle handle anticlockwise. Turn the key to turn off the Doc Urban.

3.7.Push the steering column down until it stops. To unfold push the release clamp upwards and then pull on the steering column until it stops.8

6. Battery and charger

6.1. Lithium battery Fully charge the battery when you first use the Doc Urban

6.1.1. When the battery is running low recharge it immediately to avoid

damaging it and limiting autonomy.

6.1.2. If the scooter is not used for a long time, charge it at least once a month.

6.1.3. If the battery capacity is lower than the protection status and the scooter

does not work contact your dealer immediately.

6.2. Recharging The battery charger supplied has a charging protection function. Power is automatically cut off when the battery is 100% charged. Damage caused by water, collisions and other factors are not covered by the warranty.

6.2.1. Open the rubber cover on the charging port on the lower part of the foot plate

of the scooter and insert the power input connector into the charging port.

6.2.2. Insert the charger input plug into the power outlet (AC100V-240V).

6.2.3. . If the indicator on the charger is red the battery is charging; when it turns

green the battery is fully charged.

6.2.4. When charging the battery always place it in a dry and ventilated place.

7. Care and Maintenance

Lubrification: a small quantity of white grease or lubricant must be applied to the steering column folding mechanism every three months. Wheels: this product is fitted with solid wheels. If a wheel needs to be replaced due to obvious wear or damage, please contact the service centre to replace it with an original one. Always check the wheels are tightened.9

8. Positioning and daily care

Do not leave the scooter in the sun or in humid places for long periods; clean it with a dry or damp cloth.

• Rider weight of 60 kg

10. Warranty (Validity and Limitations)

- The warranty validity period for consumers, i.e. those that purchase items for purposes unrelated to their professional or business activity is 2 years from delivery. For those that purchase items using a VAT Code for purposes related to their professional activity it is 1 year from delivery as the law states. - The warranty is valid in the event the product has a material or manufacturing defect. Consumers are not entitled to the warranty in the following cases: - lack of proof of purchase (invoice or receipt).

1. Expanded View of Product:10

- attempts to repair parts and/or changes carried out by unauthorised parties - using accessories or items that are not supplied with the product; - normal wear and tear of the product; - accidental damage and falls; - improper use of the product

11. Package contents

Accessory Quantity Doc Urban

Note: The performance and parameters of the product supplied are subject to change without notice. The company reserves the right to the final interpretation of all terms and conditions in this manual. ENVIRONMENTAL INFORMATION This product may contain substances that can be harmful to the environment and human health if not disposed of properly. We therefore provide you with the following information to prevent the release of such substances and to optimize the use of natural resources. The electrical and electronic components should not be disposed of in the normal household waste but should be properly and correctly collected and treated. The crossed-out wheelie bin symbol on the product and on this page indicates the need to properly dispose of the product at the end of its lifespan. In this way you can avoid non-specific treatment of the substances contained in these products, or improper use of11 parts of these which can have harmful consequences for the environment and human health. Moreover, you can contribute to the recovery, recycling and reuse of many of the materials in these products. This is why the manufacturers and distributors of Electrical and Electronic Equipment organize proper collection and disposal of the equipment themselves. At the end of the product’s lifespan, please contact your dealer for instructions regarding disposal. When purchasing this product your distributor will inform you of the possibility to replace your old device with a new one, on condition that the type of product and its functions are the same. If the dimensions are not over 25 cm, the electrical and electronic equipment can be returned without any equivalent product purchase obligation. Disposal of the product in any other way will be liable to the penalties provided by the laws in force in the country where the product is disposed of. Moreover, we suggest the following measures to protect the environment: recycling the inner and outer packaging supplied with the product and disposing of used batteries (if contained in the product) correctly. With your help, we can reduce the amount of natural resources used in the manufacture of electrical and electronic equipment, minimize use of landfills for product disposal and improve quality of life by preventing the release of potentially dangerous substances into the environment.

The product contains a battery that could be replaced during the lifespan of the product itself. Dispose of the battery contained in the product correctly at the end of its lifespan (for instance when it can no longer be charged) by placing it in an appropriate battery disposal container separate from the generic unsorted waste. Collection and recycling of batteries helps protect the environment and preserve natural resources, allowing recovery of valuable materials.12

Distributed by Nilox Produced and Imported by Exhibo S.p.A. via Leonardo da Vinci 6 20854-Vedano al Lambro (MB) ITALY Made in China1
