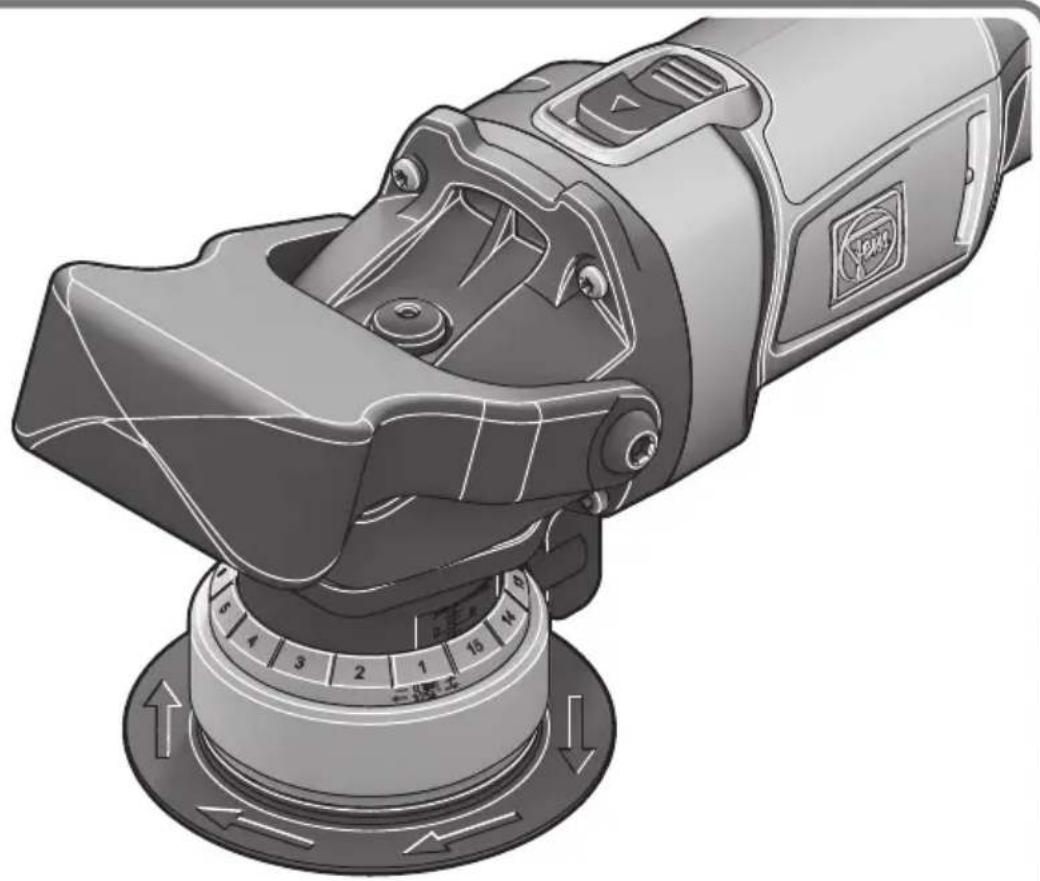

USER MANUAL AKFH 185 AS Fein

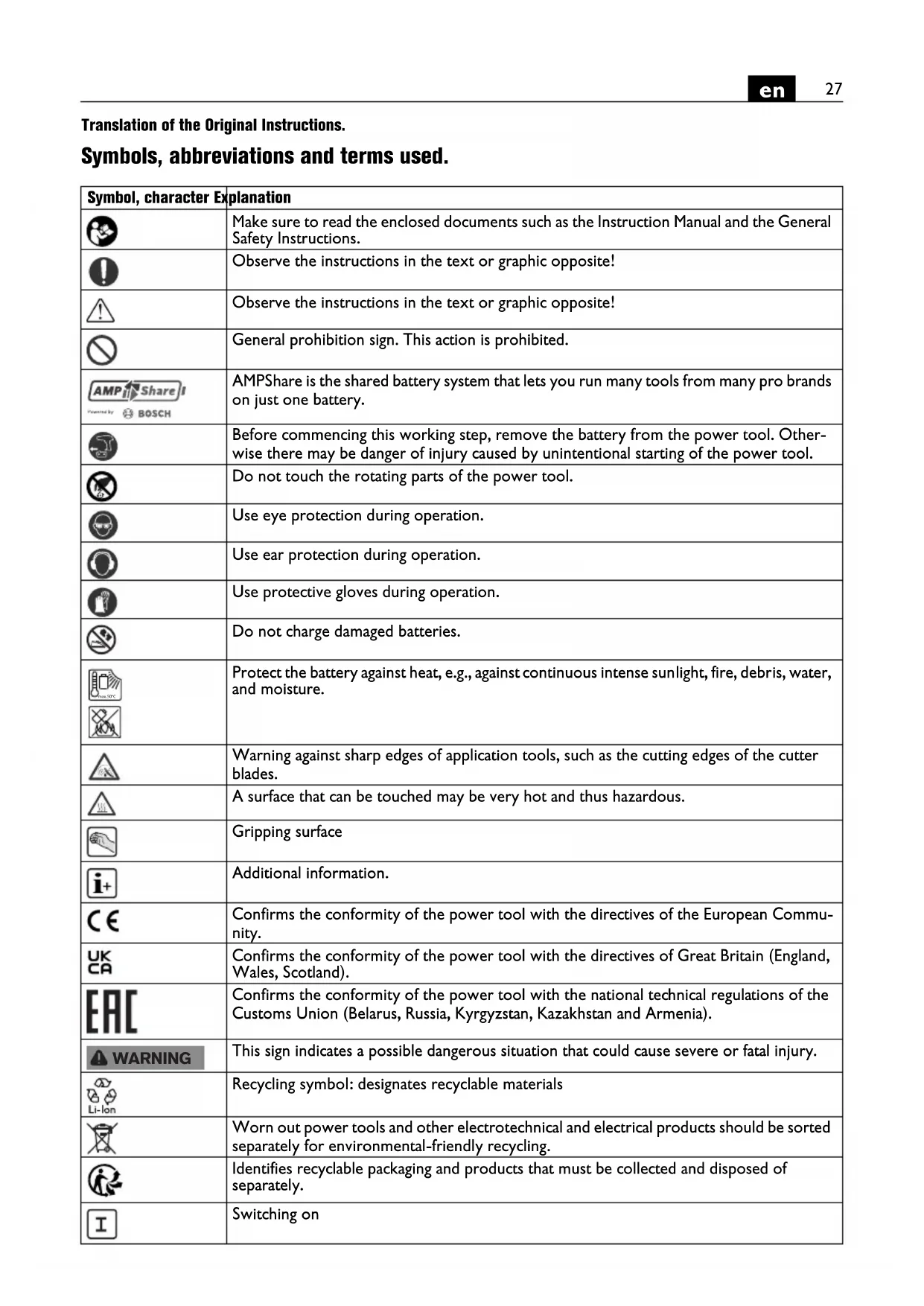

Translation of the Original Instructions. Symbols, abbreviations and terms used. Symbol, character Explanation Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. Observe the instructions in the text or graphic opposite! Observe the instructions in the text or graphic opposite! General prohibition sign. This action is prohibited. AMPShare is the shared battery system that lets you run many tools from many pro brands on just one battery. Before commencing this working step, remove the battery from the power tool. Other- wise there may be danger of injury caused by unintentional starting of the power tool. Do not touch the rotating parts of the power tool. Use eye protection during operation. Use ear protection during operation. Use protective gloves during operation. Do not charge damaged batteries. Protect the battery against heat, e.g., against continuous intense sunlight, fire, debris, water, and moisture. Warning against sharp edges of application tools, such as the cutting edges of the cutter blades. A surface that can be touched may be very hot and thus hazardous. Gripping surface Additional information. Confirms the conformity of the power tool with the directives of the European Commu- nity. Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland). Confirms the conformity of the power tool with the national technical regulations of the Customs Union (Belarus, Russia, Kyrgyzstan, Kazakhstan and Armenia). This sign indicates a possible dangerous situation that could cause severe or fatal injury. Recycling symbol: designates recyclable materials Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling. Identifies recyclable packaging and products that must be collected and disposed of separately. Switching on max.50°C WARNING28

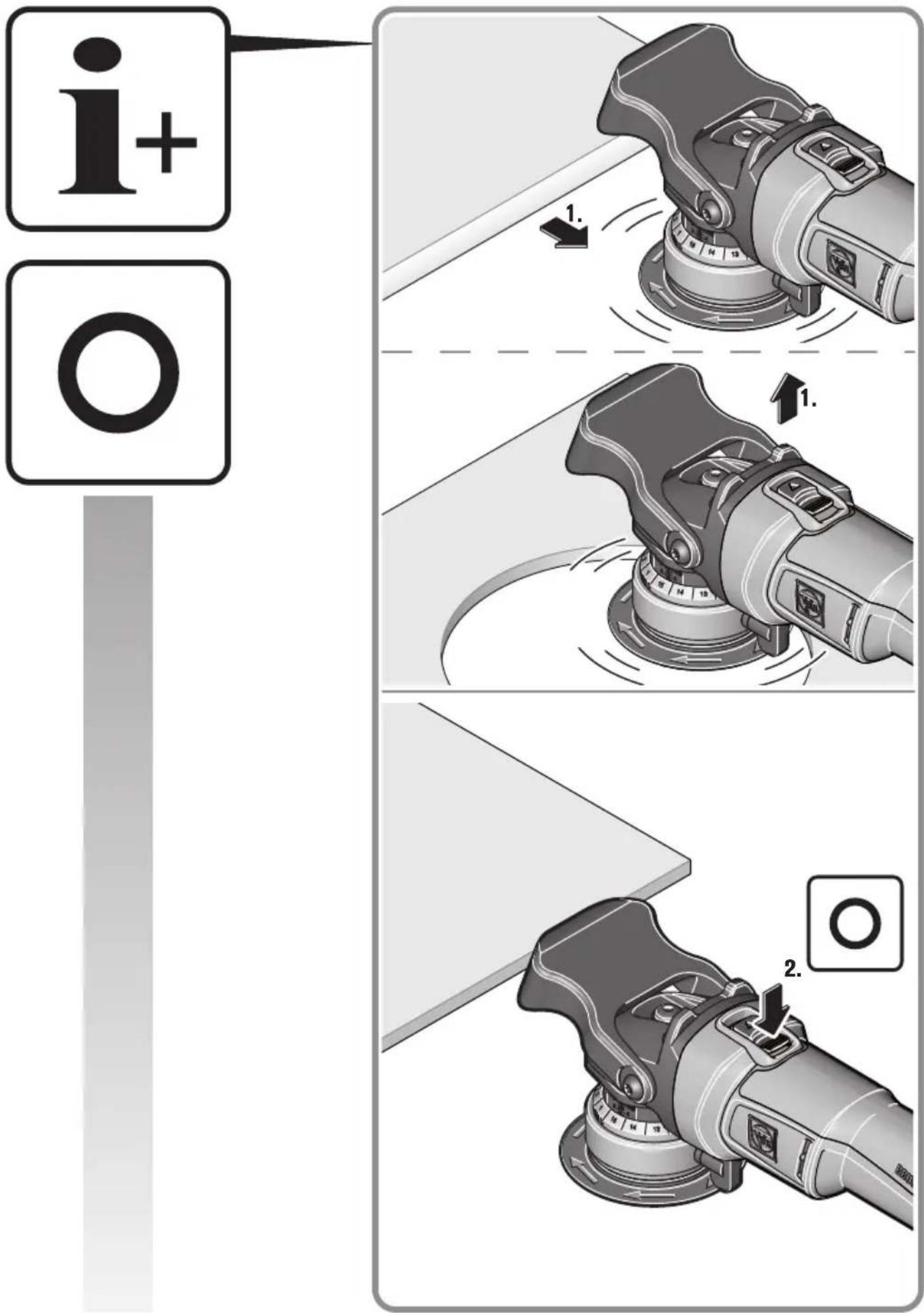

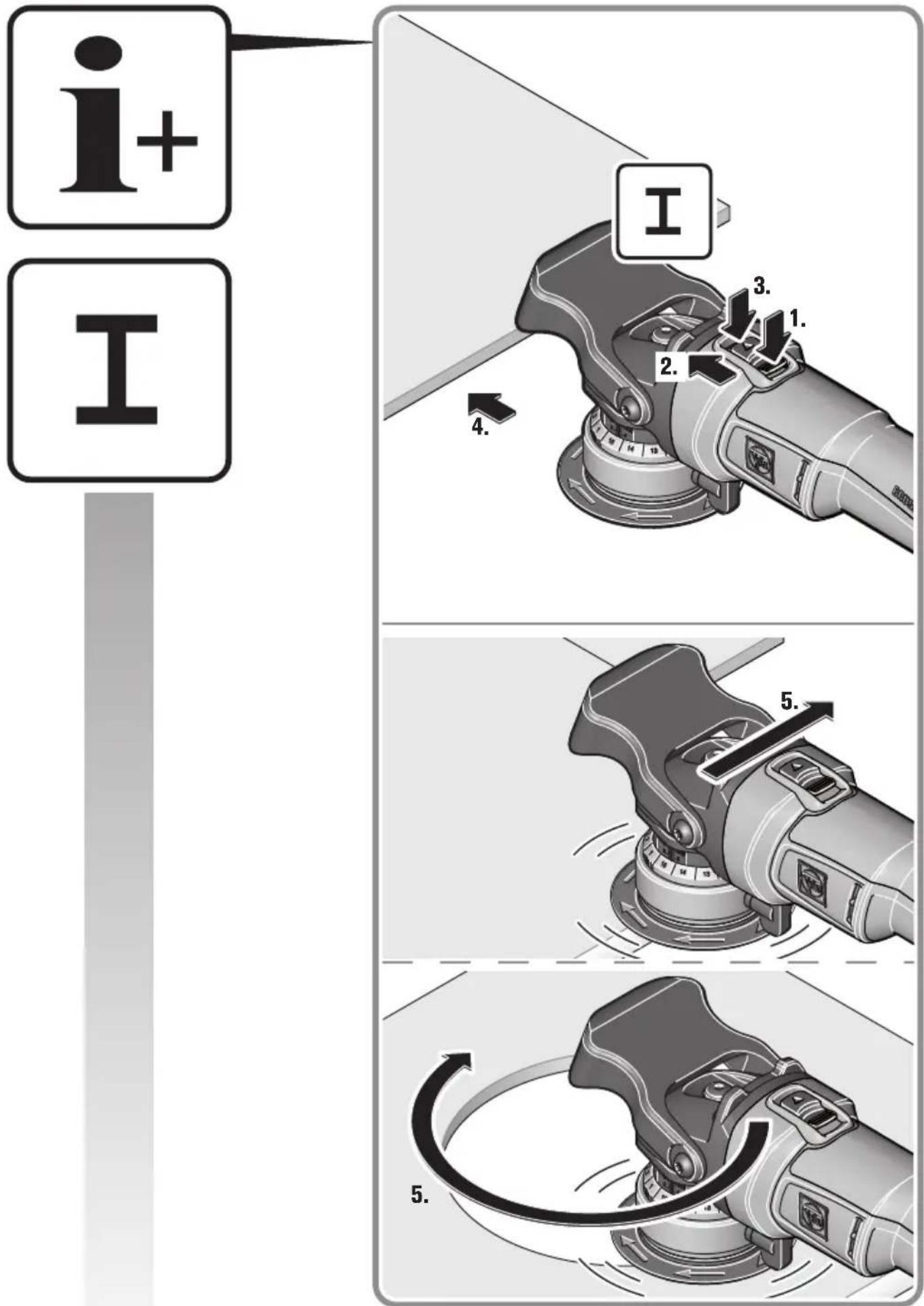

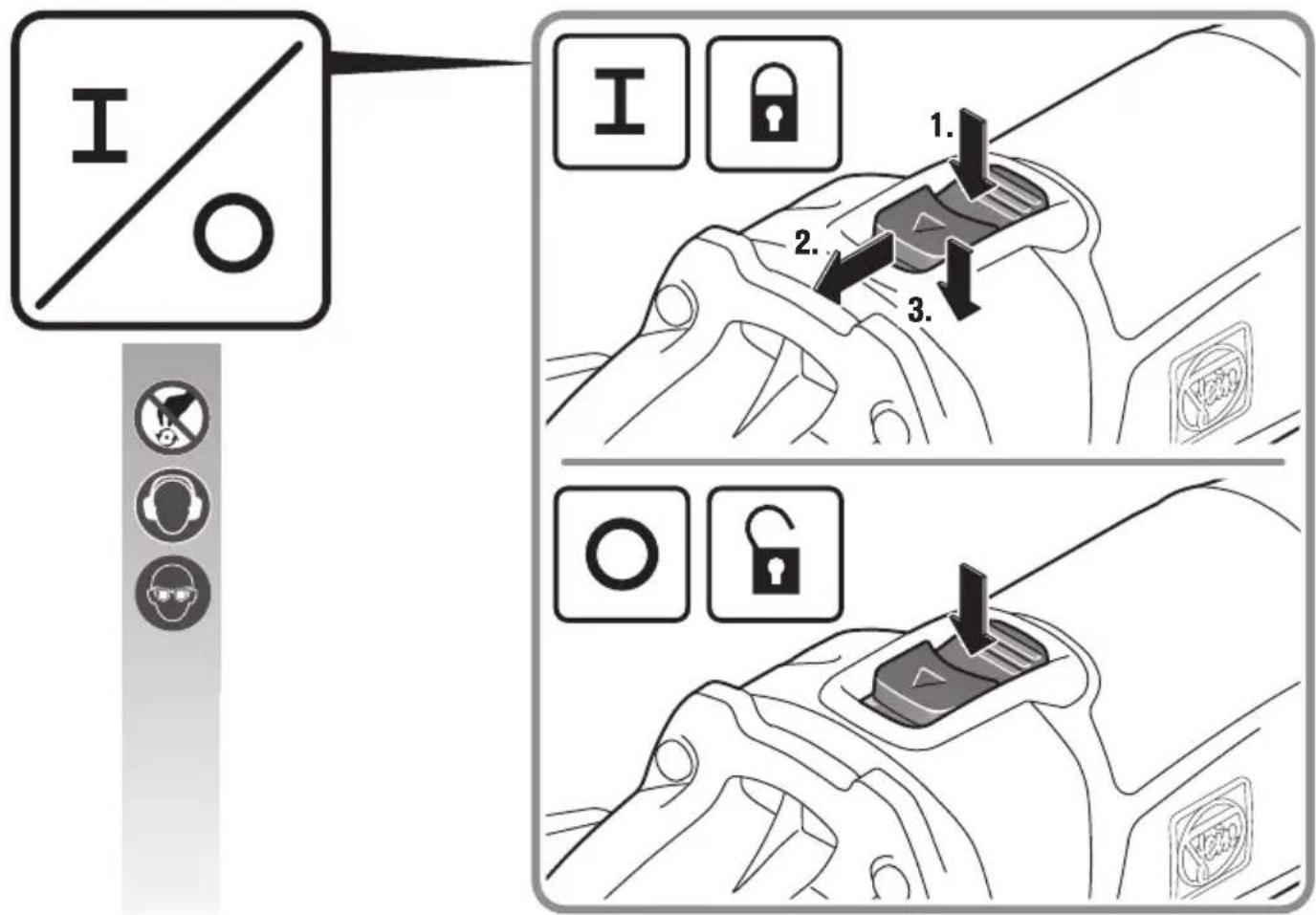

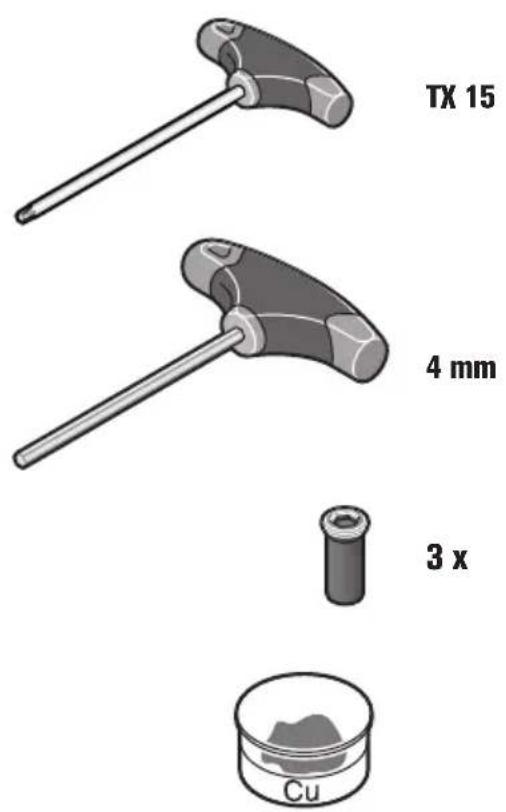

Switching off Locked Not locked Low speed High speed Battery type Charger type Type: indexable insert Copper paste (Cu) See section “Operating Instructions” Apply oil Caution: Do not view into the switched-on lamp! (**) May contain numbers and letters (Ax – Zx) Marking for internal purposes Symbol, character Explanation Character Unit of measurement, international Explanation U VDC voltage

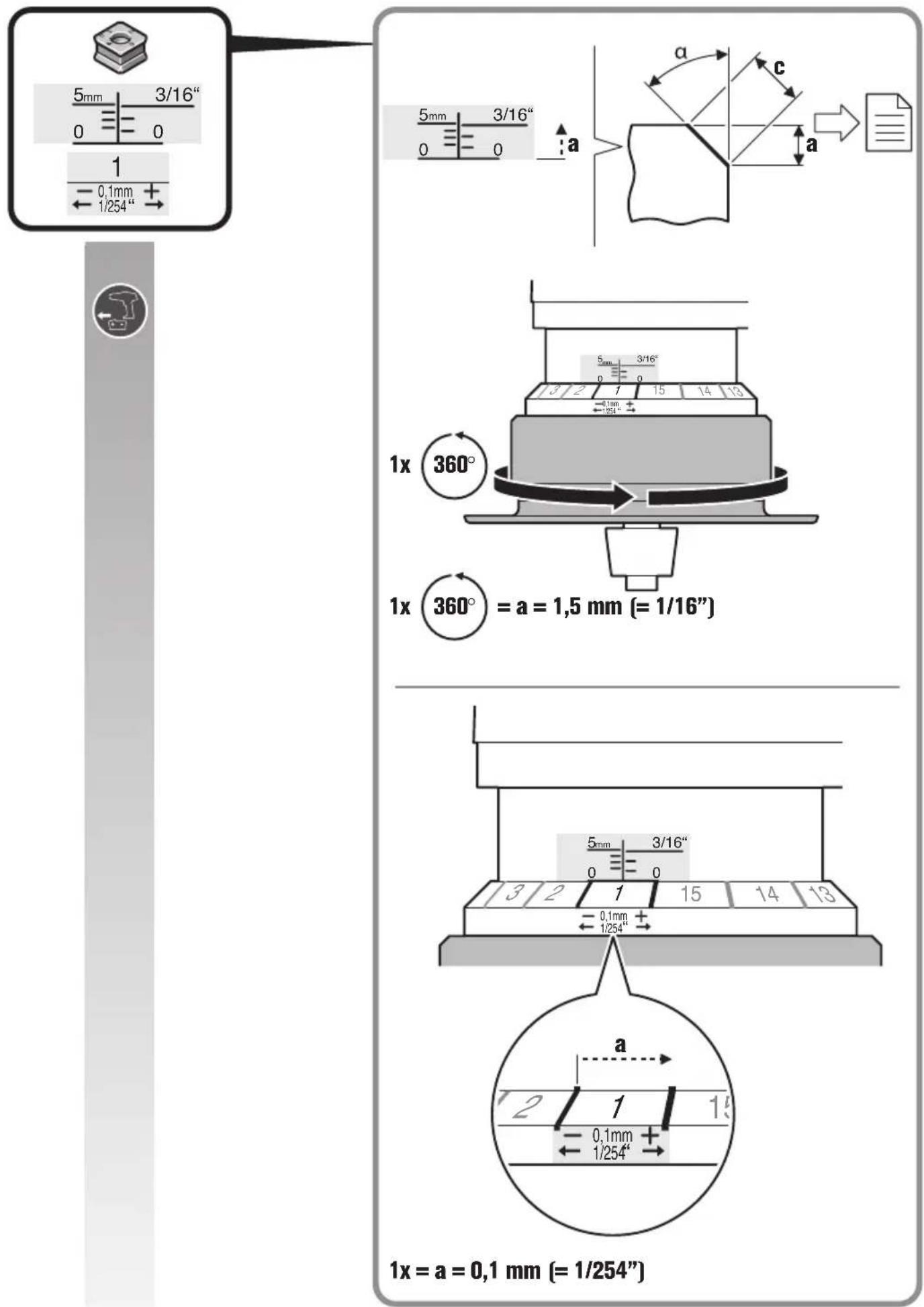

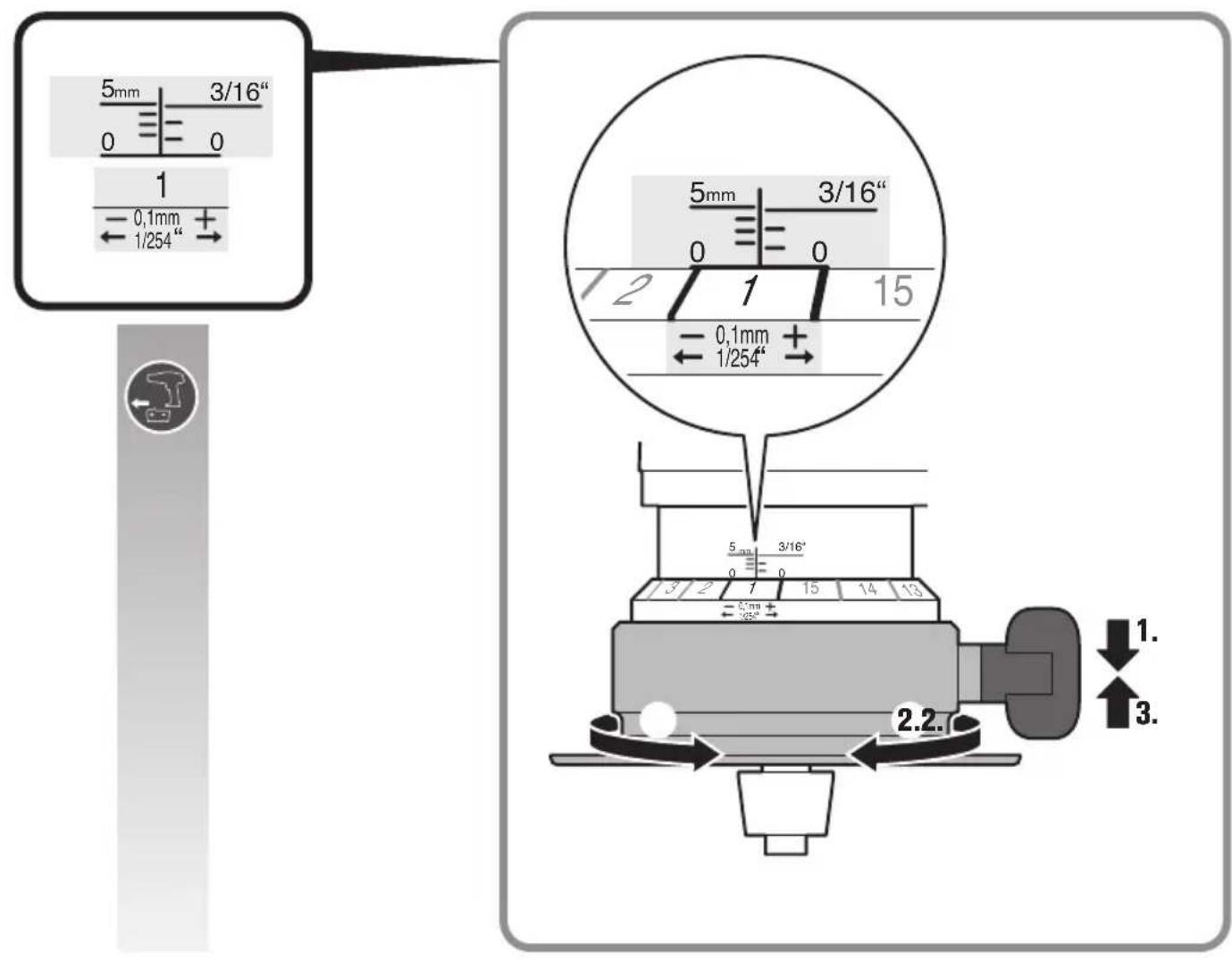

, rpm, r/min Rated no-load speed (with fully charged battery) f Hz Frequency M... mm Size of metric thread Ø mm Diameter of a round part ° α =bevel angle (milling head angle) mm c (max., 45°)=max. bevel length a (max., 45°)=max. bevel height (setting dimension) mm R=radius kg Weight according to EPTA-Procedure 01 kg Weight of the power tool without battery and application tool kg Weight of the battery

For your safety. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed “General Safety Instructions” (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold. Please also observe the relevant national industrial safety regulations. Intended use of the power tool: hand-guided bevel milling machine for professional use by instructed operating personnel in weather-pro- tected environments using the application tools and accessories recommended by FEIN: – for machining workpieces made of steel, cast steel, fine-grained steel, stainless steel, aluminium, alumin- ium alloys, brass and plastic – for commercial use in industry and trade – for the preparation of K-, V-, X- and Y-shaped welding joints – for machining visible edges in plant, equipment and general engineering – for rounding edges for optimal paint preparation or as impact protection Special safety instructions. Fasten and secure the workpiece with screw clamps or other suitable clamps to a stable surface. When hold- ing the workpiece manually it is unstable and can lead to loss of control and injury. Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. Do not use a damaged accessory. Before each use, check the indexable inserts for chipping and cracks, wear or heavy use. If the machine or application tool is dropped, inspect for damage or install an undamaged application tool. Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing pro- tectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye pro- tection must be capable of stopping flying debris gener- ated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss. Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal pro- tective equipment. Fragments of workpiece or of a bro- ken accessory may fly away and cause injury beyond immediate area of operation. Always hold the power tool firmly when starting it. The reaction torque of the motor, as it accelerates to full speed, can cause the power tool to twist. If possible, use clamps to fasten or affix the workpiece. Never hold a workpiece in one hand and the power tool in the other hand while in use. Clamping workpieces allows you to use both hands for better control the power tool. Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. Do not operate the power tool near flammable materi- als. Sparks could ignite these materials. Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in elec- trocution or shock. Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

pCpeak dB Peak sound pressure level K... Uncertainty m/s

Basic and derived units of measurement from the international sys- tem of units SI. Character Unit of measurement, international Explanation WARNING30

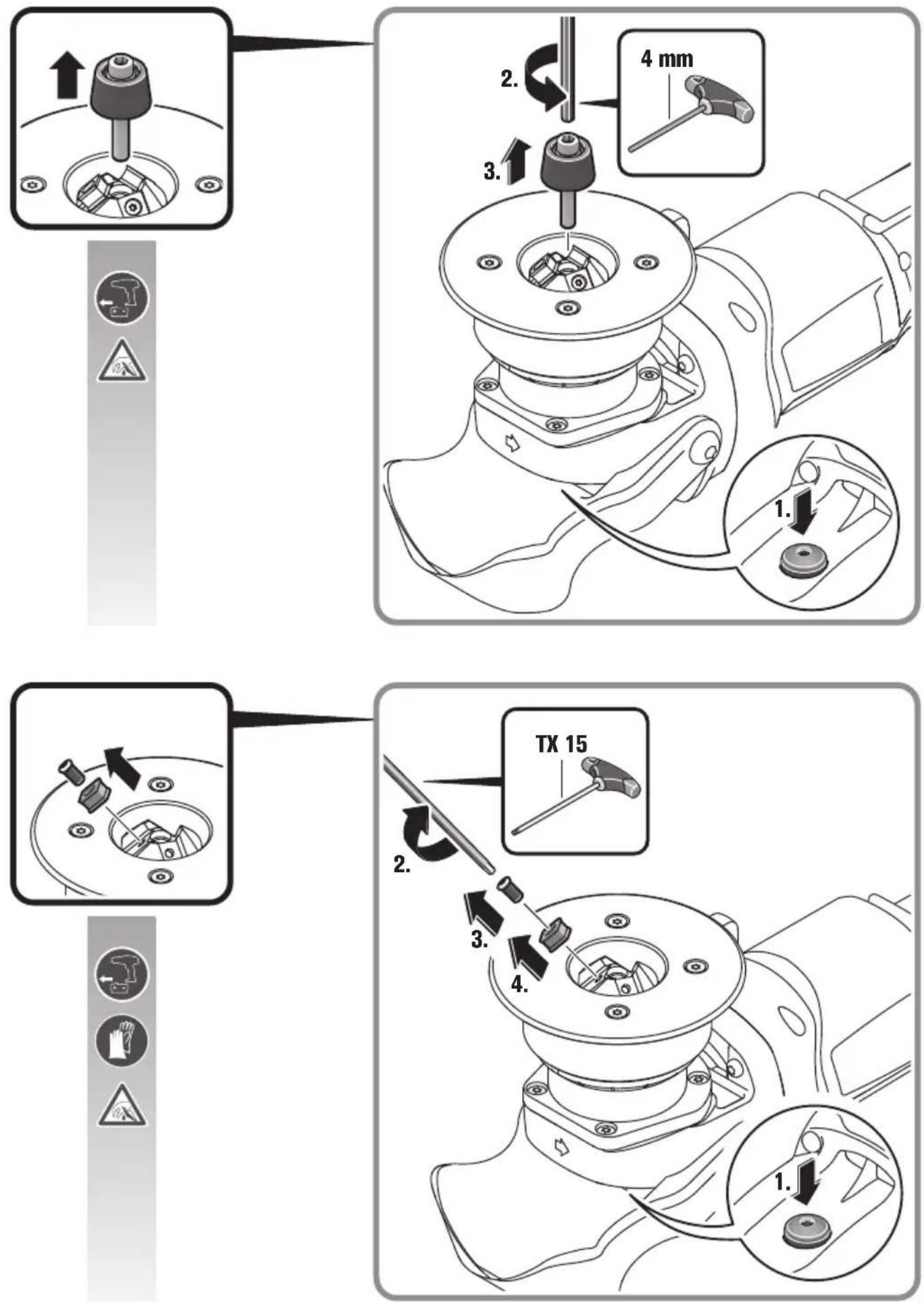

Kickback and related warnings Kickback is the sudden reaction to a pinched or snagged rotating application tool. Pinching or snagging causes the rotating application tool to rapidly stop. This can cause a power tool to be forced in the opposite direc- tion to the rotating application tool at the point of bind- ing. For example, if the indexable insert is snagged or pinched in the workpiece, the edge of the indexable insert entering into the workpiece can get caught, caus- ing the indexable insert to break out or cause kickback. The indexable-insert holder may either jump toward or away from the operator, depending on the direction of the indexable-insert holder at the point of binding. Indexable inserts can also break under these conditions. Kickback is the result of power tool misuse or incorrect operating procedures. It can be avoided by taking proper precautions as described below. Maintain a firm grip on the power tool and position your body and arms to allow you to resist kickback forces. The operator can control torque reactions or kickback forces, if proper precautions are taken. Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Cor- ners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kick- back. Always feed the application tool into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown). Guiding the power tool in the wrong direction causes the cutting edge of the application tool to climb out of the workpiece and pull the tool in the direction of this feed. Do not jam or seize the indexable insert or apply exces- sive pressure. Do not set a larger bevel height than the maximum allowed. Overstressing the indexable inserts increases the loading and susceptibility to wedging or snagging in the cut, and thus increases the possibility of kickback or indexable insert breakage. Do not position your body directly in front or behind the indexable insert when operating the machine, position yourself parallel to the cutting surface. When moving the indexable inserts into the workpiece any potential kickback could result in contact with the indexable inserts. Turn or replace blunt indexable inserts or those with worn off coating in good time. Blunt indexable inserts increase the risk of the machine jamming and breaking out. Do not use the power tool without the guide plate. Further safety warnings Do not use a damaged power tool. Before each use of the power tool, check the housing and other compo- nents for damage such as cracks or breakage. Use ear protection during operation. Indexable inserts, indexable-insert holder, workpiece and chippings can be hot after working. Wear protec- tive gloves. Use only sharp, undamaged indexable inserts. Keep your hands away from the milling area and the application tools. Do not direct the power tool against yourself, other per- sons or animals. Danger of injury from sharp or hot application tools. Use a stationary extraction system and frequently blow out the ventilation slots. When working metal under extreme operating conditions, it is possible for conduc- tive dust to settle in the interior of the power tool. The total insulation of the power tool can be impaired. Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Do not work with materials containing magnesium. Danger of fire. Do not work with CFRP (carbon-fiber-reinforced poly- mer) and materials containing asbestos. These materi- als are considered carcinogenic. Replace a damaged or cracked auxiliary handle. Do not operate the power tool with a defective auxiliary han- dle. Use and handling of the battery (battery pack). These safety warnings apply only for 18V FEIN AMP- Share Li-ion batteries. Use the battery only in AMPShare partner products. 18V batteries marked with AMPShare are fully compatible with the following products: – All products of the FEIN-18V-AMPShare system – All 18V products from AMPShare partners. When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion. Observe the battery recommendations in the operating instructions for your product. Only in this way can the battery and the product be operated safely, and the bat- teries are protected from dangerous overload. Only charge the batteries with chargers recommended by FEIN or one of the AMPShare partners. A charger that is suitable one type of battery pack may create a risk of fire when used with another battery pack. The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time. Store batteries out of the reach of children. Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns. In case of skin contact with battery fluid, rinse immedi- ately with plenty of water. In case of eye contact with battery fluid, wash out the eye with clean water and immediately seek a doctor for treatment!31

When the battery fluid has come into contact with objects close by, check the respective components. Avoid skin contact by wearing protective gloves. Clean the parts with dry household paper or replace the parts if necessary. Escaping vapours can irritate the respira- tory system. Liquid ejected from the battery may cause skin irritations or burns. Do not short-circuit the battery. Keep the battery not being used away from paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. The battery can be damaged by sharp objects such as nails or screwdrivers or by external force. An internal short-circuit may occur and the battery can burn, smoke, explode or overheat. Never maintain damaged batteries. Any maintenance of batteries should be performed only by the manufac- turer or by authorised after-sales service centers. Protect the battery against heat, e.g., against continuous intense sunlight, fire, debris, water, and moisture. Danger of explosion and short- circuiting. Operate and store the battery only at ambient tempera- tures between -20 °C and +50 °C. As an example, do not leave the battery in a vehicle in summer. At tempera- tures < 0 °C, machine-specific performance restrictions are possible. Charge the battery only at ambient temperatures between 0 °C and +35 °C. Charge the battery via USB connection only at ambient temperatures between +10 °C and +35 °C. Charging the battery outside the temperature range may damage the battery or increase the risk of fire. Handle discharged batteries with care. Batteries are a source of danger, as they can cause a very high short- circuit current. Even when Li-ion batteries appear to be in a discharged state, they never fully discharge. Do not immerse the battery in liquids, such as (salt) water or beverages. Contact with liquids can damage the battery. This may result in heat build-up, smoke generation, ignition or explosion of the battery. Do not continue to use the battery and contact an after-sales service authorized by FEIN. Do not use a damaged battery. The use of a battery must be stopped immediately as soon as abnormal properties, such as odour development, heat, discolour- ation or deformation occur. Continued operation can cause the battery to generate heat and smoke, ignite or explode. Do not open, crush, overheat or set fire to the battery. Non-observance of this warning may result in burns and fire. Follow the manufacturer's instructions. Extinguish burning Li-ion batteries with water, sand or a fire blanket. Avoid physical blows/impact. Impact and penetration of objects can damage batteries. This may result in leak- age, heat build-up, smoke generation, ignition or explo- sion of the battery. Never charge the battery unattended overnight. Fire and explosion hazards can result in case of non-observ- ance. Do not remove the battery from its original packaging until it is going to be used. Remove the battery only when the power tool is switched off. Before any work on the machine itself, remove the bat- tery from the power tool. If the power tool accidentally starts, there is danger of injury. Protect the battery against moisture and water. Clean contaminated battery terminals and power tool con- nections with a dry, clean cloth. Remove the battery when transporting and storing the power tool. Observe the safety instructions in the manuals of the chargers from FEIN or the AMPShare partners. Vibration and noise emission values. The vibration and noise emission values given in these instructions have been measured according to a meas- urement method standardised in EN 62841 and can be used to compare power tools with each other. They are also suitable for a preliminary assessment of vibration and noise exposure. The given vibration and noise emission values rep- resent the main applications of the power tool. However, if the power tool is used for other applica- tions, with deviating application tools or insufficient maintenance, the overall vibration values and the noise emission values may differ. This can significantly increase the vibration and noise exposure over the total working period. For an accurate estimation of vibration and noise expo- sure, the durations when the equipment is switched off or running but not actually in use should also be taken into account. This may significantly reduce the vibration and noise exposure over the total working period. Identify additional safety measures to protect the operator from the effects of vibration and noise such as: Maintain the power tool and the accesso- ries, keep the hands warm, organization of work pat- terns. Emission values for vibration Determined with a 45° bevel. Material being worked: S235JR, material thickness: 30 mm max.50°C Work procedure Weighted acceleration*

• This measured value depends on the material and application and can therefore also be exceeded.32

Handling hazardous dusts For work procedures with this power tool where material is removed, dusts develop that can be hazard- ous to one’s health. Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coat- ings, metal, some wood types, minerals, silicate parti- cles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and pro- vide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to special- ists. Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfa- vourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer’s working instruc- tions, as well as the relevant regulations in your country for the materials being worked. Operating Instructions. Guide the power tool toward the workpiece only when switched on. Otherwise, the workpiece and application tools may be damaged. During machining, the guide roller must always be in contact with the workpiece. Firstly remove the switched-on power tool from the workpiece and then switch it off. Otherwise, the workpiece and application tools may be damaged. If power tool vibrations increase significantly, check the setting parameters for the respective application material and the condition of the application tool. Danger of injury from chippings. Always keep your hands, clothing etc. away from chippings. Do not attempt to remove the application tool when still rotating. This can lead to serious injuries. Danger of injury from sharp edges of the milling head. Do not touch the sharp edges of the milling head. Danger of burning. The application tool can become hot during opera- tion. Allow the application tool to cool down: – after placing the power tool down – prior to tool changing. Rotate or turn around the eightfold heads as required. Please note that milling head, guide rollers and indexa- ble inserts may vary depending on the application. Only use accessories approved for the application. When machining bevels and radii, pay attention that the correct speed stage is set dependent of the material. Various materials can be subject to hardening at the edges due to heating, plasma or laser cutting. This can lead to very high deviations from the specified refer- ence values. Additional operating instructions. The self-start prevention lock prevents the power tool from automatically starting when the battery is inserted while the on/off switch is set to on. If the power tool shuts off without the switch being actuated, switch the power tool switch off, remove the battery and reattach it. Setting the bevel height (see page 10/11) Use indexable inserts for bevels, which are available as accessories. Set the bevel height “a” via the setting dimension at the guide plate. Make a test run. As the scale has a tolerance of approx. ± 1 mm (approx. 1/32''), readjustment may be necessary. Readjustment is made using the second scale (numbers 1 to 15) on the guide plate. The guide plate is adjusted by 0.1 mm (1/254'') per digit. The maximum, material-dependent setting dimension and the recommended speed stage can be found in the following two tables. Setting the radius dimension (see page 11) Use indexable inserts for radii, which are available as accessories. The setting dimension of the guide plate must be adapted to the respective radius. For setting dimension values, please refer to the respective acces- sory. For the material-dependent speed stage, please refer to the two tables below. The specified values are empirical values and can- not be guaranteed. WARNING WARNING WARNING Max. setting dimen- sion (applies for 45° bevel and radius) Recom- mended speed stage [mm] [inch] Aluminium 3.5 2/16 6 Steel 400 N/mm

Stainless steel 1.4 1/16 1–3

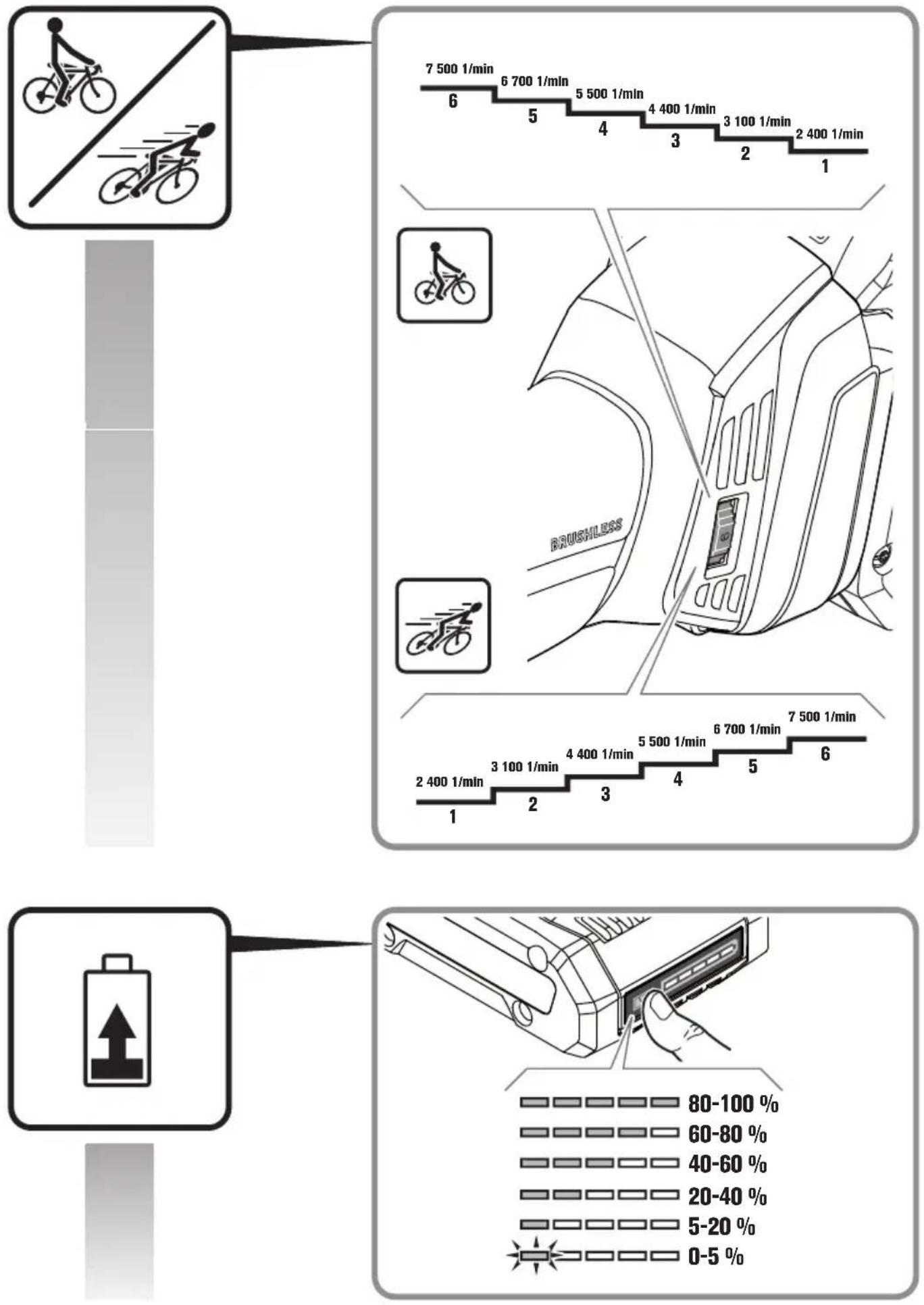

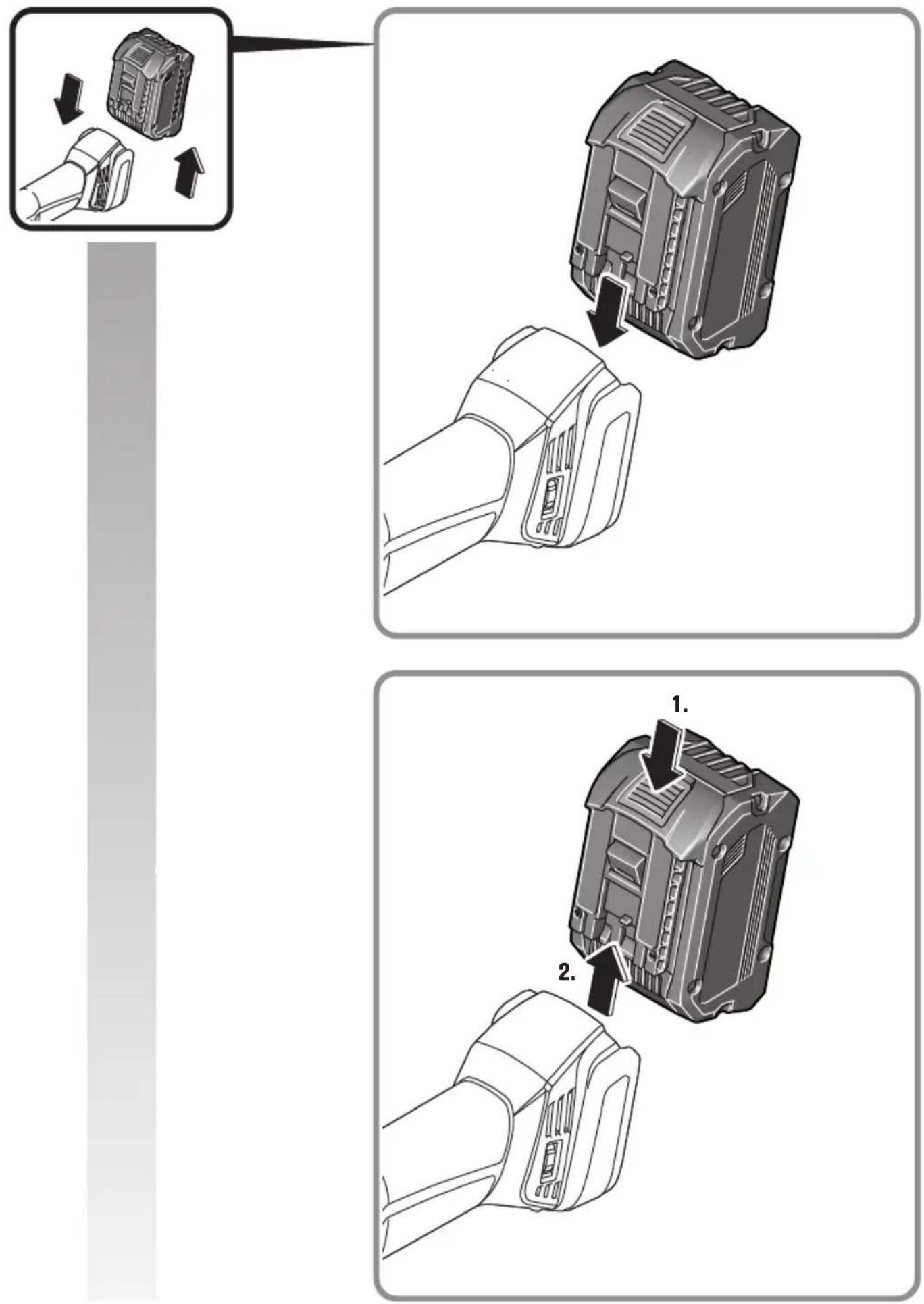

Charge-control Indicator on the Battery (see page 13). The charge condition can be indicated by the green LEDs of the charge-control indicator on the battery. Press the charge-control indicator button or to indicate the charge condition. When no LED lights up after pressing the charge-con- trol indicator button, the battery is defective and must be replaced. Transport. The Li-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can trans- port the batteries by road without further require- ments. When being transported by third parties (e.g.: air trans- port or forwarding agency), special requirements on packaging and labelling must be observed. For prepara- tion of the item being shipped, consulting an expert for hazardous material is required. Dispatch batteries only when the housing is undam- aged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations. Repair and customer service. Please observe that power tools may only be repaired, maintained and inspected by qualified electricians, as improper maintenance can result in con- siderable hazards for the user. When working metal under extreme oper- ating conditions, it is possible for conductive dust to settle in the interior of the power tool. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free com- pressed air. Clean and lubricate the thread of the height adjustment on the guide plate as required. Unscrew the guide plate and turn out the guide-plate holder. Clean the thread on both sides and apply oil. Products that have come into contact with asbestos may not be sent in for repair. Dispose of products con- taminated with asbestos according to the applicable country-specific regulations for such disposal. For FEIN power tools and accessories in need of repair, please contact your FEIN after-sales service. The address can be found on the Internet under www.fein.com. Renew stickers and warning indications on the power tool when aged and worn. The current spares parts list for this power tool can be found on our website at www.fein.com. If required, you can change the following parts your- self: application tools, guide roller, battery Maintenance and cleaning. Occasionally clean the ventilation slots and the battery terminals with a soft, clean and dry brush. – Do not use chemical substances for cleaning the bat- tery. Warranty and liability. The warranty for the product is valid in accordance with the legal regulations in the country where it is mar- keted. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer’s warranty dec- laration. The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual. Declaration of conformity. This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity. The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity. FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual. Technical documents at: C. & E. Fein GmbH Hans-Fein-Straße 81 73529 Schwäbisch Gmünd-Bargau, Germany Environmental protection, disposal. Do not dispose of the batteries into household- waste! Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Dispose of batteries only when discharged. For batteries that are not completely discharged, insu- late the terminals with tape as a protective measure against short-circuiting. Only for EC countries: According to the European Guideline 2002/66/EC, defective or used battery packs/batteries, must be col- lected separately and disposed of in an environmental- lycorrect manner. Selection of accessories (see page 19). Use only original FEIN accessories. The accessories must be intended for the power tool type. A Indexable insert for bevels B Indexable insert for radii C Guide roller34
