USER MANUAL SPBT3600BK NEDIS

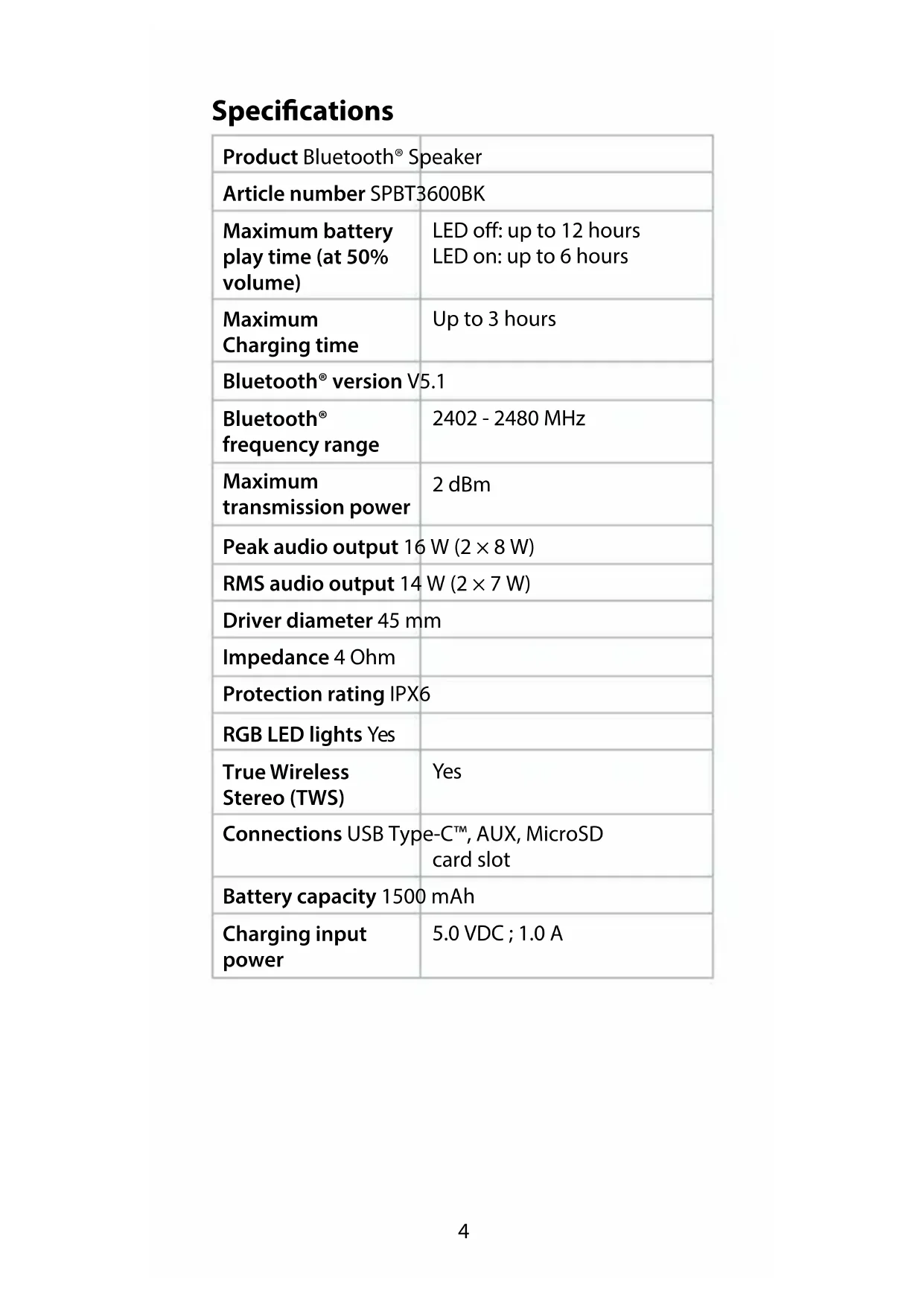

Specications Product Bluetooth® Speaker Article number SPBT3600BK Maximum battery play time (at 50% volume) LED o: up to 12 hours LED on: up to 6 hours Maximum Charging time Up to 3 hours Bluetooth® version V5.1 Bluetooth® frequency range 2402 - 2480 MHz Maximum transmission power 2 dBm Peak audio output 16 W (2 × 8 W) RMS audio output 14 W (2 × 7 W) Driver diameter 45 mm Impedance 4 Ohm Protection rating IPX6 RGB LED lights Yes True Wireless Stereo (TWS) Yes Connections USB Type-C™, AUX, MicroSD card slot Battery capacity 1500 mAh Charging input power

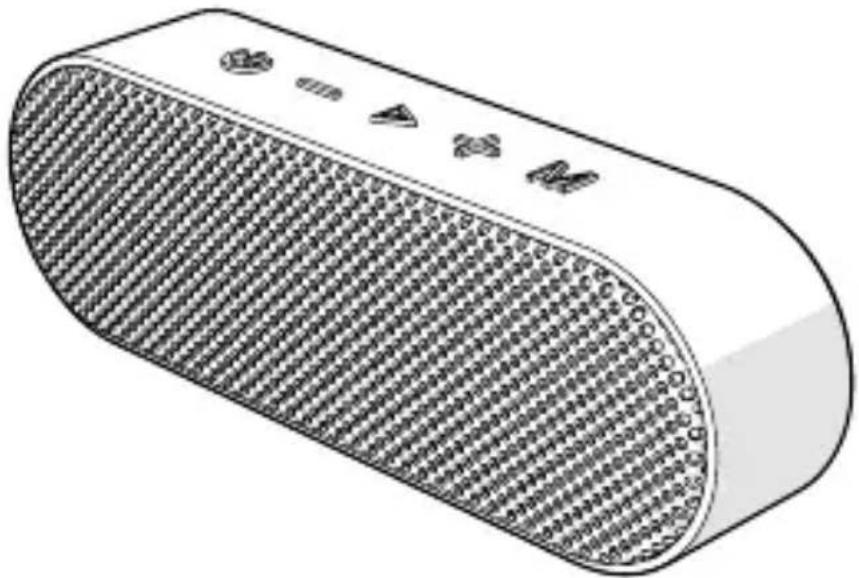

Quick start guide Bluetooth® Speaker SPBT3600BKFor more information see the extended manual online: ned.is/spbt3600bk Intended use This product is intended to stream audio from your media device via Bluetooth®, an audio cable or from a MicroSD card.This product is intended for indoor and outdoor use.This product is not intended for professional use.Any modication of the product may have consequences for safety, warranty and proper functioning. Main parts (image A) 1 AUX port 2 MicroSD card slot 3 USB-C charging port 4 Mode button 5 Volume up / next track button 6 Play/pause button 7 Volume down / previous track button 8 Power button 9 Indicator LED q USB – USB-C charging cable Safety instructions

WARNING• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.• Only use the product as described in this document.• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.6

• Disconnect the product from the power source and other equipment if problems occur.

• Do not drop the product and avoid bumping.

• This product may only be serviced by a qualied technician for maintenance to reduce the risk of electric shock.

• Do not expose the product to a high pressure of water or moisture.

• Do not immerse the product in water.

• Do not charge when the product is wet.

• Do not dismantle, open or shred cells or batteries.

• Do not expose cells or batteries to heat or re. Avoid storage in direct sunlight.

• Do not expose the product to direct sunlight, naked ames or heat.

• Do not subject cells or batteries to mechanical shock.

• Disconnect the product from the electrical outlet and other equipment if problems occur.

• Extended exposure to high volumes can cause hearing loss.

• Only use the provided USB charging cable.

• Charge the battery for at least 3 hours before using the product for the rst time.

• Do not short-circuit a cell or a battery.

• Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects. Switching on the product

1. Press and hold the power button A

2. Press and hold the power button A

to switch o the product.

The product automatically switches o after 10 minutes of inactivity.7 Charging the product

You can charge the product in two ways. For charging via the power outlet:

1. Plug the USB-C connector of the USB - USB-C

into the USB-C charging port

2. Plug the other end of A

into a 5V/1-2A USB adapter (not provided).

3. Plug the USB adapter into a power outlet.

For charging via the USB charging cable:

1. Plug the USB-C connector of A

2. Plug the other end of A

into a 5/1-2A USB power source. A PC is a usable power source for example.

When the battery is low the speaker emits the voice alert "Please charge". Playing music from a Bluetooth® audio source

1. Switch on the product.

ashes blue quickly to indicate paring mode is active.

2. Activate Bluetooth on your audio source and

connect with the product (SPBT3600BK).

lights up continuously to indicate pairing is successful.

3. Play music from a Bluetooth® connected audio

source. Playing music from an AUX audio source

1. Switch on the product.

2. Plug a 3.5 mm audio cable (not included) into the

3. Plug the other end of the 3.5 mm audio cable into

4. Play music from your audio source.

ashes blue slowly while the product is playing music.

Bluetooth® is deactivated when you use a dierent audio source.

to reactivate Bluetooth® mode. Switching between modes Press the mode button A

to switch between Bluetooth, MicroSD, and AUX mode. Controlling the music

1. Press and hold the volume up / next track button

to skip between tracks.

to control the volume.

to play or pause a track.

You can also control music and volume from your audio source. RGB lights Double press the mode button A

to switch on the RGB light, to cycle between dierent light modes, or to switch o the RBG light. Resetting the product If the product does not respond. Press and hold the mode button A

to reset the product. Press and hold A

simultaneously to reset the device to factory settings. Declaration of Conformity We, Nedis B.V. declare as manufacturer that the9 product SPBT3600BK from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation. The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/SPBT3600BK#support
