Product type	Electric chopper (food processor)
Brand	ADE
Model	KA 2110
Power supply	220-240 V~, 50-60 Hz
Rated power	400 W
Bowl capacity	Approx. 660 ml
Bowl material	Glass
Speeds	2 levels (I: low for soft foods, II: high for hard foods)
Pulse function	Yes, by brief button press
Protection	Integrated overheat protection
Non-slip base	Yes
Seal	Rubber seal on the lid
Blades	Stainless steel, two parts (upper and lower), very sharp
Safety	Do not use by children; unplug before assembly/cleaning; do not touch blades
Cleaning	Bowl, lid, blades and base are dishwasher safe (except motor); wipe motor with a damp cloth
Warranty	2 years from date of purchase
Distributor	GRENDS GmbH, Stahltwiete 23, 22761 Hamburg, Germany
Compliance	Directives 2014/30/EU, 2014/35/EU, 2011/65/EU
Country of origin	Germany (distributor's headquarters)
Package contents	Electric chopper with accessories, instruction manual

Frequently Asked Questions - KA 2110 ADE

How to use the ADE KA 2110 chopper?

Place the non-slip base on a flat surface. Put the glass bowl, insert the blade onto the shaft, add ingredients (max 2/3 of the bowl), close the lid, place the motor on top until it clicks. Plug in and press the I button (low speed) or II (high speed) for max 30 seconds. Let it cool for 3 minutes between cycles.

What foods can I chop with this processor?

You can chop fruits, vegetables, herbs, meat (without bones or tendons), garlic, parsley, chili, carrots, etc. Avoid very hard foods like bones or pits. Cut ingredients into pieces of 1 to 2 cm before use.

What is the maximum bowl capacity?

The glass bowl has a capacity of about 660 ml. Do not fill the bowl beyond 2/3 to avoid overflow and ensure efficient chopping.

How to clean the KA 2110 chopper?

Unplug the appliance. Clean the motor with a dry or slightly damp cloth (do not immerse). The blades, lid, bowl and base can be washed by hand or in the dishwasher. Be careful with sharp blades. Dry all parts before reassembling.

What to do if the appliance does not work?

Check that the appliance is properly plugged in and that the assembly is correct (the motor must be engaged). If the overheat protection has activated, unplug and let it cool for 30 minutes before using again. If the problem persists, contact the retailer.

Can I wash the blades in the dishwasher?

Yes, the blades are dishwasher safe. However, to avoid cuts, place them in the cutlery basket with the blades pointing down. You can also wash them by hand carefully.

How to stop the appliance during use?

Release the start/stop button you pressed (I or II). The appliance stops immediately. Wait until the blade stops completely before removing the lid.

What is the power of the ADE KA 2110 chopper?

The rated power is 400 W with a power supply of 220-240 V~, 50-60 Hz. This allows efficient chopping of a variety of foods.

How long can I run the appliance continuously?

Do not run the appliance for more than 30 seconds continuously. In pulse mode, you can use it a little longer. After each cycle, let it cool for 3 minutes. After 3 full cycles, let it cool for 15 minutes.

What to do if the overheat protection activates?

If the appliance turns off suddenly, release the start/stop button, unplug the appliance and let it cool for at least 30 minutes. Then you can plug it back in and use it normally.

USER MANUAL KA 2110 ADE

Close-up of a black and white ADE blender with a needle inserted into a glass bowl (no visible text or symbols on the device body)

Bedienungsanleitung

KA 2110

Operating instructions | Instrucciones de operación | Mode d'emploi Istruzioni per l'uso | Instrukcja obsługi | Руководство по эксплуатации

Icon of a person using a computer inside a circle (no text or symbols)

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating the components of a turbine blade assembly with warning symbols and directional arrows indicating flow or movement.

Line drawing of a kitchen appliance with a stand mixer and base bowl (no text or symbols)

Illustration of two hands assembling a propeller (no text or symbols present)

22761 Hamburg, Germany

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. The wealth of experience of the ADE brand ensures a high technical standard and proven quality for more freshness in your kitchen.

We wish you much pleasure and enjoyment!

Your ADE Team

General information

About this operating manual

This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well.

Failure to observe this operating manual may result in injuries or damage to your product.

Explanation of symbols

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

Table of Contents

General information....16

Safety 17

Intended use 19

Scope of delivery 20

Overview 21

Unpacking and checking....22

Use 22

Preparing foods....23

Processing Time Table....23

Assembling the Chopper 24

Chopping Food....24

Overheat protection 25

Separating the Blade Attachment....25

Cleaning....26

Storage 27

Fault/Remedy....27

Technical data....28

Warranty 29

Declaration of conformity 29

Disposal....29

Safety

• Do not allow children to use this device. Keep the device and its power cord away from children.
• This device is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
• Children must not play with the device.

• Assembly and cleaning of this device must never be carried out by children.

• Keep wrapping and packaging material away from children. There is a choking hazard. Also pay attention that children do not pull the packaging material over their heads.

• If the power cord of this device is damaged, it must be replaced by the manufacturer or its after-sales or customer service to avoid hazards.

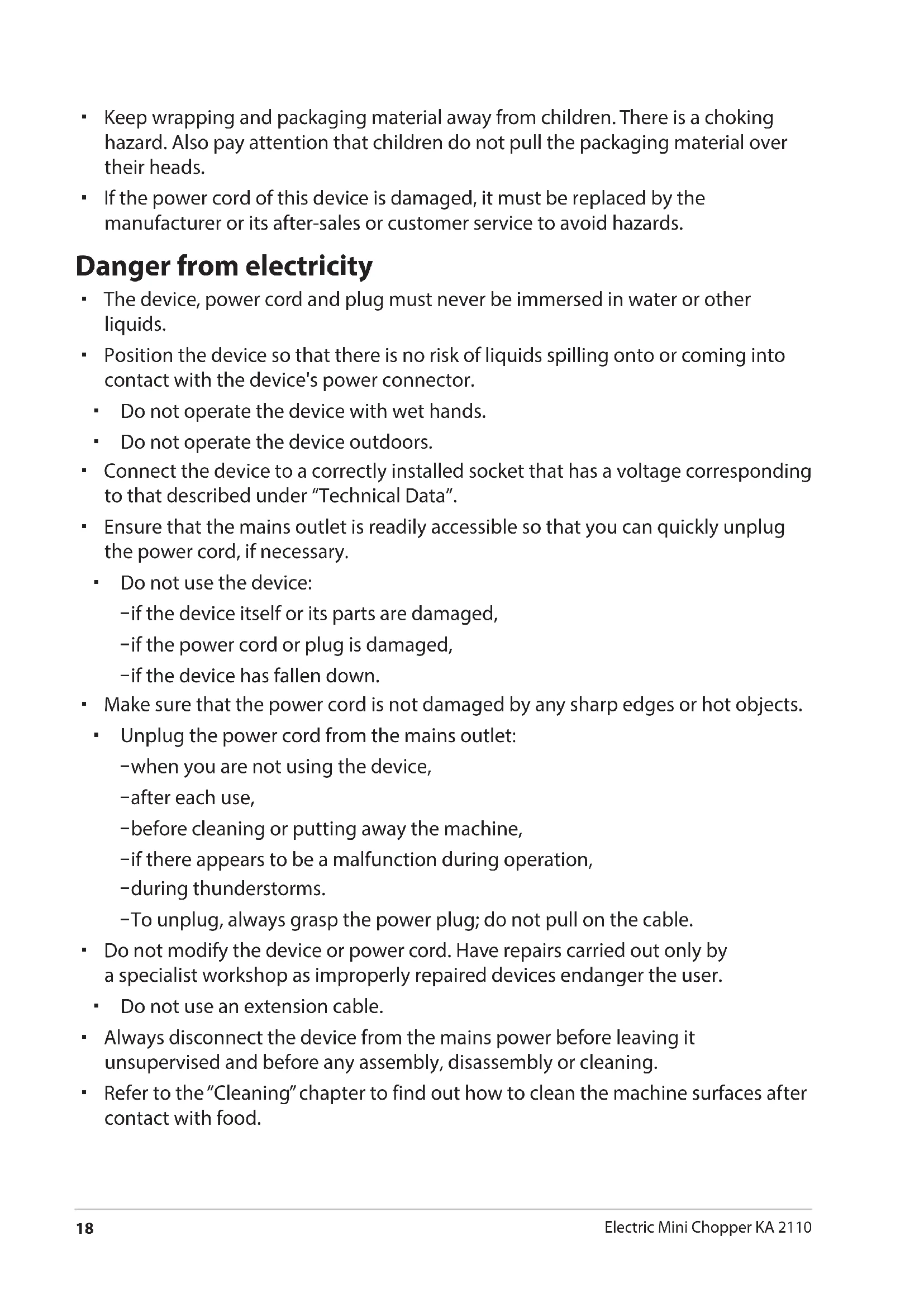

Danger from electricity

• The device, power cord and plug must never be immersed in water or other liquids.
• Position the device so that there is no risk of liquids spilling onto or coming into contact with the device's power connector.

- Do not operate the device with wet hands.

- Do not operate the device outdoors.

• Connect the device to a correctly installed socket that has a voltage corresponding to that described under "Technical Data".
• Ensure that the mains outlet is readily accessible so that you can quickly unplug the power cord, if necessary.

- Do not use the device:

-if the device itself or its parts are damaged,
-if the power cord or plug is damaged,
-if the device has fallen down.

- Make sure that the power cord is not damaged by any sharp edges or hot objects.

- Unplug the power cord from the mains outlet:

-when you are not using the device,
-after each use,
-before cleaning or putting away the machine,
-if there appears to be a malfunction during operation,
-during thunderstorms.
-To unplug, always grasp the power plug; do not pull on the cable.

• Do not modify the device or power cord. Have repairs carried out only by a specialist workshop as improperly repaired devices endanger the user.
• Do not use an extension cable.
• Always disconnect the device from the mains power before leaving it unsupervised and before any assembly, disassembly or cleaning.
• Refer to the "Cleaning" chapter to find out how to clean the machine surfaces after contact with food.

WARNING of risk of injury

• Take care when handling the sharp blade attachment or when emptying or cleaning the container.
• Do not touch moving parts of the device and do not attempt to stop them by hand or using other objects.
• Do not touch the knives with bare hands.
• Before replacing any accessories or attachments that move when the device is in operation, switch off the device and disconnect it from the mains power.
• Do not use the device if the blades are damaged.

- When operating the device, only use the original accessories provided.

- Do not try to use the device to chop hard ingredients or stones, and always remove stems or stalks from ingredients before chopping them. If using the device to chop meat, remove any bones or tendons beforehand.

BEWARE of material damage

• Only use the device in continuous operation for a maximum of 30 seconds at a time. If you use the device in pulse mode, i.e. only switching it on in short bursts, it can be operated for a slightly longer time. Afterwards, let it cool down for approx. 3 minutes (= 1 cycle). After a total of 3 complete cycles (30 seconds continuous mode or slightly longer pulse mode plus 3 minutes break) the device must be allowed to cool down for 15 minutes.
• Never operate the device without any ingredients inside as the motor could overheat.
• Never place the device on or near hot surfaces (e.g. hot plates, etc.).

- Avoid contact of the power cord with hot objects.

- Never expose the device to high temperatures (heating, etc.) or adverse weather conditions (rain, etc.).

- Place the device on a robust, smooth and easy-to-clean worktop. When processing foods, occasional splashes are unavoidable.

- Use only original accessories.

Intended use

The Electric Mini Chopper (or simply chopper) is only suitable for chopping food, such as fruit, vegetables, herbs or similar.

It is only to be used for processing food.

Please be aware that the blades will wear out more quickly, if used to process very hard food items.

The device must not be used to mix boiling or hot liquids.

The chopper is only intended for personal use in enclosed spaces, and is not suitable for commercial use.

Only use the chopper as described in these operating instructions. Any other use is considered improper and may result in damage to property or even personal injury.

The manufacturer or dealer assumes no liability for damage caused by improper or incorrect use.

Scope of delivery

Electric Mini Chopper with accessories
- Operating Manual

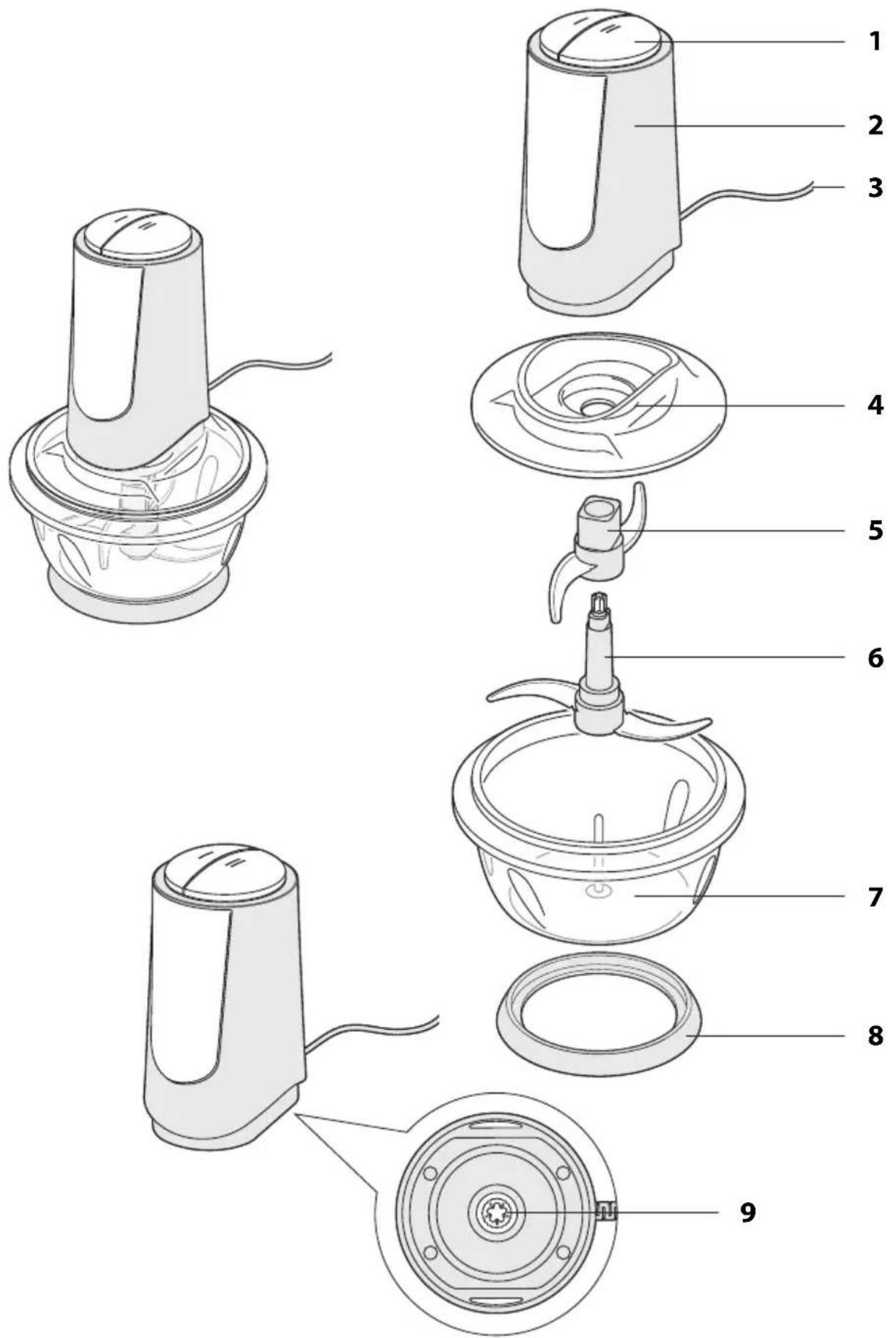

Overview (see right)

1 Two-part On/Off button:

Power level I: low speed = for soft foods

Power level II: high speed = for harder foods

2 Motor
3 Power cord with power plug
4 Lid with rubber seal
5 Top blade
6 Bottom blade
7 Glass container
8 Anti-slip base
9 Splined shaft

Exploded view diagram of a kitchen appliance with numbered parts for identification

WARNING against injury

- The knives are very sharp. Be careful when inserting, cleaning and removing the blade guard.

1. Take the device out of its packaging and carefully remove all the packing material.
2. Check that the delivery is complete.
3. Check that the device and its individual parts show no visible damage. If this is the case, do not use the grinder. In this case, contact the dealer where you bought the device.

Diagram illustrating the working principle of a turbine blade with warning symbols and directional arrows indicating motion or flow.

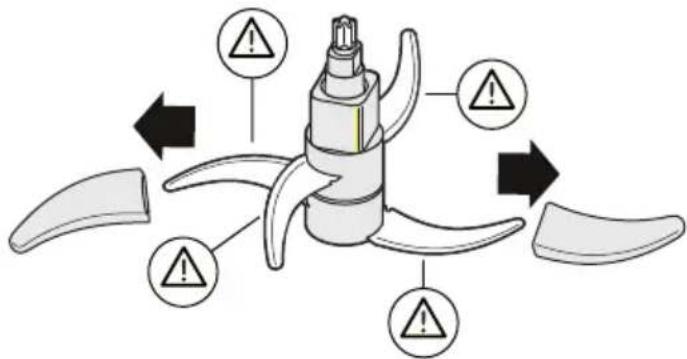

1. Carefully remove the protective covers from the blades. WARNING: Risk of injury!

2. Before first use, clean all parts as described in chapter "Cleaning".

Use

WARNING against injury

-When assembling or disassembling the chopper, always switch it off and disconnect the plug from the power socket.

-The blades are very sharp - do not touch them with bare hands.

- Never take the lid off until the blade attachment has stopped turning.

- Never move the chopper whilst it is in operation.

- Make sure that hands, hair, clothing, jewellery or other objects are kept well away from the chopper or the glass container during use.

NOTE on material damage

-Only use the device in continuous operation for a maximum of 30 seconds at a time. If you use the device in pulse mode, i.e. only switching it on in short bursts, it can be operated for a slightly longer time. Afterwards, let it cool down for approx. 3 minutes (= 1 cycle). After a total of 3 complete cycles (30 seconds continuous mode or slightly longer pulse mode plus 3 minutes break) the device must be allowed to cool down for 15 minutes.

-Position the chopper on a flat, dry, non-slip work surface.
- Do not place the chopper on the edge or near the edge of the work surface.
- Never place the chopper on or near hot surfaces (e.g. hot plates, heating pipes, etc.).

Preparing foods

If the device is used for processing very hard foods, the blades will wear out more quickly.

- Cut your ingredients into small 1 to 2 cm pieces before putting them into the container.

-If using meat, remove all bones, tendons and skin.

Processing Time Table

The following times and quantities are provided as guidelines and may vary depending on the condition and freshness of the food to be processed.

Food Quantity	Level Processing time
Meat 300 g ll 10 secs
Garlic 200 g l 10 secs
Parsley	200 g l 10 secs
Chilli 200 g ll 10 secs
Carrots	200 g ll 10 secs

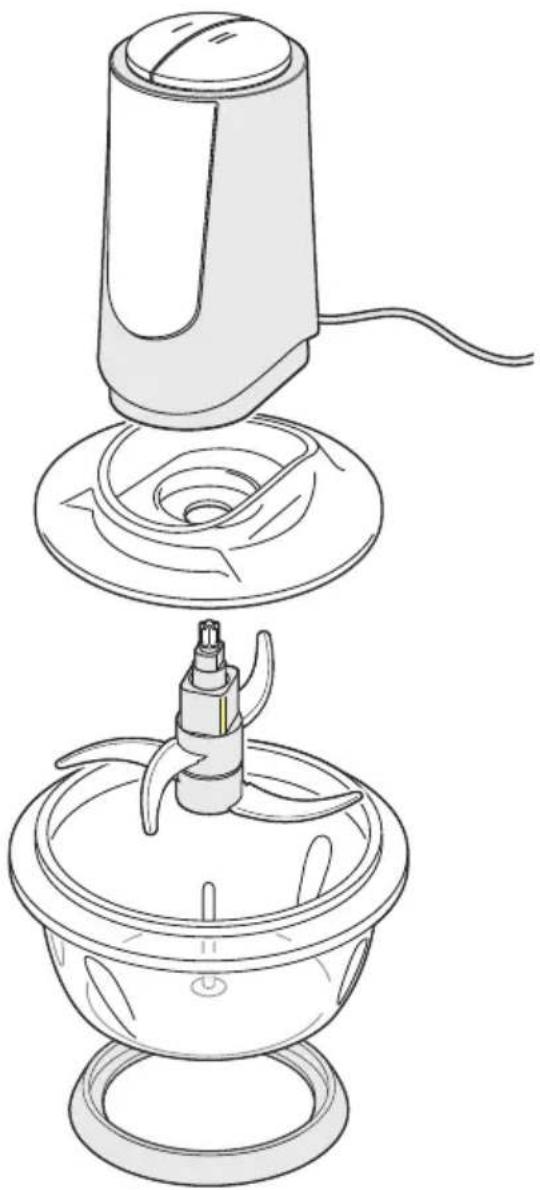

Assembling the Chopper

Line drawing of a kitchen appliance with a blender and a side bowl (no text or symbols)

1. Place the anti-slip base on a flat, dry, non-slip work surface.

2. Place the glass container on the anti-slip base.

3. Place the blade attachment onto the rod in the container (if necessary, turn it slightly, so that the blade attachment can be put on completely).

4. Put the ingredients into the container. The bowl must not be filled more than 2/3 full.

5. Place the lid onto the bowl.

6. Place the motor onto the end of the shaft of the blade attachment that sticks out from the opening in the lid. The motor must sit flush in the lid recess and must noticeably engage with the shaft.

If necessary:

- Detach the motor and turn the shaft of the blade attachment a little by hand.

- Put the motor back into place.

1. Plug the chopper into an easily accessible power socket.

Chopping Food

Select the appropriate power level using the On/Off button: I or II.

- Power level I operates at lower power and is particularly suitable for processing soft foods.

- Power level II operates at higher power and is particularly suitable for harder foods.

1. Press the appropriate button for a maximum of 30 seconds to chop your ingredients. Then let the motor cool down for approx. 3 minutes.

2. If the ingredients are not sufficiently chopped, repeat step 1 again.

3. Unplug the power cord from the mains outlet.

4. Remove the motor and the attachment.

5. Pull the blade attachment out of the glass container.

6. Take the ingredients out of the glass container.

Processing Tips

• To ensure that ingredients are chopped evenly, switch the device off after each burst of chopping. Then use a rubber scraper to push the ingredients back into the middle of the bowl. You can then switch the device back on again.
• You can also use the device in pulse mode by pressing the I or II button briefly. When the blades stop turning, some of the food will fall back underneath them. This helps to ensure even processing.
• In many cases, the chopper will get the job done in seconds. Avoid mixing for too long in order to preserve the structure of the food.
• The processed food should either be consumed immediately, or used further as required. The container is not intended to be used for permanent storage.

Overheat protection

The device has a built-in overheating protection. If the overheat protection triggers, the device will switch off immediately during use.

In this case:

1. Release the power level button (I or II) and take the plug out of the power socket.
2. Let the device cool down for at least 30 minutes.
   Eventually, you can use the device again as usual.

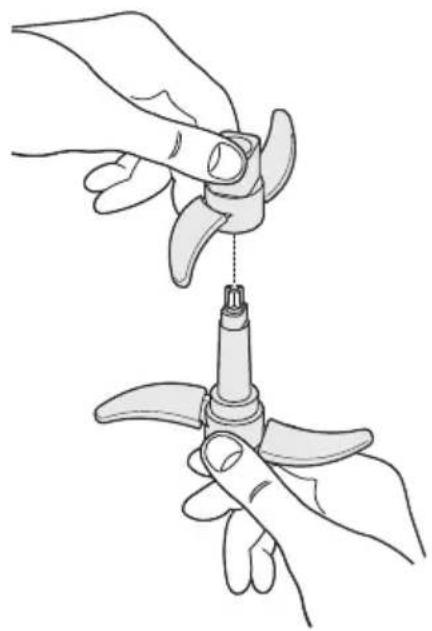

Separating the Blade Attachment

WARNING against injury

- The blades are very sharp - do not touch them with bare hands. If the blade attachment is still clean, we recommend that you put the protective covers onto the blades.

The blade attachment is formed of two sections. When the blade is very dirty, it is useful to separate it in order to clean it.

Illustration of two hands assembling a propeller (no text or symbols present)

1. Take the blade attachment in your hand.

2. Turn the upper section away from you, or clockwise, as far as it will go.

3. Pull off the upper section of the blade attachment.

Assemble by reversing this process.

Cleaning

Electrical shock HAZARD

-Switch off the chopper and disconnect the plug from the power socket before cleaning the device.

- Never immerse the motor in water or any other liquid. Make sure that no water gets into the housing.

-Do not use a steam cleaner to clean the device.

WARNING against injury

-Do not touch the knives with bare hands.

-Be very careful when cleaning the blade attachment.

NOTE on material damage

- Do not use aggressive cleaning agents, brushes with metal or nylon bristles, or sharp or metallic cleaning objects such as knives, hard spatulas and the like. They can damage the surfaces.

- Never put the motor in a dishwasher. This would destroy the motor.

The device must be cleaned after every use. Whenever possible, clean the device immediately after use to prevent the ingredients from drying out.

1. Disconnect the plug from the power socket and let the motor cool down completely.
2. Clean the motor by wiping with a dry or slightly damp cloth.

3. If necessary, separate the blade attachment, see "Separating the Blade Attachment".

4. Clean the blade attachment, the lid, the glass container and the anti-slip base in warm soapy water, using a soft, damp cloth. Alternatively, you can also clean these parts in the dishwasher (but not the motor!)

5. Rinse all these parts with clean water.
6. Dry the individual parts thoroughly with a tea towel.

There is a rubber seal around the edge of the lid. When cleaning the parts, you can simply pull the seal off, wipe it clean with a cloth and then put it back on.

Storage

1. Clean the chopper as described in the "Cleaning" section.
2. Store the chopper out of reach of children in a clean, dry and frost-free place.
3. If possible, store the chopper in its original packaging to protect it from dust and splashes of water.

Fault/Remedy

Fault Possible cause
No function.	·Check if the power cord is plugged.·The device has not been assembled correctly. The chopper will only work if it has been assembled correctly.·If you have used the device for a long period of time without a sufficient break from use, the overheating protection may have been activated.-Switch off the chopper and disconnect the plug from the power socket.-Allow the device to cool down for approx. 30 minutes before using it again.
The blade attachment is not turning.	The food inside the glass container is unsuitable.-Switch off the chopper and disconnect the plug from the power socket.-Empty the glass container.
During use, the chopper vibrates more and/or is louder than usual.	The base is not sufficiently stable.The container is overfilled.-Switch off the chopper and disconnect the plug from the power socket.-Empty part of the glass container.
The device switches off during use.	The overheat protection has tripped; see section “Overheat protection”.

Technical data

Model: Electric Mini Chopper KA 2110

Power supply: 220 – 240 V\~, 50-60 Hz

Power: nominal: 400 W

Protection class:

Max. filling capacity: approx. 660 ml

Distributor (no service address): GRENDS GmbH

Stahltwiete 23

22761 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Warranty

GRENDS GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Declaration of conformity

GRENDS GmbH hereby declares that Electric Mini Chopper KA 2110 complies with Directives 2014/30/EU, 2014/35/EU and 2011/65/EU.

The declaration will lose its validity if any modification is made to the device without our consent.

Hamburg, March 2022

GRENDS GmbH

Disposal

Disposing of the packaging

Dispose of the packaging according to type. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Exploded view diagram of a kitchen appliance with numbered parts for identification

Desempaquetar y comprobar

Diagram illustrating the working principle of a turbine blade with warning symbols and directional arrows indicating motion or flow.

Line drawing of a kitchen appliance with a blender and a side bowl (no text or symbols)

Illustration of two hands assembling a propeller (no text or symbols present)

Protection anti-surchauffe....53

Séparation de la lame ....53

Nettoyage 54

Rangement 55

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating the working principle of a turbine blade with warning symbols and directional arrows indicating motion or flow.

Line drawing of a kitchen appliance with a blender and a side bowl (no text or symbols)

Protection anti-surchauffe

Line drawing of two hands assembling a propeller (no text or symbols)

1 Tasto on/off, diviso in due:

Exploded view diagram of a kitchen appliance with numbered parts for identification

PERICOLO di lesioni

Diagram illustrating the internal components of a propeller with warning symbols and directional arrows indicating flow or movement.

Line drawing of a kitchen appliance with a blender and a side bowl (no text or symbols)

Illustration of two hands assembling a propeller (no text or symbols present)

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating the working principle of a turbine blade with warning symbols and directional arrows indicating motion or flow.

Line drawing of a kitchen appliance with a blender and a side bowl (no text or symbols)

Illustration of two hands assembling a propeller (no text or symbols present)

Exploded view diagram of a kitchen appliance with numbered parts for identification

Diagram illustrating the internal components of a propeller with warning symbols and directional arrows indicating flow or movement.

Line drawing of a kitchen appliance with a blender and a side bowl (no text or symbols)

Illustration of two hands assembling a propeller (no text or symbols present)
