USER MANUAL SOL10UC3 VELLEMAN

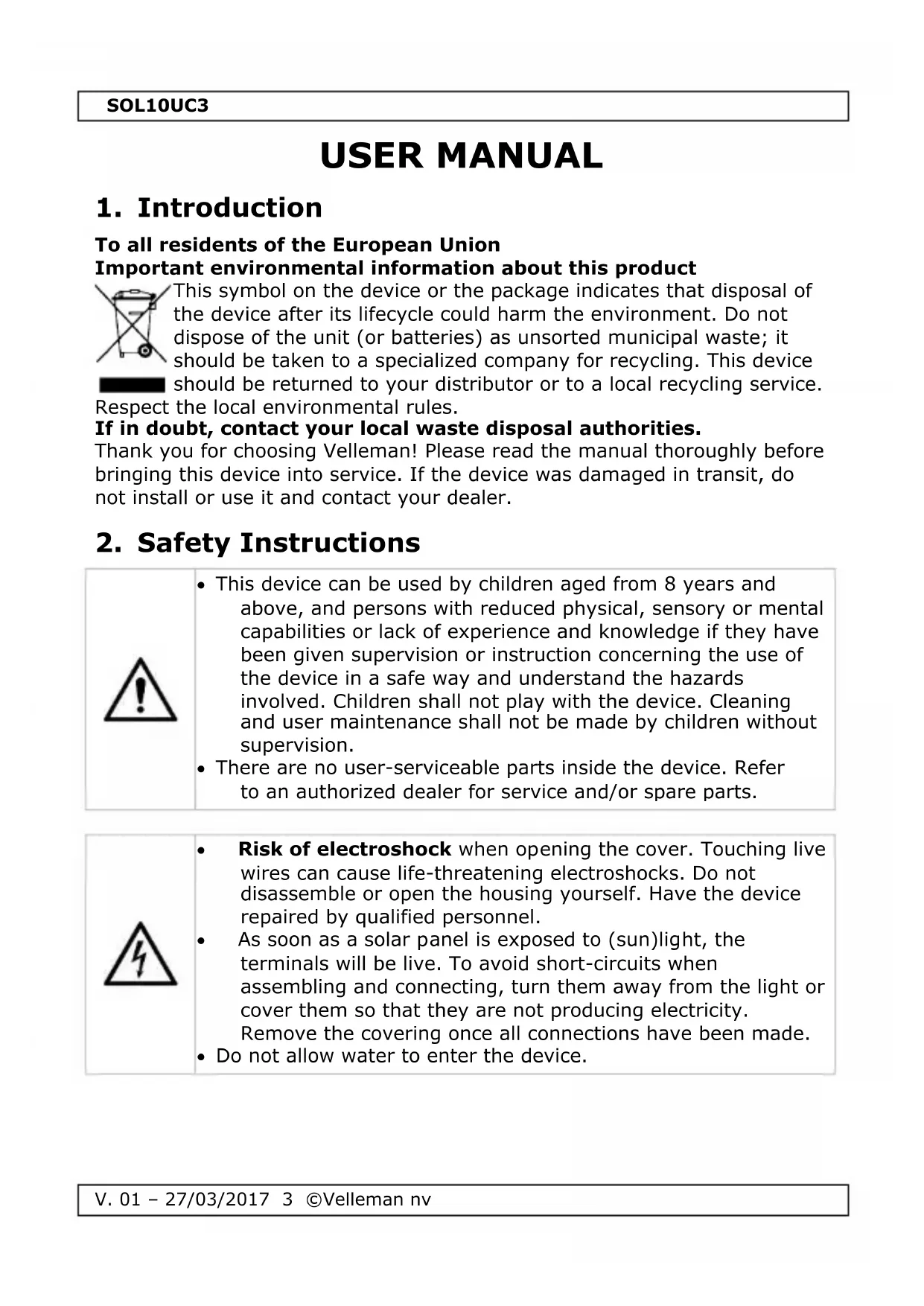

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

Risk of electroshock when opening the cover. Touching live wires can cause life-threatening electroshocks. Do not disassemble or open the housing yourself. Have the device repaired by qualified personnel. As soon as a solar panel is exposed to (sun)light, the terminals will be live. To avoid short-circuits when assembling and connecting, turn them away from the light or cover them so that they are not producing electricity. Remove the covering once all connections have been made. Do not allow water to enter the device.SOL10UC3

Always mount the solar panel on a straight and flat surface. Do not bend or twist the panel. Never attempt to divide or disassemble the panel. Avoid drilling or welding the frame whenever possible. Do not use sharp metal tools or any other tools that can scratch the surface of the panel. Install the solar panel horizontally or vertically. The solar panel should be facing south at an angle of 0-20°. Bear in mind that if the solar panel is cast in shadow, its power output will drop considerably. Choose a location for the panel with as little shade as possible.

Mounting Be careful when working with batteries. Wear eye protection and have clean water ready to clean any contact with battery acid. Use insulated tools and avoid placing metal objects near the battery. Install the battery in a well-ventilated room away from direct sunlight and moisture. Make sure the solar panel and/or fuses near the battery are disconnected prior installation. The installation requires fuses/breakers (not included). Make sure all connection are properly tightened and free from corrosion.

3. General Guidelines

Refer to the Velleman

Service and Quality Warranty on the last pages of this manual. Familiarise yourself with the functions of the device before actually using it. All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty. Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, crash, etc. Using the device in an unauthorized way will void the warranty. Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems. Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product. Keep this manual for future reference.SOL10UC3

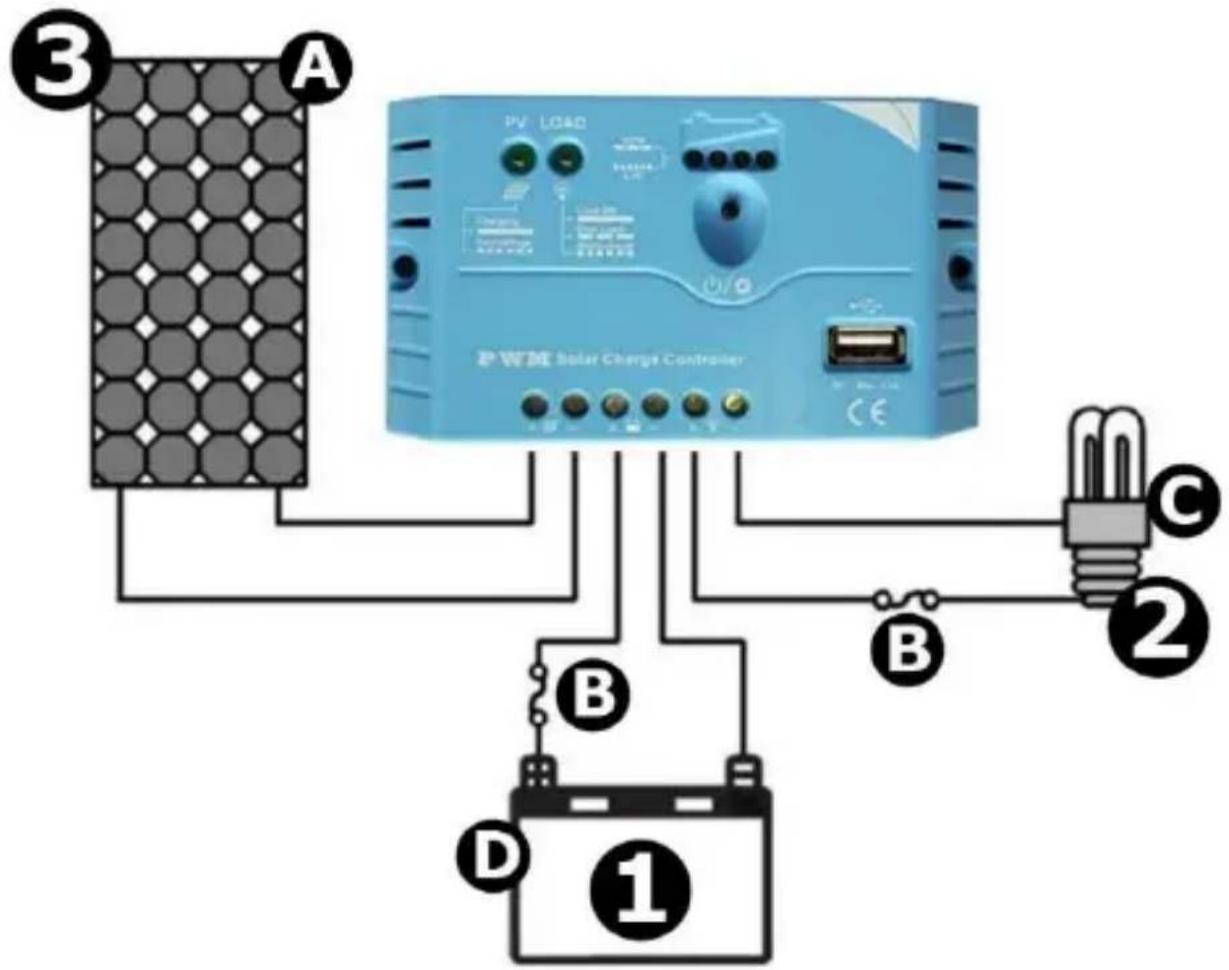

Refer to the illustrations on page 2 of this manual.

Connect the components to the charge regulator in the sequence shown as above. Pay attention to the positive and negative poles.

1. Connect the battery first. Check if the battery indicator turns green. If

not, refer to chapter Troubleshooting.

2. Next, connect the load, e.g. a lamp. The load should be DC applicant

with the same rated voltage as the battery’s.

6.1 Charging and Load Status LEDs

normal off off slowly flashing overload when load amp is 1.25x rated current for 60s, or load amp is 1.5x rated current for 5s fast flashing short-circuit see chapter Troubleshooting

6.2 Charging and Load Status LEDs

under voltage fast flashing

Battery LED status during voltage up

Battery LED status during voltage down

● = LED on X = LED off

bat = battery voltageSOL10UC3

When the regulator is switched on, press the setting button to control the load output. Note that the USB output is switched on only when the regulator is switched on.

7.2 Battery Type Setting

Hold the setting button pressed for 5 seconds. The battery status LEDs (LEDs 1 to 3, from left to right) will be flashing correspondingly. Next, press the setting button to select the battery type. The setting is confirmed when the LEDs stop flashing. Battery type LED1 LED2 LED3 Battery type

flooded ● = LED on X = LED off

The solar panel is exposed properly to sunshine but the charging LED is off. o The input voltage of the solar panel is lower than the battery voltage. Check the input voltage of the solar panel. o The battery voltage is lower than 6 V. The minimum start-up voltage is 6 V. o Disconnected wiring. Check if the wiring is connected properly. The charging LED is flashing rapidly. o Battery voltage exceeds the overvoltage disconnect (OVD) values. Disconnect the solar panel and check the battery voltage. LED1 is flashing slowly/rapidly. o Battery voltage too low/discharged. Check the battery voltage. The load status LED is flashing slowly. o Overload. Reduce the load and press the setting button once. The load status LED is flashing rapidly. o Short-circuit. The regulator automatically resumes after 10 seconds. When a second short-circuit occurs, press the setting button once.SOL10UC3

V. 01 – 27/03/2017 8 ©Velleman nv

9. Cleaning and Maintenance

Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

nat ● = led aan X = led uit
