Product type	Ceiling fan
Brand	CasaFan
Model	Sickle
Nominal voltage	230 V, 50 Hz
Power	73 W
Protection class	I / IP20
Number of speeds	1
Dimensions (diameter x height)	1320 x 345 mm
Weight	11.6 kg
Minimum height under blades	2.30 m
Minimum load supported by the mount	15 kg
Main function	Ambient air circulation
Maintenance	Check fixings twice a year; clean blades with a cloth; do not use water on the motor; bearings are lubricated for life
Safety	Disconnect before maintenance; mandatory grounding; installation by a professional recommended; maintain a safety distance of 2.30 m under the blades
Repairability	Intervention by a professional only
Standards	Compliant with EU directive 2002/96/EC (WEEE)

Frequently Asked Questions - Sickle CasaFan

How to unpack and check the contents of the CasaFan Sickle ceiling fan?

Unpack the fan and check for all parts: motor block, mounting rod, screws, mounting bracket, blade, blade bracket screws, upper cover, balancing kit. Make sure there is no visible damage. Dispose of the packaging in an environmentally friendly manner.

What is the power of the fan?

The nominal power is 73 W under 230 V and 50 Hz frequency.

What are the dimensions and weight?

Dimensions are diameter 1320 mm and height 345 mm. Weight is 11.6 kg.

How to install the fan on the ceiling?

Fix the mounting plate to the ceiling using appropriate screws and anchors (wood screws Ø6 mm, concrete anchors Ø8 mm or drywall anchors). Make sure the plate is sturdy and level. Install the mounting bracket, connect electrically according to the diagram (fig. 6), then attach the blades. Turn off the electricity before any work.

What are the important safety instructions?

The electrical installation must be grounded. Cut off the power before any intervention. Use an omnipolar disconnector with a minimum opening distance of 3 mm. The ceiling structure must support at least 15 kg. No blade should be less than 2.30 m from the ground.

How to clean the fan?

Never use water on the motor or electrical components. Clean the blades and housing with a dry or slightly damp cloth. The bearings are lubricated for life and require no lubrication.

What to do if the fan does not start?

Check the mains fuses, electrical connections, and that the appliance is properly plugged in. Make sure the fuses in the junction box are in good condition.

What to do if the fan vibrates too much?

Check that all screws are tight. Allow a break-in period of 24 hours. If vibrations persist, align the blades using a ruler: measure the distance from the tip of each blade to the ceiling, then adjust the brackets by pushing them up or down. Also check the mounting plate fixation.

What is the minimum mounting height?

The distance between the floor and the blades must be at least 2.30 m to ensure safety.

How to adjust the rotation speed?

Use an optional step transformer or a speed controller (phase cut control). The fan is supplied with one speed.

USER MANUAL Sickle CasaFan

Line drawing of a five-blade propeller with a circular top and radial blades (no text or symbols)

DECKENVENTILATOR

CEILING FAN

VENTILATEUR DE PLAFOND

VENTILATORE DA SOFFITTO

FALCETTO

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a numbered label (4) and wiring, no readable text or symbols present.

Simple line drawing of a dome-shaped object with concentric layers and a circular hole, labeled with number 7 (no text or symbols on the object itself)

2x

2x

Grid of identical lightbulb icons arranged in rows, no text or symbols present

About this operating instructions

Before using the CasaFan fan, read the operating instructions carefully. Keep the operating instructions within reach. Never pass the fan onto another person without the operating instructions.

Explanation of symbols:
Dangerous electric voltage	Careful
Warn the user of the dangers caused by electricity	Particular note for the user.

Describing the CasaFan-VentilatorThe fan is for circulating room air. Their use in machines which are outside and unprotected, in garages, in moist or wet rooms or rooms in danger of fire or explosion, is not permitted.
Technical data:
	FALCETTO
Mains voltage: 230 V, 50	Hz
Power: 73 Watt
Protection clas: I / IP 20
No of speeds: 1
Dimensions ∅ x H (mm)	1320 x 345
Weight (kg): 11,6

Caution! Only operate the unit when completely assembled!

- Unpack the CasaFan fan, check if everything is present (see page 2) and for visible signs of damage.

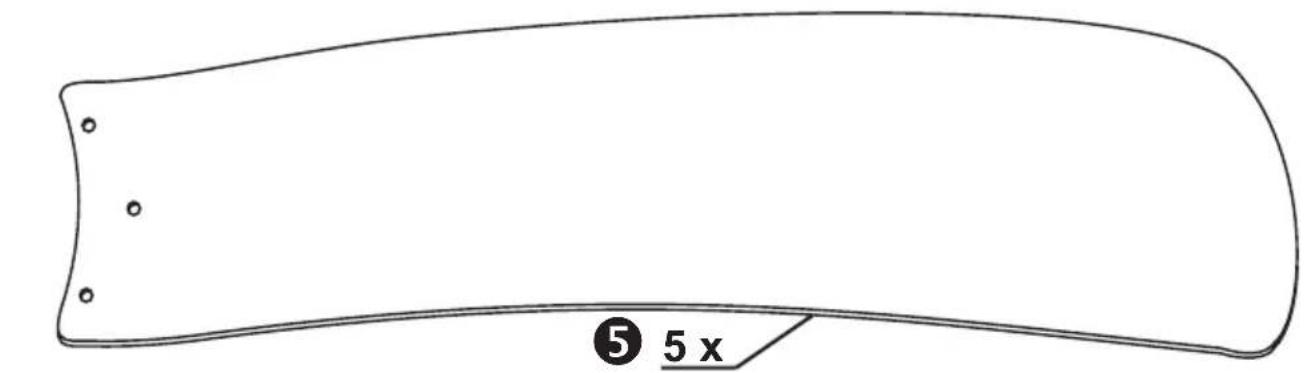

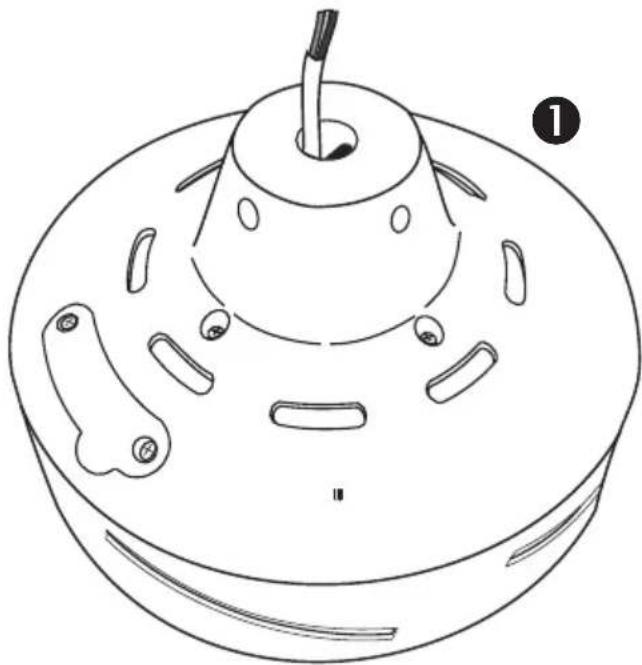

1. Motor 4. Mounting bracket	7. Upper cover
2. Assembly rod 5. Blade 8.	Balancing kit

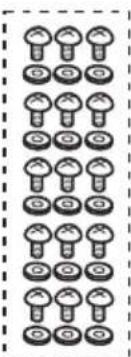

3. Screw Blades 6. Screw ceiling fixture 9. Screws upper cover

- Dispose of packaging taking the environment into account and keep out of the reach of children.

Assembly

Please proceed as per fig. 1 - 7 at pages 4 - 5 of these operating instructions.

When dealing with electricity, just conforming to all the safety and precautionary measures can not describe every danger situation. They do not replace sensible procedures and care, which you have to take into account when first initiating and then running your fan.

When using any electric units, several basic rules have to always followed, as detailed below:

GB

General

• The voltage details on the nameplate are to conform with the available mains voltage.
• The building mains must be earthed!
• Only operate the unit when completely assembled!

Important

- It is recommended that a specialist electrician is used for making the electrical connection to this fan.

Safety instructions

Before accessing the connection, all current carrying conductors are to be isolated.

The mains connections to which you are connected is to comply with current specifications. The fixed wire connection is to be provided with a multi-pole isolator with contact gaps of at least 3 mm. We recommend that the connection be made by a qualified electrician.

The construction of the holder and the output box is to be able to bear the weight of the fan when being moved, ie, about 15 kg minimum. Chose a secure, safe location. None of the fan blades are to be less than 2.30 m from the ground. The fan is to be correctly earthed.

Before first using the setup, all electrical connections are to be checked in order to prevent any fall, fire or electric shock.

Installing your ventilator

Ascertain that a mounting bracket is available at the intended mounting point.

If this not the case, then fix the mounting bracket directly to the ceiling using wood screws having a diameter of 6 mm and, if necessary, 8 mm diameter concrete anchors or special plugs suitable for plaster boards.

Proceed as per figures fig. 1 - 7 shown on page 4 - 5

- Unpack the ventilator and check the contents. All the parts shown in the drawing are to be present.

- The mounting plate is separate from the fan.

Assemble the mounting plate using the screws and washers to the ceiling outlet.

In order to assure a safe operation of your fan, make sure that the mounting plate is firmly seated and is level.

-The attached part is to be vertical.

• Fix the support hook to the ceiling.
• Disconnect the electricity before working on the electrics.
• Make the electrical connection to your fan as per fig. 6 on page 5.

- Fix the blades to the motor using the bolts.

- If you are installing several fans, make sure that the various blades are not mixed up,

- The blades are grouped according to weight, in order to avoid vibration.

- After finishing assembling the fan, make sure that all connections are in order and that all nuts and bolts are tightened.

Operating your fan

Make sure that the assembly has been completely finished.

Use a stepped transformer for controlling the speed, optional extra. Never use a dimmer or a phase angle or phase inverse angle controller.

Important

Even if your fan is more that 2.30 m above the ground, care must still be taken care that the blades are free to turn and no objects can enter their radius of action.

Maintaining you fan

You increase the life of your fan by heeding the following notes:

1. Check the various ceiling fixing parts and bracket twice a year.
   Some of the parts on the fan components can have play.
2. Never use water for cleaning the motor or other electrical parts; this would lead to a short circuit.
3. Use a soft cloth for cleaning the blades and housing.
4. Greasing the bearings is not necessary, the bearings are permanently lubricated.

Do not forget to check that the earth connection lead has been correctly connected to the output terminal block and between all metal parts (connect the push-on contact to every earth symbol).

Notes for removing faults
Fault Remedy
The fan does not start.	Check the fuses/trips at the main box and other connections.
	Check the fan connection to the mains.
	Check that fuses/trips in the connection box are correctly inserted.
The fan is noisy. Check that all bolts and screws have been tightened.
Run in the fan and the bearings for 24 hours. Most noises disappear after this time.
The fan vibrates too much.	All blades have been weighed and grouped according to weight. Their density can vary and therefore cause vibration even when all blades are of the same weight. The following methods can contribute to preventing most vibrations. Check the vibration before each procedure. Please note that a small amount of vibration is normal and does not pose a problem.
	Most vibrations occur when one of the blades is not in alignment with the others. Aligning the blades is simply carried out with the aid of a flat ruler. Place the ruler vertically upwards against the ceiling and alongside the blade tip. Mark the distance between the blade side and ceiling. Turn the blades slowly by hand and carry out the same measurements with the other blades. If one of the blades is not correctly aligned, it can be remedied by lightly pressing their holders upwards or downwards in order to align them with the others.
	Check that the mounting plate is firmly anchored to the ceiling.
Important: Opening up and repairing the unit may only be carried out by a specialist!

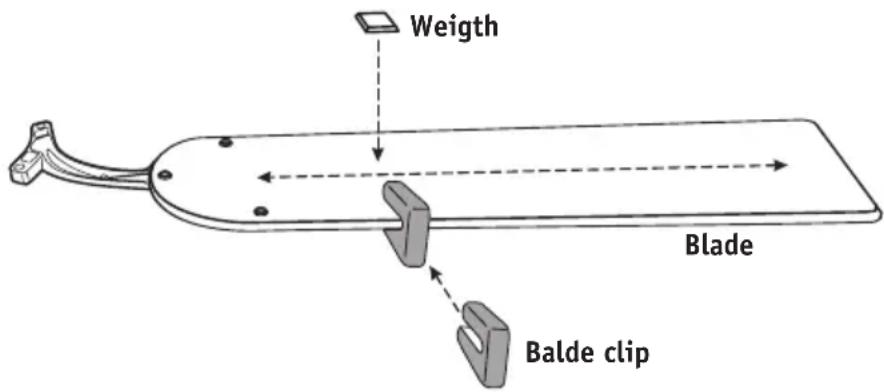

The balancing kit contains 2 weights at 5 grams each as well as a blade clip with 5 grams weight. If your ceiling fan is running after accurate and complete installation unbalanced ("wobbling"), please follow step 1 to 6:

1. Switch your ceiling fan on and find out the speed setting at which the wobble is the greatest.
2. Turn off your ceiling fan and allow it to come to a complete stop. Select one blade and place the balance clip on it, halfway between the bladeholder and the blade tip on the trailing edge of the blade.
3. Turn the fan on and select the speed setting at which the wobble was greatest. Note whether the wobble has increased or decreased. Turn the fan off, move the clip to the next blade and retest. Repeat this procedure on all blades noting the blades on which the greatest improvement is achieved.
4. Move the clip back to the blade that showed the greatest improvement. Move the clip inward and outward on this blade and operate the fan to find the position where the clip gives the greatest improvement.
5. Remove the clip and glue the balancing weight on top of the blade along the centerline at the point where the clip was positioned.
6. If the fan wobble problem has not been corrected finally you can improve the balancing further by repeat the procedure with additional weights. The weight can be easily devided in two parts with a cutter.

Where does "wobbling" come from?

The blade of a ceiling fan could run at the blade tip with a speed of up to 10 m/sec. If the density or the compound varies, an imbalance towards the weightly blade occurs.

Especially wooden blades which are made from a natural material often have different densities, resulting in an imbalance.

All blades of CasaFan ceiling fans are weighted by a accurate scale and ordered by weight. A set of blades contents always 5 blades of the same weight. The atmospheric humidity changes the density of the wood. By this reason the edge and the surface of CasaFan blades are sealed against normal atmospheric humidity. For damp or wet locations we recommend acrylic blades which are non-sensitive against humidity and water.

Please consider that a fall of the packing from a low height could cause a transformation of the compound. Hence a small imbalance up to 5 mm (measured at the switch cup of the ceiling fan) is no quality defect. It can be eliminated as aforementioned with the balancing kit.

D

ACHTUNG

This product conforms to EU Directive 2002/96/EC. This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement.

It is the user's responsibility to dispose of this appliance trough the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal. Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials used in the appliance. For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance. Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.
