USER MANUAL YT85205 Yato

7. adjustment of cutting height

8. cover of the outlet opening

9. basket/container for grass

10. handle for transportation

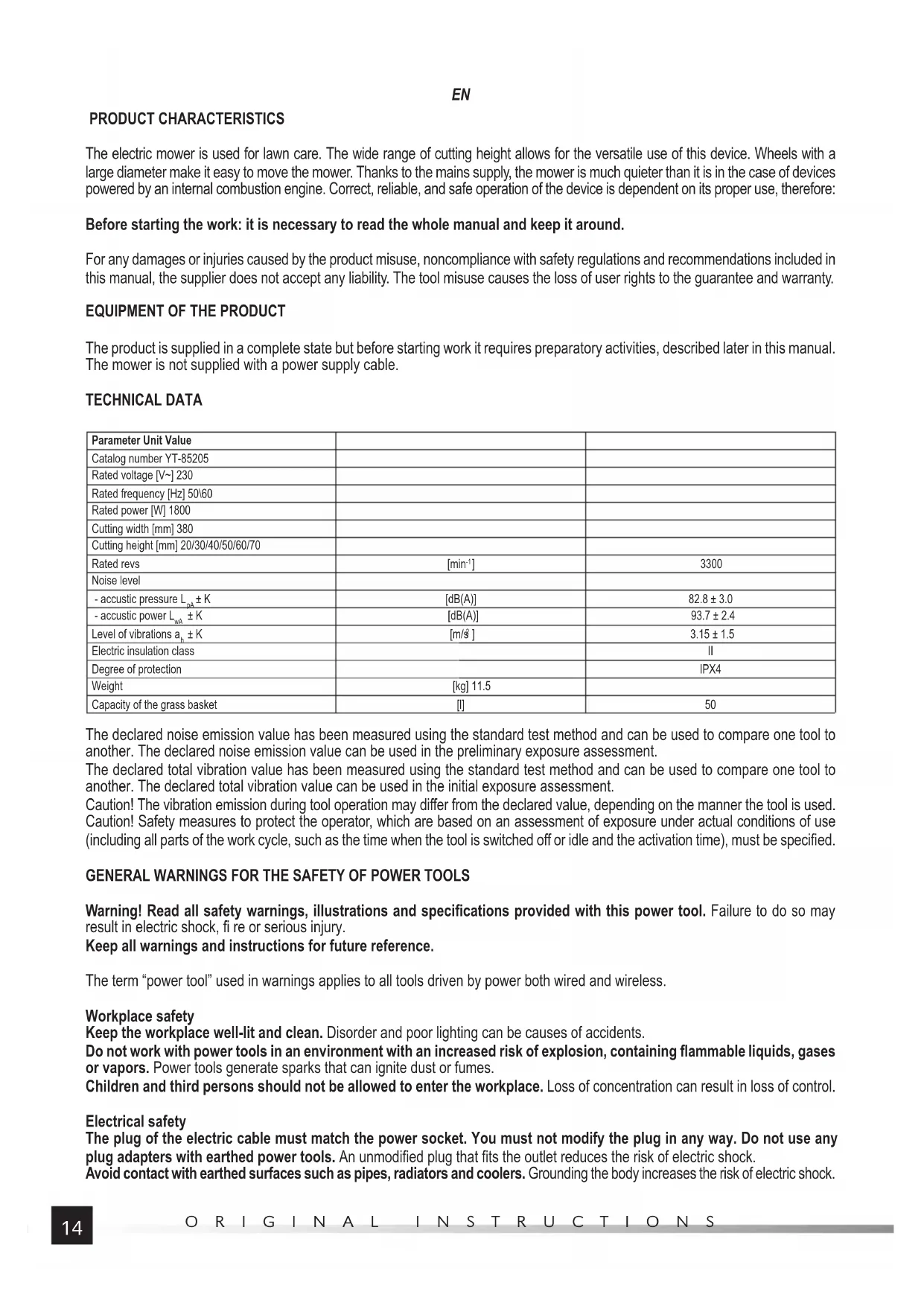

ORIGINAL INSTRUCTIONS PRODUCT CHARACTERISTICS The electric mower is used for lawn care. The wide range of cutting height allows for the versatile use of this device. Wheels with a large diameter make it easy to move the mower. Thanks to the mains supply, the mower is much quieter than it is in the case of devices powered by an internal combustion engine. Correct, reliable, and safe operation of the device is dependent on its proper use, therefore: Before starting the work: it is necessary to read the whole manual and keep it around. For any damages or injuries caused by the product misuse, noncompliance with safety regulations and recommendations included in this manual, the supplier does not accept any liability. The tool misuse causes the loss of user rights to the guarantee and warranty.

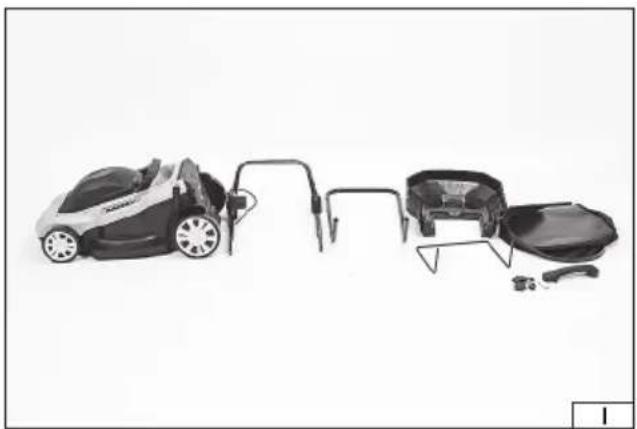

EQUIPMENT OF THE PRODUCT

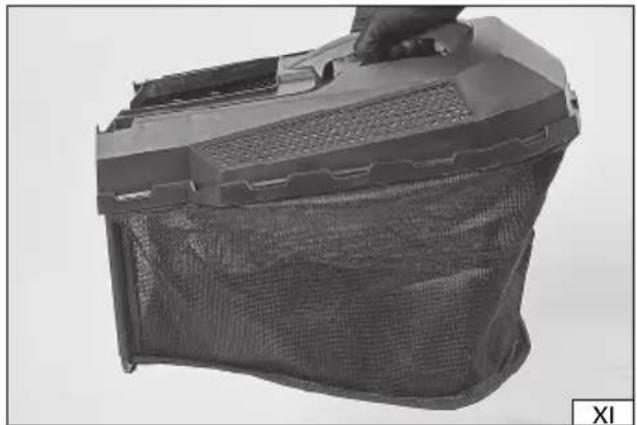

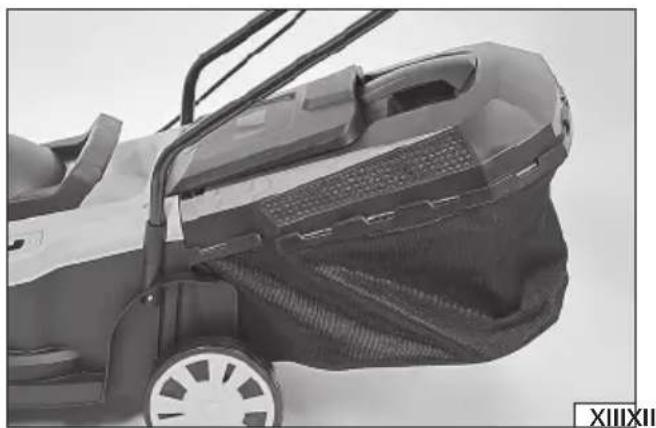

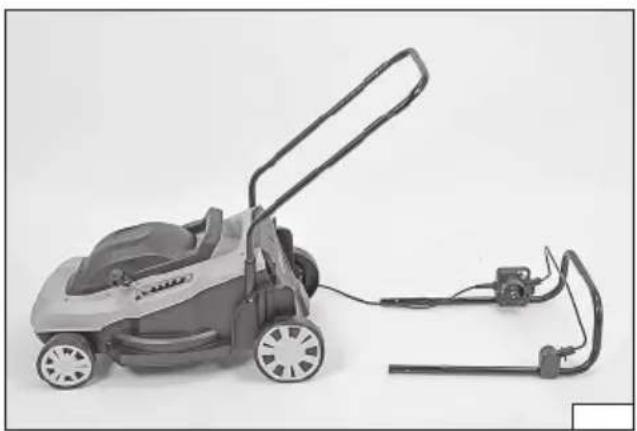

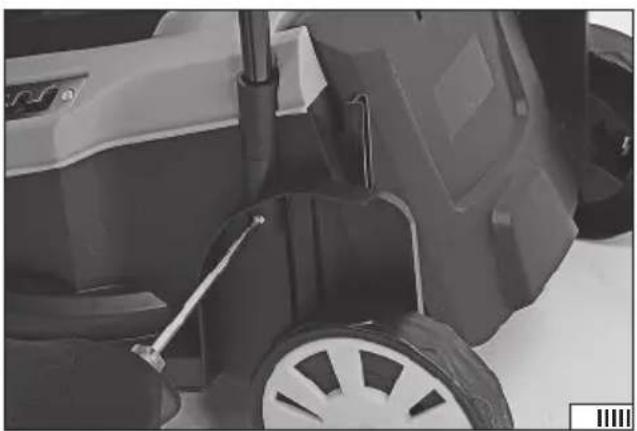

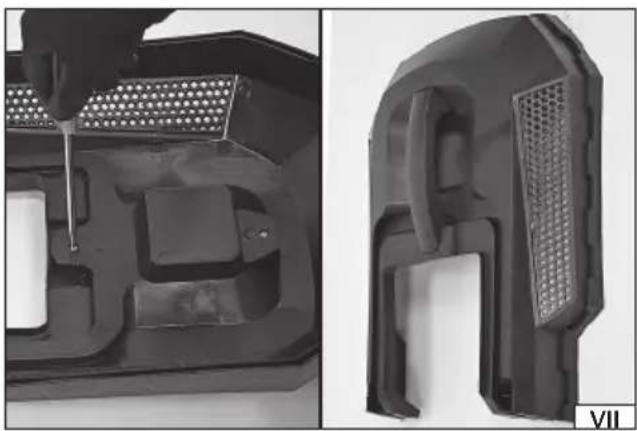

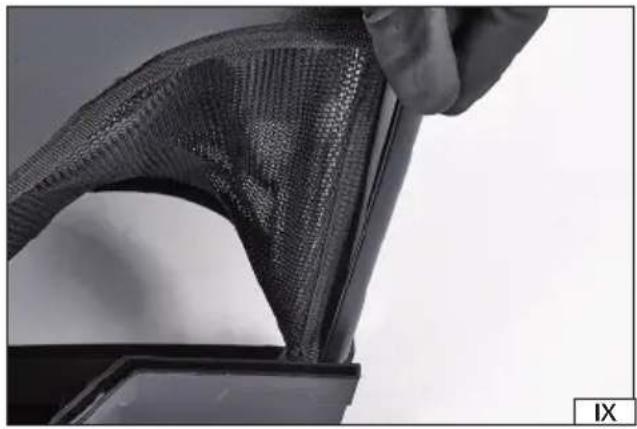

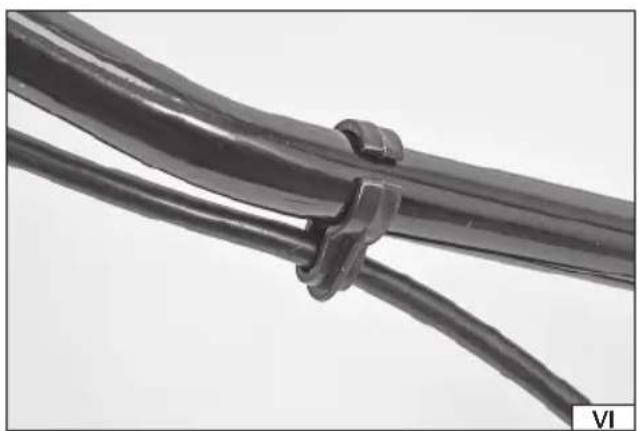

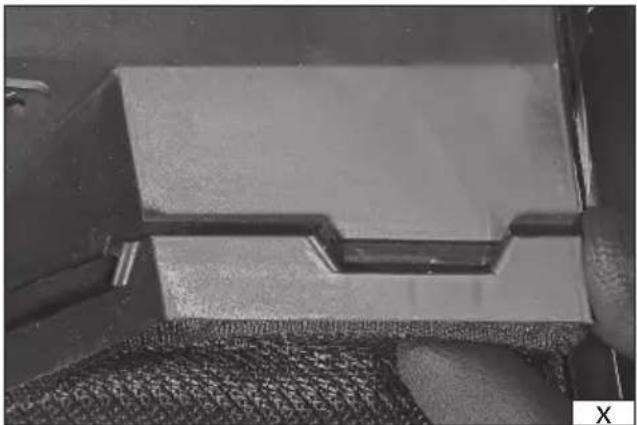

The product is supplied in a complete state but before starting work it requires preparatory activities, described later in this manual. The mower is not supplied with a power supply cable. TECHNICAL DATA Parameter Unit Value Catalog number YT-85205 Rated voltage [V~] 230 Rated frequency [Hz] 50\60 Rated power [W] 1800 Cutting width [mm] 380 Cutting height [mm] 20/30/40/50/60/70 Rated revs [min

± K [dB(A)] 82.8 ± 3.0 - accustic power L

± K [dB(A)] 93.7 ± 2.4 Level of vibrations a

] 3.15 ± 1.5 Electric insulation class II Degree of protection IPX4 Weight [kg] 11.5 Capacity of the grass basket [l] 50 The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment. The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment. Caution! The vibration emission during tool operation may diff er from the declared value, depending on the manner the tool is used. Caution! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specifi ed. GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS Warning! Read all safety warnings, illustrations and specifi cations provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury. Keep all warnings and instructions for future reference. The term “power tool” used in warnings applies to all tools driven by power both wired and wireless. Workplace safety Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents. Do not work with power tools in an environment with an increased risk of explosion, containing fl ammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes. Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control. Electrical safety The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodifi ed plug that fi ts the outlet reduces the risk of electric shock. Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.15 ORIGINAL INSTRUCTIONS

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock. Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet. Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock. In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock. When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock. Personal safety Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the infl uence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury. Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury. Prevent accidental operation. Make sure that the electric switch is in the “off ” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the fi nger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries. Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries. Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations. Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts. If the devices are fi tted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards. Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules. Carefree action can cause serious injuries in a fraction of a second. Use and care of the power tool Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will pro- vide a better and safer job if used according to the designed load. Do not use the power tool, if the electric switch does not allow switching on and off . Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair. Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool. Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may aff ect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working. Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation. Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations. Repairs Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool. Lawnmower safety warnings Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation. Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury. Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or dam-16

ORIGINAL INSTRUCTIONS aged. Worn or damaged parts increase the risk of injury. Before use, check the supply cord and any extension cord for signs of damage or aging. Do not use the lawnmower if the cord is damaged or worn. If the cord is damaged or worn during use, switch off the lawnmower and do not touch the cord before disconnecting it from the supply. A damaged supply cord or extension cord may result in electric shock, fi re and/ or serious injury. Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury. Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury. Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fi re. While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade. While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects. Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury. Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury. When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of Joss of control, slipping and falling which may result in personal injury. Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation. Keep the supply cord away from the cutting blades. A damaged supply cord may result in electric shock, fi re and/or serious injury. Switch off and remove plug from mains if the cord is entangled or damaged. Entangled or damaged cords can increase the risk of electric shock. Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts. When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the power cord is disconnected. Unexpected operation of the lawnmower may result in serious personal injury. PRODUCT SERVICE Preparation for operation The product should be unpacked from its packaging and all packaging elements should be removed. It is recommended to keep the packaging, which may be useful for transporting or storing the product. Check whether any part of the product has been damaged during transport, any damage observed, e.g. cracks or deformations, disqualify the product from further use until damaged parts are repaired or replaced. It is recommended to place all parts on a fl at, hard and clean ground. During assembly you should apply the personal protection equipment, such as protective gloves, eye shield, and protective suit. Attention! Before installing the mower, make sure that the mower has not been connected to the power supply. The power cable must be disconnected from the mower switch. The lower part of the handle bracket should be inserted into the hole near the rear wheels and secured with the screws (II). Make sure, that both ends have been immobilized with screws, and the transverse part of the bracket is parallel to the ground (III). Adjust the upper part of the handle bracket to the lower parts and connect with screws and knobs (IV). The knobs should be directed to the outside of the handle bracket, and the handle should point upwards (V). Fasten the switch cable to the handle bracket with a clamp (VI). The position of the bracket should be adjusted that the cable will not be strained, but at the same time, it will not protrude too much from the bracket. A cable that is too protrusive can catch an obstacle (eg a bush) during operation, which may be the cause of its damage and constitute a risk of electric shock. Mount the basket handle to the top wall of the basket using screws (VII). Turn over the top cover and fi x the frame of the fl exible part of the basket (VII) with screws and washers. The fl exible part of the basket should be attached to the frame and the top wall of the basket. The front edge of the elastic part has clamps, which should be put on the frame (IX). The upper edge of the elastic part has stiff ening and latches, which should be fi xed in the holes of the upper wall of the basket (X). Grab the basket by the handle and lift it, checking the correctness of assembly (XI). Mount the grass basket to the mower housing. Raise the cover of the outlet opening, hold the lid in its maximum upper position and mount the basket on the hooks on the back wall of the mower housing (XII). Leave the lid so that it covers the hole in the upper wall of the basket (XIII). Disassembly of the basket can be carried out in reverse order. The mower with the mounted basket is ready for operation.17 ORIGINAL INSTRUCTIONS

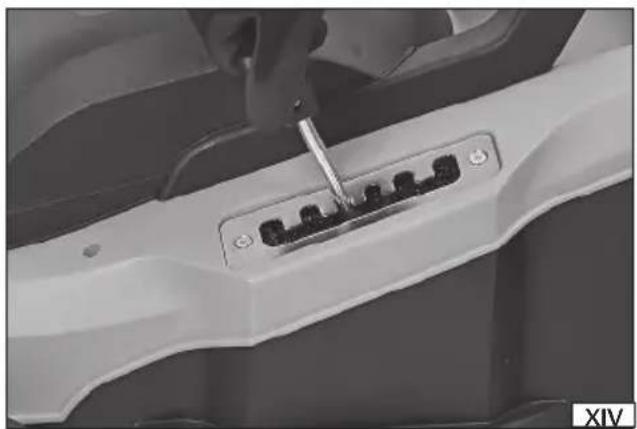

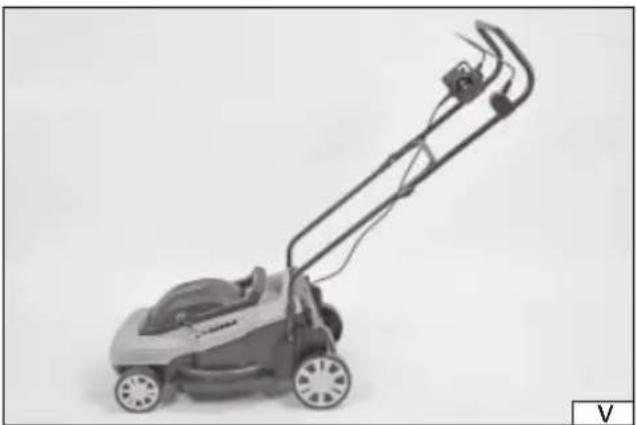

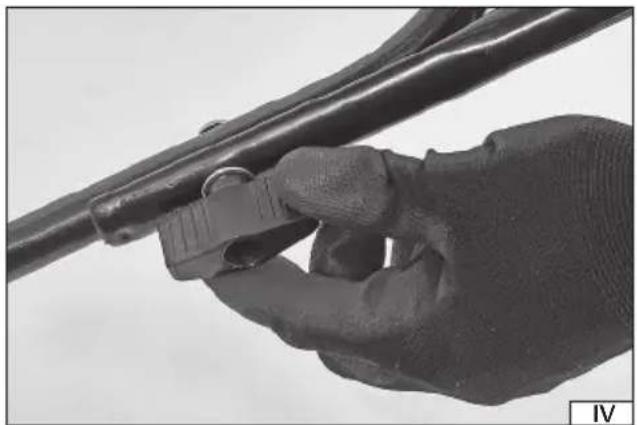

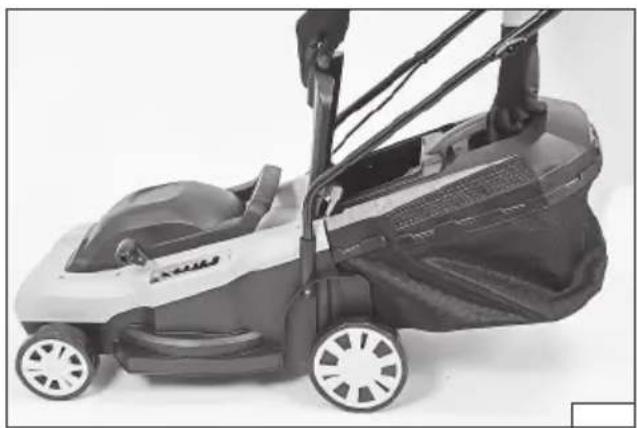

Setting the cutting height (XIV) The mower has been equipped with a lever, which allows changing the cutting height in an easy and fast way. The lever should be moved to the side, sliding it out of the guide socket. Then you should move it forward or back and after setting the desired height, move the lever to the side, blocking its position in the guide slot. Moving the lever towards the front of the mower will increase the cutting height, and moving in the opposite direction reduces the cutting height. Warning! If it is necessary to change the height during operation, you should always switch off the mower fi rst, wait for the knife to stop, disconnect the mower from the power cord and then start working on changing the cutting height. Accidental operation of the knife during a height setting can result in serious injury. Connecting the mower to the power supply The mower is not equipped with a traditional plug attached to the power cable. The plug is rigidly attached to the switch, therefore, a mower with a mains socket must be connected by using an external cable. Due to the nature of the mower work, you should always use cables designed for outdoor operation. The power cable should have a single socket that matches the plug in the mower. It is forbidden to modify the plug or socket to match them. The electrical parameters of the power cable should correspond to the electrical parameters of the device, which are listed on the nameplate. Please pay attention, that the size of the wires cross-section area of the power cable depends on the length of the cable. You should observe the following recommendations regarding the cross-section area of the power cable: - 1.0 mm

- cable length no more than 60 m, - 2.5 mm

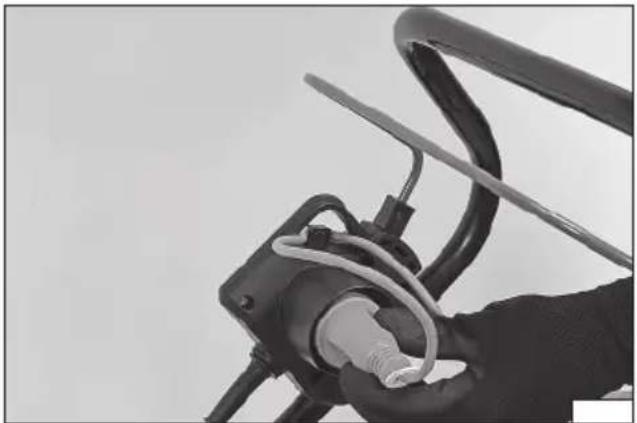

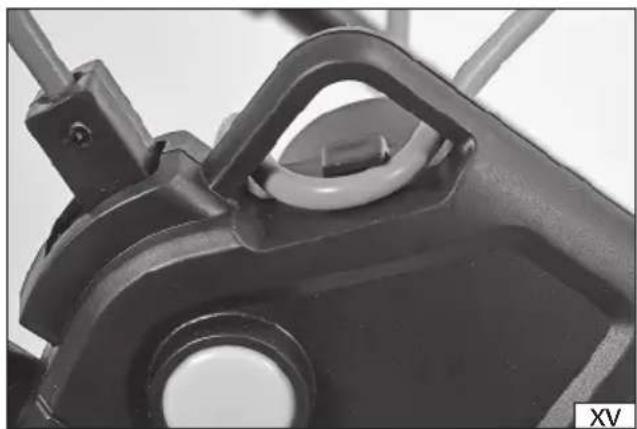

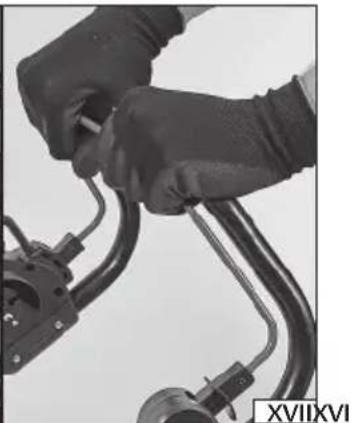

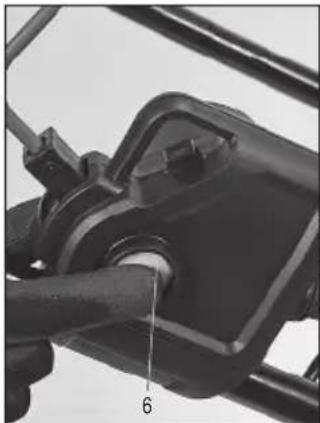

- cable length no more than 100 m. When preparing for work and during work, pay attention to the power cable. Protect the power cable from water, moisture, oils, heat sources and sharp objects. You should lay the cable in such a way, that it cannot to get into the operating range of the mower blade. Cutting the cable may cause an electric shock which can lead to serious injury or death. Please pay attention, to do not get tangled in the cable. It may cause a fall and may lead to serious injuries. Do not overload the power cable, do not lead to the condition when the cable will be tensioned on any section. Do not pull on the cable while moving the device. Always disconnect the plug and the cable socket by pulling the plug and the socket case, never pull by the cable. The mower switch housing has been equipped with a catch, which protects the power cord socket against being pulled from the switch plug. You should prepare a loop about 30 cm long near the cable socket, put it through the hole in which the hook is located and attach it (XV). Connect the cable socket to the switch plug (XVI). Please pay attention, that the cable does not break down, nor it is stretched. If necessary, disconnect the cable from the plug, extend the loop and connect again. Starting and stopping the mower The mower should be placed on a fl at, even and hard ground. Make sure, that there are no obstacles under the mower that the blade can come into contact with. Make sure, that the power cord will not come into contact with the blade when the device will be started. The switch has been equipped with a lock, which prevents accidental switching on of the device when pressed on the switch. Press and hold the lock button (XVII), and then pull the switch lever to the handle. This will start the rotation of the blade. Release the pressure on the switch lock and grip the handle (XVII) with both hands. Releasing the pressure on the switch lever will cause the mower to stop working. The blade can still spin for some time. Working with a mower Before starting work, the place to mow grass should be prepared. Check that the mowing area does not contain any obstacles, which, caught by the blade, could damage the mower or be thrown out and pose a threat to the operator or bystanders. Check that there are no electric wires in the workplace, which can be cut by the blade. Damage to the electric cable constitutes a risk of electric shock, which can lead to serious injury or death. You should make sure that no unauthorized persons or domestic animals remain in the workplace. In the event of such persons appearing while working, you must stop the mower immediately, and then warn people about the threat. Check the length of the grass and select the cutting height. Never cut more than 1/3 of the length of the grass. If the grass is very high, it should be cut in stages. Mowing should be carried out regularly, making sure that the height of the grass does not exceed the capacity of the mower. Never cut wet grass. Wet grass tends to stick to the inside of the product, which disturbs its accumulation in the basket. Wet grass can also cause slipping and falling. Check all mower parts before starting work. If damages are noticed do not start the mower operation before fi xing damages or replacing damaged items with new ones. Check the patency of the ventilation openings. If it is necessary, you should clean them with a soft brush or paintbrush. Do not use sharp or metal objects to clean the mower ventilation openings. Check screw connections for looseness. Tighten if it is necessary.18

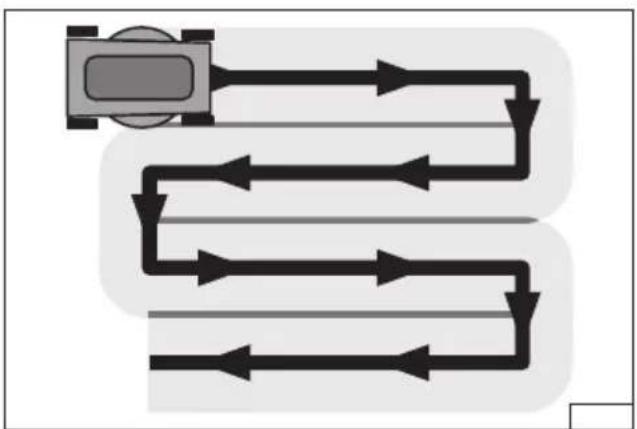

ORIGINAL INSTRUCTIONS Check whether the handles are clean, free of grease and other contaminants. If it is necessary, clean them with a soft cloth. You should take regular breaks at work, to avoid fatigue and overwork. This will allow to achieve better product control and reduce the risk of an accident. Attention! The mower should always be pushed during work, never pulled towards its operator. Pulling the mower causes that the operator walks back, what causes, that she/he does not control the area behind her/him. In addition, when pulling back the mower, the blade can catch the power cord. The mower should be slowly pushed, always walk, never run. This will give you more control of the mower and reduce the re- sponse time for unexpected events. When mowing, you should move by rows (XVIII). The rows should be kept equal width, slightly overlapping so that any place will be left. You should take special precautions when you are changing the mowing direction. You should ensure that you start mowing from the side of the electrical connection. This will reduce the risk of running on the power cord. When you are cutting grass near fl owerbeds, you should move around the fl ower beds. During work, you should regularly empty the basket. After fi nishing work, turn the mower off , wait until the blade stops, then disconnect the power cable and wait for the mower to cool down, then proceed to maintenance. Attention! If a foreign object strikes the mower while it is working. You should turn the mower off immediately, wait until the blade stops, then disconnect the power cable and wait for the mower to cool down. Then you should check that the mower is not damaged. If damages are detected, further work is prohibited before they are fi xed. Excessive vibration during operation can be caused by mower damage. You should stop working, disconnect the power cord and check the product.

MAINTENANCE OF THE PRODUCT

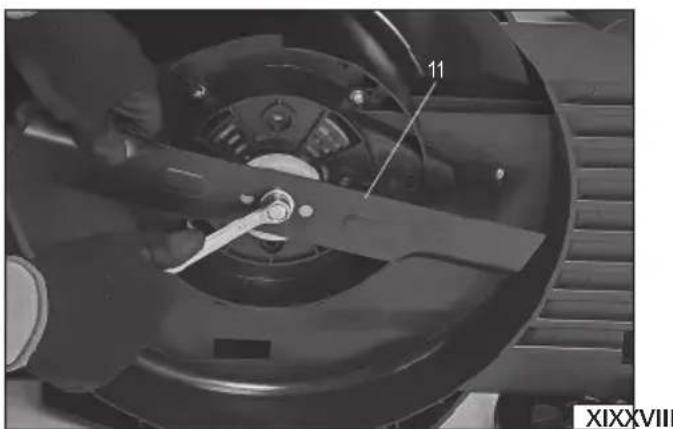

Attention! Before starting every maintenance, you should make sure that the product has been disconnected from the power supply. The power cable must be disconnected from the mower. During all maintenance operations, always use protective gloves. If any maintenance operation is not described in the instructions, this means that it should be carried out at the authorized service of the manufacturer. The product should be cleaned after each use. Remove grass residue with a soft brush, brush or cloth. Clean the ventilation holes to ensure their patency. Any dirt, which is diffi cult to remove can be removed with a stream of air with a pressure of not more than 0.3 MPa. You should never use chemicals, alkaloids, abrasive or aggressive detergents for cleaning the product. The product cannot be cleaned with a water stream or by submerging it in water. Check the degree of wear and the presence of damages of the mower blade. If excessive wear or damage is observed, the blade should be replaced with a new one. Always replace the blade with original one, identical to that which has been mounted in the factory on the mower. Only the use of original spare parts will allow you to keep the product safe. The replacement of the blade should be carried out by an experienced user. If you are in doubt, please contact the authorized service center of the manufacturer. Use a wrench to unscrew (counter-clockwise) the blade fi xing screw (XIX) and to disassemble it together with the washer. Remove the old blade. If it is necessary, clean the blade holder. Install a new blade paying attention to the direction of the blade. The arrow indicating the direction of rotation of the blade should correspond to the direction of rotation of the motor. Mount the blade by tightening the screw (clockwise) with a torque of 55-60 Nm. After each use and cleaning of the blade, cutting edges should be covered with a thin layer of light machine oil. This will reduce corrosion and prolong the life of the blade. The blade should be replaced every two years or every 50 hours of work. After each work, remove the grass catcher and empty it from the grass. The basket can be cleaned with lukewarm soapy water. After cleaning, leave it to dry in the working position. If the internal cable, which is connecting the product switch to the motor, breaks down it should be replaced at the authorized service workshop of the manufacturer. The cable may not be repaired, it should be replaced. It is forbidden to work with a damaged cable.

STORAGE AND TRANSPORT OF THE PRODUCT

Attention! Always unplug the product from the power supply before storage or transport. Clean according to instructions. Store in dark, dry, free of frost and well-ventilated rooms. The storage place should protect against access by children. The product should be stored at a temperature between 10, and 30

C. It is recommended to store the product in a factory packaging or in a diff erent packaging that will protect it from dust. The highest cutting height must be set before transporting the product. Transport the product by carrying it by its handles. During transport, the product should be protected against impacts and strong vibrations. Protect the product against slipping or tipping over during transport.19 ORIGINALANLEITUNG

PRODUKTA APKALPOŠANA

EQUIPEMENT DU PRODUIT

DECLARATION OF CONFORMITY

(Name and signature of authorized person) (Place and date of issue) We declare and guarantee with full responsibility that the following products: meet requirements of the following European Standards / Technical Specifications: and fulfill requirements of the following European Directives: 2006/42/EC Machinery and safety elements 2014/30/EU Electromagnetic compatibility (EMC) Directive 2011/65/EU Restriction of the Use of Certain Hazardous Substances Serial number: concern all serials numbers of item(s) mentioned in this declaration The person authorized to compile the technical file: Tomasz Zych TOYA S.A., ul. Sołtysowicka 13 - 15, 51-168 Wrocław, Polska

DECLARATION OF CONFORMITY

We declare and guarantee with full responsibility that the following products: fulfil requirements of the following European Directive: 2000/14/WE conformity and references of the other Community Directives applied: 2006/42/EC Machinery and safety elements 2014/30/EU Electromagnetic compatibility (EMC) Directive 2011/65/EU Restriction of the Use of Certain Hazardous Substances 0824/YT-85205/EC/2024 Manufacturer quality-control system, examination of the manufacturer’s technical file and periodical inspection by notified body Notified body: TÜV SÜD Industrie Service GmbH; notification no. 0036 Westendstraße 199, 80686 München, Germany Wrocław, 2024.08.12

; 380 mm; item no. YT-85205 Conformity assessment procedure: Measured sound power level on an equipment representative for this type: 93,7 dB(A) Guaranteed sound power level for this equipment: 96 dB(A)INSTRUKCJA ORYGINALNA
