LEDA7002NWB - Lighting Perel - Free user manual and instructions

Product type	Outdoor LED projector with motion detector
Brand	Perel
Model	LEDA7002NWB
Housing color	Black
Protection rating	IP65 (weatherproof)
Nominal power	20 W
Nominal voltage	220-240 V~, 50 Hz
Power factor	>0.9
Energy consumption	0.02 kWh/1000 h
Light color	Neutral white (4000 K)
Luminous flux	700 lm
Beam angle	120°
Color rendering index (CRI)	>80
Start-up time	<0.5 s
Warm-up time (60% of flux)	<1 s
Nominal lifetime	25,000 h
Number of switching cycles	<1 s (fast cycles)
Dimensions (L x W x H)	147.1 x 130.8 x 52.2 mm
Weight	Approximately 0.5 kg (estimated)
Recommended mounting height	0.5 to 3.0 m
Light source	Not replaceable (replace entire unit)
Use with dimmer	Not compatible
Maintenance	Clean with a soft cloth and mild detergent; do not immerse
Repairability	No user-serviceable parts; repair by qualified technician
Warranty	24 months (Velleman general conditions)

Frequently Asked Questions - LEDA7002NWB Perel

What is the IP protection rating of this projector?

The protection rating is IP65, which means it is fully protected against dust and resistant to water jets. It can therefore be used outdoors.

Can I replace the LED bulb?

No, the light source is not replaceable. When it reaches the end of its life (approximately 25,000 hours), the entire unit must be replaced.

Is this projector compatible with a dimmer?

No, this device is not suitable for use with a dimmer. It must be connected directly to the mains 220-240 V~.

What is the minimum distance between the projector and the illuminated surface?

Maintain a minimum distance of 1 meter between the light output and the illuminated surface.

How to install the projector?

Fix it to a stable, non-flammable exterior wall at a height of 0.5 to 3.0 meters. Use the provided mounting bracket. Ensure the power cable is not too taut and respect the connections: L (brown), N (blue), E (yellow/green). Do not install upside down.

What to do if the power cable is damaged?

The cable must be replaced by the manufacturer, its technical service, or any other qualified person to avoid any danger.

Can I use this projector indoors?

Yes, it can be used indoors, but it is designed for outdoor use. However, it is not suitable for lighting a living space.

How to clean the projector?

Unplug it and let it cool down. Use a soft cloth with a mild detergent. Never immerse it in water or use solvents.

What to do if the protective glass is cracked?

Do not use the device. Unplug it from the mains. The protective plate is not replaceable: the entire unit must be replaced.

What is the lifetime of this projector?

The nominal lifetime is 25,000 hours. Beyond that, the brightness may decrease.

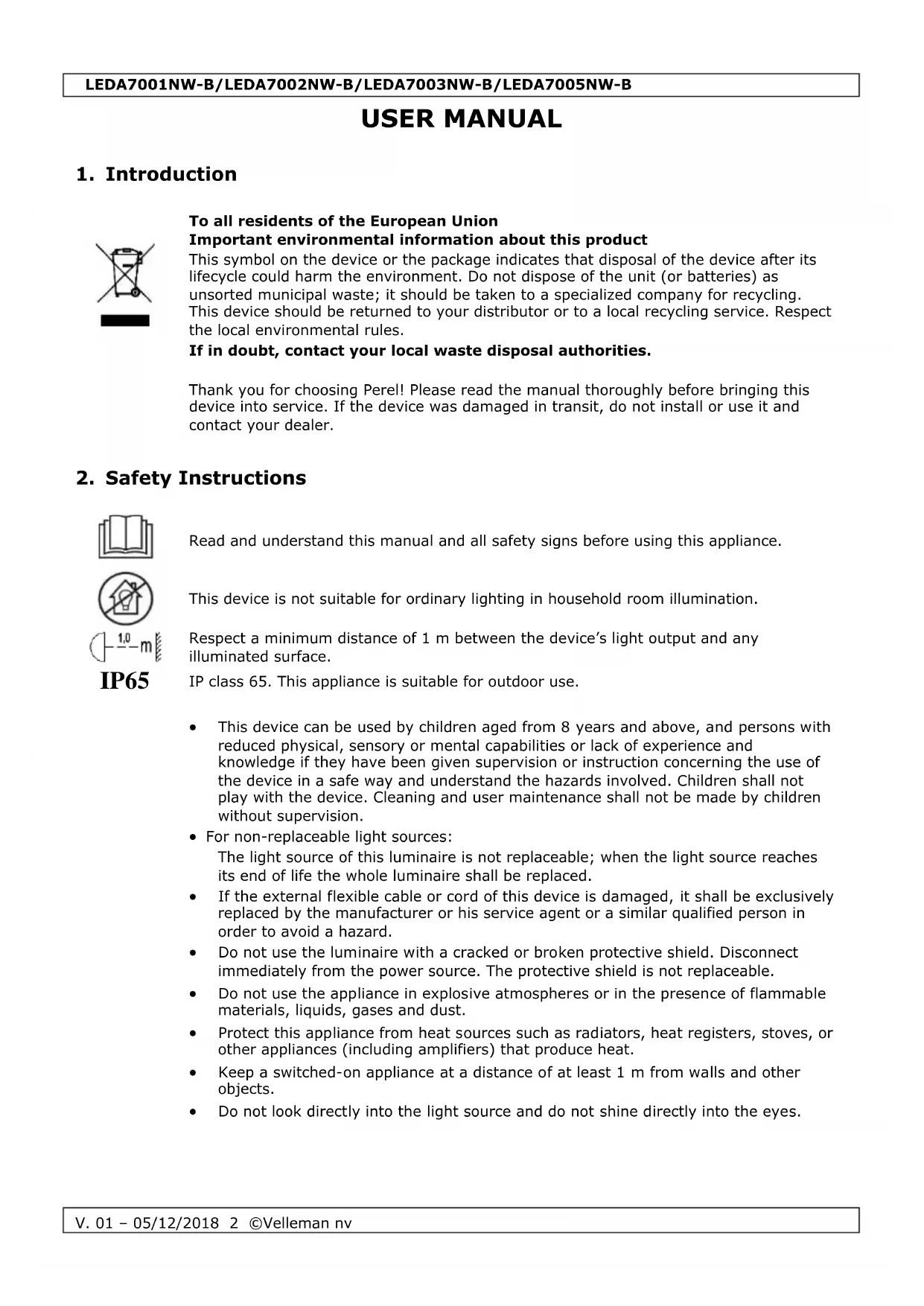

USER MANUAL LEDA7002NWB Perel

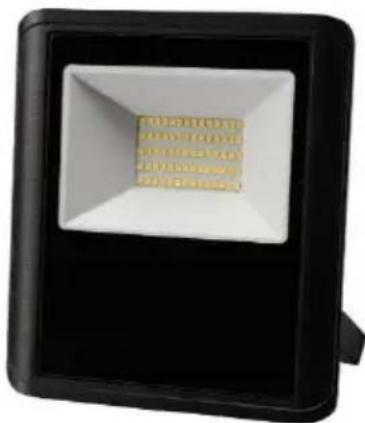

Black square light fixture with a grid of 10 LED lights inside (no text or symbols visible)

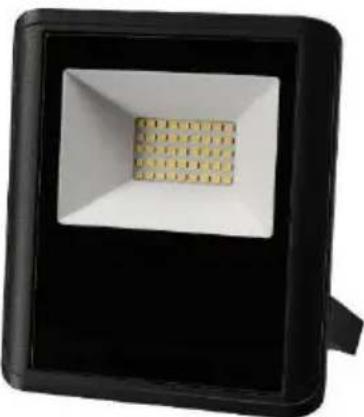

Black square light fixture with a grid-patterned central grille (no text or symbols visible)

Black square light fixture with a grid-patterned central component (no text or symbols visible)

Black square light fixture with a white interior and a small grid of gold-colored components (no text or symbols visible)

USER MANUAL 2

HANDLEIDING 7

MODE D'EMPLOI 12

MANUAL DEL USUARIO 17

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

This device is not suitable for ordinary lighting in household room illumination.

Respect a minimum distance of 1 m between the device's light output and any illuminated surface.

IP65

IP class 65. This appliance is suitable for outdoor use.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• For non-replaceable light sources:
  The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
• If the external flexible cable or cord of this device is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
• Do not use the luminaire with a cracked or broken protective shield. Disconnect immediately from the power source. The protective shield is not replaceable.
• Do not use the appliance in explosive atmospheres or in the presence of flammable materials, liquids, gases and dust.
• Protect this appliance from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• Keep a switched-on appliance at a distance of at least 1 m from walls and other objects.
• Do not look directly into the light source and do not shine directly into the eyes.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Installation

Guidelines

• The construction to which the device is attached should be able to support 4 times the weight of the device for one hour without deformation.
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
• Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in serious injuries.
• This device is not suitable for dimming.

Distances

• Keep at least 20 cm distance at the top and 30 cm on either side.
• Respect a minimum distance of 1 m between the device's light output and any illuminated surface.

Location

• You can adjust the detection area according to your needs: turn the device to the left or right and aim it up or down. Note that the detector is much more sensitive to objects moving across the detection area than it is to objects coming straight at it. This is a very important consideration when selecting the mounting location.
• Please avoid installing the floodlight upside-down in order to ensure its watertightness.
• The floodlight should be fixed to a stable outdoor wall made of a non-flammable material approximately between 0.5-3.0 m above the ground and at an angle of ±60^ , preferably in a location under eaves where the unit is protected from the elements and shielded from direct sunlight.
• Do not block the front of the detection window and make sure the detection area holds no moving objects.
• Do not install the device close to air conditioning vents, radiators, etc.

Mounting

1. This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed. Use the mounting bracket to determine the location of the mounting holes.

2. Drill the holes and secure the bracket using screws and wall plugs.

3. Connect the power cable to the screw terminal. Make sure there is no strain on the cable; leave sufficient slack.

E N L

N = neutral, blue

E = earth, yellow/green

L = line, brown

If the power cable is damaged, it must be replaced by the manufacturer, his service agent, or a similar qualified person in order to avoid any hazard.

1. To point the lamp in the desired direction: loosen the hinges using a screwdriver.

2. Tilt the lamp in the desired angle and tighten the hinges.

5. Care and Maintenance

Storage

Store the appliance and its accessories in a clean and dry area.

Cleaning

Before starting any cleaning or maintenance activities, unplug the appliance from its power source and let it cool down.

Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

Maintenance

All repairs should only be carried out by qualified service personnel. Do not open exterior casing of the appliance. There are no user-serviceable parts inside. Opening or visible attempts to open or repair the appliance may void any guarantee and/or cause damage to the product or personal injury.

6. Technical Specifications

	LEDA7001NW-B	LEDA7002NW-B
body colour	black
electrical data
total nominal power	10 W	20 W
nominal voltage driver	220-240 V~, 50 Hz
power factor	>0.9
energy consumption	0.01 kWh/1000 h	0.02 kWh/1000 h
light technical data
colour	neutral white
colour temperature	4000 K
beam angle	120°
luminous flux	700 lm	1400 lm
colour rendering index	>80
starting time	<0.5 s
warm-up time (60 %)	<1 s
lifespan
nominal life time	25000 h
number of switching cycles	<1 s
dimensions	127.9 x 113.4 x 52 mm	147.1 x 130.8 x 52.2 mm
	LEDA7003NW-B	LEDA7005NW-B
body colour	black
electrical data
total nominal power	30 W	50 W
nominal voltage driver	220-240 V~, 50 Hz
power factor	>0.9
energy consumption	0.03 kWh/1000 h	0.05 kWh/1000 h
light technical data
colour	neutral white
colour temperature	4000 K
beam angle	120°
luminous flux	2100 lm	3500 lm
colour rendering index	>80
starting time	<0.5 s
warm-up time (60 %)	<1 s
lifespan
nominal life time	25000 h
number of switching cycles	<1 s
dimensions	166.3 x 147.6 x 56.3 mm	188 x 166.8 x 56.3 mm

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

E = aarding, geel/groen

L = fasedraad, bruin

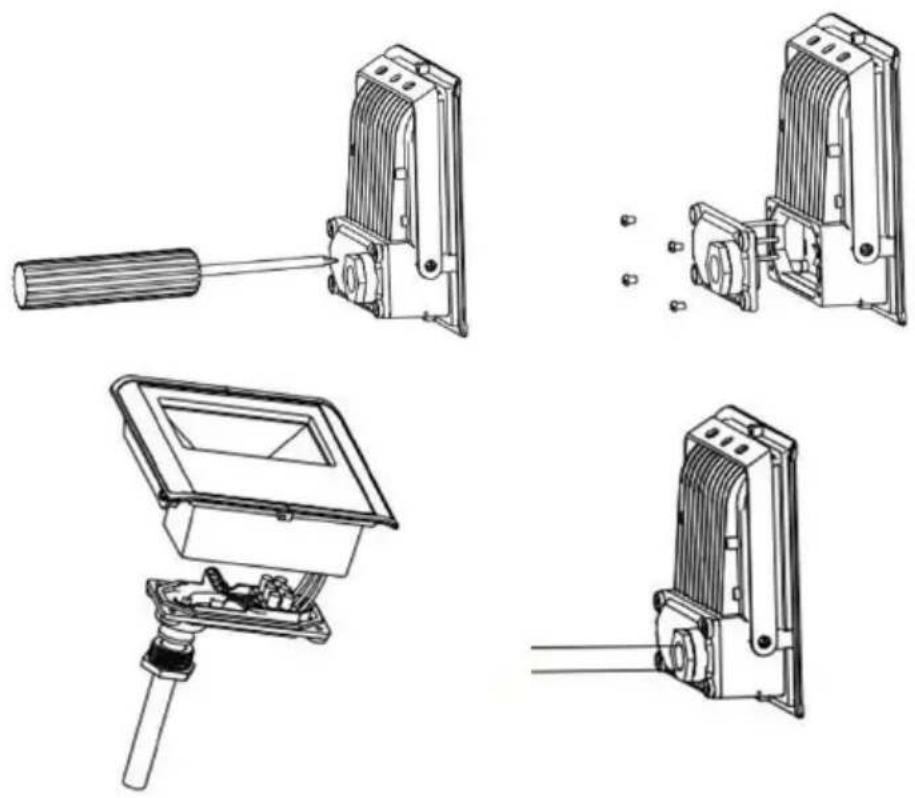

Technical line drawings of four different mechanical components or assemblies, including a screwdriver and a lamp-like device (no text or symbols present)

E N L

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
